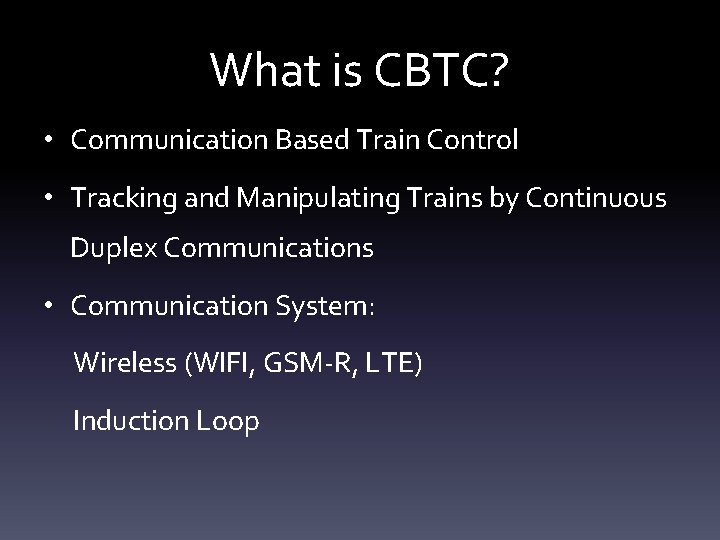

What is CBTC? • Communication Based Train Control • Tracking and Manipulating Trains by Continuous Duplex Communications • Communication System: Wireless (WIFI, GSM-R, LTE) Induction Loop

CBTC vs. ETCS/CTCS CBTC ETCS L 2/CTCS L 3 Block System Moving Block Quasi-Moving Block Headway Less than 1. 5 min 3 min Operational Speed Less than 100 km/h Up to 350 km/h Cost 8 million/km 1. 5 million/km The Next Generation Signaling System NG-CBTC Carborne Centralized CBTC ETCS L 3/CTCS L 4

Architecture of CBTC System HMI WS ATS ZC ATP ATO CI LEU Balise Wayside Centralized CBTC System HMI

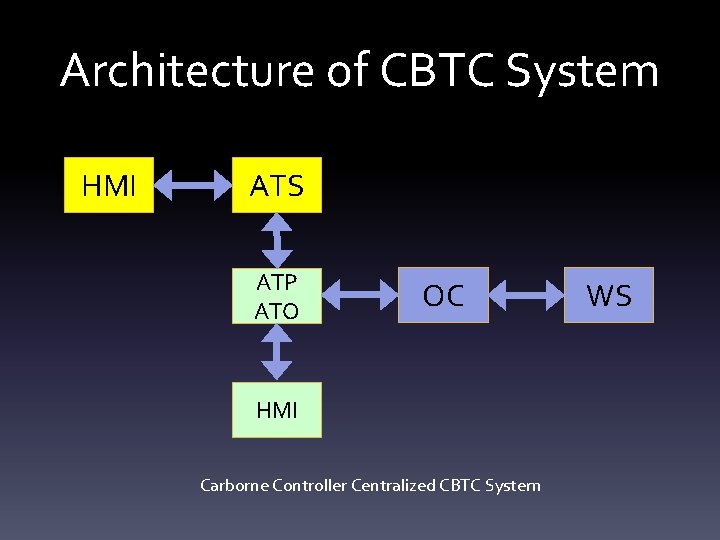

Architecture of CBTC System HMI ATS ATP ATO OC HMI Carborne Controller Centralized CBTC System WS

CC vs. WS Centralized CBTC System • Wayside Centralized CBTC System Multi levels backup mode, fault isolation Less data in CC, more interoperability Mass wayside equipment, cost is higher

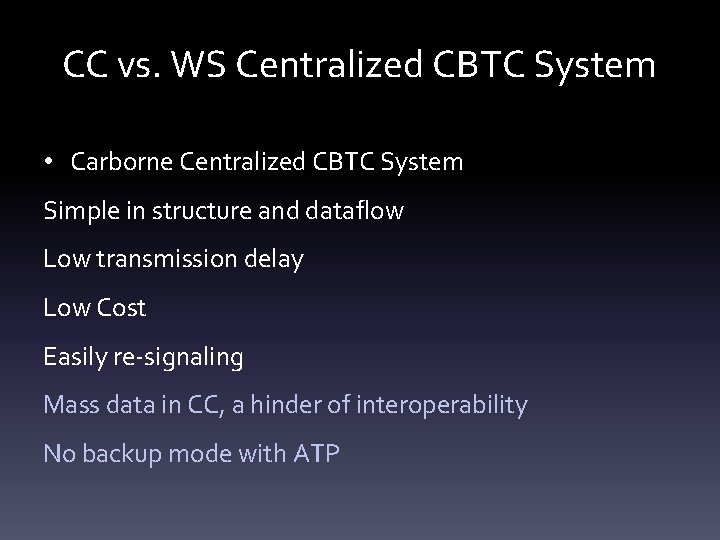

CC vs. WS Centralized CBTC System • Carborne Centralized CBTC System Simple in structure and dataflow Low transmission delay Low Cost Easily re-signaling Mass data in CC, a hinder of interoperability No backup mode with ATP

Constituent of CBTC System • Type 1: High Safety and Real-time CI, ZC, ATP/ATO, LEU, DSU, OC • Type 2: Medium Safety and Real-time ATS, ISCS • Type 3: Non-safety and Real-time HMI (ATS, CI, MMI, ISCS)

Constituent of CBTC System • Type 1: High Safety and Real-time Embedded Safety Platform (2 x 2002, 3002, hot-standby) Embedded Distributed Real-time Database • Type 2: Medium Safety and Real-time COTS based Safety Platform (hot-standby, private cloud) Distributed Real-time Database Universal Configuration Software (SCADA) • Type 3: Non-safety and Real-time Universal HMI Library

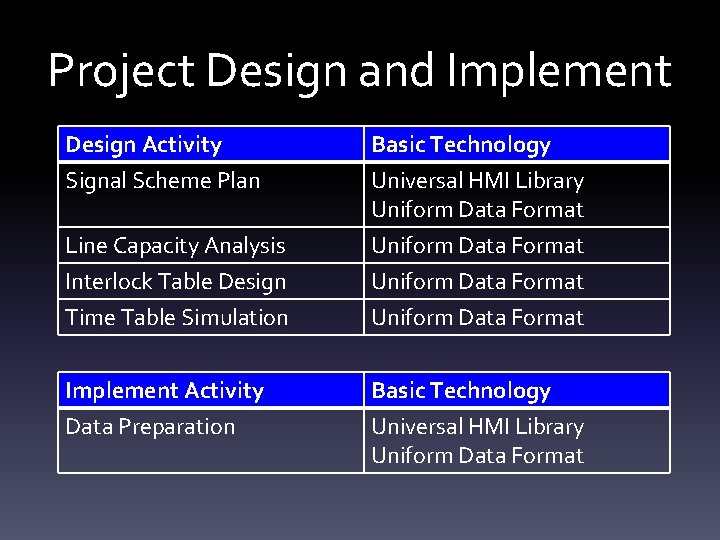

Project Design and Implement Design Activity Signal Scheme Plan Basic Technology Universal HMI Library Uniform Data Format Line Capacity Analysis Interlock Table Design Time Table Simulation Uniform Data Format Implement Activity Data Preparation Basic Technology Universal HMI Library Uniform Data Format

Simulation Testing • Enclosed Code Based Simulation Platform • Virtualization • Software Defined Network (SDN)

Integration Project Management • Project Management Information System Project Modeling • Configuration Management System Project Documents Specification->Sketch Design->Detailed Design->Code Integration Test Case->Unit Test Case Branch Management / Version Graph

Integration Project Management • Test Management System Bug Tracing • Continuous Release Automatic Compiling

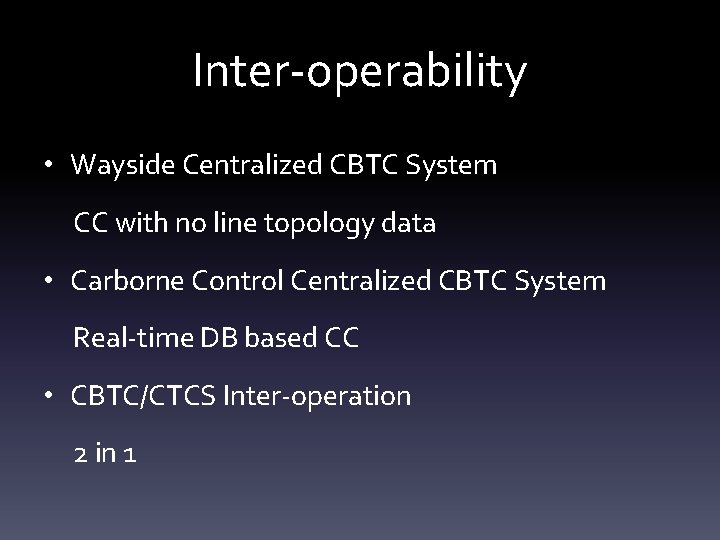

Inter-operability • Wayside Centralized CBTC System CC with no line topology data • Carborne Control Centralized CBTC System Real-time DB based CC • CBTC/CTCS Inter-operation 2 in 1
