TRACING THE GHOSTS OF CYBER WORLD ! DEFCON BANGALORE 17 Aug, 2013 Daniel Singh Daniel@techngeeks. com

About the Presenter • CISO @ Tech. NGeeks • Security Researcher • Cyber Security Evangelist • C|EH, E|CSA

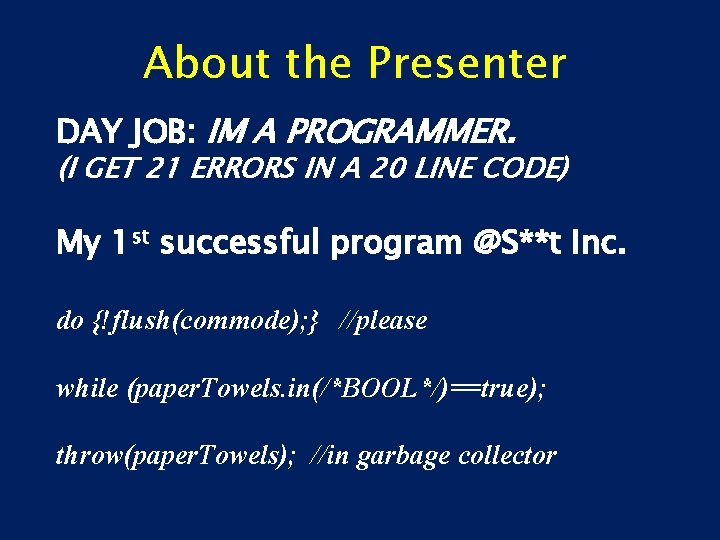

About the Presenter DAY JOB: IM A PROGRAMMER. (I GET 21 ERRORS IN A 20 LINE CODE) My 1 st successful program @S**t Inc. do {!flush(commode); } //please while (paper. Towels. in(/*BOOL*/)==true); throw(paper. Towels); //in garbage collector

About the Presenter BY NIGHTFALL: Transform into 1337 h 4 x 0 r My TO DO LIST !!!

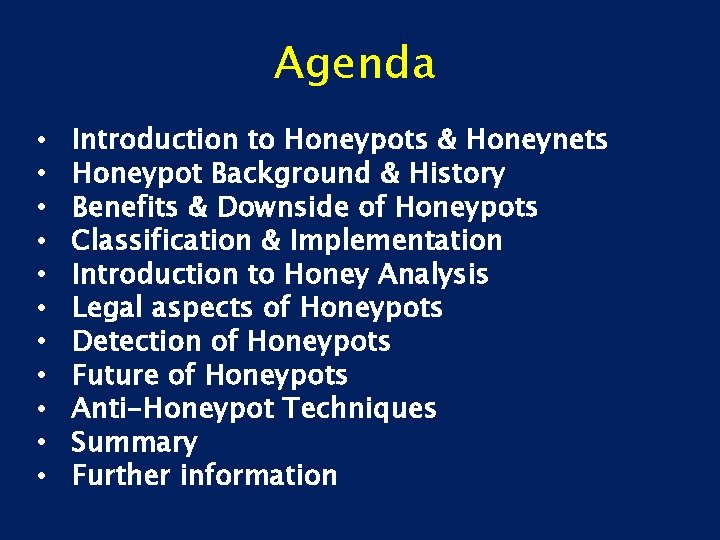

Agenda • • • Introduction to Honeypots & Honeynets Honeypot Background & History Benefits & Downside of Honeypots Classification & Implementation Introduction to Honey Analysis Legal aspects of Honeypots Detection of Honeypots Future of Honeypots Anti-Honeypot Techniques Summary Further information

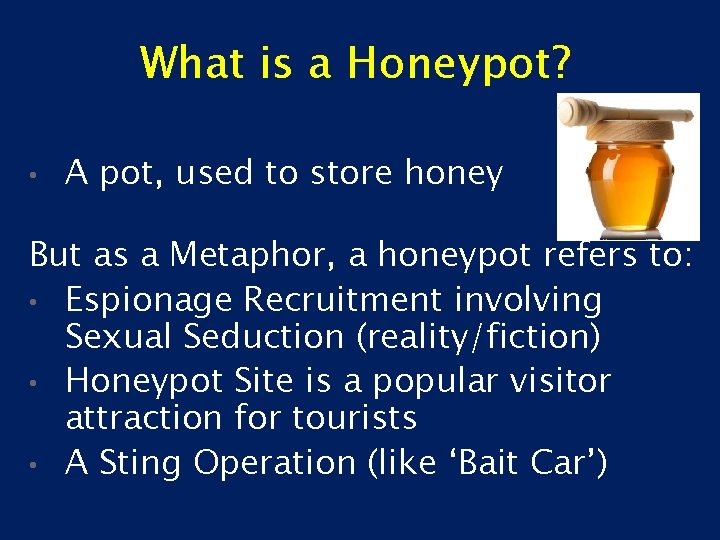

What is a Honeypot? • A pot, used to store honey But as a Metaphor, a honeypot refers to: • Espionage Recruitment involving Sexual Seduction (reality/fiction) • Honeypot Site is a popular visitor attraction for tourists • A Sting Operation (like ‘Bait Car’)

What is a Honeypot? • Honeypot (noun), An esoteric slang used to refer to Physically attractive women under 30 years of age who exude a measure of restrained yet potent sexuality

Background • Term originated from the Military • Its a Fake target for ambush • Here it is used in Network Security Environment

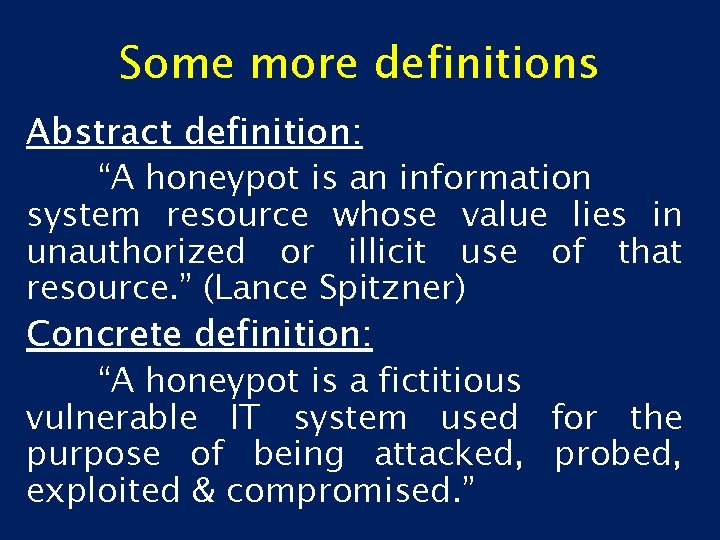

Some more definitions Abstract definition: “A honeypot is an information system resource whose value lies in unauthorized or illicit use of that resource. ” (Lance Spitzner) Concrete definition: “A honeypot is a fictitious vulnerable IT system used for the purpose of being attacked, probed, exploited & compromised. ”

What Honeypot actually is?

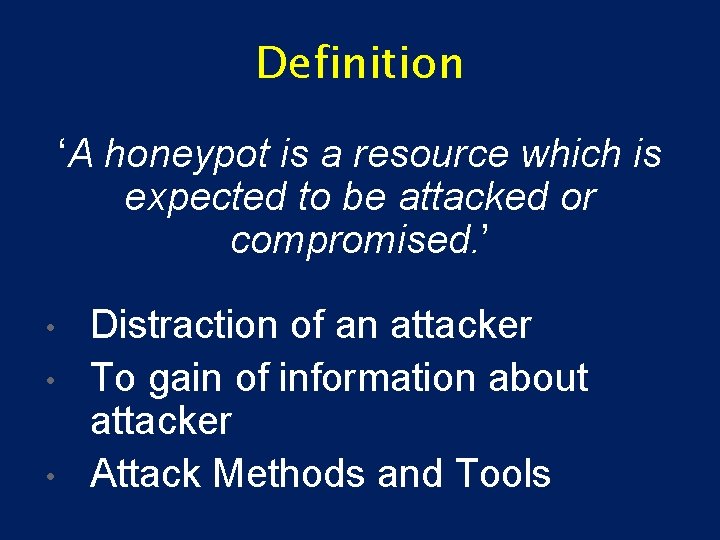

Definition ‘A honeypot is a resource which is expected to be attacked or compromised. ’ • • • Distraction of an attacker To gain of information about attacker Attack Methods and Tools

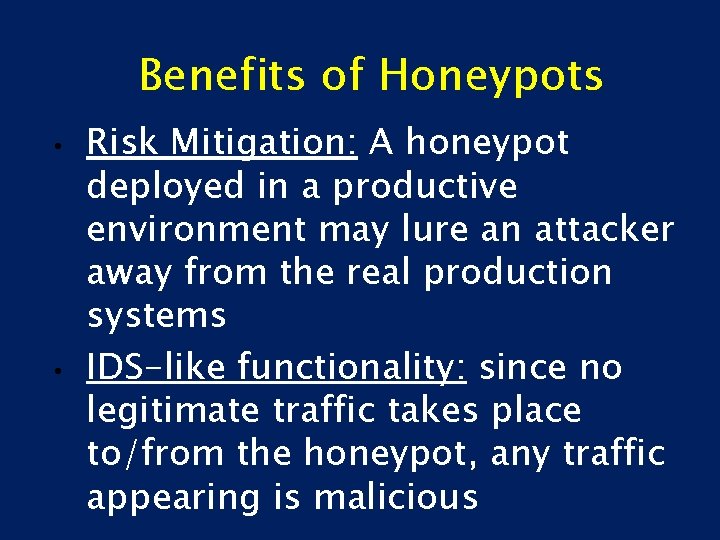

Benefits of Honeypots • • Risk Mitigation: A honeypot deployed in a productive environment may lure an attacker away from the real production systems IDS-like functionality: since no legitimate traffic takes place to/from the honeypot, any traffic appearing is malicious

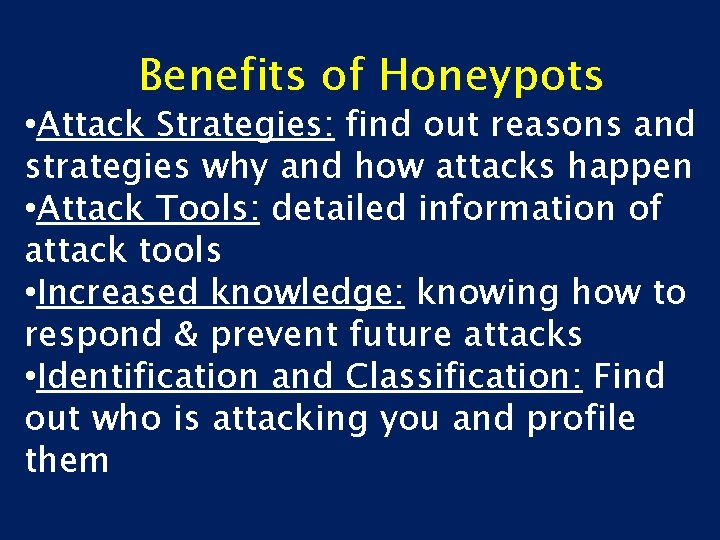

Benefits of Honeypots • Attack Strategies: find out reasons and strategies why and how attacks happen • Attack Tools: detailed information of attack tools • Increased knowledge: knowing how to respond & prevent future attacks • Identification and Classification: Find out who is attacking you and profile them

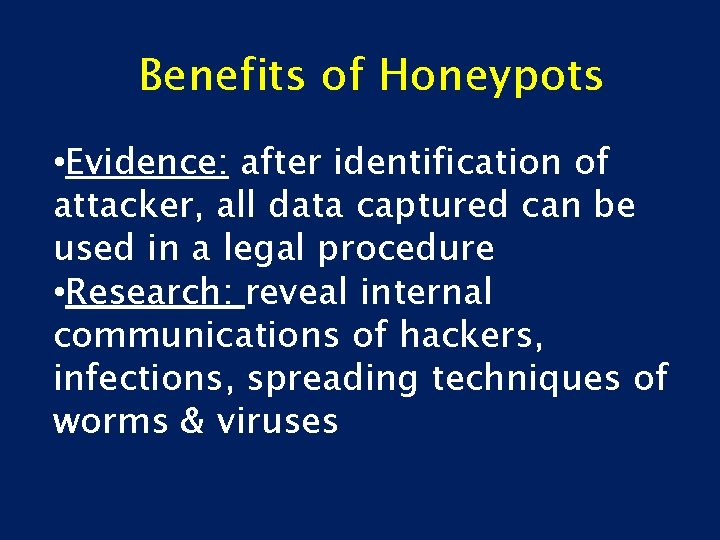

Benefits of Honeypots • Evidence: after identification of attacker, all data captured can be used in a legal procedure • Research: reveal internal communications of hackers, infections, spreading techniques of worms & viruses

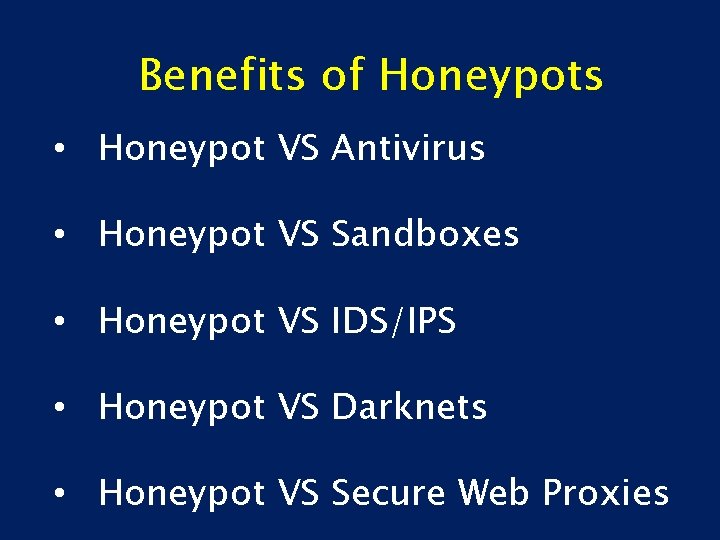

Benefits of Honeypots • Honeypot VS Antivirus • Honeypot VS Sandboxes • Honeypot VS IDS/IPS • Honeypot VS Darknets • Honeypot VS Secure Web Proxies

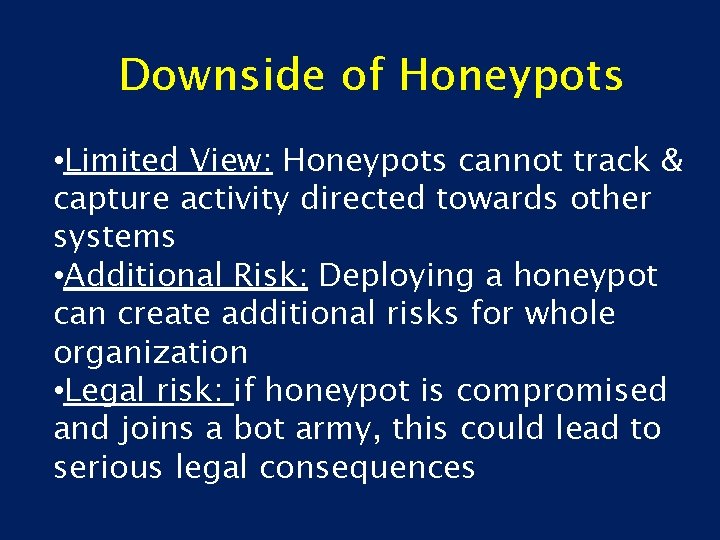

Downside of Honeypots • Limited View: Honeypots cannot track & capture activity directed towards other systems • Additional Risk: Deploying a honeypot can create additional risks for whole organization • Legal risk: if honeypot is compromised and joins a bot army, this could lead to serious legal consequences

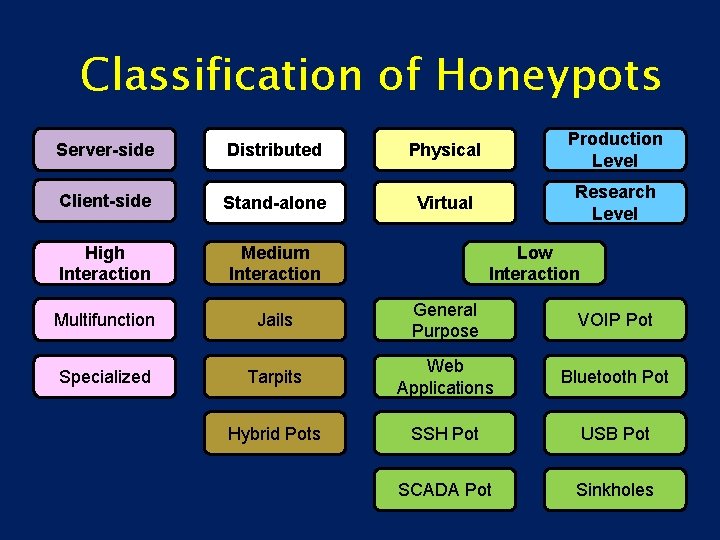

Classification of Honeypots Server-side Distributed Physical Production Level Client-side Stand-alone Virtual Research Level High Interaction Medium Interaction Multifunction Jails General Purpose VOIP Pot Specialized Tarpits Web Applications Bluetooth Pot Hybrid Pots SSH Pot USB Pot SCADA Pot Sinkholes Low Interaction

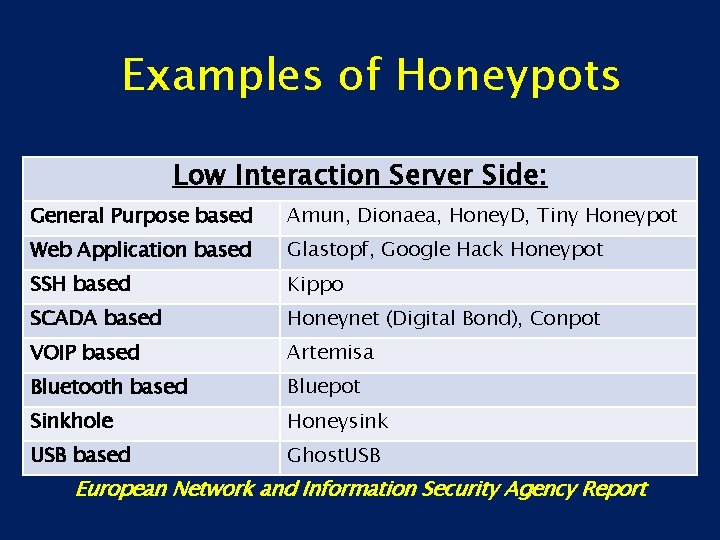

Examples of Honeypots Low Interaction Server Side: General Purpose based Amun, Dionaea, Honey. D, Tiny Honeypot Web Application based Glastopf, Google Hack Honeypot SSH based Kippo SCADA based Honeynet (Digital Bond), Conpot VOIP based Artemisa Bluetooth based Bluepot Sinkhole Honeysink USB based Ghost. USB European Network and Information Security Agency Report

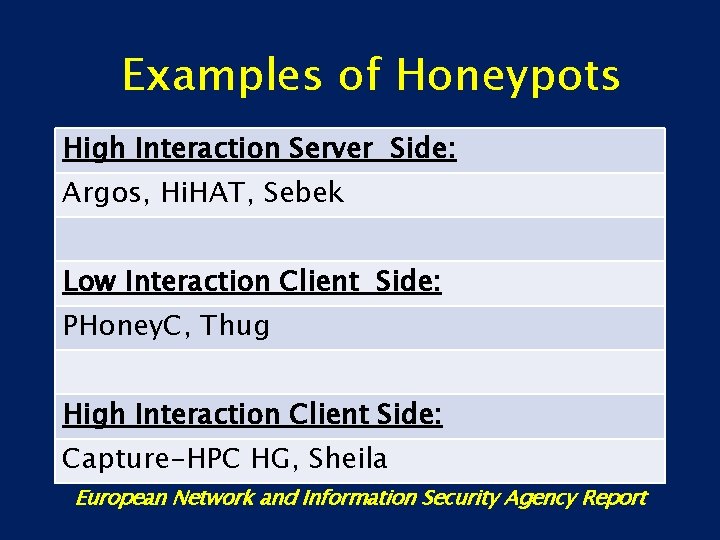

Examples of Honeypots High Interaction Server Side: Argos, Hi. HAT, Sebek Low Interaction Client Side: PHoney. C, Thug High Interaction Client Side: Capture-HPC HG, Sheila European Network and Information Security Agency Report

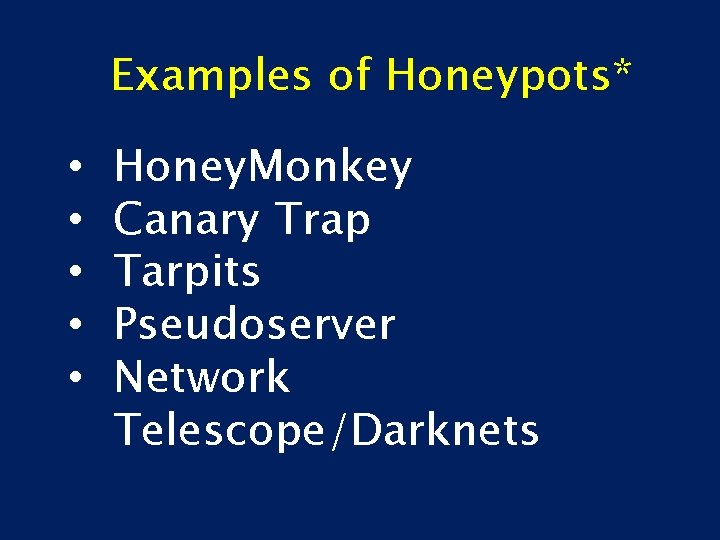

Examples of Honeypots* • • • Honey. Monkey Canary Trap Tarpits Pseudoserver Network Telescope/Darknets

Honey. Pot Sensors Two types of Honeypot Sensors: Fat Sensor: is a complete system, processes, data from the node and sends it to the central server for further analysis and correlation.

Honey. Pot Sensors Two types of Honeypot Sensors: Thin Sensor: is just a reflector – it forwards all the connections directly to the central server for processing and data analysis

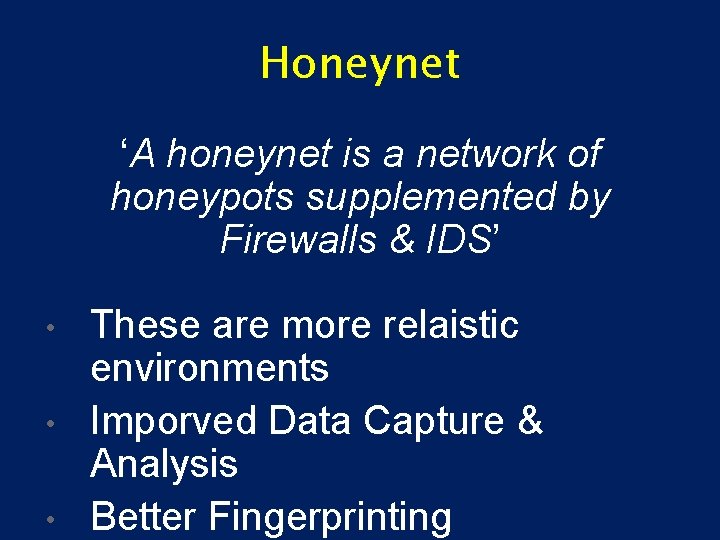

Honeynet ‘A honeynet is a network of honeypots supplemented by Firewalls & IDS’ • • • These are more relaistic environments Imporved Data Capture & Analysis Better Fingerprinting

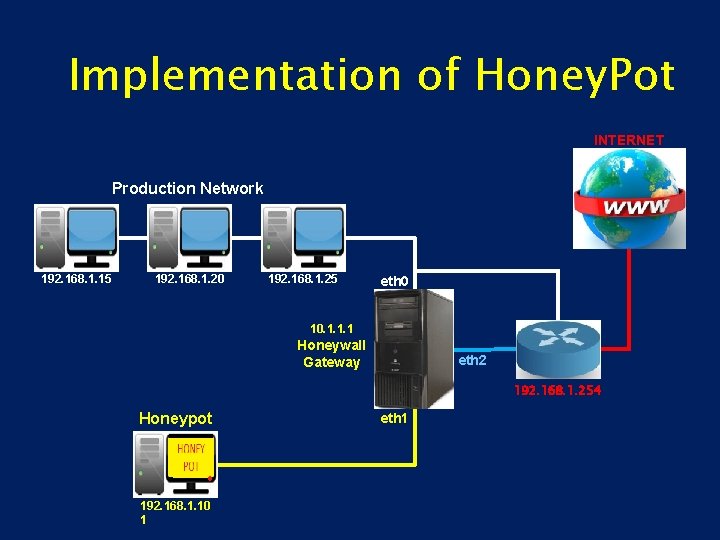

Implementation of Honey. Pot INTERNET Production Network 192. 168. 1. 15 192. 168. 1. 20 192. 168. 1. 25 eth 0 10. 1. 1. 1 Honeywall Gateway eth 2 192. 168. 1. 254 Honeypot 192. 168. 1. 10 1 eth 1

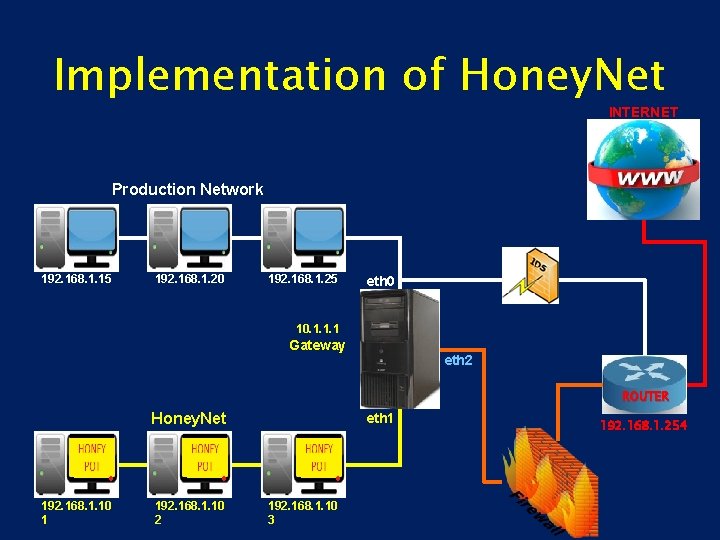

Implementation of Honey. Net INTERNET Production Network 192. 168. 1. 15 192. 168. 1. 20 192. 168. 1. 25 eth 0 10. 1. 1. 1 Gateway eth 2 ROUTER Honey. Net 192. 168. 1. 10 1 192. 168. 1. 10 2 eth 1 192. 168. 1. 10 3 192. 168. 1. 254

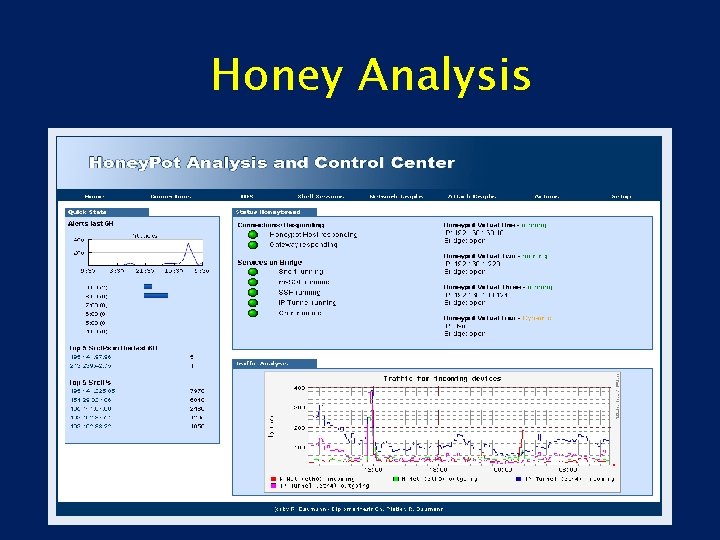

Honey Analysis

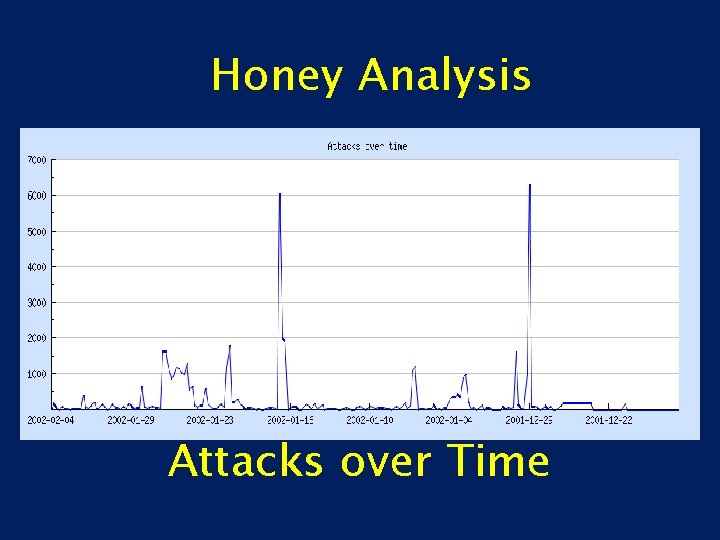

Honey Analysis Attacks over Time

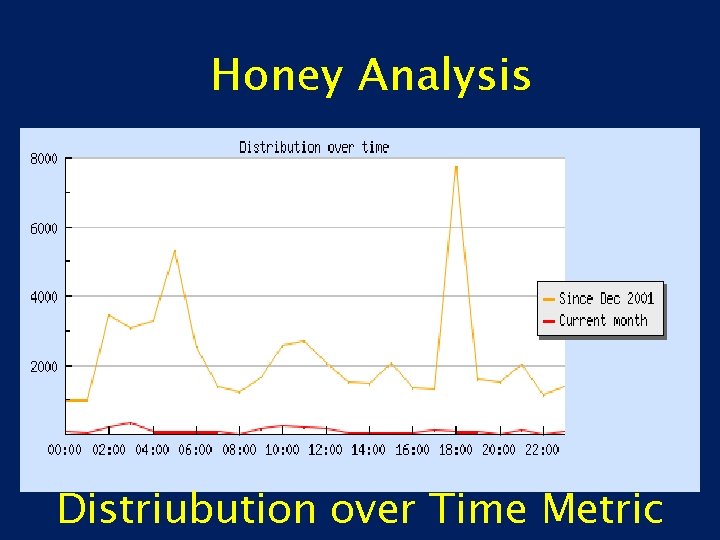

Honey Analysis Distriubution over Time Metric

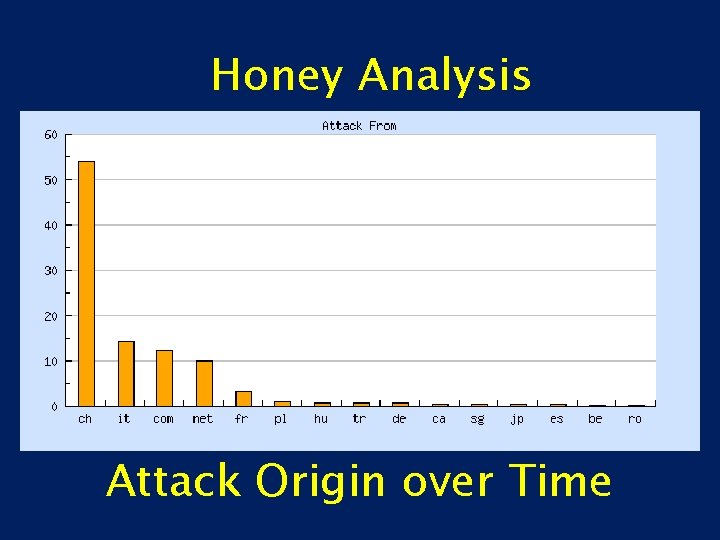

Honey Analysis Attack Origin over Time

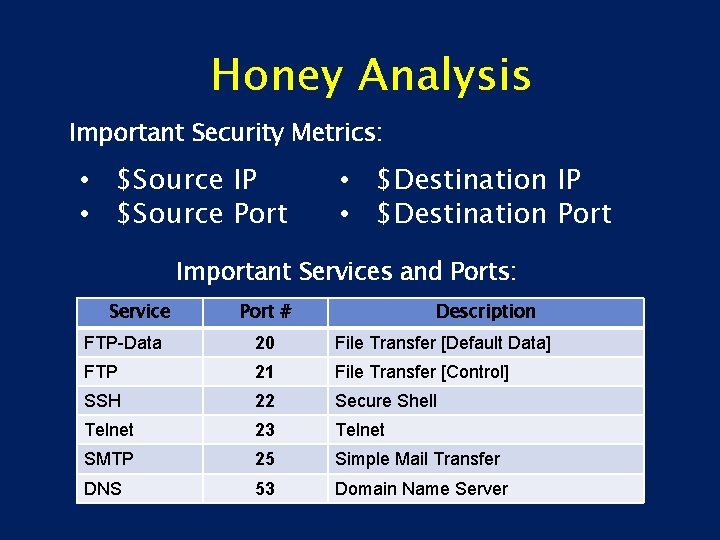

Honey Analysis Important Security Metrics: • $Source IP • $Source Port • $Destination IP • $Destination Port Important Services and Ports: Service Port # Description FTP-Data 20 File Transfer [Default Data] FTP 21 File Transfer [Control] SSH 22 Secure Shell Telnet 23 Telnet SMTP 25 Simple Mail Transfer DNS 53 Domain Name Server

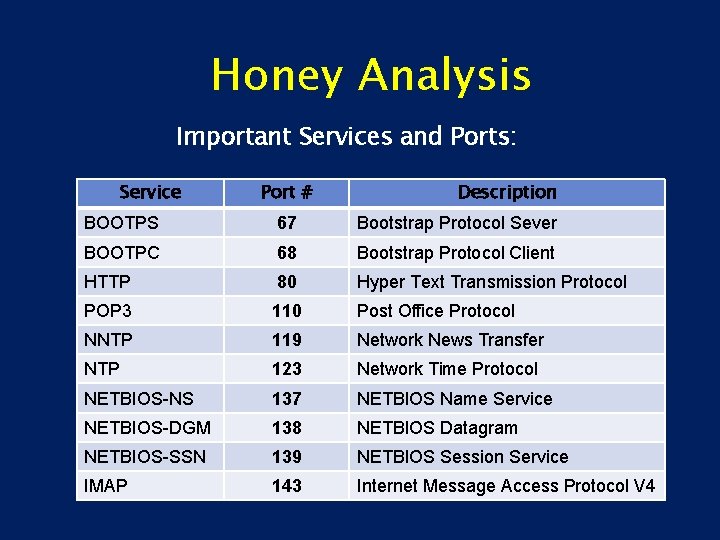

Honey Analysis Important Services and Ports: Service Port # Description BOOTPS 67 Bootstrap Protocol Sever BOOTPC 68 Bootstrap Protocol Client HTTP 80 Hyper Text Transmission Protocol POP 3 110 Post Office Protocol NNTP 119 Network News Transfer NTP 123 Network Time Protocol NETBIOS-NS 137 NETBIOS Name Service NETBIOS-DGM 138 NETBIOS Datagram NETBIOS-SSN 139 NETBIOS Session Service IMAP 143 Internet Message Access Protocol V 4

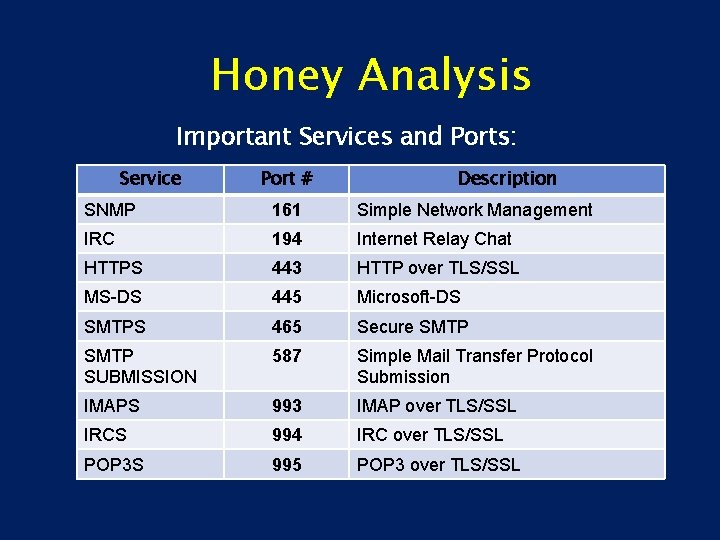

Honey Analysis Important Services and Ports: Service Port # Description SNMP 161 Simple Network Management IRC 194 Internet Relay Chat HTTPS 443 HTTP over TLS/SSL MS-DS 445 Microsoft-DS SMTPS 465 Secure SMTP SUBMISSION 587 Simple Mail Transfer Protocol Submission IMAPS 993 IMAP over TLS/SSL IRCS 994 IRC over TLS/SSL POP 3 S 995 POP 3 over TLS/SSL

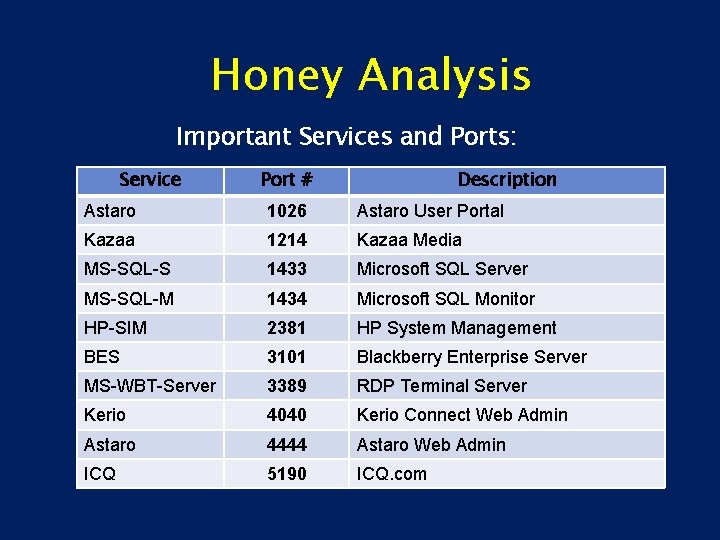

Honey Analysis Important Services and Ports: Service Port # Description Astaro 1026 Astaro User Portal Kazaa 1214 Kazaa Media MS-SQL-S 1433 Microsoft SQL Server MS-SQL-M 1434 Microsoft SQL Monitor HP-SIM 2381 HP System Management BES 3101 Blackberry Enterprise Server MS-WBT-Server 3389 RDP Terminal Server Kerio 4040 Kerio Connect Web Admin Astaro 4444 Astaro Web Admin ICQ 5190 ICQ. com

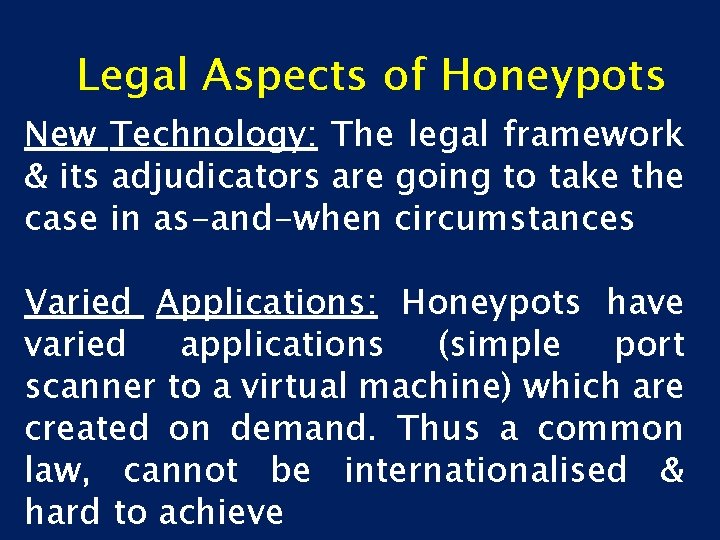

Legal Aspects of Honeypots New Technology: The legal framework & its adjudicators are going to take the case in as-and-when circumstances Varied Applications: Honeypots have varied applications (simple port scanner to a virtual machine) which are created on demand. Thus a common law, cannot be internationalised & hard to achieve

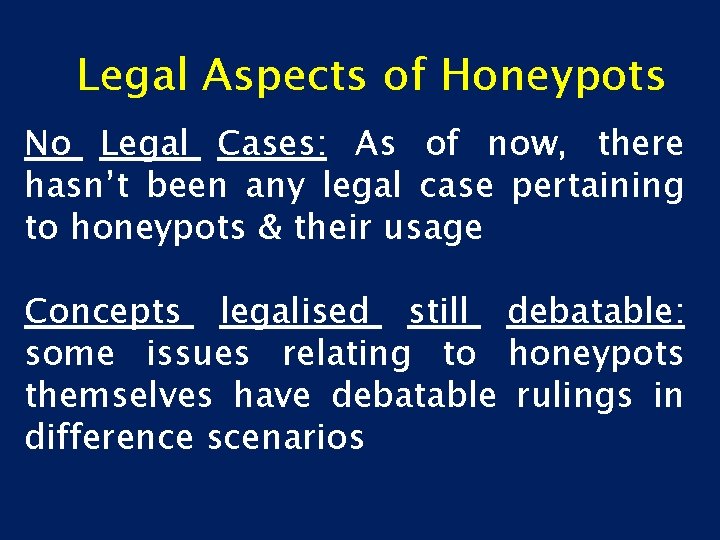

Legal Aspects of Honeypots No Legal Cases: As of now, there hasn’t been any legal case pertaining to honeypots & their usage Concepts legalised still debatable: some issues relating to honeypots themselves have debatable rulings in difference scenarios

Legal Aspects of Honeypots The basic legal themes related to honeypots are: 1. Entrapment (including enticement) 2. Privacy 3. Downstream liability

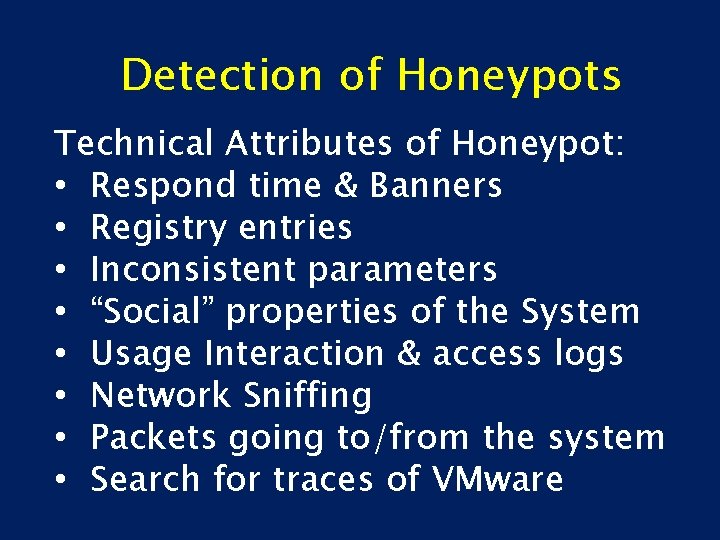

Detection of Honeypots Technical Attributes of Honeypot: • Respond time & Banners • Registry entries • Inconsistent parameters • “Social” properties of the System • Usage Interaction & access logs • Network Sniffing • Packets going to/from the system • Search for traces of VMware

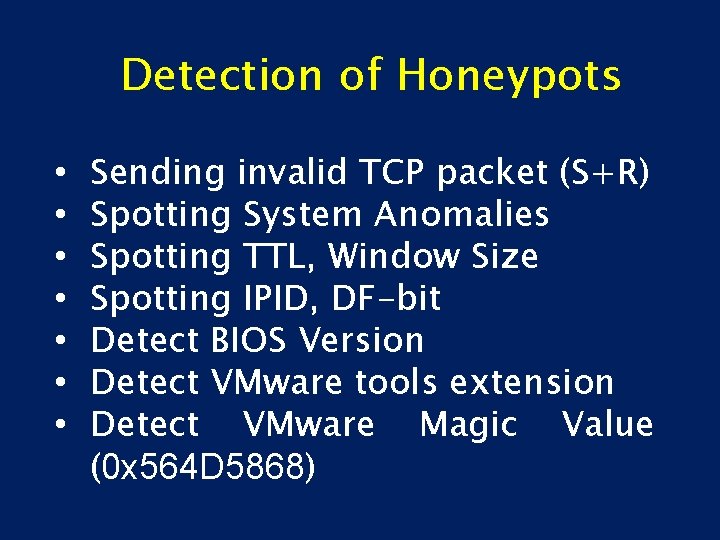

Detection of Honeypots • • Sending invalid TCP packet (S+R) Spotting System Anomalies Spotting TTL, Window Size Spotting IPID, DF-bit Detect BIOS Version Detect VMware tools extension Detect VMware Magic Value (0 x 564 D 5868)

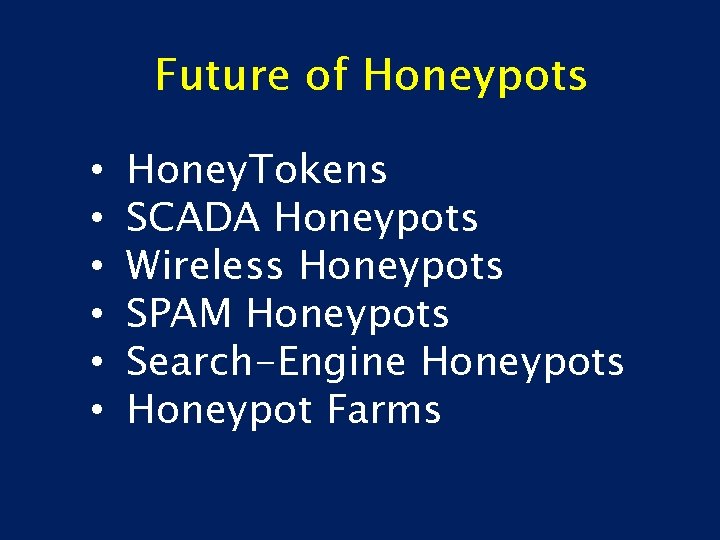

Future of Honeypots • • • Honey. Tokens SCADA Honeypots Wireless Honeypots SPAM Honeypots Search-Engine Honeypots Honeypot Farms

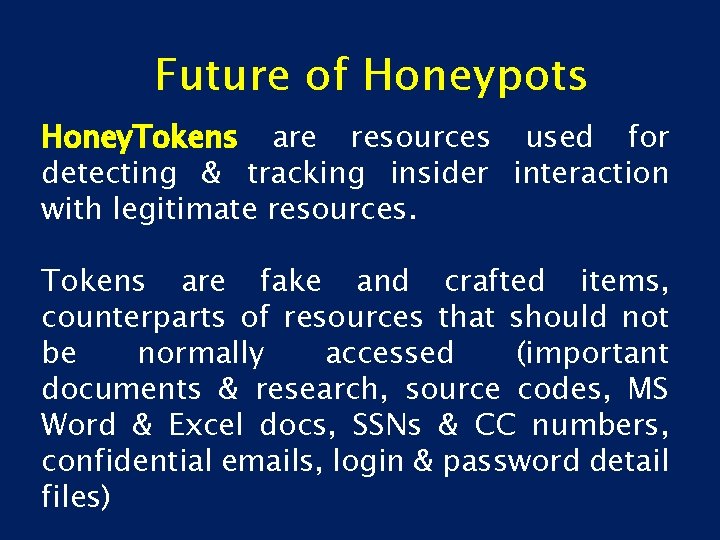

Future of Honeypots Honey. Tokens are resources used for detecting & tracking insider interaction with legitimate resources. Tokens are fake and crafted items, counterparts of resources that should not be normally accessed (important documents & research, source codes, MS Word & Excel docs, SSNs & CC numbers, confidential emails, login & password detail files)

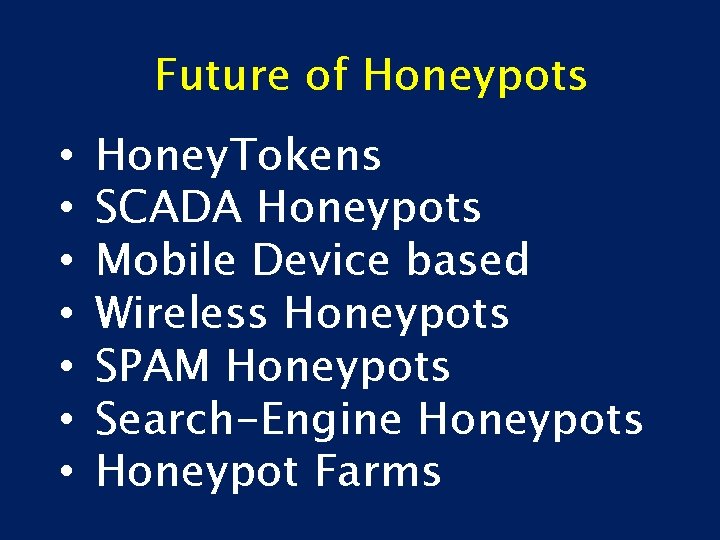

Future of Honeypots • • Honey. Tokens SCADA Honeypots Mobile Device based Wireless Honeypots SPAM Honeypots Search-Engine Honeypots Honeypot Farms

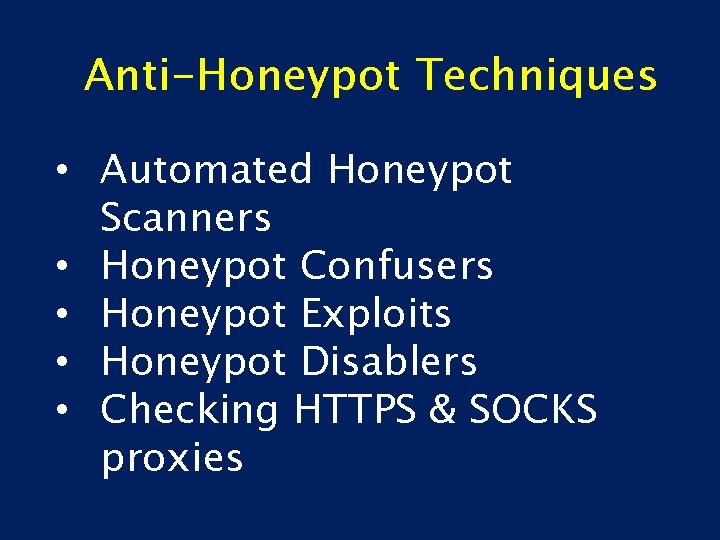

Anti-Honeypot Techniques • Automated Honeypot Scanners • Honeypot Confusers • Honeypot Exploits • Honeypot Disablers • Checking HTTPS & SOCKS proxies

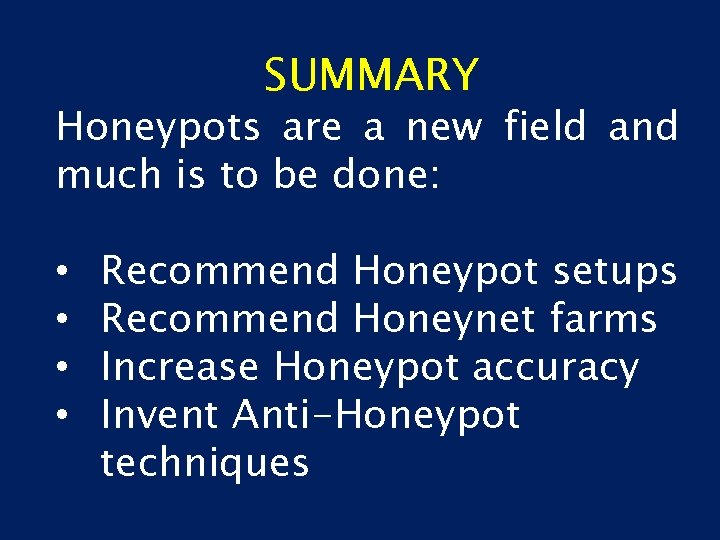

SUMMARY Honeypots are a new field and much is to be done: • • Recommend Honeypot setups Recommend Honeynet farms Increase Honeypot accuracy Invent Anti-Honeypot techniques

Further Information

TH 4 NK 5
