Tracheoesophageal Voice Prosthesis Insertion Kit Mike Hixson Josh

Tracheoesophageal Voice Prosthesis Insertion Kit Mike Hixson Josh Fox Sponsor: Dr. Terry Day (Otolaryngology)

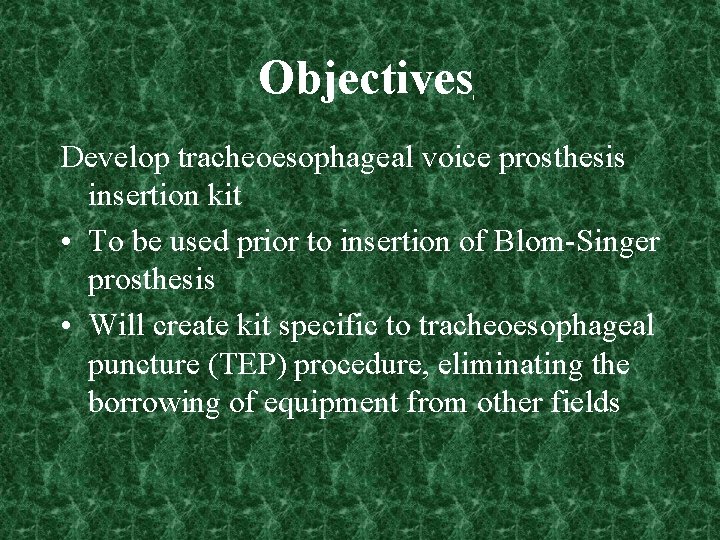

Objectives Develop tracheoesophageal voice prosthesis insertion kit • To be used prior to insertion of Blom-Singer prosthesis • Will create kit specific to tracheoesophageal puncture (TEP) procedure, eliminating the borrowing of equipment from other fields

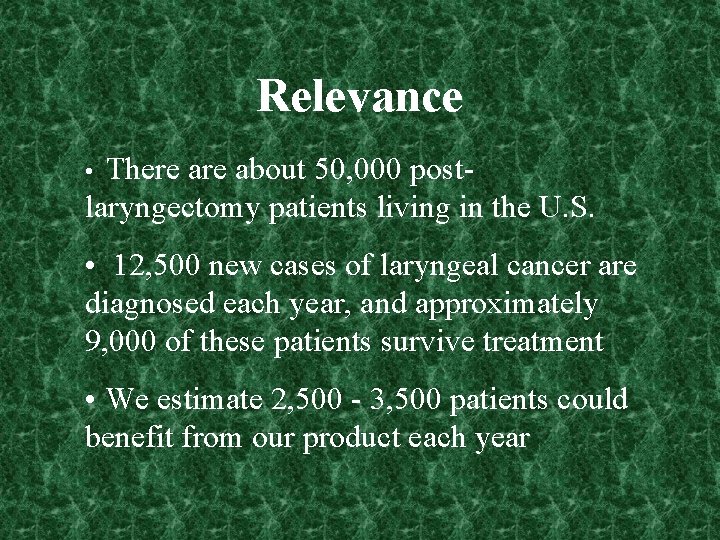

Relevance There about 50, 000 postlaryngectomy patients living in the U. S. • • 12, 500 new cases of laryngeal cancer are diagnosed each year, and approximately 9, 000 of these patients survive treatment • We estimate 2, 500 - 3, 500 patients could benefit from our product each year

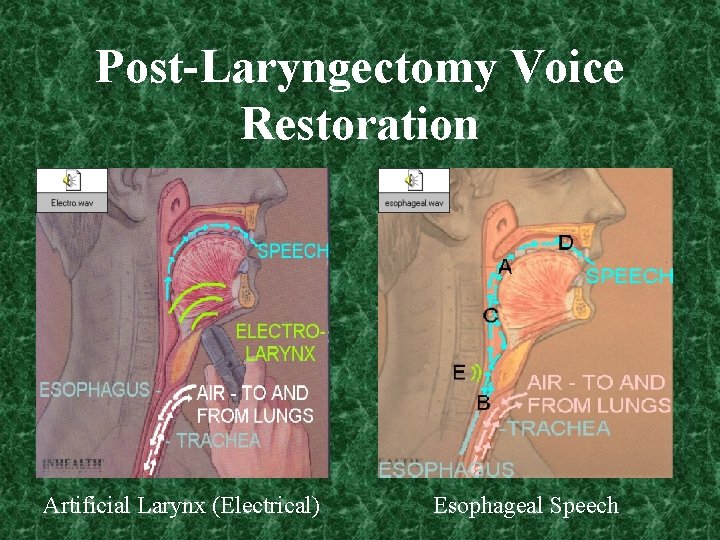

Post-Laryngectomy Voice Restoration Artificial Larynx (Electrical) Esophageal Speech

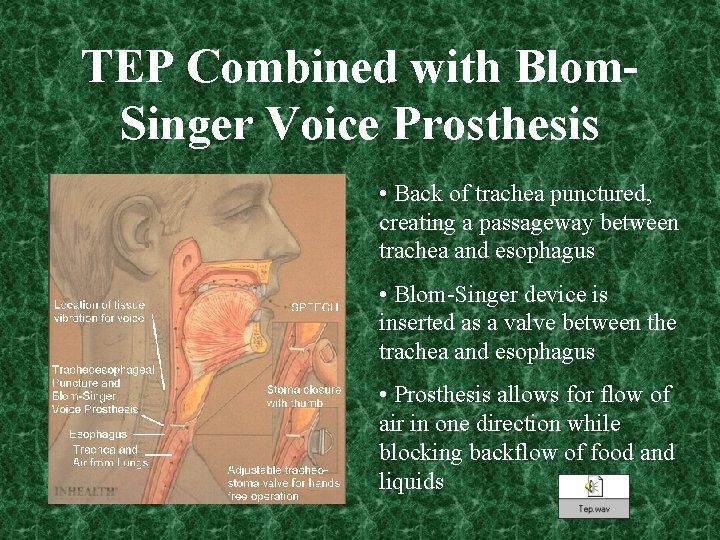

TEP Combined with Blom. Singer Voice Prosthesis • Back of trachea punctured, creating a passageway between trachea and esophagus • Blom-Singer device is inserted as a valve between the trachea and esophagus • Prosthesis allows for flow of air in one direction while blocking backflow of food and liquids

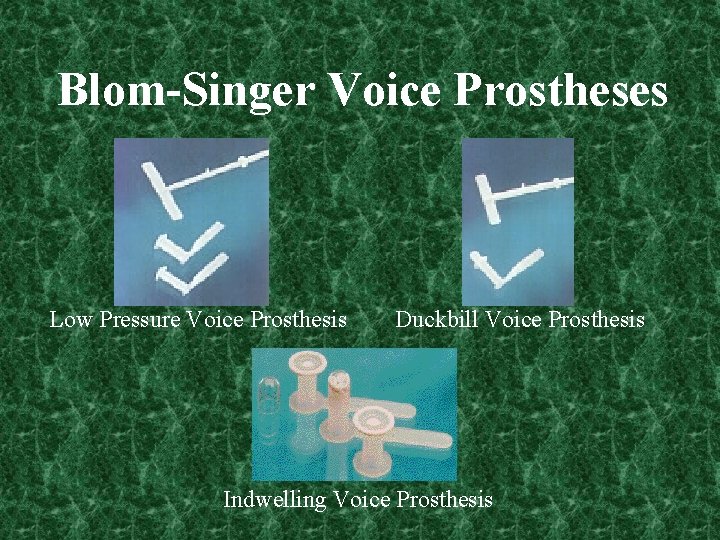

Blom-Singer Voice Prostheses Low Pressure Voice Prosthesis Duckbill Voice Prosthesis Indwelling Voice Prosthesis

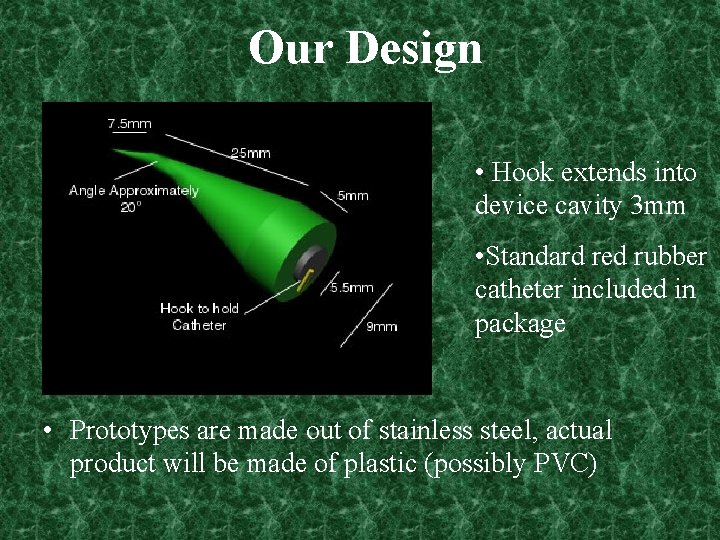

Our Design • Hook extends into device cavity 3 mm • Standard red rubber catheter included in package • Prototypes are made out of stainless steel, actual product will be made of plastic (possibly PVC)

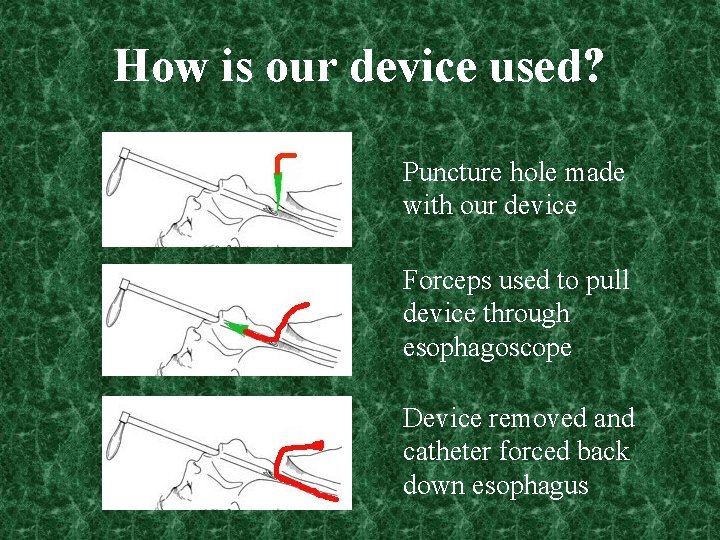

How is our device used? Puncture hole made with our device Forceps used to pull device through esophagoscope Device removed and catheter forced back down esophagus

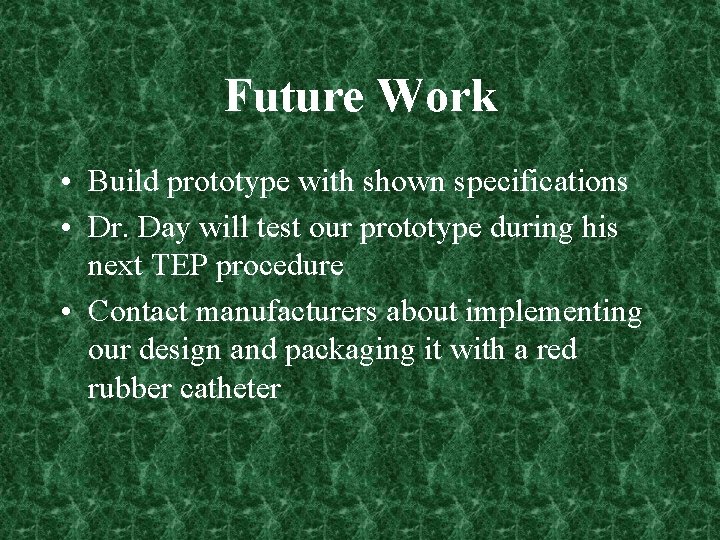

Future Work • Build prototype with shown specifications • Dr. Day will test our prototype during his next TEP procedure • Contact manufacturers about implementing our design and packaging it with a red rubber catheter
