TRACESAFE Water Blocking Tracer Wire for underground utilities

® TRACE-SAFE Water Blocking Tracer Wire for underground utilities. A Chase Corporation Company

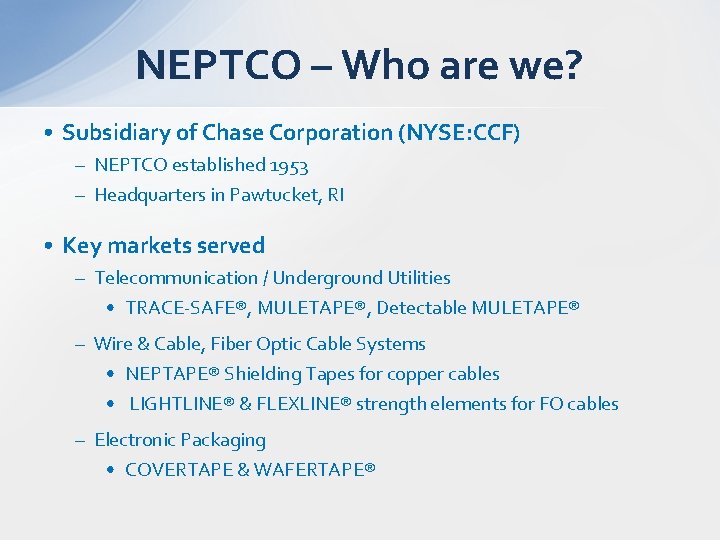

NEPTCO – Who are we? • Subsidiary of Chase Corporation (NYSE: CCF) – NEPTCO established 1953 – Headquarters in Pawtucket, RI • Key markets served – Telecommunication / Underground Utilities • TRACE-SAFE®, MULETAPE®, Detectable MULETAPE® – Wire & Cable, Fiber Optic Cable Systems • NEPTAPE® Shielding Tapes for copper cables • LIGHTLINE® & FLEXLINE® strength elements for FO cables – Electronic Packaging • COVERTAPE & WAFERTAPE®

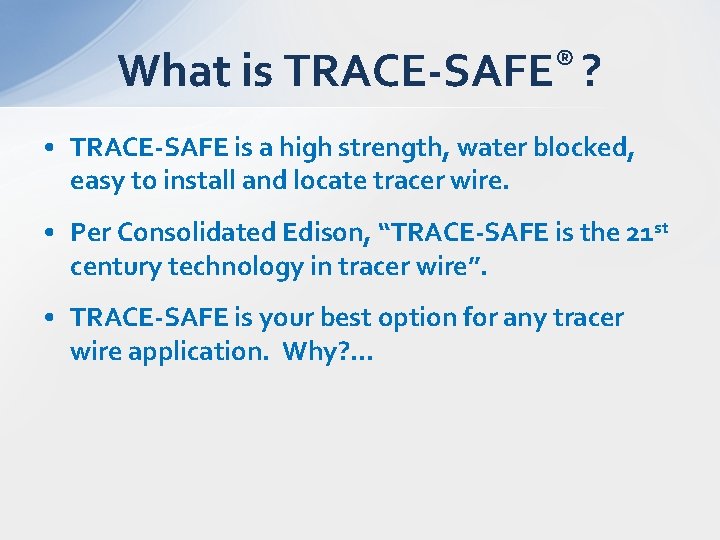

What is ® TRACE-SAFE ? • TRACE-SAFE is a high strength, water blocked, easy to install and locate tracer wire. • Per Consolidated Edison, “TRACE-SAFE is the 21 st century technology in tracer wire”. • TRACE-SAFE is your best option for any tracer wire application. Why? . . .

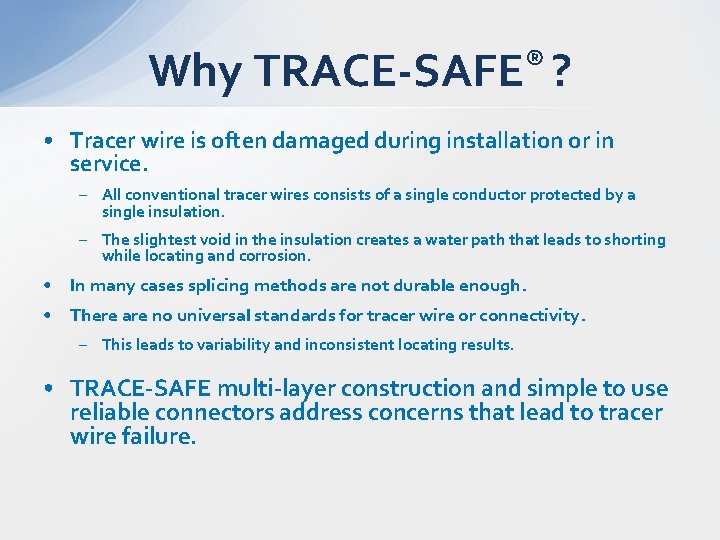

Why ® TRACE-SAFE ? • Tracer wire is often damaged during installation or in service. – All conventional tracer wires consists of a single conductor protected by a single insulation. – The slightest void in the insulation creates a water path that leads to shorting while locating and corrosion. • In many cases splicing methods are not durable enough. • There are no universal standards for tracer wire or connectivity. – This leads to variability and inconsistent locating results. • TRACE-SAFE multi-layer construction and simple to use reliable connectors address concerns that lead to tracer wire failure.

NEPTCO Listens to Customers • TRACE-SAFE was designed to outperform the competition in the following areas: – – – – Corrosion resistance Strength Handling Abrasion, crush & impact resistance Lightning Connectivity Locating • TRACE-SAFE is setting the standard by providing solutions. • Third party testing includes a report from the Gas Technology Institute and other industry experts.

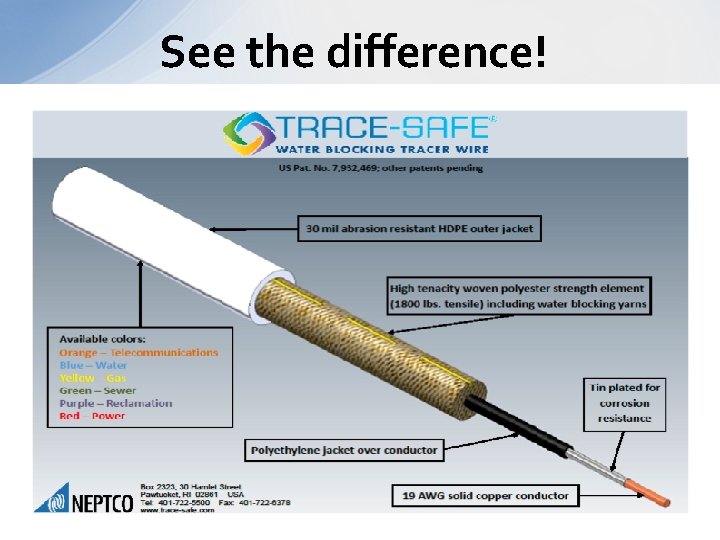

See the difference!

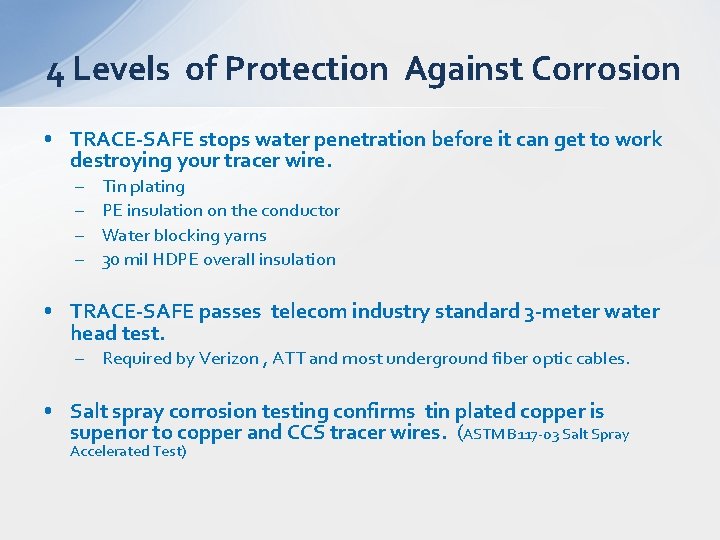

4 Levels of Protection Against Corrosion • TRACE-SAFE stops water penetration before it can get to work destroying your tracer wire. – – Tin plating PE insulation on the conductor Water blocking yarns 30 mil HDPE overall insulation • TRACE-SAFE passes telecom industry standard 3 -meter water head test. – Required by Verizon , ATT and most underground fiber optic cables. • Salt spray corrosion testing confirms tin plated copper is superior to copper and CCS tracer wires. (ASTM B 117 -03 Salt Spray Accelerated Test)

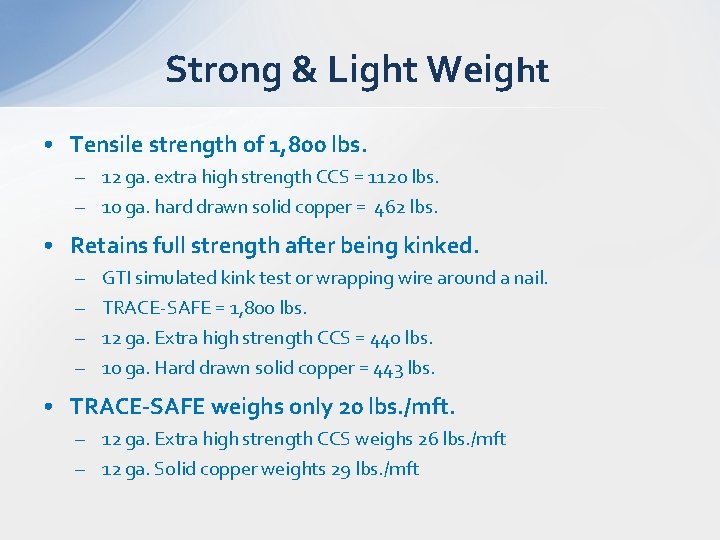

Strong & Light Weight • Tensile strength of 1, 800 lbs. – 12 ga. extra high strength CCS = 1120 lbs. – 10 ga. hard drawn solid copper = 462 lbs. • Retains full strength after being kinked. – – GTI simulated kink test or wrapping wire around a nail. TRACE-SAFE = 1, 800 lbs. 12 ga. Extra high strength CCS = 440 lbs. 10 ga. Hard drawn solid copper = 443 lbs. • TRACE-SAFE weighs only 20 lbs. /mft. – 12 ga. Extra high strength CCS weighs 26 lbs. /mft – 12 ga. Solid copper weights 29 lbs. /mft

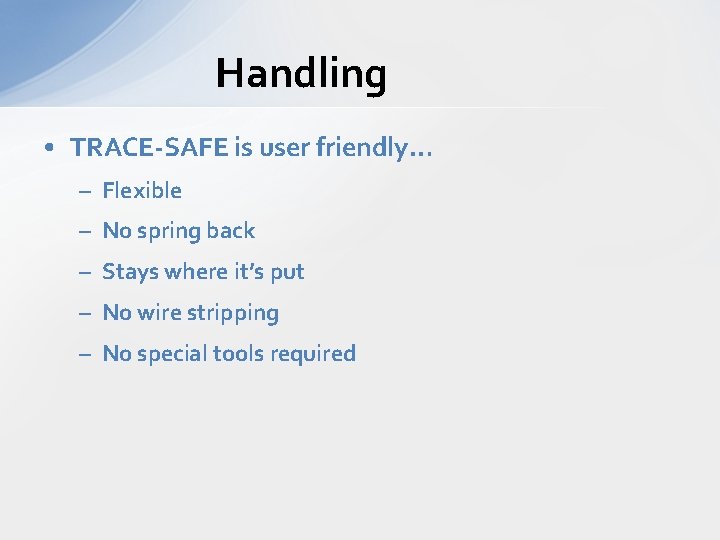

Handling • TRACE-SAFE is user friendly… – Flexible – No spring back – Stays where it’s put – No wire stripping – No special tools required

TRACE-SAFE is durable in service! • Abrasion tested by GTI, TRACE-SAFE outperforms the closest competitor by almost double. (ASTM 4373) • TRACE-SAFE survives potential damaged caused by crushing and impact during installation. (UL 1581) – It takes less than 500 lbs. of pressure to compromise the insulation of a conventional tracer. – A 5 lb weight, dropped from 24” above a conventional tracer wire will split the insulation. • And what about TRACE-SAFE? – It’s takes over 4, 000 lbs. of pressure and the drop test does not breach the insulation.

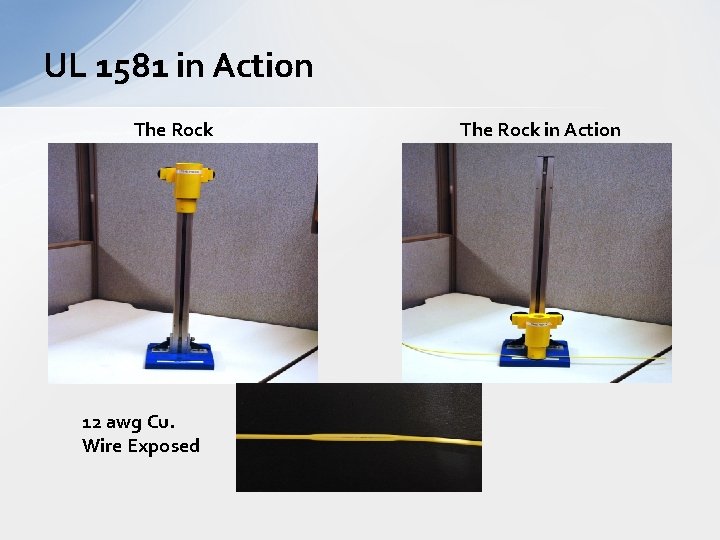

UL 1581 in Action The Rock 12 awg Cu. Wire Exposed The Rock in Action

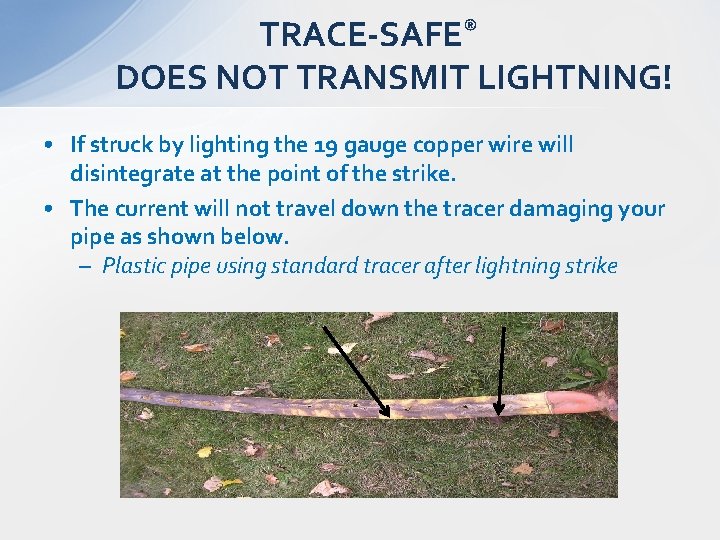

TRACE-SAFE® DOES NOT TRANSMIT LIGHTNING! • If struck by lighting the 19 gauge copper wire will disintegrate at the point of the strike. • The current will not travel down the tracer damaging your pipe as shown below. – Plastic pipe using standard tracer after lightning strike

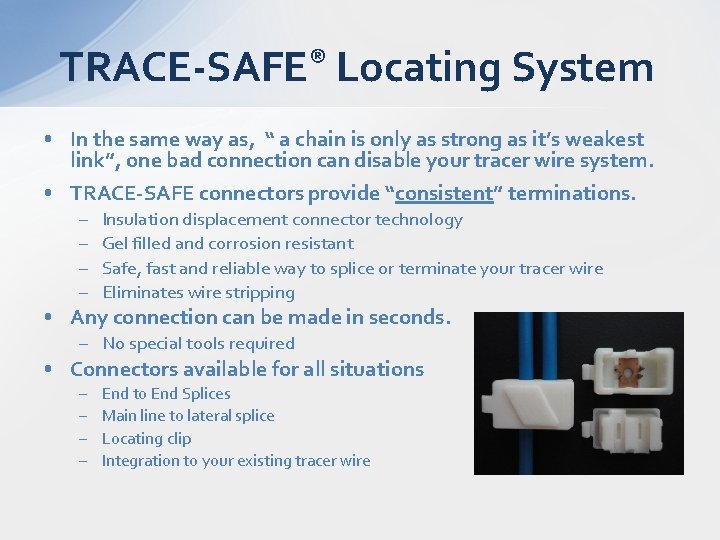

® TRACE-SAFE Locating System • In the same way as, “ a chain is only as strong as it’s weakest link”, one bad connection can disable your tracer wire system. • TRACE-SAFE connectors provide “consistent” terminations. – – Insulation displacement connector technology Gel filled and corrosion resistant Safe, fast and reliable way to splice or terminate your tracer wire Eliminates wire stripping • Any connection can be made in seconds. – No special tools required • Connectors available for all situations – – End to End Splices Main line to lateral splice Locating clip Integration to your existing tracer wire

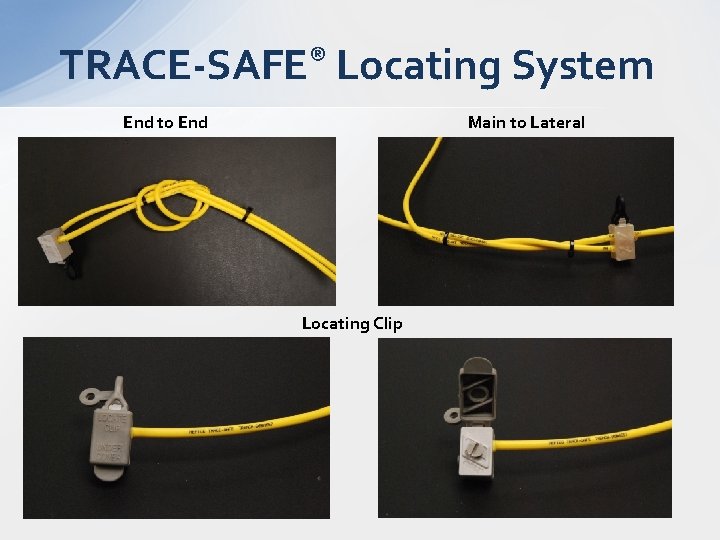

TRACE-SAFE® Locating System End to End Main to Lateral Locating Clip

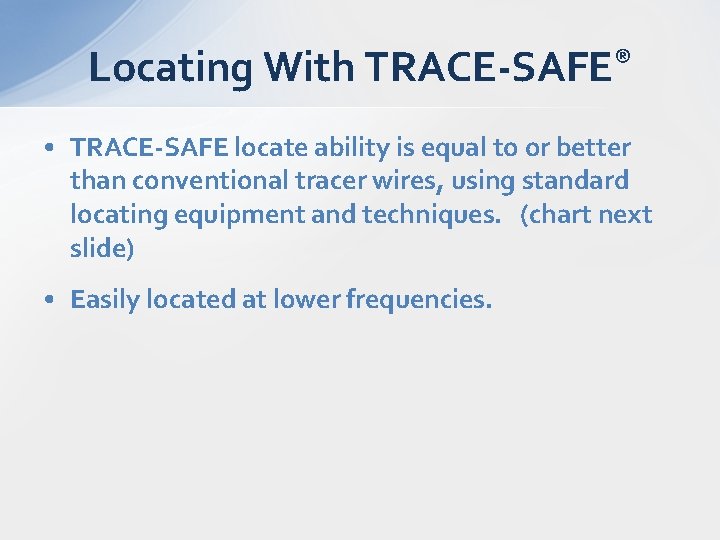

Locating With ® TRACE-SAFE • TRACE-SAFE locate ability is equal to or better than conventional tracer wires, using standard locating equipment and techniques. (chart next slide) • Easily located at lower frequencies.

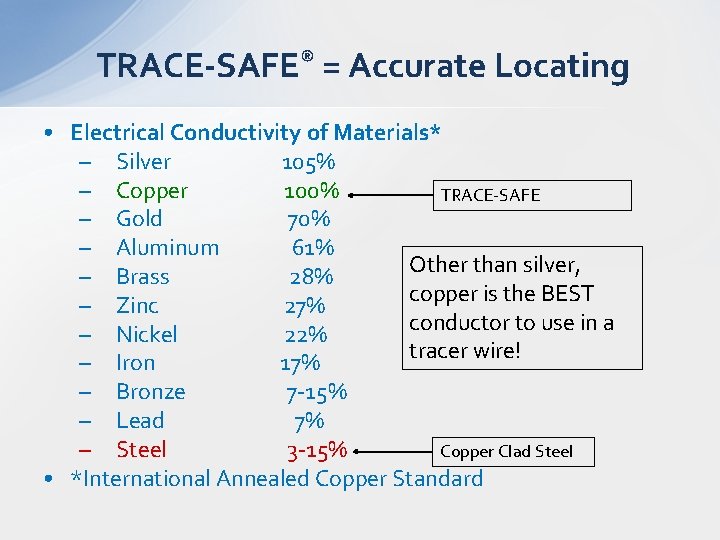

TRACE-SAFE® = Accurate Locating • Electrical Conductivity of Materials* – Silver 105% – Copper 100% TRACE-SAFE – Gold 70% – Aluminum 61% Other than silver, – Brass 28% copper is the BEST – Zinc 27% conductor to use in a – Nickel 22% tracer wire! – Iron 17% – Bronze 7 -15% – Lead 7% – Steel 3 -15% Copper Clad Steel • *International Annealed Copper Standard

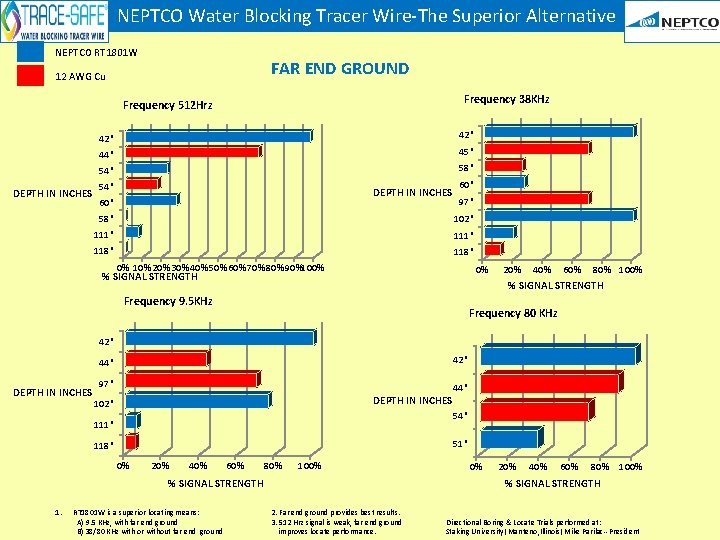

NEPTCO Water Blocking Tracer Wire-The Superior Alternative NEPTCO RT 1801 W FAR END GROUND 12 AWG Cu Frequency 38 KHz Frequency 512 Hrz DEPTH IN INCHES 42" 44" 45" 54" 58" 54" DEPTH IN INCHES 60" 97" 58" 102" 111" 118" 0% 10% 20% 30% 40% 50% 60% 70% 80% 90%100% % SIGNAL STRENGTH 0% 20% 40% 60% 80% 100% % SIGNAL STRENGTH Frequency 9. 5 KHz Frequency 80 KHz 42" DEPTH IN INCHES 44" 42" 97" 44" DEPTH IN INCHES 102" 54" 111" 51" 118" 0% 20% 40% 60% 80% 100% % SIGNAL STRENGTH 1. RT 1801 W is a superior locating means: A) 9. 5 KHz, with far end ground B) 38/80 KHz with or without far end ground 0% 20% 40% 60% 80% 100% % SIGNAL STRENGTH 2. Far end ground provides best results. 3. 512 Hrz signal is weak, far end ground improves locate performance. Directional Boring & Locate Trials performed at: Staking University|Manteno, Illinois|Mike Parilac--President

NEPTCO Water Blocking Tracer Wire-The Superior Alternative NEPTCO RT 1801 W NO FAR END GROUND 12 AWG Cu Frequency 9. 5 KHz Frequency 512 Hrz 42" 45" Not Enough Signal Strength DEPTH IN INCHES 97" 102" 111" 118" % Signal 0% 10%20%30%40%50%60%70%80% % SIGNAL STRENGTH Frequency 38 KHz Frequency 80 KHz 42" 43" DEPTH IN INCHES 44" 70" DEPTH IN INCHES 68" 105" 60" 97" 118" 102" 0% 20% 40% 60% 80% 100% % SIGNAL STRENGTH 1. 58" RT 1801 W is a superior locating means: A) 9. 5 KHz, with far end ground B) 38/80 KHz with or without far end ground 2. Far end ground provides best results. 3. 512 Hrz signal is weak, far end ground improves locate performance. 0% 20% 40% 60% 80% 100% % SIGNAL STRENGTH Directional Boring & Locate Trials performed at: Staking University|Manteno, Illinois|Mike Parilac--President

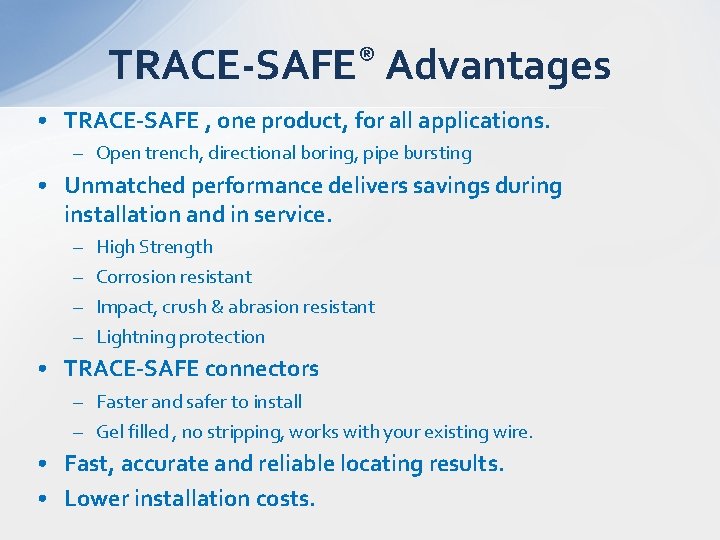

TRACE-SAFE® Advantages • TRACE-SAFE , one product, for all applications. – Open trench, directional boring, pipe bursting • Unmatched performance delivers savings during installation and in service. – – High Strength Corrosion resistant Impact, crush & abrasion resistant Lightning protection • TRACE-SAFE connectors – Faster and safer to install – Gel filled , no stripping, works with your existing wire. • Fast, accurate and reliable locating results. • Lower installation costs.

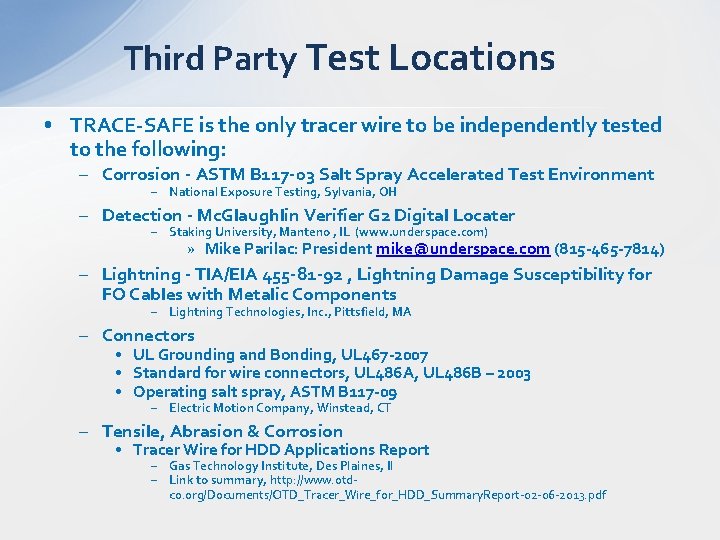

Third Party Test Locations • TRACE-SAFE is the only tracer wire to be independently tested to the following: – Corrosion - ASTM B 117 -03 Salt Spray Accelerated Test Environment – National Exposure Testing, Sylvania, OH – Detection - Mc. Glaughlin Verifier G 2 Digital Locater – Staking University, Manteno , IL (www. underspace. com) » Mike Parilac: President mike@underspace. com (815 -465 -7814) – Lightning - TIA/EIA 455 -81 -92 , Lightning Damage Susceptibility for FO Cables with Metalic Components – Lightning Technologies, Inc. , Pittsfield, MA – Connectors • UL Grounding and Bonding, UL 467 -2007 • Standard for wire connectors, UL 486 A, UL 486 B – 2003 • Operating salt spray, ASTM B 117 -09 – Electric Motion Company, Winstead, CT – Tensile, Abrasion & Corrosion • Tracer Wire for HDD Applications Report – Gas Technology Institute, Des Plaines, Il – Link to summary, http: //www. otdco. org/Documents/OTD_Tracer_Wire_for_HDD_Summary. Report-02 -06 -2013. pdf

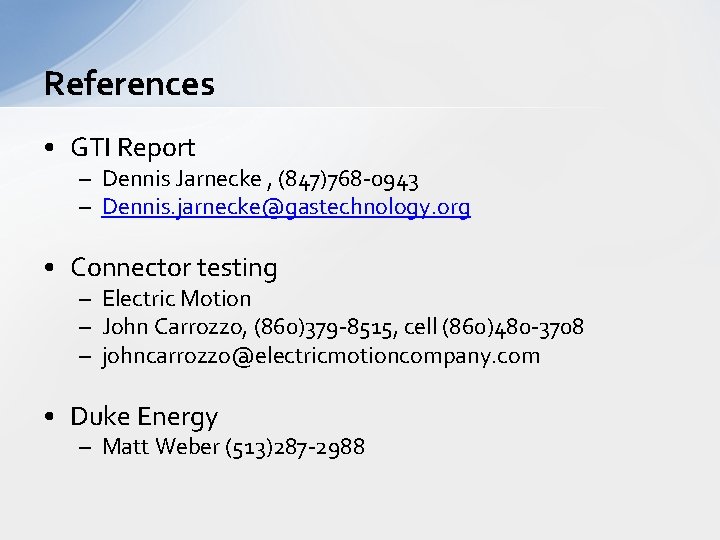

References • GTI Report – Dennis Jarnecke , (847)768 -0943 – Dennis. jarnecke@gastechnology. org • Connector testing – Electric Motion – John Carrozzo, (860)379 -8515, cell (860)480 -3708 – johncarrozzo@electricmotioncompany. com • Duke Energy – Matt Weber (513)287 -2988
