TRACER Maximum Power Point Tracking Solar controller Features

TRACER Maximum Power Point Tracking Solar controller Features： Tracer series controller adopts latest MPPT technology (Maximum Power Point Tracking) and advanced tracking algorithm to make the solar module operate at ideal voltage which the solar modules can product the maximum available power. Compared to conventional PWM controller, MPPT technology increases the charge efficiency up to 30% and potentially decrease the power of solar array needed. The ability to step-down the higher voltage solar module to recharge a lower voltage battery bank greatly increases system design flexibility. The cable size can be reduced because of the small current from the solar array. Optional Accessories ： remote meter MT-5 ◆ MPPT technology ◆ Peak conversion efficiency of 97% ◆ High Tracking efficiency of 99% ◆ Several seconds tracking speed ◆ 4 -Stage charge with PWM output ◆ Nature convection cooling ◆ Full power output up to 45 ℃ ◆ Temperature compensation ◆ Sealed, Gel and Flooded battery option ◆ Diversified load control ◆ RJ 45 interface &optional meter ◆ 2 years warranty ◆ CE certificate Electronic protection: ◆ PV Array Short Circuit ◆ PV Overvoltage ◆ PV Overcurrent ◆ Load Overload ◆ Load short circuit ◆ PV Reverse Polarity ◆ Battery Reverse Polarity ◆ High Voltage Transients

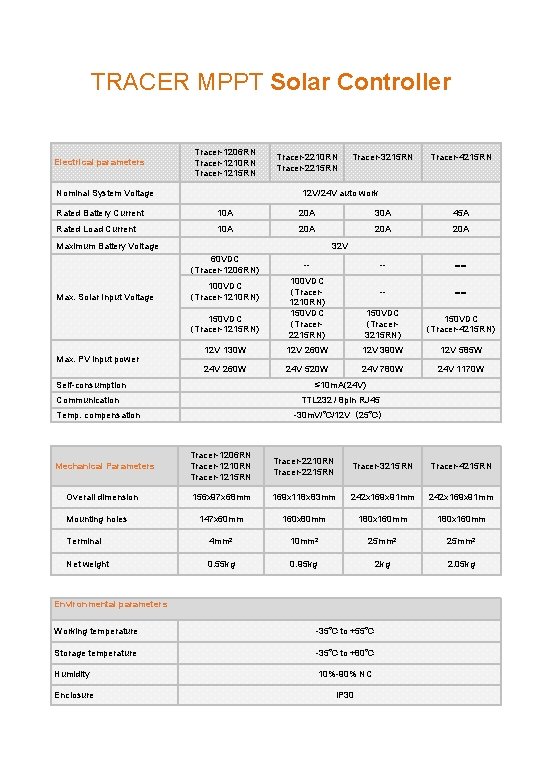

TRACER MPPT Solar Controller Electrical parameters Tracer-1206 RN Tracer-1210 RN Tracer-1215 RN Nominal System Voltage Tracer-2210 RN Tracer-2215 RN Tracer-3215 RN Tracer-4215 RN 12 V/24 V auto work Rated Battery Current 10 A 20 A 30 A 45 A Rated Load Current 10 A 20 A 20 A -- -- Maximum Battery Voltage 32 V 60 VDC (Tracer-1206 RN) Max. Solar Input Voltage 100 VDC (Tracer 1210 RN) 150 VDC (Tracer 2215 RN) -- -- 150 VDC (Tracer 3215 RN) 150 VDC (Tracer-4215 RN) 12 V 130 W 12 V 260 W 12 V 390 W 12 V 585 W 24 V 260 W 24 V 520 W 24 V 780 W 24 V 1170 W 100 VDC (Tracer-1210 RN) 150 VDC (Tracer-1215 RN) Max. PV input power -- Self-consumption ≤ 10 m. A(24 V) Communication TTL 232 / 8 pin RJ 45 -30 m. V/℃/12 V（25℃） Temp. compensation Tracer-1206 RN Tracer-1210 RN Tracer-1215 RN Tracer-2210 RN Tracer-2215 RN Tracer-3215 RN Tracer-4215 RN 156 x 97 x 68 mm 169 x 118 x 83 mm 242 x 169 x 91 mm 147 x 60 mm 160 x 80 mm 180 x 160 mm Terminal 4 mm 2 10 mm 2 25 mm 2 Net weight 0. 55 kg 0. 95 kg 2. 05 kg Mechanical Parameters Overall dimension Mounting holes Environmental parameters Working temperature -35℃ to +55℃ Storage temperature -35℃ to +80℃ Humidity 10%-90% NC Enclosure IP 30
