TPEG Travel and Traffic Information The Standard for

  • Slides: 10
Download presentation
TPEG –Travel and Traffic Information The Standard for sophisticated road services and more B.

TPEG –Travel and Traffic Information The Standard for sophisticated road services and more B. Eng. Oliver Helbig TPEG Product Manager Broadcast Applications Group Multimedia Applications Department Fraunhofer IIS amm-info@iis. fraunhofer. de oliver. helbig@iis. fraunhofer. de phone: +49 -(0) 9131 -776 -6052 fax: +49 -(0) 9131 -776 -6099 © Fraunhofer IIS

Traffic and Travel Information Today: Automatic Traffic Deviation with TMC n TMC – Traffic

Traffic and Travel Information Today: Automatic Traffic Deviation with TMC n TMC – Traffic Message Channel n pay services (TMCpro) and free-to-air n Distribution via Broadcasting: RDS-TMC on FM error prone n predefined locations on main traffic routes (mainly highways) no inner town locations n predefined event types limited possibilities for extensions n 10 messages per minute (~ 300 bps) slowly! n data carousel turnaround time max. 15 minutes limited actuality © Fraunhofer IIS

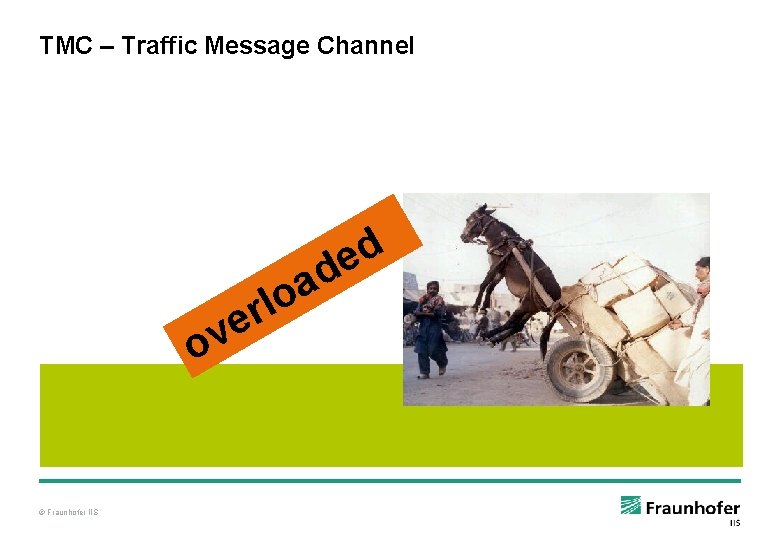

TMC – Traffic Message Channel a o rl e v o © Fraunhofer IIS

TMC – Traffic Message Channel a o rl e v o © Fraunhofer IIS d e d

TPEG Overview Characteristics Applications Location Referencing n Multimodal travel information n Traffic Event Compact

TPEG Overview Characteristics Applications Location Referencing n Multimodal travel information n Traffic Event Compact n Dynamic LR n Traffic Flow & Prediction n TMC LR n Language independent n Parking Information n TPEG LOC n Speed Information n Geo LR n Fuel Price Information n Open LR n Weather Information n Korean LR n Machine readable n CEN/ISO Spec n Bearer independ. Adaptation Layer Specs n DAB n DRM n HD Radio n HTTP (TCP-IP) © Fraunhofer IIS n Road Pricing Information n Public Transport Info n Conditional Access Info Profiles n Automotive Profile n Public Media Profile n …

TPEG – Transport Protocol Experts Group Hybrid Approach Information Filtering via Location Reference (GPS)

TPEG – Transport Protocol Experts Group Hybrid Approach Information Filtering via Location Reference (GPS) Digitalradio unidirectional, efficient Point-to-Multipoint Display Navigation Systems Content Aggregators Route Optimization Sensors, Traffic Observation, Weather Services, Floating Data, … TPEG Service Provider: Coding, optional Scrambling for Premium Services © Fraunhofer IIS . . . Mobile Communication (http) bidirectional Point-to-Point

TPEG – Transport Protocol Experts Group Hybrid Approach Secu rity r eleva nt inf

TPEG – Transport Protocol Experts Group Hybrid Approach Secu rity r eleva nt inf Major ro o ad netwo rk General information DAB Personalized information nt ion conte cis High pre e Inn © Fraunhofer IIS verag ty co er Ci IP

TPEG Operational Services n here (only Russia and Germany) n mediamobile (european wide) n

TPEG Operational Services n here (only Russia and Germany) n mediamobile (european wide) n Deutschlandradio (Germany) n infoblue (Italy) n Inrix (GB) n regional ARD TPEG Services © Fraunhofer IIS

TPEG Status in Europe – Example V-Traffic Status Q 1/2015 In service: Benelux (NL,

TPEG Status in Europe – Example V-Traffic Status Q 1/2015 In service: Benelux (NL, LUX, BE) Germany Norway United Kingdom (launch mid 2015) Italy (launch mid 2015) Poland (launch 2015) On trial: France – Paris area Sweden Switzerland Planned in 2016: Austria Denmark © Fraunhofer IIS

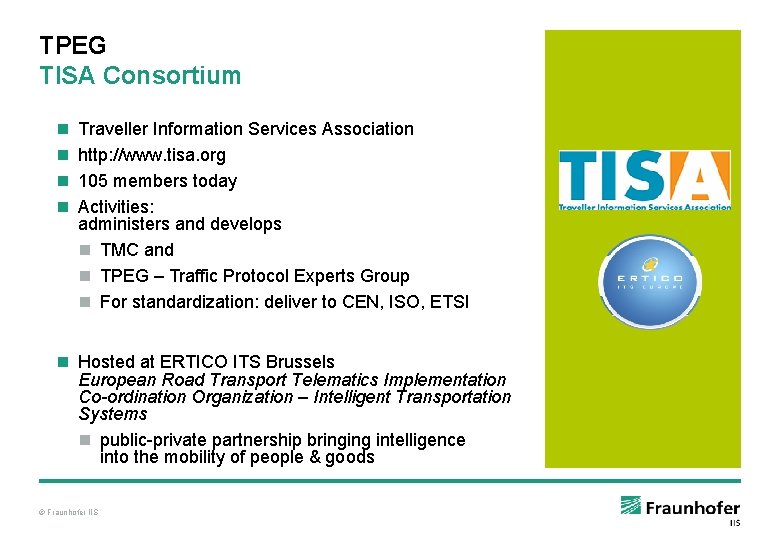

TPEG TISA Consortium n n Traveller Information Services Association http: //www. tisa. org 105

TPEG TISA Consortium n n Traveller Information Services Association http: //www. tisa. org 105 members today Activities: administers and develops n TMC and n TPEG – Traffic Protocol Experts Group n For standardization: deliver to CEN, ISO, ETSI n Hosted at ERTICO ITS Brussels European Road Transport Telematics Implementation Co-ordination Organization – Intelligent Transportation Systems n public-private partnership bringing intelligence into the mobility of people & goods © Fraunhofer IIS

TPEG –Travel and Traffic Information Thanks for your attention – Questions? – see our

TPEG –Travel and Traffic Information Thanks for your attention – Questions? – see our demos! B. Eng. Oliver Helbig TPEG Product Manager Broadcast Applications Group Multimedia Applications Department Fraunhofer IIS amm-info@iis. fraunhofer. de oliver. helbig@iis. fraunhofer. de phone: +49 -(0) 9131 -776 -6052 fax: +49 -(0) 9131 -776 -6099 © Fraunhofer IIS
