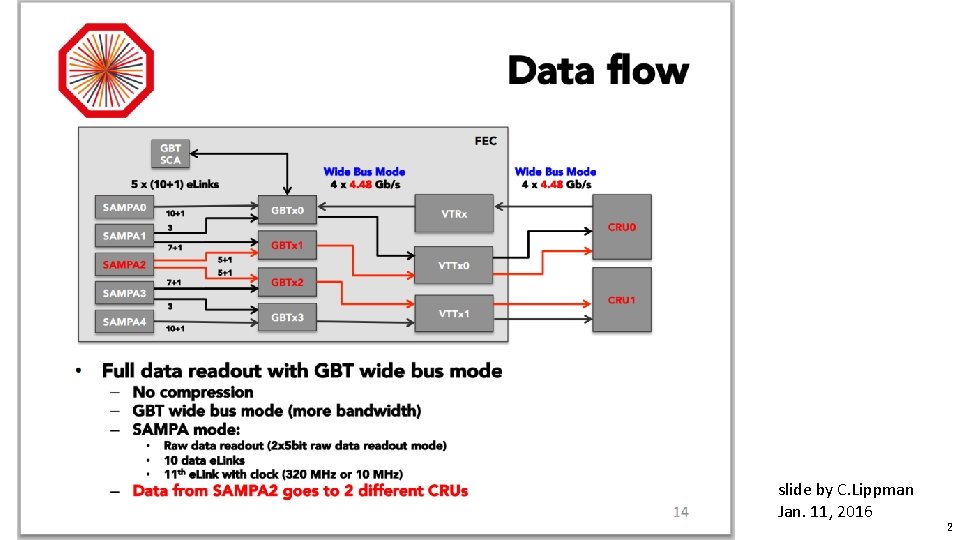

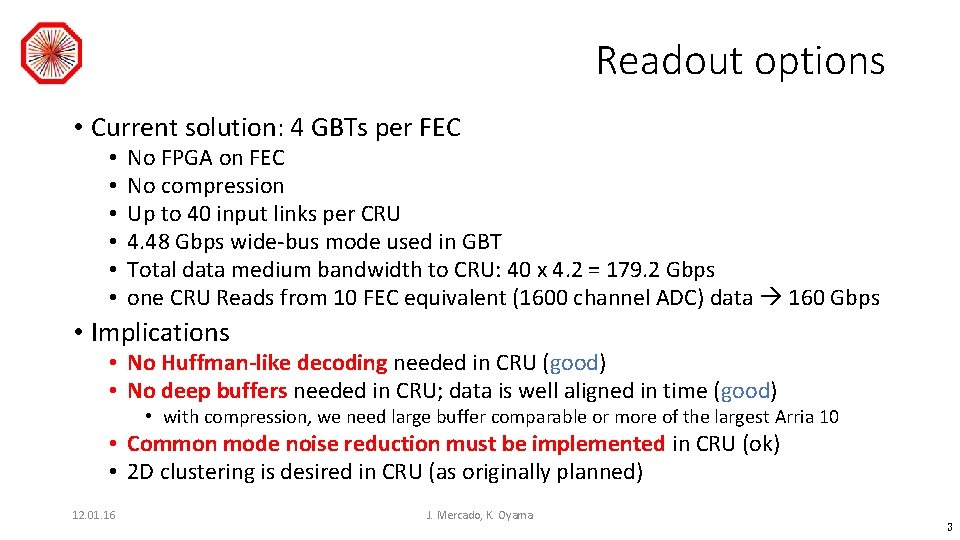

Readout options • Current solution: 4 GBTs per FEC • • • No FPGA on FEC No compression Up to 40 input links per CRU 4. 48 Gbps wide-bus mode used in GBT Total data medium bandwidth to CRU: 40 x 4. 2 = 179. 2 Gbps one CRU Reads from 10 FEC equivalent (1600 channel ADC) data 160 Gbps • Implications • No Huffman-like decoding needed in CRU (good) • No deep buffers needed in CRU; data is well aligned in time (good) • with compression, we need large buffer comparable or more of the largest Arria 10 • Common mode noise reduction must be implemented in CRU (ok) • 2 D clustering is desired in CRU (as originally planned) 12. 01. 16 J. Mercado, K. Oyama 3

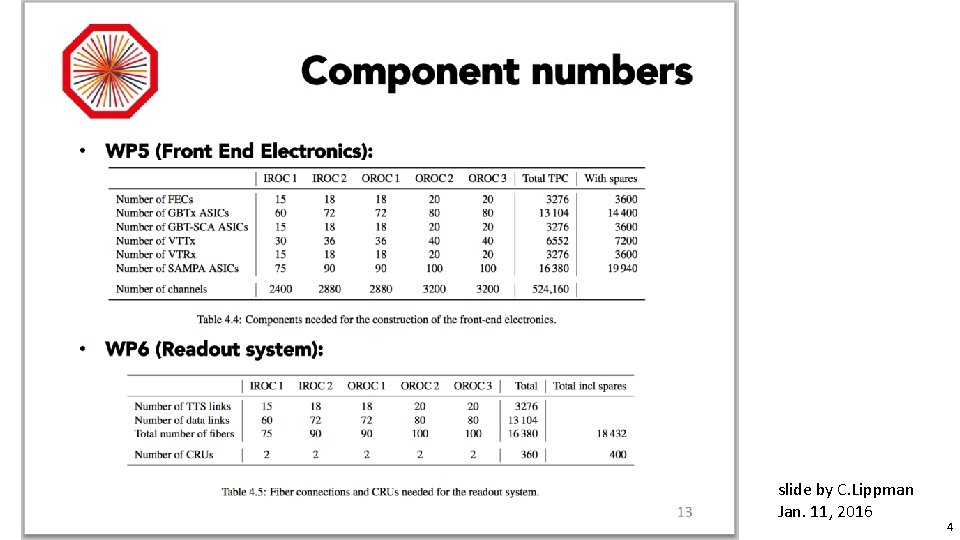

12. 01. 16 J. Mercado, K. Oyama slide by C. Lippman Jan. 11, 2016 4

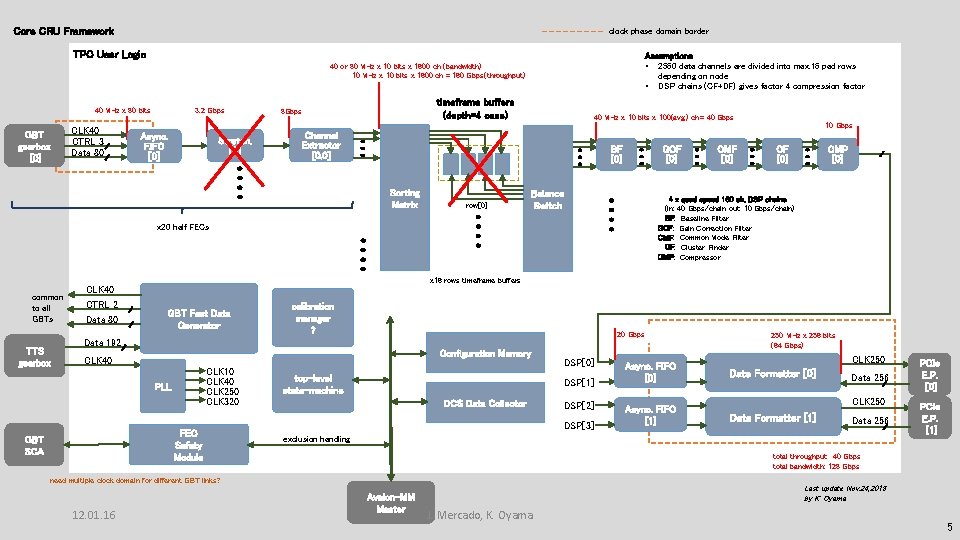

Core CRU Framework clock phase domain border TPC User Logic Assumptions • 2560 data channels are divided into max. 16 pad rows depending on node • DSP chains (CF+DF) gives factor 4 compression factor 40 or 80 MHz x 10 bits x 1600 ch (bandwidth) 10 MHz x 10 bits x 1600 ch = 160 Gbps (throughput) 40 MHz x 80 bits GBT gearbox [0] CLK 40 CTRL 3 Data 80 3. 2 Gbps Async. FIFO [0] Stretch. [0] timeframe buffers (depth=4 case) 8 Gbps 40 MHz x 10 bits x 100(avg. ) ch = 40 Gbps Channel Extractor [0, 0] GCF [0] BF [0] Sorting Matrix row[0] Balance Switch TTS gearbox GBT Fast Data Generator calibration manager ? 20 Gbps Data 192 Configuration Memory CLK 40 CLK 10 CLK 40 CLK 250 CLK 320 PLL FEC Safety Module GBT SCA CMP [0] x 16 rows timeframe buffers CLK 40 CTRL 2 Data 80 CF [0] 4 x quad speed 160 ch. DSP chains (in: 40 Gbps/chain out: 10 Gbps/chain) BF: Baseline Filter GCF: Gain Correction Filter CMF: Common Mode Filter CF: Cluster Finder CMP: Compressor x 20 half FECs common to all GBTs CMF [0] 10 Gbps top-level state-machine DSP[0] DSP[1] DCS Data Collector DSP[2] DSP[3] Async. FIFO [0] Async. FIFO [1] 250 MHz x 256 bits (64 Gbps) CLK 250 Data Formatter [0] Data 256 CLK 250 Data Formatter [1] Data 256 exclusion handling PCIe E. P. [0] PCIe E. P. [1] total throughput: 40 Gbps total bandwidth: 128 Gbps need multiple clock domain for different GBT links? 12. 01. 16 Avalon-MM Master Last update Nov. 24, 2015 by K. Oyama J. Mercado, K. Oyama 5

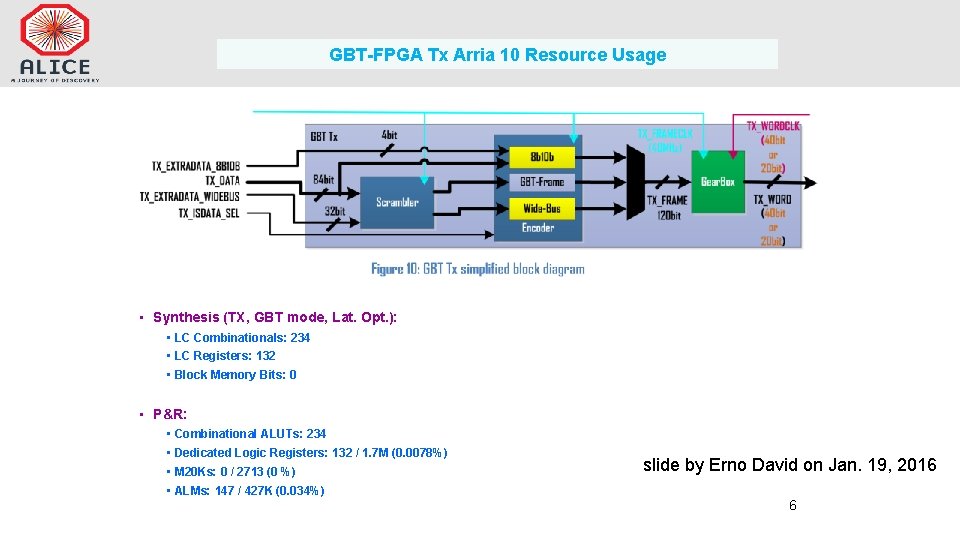

GBT-FPGA Tx Arria 10 Resource Usage • Synthesis (TX, GBT mode, Lat. Opt. ): • LC Combinationals: 234 • LC Registers: 132 • Block Memory Bits: 0 • P&R: • Combinational ALUTs: 234 • Dedicated Logic Registers: 132 / 1. 7 M (0. 0078%) • M 20 Ks: 0 / 2713 (0 %) • ALMs: 147 / 427 K (0. 034%) slide by Erno David on Jan. 19, 2016 6

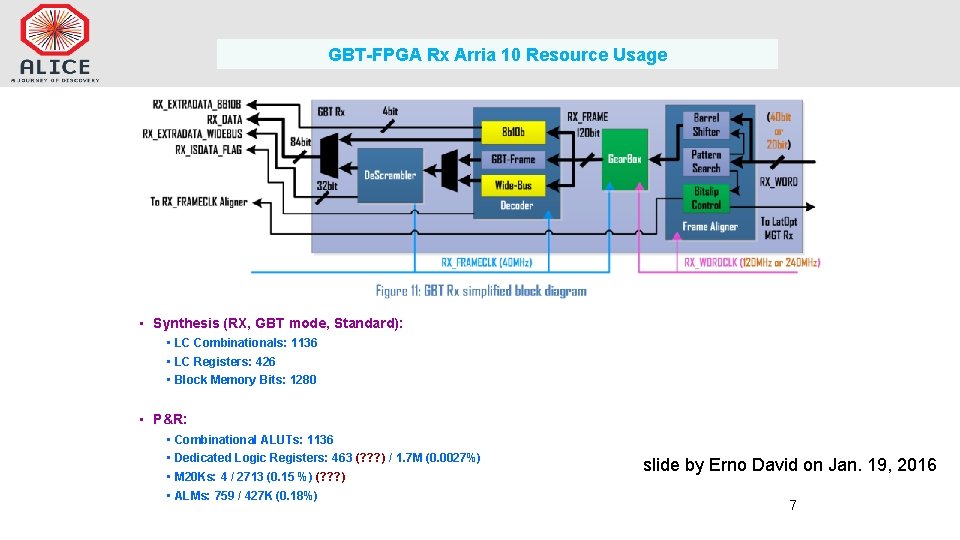

GBT-FPGA Rx Arria 10 Resource Usage • Synthesis (RX, GBT mode, Standard): • LC Combinationals: 1136 • LC Registers: 426 • Block Memory Bits: 1280 • P&R: • Combinational ALUTs: 1136 • Dedicated Logic Registers: 463 (? ? ? ) / 1. 7 M (0. 0027%) • M 20 Ks: 4 / 2713 (0. 15 %) (? ? ? ) • ALMs: 759 / 427 K (0. 18%) slide by Erno David on Jan. 19, 2016 7

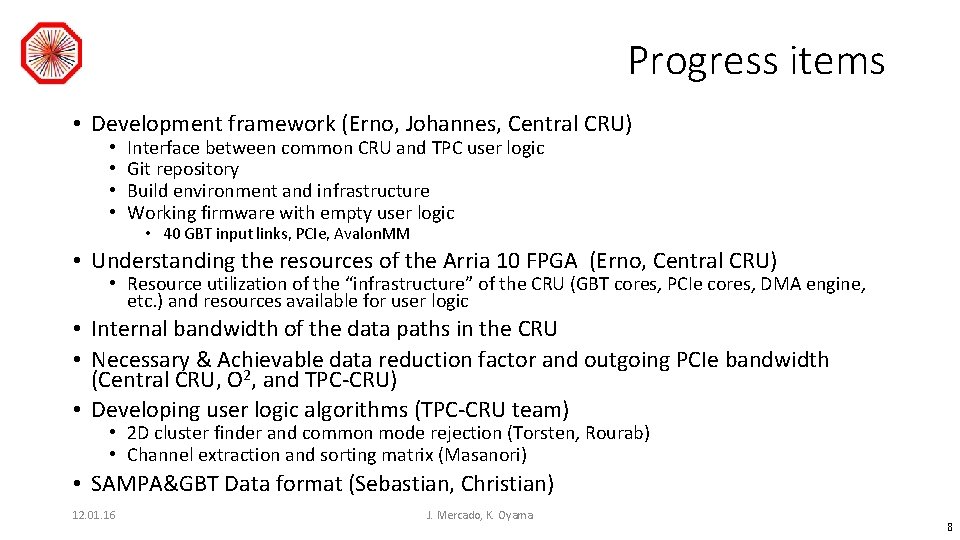

Progress items • Development framework (Erno, Johannes, Central CRU) • • Interface between common CRU and TPC user logic Git repository Build environment and infrastructure Working firmware with empty user logic • 40 GBT input links, PCIe, Avalon. MM • Understanding the resources of the Arria 10 FPGA (Erno, Central CRU) • Resource utilization of the “infrastructure” of the CRU (GBT cores, PCIe cores, DMA engine, etc. ) and resources available for user logic • Internal bandwidth of the data paths in the CRU • Necessary & Achievable data reduction factor and outgoing PCIe bandwidth (Central CRU, O 2, and TPC-CRU) • Developing user logic algorithms (TPC-CRU team) • 2 D cluster finder and common mode rejection (Torsten, Rourab) • Channel extraction and sorting matrix (Masanori) • SAMPA&GBT Data format (Sebastian, Christian) 12. 01. 16 J. Mercado, K. Oyama 8
