Towards a ModelBased Characterization of Data and Services

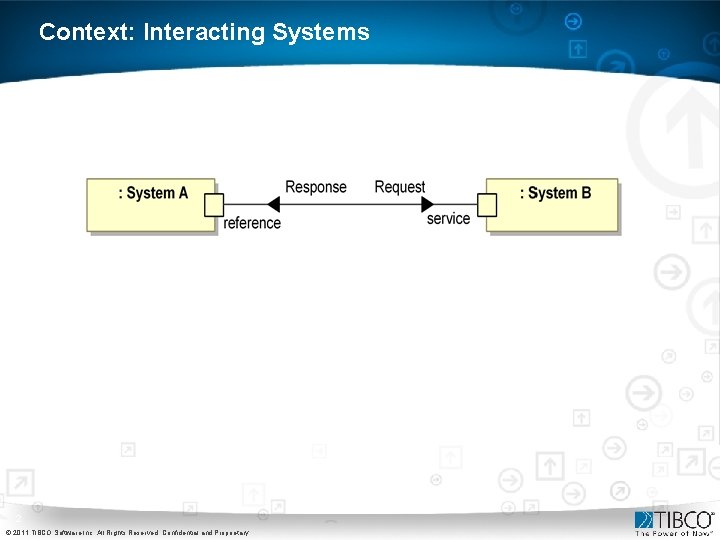

Context: Interacting Systems 2 © 2011 TIBCO Software Inc. All Rights Reserved. Confidential and

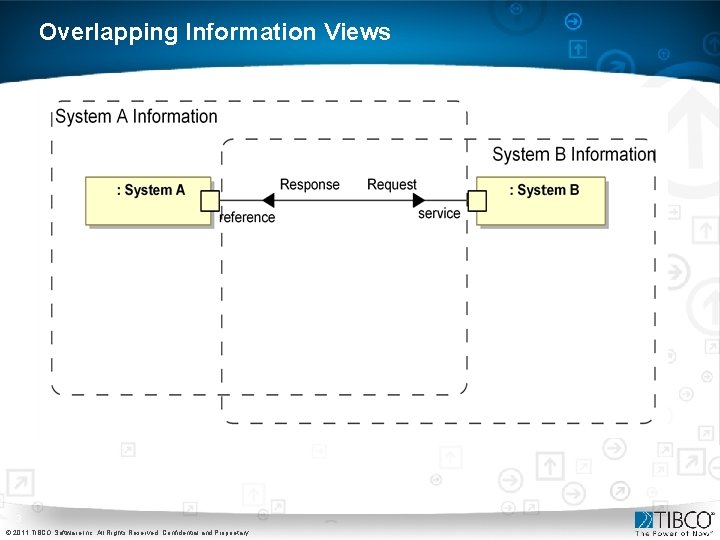

Overlapping Information Views 3 © 2011 TIBCO Software Inc. All Rights Reserved. Confidential and

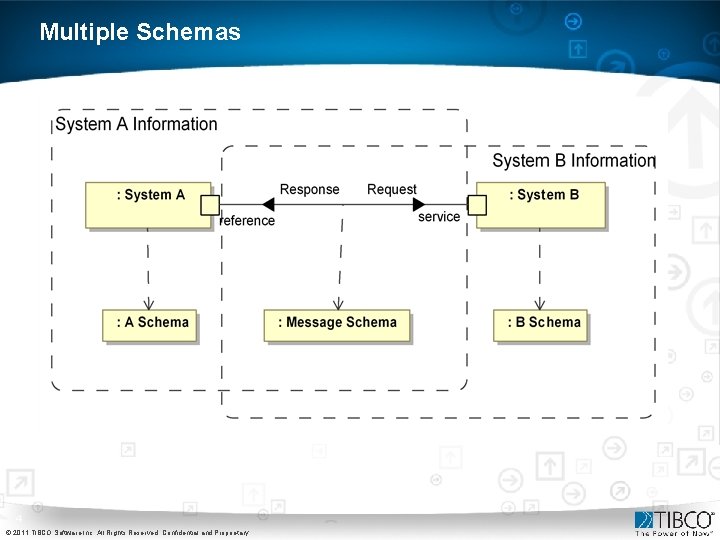

Multiple Schemas 4 © 2011 TIBCO Software Inc. All Rights Reserved. Confidential and Proprietary.

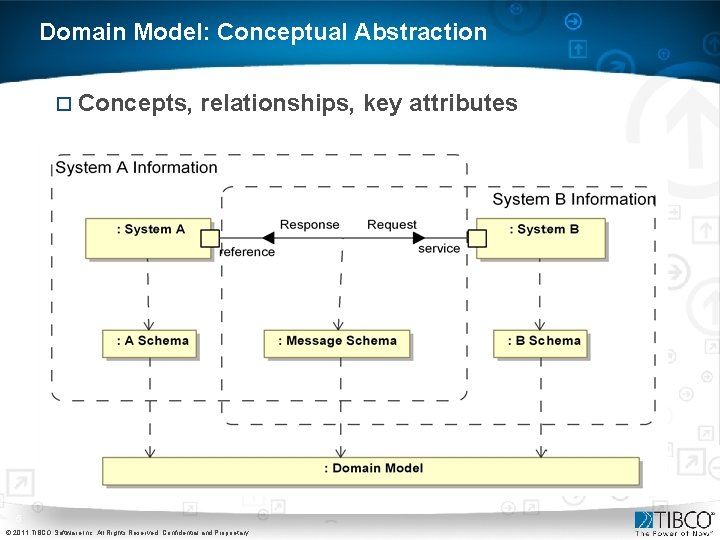

Domain Model: Conceptual Abstraction ¨ Concepts, relationships, key attributes 5 © 2011 TIBCO Software

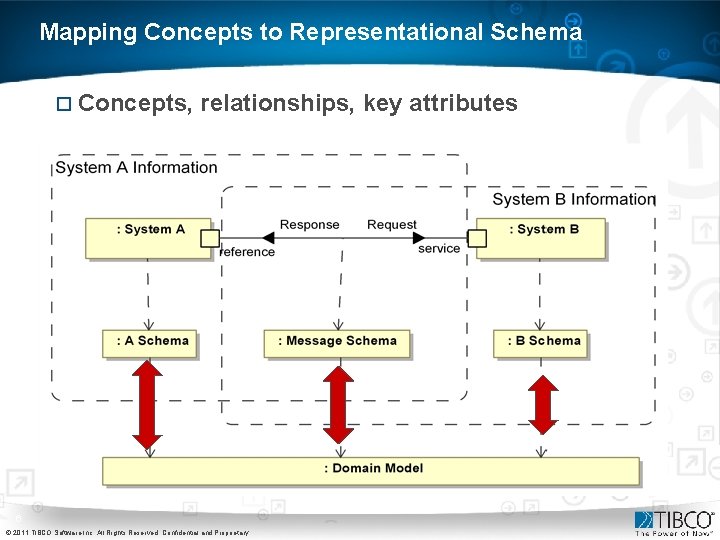

Mapping Concepts to Representational Schema ¨ Concepts, relationships, key attributes 6 © 2011 TIBCO

Concepts are not Uniform: Mapping is Required 7 © 2011 TIBCO Software Inc. All

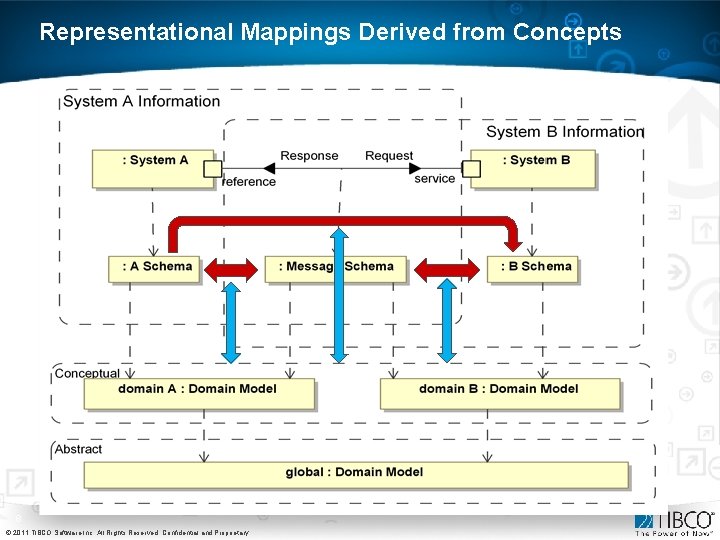

Representational Mappings Derived from Concepts 8 © 2011 TIBCO Software Inc. All Rights Reserved.

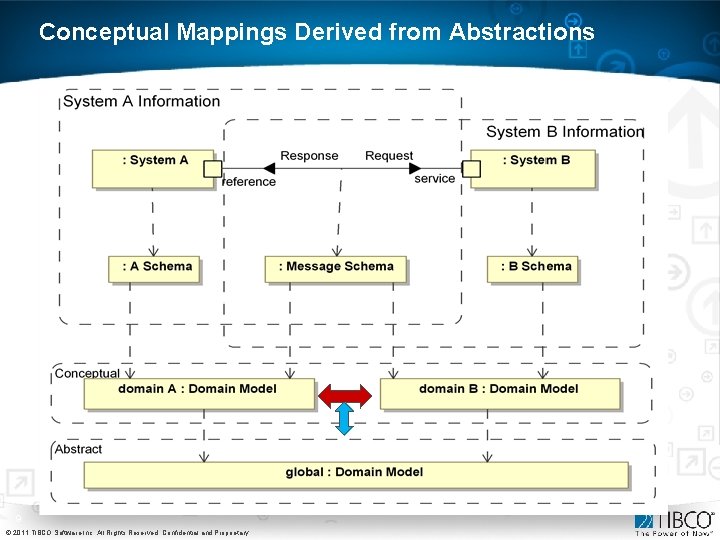

Conceptual Mappings Derived from Abstractions 9 © 2011 TIBCO Software Inc. All Rights Reserved.

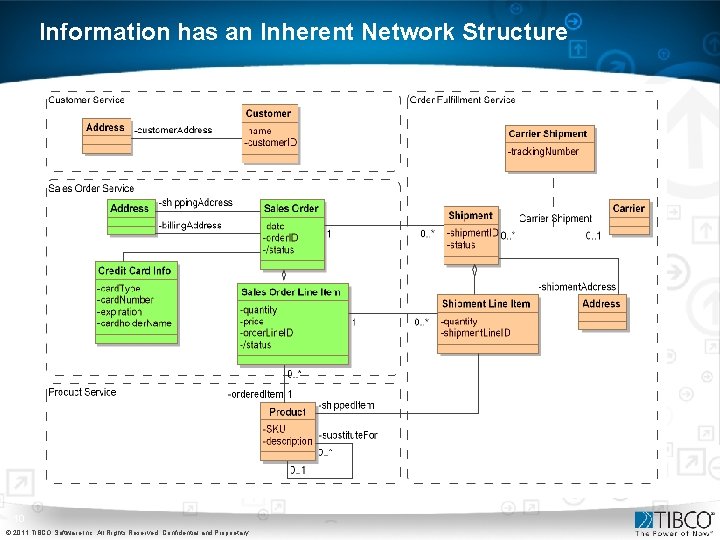

Information has an Inherent Network Structure 10 © 2011 TIBCO Software Inc. All Rights

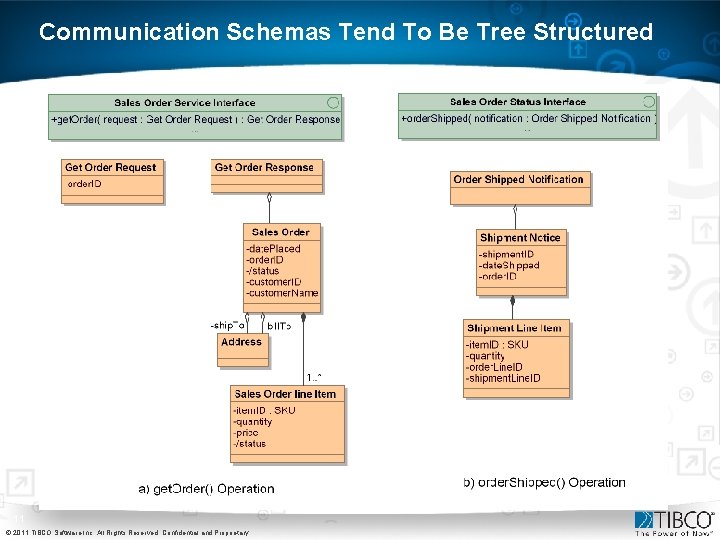

Communication Schemas Tend To Be Tree Structured 11 © 2011 TIBCO Software Inc. All

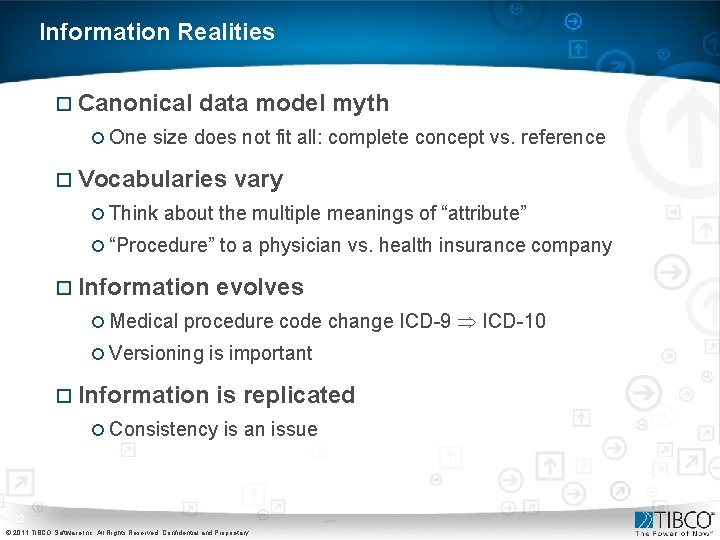

Information Realities ¨ Canonical data model myth ¡ One size does not fit all: complete concept vs. reference ¨ Vocabularies vary ¡ Think about the multiple meanings of “attribute” ¡ “Procedure” to a physician vs. health insurance company ¨ Information evolves ¡ Medical procedure code change ICD-9 ICD-10 ¡ Versioning is important ¨ Information is replicated ¡ Consistency is an issue 12 © 2011 TIBCO Software Inc. All Rights Reserved. Confidential and Proprietary.

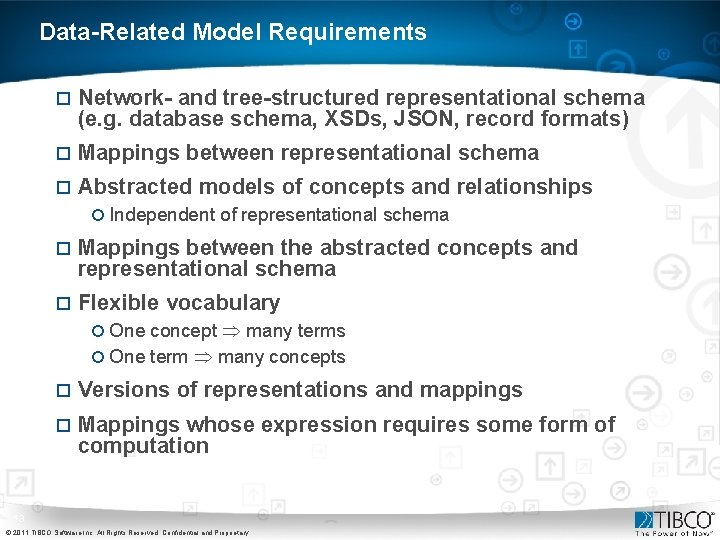

Data-Related Model Requirements ¨ Network- and tree-structured representational schema (e. g. database schema, XSDs, JSON, record formats) ¨ Mappings between representational schema ¨ Abstracted models of concepts and relationships ¡ Independent of representational schema ¨ Mappings between the abstracted concepts and representational schema ¨ Flexible vocabulary ¡ One concept many terms ¡ One term many concepts ¨ Versions of representations and mappings ¨ Mappings whose expression requires some form of computation 13 © 2011 TIBCO Software Inc. All Rights Reserved. Confidential and Proprietary.

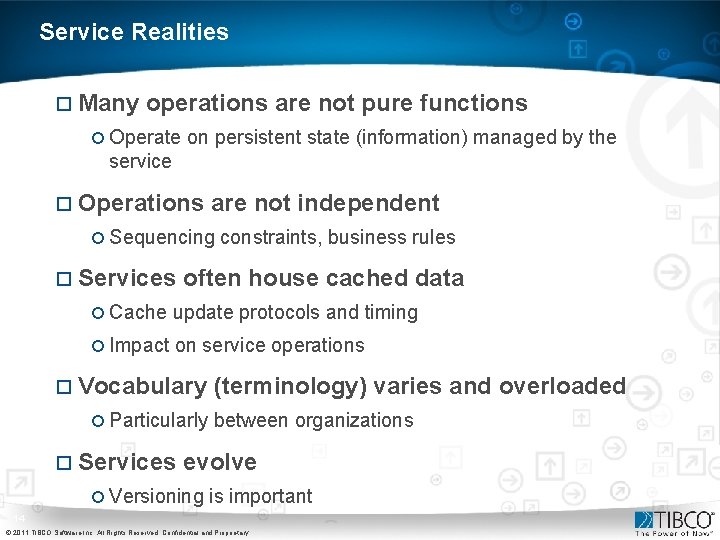

Service Realities ¨ Many operations are not pure functions ¡ Operate on persistent state (information) managed by the service ¨ Operations are not independent ¡ Sequencing constraints, business rules ¨ Services often house cached data ¡ Cache update protocols and timing ¡ Impact on service operations ¨ Vocabulary (terminology) varies and overloaded ¡ Particularly between organizations ¨ Services evolve ¡ Versioning is important 14 © 2011 TIBCO Software Inc. All Rights Reserved. Confidential and Proprietary.

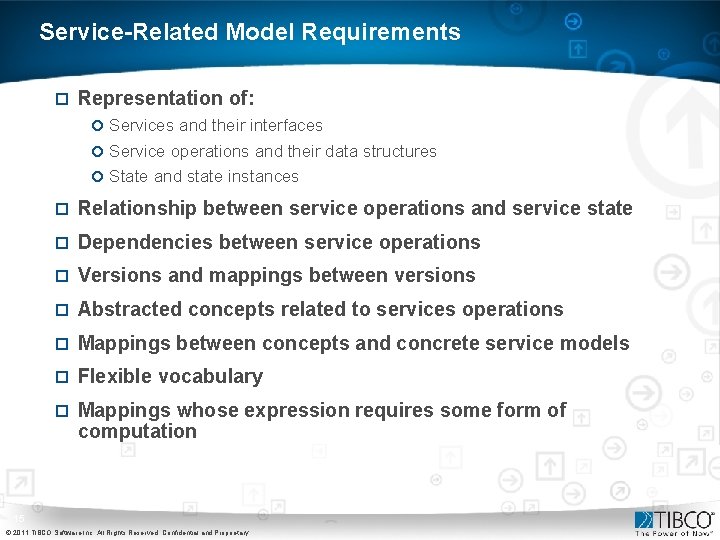

Service-Related Model Requirements ¨ Representation of: ¡ Services and their interfaces ¡ Service operations and their data structures ¡ State and state instances ¨ Relationship between service operations and service state ¨ Dependencies between service operations ¨ Versions and mappings between versions ¨ Abstracted concepts related to services operations ¨ Mappings between concepts and concrete service models ¨ Flexible vocabulary ¨ Mappings whose expression requires some form of computation 15 © 2011 TIBCO Software Inc. All Rights Reserved. Confidential and Proprietary.

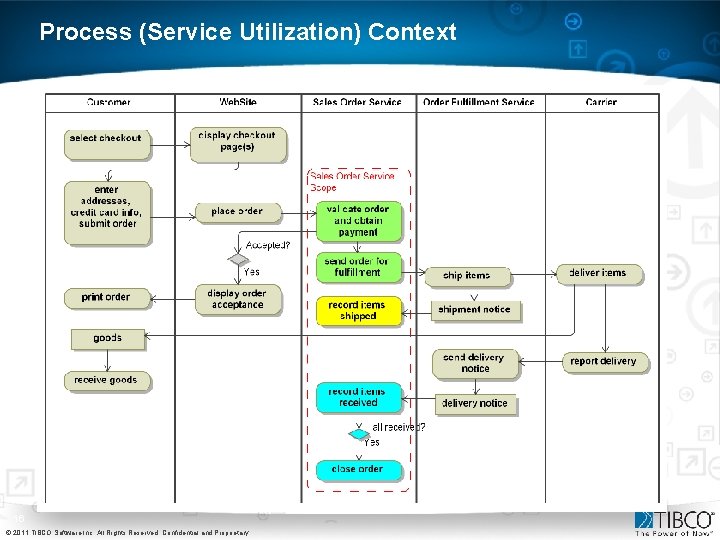

Process (Service Utilization) Context 16 © 2011 TIBCO Software Inc. All Rights Reserved. Confidential

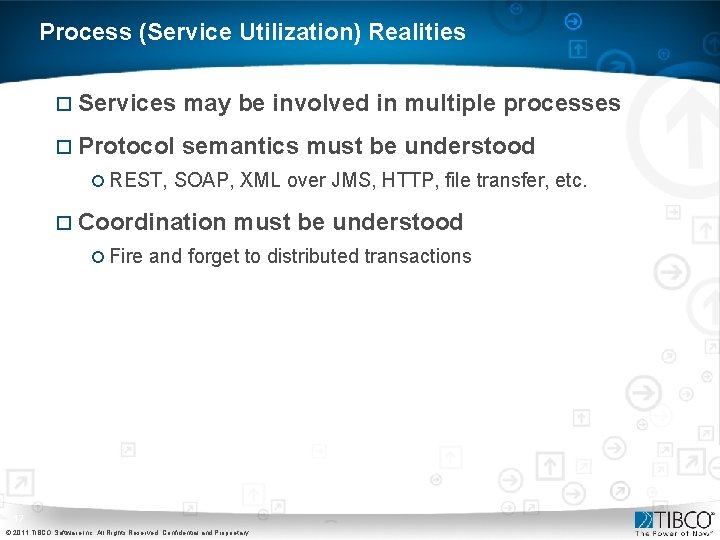

Process (Service Utilization) Realities ¨ Services may be involved in multiple processes ¨ Protocol semantics must be understood ¡ REST, SOAP, XML over JMS, HTTP, file transfer, etc. ¨ Coordination must be understood ¡ Fire and forget to distributed transactions 17 © 2011 TIBCO Software Inc. All Rights Reserved. Confidential and Proprietary.

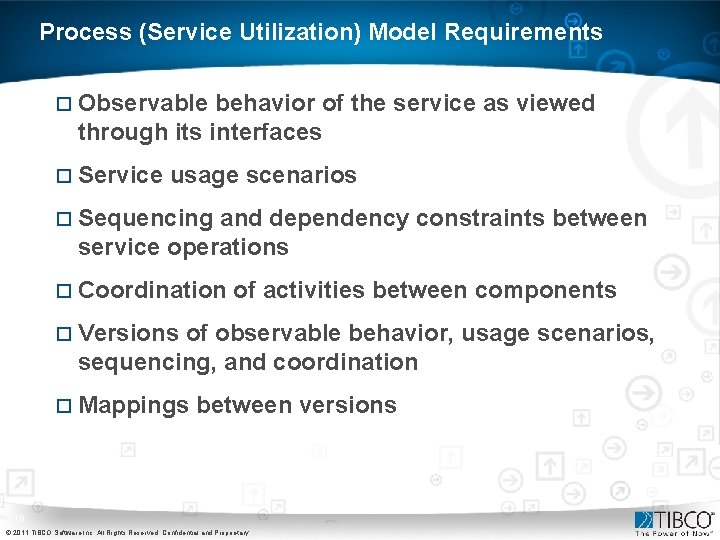

Process (Service Utilization) Model Requirements ¨ Observable behavior of the service as viewed through its interfaces ¨ Service usage scenarios ¨ Sequencing and dependency constraints between service operations ¨ Coordination of activities between components ¨ Versions of observable behavior, usage scenarios, sequencing, and coordination ¨ Mappings between versions 18 © 2011 TIBCO Software Inc. All Rights Reserved. Confidential and Proprietary.

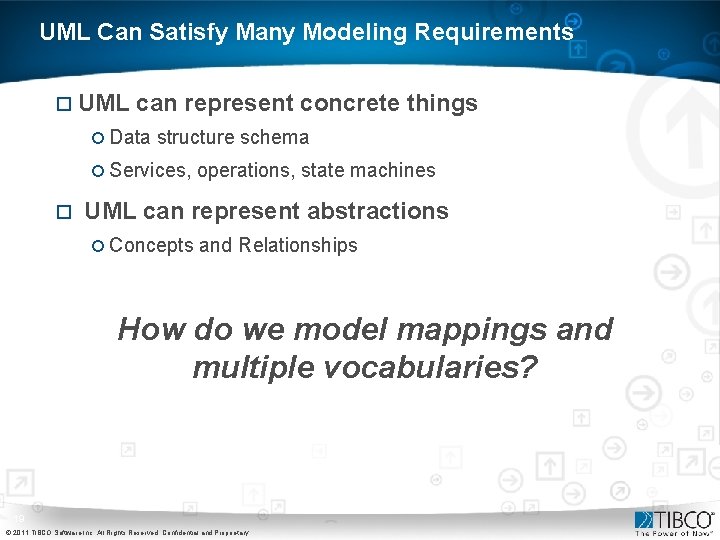

UML Can Satisfy Many Modeling Requirements ¨ UML can represent concrete things ¡ Data structure schema ¡ Services, operations, state machines ¨ UML can represent abstractions ¡ Concepts and Relationships How do we model mappings and multiple vocabularies? 19 © 2011 TIBCO Software Inc. All Rights Reserved. Confidential and Proprietary.

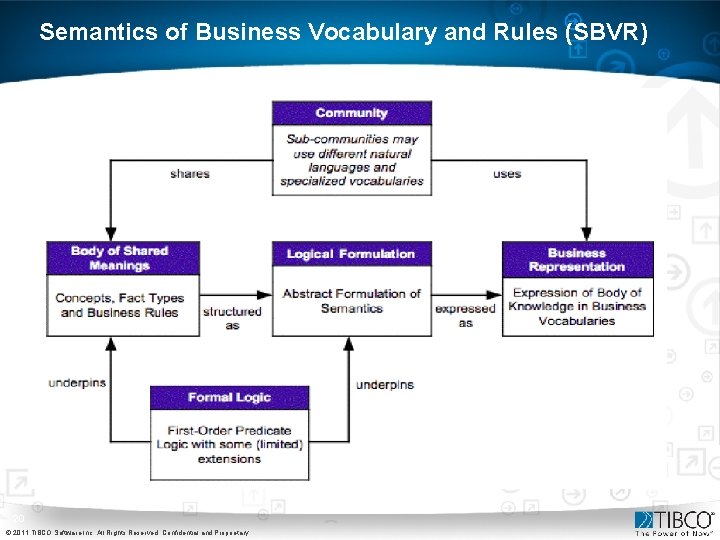

Semantics of Business Vocabulary and Rules (SBVR) 20 © 2011 TIBCO Software Inc. All

Semantics of Business Vocabulary and Rules (SBVR) Abstract concepts and relationships Concrete schema and other representations 21 © 2011 TIBCO Software Inc. All Rights Reserved. Confidential and Proprietary.

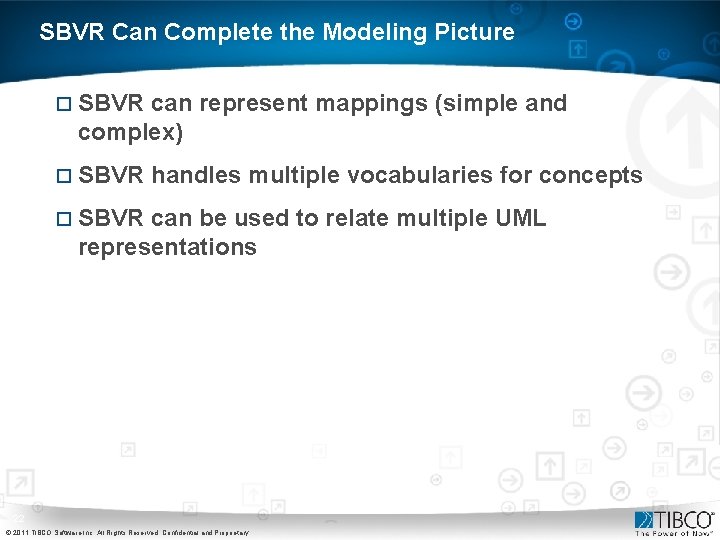

SBVR Can Complete the Modeling Picture ¨ SBVR can represent mappings (simple and complex) ¨ SBVR handles multiple vocabularies for concepts ¨ SBVR can be used to relate multiple UML representations 22 © 2011 TIBCO Software Inc. All Rights Reserved. Confidential and Proprietary.

What We Need ¨ Uniform approach to modeling ¡ Abstract and concrete concepts and relationships • Multiple domains with relationships ¡ Bi-directional Mappings • Abstract concrete models • Concrete models actual schema • Schema schema mappings ¡ Versioning at all levels + mappings between versions ¨ Tooling ¡ Schema Concrete model + schema-model mapping ¡ Concrete mappings schema mappings (e. g. XSLT) ¡ Abstract mappings concrete mappings UML and SBVR seem to have the required building blocks! 23 © 2011 TIBCO Software Inc. All Rights Reserved. Confidential and Proprietary.
