TOSIBOX LOCK security options

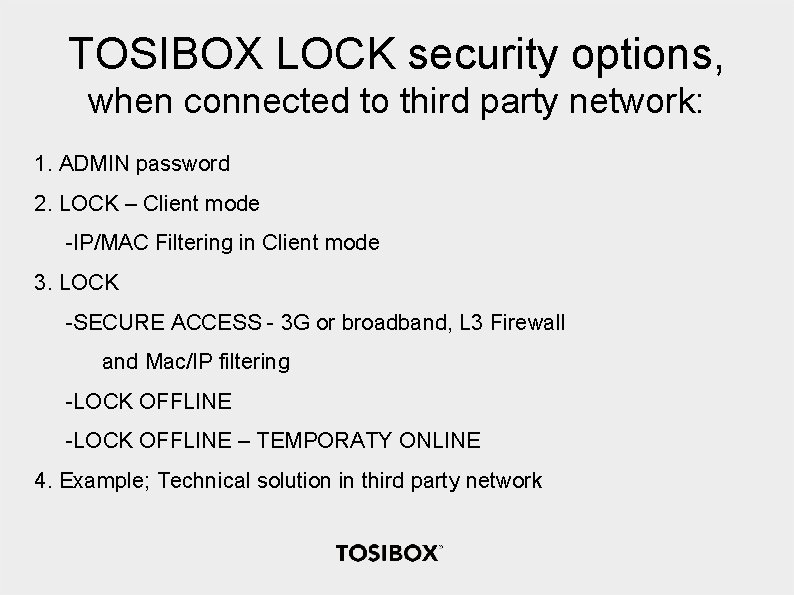

TOSIBOX LOCK security options, when connected to third party network: 1. ADMIN password 2. LOCK – Client mode -IP/MAC Filtering in Client mode 3. LOCK -SECURE ACCESS - 3 G or broadband, L 3 Firewall and Mac/IP filtering -LOCK OFFLINE – TEMPORATY ONLINE 4. Example; Technical solution in third party network

ADMIN Password -All Lock has unique password. It is important, password will be managed by owner of the network -ADMIN can only change security features on the TOSIBOX Lock

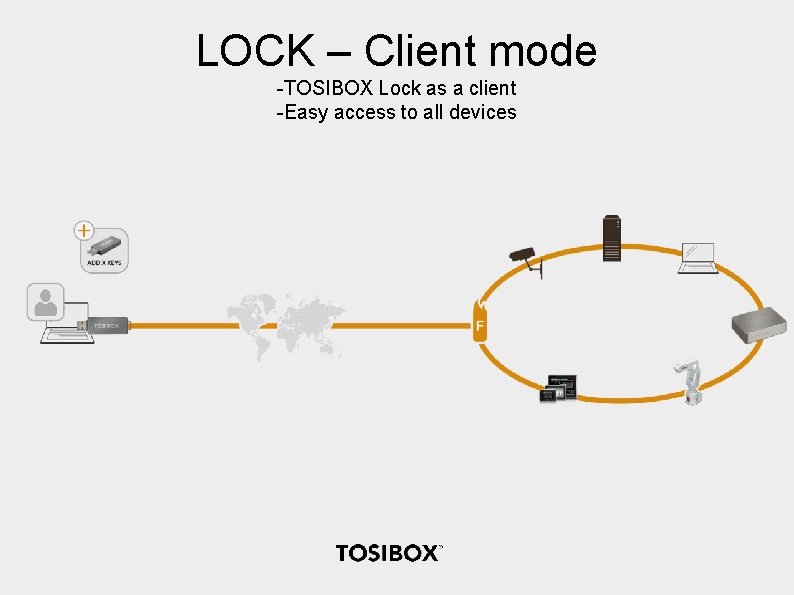

LOCK – Client mode -TOSIBOX Lock as a client -Easy access to all devices

LOCK – Client mode -IP / MAC FILTERING IN Client mode -TOSIBOX Key access to dedicated devices only

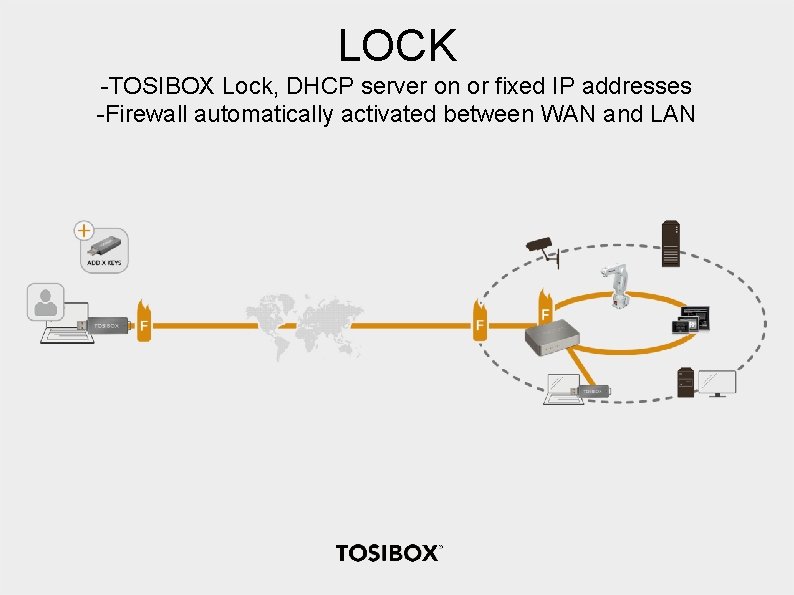

LOCK -TOSIBOX Lock, DHCP server on or fixed IP addresses -Firewall automatically activated between WAN and LAN

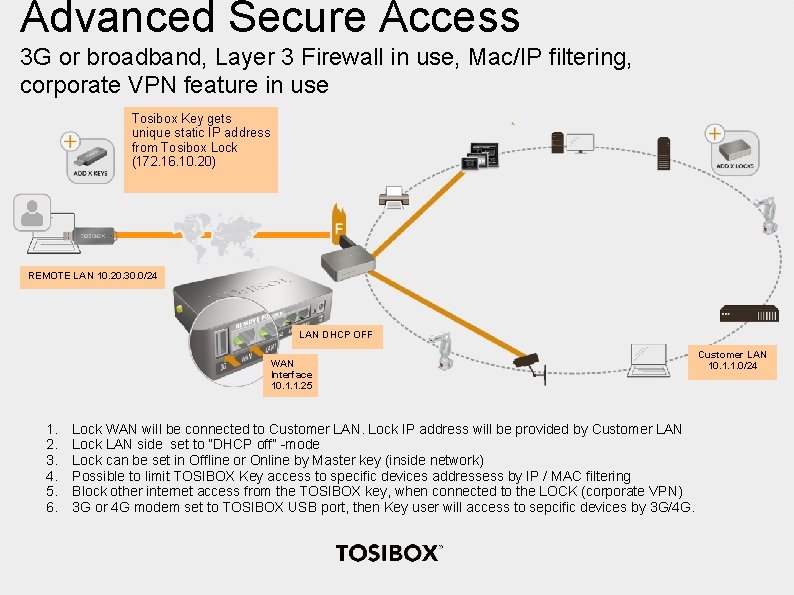

Advanced Secure Access 3 G or broadband, Layer 3 Firewall in use, Mac/IP filtering, corporate VPN feature in use Tosibox Key gets unique static IP address from Tosibox Lock (172. 16. 10. 20) REMOTE LAN 10. 20. 30. 0/24 LAN DHCP OFF WAN Interface 10. 1. 1. 25 1. 2. 3. 4. 5. 6. Lock WAN will be connected to Customer LAN. Lock IP address will be provided by Customer LAN Lock LAN side set to ”DHCP off” -mode Lock can be set in Offline or Online by Master key (inside network) Possible to limit TOSIBOX Key access to specific devices addressess by IP / MAC filtering Block other internet access from the TOSIBOX key, when connected to the LOCK (corporate VPN) 3 G or 4 G modem set to TOSIBOX USB port, then Key user will access to sepcific devices by 3 G/4 G. Customer LAN 10. 1. 1. 0/24

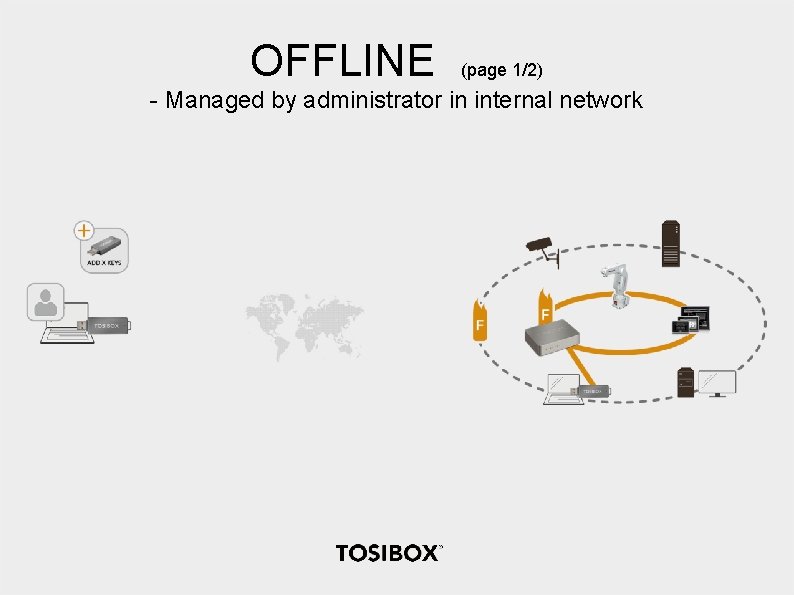

OFFLINE (page 1/2) - Managed by administrator in internal network

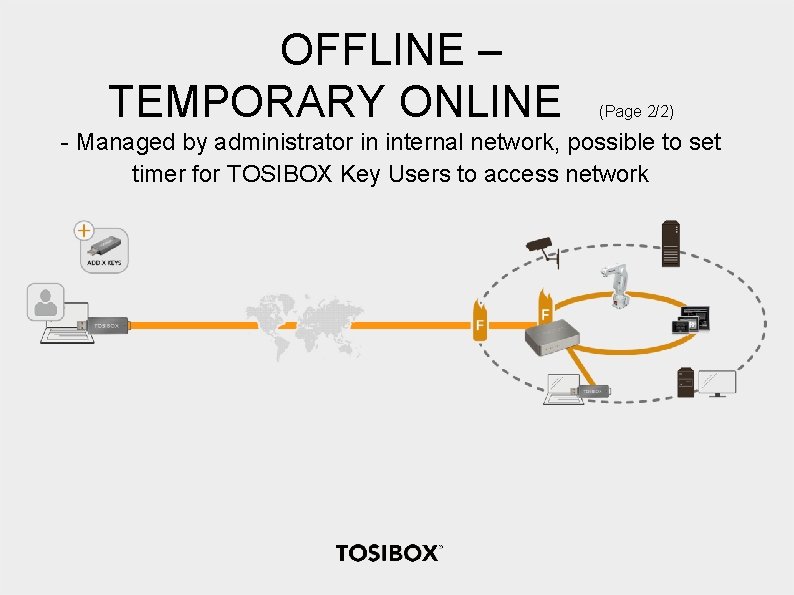

OFFLINE – TEMPORARY ONLINE (Page 2/2) - Managed by administrator in internal network, possible to set timer for TOSIBOX Key Users to access network

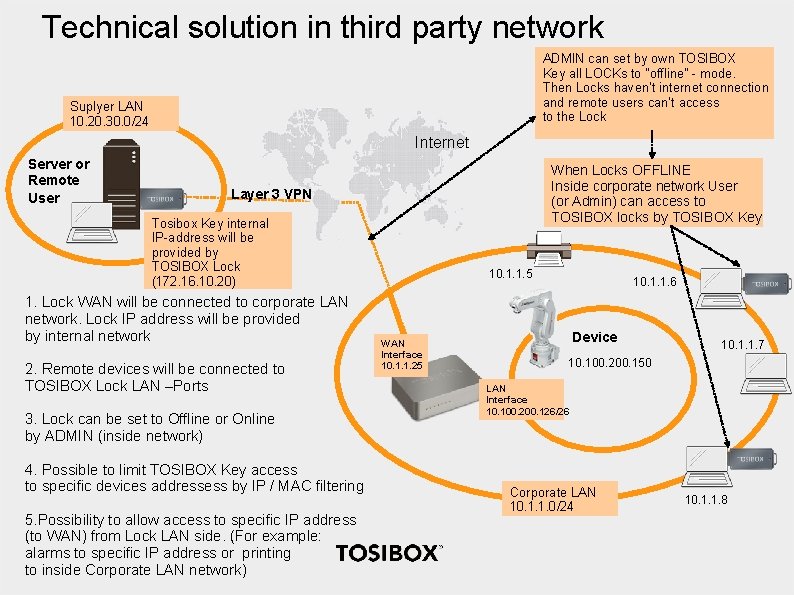

Technical solution in third party network ADMIN can set by own TOSIBOX Key all LOCKs to ”offline” - mode. Then Locks haven’t internet connection and remote users can’t access to the Lock Suplyer LAN 10. 20. 30. 0/24 Internet Server or Remote User When Locks OFFLINE Inside corporate network User (or Admin) can access to TOSIBOX locks by TOSIBOX Key Layer 3 VPN Tosibox Key internal IP-address will be provided by TOSIBOX Lock (172. 16. 10. 20) 1. Lock WAN will be connected to corporate LAN network. Lock IP address will be provided by internal network 2. Remote devices will be connected to TOSIBOX Lock LAN –Ports 3. Lock can be set to Offline or Online by ADMIN (inside network) 4. Possible to limit TOSIBOX Key access to specific devices addressess by IP / MAC filtering 5. Possibility to allow access to specific IP address (to WAN) from Lock LAN side. (For example: alarms to specific IP address or printing to inside Corporate LAN network) 10. 1. 1. 5 WAN Interface 10. 1. 1. 25 10. 1. 1. 6 Device 10. 1. 1. 7 10. 100. 200. 150 LAN Interface 10. 100. 200. 126/26 Corporate LAN 10. 1. 1. 0/24 10. 1. 1. 8
