Tornadogenesis and Tornado Dynamics as Revealed by Ultra High-resolution Numerical Simulations of Supercell Storm Ming Xue School of Meteorology and Center for Analysis and Prediction of Storms University of Oklahoma mxue@ou. edu Lilly Symposium January 2006
Theories of Low-level Rotation
(Klemp & Rotunno 1983)

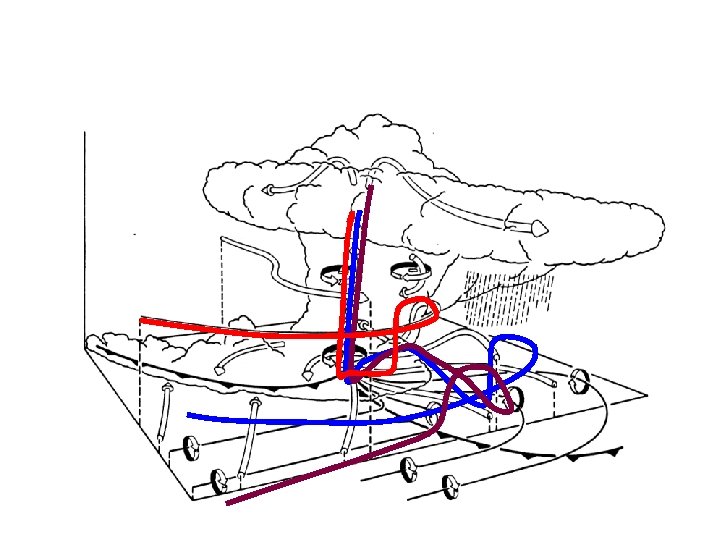

Downward Transport of Mid-level Mesocyclone Angular Momentum by Rainy Downdraft (Davis-Jones 2001, 2002) vorticity carried by downdraft parcel baroclinic generation around cold, water loaded downdraft cross-stream vorticity generation by sfc friction
25 m resolution simulation • Using the ARPS model • 1977 Del City, OK sounding (~3300 J/kg CAPE) • 2000 x 83 point uniform resolution 50 x 50 km grid. • Dx = 25 m, Dzmin = 20 m, dt=0. 125 s. • Warmrain microphysics with surface friction at the later stage • Simulations up to 5 hours • Using 2048 Alpha Processors at Pittsburgh Supercomputing Center • 15 TB of 16 -bit compressed data generated by one 25 m simulation over 30 minutes, output at 1 second intervals
Full Domain Surface Fields of 50 m simulation t =3 h 44 min Red – positive vertical vorticity
Near surface vorticity, wind, reflectivity, and temperature perturbation 2 x 2 km Vort ~ 2 s-1
Low-level reflectivity and streamlines of 25 m simulation
Maximum surface wind speed and minimum perturbation pressure of 25 m simulation 120 m/s >80 mb pressure drop +50 m/s in ~1 min ~120 m/s max surface winds 210 min -80 mb 240 min
Movie of Cloud Water Field 25 m, 7. 5 x 7. 5 km domain, 30 minutes
Time-dependent Trajectories
z = 3 km t=13250 s beginning of View from South vortex intensification
Trajectory Animations
3 km FFD of 2 nd cell FFD of 1 st cell Inflow from east Low-level jump flow View from Northeast
Summary • F 5 intensity tornado formed behind the gust front, within the cold pool. • Air parcels feeding the tornado all originated from the warm sector in a layer of about 2 km deep. • The low-level parcels pass over the forward-flank gust front of 1 st or 2 nd supercell, descend to ground level and flow along the ground inside the cold pool towards the convergence center • The parcels gain streamwise vorticity through stretching and baroclinic vorticity generation (quantitative calculations to be completed) before turning sharply into the vertical
Summary – continued… • Intensification of mid-level mesocyclone lowers mid-level pressure • Upward vertical PGF draws initially negatively buoyant low-level air into the tornado vortex but the buoyancy turns positive as pressure drops • Intense vertical stretching follows intensification of low-level tornado vortex genesis of a tornado
Summary – continued. • Baroclinic generation of horizontal vorticity along forward-flank gust front does not seem to have played a key role in this case. • The relative role of downward transport of vertical vorticity associated with mid-level mesocyclone, as compared to streamwide vorticity in the parcel, needs further quantification. • Many issues remain.
Is resolution all it takes given a favorable supercell sounding? • No. • Tornado remained ≤ F 2 when ice microphysics was used – cold pool was too strong! • There is a tremendous sensitivity to, e. g. , the intercept parameters assumed for the hydrometeor drop-size distributions.
Vorticity Time Series from 100 m experiments Large raindrops (r 5) Maximum intensity: f 2 Duration: 9 min. 4 hours • Simulations favoring large hydrometeors (weak cold pools) were most favorable for development of long-lived tornadoes. • In simulations favoring small hydrometeors (strong cold pools), vortex spinups that did occur tended to be weak and short-lived.
Cold pool intensity (gray) N 0 r = 8 x 105 m 4, N 0 h = 4 x 104 m 4 large raindrops N 0 r = 8 x 107 m 4, N 0 h = 4 x 106 m 4 Small raindrops and hailstones Default of Lin scheme: N 0 r = 8 x 106 m 4, N 0 h = 4 x 104 m 4

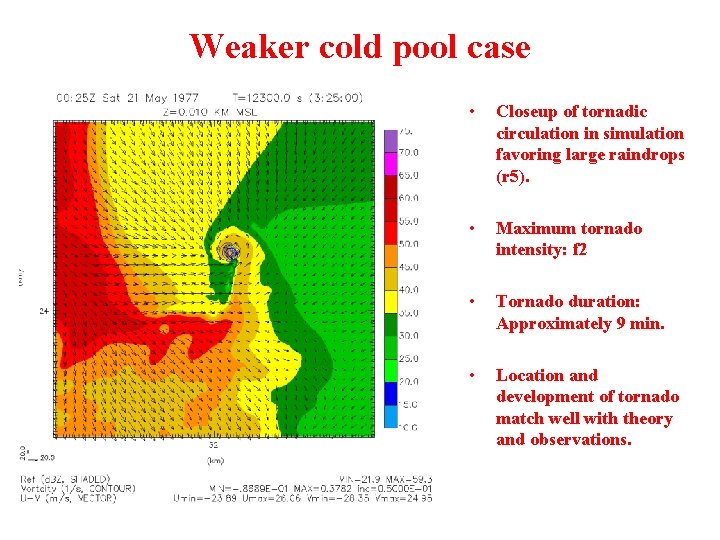

Weaker cold pool case • Closeup of tornadic circulation in simulation favoring large raindrops (r 5). • Maximum tornado intensity: f 2 • Tornado duration: Approximately 9 min. • Location and development of tornado match well with theory and observations.
Can we predict tornado some day?
I hope so!
Prediction of the May 8, 2003 OKC Tornadic Supercell Storm • WSR-88 D radar data assimilated very 5 min over 1 hour period • Full physics (sfc physics, turbulence, radiation, microphysics) model (ARPS) • 1 km analysis interpolated to 100 m grid
1 -km grid forecast Reflectivity at 1. 45º elevation 30 -min forecast 40 -min forecast
100 m grid prediction Surface Z in the northeastern part of the forecast domain during 2105 -2227 UTC (over 22 minutes)
Surface Z at 30 -min forecast
Surface fields from 2205 -2215 UTC A tornado from 2210 -2214 UTC Reflectivity Wind Maximum over 62 m s-1 Vorticity Pressure Maximum 0. 66 s-1 Minimum 919 h. Pa p’ ~ 40 mb
Thank you!
