Topographic Maps vs DEM
Topographic Map 1: 24, 000 Scale http: //www. tnrcc. state. tx. us/gis/raster. html 20 ft contour 100 ft contour Stream Center Line
Flow in Direction of Steepest Descent
Watershed Delineation by Hand Digitizing Watershed divide Drainage direction Outlet
30 Meter Mesh Standard for 1: 24, 000 Scale Maps
30 Meter DEM Cell Boundaries
USGS 30 Meter DEM for This Area
DEM Lattice Points
DEM Cell Stores Elevation at Lattice Point
DEM Elevations 720 Contours 740 720 700 680
DEM Elevations Contours 700 680

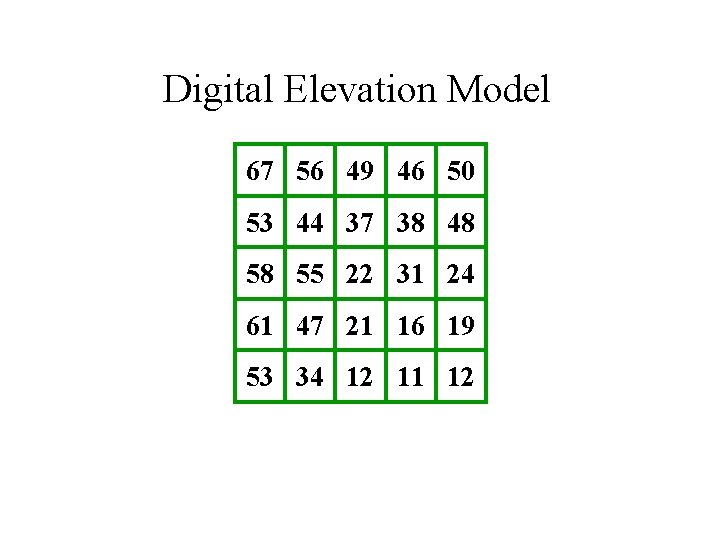

Digital Elevation Model 67 56 49 46 50 53 44 37 38 48 58 55 22 31 24 61 47 21 16 19 53 34 12 11 12
Cell Definition 30 m cell 67 56 49 46 50 53 44 37 38 48 58 55 22 31 24 61 47 21 16 19 50 (cell value) 53 34 12 11 12 cell
Dealing with the Pits
Filling in the Pits • DEM creation results in artificial pits in the landscape • A pit is a set of one or more cells which has no downstream cells around it • Unless these pits are filled they become sinks and isolate portions of the watershed • Pit filling is first thing done with a DEM
“Burning In” the Streams - Improve accuracy based on photograph Take a mapped stream network and a DEM Make a grid of the streams Raise the off-stream DEM cells by an arbitrary elevation increment Produces "burned in" DEM streams = mapped streams + =
The Flow Direction Grid
Eight Direction Pour Point Model 32 64 1 16 8 128 4 2
Direction of Steepest Descent 1 Slope: 1 67 56 49 53 44 37 58 55 22
Flow Direction Grid 2 2 4 4 8 1 2 4 8 4 128 1 2 4 8 2 1 4 4 4 1 1 1 2 16
Flow Direction Grid- Red is NE 32 64 128 16 8 1 4 2

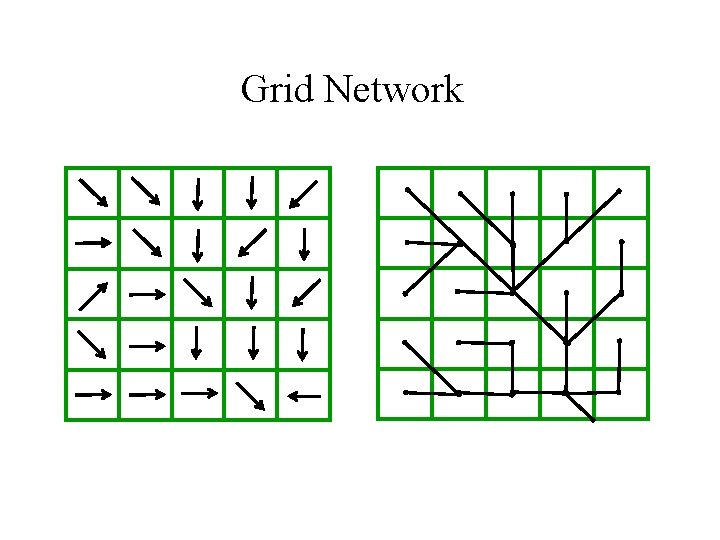

Grid Network
The Flow Accumulation Grid
Flow Accumulation Grid 0 0 3 0 0 0 Grid Network 0 2 11 1 2 5 0 0 2 0 0 15 24 1 0 1 Count the # of contributing cells
Flow Accumulation Grid 0 0 0 3 2 2 0 0 0 11 0 0 1 15 0 0 2 5 24 1
Defining the Stream Grid
Flow Accumulation > 5 Cell Threshold 0 0 0 3 2 2 0 0 0 11 0 0 1 15 0 0 2 5 24 1
Stream Network for 5 cell Threshold Drainage Area 0 0 3 0 0 0 2 0 0 0 11 1 0 2 1 0 15 5 24 1
Streams with 200 cell Threshold (>18 hectares or 13. 5 acres drainage area)
1000 Cell Threshold Exceeded at Stream Junction 510 989 1504 (>1000)
Defining Stream Segments
Stream Segments 0 0 3 0 0 0 2 0 0 0 11 1 0 2 1 0 15 5 24 1
Stream Segments in a Cell Network 1 1 1 2 3 4 4 4 2 3 4 4 3 5 5 6 6 6 5 5
Creating Subwatersheds
Watershed Outlet
Watershed Draining to This Outlet
Watershed and Drainage Paths Delineated from 30 m DEM Automated method is more consistent than hand delineation
Subwatersheds for Stream Segments Same Cell Value
Vectorized Streams Linked Using Grid Code to Cell Equivalents Vector Streams Grid Streams
Delineated Subwatersheds and Stream Networks
