TopicSensitive Page Rank Reference Taher H Haveliwala TopicSensitive

Topic-Sensitive Page. Rank Reference: Taher H. Haveliwala, “Topic-Sensitive Page. Rank: A context-sensitive ranking algorithm for websearch”, IEEE Trans. On Knowledge and Data Engineering, vol. 15, No. 4, PP. 784 -796. The original Page. Rank: • purely based on the hyperlinks of web pages. • Contents are not considered. • A vector of Page. Rank is used for all web pages. Topic-Sensitive Page. Rank • For each topic, a vector of Page. Rank is created. • Each page has several Page. Rank values. One for each topic.

Creating a Page Rank vector for each topic • How to select topics? – Using a small set of topics is important for low computation cost and quick response time. – Open Directory: http: //www. dmoz. org • 16 top level topics

Original Page. Rank • Rank=M Rank – Rank is a vector, one element for each web page. – M is a n n matric • If there is a link from page j to page I, then Mi, j =1/Nj, where Nj is the number of out-links of page j.

Another Version • Let n be the total number of web pages. P=[1/n] n 1 be a vector. • d is a n 1 matrix. – di=1 if page i has no out links. Otherwise, di=0. • D=p p. T, and E=p [1] 1 n • M’=(1 - )(M+D) + E. • Rank=M’ Rank=(1 - )(M+D) Rank + P.

Topic sensitive Page Rank • Let Tj be the set of URLs in the ODP category cj. • P=vj, where – Vj, i =1/|Tj| if page j points to page i. Otherwisr vj, i=0. • The page. Rank vector for topic cj is PR( , vj). • Compute the page. RAnk for all pages related to topic cj as if for the original Page. Rank by considering Tj.

The Retrieval Score • Let r j, d be the Page. Rank of document d given by the rank PR( , vj). • Sq, d= j P(cj|q) • r j, d , • P(cj|q) is the score that topic is related to q.

Similarity Measures for Induced Rankings Another Version • Let 1 and 2 be two rankings of documents. • OSim( 1, 2) indicates the degree of overlap between the top k URLs of the two rankings. • OSim ( 1, 2) =|A B|/k. • KSimn ( 1, 2) = |(u, v): 1 and 2 agree on order of (u, v)|/(|U|)(|U|-1) Let be the true ranking given by user. To compare 1 and 2, we can use OSim ( 1, 2) or KSimn ( 1, 2).

Weighted Page. Rank • Assign larger rank values to more important pages. • Each outlink page gets its value proportional to it popularity. • W in (v, u) is the weight of link(v, u) calculated based on the number of inlinks of page u and the number of inlinks of all reference pages of page v. w in (v, u) =Iu/ p R(v) Ip, Iu—number of inlinks of page u. R(v)-the set of all pages that v points to.

Weighted Page. Rank • w out (v, u) =Ou/ p R(v) Op, Ou—number of outlinks of page u. Let B(u) be the set of pages that points to v. PR(u)=(1 -d) +d v B(u) PR(v) w in (v, u) w out (v, u) Reference: Wenpu Xing and Ali Ghorbani, Weighted Page. Rank Algorithm, Proceedings of the 2 nd Annual Conference on Communication Networks and Services Research (CNSR’ 04), 2004.

Choices of Search Engines • Many search engines exist to compete for users – The results are not necessarily the same – Different users prefer different search engines – Search results may, in the future, be biased towards paid advertisements.

GOOGLE: City University 1. 2. 3. 4. 5. 6. City University London - the University for business and the. . . The University for business and the professions. Contact Us | About City University | Maps & Directions, AZ Index | Site Map | Help. Prospective Students. . Description: Official site with information about courses, research, schools, and departments. Includes details. . . City University Home A University which believes in forward-thinking business and leadership skills, exposing students to the latest technology in all courses of study. Description: A private, nonprofit institution founded to serve working adults wanting to pursue educational opportunit. . . Welcome to Dublin City University. . . here. . . Dublin City University, Dublin 9, Ireland. Tel. +353 (0) 1 700 5000, Fax. +353 (0) 1 836 0830. Page updated: 02/09/03 legal. . Description: Information on facilities, services, degree courses, research, the campus, student life, the library. . . The City University of New York Description: The University's Main Website. City University of Hong Kong AD Working Group lends staff, students an ear. Several issues still evoked strong emotions as staff members and students voiced their. . . Description: Formerly the City Polytechnic of Hong Kong. Includes information on university, links to learning. . . Welcome to Oklahoma City University. . . At Oklahoma City University, our students come first. Our. . . Oklahoma City University offers a quality, values-centered education. United. . . Description: Admissions, academic programs and alumni relations, sports, services, news, calendar of events and. . .

YAHOO 1. 2. 3. 4. 5. 6. City University London - the University for business and the. . . The University for business and the professions. Contact Us | About City University | Maps & Directions, AZ Index | Site Map | Help. Prospective Students. . City University A University which believes in forward-thinking business and leadership skills, exposing students to the latest technology in all courses of study. www. cityu. edu/ - 3 k - Cached - More pages from this site Dublin City University. . . here. . . Dublin City University, Dublin 9, Ireland. Tel. +353 (0) 1 700 5000, Fax. +353 (0) 1 836 0830. Page updated: 02/09/03 legal. . www. dcu. ie/ - 6 k - Cached - More pages from this site City University of New York The University's Main Website. www. cuny. edu/ - More pages from this site City University of Hong Kong AD Working Group lends staff, students an ear. Several issues still evoked strong emotions as staff members and students voiced their. . . www. cityu. edu. hk/ - 26 k - Cached - More pages from this site Oklahoma City University. . . At Oklahoma City University, our students come first. Our. . . Oklahoma City University offers a quality, values -centered education. United. . . www. okcu. edu/ - 20 k - Cached - More pages from this site

All. The. Web 1. 2. 3. 4. 5. 6. Apartment Listings in University City (sponsored) St. Louis, Missouri area apartment listings at Apartments. com. Free nationwide apartment search with visual rental listings online. http: //www. apartments. com City University - Washington (sponsored) Contact information and resources such as yellow page information, phone number, address, maps and directions as provided by Qwest. Dex. http: //service. bfast. com City University Apartments - Rent. com (sponsored) Rent. com has millions of free apartment listings nationwide. Get $100 when you sign a lease near your school - it's easy. http: //www. rent. com City University London - the University for business and the professions. . . Contact Us | About City University | Maps & Directions A-Z Index | Site Map | Help. . . Description: Official site with information about courses, research, schools, and departments. Includes details of news and events. more hits from: http: //www. city. ac. uk/ - 13 KB Flash Upgrade Description: A University which believes in forward-thinking business and leadership skills, exposing students to the latest technology in all courses of study. http: //www. cityu. edu/ - 27 KB Welcome to Dublin City University. . . Knowledge. Works, wins DCU Mallin-invent award Full text you can go anywhere in the world from here. . . Dublin City University, Dublin 9, Ireland. Tel. +353 (0) 1 700 5000, Fax. +353 (0) 1 836 0830. Page updated: 02/09/03 legal search. . . Description: Information on facilities, services, degree courses, research, the campus, student life, the library and DCU news.

MSN Search 1. 2. 3. 4. 5. 6. City University of New York Details the CUNY system's campuses and admissions requirements. Eye photos of notable graduates such as actor Judd Hirsch. www. cuny. edu City University Offers prospectus, admissions, academic calendar, courses and degrees, and news. www. cityuniversity. net City University Private, nonprofit institution located in Belleview, Washington, offers higher education opportunities to working professionals and lifelong learners. www. cityu. edu Valley City University Admissions Site covers financial aid and tuition and offers a virtual campus tour. Site also provides access to an online application. www. vcsu. nodak. edu/admissions Oklahoma City University The Oklahoma City University site contains information about admissions, academic departments and student life. The site also provides library resources, faculty information and news. frodo. okcu. edu Dublin City University, Dublin - Trip. Advisor Browse reviews of the Dublin City University in Dublin, County Dublin, Ireland. Check consumer reviews, articles and opinions about the Dublin City University. www. tripadvisor. com/Hotel_Review-g 186605 -d 209093 -Reviews-Dublin_City_U. . .

AOL Search 1. 2. 3. 4. 5. 6. City University London - the University for business and the. . . -. . . The University for business and the professions. Contact Us | About City University | Maps & Directions, AZ Index | Site Map | Help. Prospective Students. . http: //www. city. ac. uk/ City University Home - A University which believes in forward-thinking business and leadership skills, exposing students to the latest technology in all courses of study. http: //www. cityu. edu/ Welcome to Dublin City University -. . . here. . . Dublin City University, Dublin 9, Ireland. Tel. +353 (0) 1 700 5000, Fax. +353 (0) 1 836 0830. Page updated: 02/09/03 legal. . http: //www. dcu. ie/ http: //www. cuny. edu/ - The University's Main Website. http: //www. cuny. edu/ City University of Hong Kong - AD Working Group lends staff, students an ear. Several issues still evoked strong emotions as staff members and students voiced their. . . http: //www. cityu. edu. hk/ Welcome to Oklahoma City University -. . . At Oklahoma City University, our students come first. Our. . . Oklahoma City University offers a quality, values-centered education. United. . . http: //www. okcu. edu/

Ask Jeeves 1. 2. 3. 4. 5. 6. City University of Hong Kong Formerly the City Polytechnic of Hong Kong. Includes information on university, links to learning resources, research and departmental information. . . From: www. cityu. edu. hk/ City University Text Version. The University for business and the professions. . . Contact Us | About City University | Maps & Directions A-Z Index | Site Map | Help. . . From: www. city. ac. uk/ New Jersey City University Official site includes graduate and undergraduate information, news, events, online learning, calendars, and athletics. From: www. njcu. edu/ Elizabeth City State University Admission Application Introduction 2004 -2005 APPLICATION FOR ADMISSION. Welcome to the Elizabeth City State University Online Application. New Freshmen. . . From: www. ncmentor. org/applications/unc/apply/elizabeth_city _state_univ. . . City University A University which believes in forward-thinking business and leadership skills, exposing students to the latest technology in all courses of study. From: www. cityu. edu/ The City College of New York (CUNY) A senior college of The City University of New York. Located in Manhattan. 138 th Street at Convent Avenue. A Harlem masterpiece in the neo. Gothic. . . From: www. ccny. cuny. edu/

Hot. Bot 1. City University of New York Details the CUNY system's campuses and admissions requirements. Eye photos of notable graduates such as actor Judd Hirsch. www. cuny. edu/ - August 10, 2003 - 25 KB 2. City University Private, nonprofit institution located in Belleview, Washington, offers higher education opportunities to working professionals and lifelong learners. www. cityu. edu/ - August 23, 2003 - 27 KB 3. New Jersey City University Explore the course requirements for this liberal arts institution. Link to admissions and financial aid information. . New Jersey City University. 2039 Kennedy Boulevard Jersey City, New Jersey 07305 -1597. . . www. njcu. edu/ - November 1, 2003 - 20 KB 4. City University London - the University for business and the. . . Contact Us | About City University | Maps & Directions. A-Z Index | Site Map | Help. . . www. city. ac. uk/ - September 28, 2003 - 14 KB 5. Oklahoma City University Take a tour of the campus, and explore a roster of academic programs. . At Oklahoma City University, our students come first. . www. okcu. edu/ - October 26, 2003 - 20 KB 6. University of Missouri, Kansas City University based in Kansas City, Missouri, presents and overview of its academic programs, and offers campus news. . UNIVERSITY OF MISSOURI-KANSAS CITY. Bulletin. Winter 2004 Fee Update, more. . . www. umkc. edu/ - October 23, 2003 - 16 KB

Lycos 1. City University London - the University for business and the. . . … Contact Us | About City University | Maps & Directions A-Z Index | Site Map | Help … More results from: www. city. ac. uk September 16, 2003 - 14 KB 2. Flash Upgrade A University which believes in forward-thinking business and leadership skills, exposing students to the latest technology in all courses of study. www. cityu. edu November 1, 2003 - 27 KB 3. The City University of New York The University's Main Website. www. cuny. edu December 31, 1969 - 121 B 4. Welcome to Dublin City University … Knowledge. Works, wins DCU Mallin-invent award Full text you can go anywhere in the world from here. . . Dublin City University , Dublin 9, Ireland. Tel. +353 (0) 1 700 5000, Fax. +353 (0) 1 836. . . More results from: www. dcu. ie October 29, 2003 - 5 KB 5. City University of Hong Kong Formerly the City Polytechnic of Hong Kong. Includes information on university, links to learning resources, research and departmental information and student information. More results from: www. cityu. edu. hk October 29, 2003 - 26 KB 6. HCU Home. Page -English… contact us For any suggestion and requests to this web site, www-admin@hiroshimacu. ac. jp Feel free to link this web site. Hiroshima City University More results from: www. hiroshima-cu. ac. jp May 11, 2003 - 26 KB

Teoma 1. City University of Hong Kong Formerly the City Polytechnic of Hong Kong. Includes information on university, links to learning resources, research and departmental information. . . www. cityu. edu. hk/ [Related Pages] [More Results from www. cityu. edu. hk] 2. City University Text Version. The University for business and the professions. . . Contact Us | About City University | Maps & Directions A-Z Index | Site Map | Help. . . www. city. ac. uk/ [More Results from www. city. ac. uk] 3. New Jersey City University Official site includes graduate and undergraduate information, news, events, online learning, calendars, and athletics. www. njcu. edu/ [Related Pages] [More Results from www. njcu. edu] 4. Elizabeth City State University Admission Application Introduction 2004 -2005 APPLICATION FOR ADMISSION. Welcome to the Elizabeth City State University Online Application. New Freshmen. . . www. ncmentor. org/applications/unc/apply/el. . . 5. City University A University which believes in forward-thinking business and leadership skills, exposing students to the latest technology in all courses of study. www. cityu. edu/ 6. The City College of New York (CUNY) A senior college of The City University of New York. Located in Manhattan. 138 th Street at Convent Avenue. A Harlem masterpiece in the neo-Gothic. . . www. ccny. cuny. edu/ [More Results from www. ccny. cuny. edu]

Meta. Search Engine • Metasearch Engines are designed to increase the coverage of web by forwarding users’ queries to multiple search engines – Users’ requests are sent to multiple search engines such as Allthe. Web, Google, MSN. • Then the results from the individual search engine are combined into a single result set to present to users.

Longest common subsequence • Definition 1: Given a sequence X=x 1 x 2. . . xm, another sequence Z=z 1 z 2. . . zk is a subsequence of X if there exists a strictly increasing sequence i 1 i 2. . . ik of indices of X such that for all j=1, 2, . . . k, we have xij=zj. • Example 1: If X=abcdefg, Z=abdg is a subsequence of X. X=abcdefg, Z=ab d g

• Definition 2: Given two sequences X and Y, a sequence Z is a common subsequence of X and Y if Z is a subsequence of both X and Y. • Example 2: X=abcdefg and Y=aaadgfd. Z=adf is a common subsequence of X and Y. X=abc defg Y=aaaadgfd Z=a d f

• Definition 3: A longest common subsequence of X and Y is a common subsequence of X and Y with the longest length. (The length of a sequence is the number of letters in the seuqence. ) • Longest common subsequence may not be unique. • Example: abcd acbd Both acd and abd are LCS.

Longest common subsequence problem • Input: Two sequences X=x 1 x 2. . . xm, and Y=y 1 y 2. . . yn. • Output: a longest common subsequence of X and Y. • A brute-force approach Suppose that m n. Try all subsequence of X (There are 2 m subsequence of X), test if such a subsequence is also a subsequence of Y, and select the one with the longest length.

Charactering a longest common subsequence • Theorem (Optimal substructure of an LCS) • Let X=x 1 x 2. . . xm, and Y=y 1 y 2. . . yn be two sequences, and • Z=z 1 z 2. . . zk be any LCS of X and Y. • 1. If xm=yn, then zk=xm=yn and Z[1. . k-1] is an LCS of X[1. . m-1] and Y[1. . n-1]. • 2. If xm yn, then zk xm implies that Z is an LCS of X[1. . m-1] and Y. • 2. If xm yn, then zk yn implies that Z is an LCS of X and Y[1. . n-1].

The recursive equation • Let c[i, j] be the length of an LCS of X[1. . . i] and X[1. . . j]. • c[i, j] can be computed as follows: 0 if i=0 or j=0, c[i, j]= c[i-1, j-1]+1 if i, j>0 and x i=yj, max{c[i, j-1], c[i-1, j]} if i, j>0 and xi yj. Computing the length of an LCS • There are n m c[i, j]’s. So we can compute them in a specific order.

The algorithm to compute an LCS • • • • 1. for i=1 to m do 2. c[i, 0]=0; 3. for j=0 to n do 4. c[0, j]=0; 5. for i=1 to m do 6. for j=1 to n do 7. { 8. if x[I] ==y[j] then 9. c[i, j]=c[i-1, j-1]=1; 10 b[i, j]=1; 11. else if c[i-1, j]>=c[i, j-1] then 12. c[i, j]=c[i-1, j] 13. b[i, j]=2; 14. else c[i, j]=c[i, j-1] 15. b[i, j]=3; 14 }

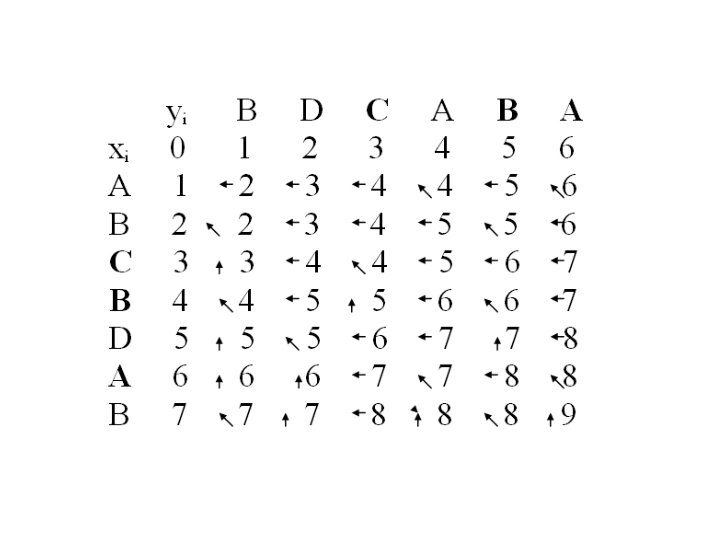

Example 3: X=BDCABA and Y=ABCBDAB.

Constructing an LCS (back-tracking) • We can find an LCS using b[i, j]’s. • We start with b[n, m] and track back to some cell b[0, i] or b[i, 0]. • The algorithm to construct an LCS 1. 2. 3. 4. i=m j=n; if i==0 or j==0 then exit; if b[i, j]==1 then { i=i-1; j=j-1; print “xi”; } 5. if b[i, j]==2 i=i-1 6. if b[i, j]==3 j=j-1 7. Goto Step 3. • The time complexity: O(nm).

Shortest common supersequence • Definition: Let X and Y be two sequences. A sequence Z is a supersequence of X and Y if both X and Y are subsequence of Z. • Shortest common supersequence problem: Input: Two sequences X and Y. Output: a shortest common supersequence of X and Y. • Example: X=abc and Y=abb. Both abbc and abcb are the shortest common supersequences for X and Y.

Recursive Equation: • Let c[i, j] be the length of an LCS of X[1. . . i] and X[1. . . j]. • c[i, j] can be computed as follows: c[i, j]= j if i=0 i if j=0, c[i-1, j-1]+1 if i, j>0 and x i=yj, min{c[i, j-1]+1, c[i-1, j]+1} if i, j>0 and xi yj.
