XML for Science Recall features of Science Data: n n Read-oriented access Provenance w who, what, when, where, why n Interesting Data Types w w n timeseries spatial arrays images Scale

XML for Science Read-oriented access? n perfect! Provenance n requires some flexibility; no problem Interesting Data Types n …and special file formats Scale n could get ugly

Interesting Data Types Data locked in binary file formats n Binary Format Description Language w [Myers, Chappell 2000] n Data Format Description Language w [Open. Grid Project] n Retrofitting Data Models w [Howe, Maier SSDBM 2005] n PADX w [Fernandez et al, PLANX 2006] n XDTM w [Foster, Voeckler et al. Global Grid Forum 2005]

XML Storage Use RDBMS as your storage engine Two approaches: n n Schema-aware Schema-oblivious dining-room manufacturer “The Wood Shop” “round” type “maple” table wood chair price 199. 99 wood “maple” price quantity 39. 99 6

XML Storage: Schema-aware Dining. Room(Manufacturer, Chairs, Quantity, Table) Chair(SKU, Wood, Price) Table(SKU, Wood, Type, Price)

XML Storage: Schema-oblivious Edge(Node. Id, Tag, Value, Parent. Node. Id) Remember fancy node-labeling schemes…

Left/Right Labeling 1 dining-room 4 5 manufacturer 2 3 6 “The Wood Shop” 7 0 “round” type 8 10 … table 9 “maple” 34 wood chair price 199. 99 Which queries are easy and fast? What did we say the problems were? wood “maple” price quantity 39. 99 6

Path Labeling 0 0. 0 dining-room 0. 1 manufacturer 0. 0. 0 “The Wood Shop” table 0. 1. 2 0. 1. 1 0. 1. 0 type wood “round” “maple” price wood price quantity 0. 1. 2. 0 0. 1. 1. 0 0. 1. 0. 0 chair 199. 99 What queries are fast and/or easy? What did we say the problems were? “maple” 39. 99 6

Geographic Information Systems and Spatial Databases

Represent This source: USA Today Weather

Represent This source: USA Today Weather

Represent This Source: www. mapsofworld. com/

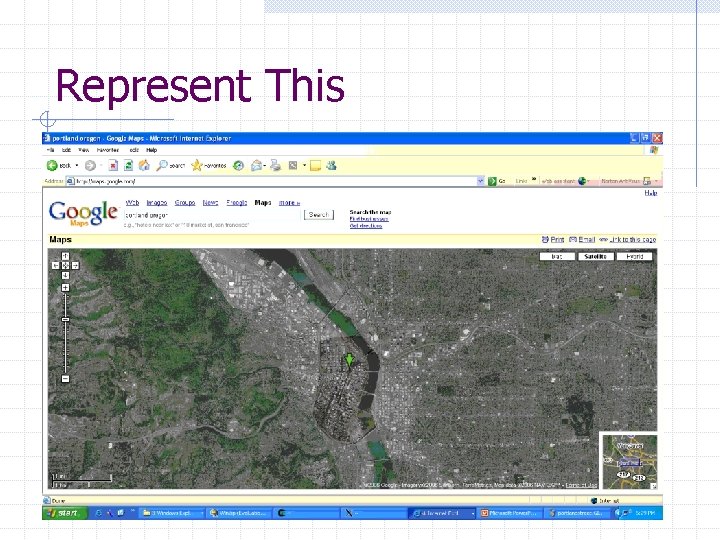

Represent This

Represent This

Raster-Vector Data Model Raster Vector Real World

Vector Data The world is a collection of objects n Points n Lines n Polygons

Intermission: Class Survey

GIS: Geographic Information Systems GIS is a collection of: n n file format converters and readers algorithms (visibility, buffer, etc. ) visualization tools georeferencing libraries…

Geodesy: Elevation

Geodesy: Elevation topographical surface geoid elliptical surface

Geodesy: Map Projections Cylindrical (Mercator) Conical secant tangent Planar (Azimuthal) transverse

Map projection http: //www. geog. ucsb. edu/~dylan/mtpe/geosphere/topics/map 1. html

Spatial Databases Spatial Database is an RDBMS equipped with: n spatial types (points, lines, regions) spatial functions (georeferencing, other algorithms) n multi-dimensional indices n

Spatial Databases Non-spatial queries: n n n List all gas stations owned by Bob List all unpaved streets List galaxies with luminosity > x Spatial queries: n n n List all gas stations with one mile of the river List all gas stations touching an unpaved street List galaxies within 2 arcmin of a quasar

Spatial Predicates Each value has type Geometry n plus a subtype: w point, line, polygon Spatial Predicates n n n Geo Overlap(Geo, Geo) bool Contains(Geo, Geo) Geo Boundary(Geo) bool Touches(Geo, Geo) Geo Nearest(Geo, [Geo])

Multidimensional Indices How do we answer topological questions efficiently? B-Tree: one dimension only

Multidimensional Indices One way: Impose a total order on the objects, then use an ordinary onedimensional index Ideas?

Space Filling Curves How do we organize objects on disk so proximity is preserved?
