Topics Combinational logic functions n Static complementary logic
Topics Combinational logic functions. n Static complementary logic gate structures. n Modern VLSI Design 3 e: Chapter 3 Copyright 1998, 2002 Prentice Hall PTR
Combinational logic expressions Combinational logic: function value is a combination of function arguments. n A logic gate implements a particular logic function. n Both specification (logic equations) and implementation (logic gate networks) are written in Boolean logic. n Modern VLSI Design 3 e: Chapter 3 Copyright 1998, 2002 Prentice Hall PTR
Gate design Why designing gates for logic functions is non -trivial: – may not have logic gates in the library for all logic expressions; – a logic expression may map into gates that consume a lot of area, delay, or power. Modern VLSI Design 3 e: Chapter 3 Copyright 1998, 2002 Prentice Hall PTR

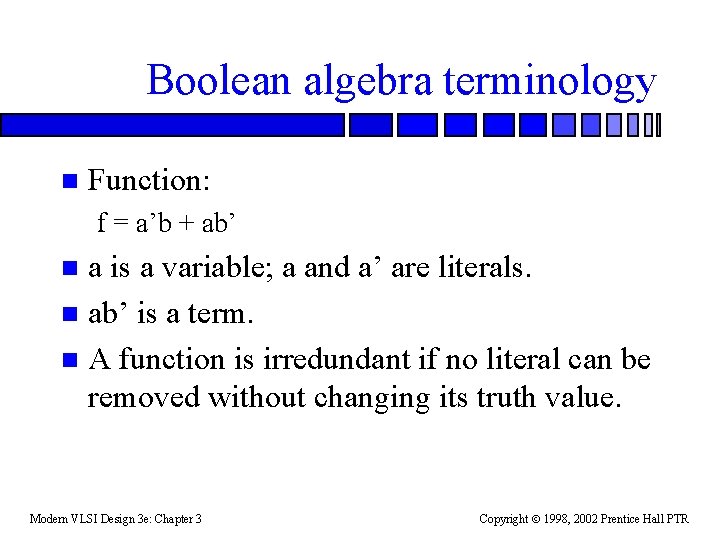

Boolean algebra terminology n Function: f = a’b + ab’ a is a variable; a and a’ are literals. n ab’ is a term. n A function is irredundant if no literal can be removed without changing its truth value. n Modern VLSI Design 3 e: Chapter 3 Copyright 1998, 2002 Prentice Hall PTR
Completeness n n n n A set of functions f 1, f 2, . . . is complete iff every Boolean function can be generated by a combination of the functions. NAND is a complete set; NOR is a complete set; {AND, OR} is not complete. NOT = NAND with shorted inputs. AND = NAND followed by a NOT. OR = Two inverters followed by a NAND. Transmission gates are not complete. If your set of logic gates is not complete, you can’t design arbitrary logic. Modern VLSI Design 3 e: Chapter 3 Copyright 1998, 2002 Prentice Hall PTR
Static complementary gates Complementary: have complementary pullup (p-type) and pulldown (n-type) networks. n Static: do not rely on stored charge. n Simple, effective, reliable; hence ubiquitous. n Modern VLSI Design 3 e: Chapter 3 Copyright 1998, 2002 Prentice Hall PTR

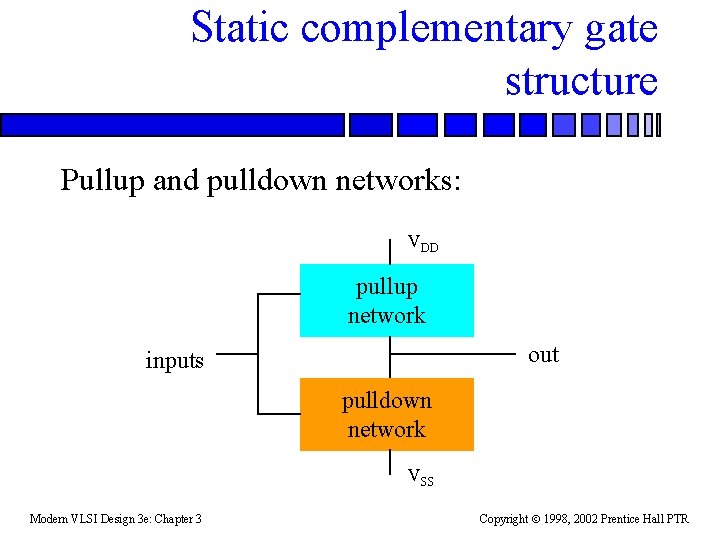

Static complementary gate structure Pullup and pulldown networks: VDD pullup network out inputs pulldown network VSS Modern VLSI Design 3 e: Chapter 3 Copyright 1998, 2002 Prentice Hall PTR
Inverter + a Modern VLSI Design 3 e: Chapter 3 out Copyright 1998, 2002 Prentice Hall PTR
Inverter layout VDD + a tub ties out transistors a out (tubs not shown) GND Modern VLSI Design 3 e: Chapter 3 Copyright 1998, 2002 Prentice Hall PTR
NAND gate + out b Modern VLSI Design 3 e: Chapter 3 a Copyright 1998, 2002 Prentice Hall PTR
NAND layout VDD + out b a out tub ties b a GND Modern VLSI Design 3 e: Chapter 3 Copyright 1998, 2002 Prentice Hall PTR
NOR gate + b a out Modern VLSI Design 3 e: Chapter 3 Copyright 1998, 2002 Prentice Hall PTR
NOR layout b VDD a out tub ties b out a GND Modern VLSI Design 3 e: Chapter 3 Copyright 1998, 2002 Prentice Hall PTR
AOI/OAI gates AOI = and/or/invert; OAI = or/and/invert. n Implement larger functions. n Pullup and pulldown networks are compact: smaller area, higher speed than NAND/NOR network equivalents. n AOI 312: and 3 inputs, and 1 input (dummy), and 2 inputs; or together these terms; then invert. n Modern VLSI Design 3 e: Chapter 3 Copyright 1998, 2002 Prentice Hall PTR
AOI example out = [ab+c]’: invert symbol pull-up circuit or and pull-down circuit Modern VLSI Design 3 e: Chapter 3 Copyright 1998, 2002 Prentice Hall PTR
Pullup/pulldown network design Pullup and pulldown networks are duals. n To design a CMOS logic circuit for a combinational expression, first design a pull -down network for it, then compute the dual to get the pull-up network. n Modern VLSI Design 3 e: Chapter 3 Copyright 1998, 2002 Prentice Hall PTR
Dual network construction a c b b c dummy a dummy Modern VLSI Design 3 e: Chapter 3 Copyright 1998, 2002 Prentice Hall PTR
Dual network construction The pull-up part of a CMOS implementation of f can be obtained by writing a sum-of-product expression for f and likewise the pull-down part can be obtained by writing a sum-of-product expression for f’. Note: As we discussed in class, it is not always possible to use p-type transistors in the pull-up circuit and/or ntype transistors in the pull-down circuit unless we use inverter gates for negated inputs in certain cases. For example, (A’B + CD) cannot be realized all with p-type transistors unless we use an inverter to generate A’. Modern VLSI Design 3 e: Chapter 3 Copyright 1998, 2002 Prentice Hall PTR

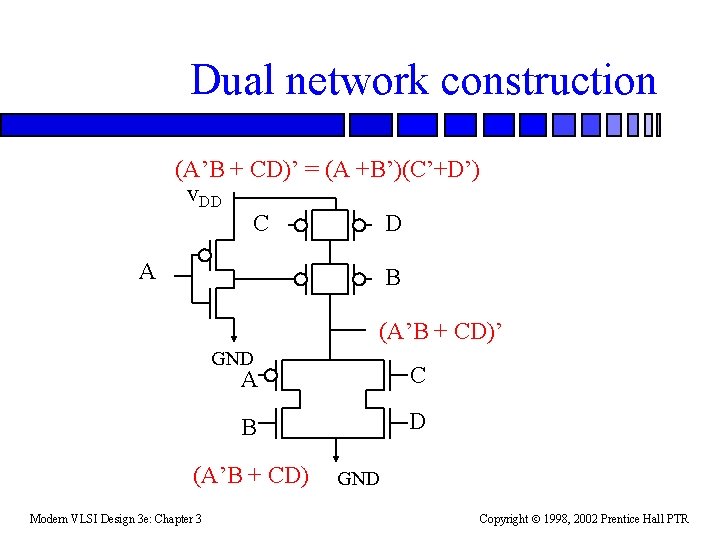

Dual network construction (A’B + CD)’ = (A +B’)(C’+D’) v. DD C D A B (A’B + CD)’ GND A C B D (A’B + CD) Modern VLSI Design 3 e: Chapter 3 GND Copyright 1998, 2002 Prentice Hall PTR
