Topic of the Month January Best Glide Speed and Distance Presented to: <Audience> By: <Presenter> Date: <> Federal. Aviation Federal Administration

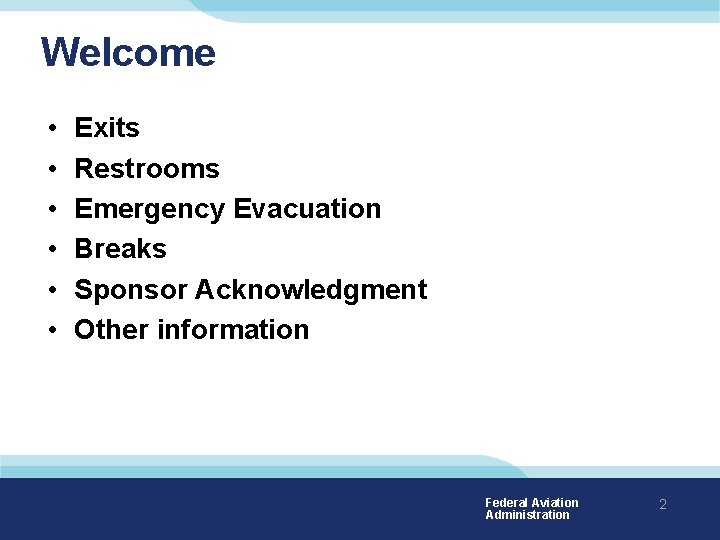

Welcome • • • Exits Restrooms Emergency Evacuation Breaks Sponsor Acknowledgment Other information Federal Aviation Administration 2

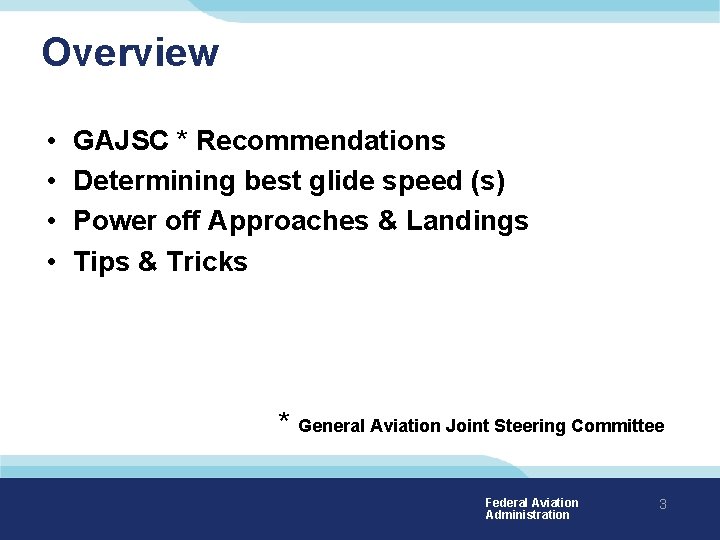

Overview • • GAJSC * Recommendations Determining best glide speed (s) Power off Approaches & Landings Tips & Tricks * General Aviation Joint Steering Committee Federal Aviation Administration 3

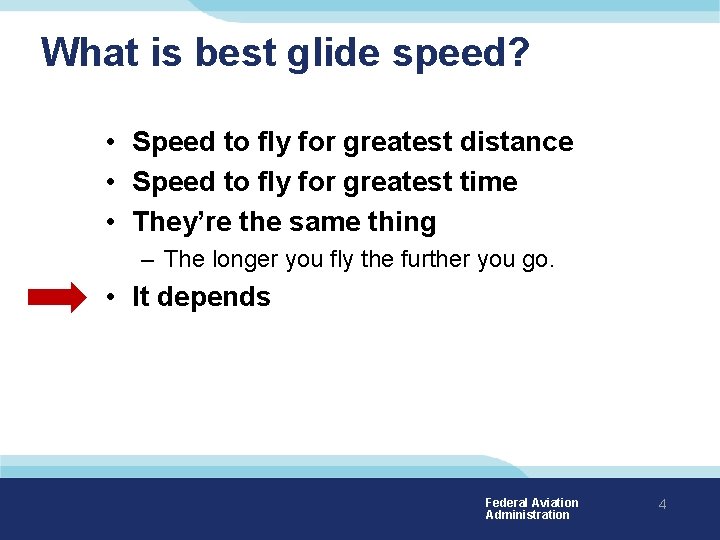

What is best glide speed? • Speed to fly for greatest distance • Speed to fly for greatest time • They’re the same thing – The longer you fly the further you go. • It depends Federal Aviation Administration 4

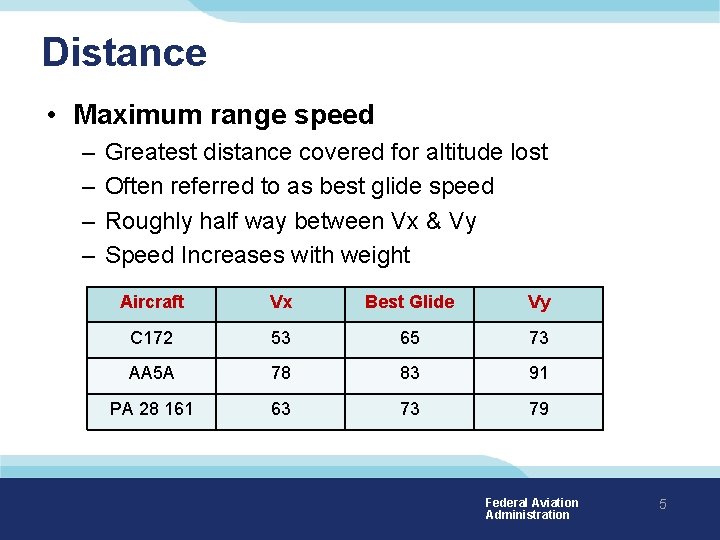

Distance • Maximum range speed – – Greatest distance covered for altitude lost Often referred to as best glide speed Roughly half way between Vx & Vy Speed Increases with weight Aircraft Vx Best Glide Vy C 172 53 65 73 AA 5 A 78 83 91 PA 28 161 63 73 79 Federal Aviation Administration 5

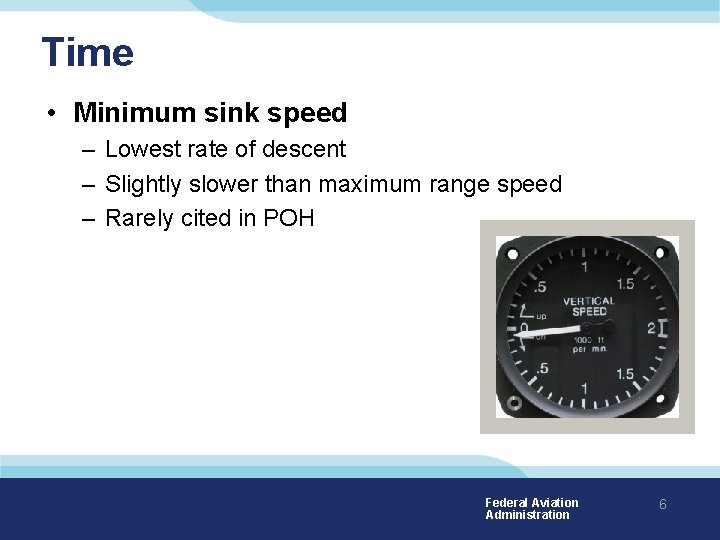

Time • Minimum sink speed – Lowest rate of descent – Slightly slower than maximum range speed – Rarely cited in POH Federal Aviation Administration 6

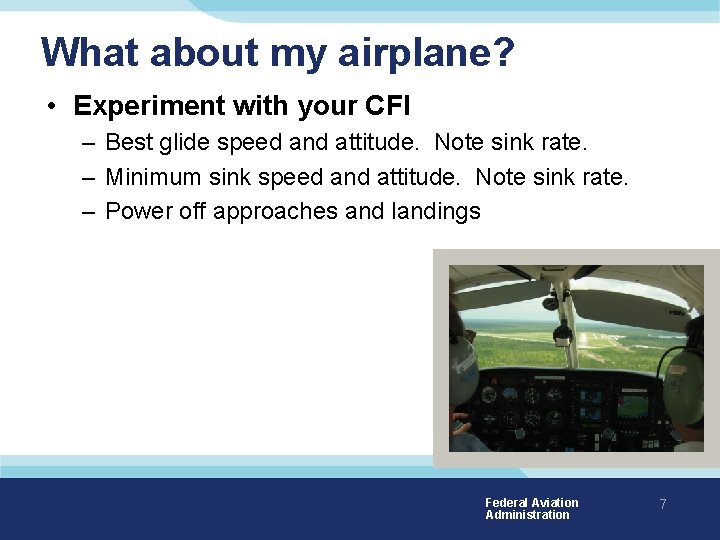

What about my airplane? • Experiment with your CFI – Best glide speed and attitude. Note sink rate. – Minimum sink speed and attitude. Note sink rate. – Power off approaches and landings Federal Aviation Administration 7

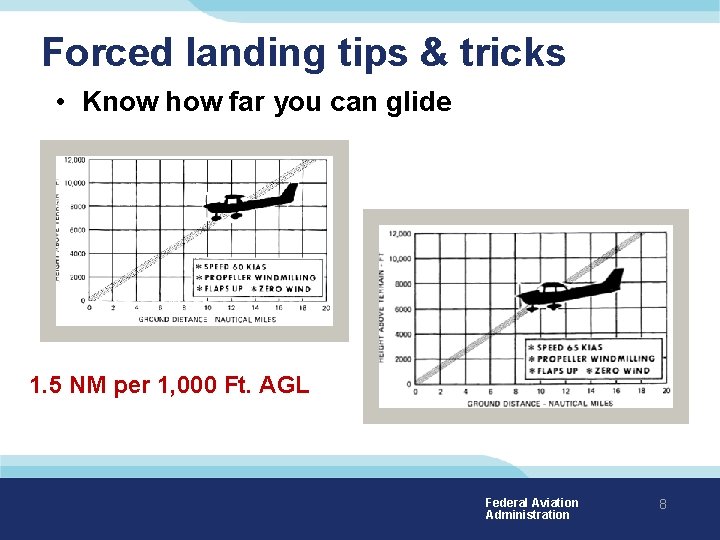

Forced landing tips & tricks • Know how far you can glide 1. 5 NM per 1, 000 Ft. AGL Federal Aviation Administration 8

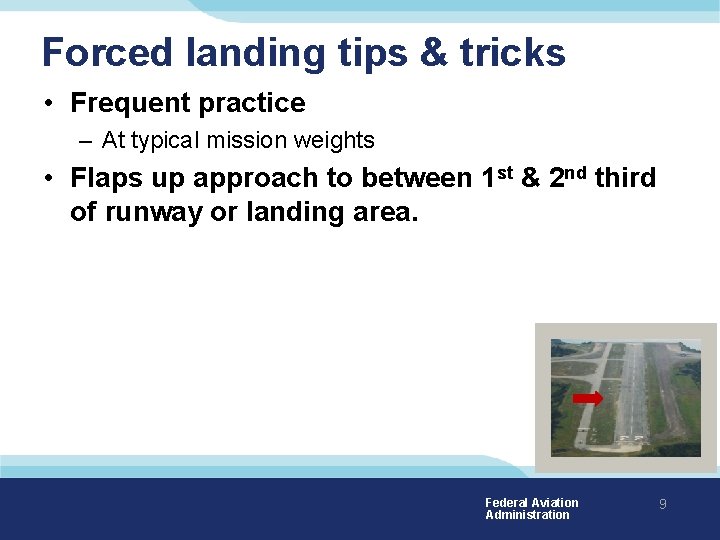

Forced landing tips & tricks • Frequent practice – At typical mission weights • Flaps up approach to between 1 st & 2 nd third of runway or landing area. Federal Aviation Administration 9

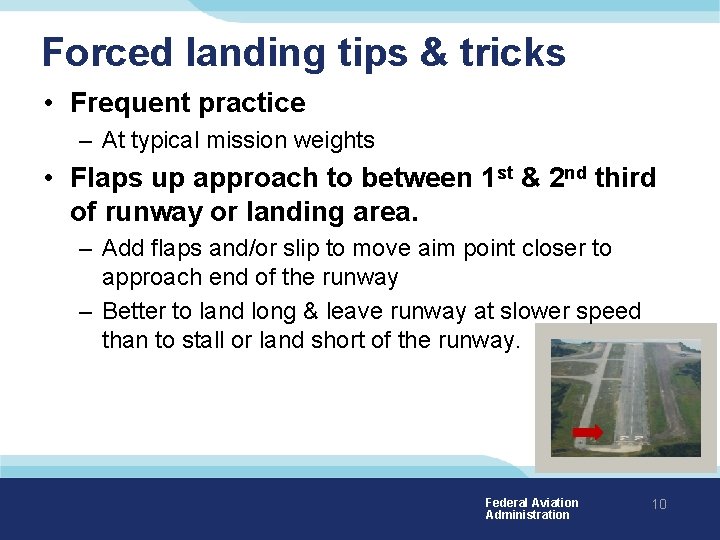

Forced landing tips & tricks • Frequent practice – At typical mission weights • Flaps up approach to between 1 st & 2 nd third of runway or landing area. – Add flaps and/or slip to move aim point closer to approach end of the runway – Better to land long & leave runway at slower speed than to stall or land short of the runway. Federal Aviation Administration 10

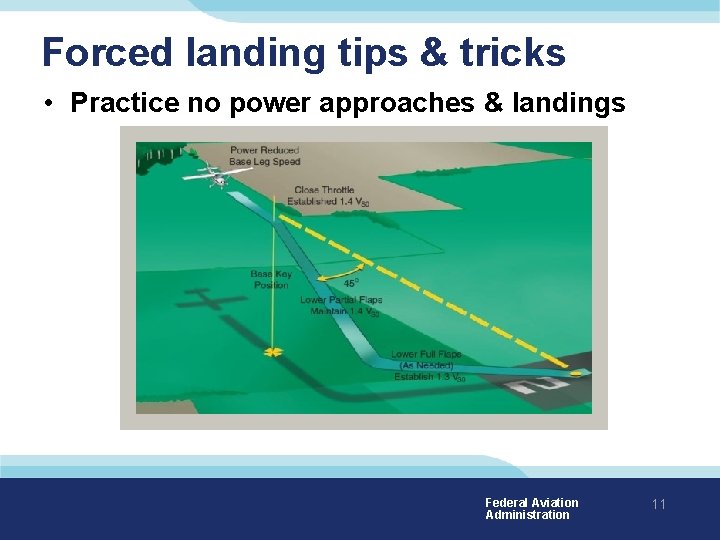

Forced landing tips & tricks • Practice no power approaches & landings Federal Aviation Administration 11

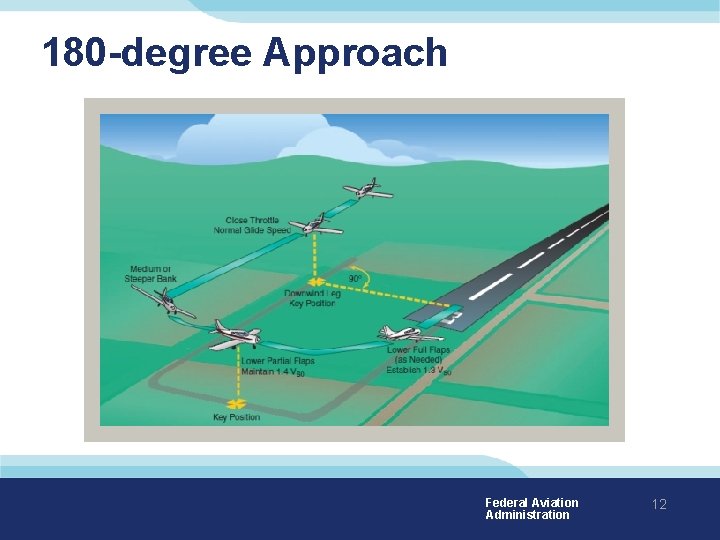

180 -degree Approach Federal Aviation Administration 12

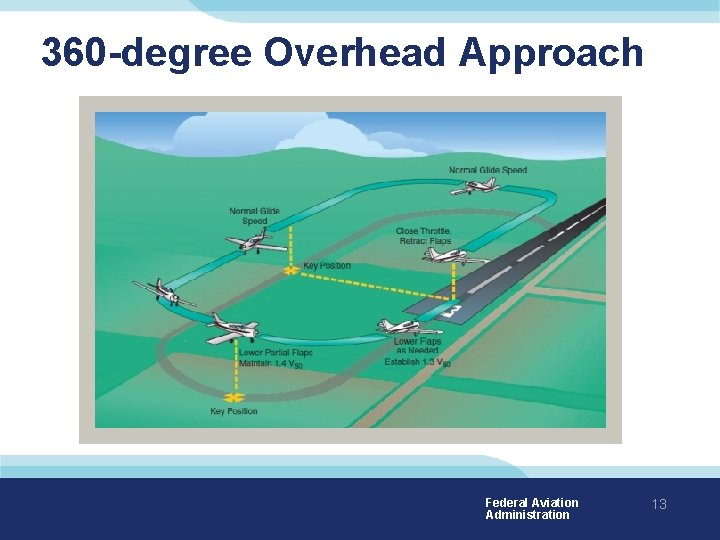

360 -degree Overhead Approach Federal Aviation Administration 13

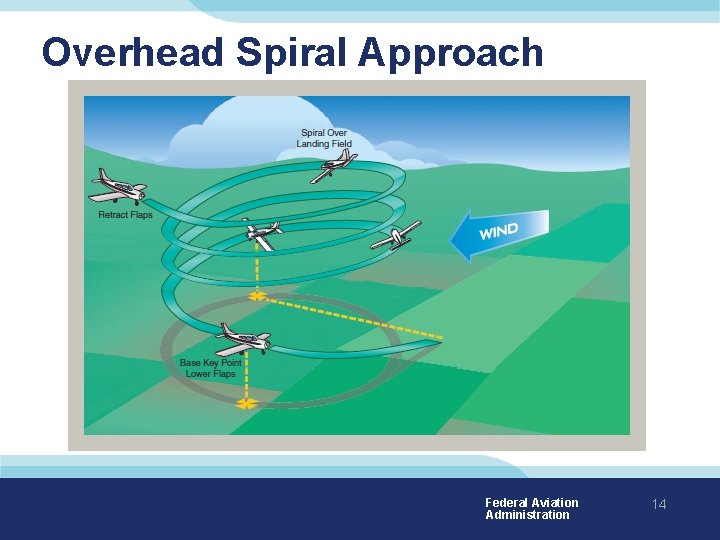

Overhead Spiral Approach Federal Aviation Administration 14

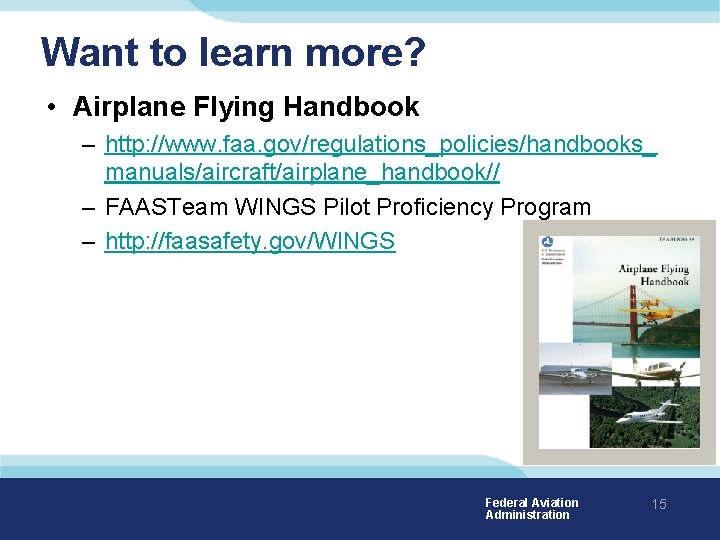

Want to learn more? • Airplane Flying Handbook – http: //www. faa. gov/regulations_policies/handbooks_ manuals/aircraft/airplane_handbook// – FAASTeam WINGS Pilot Proficiency Program – http: //faasafety. gov/WINGS Federal Aviation Administration 15

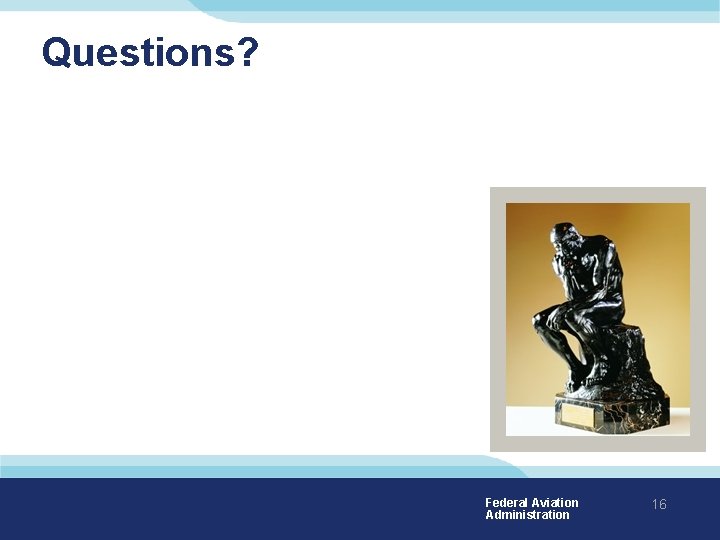

Questions? Federal Aviation Administration 16
