Introduction Gyroscope : A gyroscope is a device for measuring or maintaining orientation, based on the principles of conservation of angular momentum. Assembly of Gyroscope : A gyroscope has a spinning wheel or disk(rotor) fixed on an axle, which is free to take any orientation. Over the disc, gimbals may or may not be assembled.

Introduction Assembly of Gyroscope :

Introduction Gyroscope : A gyroscope is a device for measuring or maintaining orientation, based on the principles of conservation of angular momentum. Assembly of Gyroscope : A gyroscope has a spinning wheel or disk(rotor) fixed on an axle, which is free to take any orientation. Over the disc, gimbals may or may not be assembled.

Introduction Gyroscope : A gyroscope is a device for measuring or maintaining orientation, based on the principles of conservation of angular momentum. Assembly of Gyroscope : A gyroscope has a spinning wheel or disk(rotor) fixed on an axle, which is free to take any orientation. Over the disc, gimbals may or may not be assembled. Concept for working of Gyroscope : Spin the gyro Apply force Perpendicular Twist will be produced

Precessional Angular Motion Spin axis : The axis about which the gyro rotates. Precession axis : The axis about which the perpendicular twisting or tilting force apply. The angular motion of the axis of spin about the axis of precession is known as Precessional angular motion

Precessional Angular Motion The Cause of Precession: - Newton’s 1 st Law of Motion. - Law of Conservation of Angular Momentum.

Precessional Angular Motion The Cause of Precession: - Newton’s 1 st Law of Motion - Law of Conservation of Angular Momentum.

Precessional Angular Motion Gyroscopic Action

Precessional Angular Motion The angular motion of the axis of spin about the axis of precession is known as Precessional angular motion A gyroscope is a device for measuring or maintaining orientation, based on the principles of conservation of angular momentum.

Gyroscopic Couple By Hassan Baber

Gyroscopic Couple A device consisting of a spinning mass, typically a disk or wheel, mounted on a base so that its axis can turn freely in one or more directions and thereby maintain its orientation regardless of any movement of the base. The turning moment which opposes any change of the inclination of the axis of rotation of a gyroscope. Explanation : Axis & Plane of Spinning Axis & Plane of Precession Active gyroscopic couple. (Axis and Plane) Reactive gyroscopic couple. (Axis and Plane).

Gyroscopic Couple Consider a disc spinning with an angular velocity ω rad/s about the axis of spin OX, in anticlockwise direction when seen from the front; Change in angular momentum; and rate of change of angular momentum In the limit when δt→ 0,

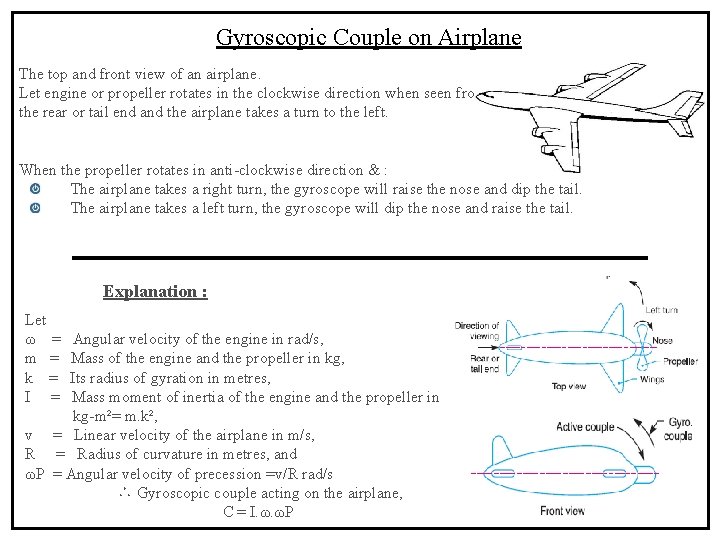

Gyroscopic Couple on Airplane The top and front view of an airplane. Let engine or propeller rotates in the clockwise direction when seen from the rear or tail end and the airplane takes a turn to the left. When the propeller rotates in anti-clockwise direction & : The airplane takes a right turn, the gyroscope will raise the nose and dip the tail. The airplane takes a left turn, the gyroscope will dip the nose and raise the tail. Explanation : Let ω = m = k = I = Angular velocity of the engine in rad/s, Mass of the engine and the propeller in kg, Its radius of gyration in metres, Mass moment of inertia of the engine and the propeller in kg-m²= m. k², v = Linear velocity of the airplane in m/s, R = Radius of curvature in metres, and ωP = Angular velocity of precession =v/R rad/s ∴ Gyroscopic couple acting on the airplane, C = I. ω. ωP

Gyroscopic Couple on Airplane

Gyroscope In Naval Ships By Mujtaba Abbas

Gyroscope In Naval Ships The fore end of the ship is called bow. The rear end is known as stern or aft. The left hand is called port. The right hand sides of the ship, star-board. Effect on Naval Ships during Steering Rolling Pitching

Gyroscopic Effect In Naval Ships during Steering is the turning of a complete ship in a curve towards left or right, while it moves forward. Consider the ship taking a left turn, and rotor rotates in the clockwise direction. When the rotor of the ship rotates in the clockwise direction when viewed from the stern, it will have its angular Momentum vector in the direction ox as shown in Fig. (a) When the ship steers to the right under Similar conditions as discussed above, the effect of the reactive gyroscopic couple, as shown in Fig. (b), will be to raise the stern and lower the bow.

Gyroscopic Effect In Naval Ships during Rolling The effect of gyroscopic couple to occur, the axis of precession should always be perpendicular to the axis of spin. If, however, the axis of precession becomes parallel to the axis of spin, there will be no effect of the gyroscopic couple acting on the body of the ship. In case of rolling of a ship, the axis of precession (i. e. longitudinal axis) is always parallel to the axis of spin for all positions. Hence, there is no effect of the gyroscopic couple acting on the body of a ship. Gyroscopic Effect In Naval Ships during Pitching is the movement of a ship up and down in a vertical plane about transverse axis. The transverse axis is the axis of precession. The pitching of the ship is assumed to take place with the Simple Harmonic Motion.

Stability of a four wheel drive moving in a curved path By Hassaan Tariq

Stability of a four wheel drive moving in a curved path Consider the four wheels A, B, C and D of an automobile locomotive taking a turn towards left as shown in the figure. The wheels A and C are the inner wheels whereas B and D are the outer wheels. The C. O. G. of the vehicle lies vertically above the road surface. Let, m = mas of the vehicle in kg W = wieght of the vehicle in N = mg R = radius of curvature in meters (R > rw) h = distance of C. O. G vertically above the road surface in meters x = width of track in meters Iw = mass of moment of inertia of one wheel in kgm 2 ωw = angular velocity of the wheels or velocity of the spin in rad/s IE = mass moment of inertia of the rotating parts of the engine in kgm^2 ωE = angular velocity of the rotating parts of the engine in rad/s G = Gear ratio = ωE / ωw v = linear velocity of the vehicle in m/s = ωw. rw rw = radius of the wheel in meters For effect of the gyroscopic couple, For effect of the centrifugal couple, C = ωW. ωP (4 IW ± G. IE) and

Stability of a two wheel vehicle taking a turn Consider a two wheel vehicle taking a right turn as shown in the following figures, let, m = mas of the vehicle and its rider in kg W = wieght of the vehicle and its rider in N = mg R = radius of track or curvature in meters h = height of C. O. G of the vehicle and the rider Iw = mass of moment of inertia of one wheel in kgm^2 ωw = angular velocity of the wheels IE = mass moment of inertia of the rotating parts of the engine in kgm^2 ωE = angular velocity of the rotating parts of the engine in rad/s G = Gear ratio = ωE / ωw v = linear velocity of the vehicle in m/s = ωw. rw rw = radius of the wheel in meters θ = angle of heel. Its is the inclination of the vehicle to the vertical for equilibrium. For effect of the gyroscopic couple, C 1 For effect of the centrifugal couple, Co

Applications Gravity Defiance. Air & Land Vehicles. Ships, Hovercrafts etc. Inertial Compass. Used in toys like Boomerang, Tops, YO-YO etc. Camera stabilizer while capturing disturbed by wave action. Vastly used in UAV’s (Unmanned Aerial Vehicle) commonly named as DRONES. Used in some non-ballistic missiles, particularly cruise missiles etc.

Numerical Problems An airplane makes a complete half circle of 50 m radius, towards left, when flying at 200 km per hour. The rotary engine and the propeller of the plane has a mass of 400 kg with a radius of gyration of 300 mm. The engine runs at 2400 rpm. clockwise, when viewed from the rear. Find the gyroscopic couple on the aircraft and state its effect on it. What will be the effect if the airplane turns to the right instead to the left? [Ans. 10 k. N-m] The rotor of a turbine installed in a boat with its axis along the longitudinal axis of the boat makes 1500 r. p. m. clockwise, when viewed from the stern. The rotor has a mass of 150 kg and a radius of gyration of 300 mm. If at an instant, the boat pitches in the longitudinal vertical plane, so that the bow rises from the horizontal plane with an angular velocity of 1 rad/s, determine the Torque acting on the boat and the direction in which it tends to turn the boat at the instant. [Ans. 10. 6 k. N-m] Find the angle of inclination with respect to the vertical of a two wheeler negotiating a turn. Given : a combined mass of the vehicle with its rider 250 kg ; moment of inertia of the engine flywheel 0. 3 kg-m 2 ; moment of inertia of each road wheel 1 kg-m 2 ; speed of engine flywheel 5 times that of road wheels and in the same direction ; height of centre of gravity of rider with vehicle 0. 6 m ; two wheeler speed 90 km/h ; wheel radius 300 mm ; radius of turn 50 m. [Ans. Θ =53. 94◦]
