Topic Cells What is the difference between prokaryotes

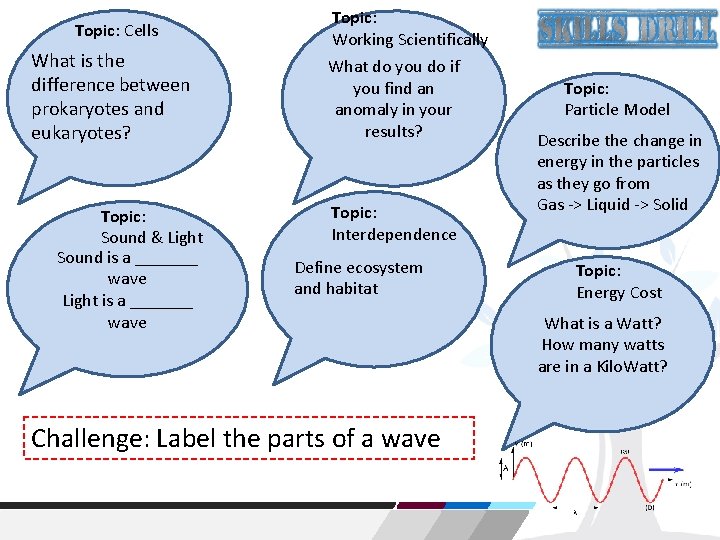

Topic: Cells What is the difference between prokaryotes and eukaryotes? Topic: Sound & Light Sound is a _______ wave Light is a _______ wave Topic: Working Scientifically What do you do if you find an anomaly in your results? Topic: Interdependence Define ecosystem and habitat Challenge: Label the parts of a wave Topic: Particle Model Describe the change in energy in the particles as they go from Gas -> Liquid -> Solid Topic: Energy Cost What is a Watt? How many watts are in a Kilo. Watt?

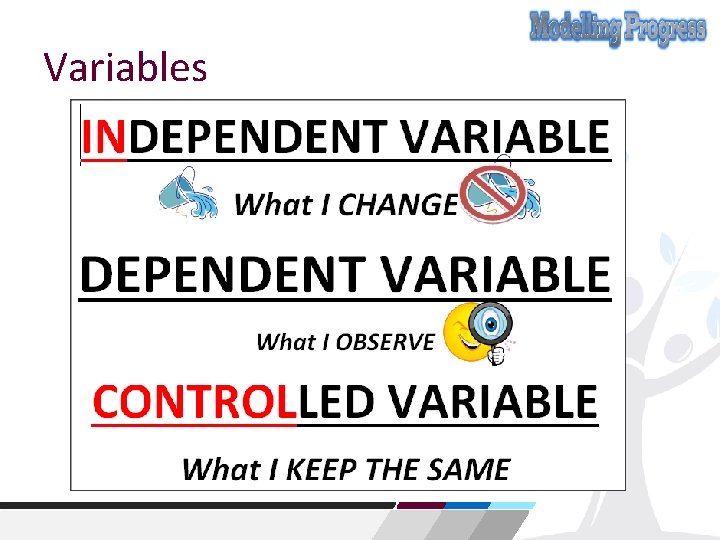

Variables

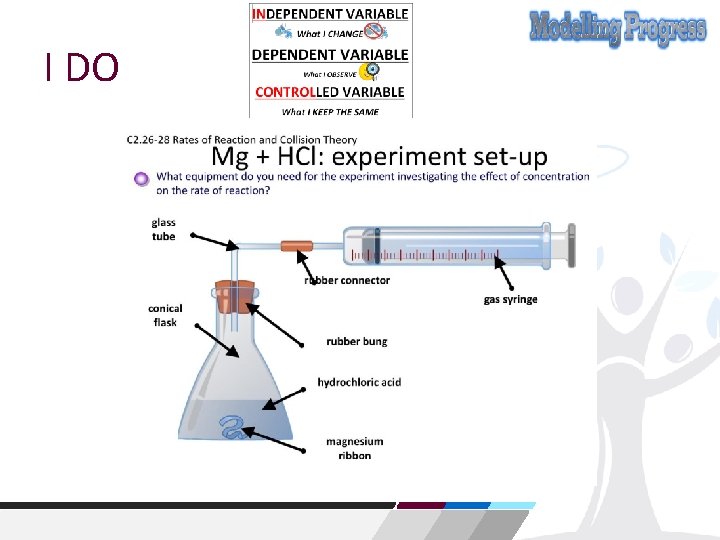

I DO

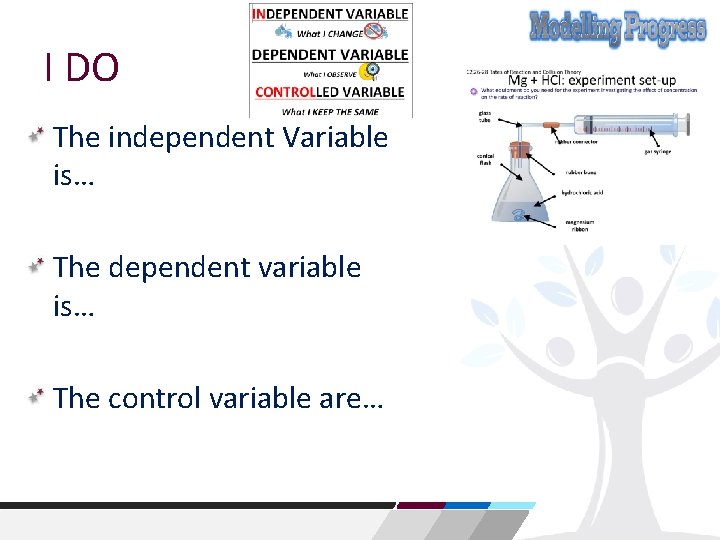

I DO The independent Variable is… The dependent variable is… The control variable are…

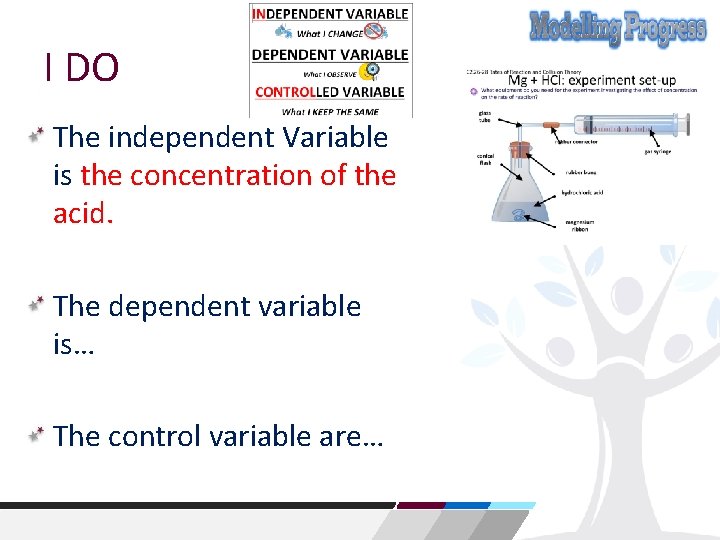

I DO The independent Variable is the concentration of the acid. The dependent variable is… The control variable are…

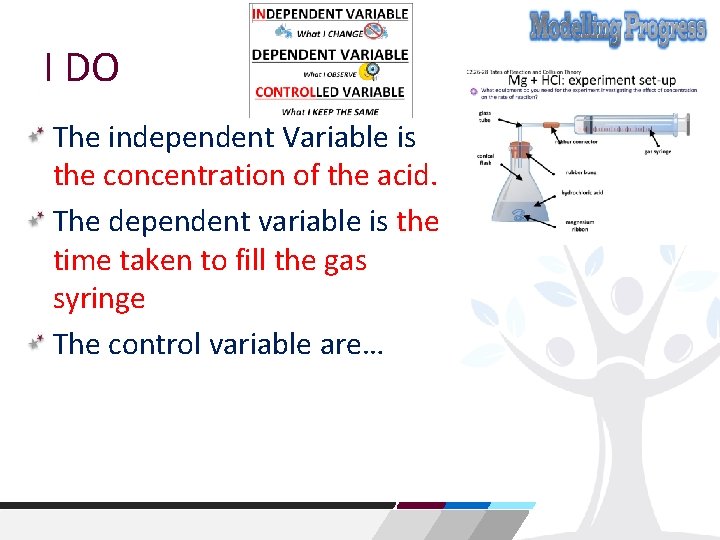

I DO The independent Variable is the concentration of the acid. The dependent variable is the time taken to fill the gas syringe The control variable are…

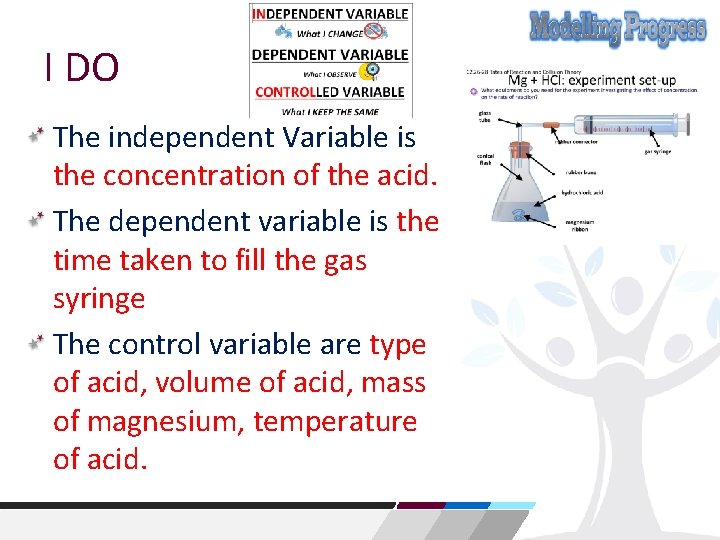

I DO The independent Variable is the concentration of the acid. The dependent variable is the time taken to fill the gas syringe The control variable are type of acid, volume of acid, mass of magnesium, temperature of acid.

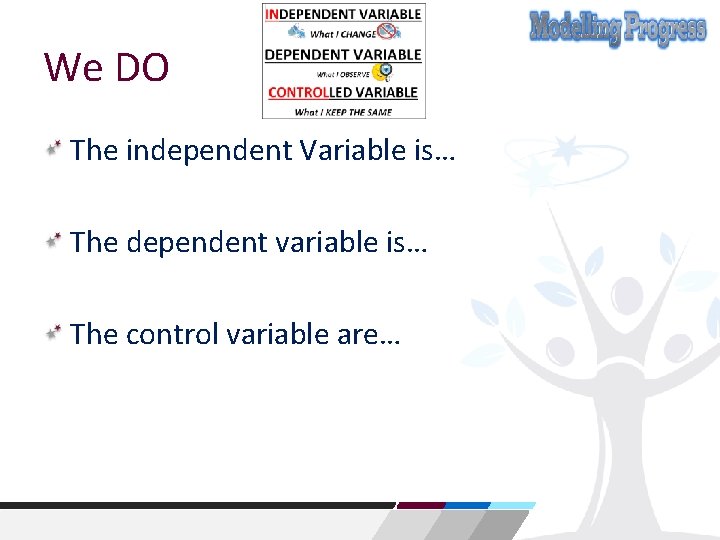

We DO The independent Variable is… The dependent variable is… The control variable are…

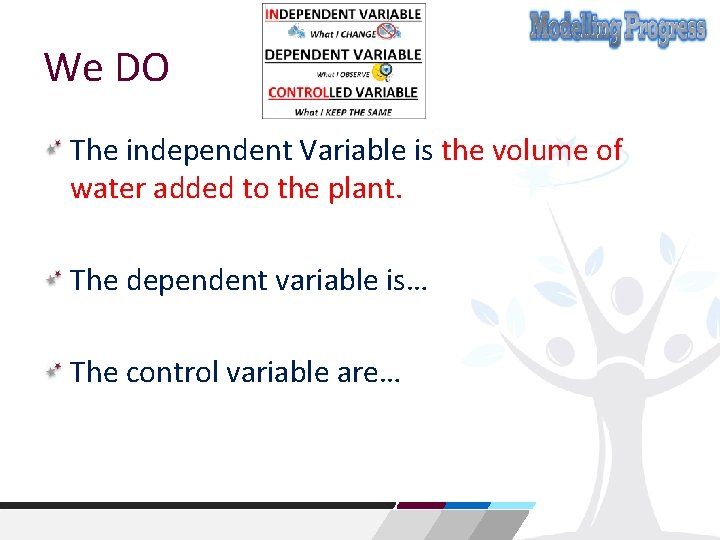

We DO The independent Variable is the volume of water added to the plant. The dependent variable is… The control variable are…

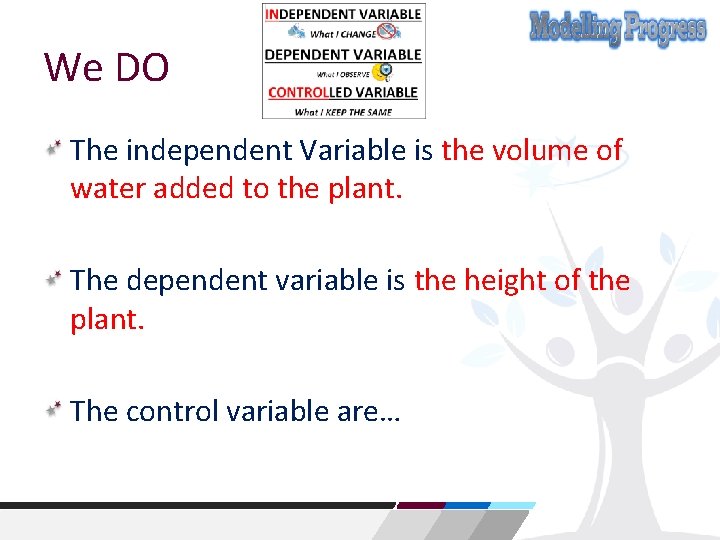

We DO The independent Variable is the volume of water added to the plant. The dependent variable is the height of the plant. The control variable are…

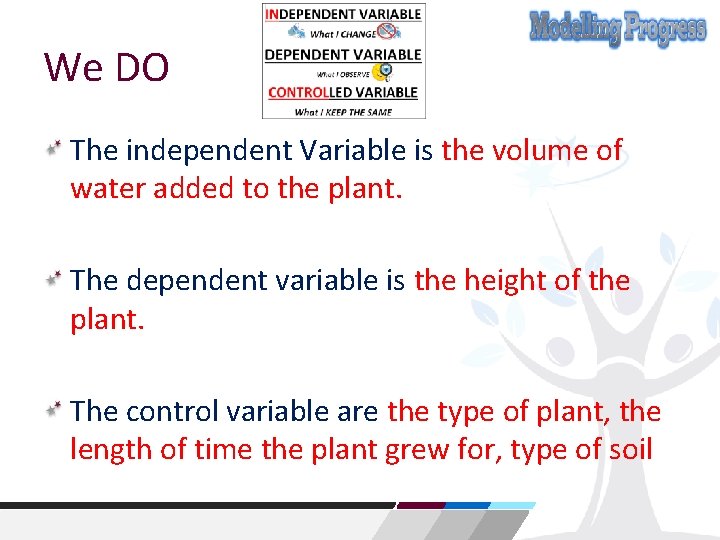

We DO The independent Variable is the volume of water added to the plant. The dependent variable is the height of the plant. The control variable are the type of plant, the length of time the plant grew for, type of soil

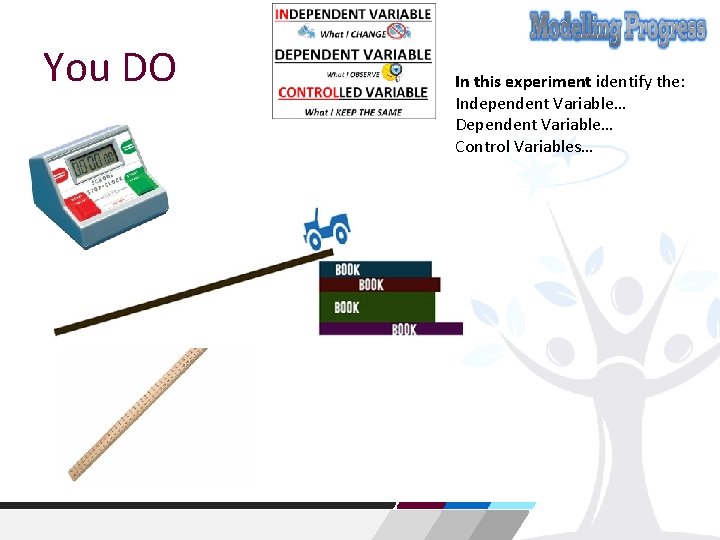

You DO In this experiment identify the: Independent Variable… Dependent Variable… Control Variables…
Variables In this experiment identify the: Independent Variable is the height of the ramp Dependent Variable is the time taken Control Variables are the car, the length of the ramp and the surface of the ramp

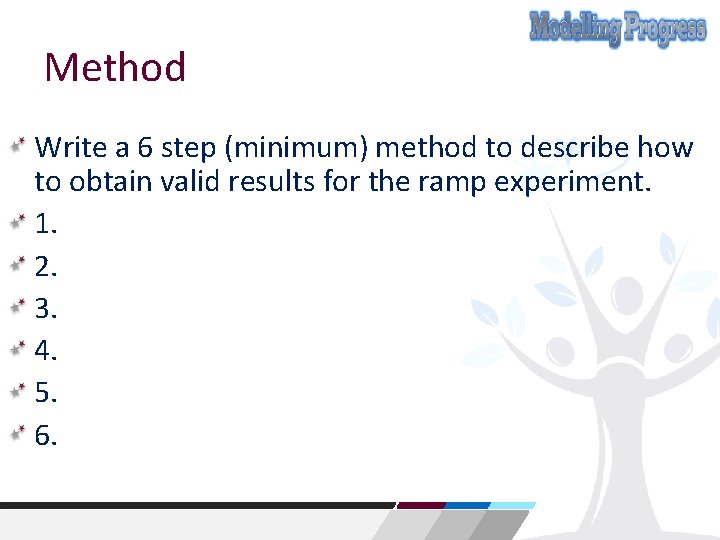

Method Write a 6 step (minimum) method to describe how to obtain valid results for the ramp experiment. 1. 2. 3. 4. 5. 6.

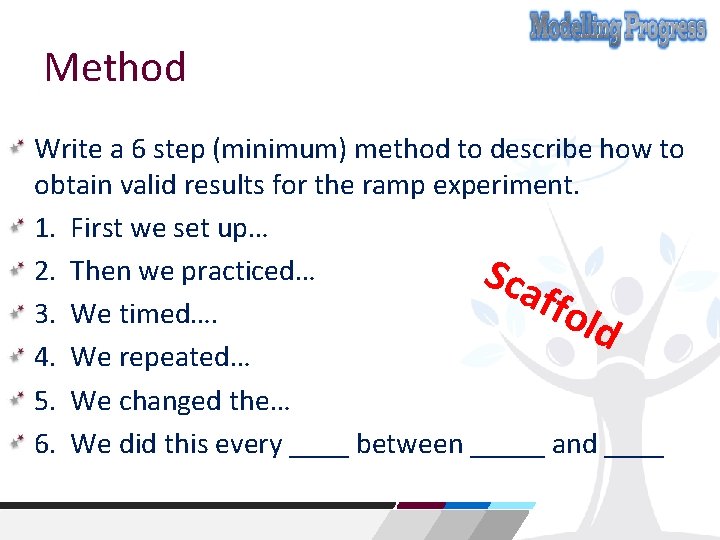

Method Write a 6 step (minimum) method to describe how to obtain valid results for the ramp experiment. 1. First we set up… 2. Then we practiced… Sca ffo 3. We timed…. ld 4. We repeated… 5. We changed the… 6. We did this every ____ between _____ and ____

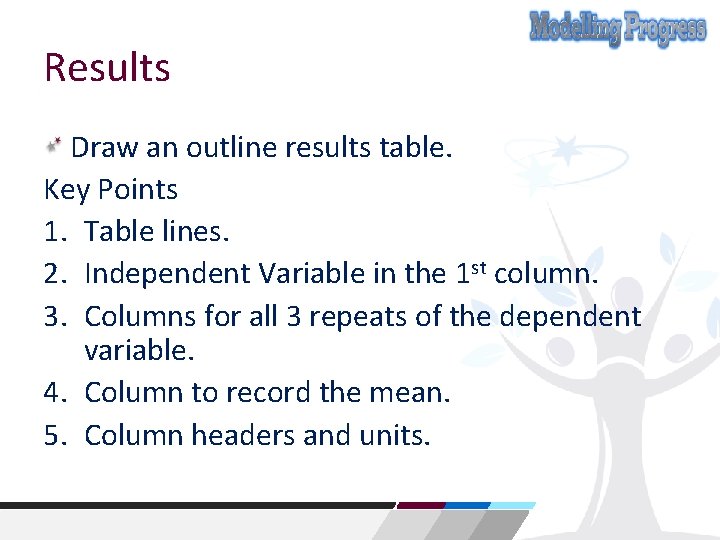

Results Draw an outline results table. Key Points 1. Table lines. 2. Independent Variable in the 1 st column. 3. Columns for all 3 repeats of the dependent variable. 4. Column to record the mean. 5. Column headers and units.
Results Draw an outline results table. Key Points 1. Table lines. 2. Independent Variable in the 1 st column. 3. Columns for all 3 repeats of the dependent variable. 4. Column to record the mean. 5. Column headers and units.

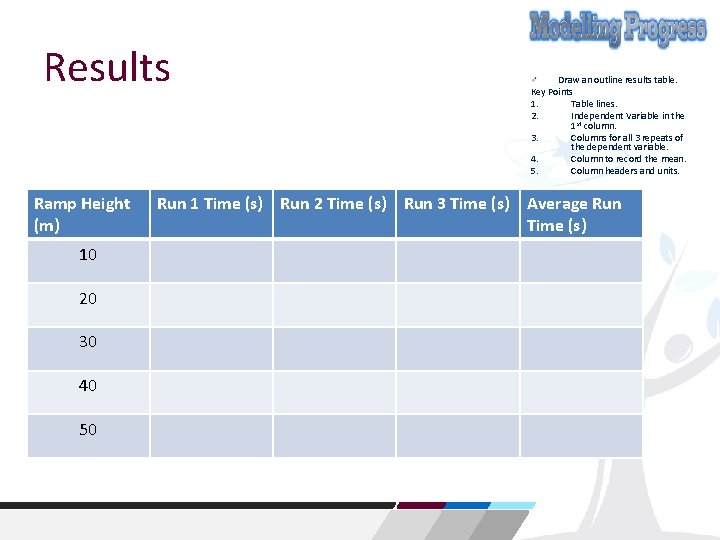

Results Ramp Height (m) 10 20 30 40 50 Draw an outline results table. Key Points 1. Table lines. 2. Independent Variable in the 1 st column. 3. Columns for all 3 repeats of the dependent variable. 4. Column to record the mean. 5. Column headers and units. Run 1 Time (s) Run 2 Time (s) Run 3 Time (s) Average Run Time (s)

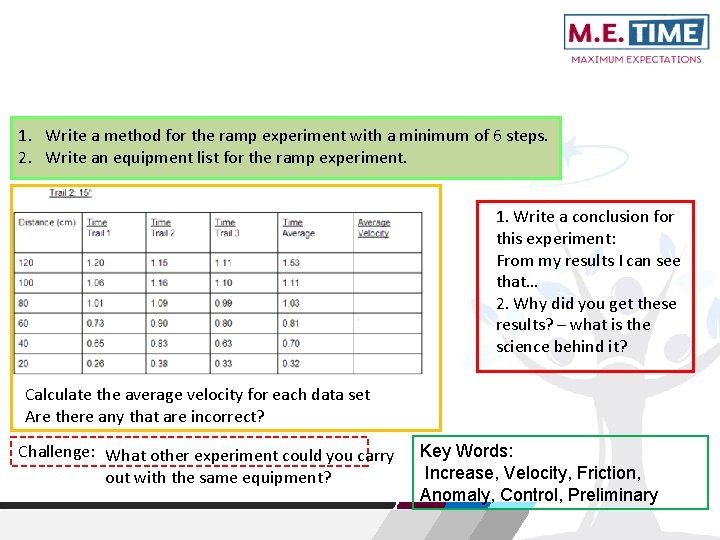

1. Write a method for the ramp experiment with a minimum of 6 steps. 2. Write an equipment list for the ramp experiment. 1. Write a conclusion for this experiment: From my results I can see that… 2. Why did you get these results? – what is the science behind it? Calculate the average velocity for each data set Are there any that are incorrect? Challenge: What other experiment could you carry out with the same equipment? Key Words: Increase, Velocity, Friction, Anomaly, Control, Preliminary

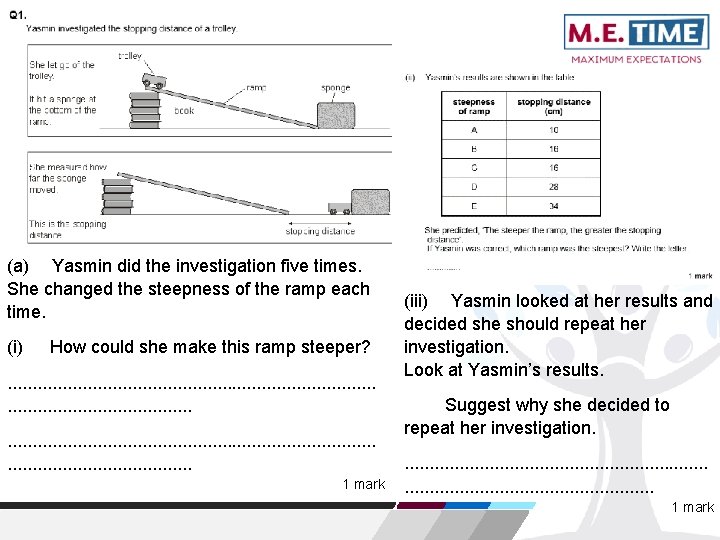

(a) Yasmin did the investigation five times. She changed the steepness of the ramp each time. (i) How could she make this ramp steeper? . . . . . . . . . . . . . . 1 mark (iii) Yasmin looked at her results and decided she should repeat her investigation. Look at Yasmin’s results. Suggest why she decided to repeat her investigation. . . . . . . 1 mark

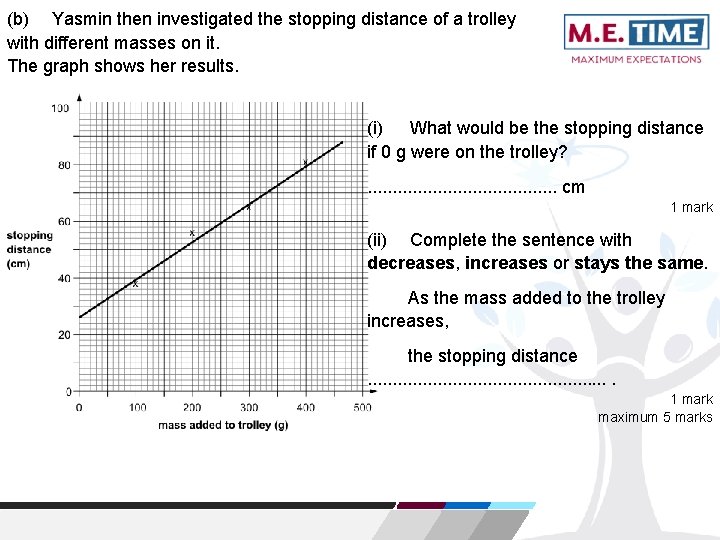

(b) Yasmin then investigated the stopping distance of a trolley with different masses on it. The graph shows her results. (i) What would be the stopping distance if 0 g were on the trolley? . . cm 1 mark (ii) Complete the sentence with decreases, increases or stays the same. As the mass added to the trolley increases, the stopping distance. . . 1 mark maximum 5 marks

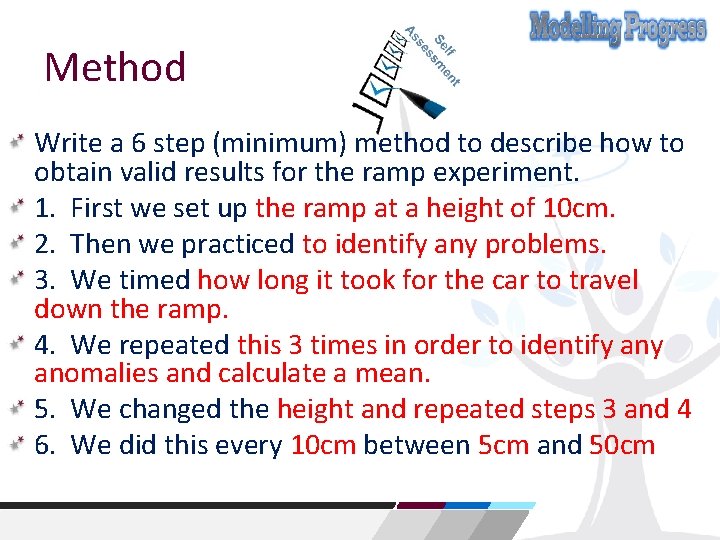

Method Write a 6 step (minimum) method to describe how to obtain valid results for the ramp experiment. 1. First we set up the ramp at a height of 10 cm. 2. Then we practiced to identify any problems. 3. We timed how long it took for the car to travel down the ramp. 4. We repeated this 3 times in order to identify anomalies and calculate a mean. 5. We changed the height and repeated steps 3 and 4 6. We did this every 10 cm between 5 cm and 50 cm

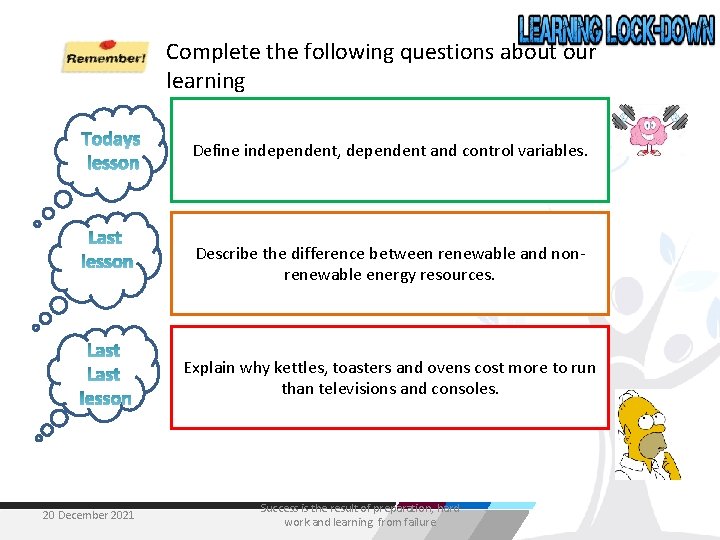

Complete the following questions about our learning Define independent, dependent and control variables. Describe the difference between renewable and nonrenewable energy resources. Explain why kettles, toasters and ovens cost more to run than televisions and consoles. 20 December 2021 Success is the result of preparation, hard work and learning from failure
