Top tips for Oracle SQL tuning BUY GUY’S BUY QUEST PRODUCTS BOOK Guy Harrison Senior Software Architect, Quest Software

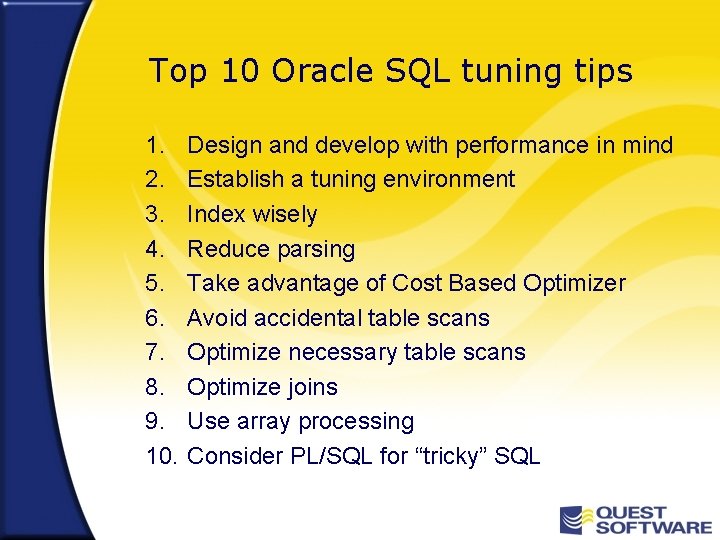

Top 10 Oracle SQL tuning tips 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. Design and develop with performance in mind Establish a tuning environment Index wisely Reduce parsing Take advantage of Cost Based Optimizer Avoid accidental table scans Optimize necessary table scans Optimize joins Use array processing Consider PL/SQL for “tricky” SQL

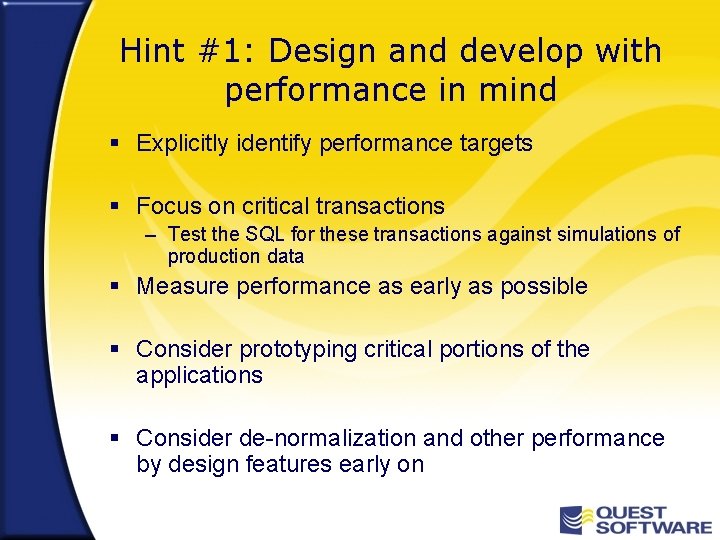

Hint #1: Design and develop with performance in mind § Explicitly identify performance targets § Focus on critical transactions – Test the SQL for these transactions against simulations of production data § Measure performance as early as possible § Consider prototyping critical portions of the applications § Consider de-normalization and other performance by design features early on

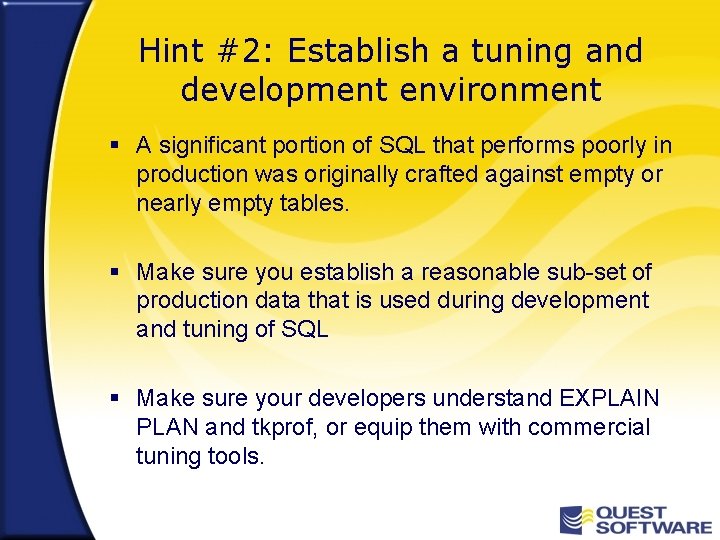

Hint #2: Establish a tuning and development environment § A significant portion of SQL that performs poorly in production was originally crafted against empty or nearly empty tables. § Make sure you establish a reasonable sub-set of production data that is used during development and tuning of SQL § Make sure your developers understand EXPLAIN PLAN and tkprof, or equip them with commercial tuning tools.

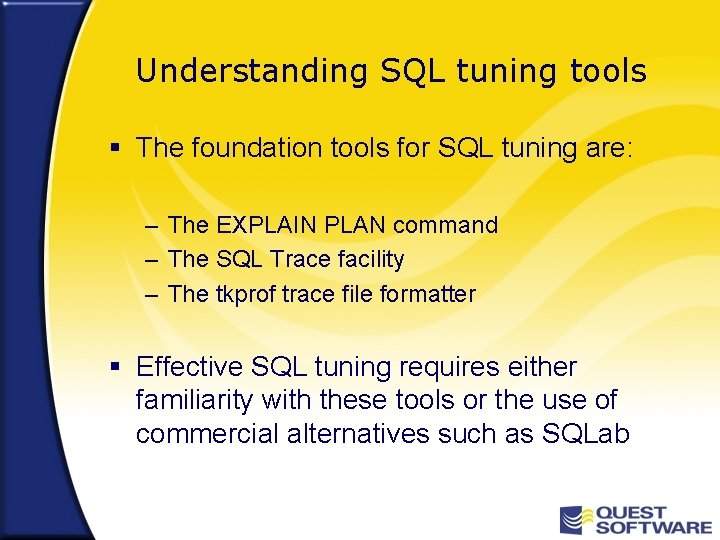

Understanding SQL tuning tools § The foundation tools for SQL tuning are: – The EXPLAIN PLAN command – The SQL Trace facility – The tkprof trace file formatter § Effective SQL tuning requires either familiarity with these tools or the use of commercial alternatives such as SQLab

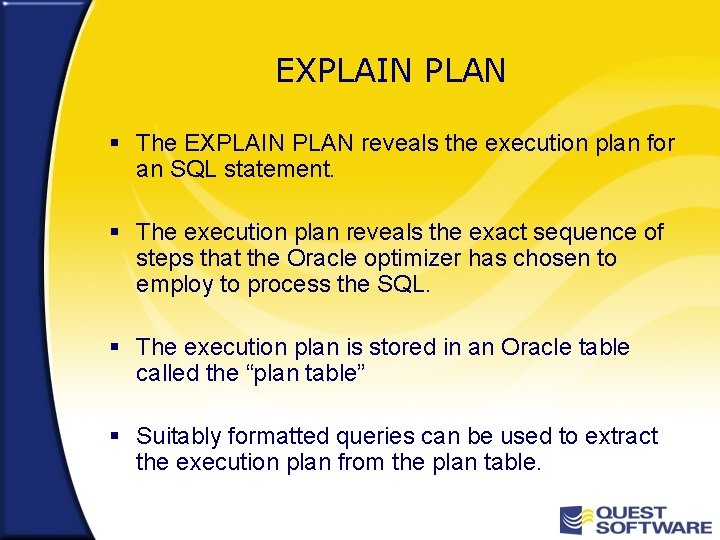

EXPLAIN PLAN § The EXPLAIN PLAN reveals the execution plan for an SQL statement. § The execution plan reveals the exact sequence of steps that the Oracle optimizer has chosen to employ to process the SQL. § The execution plan is stored in an Oracle table called the “plan table” § Suitably formatted queries can be used to extract the execution plan from the plan table.

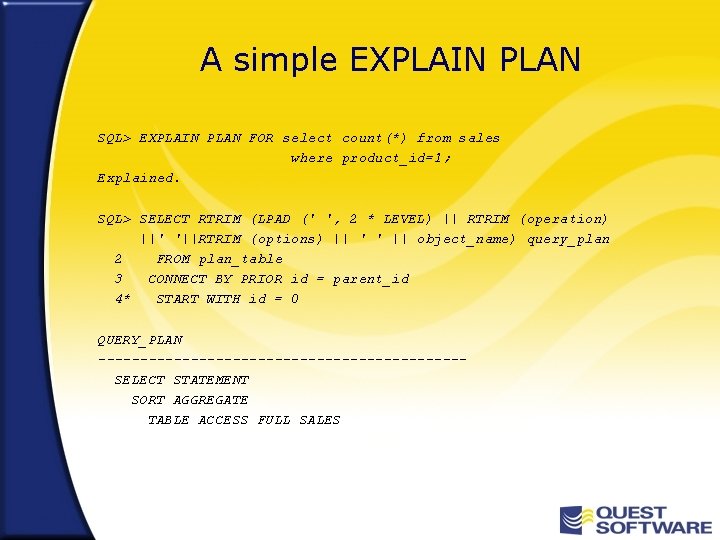

A simple EXPLAIN PLAN SQL> EXPLAIN PLAN FOR select count(*) from sales where product_id=1; Explained. SQL> SELECT RTRIM (LPAD (' ', 2 * LEVEL) || RTRIM (operation) ||' '||RTRIM (options) || ' ' || object_name) query_plan 2 FROM plan_table 3 CONNECT BY PRIOR id = parent_id 4* START WITH id = 0 QUERY_PLAN ----------------------SELECT STATEMENT SORT AGGREGATE TABLE ACCESS FULL SALES

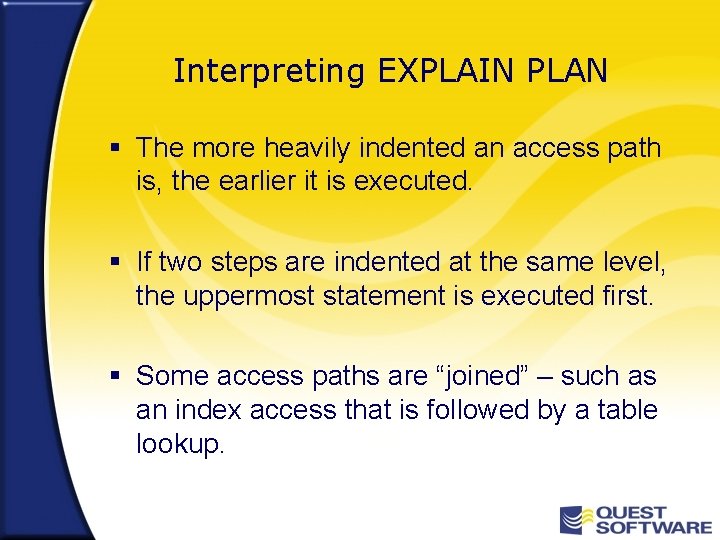

Interpreting EXPLAIN PLAN § The more heavily indented an access path is, the earlier it is executed. § If two steps are indented at the same level, the uppermost statement is executed first. § Some access paths are “joined” – such as an index access that is followed by a table lookup.

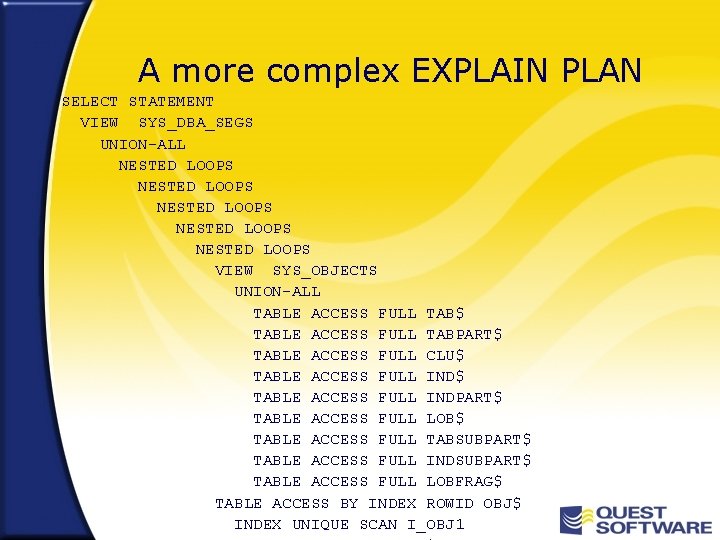

A more complex EXPLAIN PLAN SELECT STATEMENT VIEW SYS_DBA_SEGS UNION-ALL NESTED LOOPS NESTED LOOPS VIEW SYS_OBJECTS UNION-ALL TABLE ACCESS FULL TAB$ TABLE ACCESS FULL TABPART$ TABLE ACCESS FULL CLU$ TABLE ACCESS FULL INDPART$ TABLE ACCESS FULL LOB$ TABLE ACCESS FULL TABSUBPART$ TABLE ACCESS FULL INDSUBPART$ TABLE ACCESS FULL LOBFRAG$ TABLE ACCESS BY INDEX ROWID OBJ$ INDEX UNIQUE SCAN I_OBJ 1

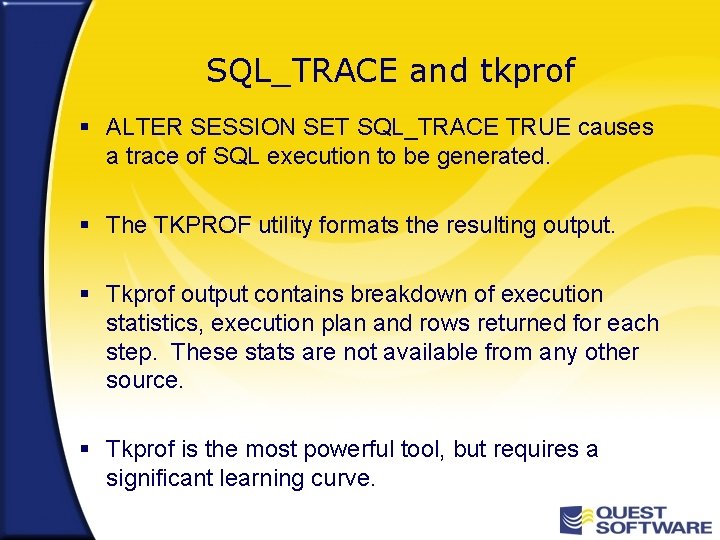

SQL_TRACE and tkprof § ALTER SESSION SET SQL_TRACE TRUE causes a trace of SQL execution to be generated. § The TKPROF utility formats the resulting output. § Tkprof output contains breakdown of execution statistics, execution plan and rows returned for each step. These stats are not available from any other source. § Tkprof is the most powerful tool, but requires a significant learning curve.

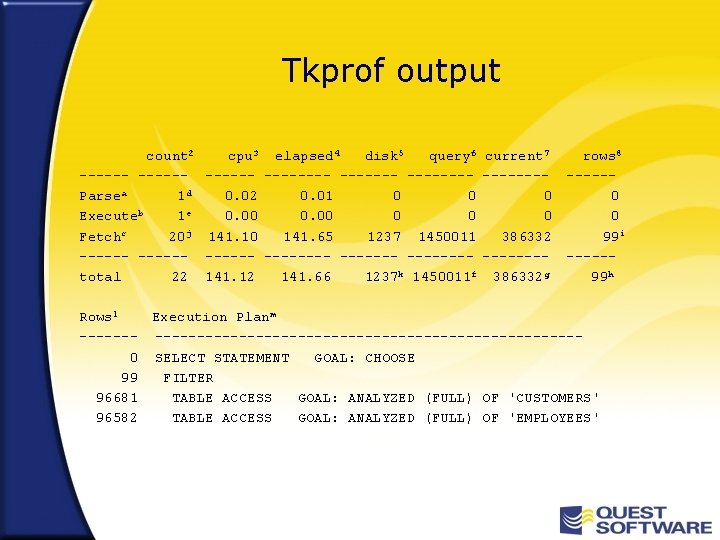

Tkprof output count 2 cpu 3 elapsed 4 disk 5 query 6 current 7 rows 8 -------- --------Parsea 1 d 0. 02 0. 01 0 0 Executeb 1 e 0. 00 0 0 Fetchc 20 j 141. 10 141. 65 1237 1450011 386332 99 i -------- --------total 22 141. 12 141. 66 1237 k 1450011 f 386332 g 99 h Rowsl Execution Planm ----------------------------- 0 SELECT STATEMENT GOAL: CHOOSE 99 FILTER 96681 TABLE ACCESS GOAL: ANALYZED (FULL) OF 'CUSTOMERS' 96582 TABLE ACCESS GOAL: ANALYZED (FULL) OF 'EMPLOYEES'

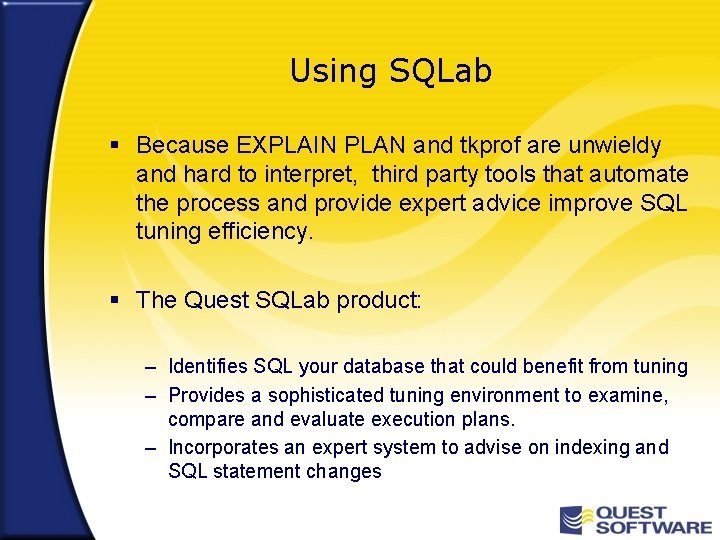

Using SQLab § Because EXPLAIN PLAN and tkprof are unwieldy and hard to interpret, third party tools that automate the process and provide expert advice improve SQL tuning efficiency. § The Quest SQLab product: – Identifies SQL your database that could benefit from tuning – Provides a sophisticated tuning environment to examine, compare and evaluate execution plans. – Incorporates an expert system to advise on indexing and SQL statement changes

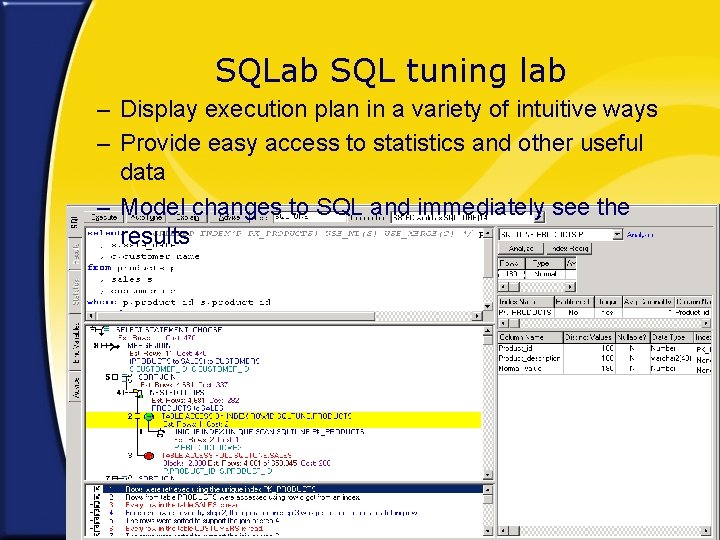

SQLab SQL tuning lab – Display execution plan in a variety of intuitive ways – Provide easy access to statistics and other useful data – Model changes to SQL and immediately see the results

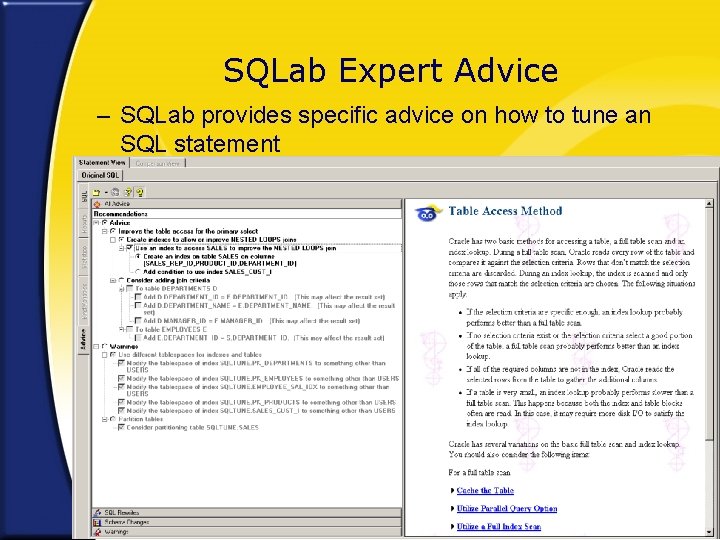

SQLab Expert Advice – SQLab provides specific advice on how to tune an SQL statement

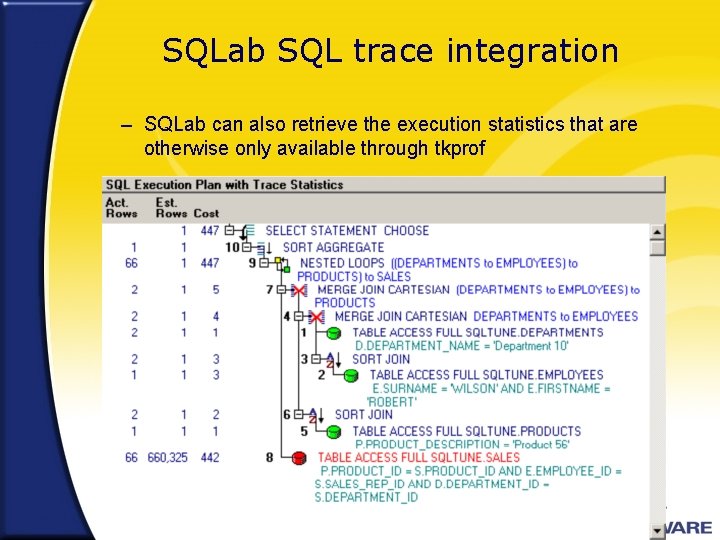

SQLab SQL trace integration – SQLab can also retrieve the execution statistics that are otherwise only available through tkprof

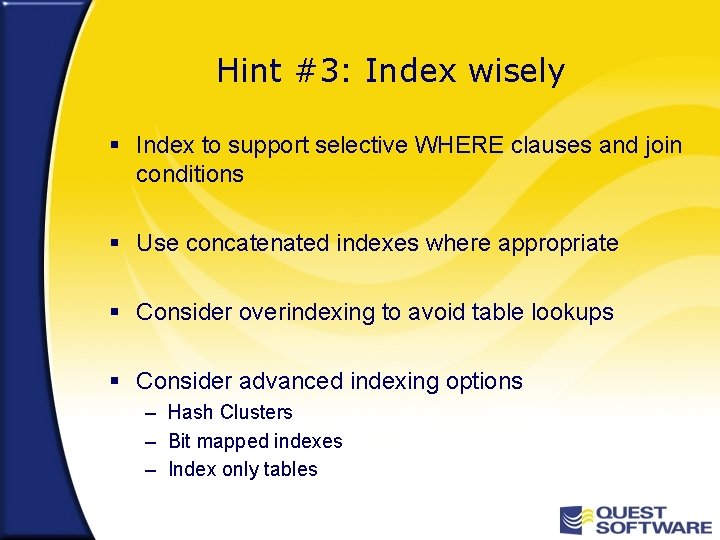

Hint #3: Index wisely § Index to support selective WHERE clauses and join conditions § Use concatenated indexes where appropriate § Consider overindexing to avoid table lookups § Consider advanced indexing options – Hash Clusters – Bit mapped indexes – Index only tables

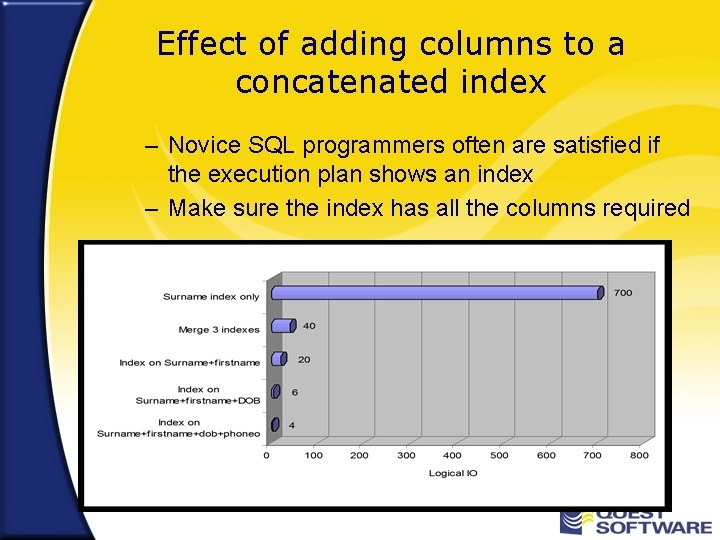

Effect of adding columns to a concatenated index – Novice SQL programmers often are satisfied if the execution plan shows an index – Make sure the index has all the columns required

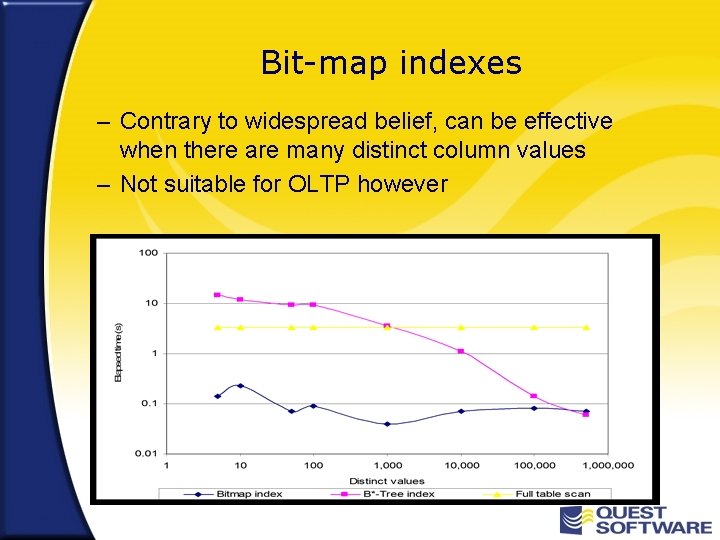

Bit-map indexes – Contrary to widespread belief, can be effective when there are many distinct column values – Not suitable for OLTP however

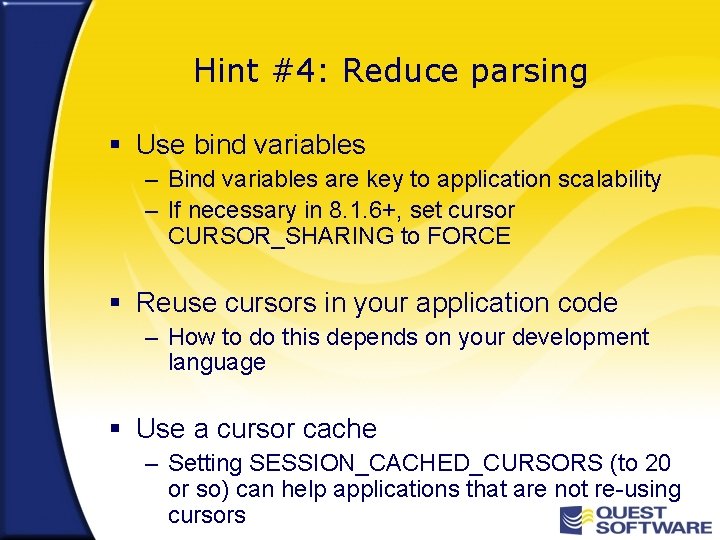

Hint #4: Reduce parsing § Use bind variables – Bind variables are key to application scalability – If necessary in 8. 1. 6+, set cursor CURSOR_SHARING to FORCE § Reuse cursors in your application code – How to do this depends on your development language § Use a cursor cache – Setting SESSION_CACHED_CURSORS (to 20 or so) can help applications that are not re-using cursors

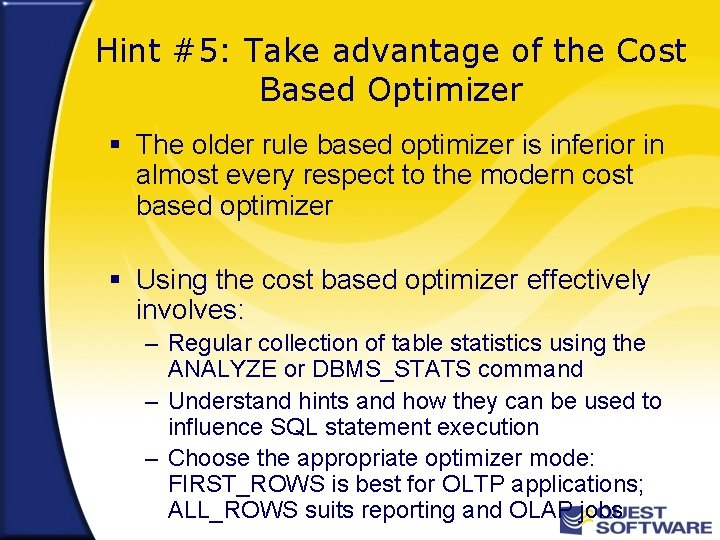

Hint #5: Take advantage of the Cost Based Optimizer § The older rule based optimizer is inferior in almost every respect to the modern cost based optimizer § Using the cost based optimizer effectively involves: – Regular collection of table statistics using the ANALYZE or DBMS_STATS command – Understand hints and how they can be used to influence SQL statement execution – Choose the appropriate optimizer mode: FIRST_ROWS is best for OLTP applications; ALL_ROWS suits reporting and OLAP jobs

Hint #6: Avoid accidental tablescans § Tablescans that occur unintentionally are a major source of poorly performing SQL. Causes include: – Missing Index – Using “!=“, “<>” or NOT • Use inclusive range conditions or IN lists – Looking for values that are NULL • Use NOT NULL values with a default value – Using functions on indexed columns • Use “functional” indexes in Oracle 8 i

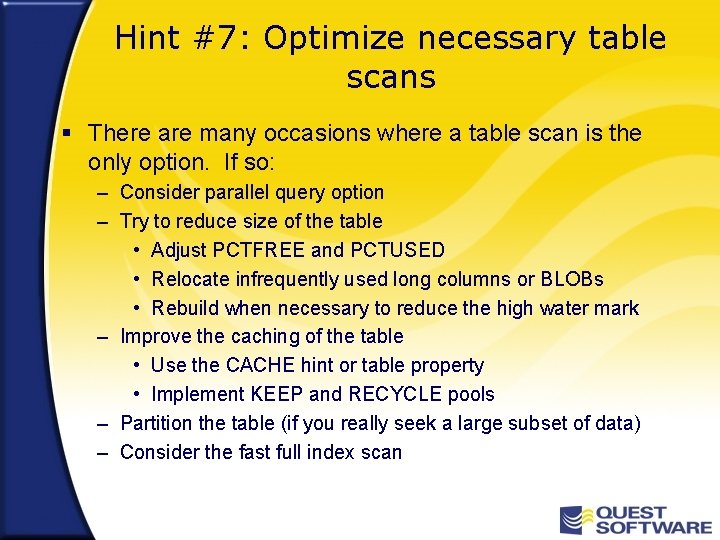

Hint #7: Optimize necessary table scans § There are many occasions where a table scan is the only option. If so: – Consider parallel query option – Try to reduce size of the table • Adjust PCTFREE and PCTUSED • Relocate infrequently used long columns or BLOBs • Rebuild when necessary to reduce the high water mark – Improve the caching of the table • Use the CACHE hint or table property • Implement KEEP and RECYCLE pools – Partition the table (if you really seek a large subset of data) – Consider the fast full index scan

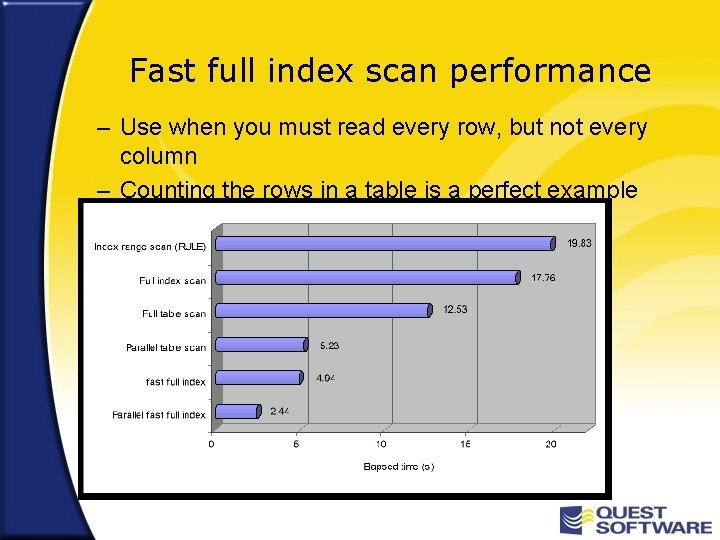

Fast full index scan performance – Use when you must read every row, but not every column – Counting the rows in a table is a perfect example

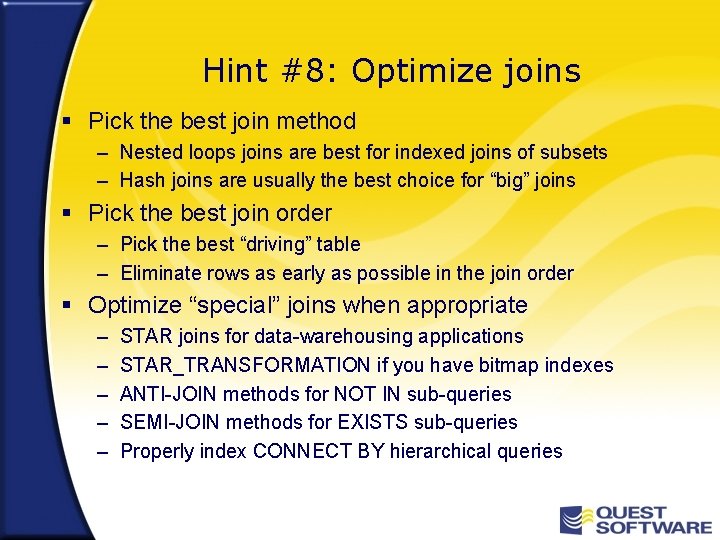

Hint #8: Optimize joins § Pick the best join method – Nested loops joins are best for indexed joins of subsets – Hash joins are usually the best choice for “big” joins § Pick the best join order – Pick the best “driving” table – Eliminate rows as early as possible in the join order § Optimize “special” joins when appropriate – – – STAR joins for data-warehousing applications STAR_TRANSFORMATION if you have bitmap indexes ANTI-JOIN methods for NOT IN sub-queries SEMI-JOIN methods for EXISTS sub-queries Properly index CONNECT BY hierarchical queries

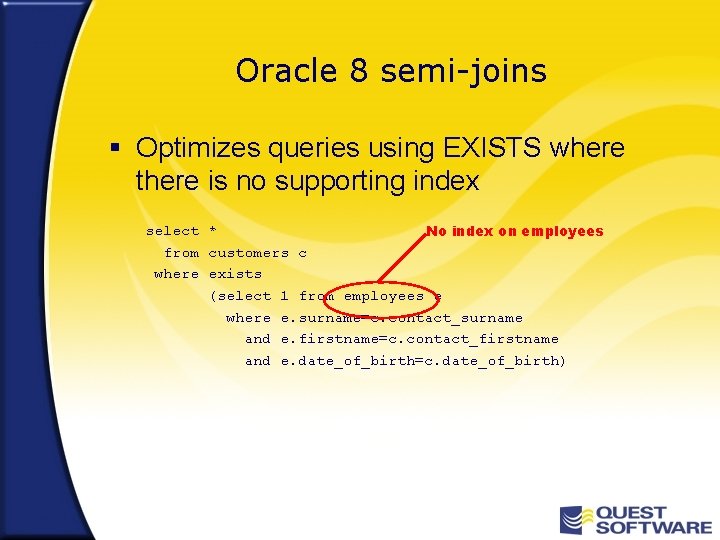

Oracle 8 semi-joins § Optimizes queries using EXISTS where there is no supporting index select * No index on employees from customers c where exists (select 1 from employees e where e. surname=c. contact_surname and e. firstname=c. contact_firstname and e. date_of_birth=c. date_of_birth)

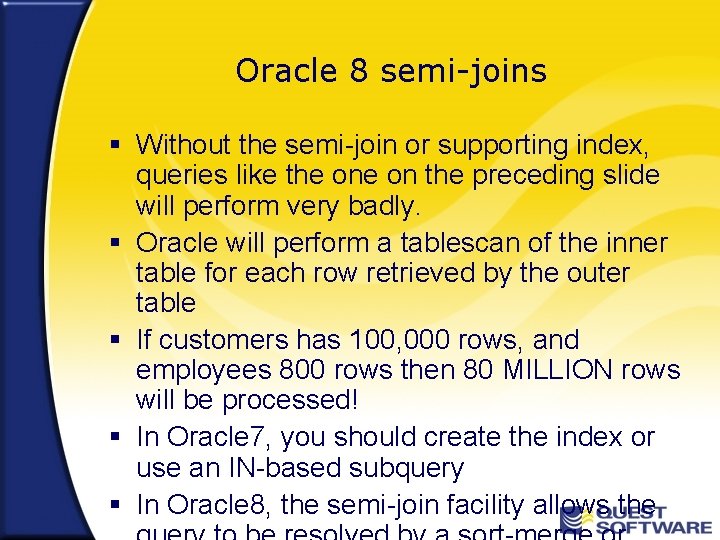

Oracle 8 semi-joins § Without the semi-join or supporting index, queries like the on the preceding slide will perform very badly. § Oracle will perform a tablescan of the inner table for each row retrieved by the outer table § If customers has 100, 000 rows, and employees 800 rows then 80 MILLION rows will be processed! § In Oracle 7, you should create the index or use an IN-based subquery § In Oracle 8, the semi-join facility allows the

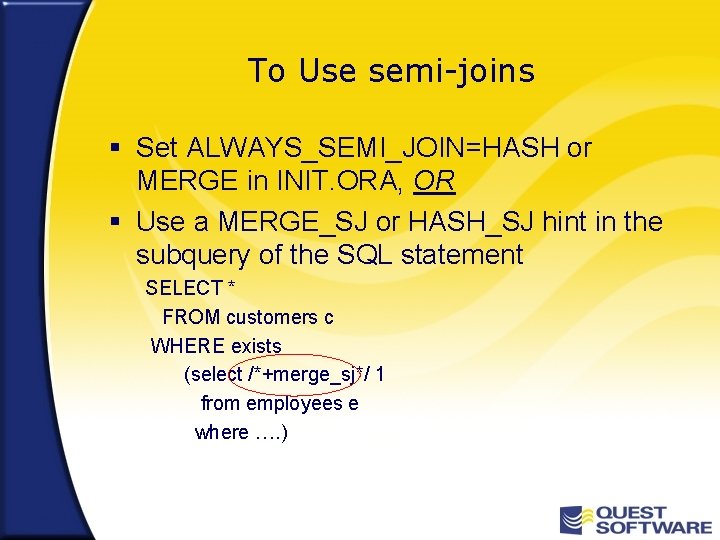

To Use semi-joins § Set ALWAYS_SEMI_JOIN=HASH or MERGE in INIT. ORA, OR § Use a MERGE_SJ or HASH_SJ hint in the subquery of the SQL statement SELECT * FROM customers c WHERE exists (select /*+merge_sj*/ 1 from employees e where …. )

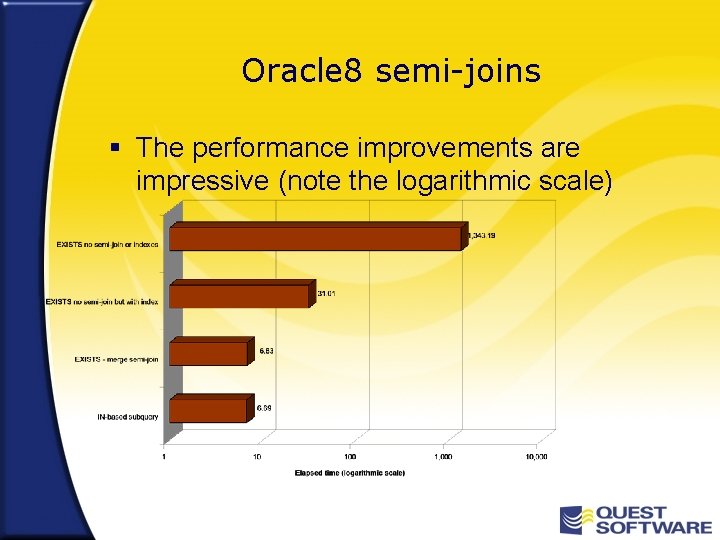

Oracle 8 semi-joins § The performance improvements are impressive (note the logarithmic scale)

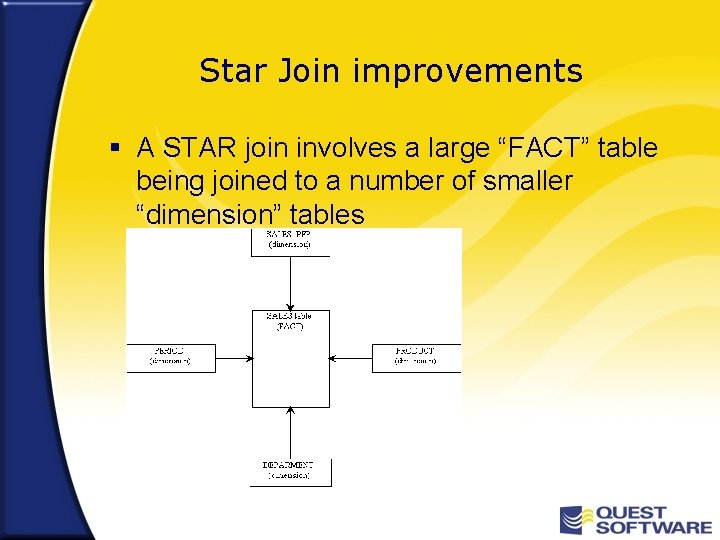

Star Join improvements § A STAR join involves a large “FACT” table being joined to a number of smaller “dimension” tables

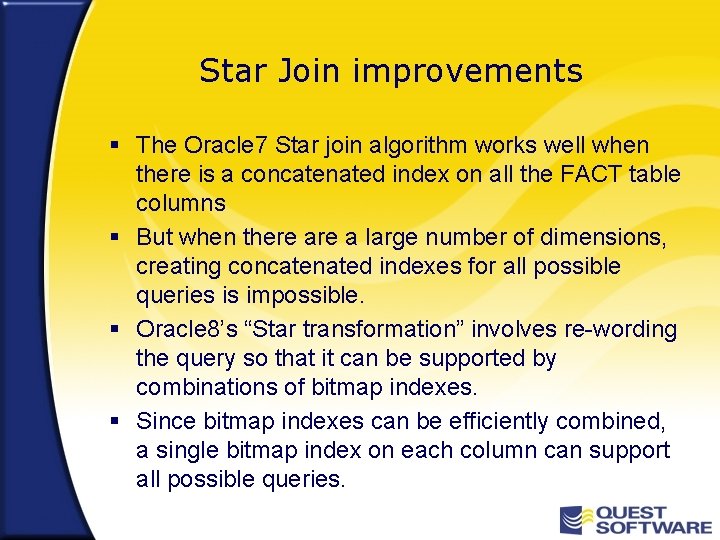

Star Join improvements § The Oracle 7 Star join algorithm works well when there is a concatenated index on all the FACT table columns § But when there a large number of dimensions, creating concatenated indexes for all possible queries is impossible. § Oracle 8’s “Star transformation” involves re-wording the query so that it can be supported by combinations of bitmap indexes. § Since bitmap indexes can be efficiently combined, a single bitmap index on each column can support all possible queries.

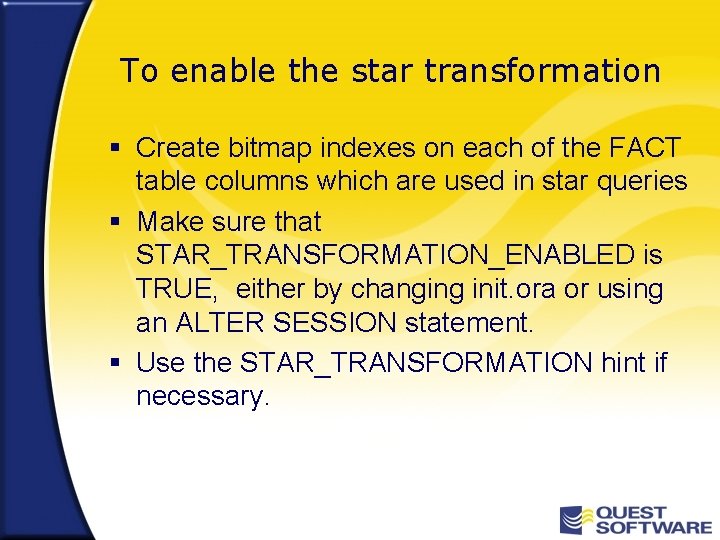

To enable the star transformation § Create bitmap indexes on each of the FACT table columns which are used in star queries § Make sure that STAR_TRANSFORMATION_ENABLED is TRUE, either by changing init. ora or using an ALTER SESSION statement. § Use the STAR_TRANSFORMATION hint if necessary.

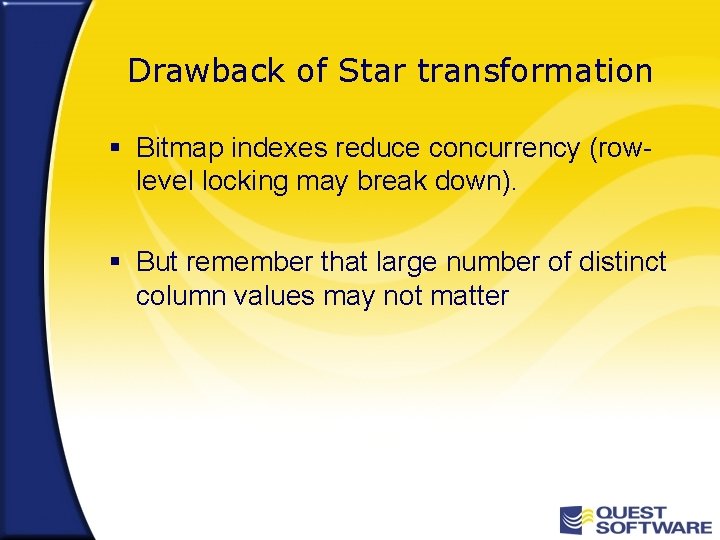

Drawback of Star transformation § Bitmap indexes reduce concurrency (rowlevel locking may break down). § But remember that large number of distinct column values may not matter

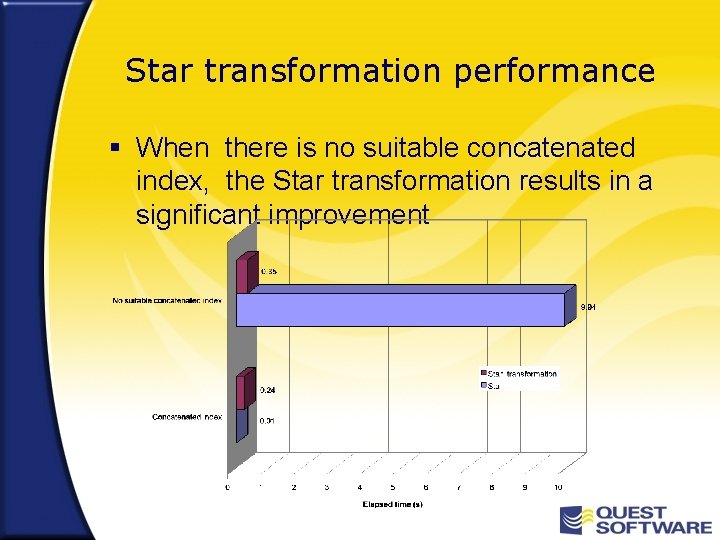

Star transformation performance § When there is no suitable concatenated index, the Star transformation results in a significant improvement

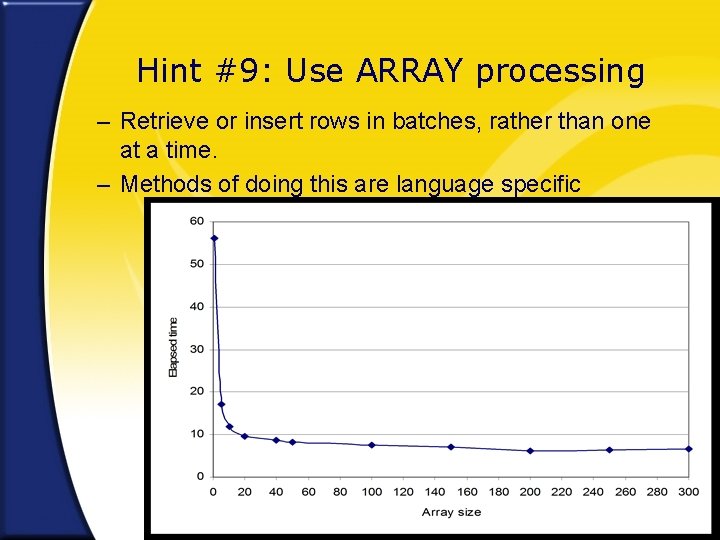

Hint #9: Use ARRAY processing – Retrieve or insert rows in batches, rather than one at a time. – Methods of doing this are language specific

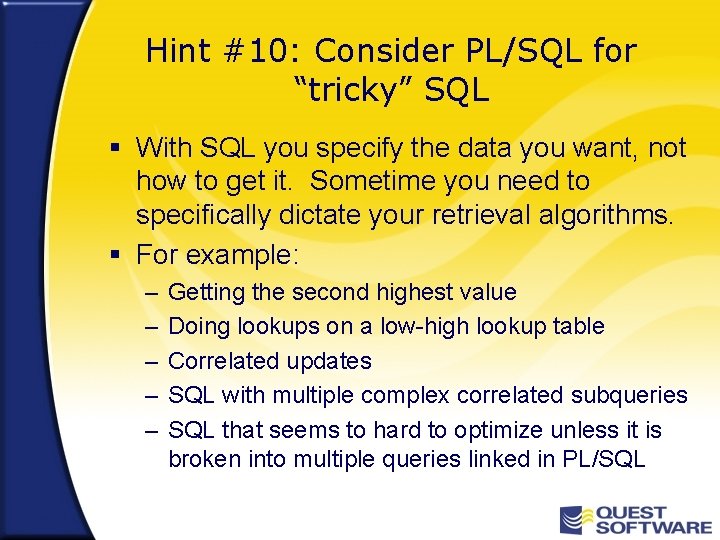

Hint #10: Consider PL/SQL for “tricky” SQL § With SQL you specify the data you want, not how to get it. Sometime you need to specifically dictate your retrieval algorithms. § For example: – – – Getting the second highest value Doing lookups on a low-high lookup table Correlated updates SQL with multiple complex correlated subqueries SQL that seems to hard to optimize unless it is broken into multiple queries linked in PL/SQL

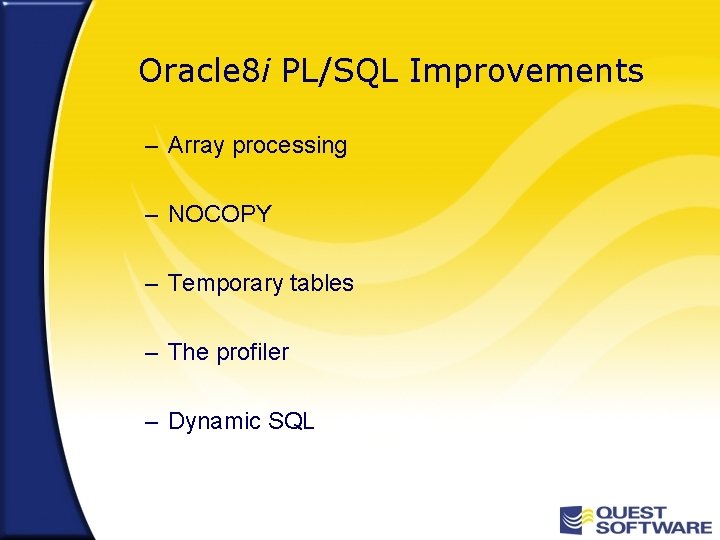

Oracle 8 i PL/SQL Improvements – Array processing – NOCOPY – Temporary tables – The profiler – Dynamic SQL

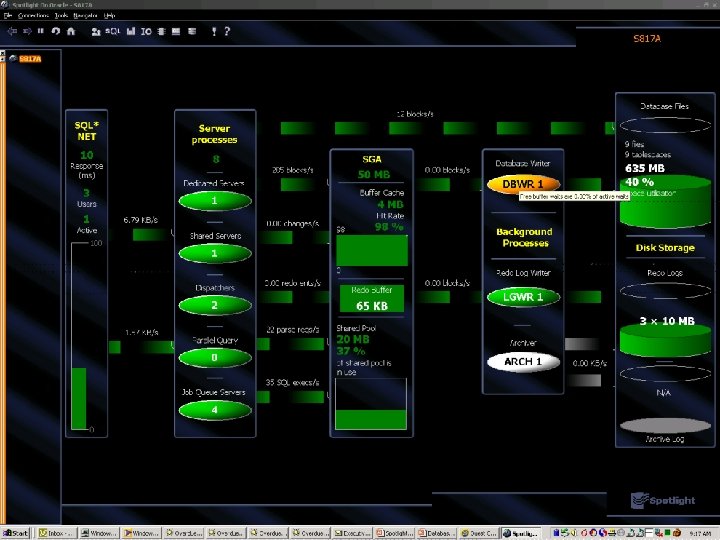

Bonus hint: When your SQL is tuned, look to your Oracle configuration § When SQL is inefficient there is limited benefit in investing in Oracle server or operating system tuning. § However, once SQL is tuned, the limiting factor for performance will be Oracle and operating system configuration. § In particular, check for internal Oracle contention that typically shows up as latch contention or unusual wait conditions (buffer busy, free buffer, etc) § Third party tools – such as Quest’s Spotlight on
