Top secret Secret Internal use only Public LAN Adapter for Daikin Altherma

1. New Functions and Required Measures 2. General Overview of the Hardware 3. PV / Smart Grid Connection 4. APP Control 5. Software Compatibility 6. Installation Method

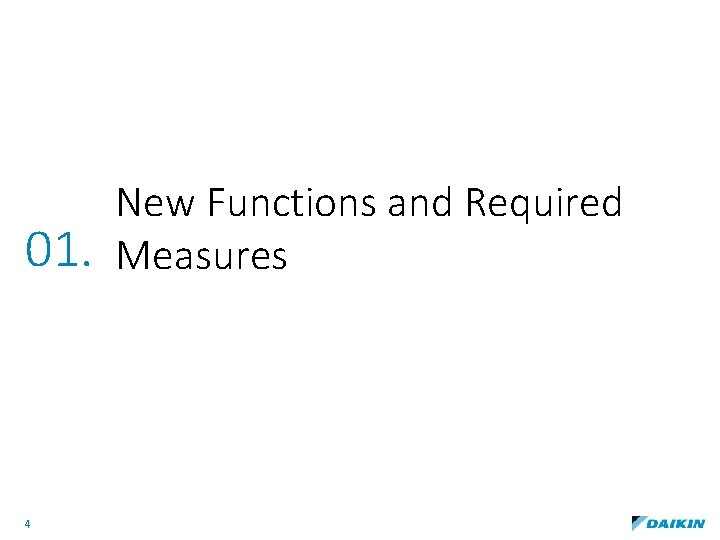

01. 4 New Functions and Required Measures

Changes 08/11/2017 1. New Functions and Required Measures Function, relevant products and required measures Relevant Products Existing models Function LT PV / Smart Grid Connection * APP Control Preheating of DHW by HP operation ** Other Improvements ○ MB GBS GQI ○ n/a New models HT GS HB LT for UK n/a ○ ○ ○ LT w/o BUH ○ Multi + Hybrid ○ *** TO 7 Software Update LAN Adapter * Required (“Full Version” ) ○ ○ n/a ○ ○ ○ - Required (“Full Version” or “Limited Version” ) n/a n/a n/a ○ n/a n/a Required - ○ ○ n/a ○ ○ ○ Required - * PV / Smart Grid Connection function requires TO 7 Software Update => See PSP_TO 7 ** This function is available only when Hybrid is combined with a ROTEX / Daikin branded DHW Tank *** Only limited Smart Grid functionality (control on booster heater in the tank) is available for Multi + Hybrid 5 Title - Internal use only

02. 6 General Overview of the Hardware

Changes 08/11/2017 2. General Overview of the Hardware 2 -1. Functions of LAN Adapter PV / Smart Grid Connection (Connect to Smart Grid or PV to minimize the energy cost) APP Control (Remotely control the heating system by smartphone APP) PV / Smart Grid Connection APP Control with BRP 069 A 61 Daikin Altherma units Altherma 3 LT split (WM, FS) 7 Altherma 2 LT split (WM, FS) Monobloc (GBS) Ground Source Hybrid Multi + Hybrid

2. General Overview of the Hardware 2 -2. Two versions of LAN Adapters “Full Version” is necessary for PV / Smart Grid connection function APP Control function is available with “Limited Version” Function and compatibility of two versions LAN Adapter for Daikin Altherma Full Version Limited Version BRP 069 A 61 BRP 069 A 62 PV / SG connection ✔ ✘ APP Control ✔ ✔ Name Same casing for both versions Function LT Split MB Compatibility Full Version (BRP 069 A 61) 8 Limited Version (BRP 069 A 62) Difference: Additional input (electrical meter pulse signal and PV / Smart Grid digital signals) ✔ GBS ✔ GQI ✘ HT ✘ Ground Source ✔ Hybrid ✔ LT for UK ✔ LT w/o BUH ✔ Multi + Hybrid ✔ Upgrading to the other version is NOT possible, because the firmware is also different between the 2 versions.

2. General Overview of the Hardware 2 -3. Casing and appearance Simple appearance which blends in with living space Hole to open the casing with screw driver Status LEDs Knockout holes (wiring from the rear) Ethernet Connection (available without opening the casing) 9 Knockout holes (wiring from the bottom) with cable strain relief

2. General Overview of the Hardware 2 -4. Specification LAN Adapter for Daikin Altherma Function BRP 069 A 61 (Full Version) BRP 069 A 62 (Limited Version) PV / SG connection ✔ ✘ APP Control ✔ ✔ Installation place (operation condition) Indoor installation (5 ~35 C / Max 95% RH) Dimensions [mm] +- H 123 x W 208 x D 40 Casing Material Flame retardant ABS Color White Power P 1 P 2 (Supplied by a unit) This specification is subject to change 10

LAN adapter compatibility: APP & solar PV LAN + APP [TO 5 b minimum] Field units CA N/A Current production: CB V SW update New MP CB (Mar/17) V V New MP V V SW update PCB change Current production V SW update New MP (Mar/17) V V Altherma DHWHP New MP (Mar/17) V V Altherma Hybrid New MP (Mar/17) V V Altherma LT GBS/GQI WM&FS Altherma LT BUH-less Field units (< Aug/15) Altherma Hybrid Pair Field units (< Mar/16) Altherma GSHP Altherma Monobloc GBS Altherma Bizone Multi 11 LAN + solar PV [TO 7 minimum]

2. General Overview of the Hardware 2 -5. PCB Input/Output, DIP Switches and Status LEDs Input / Output DIP Switches 1: Enable/disable SG communication 2: EEPROM Reset 3: Enable/disable Web Interface 4: Enable/disable a static IP address (5~8: Spare) SG digital input (Full version only) 230 V AC detection voltage (Full version only) Electrical meter pulse input (Full version only) (optional) P 1 P 2 connection Ethernet connection (RJ 45) 12 Micro SD Card Slot for firmware update (See P. 22) Status LEDs <Normal operation> LD 1: Heartbeat LD 2: LAN communication LD 3: P 1 P 2 communication LD 4: Smart grid control active <Error status> Fast blinking of all LED’s (Check APP for error codes)

Hardware description - Configuration / Firmware upgrade Web interface (accessible by surfing to IP-address of LAN adapter) - set static IP address - Parameter for SG Ready / PV connections - use space heating/cooling/DHW for buffering - allow use of back-up heater and booster heater for buffering - set power limitation - firmware upgrade Firmware upgrade of the LAN Adapter: - pushed by APP (preferred method) - by web interface - by micro SD card 13

Hardware description - Configuration / Firmware upgrade Web interface (accessible by surfing to IP-address of LAN adapter) 14

03. PV / Smart Grid Connection (only BRP 069 A 61) 15

3. PV / Smart Grid Connection This function is available only when; - The unit software is TO 7 or higher - The RC software version is V 01. 17 or higher - “Full Version(BRP 069 A 61)” LAN Adapter is equipped - PV inverter or energy management system has digital output 3 -1. Functions PV / Smart Grid Connection function maximizes the self-consumption of power generated by PV within thermal buffer. (e. g. DHW tank, space heating / cooling set temperature) Pulse Signal (optional) Digital Signals Control PV Inverter / HEMS LAN Adapter Energy injection Self-consumption Power Grid 16 Pulse electrical meter (optional) P 1 P 2 HP

3. PV / Smart Grid Connection 3 -2. Operation modes LAN Adapter chooses the best operation mode depending on the situation of PV power generation and energy injection to the grid. Target: maximum self-consumption of power PV generates and minimum power injection to the grid 1. “Free running” mode There is no effect of the Smart Grid Control (=normal operation) A unit operates according to its own settings and schedule. 2. “Forced OFF” mode The operation of outdoor unit and electrical heater is deactivated to reduce power consumption in case of high energy tariff. 3. “Recommended ON” mode A Unit starts DHW, space heating or cooling to make use of PV energy. The power consumption by the unit has fix value or auto-adaptive limitation. 4. “Forced ON” mode A Unit starts DHW, space heating or cooling to make MAXIMUM use of PV energy. The power consumption by the unit has no limitation. 17

3. PV / Smart Grid Connection 3 -2 -1. “Free running” mode There is no effect of the Smart Grid Control (=normal operation) A unit operates according to its own settings and schedule. Pulse Signal (optional) Digital Signals (SG 0=0, SG 1=0) No control PV Inverter / HEMS LAN Adapter Energy injection Self-consumption Power Grid 18 Pulse electrical meter (optional) P 1 P 2 HP

3. PV / Smart Grid Connection 3 -2 -2. “Forced OFF” mode The operation of outdoor unit and electrical heater is deactivated to reduce power consumption in case of high energy tariff. Pulse Signal (optional) Digital Signals (SG 0=0, SG 1=1) Force OFF PV Inverter / HEMS LAN Adapter Energy injection Self-consumption Power Grid 19 Pulse electrical meter (optional) P 1 P 2 HP

3. PV / Smart Grid Connection 3 -2 -3. “Recommended ON” mode A Unit starts DHW, space heating or cooling to make use of PV energy. The power consumption by the unit has fix value or auto-adaptive limitation*. Pulse Signal (optional) Digital Signals (SG 0=1, SG 1=0) PV Inverter / HEMS LAN Adapter Energy injection Self-consumption Power Grid Operate with power limitation P 1 P 2 HP Pulse electrical meter (optional) Fix Value Power Limitation - Power limitation is set beforehand on the Web Interface by installers. - If consumption exceeds the limitation => Compressor output reduction and/or force electrical heater OFF Auto-adaptive Power Limitation (recommended) - Power limitation is automatically set based on measured power injection to the grid, and compressor output and/or electrical heaters are adjusted. The limitation is set to maximize the usage of PV and minimize power injection to the grid. 20

3. PV / Smart Grid Connection 3 -2 -3. “Recommended ON” mode - Availability of power limitation functions Existing models LT Function MB New models GQI * GBS GQI * ✔ ✔ n/a n/a HB GQI * GBS GQI Fix Value Power Limitation ✔ n/a n/a ✔ Auto-adaptive Power Limitation ✔ n/a n/a ✔ LT w/o BUH GBS GS GBS LT for UK Multi + Hybrid HT * Basically, power limitation is NOT available for GQI units. Instead of power limitation, power is reduced by always turning OFF electrical heaters while operation of a compressor is allowed. - Case example of two power limitation (In case PV generates 3 k. W and other appliances consume 1 k. W) Fix Value Power Limitation (with the preset limitation of 1 k. W) 1 k. W injection 3 k. W 1 k. W Auto-adaptive Power Limitation Pulse Signal 1 k. W Unit operates up to the fix value power limitation (unit consumes 1 k. W in this case) limited injection 3 k. W +- 2 k. W Unit operates as much as possible so that It minimizes injection (unit consumes 2 k. W in this case) Auto-adaptive Power Limitation is recommended to maximize self-consumption! 21 1 k. W

3. PV / Smart Grid Connection 3 -2 -4. “Forced ON” mode A Unit starts DHW, space heating or cooling to make MAXIMUM use of PV energy. The power consumption by the unit has no limitation. Pulse Signal (optional) Digital Signals (SG 0=1, SG 1=1) PV Inverter / HEMS LAN Adapter Energy injection Self-consumption Power Grid 22 Pulse electrical meter (optional) Operate with NO power limitation P 1 P 2 HP

3. PV / Smart Grid Connection 3 -3. PV / SG Signals and Operation of Components PV contact Smart Grid contacts 230 V AC power input L Buffering in Space Heating/Cooling Buffering in DHW L SG 1 L Buffering in BUH / BSH SG 0 SG 1 0 0 Free running No (= normal operation) - 0 1 Forced OFF - 1 0 Recommended ON Possible (Setpoint = COMFORT) Possible (Setpoint = max. tank temp. ) Selectable (Allowed / Not Allowed) Auto-adaptive (with pulse electrical meter) Fix value 1 1 Forced ON (Setpoint = COMFORT) Forced ON (Setpoint = max. tank temp. ) Forced ON (within limitations of unit) No limitation 23 Operation Mode N Power Limitation

3. PV / Smart Grid Connection Pulse input (electricity meter) 3 -4. Compatible Electric Meters (optional) Electric Meters Material name / Product name Phase K. ELECMETV 2 CMA 100149 R 1000 B 21 111 -100 1~ K. ELECMETW 2 CMA 100163 R 1000 B 23 111 -100 3~ Purpose: - maximise own consumption of PV, avoid that too much PV is injected back into the grid. 24 ABB reference other users Max. 250 W

3. PV / Smart Grid Connection 3 -4. Compatible Electric Meters (optional) 3 rd-party Electric Meters (field supply) 3 rd-party electric meters which meets the following requirements can also be used Item Type Pulse meter type (5 V DC pulse detection) Possible number of pulses 0. 1 / 1000 pulse/k. Wh Pulse Duration Minimum ON time 40 ms (tbc) Minimum OFF time 100 ms Measurement type 25 Specification Depends on the installation - Single-phase AC meter - Three-phase AC meter (balanced loads) - Three-phase AC meter (unbalanced loads)

3. PV / Smart Grid Connection 3 -5. Configuration and Firmware Update of LAN Adapter 3 -5 -1. Configuration Following configuration can be made through the Web Interface; - Static IP address setting (if necessary) - Parameter setting of PV / Smart Grid Connection - Selection of buffering (DHW and space heating/cooling OR only DHW) - Activating of BUH (back-up heater) and BSH(booster heater) for buffering - Power Limitation Setting - Pulse Setting (in case an electric meter is connected for auto-adaptive limitation) 3 -5 -2. Firmware Update Firmware can be updated by following measures - Pushed by APP (recommended) - Web Interface of LAN Adapter - Micro SD card Firmware update pushed by APP 26

04. APP Control Caution: Functions and screen images are subject to change. 27

4. APP Control 4 -1. Overview of Daikin Online Control Heating APP “Always in control, no matter where you are” This is an APP to monitor, control and schedule our Altherma units in an intuitive way. - Monitor… Status and energy consumption of units! - Control… Intuitive control of multiple units! - Schedule… Intuitive scheduling with up to 6 actions/day for 7 days! Daikin and ROTEX brand <Schedule of APP availability> STEP 1 Daikin Online Control Heating APP (Current) Daikin Online Controller FEB 2017 28 STEP 2 Integrated “Daikin Online Controller” = same experience for both AC & H March 2019

4. APP Control 4 -1. Overview of Daikin Online Control Heating APP “Always in control, no matter where you are” (1) (2) (3) (4) (5) (C) (A) (B) (D) (E) APPLICATION CONTROLS EQUIPMENT CONTROLS LAN adapter Gateway between DAIKIN altherma unit and the internet/smart phone 1. 2. 3. 4. 5. 29 Heat pump LAN adapter Internet router/modem Cloud server Smartphone app A. B. C. D. E. P 1 P 2 proprietary bus LAN WAN Mobile data Wifi Smartphone control is possible: - in home: directly on same local network as LAN adapter (E) - remotely: mobile data, via cloud server (D)

4. APP Control 4 -2. Main features of Daikin Online Control Heating APP User experience similar to our current APP “Daikin Online Controller” with good reputation 30 “Daikin’s Eye” (intuitive setting) IFTTT* compatibility In line with GDPR (Data protection) Remote firmware update of LAN Adapter Tank Temperature Monitoring Control on multiple sites (e. g. summer house)

4. APP Control 4 -3. Set-up / configuration for LAN connection Installation of APP - The APP will be available on ‘App Store’ and ‘Google play’ LAN Adapter IP address setting - Dynamic allocation (default) (dynamically configured by DHCP protocol) Static IP address (custom) (set by the Web Interface) Fixed IP address* (custom) (set by the dipswitch) Recommended (* This is a Windows auto-config IP-range starting with 168. 254. x. x This will allow, for instance, a direct connection from a PC to the LAN adapter without any additional router. ) Detection of connected units - Auto-detection by APP* Connected!! 31 *Smartphone must be connected by Wi-Fi to the same local network as the LAN Adapter)

4. APP Control 4 -4. Main Functions of APP Control 1. Overview of Units 2. Space Heating / Cooling Setting 3. Domestic Hot Water Setting 4. Schedules 5. Energy Metering Status of all units at a glance! The most intuitive way of setting “Daikin’s Eye”! Monitoring of actual DHW tank temperature! Easy setting of up to 6 actions/day by time bars! Yearly, weekly and daily energy management! *Energy metering is only in combination with BRP 069 A 61 and Altherma 3 6. Control on multiple sites 32 Summer house!

4. APP Control 4 -4 -1. Overview of units Status and setting of all connected units* can be monitored at a glance and the setting of a unit can be easily managed by selecting it. * DX will be included after the integration of APPs (STEP 2) planned in the summer 2017 This screen shot contains DX units, but for the Heating APP, there will be only Altherma units. DHW Tank temperature Powerful DHW Mode Unit operation (Actual room temperature / Operation mode / Setpoint / ON-OFF) 33

4. APP Control 4 -4 -2. Space Heating / Cooling Setting Status and setting of a selected unit like ON/OFF, temperatures and next scheduled action can be monitored and edited on this screen. “Daikin’s Eye” enables intuitive temperature setting. ON / OFF Actual ambient (outdoor) temperature Actual Room temperature Operation mode COOLING / AUTO / HEATING Room temperature setpoint Next scheduled action 34

4. APP Control 4 -4 -3. Domestic Hot Water Setting Status and setting of a selected DHW unit can be monitored and edited on this screen. Actual DHW tank temperature is also monitored and shown. ON / OFF Actual DHW tank temperature DHW Tank temperature setpoint Next scheduled action Powerfull DHW Mode 35

4. APP Control 4 -4 -4. Schedules Time bars enables intuitive scheduling. Holiday mode is available Set temperature and operation mode can be scheuled with up to 6 actions/day for 7 days Schedule selection 36 The schedule is syncronized with Remocon Clock of Remocon is used for start and stop timing. Scheduling Holiday mode setting

4. APP Control 4 -4 -5. Energy Metering only available with Altherma 3 in combination with BRP 069 A 61 3 overviews (year / week / day) Current and previous period can be easily compared Week (per day) 37 Day (per 2 hours)

4. APP Control 4 -5. Readable and Adjustable Parameters Some parameters can be adjusted by the APP while others are read-only Unit Information Room Control Tank Control 38 Remarks • • • Readable Adjustable Unit name, SW version, EEPROM version ✔ - Current error ✔ - ON / OFF state ✔ ✔ Energy metering ✔ - Room temperature ✔ ✔ Ambient temperature ✔ - Schedules ✔ ✔ Next scheduled action ✔ - Heating/cooling/auto (if applicable) ✔ ✔ Holiday mode ✔ ✔ Tank temperature ✔ ✔ Schedules ✔ ✔ Next scheduled action ✔ - Powerfull on/off ✔ ✔ App will only be useful if unit is in RT-control and/or a DHW tank is present. No LWT modification via the APP. No error history. Only current error can be read out. No field settings via the APP. LAN adapter information can be shown. Energy metering only available with combination of BRP 069 A 61 and Altherma 3

05. Software Compatibility 39

5. Software Compatibility Following software is required for the indoor unit and the user interface Changes 08/11/2017 How to check the versions → Software version of RC → micon ID of the unit BRP 069 A 61 for APP control + PV / SG connection Software version of RC and Micon ID of the unit can be found on a RC screen Indoor unit software: TO 7 or higher RC software: V 01. 17 or higher BRP 069 A 62 for APP control only Indoor unit software: TO 5 b or higher RC software: V 01. 15 or higher 40 Title - Internal use only Unit Software version and Micon ID Current Software New Software Model Version Micon ID Altherma LT (other than Bi-zone) TO 5 b ID 4562 TO 7 A_1 ID 66 F 2 Altherma LT (Bi-zone) TO 6 c ID 4583 TO 7 A_1 ID 66 F 2 Altherma Monobloc TO 6 c ID 4583 TO 7 A_1 ID 66 F 2 Altherma GSHP TO 5 b ID 4562 TO 7 A_1 ID 66 F 2 Altherma Hybrid TO 5 b ID 4562 TO 7 A_2 ID 66 F 3 Altherma LT Integ. UK version - - TO 7 A_1 ID 66 F 2 Altherma LT w/o Backup Heater - - TO 7 A_1 ID 66 F 2 Multi + Hybrid - - TO 7 B_2 ID 6703

06. Installation Method 41

6. Installation Method 6 -1. LAN connection to the network Wired 2 core (P 1/P 2) Ethernet cable Wireless (Wi. Fi bridge/Access point) Wireless LAN 2 core (P 1/P 2) Ethernet cable Wireless (Power Line Communication) 2 core (P 1/P 2) PLC Adapter Power line 42 Ethernet cable

6. Installation Method 6 -2. P 1/P 2 connection LAN adapter = SLAVE 2 core (P 1/P 2) Ethernet cable Remocon EKRUCBL installed as room temperature controller = MASTER It is NOT possible to connect - a second remocon - a simplified remocon - a RTD device 43

07. 44 Hydro Software Update on Daikin Altherma Units

1. Compatibility with old version of user interfaces 2. How to update the software of field units

1. Compatibility with old version of user interfaces PV / Smart Grid Connection Unit Software (Micon ID) How to check the versions Remote Controller Software V 01. 15. XX V 01. 16. XX V 01. 17. XX TO 5 b (ID 4562) ✘ ✘ ✘ TO 6 c (ID 4583) ✘ ✘ ✘ TO 7 x_y ✘ ✘ ✔ → Software version of RC → micon ID of the unit Software version of RC and Micon ID of the unit can be found on a RC screen APP Control Unit Software (Micon ID) TO 5 b (ID 4562) TO 6 c (ID 4583) TO 7 x_y Remote Controller Software V 01. 15. XX V 01. 16. XX V 01. 17. XX ✔* ✔* ✔ ✘** ✔ ✔*** ✘ ✘ ✔ General functionality of remote control Unit Software (Micon ID) Remote Controller Software V 01. 15. XX V 01. 16. XX V 01. 17. XX TO 5 b (ID 4562) ✔ ✔ ✔**** TO 6 c (ID 4583) ✘** ✔ ✔*** ✘ ✘ ✔ TO 7 x_y * Some functions are not available ** TO 6 c and v. 16 match needed as it is for bi-zone and monobloc only *** Some concessions **** Some functions displayed are not available due to old SW version Unit Software version and Micon ID Current Software Model Version Micon ID Altherma LT (other than Bi-zone) TO 5 b ID 4562 TO 7 A_1 ID 66 F 2 Altherma LT (Bi-zone) TO 6 c ID 4583 TO 7 A_1 ID 66 F 2 Altherma Monobloc TO 6 c ID 4583 TO 7 A_1 ID 66 F 2 Altherma GSHP TO 5 b ID 4562 TO 7 A_1 ID 66 F 2 Altherma Hybrid TO 5 b ID 4562 TO 7 A_2 ID 66 F 3 Altherma LT Integ. UK version - - TO 7 A_1 ID 66 F 2 Altherma LT w/o Backup Heater - - TO 7 A_1 ID 66 F 2 Multi + Hybrid - - TO 7 B_2 ID 6703 For the best user experience, TO 7 SW and V. 17 RC combination is suggested! 46 New Software

2. How to update the software of field units PCB Change is required for Hybrid and GSHP due to insufficient CPU capacity (256 kb => 512 kb). 0. Required Procedure Model Field Units Altherma LT (GBS/GQI WM/FS, BZ) CA model Update NOT Available CB model Software Update Altherma Monobloc (GBS) All field units Software Update Hybrid Ground Source Units < Aug/15 * (Daikin EHYHBH 05 AAV 3: all field units EHYHBH 08 AAV 3: all field units EHYHBX 08 AAV 3: <= S/N 3500418 ROTEX RHYHBH 05 AAV 3: <= S/N 4500793 RHYHBH 08 AAV 3: <= S/N 4501090 RHYHBX 08 AAV 3: <= S/N 3500902) PCB Change Units > Sep/15 * (Daikin EHYHBH 05 AAV 32: all field units EHYHBH 08 AAV 32: all field units EHYHBX 08 AAV 3: >= S/N 3500419 ROTEX RHYHBH 05 AAV 3: >= S/N 4500794 RHYHBH 08 AAV 3: >= S/N 4501091 RHYHBX 08 AAV 3: >= S/N 3500903) Software Update Units < Mar/16 * (Daikin EGSQ 010 S 18 AA 9 W: <= S/N 6500985 ROTEX RGSQH 10 S 18 AA 9 W: <= S/N 6500106) Units > Apr/16 * 47 Required Procedure PCB Change Software Update

2. How to update the software of field units 1. Software Update Units can be updated with Daikin Updater Tool and a connection cable. * WI_Updater PC-USB Cable (EKPCCAB*) Detailed information can be consulted in the link below https: //my. daikin. eu/denv/en_US/home/applications/software-finder/servicesoftware/programming-tool/Updater. html *Updated software can also be copied from other Remote Controllers 2. PCB Change => Please order via Spare parts bank 48
