5. Commissioning & Configuration 5. 1 Commissioning 1. 2. 3. 4. 5. Filling the system with water Converting for use with a different type of gas Filling the condensate trap Commissioning the central heating Commissioning the DHW 5. 2 Configuration 2. 1 User Interface 2. 2 Changing Setpoint 2. 3 General Settings 1. Selecting Operation Mode 2. User Settings Parameters 3. Service Parameters 2 Configuration & Commissioning - Internal use only
5. 1 Commissioning 3 Configuration & Commissioning - Internal use only
5. 1 Commissioning 1. Filling the system with water 1. Connect the appliance to the main power supply. Due to low pressure, error code "Err HJ-09" will appear on the user interface and the status indicator light will be red. 2. Open all radiator valves. 3. Set all isolating valves to closed position. 4. Measure the system water height. h System charge pressure 4 Configuration & Commissioning - Internal use only Up to 6 m 0. 8 bar 7 m 0. 9 bar 8 m 1. 0 bar 9 m 1. 1 bar 10 m 1. 2 bar 11 m 1. 3 bar 12 m 1. 4 bar 13 m 1. 5 bar
5. 1 Commissioning 1. Filling the system with water 5. Slowly turn the filling valve to open position until pressure reaches a value around 0. 8 bar for system heights up to 6 meters. For longer system heights, use the table on the previous slide to determine filling pressure. Filling operation should be done slowly. When pressure exceeds 0. 8 bar, error code will disappear and the status indicator light will turn to blue. Close the filling valve. The system pressure value can be monitored from the user interface. 6. Make sure the automatic air vent valves located on the pump and heat exchanger are opened. Vent the air from the installation with the manual air vent screws on the radiators. Make sure screws are tightened after venting. 7. If after the venting the pressure decreases below 0. 8 bar, refill with water until the pressure reaches 0. 8 bar again. 8. Check for leakages. 5 Configuration & Commissioning - Internal use only
5. 1 Commissioning 2. Converting for use with a different type of gas To convert the system to be used with a different type of gas: • Open the front cover of the unit. • To set natural gas, adjust the screw on the gas valve to “ 1” position. • To set LPG, adjust the screw to “ 2” position. • Mount the front cover, connect the appliance to the main power supply. • Change setting C 00 [0= NG, 1 LPG] 6 Configuration & Commissioning - Internal use only
5. 1 Commissioning 3. Filling the condensate trap Method 1: Fill the condensate trap by pouring 0. 2 litres of water from the boiler flue outlet. Method 2: Take out the condensate trap. Fill the condensation tank with water (part e) and mount the trap to its place. Be sure that it is tightened. 7 Configuration & Commissioning - Internal use only
5. 1 Commissioning 4. Commissioning the central heating 1. Set mode to winter mode via “Mode” button on the user interface ( and icons are displayed on the screen). 2. Set central heating set temperature to maximum value via left dial. If connected, make sure all external controls such as outdoor sensor and room thermostat are calling for heat. 3. The boiler control now go through its ignition sequence. The status indicator will glow constantly in blue if flame is established. Icon will blink when central heating is active. 4. Press “Cancel” and “Menu” buttons together 5 seconds to activate the sweeper mode. With sweeper mode, boiler can be operated at maximum and minimum capacity independent of heat demand. 5. “tst - 100” caption will appear on the screen. This means boiler is operating at nominal capacity. Check nominal capacity operation. 6. To quit sweeper mode, again press “Cancel” and “Menu” buttons together five seconds. Sweeper mode will be deactivated and boiler will return to normal operation mode. 8 Configuration & Commissioning - Internal use only
5. 1 Commissioning 5. Commissioning the DHW (only for D 2 CND 028 and D 2 CND 035 1. 2. 3. 4. Set domestic hot water set temperature to its maximum value via right dial. Open hot water taps fully and ensure that water flows freely from them. Icon will blink when domestic water heating is active. Measure the domestic hot water inlet temperature. (Cold water drawn off from taps). 5. Check that domestic hot water temperature rise is around 34°C. 9 Configuration & Commissioning - Internal use only
5. 2 Configuration 10 Configuration & Commissioning - Internal use only
5. 2 Configuration 1. Unit Start-Up • Make sure the sytem is filled with water and fully vented as descriped. • Check that the central heating and domestic hot water isolating valves are open. • Check that gas service valve is open. • Connect the unit to the main power supply. The user interface will be energized. • Initial lighting. 11 Installation - Internal use only
5. 2 Configuration LCD Screen: • • Boiler operation mode Setpoints Information about actuators Menu parameters After one minute of non-interaction with the user interface, the screen darkens. Pushing any button or rotating any of the dials awakens the display. 12 Configuration & Commissioning - Internal use only
5. 2 Configuration Outdoor sensor connection Operaton mode: Standby mode DHW operation enabled. Central Heating Eco mode enabled Network Connection DHW comfort mode enabled. Central Heating operation enabled Room Temperature 13 Configuration & Commissioning - Internal use only Info menu User settings menu Service settings menu
5. 2 Configuration Mode: Change between Summer, Winter, CH only, Standby and Full off. Reset: Reset the lockout error. Cancel: Cancel changes made to a parameter value. Back: Go back to the home menu Menu: Enter the menu function Enter: Passing on to the next level in the menu structure. Confirm: Confirmation of changes. Mode, Reset 14 Cancel, Menu, Enter, Back Confirm Configuration & Commissioning - Internal use only
5. 2 Configuration Left Dial Right Dial Left dial: • User interface level: Central heating temperature setpoint. This is either: • CH flow temperature • Room temperature • Virtual room temperature • Menu level: Selection of info, user, service menu Right dial: • User interface level: Domestic Hot Water temperature setpoint. • 15 Configuration & Commissioning - Internal use only Menu level: Selection parameter index, Change parameter values
5. 2 Configuration Daikin Eye: Gives the user a first hand intuitive look to understand status of appliance. Stand-by When there is no heat demand, the Daikin eye shows this with a kind of breathing pulsation. Flame At the moment flame ignites for central heating or domestic hot water, the ring flashes to its maximum, then constantly keeps glowing during burner operation. Daikin Eye 16 Configuration & Commissioning - Internal use only Error When a warning, lockout or blocking error occurs. the Daikin eye continuously glows red. pushing any button will display the error code.
5. 2 Changing Setpoint Changing Central Heating Temperature Setpoint To change the central heating temperature setpoint: Turn the left dial while you are in the homescreen. To apply changes, wait for 3 seconds or press “Enter” button. Pressing “Cancel” button cancels the made changes. Note that the icon means you are at setpoint screen. 17 Configuration & Commissioning - Internal use only
5. 2 Changing Setpoint Changing Domestic Hot Water Setpoint To change the domestic hot water setpoint: Turn the right dial while you are at the homescreen. To apply changes, wait for 3 seconds or press “Enter” button. Pressing “Cancel” button cancels the made changes. Note that the icon means you are at setpoint screen. 18 Configuration & Commissioning - Internal use only
5. 3 General Settings 1. Selecting Operation Mode Press the “Mode” button for 5 seconds to switch ON the unit. After that, you can select an operation mode by pressing the Mode button shortly. Standby mode Full OFF Push for 5 mode seconds CH only mode Summer mode Winter mode 19 Configuration & Commissioning - Internal use only

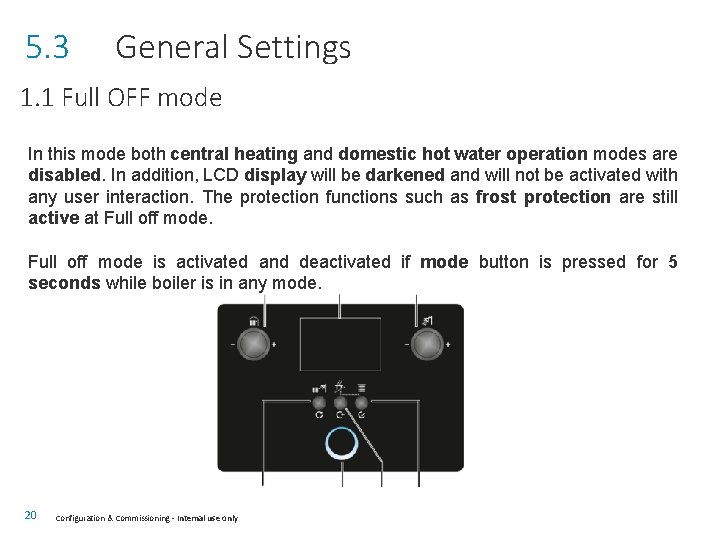

5. 3 General Settings 1. 1 Full OFF mode In this mode both central heating and domestic hot water operation modes are disabled. In addition, LCD display will be darkened and will not be activated with any user interaction. The protection functions such as frost protection are still active at Full off mode is activated and deactivated if mode button is pressed for 5 seconds while boiler is in any mode. 20 Configuration & Commissioning - Internal use only
5. 3 General Settings 1. 2 Stand-by mode In stand-by mode both central heating and domestic hot water operation modes are disabled. The protection functions such as frost protection are still active at standby mode. The home screen shows the system pressure, as well as the icon. 21 Configuration & Commissioning - Internal use only
5. 3 General Settings 1. 3 Summer mode In Summer mode, only domestic hot water operation mode is enabled. Central heating operation mode is disabled. The boiler will only produce heat for domestic hot water. The domestic hot water setpoint, and the icon is shown on the home screen. The icon blinks if domestic hot water operation is active. 22 Configuration & Commissioning - Internal use only
5. 3 General Settings 1. 4 Winter mode In Winter mode, domestic hot water operation mode and central heating operation mode are both enabled. The boiler can produce domestic hot water, as well as produce heat for central heating. The central heating temperature setpoint, and the icon , as well as the icon are shown on the home screen. When domestic hot water operation is active, the domestic hot water setpoint is shown on the homescreen. The icon blinks if domestic hot water operation is active. The icon blinks if central heating operation is active. 23 Configuration & Commissioning - Internal use only
5. 3 General Settings 1. 5 Central Heating Only Mode In this mode, only central heating operation mode is enabled. The central heating temperature setpoint and the icon is shown on the home screen. The icon blinks if central heating operation is active. 24 Configuration & Commissioning - Internal use only
5. 3 General Settings 2. User Settings Parameters User settings menu shows parameters that can be changed by the installer and the customer. To reach the user level, act as follows: Infoo Push the Menu button while you are at home screen. 25 Service Parameter Settings Configuration & Commissioning - Internal use only User Settings Press Back for 2 seconds to leave the user settings menu or do no actions for 2 minutes.
5. 3 General Settings 2. 1 Info Menu The Info menu covers all possible information that is made available to the enduser and to the installer. This parameters are read only and can not be changed. Parameter No Description Unit 26 A 00 Actual flow temperature °C A 01 Actual return temperature °C A 02 Actual DHW temperature °C A 03 Actual flue temperature °C A 04 Actual Outdoor temperature °C A 05 Actual solar temperature °C A 06 Actual water pressure bar A 07 Actual Domestic hot water flow rate l/min A 08 Current set point of burner capacity % A 09 Actual capacity of boiler in relation to nominal capacity % A 10 Actual phase of the burner none A 11 Status of ON-OFF room thermostat, indicate heat demand (HC 1) none A 12 Actual error code of boiler none A 13 Actual fan speed (rpm/10) rpm Current setpoint of boiler pump % Configuration & Commissioning. A 14 - Internal use only
5. 3 General Settings 2. 1 Info Menu • Not applicable if sensor is not connected: • A 04 (outdoor sensor) • A 05 (solar sensor) • A 08 (Current) & A 09 (Actual) boiler capacity depend on the max CH capacity: Model Maximum CH capacity D 2 CND 024 A 1 AA 91 D 2 CND 028 A 1 AA 84 D 2 CND 024 A 4 AA 91 D 2 CND 028 A 4 AA 84 D 2 TND 012 A 4 AA 52 D 2 CND 035 A 1 AA 100 D 2 TND 018 A 4 AA 75 D 2 CND 035 A 4 AA 100 D 2 TND 024 A 4 AA 100 D 2 TND 028 A 4 AA 84 D 2 TND 035 A 4 AA 100 Model Maximum CH capacity D 2 CND 024 A 0 AAIT 100 Maximum value during domestic hot water operation= 100%:
5. 3 General Settings 2. 1 Info Menu A 10, Actual phase of the burner: A 10 = 0 : Stand-by mode, burner is not active A 10 = 1 : Start-up, preparation to ignition A 10 = 2 : Ignition and flame stabilization phase A 10 = 3 : Release control (burner is on, operation phase) A 10 = 4 : Post-purge phase 28 Configuration & Commissioning - Internal use only
5. 3 General Settings 2. 1 Info Menu Entering the info mode: To go into the Info menu, press the Enter button when the icon is displayed on the menu level 1 screen. 29 Configuration & Commissioning - Internal use only Change parameter value with Right Dial. After changing parameter value: Push to apply change Push to cancel change
5. 3 General Settings 2. 2 User Settings Menu User settings menu comprises parameters that can be changed and adjusted by users. Parameter No Description Unit Factory setting Range U 00 Summer-winter swith over temperature °C 20 10 – 30 U 01 Heating slope none 0 0 – 40 U 02 Central heating ECO mode none 0 0 – 1 U 03 Domestic hot water comfort mode none 0 0 – 1 U 04 DHW set value °C 50 35 – 60 U 05 Set value for the room thermostat at 10 -30 day mode °C 21 10 – 30 U 06 Set value for the room thermostat at Reduced mode °C 18 10 – 30 U 07 Set value for the flow temperature at day mode °C 50 30 – 80 U 08 Set value for the flow temperature at reduced mode °C 35 35 – 80 U 09 Domestic hot water comfort mode user record dependancy none 1 1 or 24 U 10 Room Temp. setpoint used by Daikin Opentherm RT during night. °C 18 10 - 30 30 Configuration & Commissioning - Internal use only
5. 3 General Settings 2. 2 User Settings Menu Entering the User Settings menu: To go into the User Settings menu, press the Enter Button when the icon is displayed on the menu level 1 screen. Select an index between "00" and "10" with the right dial. Change parameter value with Right Dial. After changing parameter value: Push to apply change Push to cancel change 31 Configuration & Commissioning - Internal use only
5. 3 General Settings 2. 2 User Settings Menu Summer – winter switch over temperature U 00 When outdoor temperature exceeds the U 0 input value, boiler senses the season as summer and does not activate CH mode altough there is demand. This setting ensures energy saving if a thermostat is not available. Outdoor Temperature Summer U 0 Winter Summer: DHW Winter: DHW + Heating • Connected sensor: Outdoor temperature sensor 32 Configuration & Commissioning - Internal use only

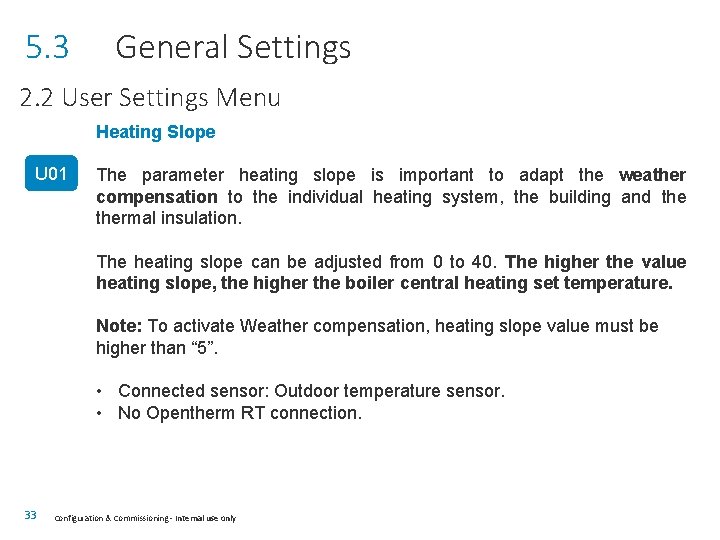

5. 3 General Settings 2. 2 User Settings Menu Heating Slope U 01 The parameter heating slope is important to adapt the weather compensation to the individual heating system, the building and thermal insulation. The heating slope can be adjusted from 0 to 40. The higher the value heating slope, the higher the boiler central heating set temperature. Note: To activate Weather compensation, heating slope value must be higher than “ 5”. • Connected sensor: Outdoor temperature sensor. • No Opentherm RT connection. 33 Configuration & Commissioning - Internal use only

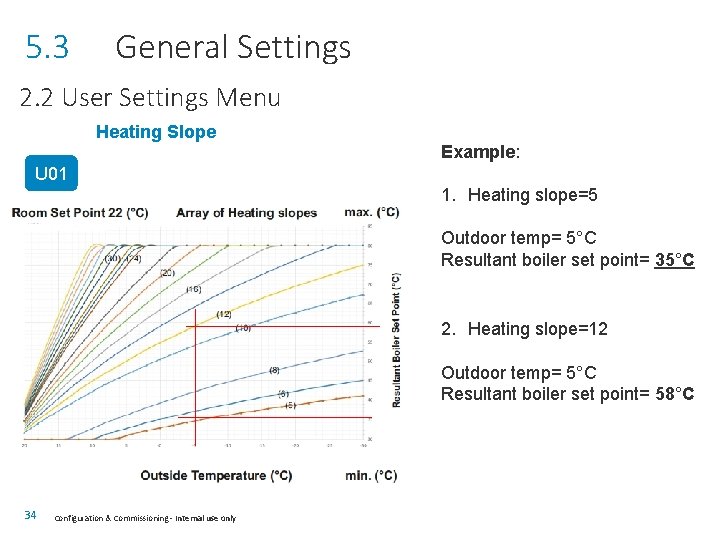

5. 3 General Settings 2. 2 User Settings Menu Heating Slope U 01 Example: 1. Heating slope=5 Outdoor temp= 5°C Resultant boiler set point= 35°C 2. Heating slope=12 Outdoor temp= 5°C Resultant boiler set point= 58°C 34 Configuration & Commissioning - Internal use only
5. 3 General Settings 2. 2 User Settings Menu U 02 Central Heating ECO Mode Setting U 2 parameter as 1 will activate CH ECO mode. This function will maximize heating efficiency by decreasing the User CH set value with 5°C. The maximum uctual CH value is limited to 65°C. User CH set value Actual CH set value ≥ 70 When CH ECO ON. 65 60~70 User set -5 30 CH Set - 40 ≤ 60 35 ∆T for pump control User set - 5 20 User Setting Actual LWT Target ∆T pump Target return temp 65 65 – 5=60°C 60 – 40= 20 K 40°C 55 - Internal use only Configuration & Commissioning 55 – 5= 20°C 20 K 30°C
5. 3 General Settings 2. 2 User Settings Menu DHW Comfort Mode DHW comfort is a self learning pre-heating and post-heating function of U 03 the hot water exchanger. It is enabled by U 3 setting or through Opentherm room thermostat (only if Daikin Opentherm is connected) Preheat ends when Flow T. =DHW Set-5 Temperature DHW Set temp. U 4 DHW Set temp - 5 C PREHEAT Flow Temperatu re Sensor DHW Set temp - 15 C Preheat start at 06: 35 when Flow T. =DHW Set-15 Preheat can start at 06: 30 Today 0 6 Yesterday 0 6 DHW use at 08: 00 12 18 23 DHW use at 07: 00 Yesterday there was DHW demand at 7: 00, today preheat will start at 6: 30. Preheat can only ocur once within 30 minutes period.
5. 3 General Settings 2. 2 User Settings Menu U 03 DHW Comfort Mode DHW postheat starts if DHW flow stops before reaching DHW setpoint - 15 o. C. Temperature DHW 3 minutes max. postheat stop DHW Set temp + 5 o. C DHW Set temp. U 4 POSTHEAT DHW Set temp - 15 o. C Se ture a er emp T w Flo 37 Configuration & Commissioning - Internal use only r nso
5. 3 General Settings 2. 2 User Settings Menu U 04 DHW Set Value DHW set temperature is adjusted in between 40 o. C to 60 o. C. U 05 Set Value For The R. T. At Day Mode If On-Off R. T. is connected with Outdoor sensor, this parameter value is the virtual room temperature setpoint when there is a heat demand. This set value is same as the value that is adjusted by left dial. U 06 Set Value For The R. T. At Reduced Mode If On-Off R. T. is connected with Outdoor sensor, this parameter value is the virtual room temperature setpoint when there is a no heat demand. Note: For this parameter value to be active, reducing mode have to be enabled by the service agent, otherwise central heating mode will not be activated when there is no heat demand.
5. 3 General Settings 2. 2 User Settings Menu U 07 U 08 Set Value For The Flow Temperature At Day Mode U 7 sets the CH setpoint at day mode when On-Off R. T. is connected and outdoor sensor is not connected. this parameter value is the central heating water temperature setpoint when there is a heat demand. This value is same with the setpoint that is adjusted via right dial. Set Value For The Flow Temperature At Reduced Mode U 8 sets the CH setpoint at reduced mode when On-Off R. T. is connected and outdoor sensor is not connected. This value is the central heating water target setpoint when there is no heat demand. Note: For this parameter value to be active, Reducing mode have to be enabled by the service agent, otherwise central heating mode will not be activated when there is no heat demand.
5. 3 General Settings 2. 2 User Settings Menu U 09 U 10 40 DHW Comfort Mode User Record Dependancy If parameter is 1, preheating depends on user records from previous day. If parameter is 24, preheating is independent of user record. Room Temp. setpoint used by Daikin Opentherm RT during Night mode Only visible in case Daikin Opentherm room thermostat is connected. Configuration & Commissioning - Internal use only
5. 3 General Settings 3. Service parameters Service settings menu shows parameters that can only be changed and adjusted by qualified service persons. To reach the service level, act as follows: 41 Parameter No Description Unit Factory setting Range P 00 Reduced or switch off mode none selection none 0 0 - 1 P 01 Building estimation none 0 0 - 1 P 02 Outdoor sensor correction °C 0 -4 – 4 P 03 Boiler frost protection temperature °C 8 0 - 15 P 04 System frost protection temp. °C 4 -9 - 10 P 05 Anti-cycling time none 2 0 - 10 P 06 Maximum CH capacity % 100 Min cap. - 100 P 07 Minimum CH pump capacity % 50 10 - 100 P 08 Maximum CH pump capacity % 100 P 07 – 100 P 09 Standby CH pump capacity % 50 16 -100 P 10 DHW solar function delay time s 5 0 – 255 P 11 DHW solar function activation none 0 0 -1 P 12 Solar hysteresis on °C -3 -10 - 10 P 13 DHW excess cylinder temperature °C 15 -30 – 30 P 14 DHW pump capacity % 100 20 – 100 P 15 Max. CH flow temp. setpoint °C 80 30 – 80 P 16 Varican module status none 0 0 - 1 P 17 Delta-T flow and return pump °C 20 5 - 30 P 18 CH hysteresis temperature °C 7 0 - 20 P 19 Min. CH flow temp setpoint °C 30 10 - 30
5. 3 General Settings 3. Service parameters Entering the Service parameters menu: The info menu icon appears on the screen. Give in the password: 742 by using the right dial, confirm every digit with the Enter key 42 Configuration & Commissioning - Internal use only Turn left dial Spanner icon will be displayed with“PAS” caption. Push P 00” will appear on the screen. By turning left dial you can scroll through between P, C, E parameters.
5. 3 General Settings 3. 1 P-level Service parameters P 00 Reduced or switch off mode P 0 setting is effective when On-Off R. T. is connected. This setting selects if the unit will be switched ON/OFF (P 0=0) or work in ON/reduced mode (P 0=1) , when thermostat is OFF. Default P 0 = 0. ON: LWT=50 OFF: LWT=0 Reduced: LWT=40 Room Thermostat LWT P 01 43 Building estimation P 1 setting is used in the target flow temperature calculation. Adjust it to 0 if building has more windows to the South. And adjust it to 1 in case of North orientation. This setting is only meaningful in case ODS is connected. Configuration & Commissioning - Internal use only
5. 3 General Settings 2. 2 User Settings Menu Building estimation P 01 44 1/4 current measured temperature and ¾ average of the last 21 h Configuration & Commissioning - Internal use only
5. 3 General Settings 3. 1 P-level Service parameters P 02 Outside sensor correction P 2 setting is used for manually correcting the outdoor temperature sensor. Correction can me made within a +4 C ~ -4 C range. Use this setting only in case the outdoor sensor is at a location that cannot measure temperature accurately. For example the sensor is placed near to an A/C outlet. P 03 Boiler frost protection temperature P 3 setting determines Frost Protection logic activation temperature. Factory default is 8 o. C and is based on the flow temperature sensor. Burner stop Frost 20 o. C fixed value protection end point Default+5 o. C 45 Frost protection set point Configuration & Commissioning - Internal use only 8 o. C Default Pump ON Flow temperature 15 C P 3 Burner start 0 C
5. 3 General Settings 3. 1 P-level Service parameters Boiler frost protection temperature P 03 • • During frost protection logic, burner capacity will be minimum. (3 k. W) Pump capacity will be 50%. This logic is also active in Standby mode and Full Off mode. When burner stops, water will circulate across plate heat exchanger for 60 seconds to ensure frost protection in DHW circuit. In case boiler sensor falls below 1 o. C then freeze logic is activated. Pump = STOP 3 Way Valve = STOP Burner = STOP Fan = STOP ( After post purge) Þ Error - 8 A - 46 is displayed 46 Configuration & Commissioning - Internal use only
5. 3 General Settings 3. 1 P-level Service parameters System frost protection P 4 setting is effective if an outdoor temperature sensor is connected. P 04 With this setting, the unit can operate the pump to counteract freezing possibility. Default setting is 4°C and can be adjusted in range of -9 C to +10 C. Pump Operation 10 minutes 6 hours ODS temp. Frost set temperature (P 4) Frost set (P 4) – 5 o. C Frost set (P 4) – 6 o. C 47 Every 6 hours, the pump runs for 10 minutes. When the temperaturen is 6 degrees lower then P 4, the pump starts. It stops when the temperature is higher then P 4 5°C.
5. 3 General Settings 3. 1 P-level Service parameters P 05 Anti-cycling time P 5 setting is used to protect boiler from frequent starts and stops. It adjusts the time between 2 successive burner operations in Central Heating Mode. The delay time is determined based on set point temperature for Flow NTC. Default setting is 2 and can be changed in between 0 to 10. P 5 Setting Value Parameter value Anti cycling time in minutes.
5. 3 General Settings 3. 1 P-level Service parameters P 06 Maximum CH capacity If the heat loss of the installation is much less than that of the boiler nominal capacity, the nominal capacity can be reduced. For example the unit has a capaicty of 22 k. W but the demand is only 17 k. W. The minimum capacity can be increased with parameter C 04. P 07 Minimum CH pump capacity Set minimum capacity for pump. Range : %10 ~ P 8 P 08 Maximum CH pump capacity Set maximum capacity for pump. Range : P 7 ~ %100 P 09 Standby CH pump capacity Set pump capacity for Standby mode. Range : %10 ~ %100 49 Configuration & Commissioning - Internal use only
5. 3 General Settings 3. 1 P-level Service parameters DHW Solar Function Parameters This is a function that decides whether the boiler should operate or not in case domestic cold water is fed by a solar tank which is heated up by solar energy. Solar sensor: • Must be connected to X 1 M terminal • Connection is automatically detected after power on. • Value can be followed from parameter A 05 in Info menu. • Connection is not enough for DHW solar function activation, Parameter “DHW solar function activation (P 11)” must also be adjusted to ‘ 1’. 50 Configuration & Commissioning - Internal use only
5. 3 General Settings 3. 1 P-level Service parameters DHW Solar Function Parameters The boiler checks 2 things to operate for DHW when solar tank is connected; 1. If the temperature in the solar tank is above the DHW set temperature (desired temperature), boiler does not operate since water temperature in solar tank meets the requirement.
5. 3 General Settings 3. 1 P-level Service parameters DHW Solar Function Parameters The boiler checks 2 things to operate for DHW when solar tank is connected; 2. Boiler estimates temperature value according to solar tank temperature, water flowrate and boiler minimum allowable capacity. The boiler operates if “DHW set value + 5 Kelvin > Ts DHW. Reason for this requirement is to prevent discomfort due to difference in temperatures between desired DHW temperature (DHW set value) and real DHW temperature. Ts DHW: estimated DHW outlet temperature after burner operation at minimum boiler capacity.

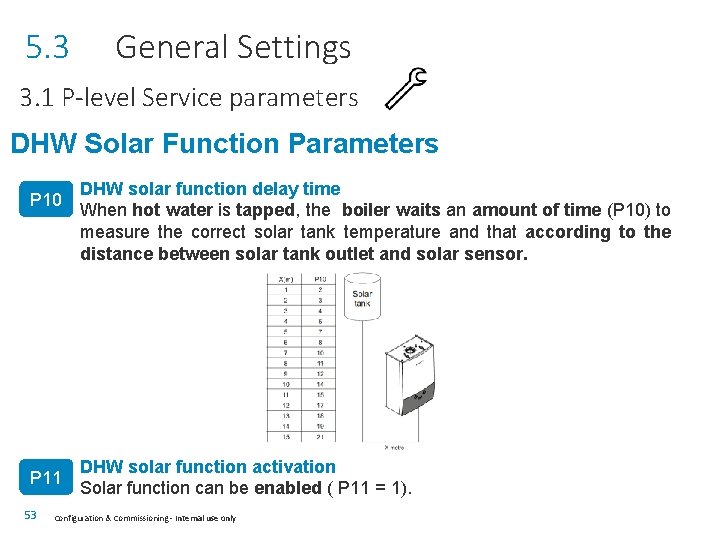

5. 3 General Settings 3. 1 P-level Service parameters DHW Solar Function Parameters P 10 P 11 53 DHW solar function delay time When hot water is tapped, the boiler waits an amount of time (P 10) to measure the correct solar tank temperature and that according to the distance between solar tank outlet and solar sensor. DHW solar function activation Solar function can be enabled ( P 11 = 1). Configuration & Commissioning - Internal use only
5. 3 General Settings 3. 1 P-level Service parameters DHW Solar Function Parameters P 12 P 13 54 Solar hysteresis ON When DHW solar function is active, the burner will go ON for DHW operation when: DHW set value + P 12 > Solar NTC value DHW excess cylinder temperature When storage tank is heated, boiler modulating set point is equal to DHW set point + P 13. If the DHW set is 60 C and P 13 is 15, The boiler targets 75 C flow temperature and modulates according to 75 C. This parameter is changeable because the behaviour of storage tanks may differ. Configuration & Commissioning - Internal use only
5. 3 General Settings 3. 1 P-level Service parameters P 14 P 15 P 16 55 DHW pump capacity Capacity of the pump while the burner is ON for DHW operation. Max. CH flow temp. setpoint Maximum temperature, that can be adjusted by left dial. Set a max Central heating temperature for the costumer. Varican module status Indicates LAN adapter connection status (connection status of the boiler to the cloud). Configuration & Commissioning - Internal use only
5. 3 General Settings 3. 1 P-level Service parameters P 17 Delta-T flow and return pump This parameter is related to pump capacity modulation. If difference between flow temperature and return temperature is below this parameter, the pump decreases its capacity by 1% each 4 seconds until minimum pump capacity is reached (adjusted by parameter P 07). If difference between flow temperature and return temperature is above this parameter value, pump increases its capacity by 1% each 4 seconds until maximum pump capacity is reached (adjusted by parameter P 08). ∆T P 17 Pump capacity MAX 56 MIN
5. 3 General Settings 3. 1 P-level Service parameters Underfloor Heating System The boiler can be connected to a well designed underfloor heating system (up to 15 k. W) without needing an additional pump (10 circuits and length of the each circuit is 80 m). Always refer to the performance curve of the pump to check the limits. 57 Configuration & Commissioning - Internal use only
5. 3 General Settings 3. 1 P-level Service parameters Underfloor Heating System When the boiler is connected to an UFH system, the following parameter changes must certainly be done. • Parameter “Max. flow temperature setpoint (P 15)” = 50°C • Parameter “Delta T flow and return pump (P 17)” = 10 Kelvin • Parameter “Min flow temperature setpoint (P 19) = 25°C Please note that these parameter changes are necessary for smooth running of the system and for the customer comfort. 58 Configuration & Commissioning - Internal use only
5. 3 General Settings 3. 2 C-level Service parameters Parameter No Description Unit Factory setting Range C 00 Gas type none 0 0 - 1 C 01 Adjustment of gas start offset % 0 -9 - 20 C 02 Adjustment of start-up capacity % 0 -8 – 7 C 03 Flue duct adjustment % 0 -5 - 10 C 04 Adjustment minimum capacity. % 4 0 – dyn. max* C 05 Gas control offset % 29, 3 17 - 44 C 06 Flame ionization signal pts - 0 - 100 C 07 Gas valve control PWM % - 0 - 100 C 08 Actual capacity value % - 0 - 100 C 09 Ionization base value pts - 0 - 255 C 10 Minimum start ionization value pts - 0 – 100 C 11 Ignition time s - 0 – 4, 5 C 12 Reducing ion base value pts - -5 - 10 C 13 Reducing ion at minimum capacity pts - -5 - 10 CE Password entry none - 0 – 999 *Dynamic maximum is the P 06 parameter value. So, if the max CH capacity is restricted, minimum capacity can not be higher than that value.
5. 3 General Settings 3. 2 C-level Service parameters C-level gives access to the SCOT-parameters (Safety combustion technology system). The SCOT-system is a part of the PCB which provides continuous control of combustion efficiency and combustion performance. It is sometimes also called Lambda-Gx system. Due to the SCOT system, the gas valve operation is independent of the fan, so there is no need for gas valve adjustment to optimize gas/air ratio. It opens/closes the gas valve based on the flame quality. 60 Configuration & Commissioning - Internal use only
5. 3 General Settings 3. 2 C-level Service parameters SCOT parameters are read-only. In order to make changes in menus C 0 to C 5 an additional password has to be input. Scroll to parameter C by using the left dial 61 Scroll to parameter CE by using the right dial Give in the password: 115 by using the right dial, confirm every digit with the Enter key Configuration & Commissioning - Internal use only Push Now C 0 to C 5 is adjustable.
5. 3 General Settings 3. 2 C-level Service parameters C 00 Gas type This setting is used to switch between fuel types. Default is Natural Gas. C 01 Adjustment of gas start offset This setting adjusts gas amount before ignition. Adjustment can be made in range of -9% to 20%. Only used if there is serious ignition problems. When this setting is increased, the starting gas mixture will be enriched, which will help delayed ignition problems. C 02 62 Adjustment of startup capacity This setting adjusts ignition capacity (both gas and air flowrate) to ensure that ignition takes place. Adjustment will be done as trial and error in the field. 2% increment is recommended at each trial. To much increasing may cause loud ignition. Configuration & Commissioning - Internal use only
5. 3 General Settings 3. 2 C-level Service parameters C 03 C 04 C 05 63 Flue duct adjustment This setting is used to adjust appliance to long flue pipe lengths. This parameter can only be adjusted to ‘ 3’ in case of C 13 x and C 33 x types of flue systems. Adjustment minimum capacity This setting adjusts the minimum capacity of the boiler. Default minimum capacity is 3 k. W. This setting is only used if there are flame loss faults in heavy windy locations. Gas control offset Adjusted by the PCB automatically after calibration and adaption. If there is a combustion problem after ignition and stabilisation, this parameter must be adjusted to factory setting (29, 3). This value will be changed by PCB automatically afterwards. This parameter is not related with service. Configuration & Commissioning - Internal use only
5. 3 General Settings 3. 2 C-level Service parameters C 03 C 04 C 05 64 Flue duct adjustment This setting is used to adjust appliance to long flue pipe lengths. This parameter can only be adjusted to ‘ 3’ in case of C 13 x and C 33 x types of flue systems. Adjustment minimum capacity This setting adjusts the minimum capacity of the boiler. Default minimum capacity is 3 k. W. This setting is only used if there are flame loss faults in heavy windy locations. Gas control offset Adjusted by the PCB automatically after calibration and adaption. If there is a combustion problem after ignition and stabilisation, this parameter must be adjusted to factory setting (29, 3). This value will be changed by PCB automatically afterwards. This parameter is not related with service. Configuration & Commissioning - Internal use only
5. 3 General Settings 3. 2 C-level Service parameters C 12 Reducing ion base value If CO 2 percentage is below standard limits, this parameter value must be increased to obtain a CO 2 value inside the limits. C 13 Reducing ion at minimum capacity If CO 2 percentage is below standard limits, at minimum capacity, this parameter value must be increased to obtain a CO 2 value inside the limits. 65 Configuration & Commissioning - Internal use only
