Top insulation plate Top plate Hot runner plate

Top insulation plate Top plate Hot runner plate Hot nozzle A plate Cavity insert Lifting device Core insert Slider B plate Support pillar Ejector pin Support plate Ejector return plate Lifter Bottom plate Bottom insulation plate 2010 -09 -17

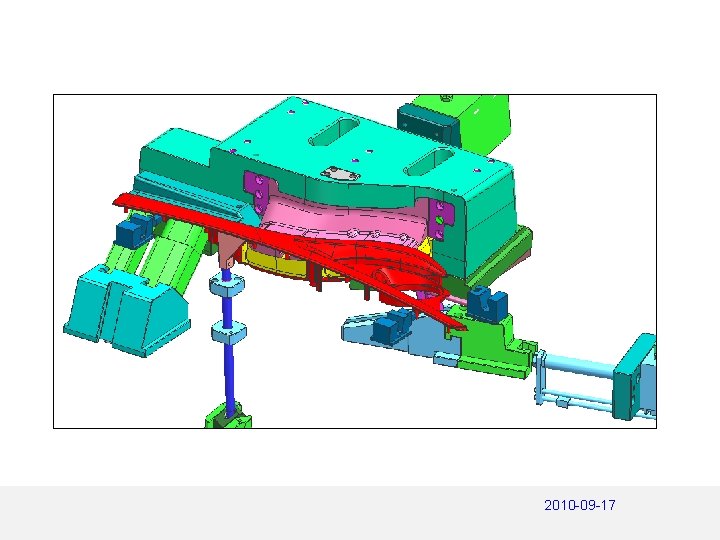

2010 -09 -17

2010 -09 -17

Hydraulic cylinder 2010 -09 -17

※Because the big slider construct is very complex, so the slider moving must slow by the hydraulic cylinder, otherwise the slider will be damaged easy. 因为结构复杂，大行位在油缸推动 的过程中速度一定要慢, 否则行位容 易损坏. 2010 -09 -17

※The base of big slider is closed and the yellow inner slider is open before close the mold like the bottom picture show , because the yellow inner slider close by the angle pin of cavity, before the first of close the mold you must insure the big slider at such state. 合模前大行位座必须在关闭的位置，黄色内行位必须是打开的状态如下图所示, 因为黄色 行位需要通过前模斜导柱闭合, 首次合模前必须确保大行位处于这样的状态. Angle pins 斜导柱 2010 -09 -17

2010 -09 -17

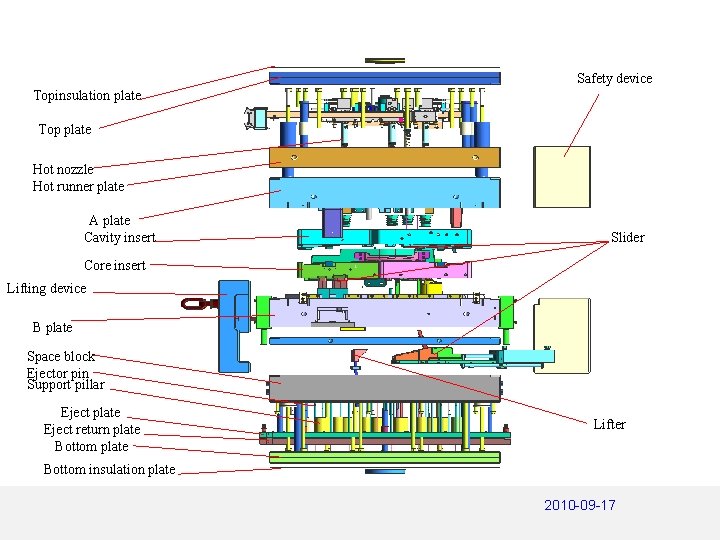

Safety device Topinsulation plate Top plate Hot nozzle Hot runner plate A plate Cavity insert Slider Core insert Lifting device B plate Space block Ejector pin Support pillar Eject plate Eject return plate Bottom plate Lifter Bottom insulation plate 2010 -09 -17

Safety device Cavity insert Wedge Adjusting plate 2010 -09 -17

Adjusting plate Press block Core insert Slider Hydraulic cylinder 2010 -09 -17
