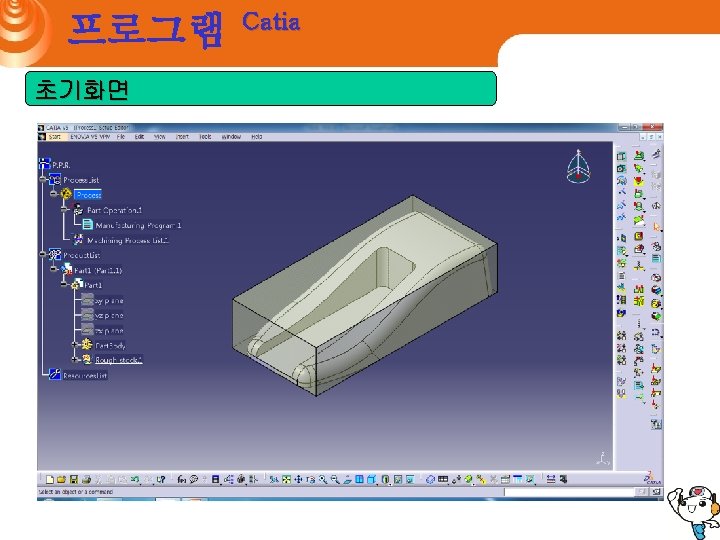

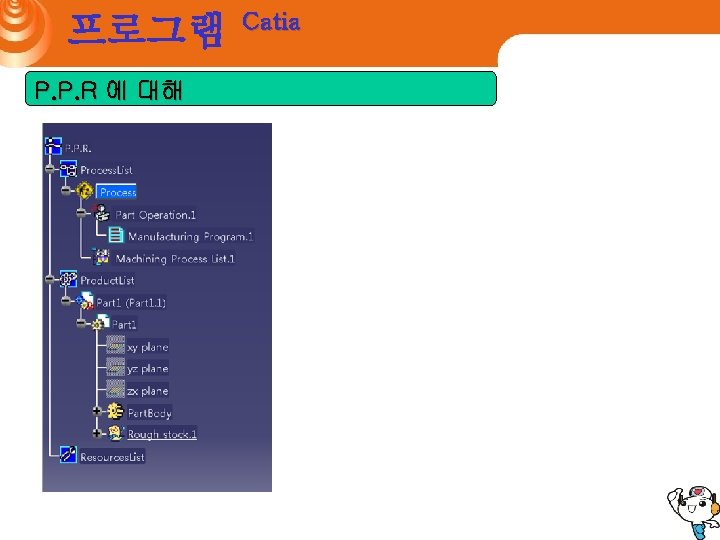

Toolbars Part Operation Manufacturing Program Machining Operation Roughing

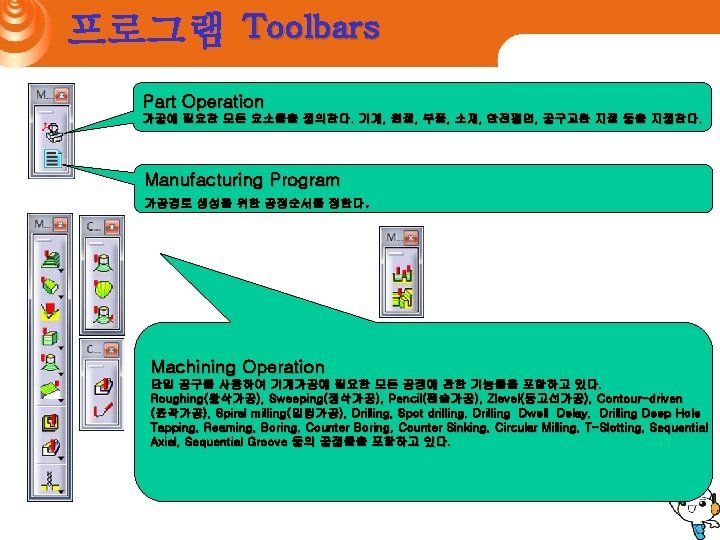

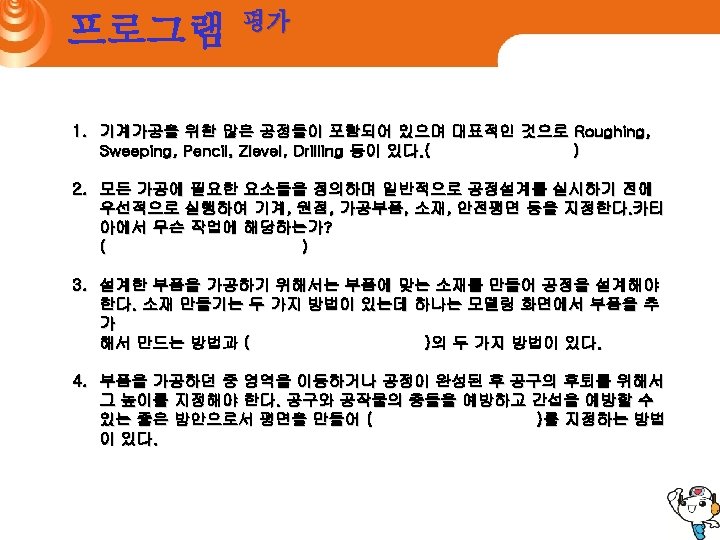

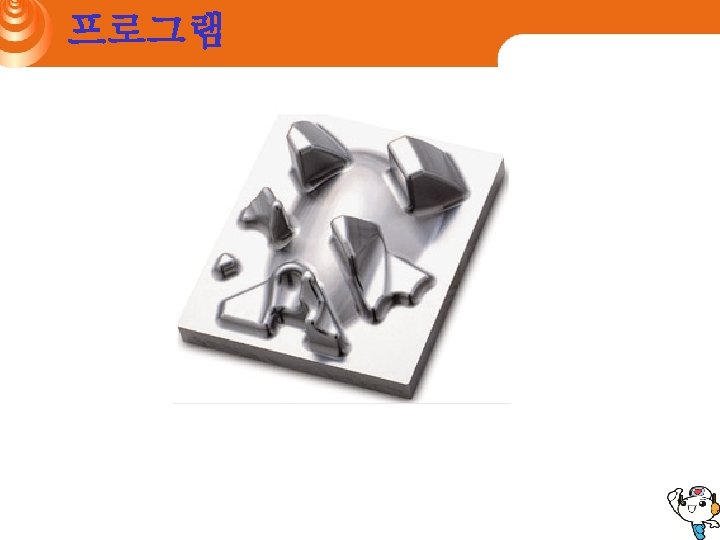

프로그램 Toolbars Part Operation 가공에 필요한 모든 요소들을 정의한다. 기계, 원점, 부품, 소재, 안전평면, 공구교환 지점 등을 지정한다. Manufacturing Program 가공경로 생성을 위한 공정순서를 정한다. Machining Operation 단일 공구를 사용하여 기계가공에 필요한 모든 공정에 관한 기능들을 포함하고 있다. Roughing(황삭가공 ), Sweeping(정삭가공 ), Pencil(펜슬가공 ), Zlevel(등고선가공 ), Contour-driven Roughing(황삭가공), Sweeping(정삭가공), Pencil(펜슬가공), Zlevel(등고선가공), (윤곽가공), ), Drilling, Spot drilling, Drilling Dwell Delay, Drilling Deep Hole 윤곽가공), Spiral milling(밀링가공), Tapping, Reaming, Boring, Counter Sinking, Circular Milling, T-Slotting, Sequential Axial, Sequential Groove 등의 공정들을 포함하고 있다.

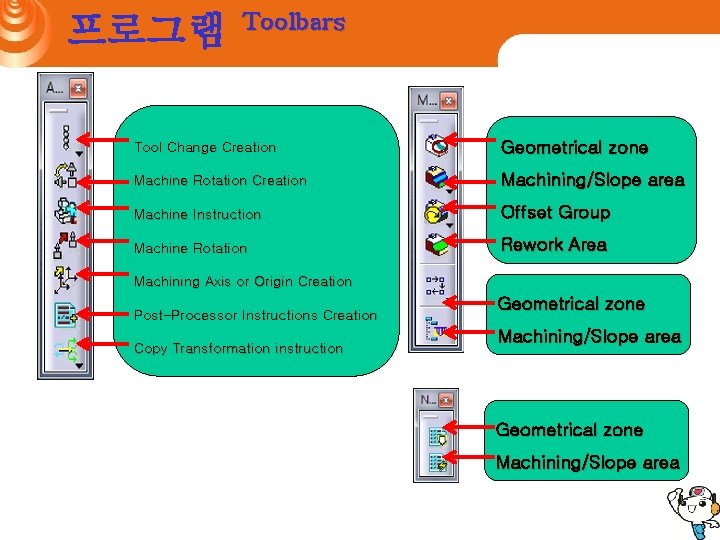

프로그램 Toolbars Tool Change Creation Geometrical zone Machine Rotation Creation Machining/Slope area Machine Instruction Offset Group Machine Rotation Rework Area Machining Axis or Origin Creation Post-Processor Instructions Creation Copy Transformation instruction Geometrical zone Machining/Slope area

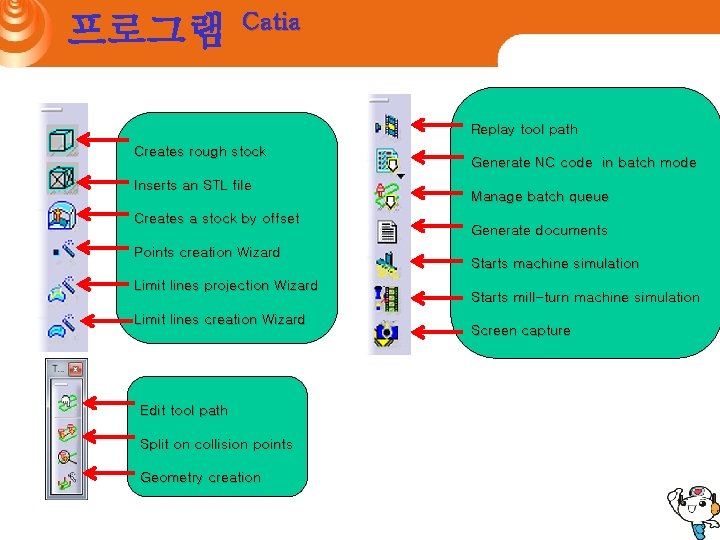

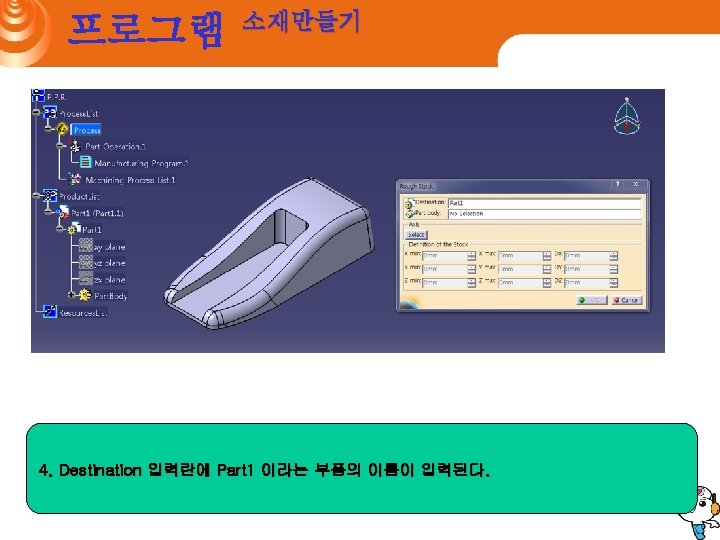

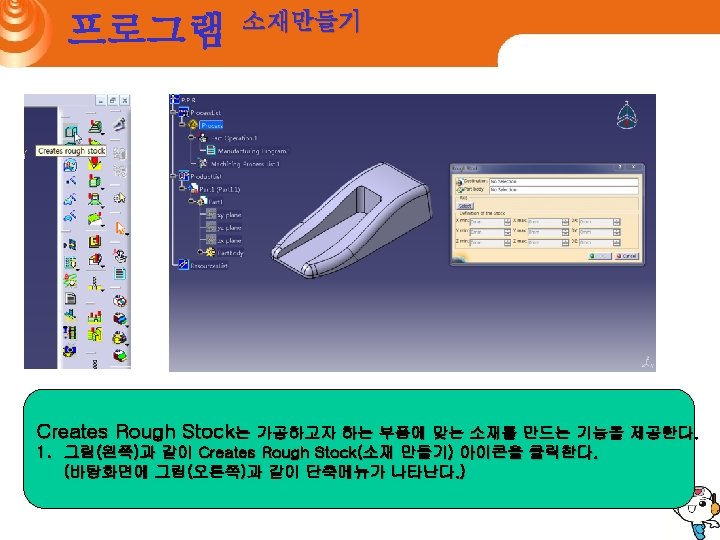

프로그램 Catia Replay tool path Creates rough stock Inserts an STL file Creates a stock by offset Points creation Wizard Limit lines projection Wizard Limit lines creation Wizard Edit tool path Split on collision points Geometry creation Generate NC code in batch mode Manage batch queue Generate documents Starts machine simulation Starts mill-turn machine simulation Screen capture
