Tool Identification PART 1 1 Adjustable Wrench 1
Tool Identification PART 1
1. Adjustable Wrench
1. Adjustable Wrench • Turning various size nuts and bolts
2. Allen Wrench
2. Allen Wrench • Turning hex head socket screws
3. Aviation Snips
3. Aviation Snips
3. Aviation Snips • Cutting sheet metal Handle may be red, yellow or green

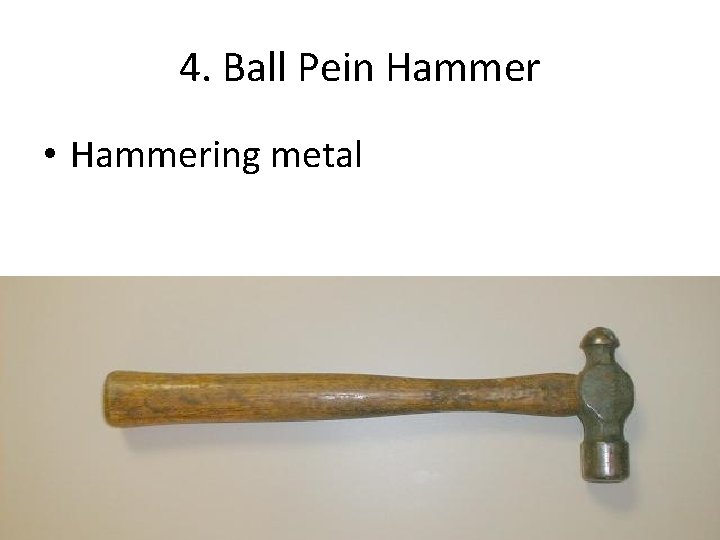

4. Ball Pein Hammer
4. Ball Pein Hammer • Hammering metal
5. Bar Clamp
5. Bar Clamp
5. Bar Clamp • Clamping large sections of wood together
6. Bent Nose Pliers
6. Bent Nose Pliers • Reaching obstructions or awkward places
7. Bolt Cutters
7. Bolt Cutters • Cutting bolts and steel rods
8. Bolt Die
8. Bolt Die • Cutting threads on bolts and rods
9. Bolt Die Stock
9. Bolt Die Stock • Holder for bolt die
10. Bolt Tap
10. Bolt Tap • Cutting inside threads
11. Box End Wrench
11. Box End Wrench • Turning hex head nuts and bolts.
12. Brick Jointer
12. Brick Jointer • Smoothing and designing masonry joints
13. Brick Trowel
13. Brick Trowel • Placing and spreading mortar
14. Bulb Planter
14. Bulb Planter • Planting and transplanting bulbs Some have long handles
15. Bush Axe
15. Bush Axe Cutting bushes and under growth
16. Butt Hinge
16. Butt Hinge • Hinge for narrow fencing
17. C Clamps
17. C Clamps • Clamping two or more pieces of metal together
18. Carriage bolt
18. Carriage bolt • Bolting wood to wood or wood to metal

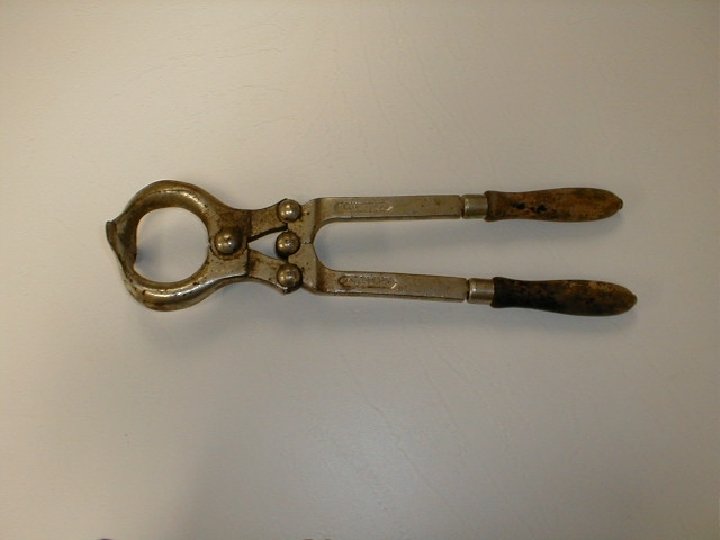

19. Castrator
19. Castrator • Tool for sterilizing male animals
20. Center Punch
20. Center Punch • Starting holes in metal Tapered shank that is pointed
21. Chain Saw File
21. Chain Saw File • Sharpening chain saw chain Diameter does not change
22. Chalk Line Reel
22. Chalk Line Reel • Marking straight lines Contains chalk and string
23. Chipping Hammer
23. Chipping Hammer
23. Chipping Hammer • Removing slag from welds Wire brush is optional
24. Circuit Breaker
24. Circuit Breaker • Protection from overload in electrical circuits
25. Circular Carbide Saw Blade
25. Circular Carbide Saw Blade • Blade used on portable electric saw
26. Cold Chisel
26. Cold Chisel • Cutting metal Sharp edge for cutting
27. Combination Oil Stone
27. Combination Oil Stone • For sharpening and honing cutting tools
28. Combination Square
28. Combination Square • Determining 45 and 90 degree angles
29. Combination Wrench
29. Combination Wrench • Turing hex and square nuts and bolts
30. Common Nail
30. Common Nail • Nailing boards together when holding power is desired

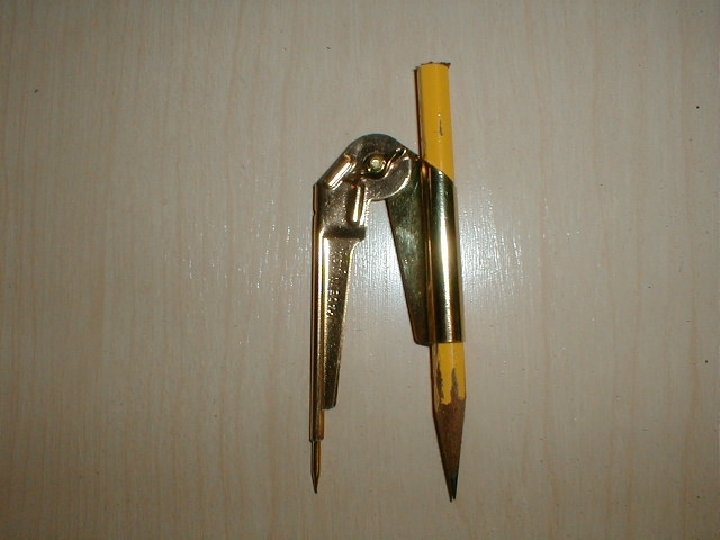

31. Compass
31. Compass • Drawing circles
32. Compass Saw
32. Compass Saw • Cutting wood in close places
33. Concrete Finishing Trowel
33. Concrete Finishing Trowel • Smoothing concrete
34. Concrete Float
34. Concrete Float • Leveling concrete
35. Coping Saw
35. Coping Saw • Cutting curves and irregular cuts
36. Cordless drill
36. Cordless drill • Drilling holes with a tool that uses a battery pack

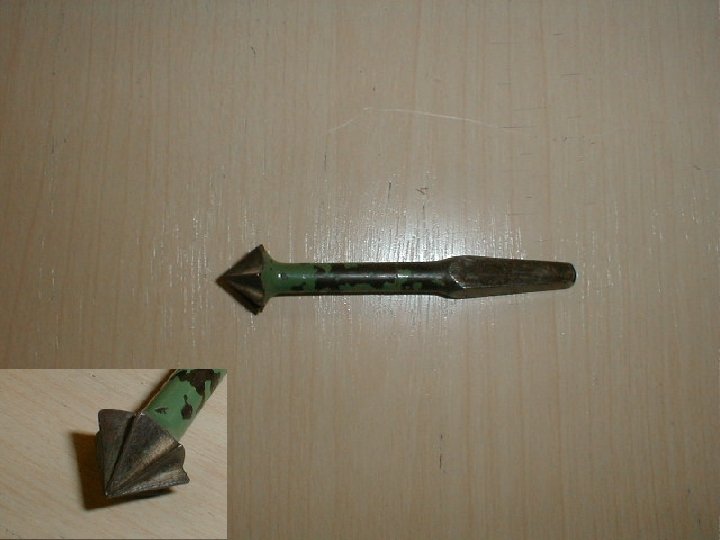

37. Countersink
37. Countersink
37. Countersink • Flaring top of hole for recessing head for flathead screw or bolt
38. Cutting Torch
38. Cutting Torch • Cutting metal with heat
39. Deep Socket
39. Deep Socket • Turning nuts and bolts in depressed areas

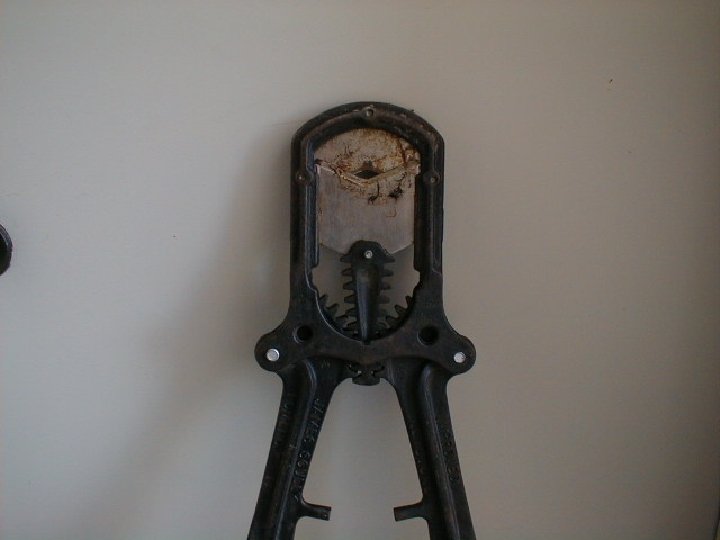

40. Dehorner
40. Dehorner • Removing horns from cattle
41. Diagonal Cutting Pliers
41. Diagonal Cutting Pliers • Surface and diagonal wire cutting
42. Drift Punch
42. Drift Punch • Aligning holes Tapered shank and blunt tip
43. Drill Press Vise
43. Drill Press Vise • Holding stock while drilling
44. Duplex Receptacle
44. Duplex Receptacle • To plug in electrical units
45. Dusk Mask
45. Dust Mask • Protects the respiratory system from airborne particles
46. Ear Tagger
