Tool Identification A guide to the identification of

Tool Identification A guide to the identification of Hand Woodworking Tools

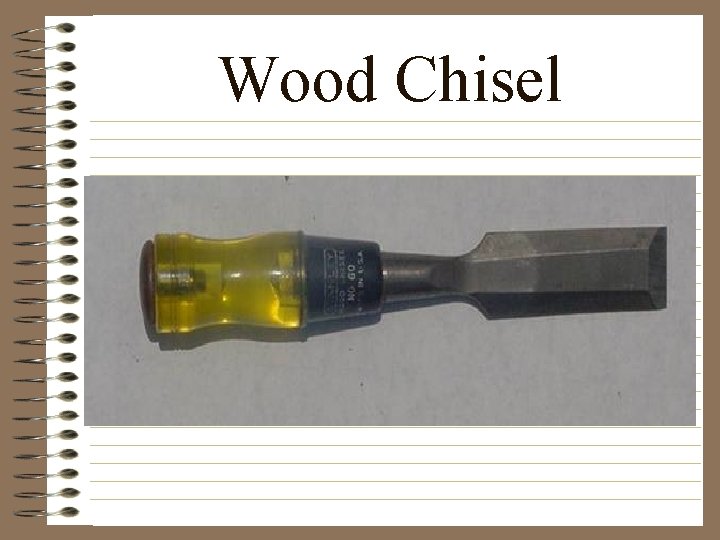

Wood Chisel

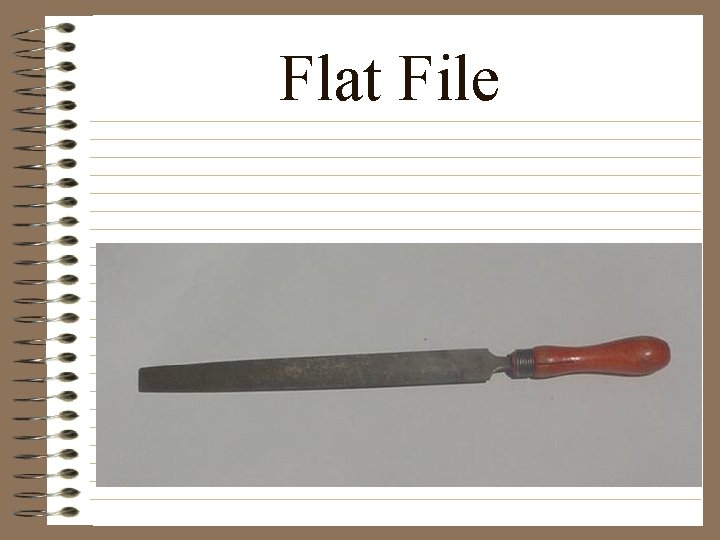

Flat File

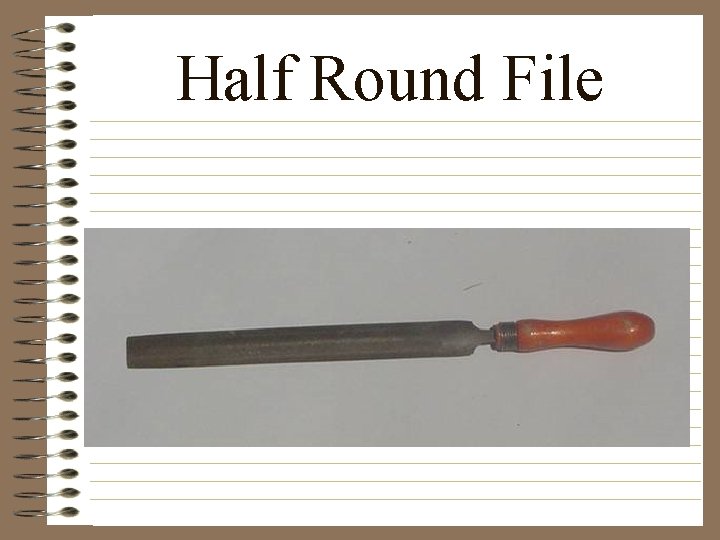

Half Round File

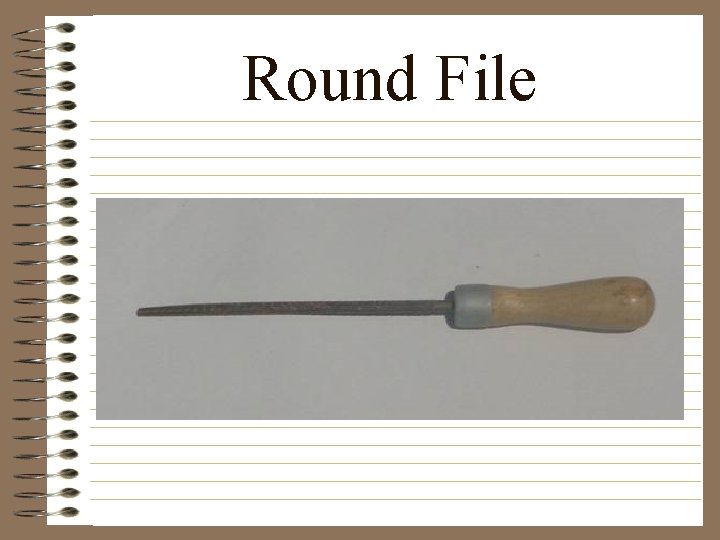

Round File

Square File

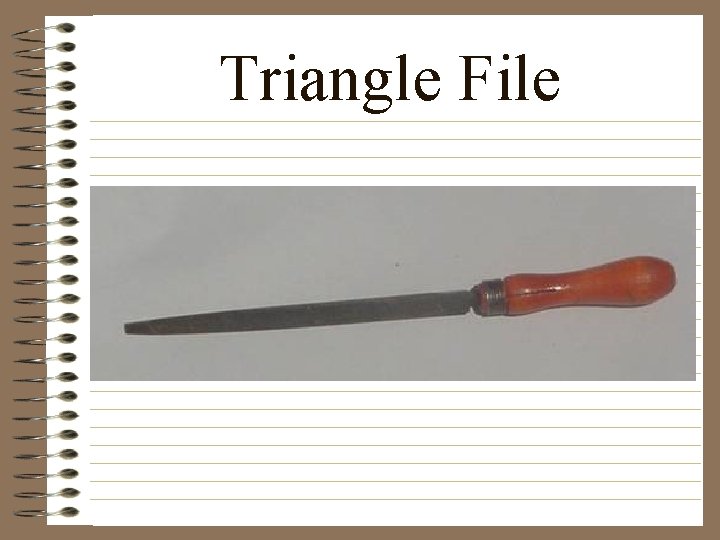

Triangle File

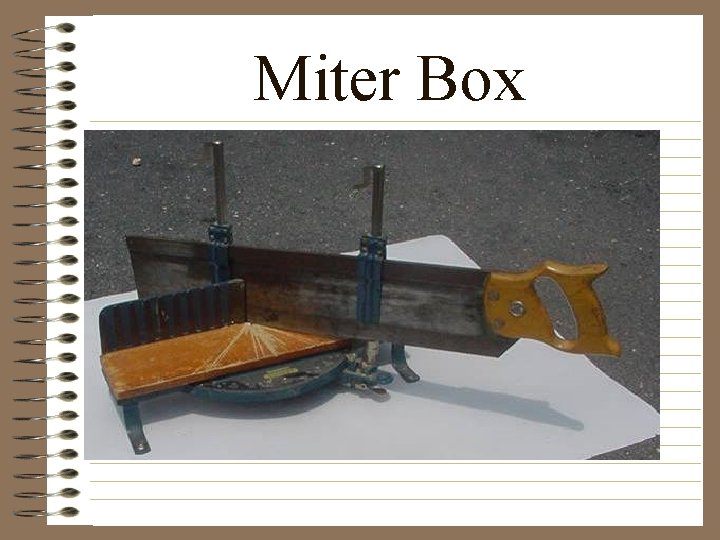

Miter Box

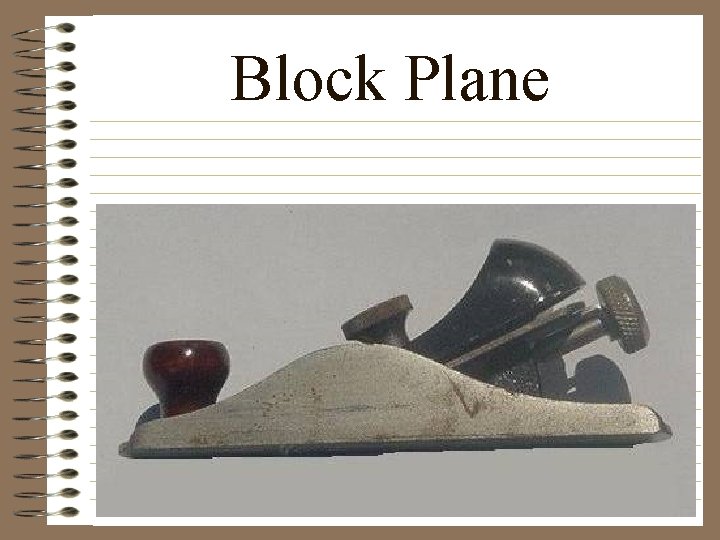

Block Plane

Jack Plane

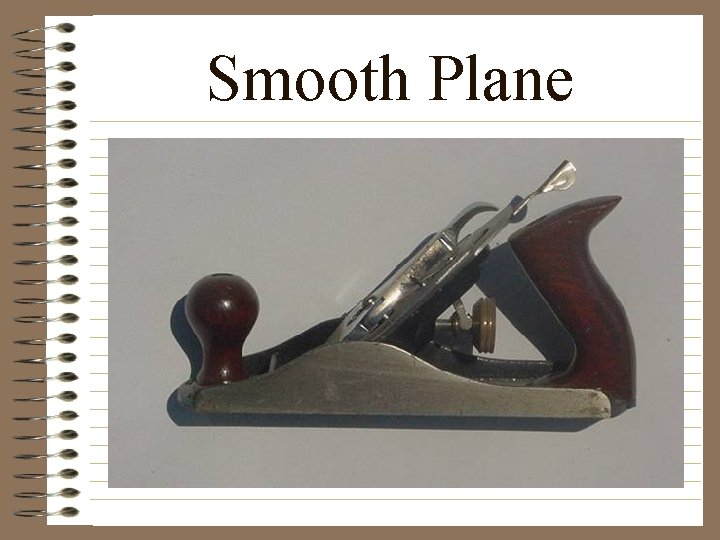

Smooth Plane

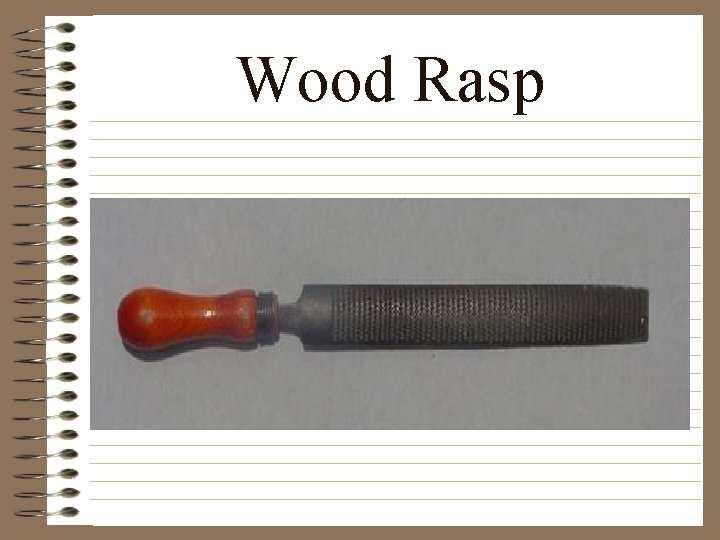

Wood Rasp

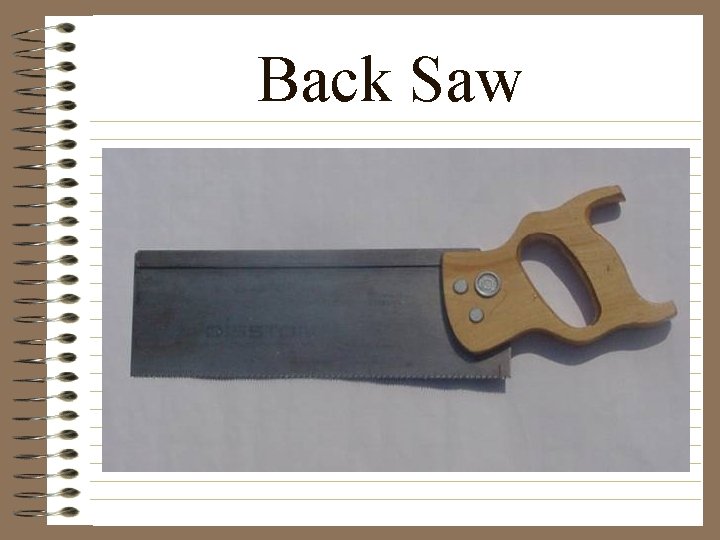

Back Saw

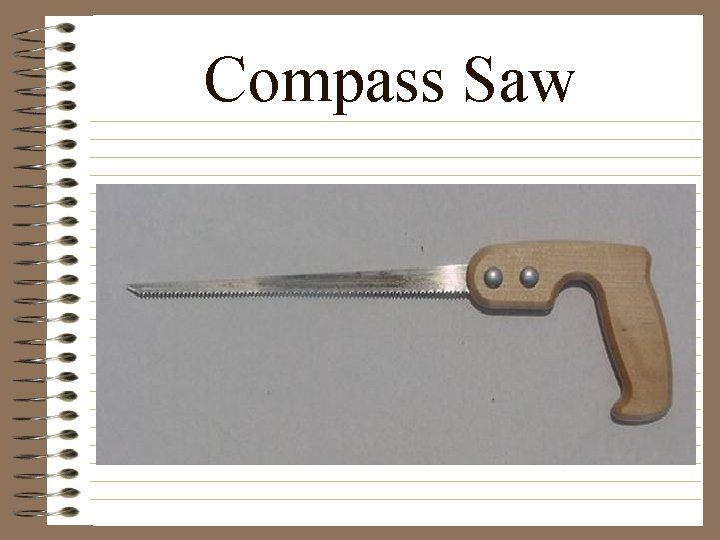

Compass Saw

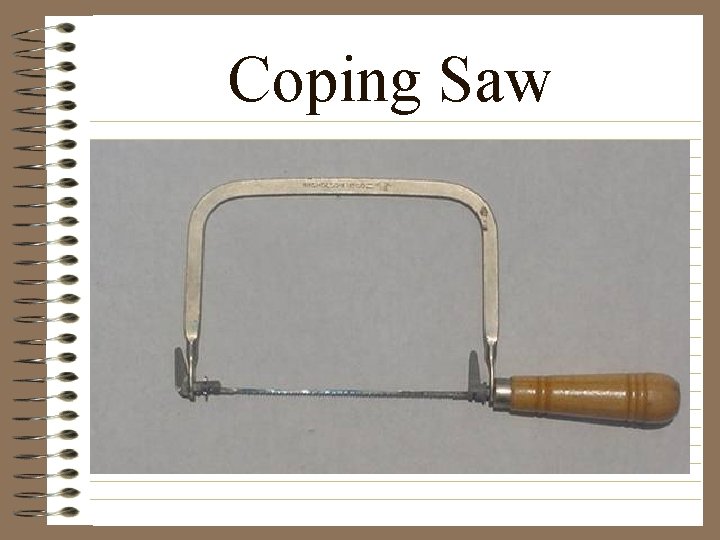

Coping Saw

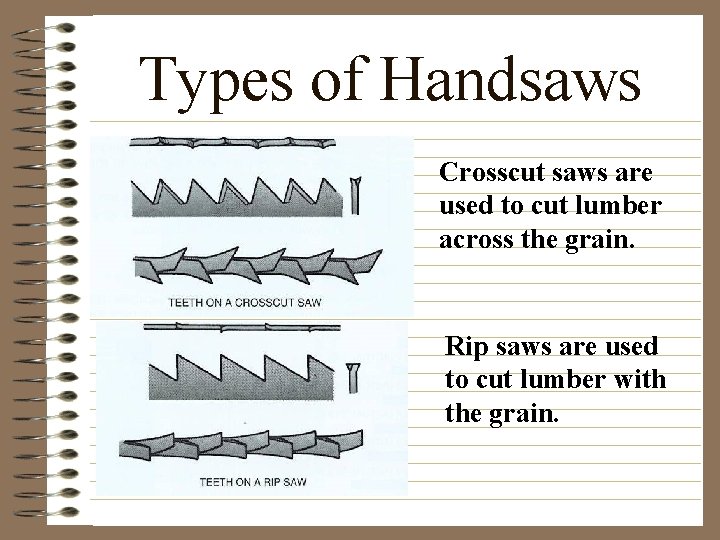

Types of Handsaws Crosscut saws are used to cut lumber across the grain. Rip saws are used to cut lumber with the grain.

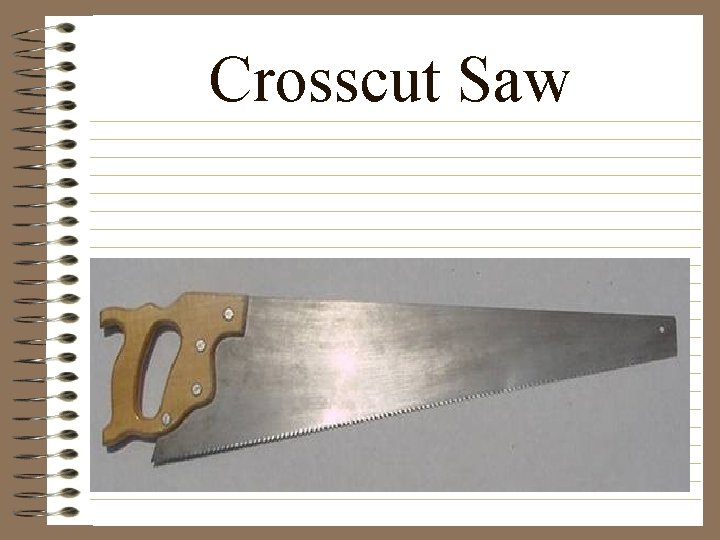

Crosscut Saw

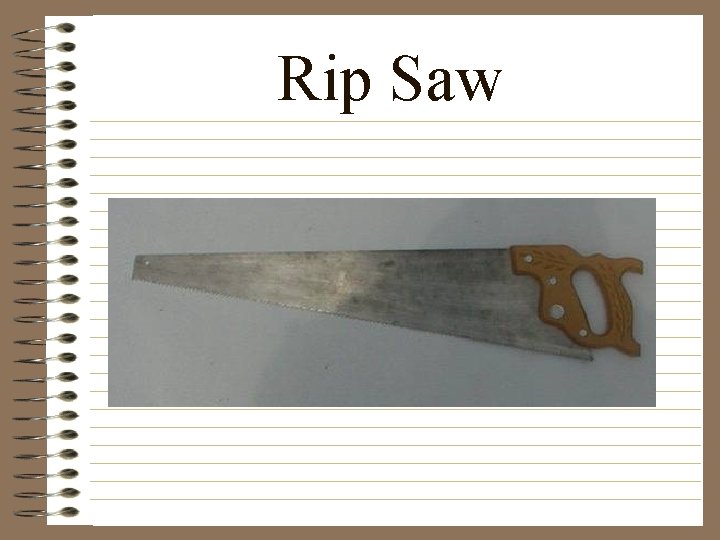

Rip Saw

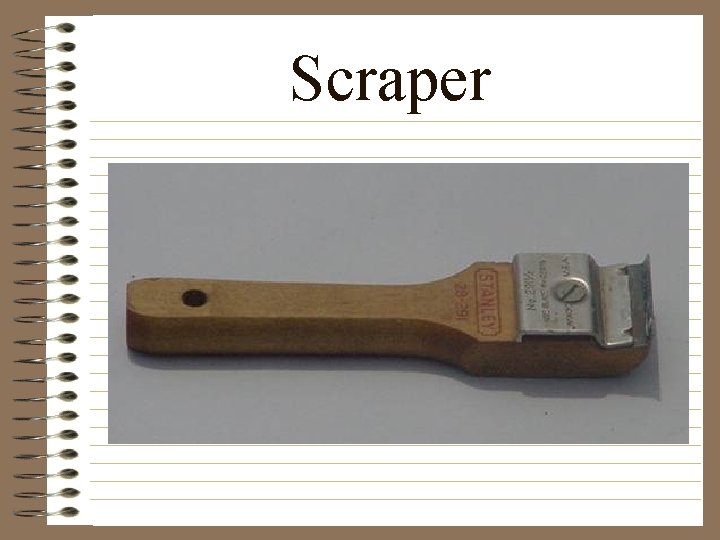

Scraper

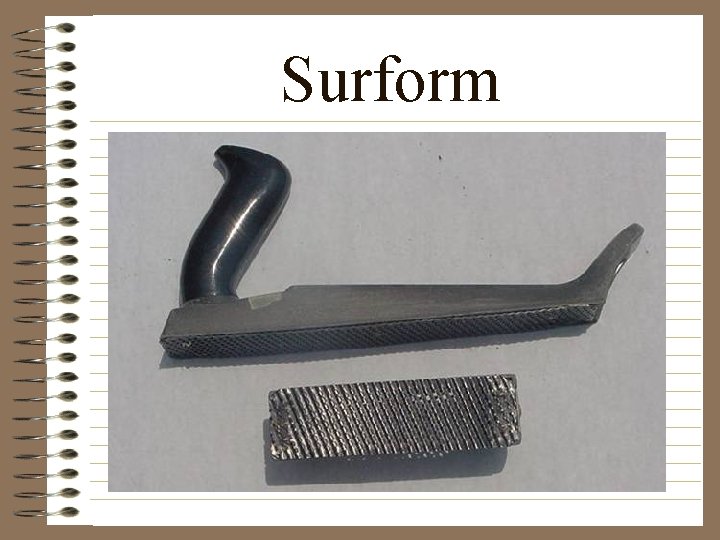

Surform

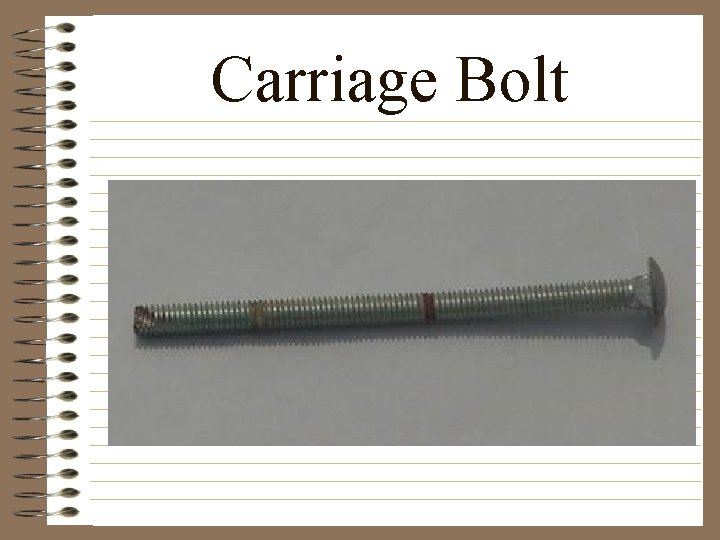

Carriage Bolt

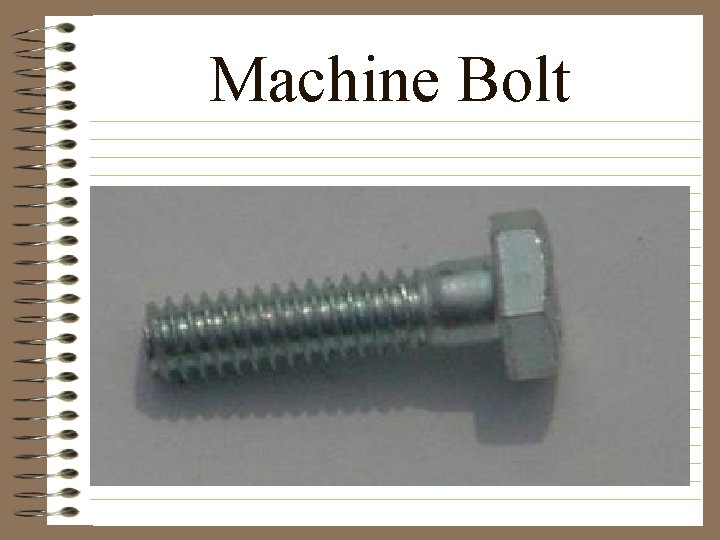

Machine Bolt

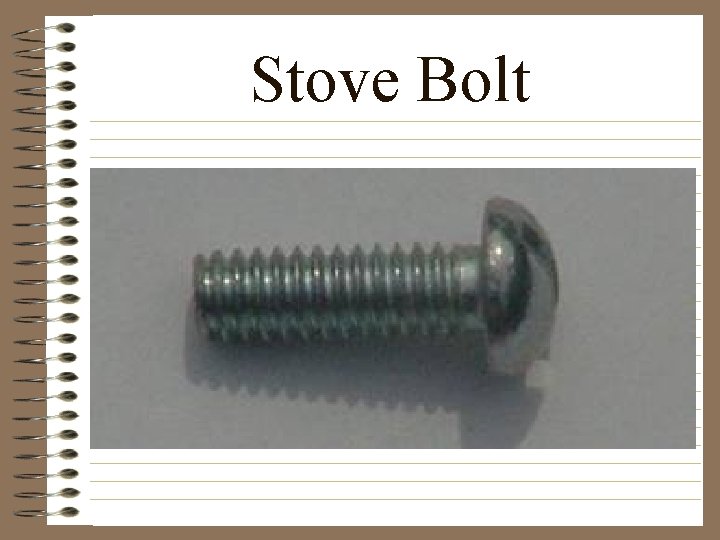

Stove Bolt

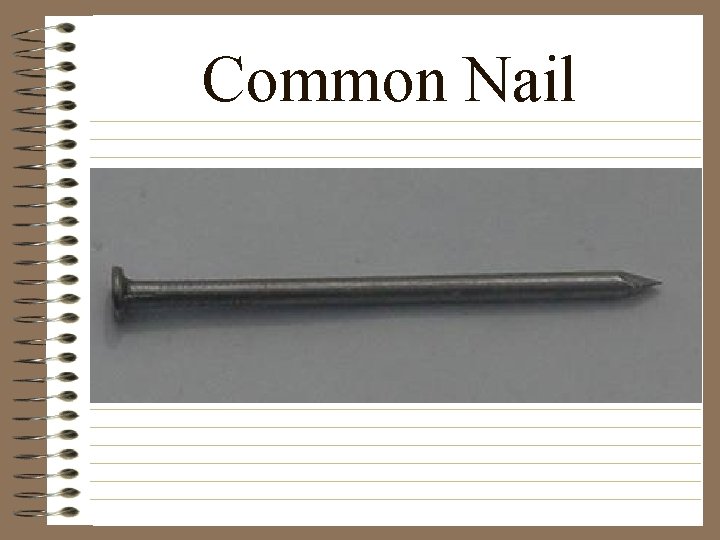

Common Nail

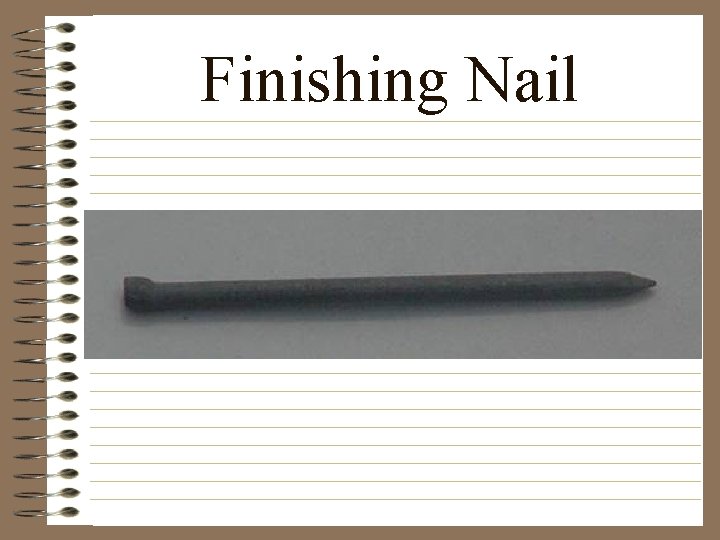

Finishing Nail

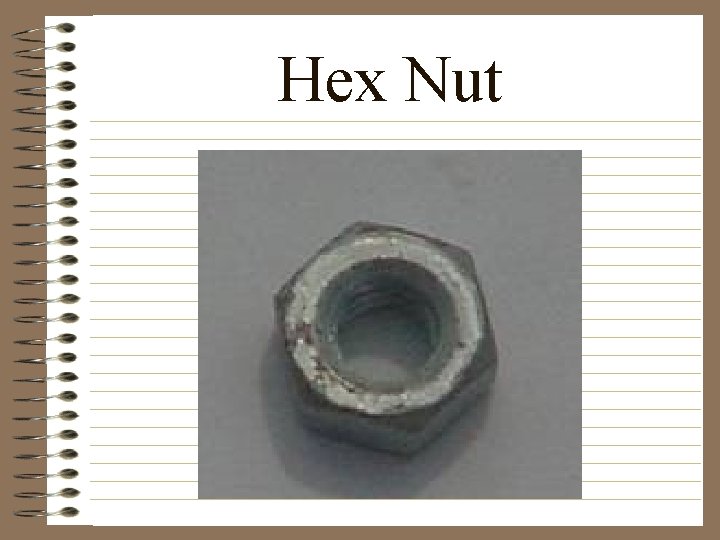

Hex Nut

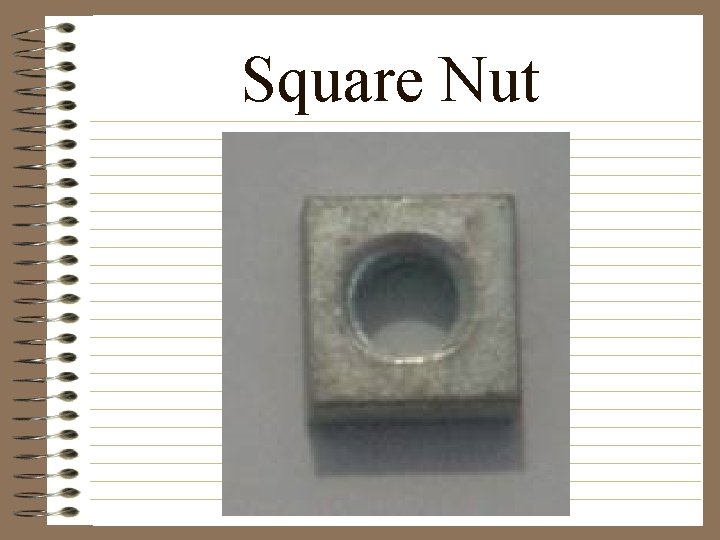

Square Nut

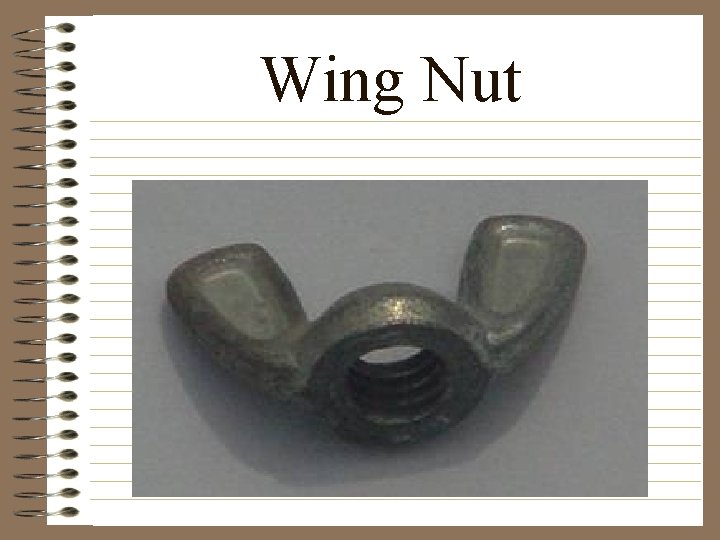

Wing Nut

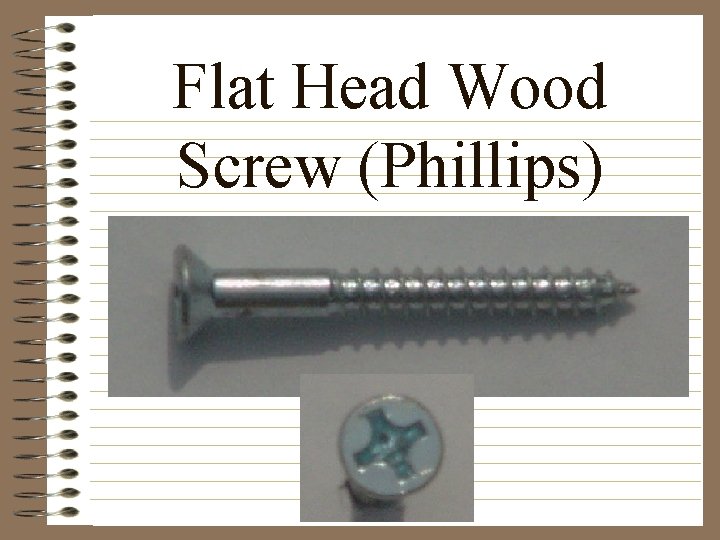

Flat Head Wood Screw (Phillips)

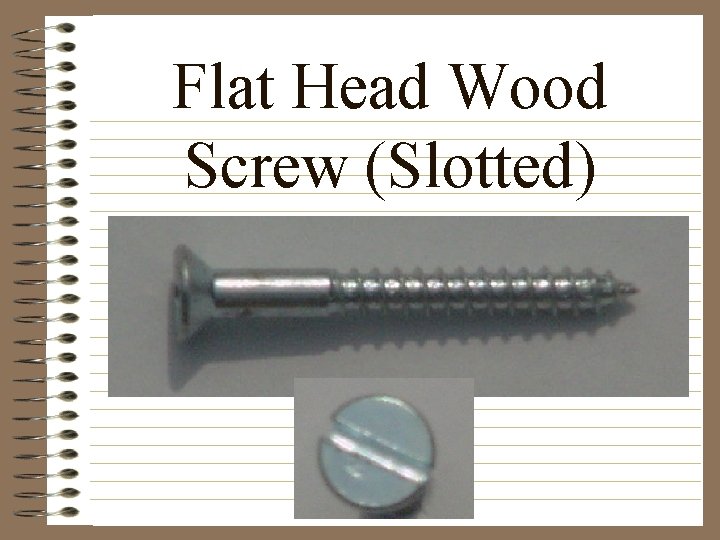

Flat Head Wood Screw (Slotted)

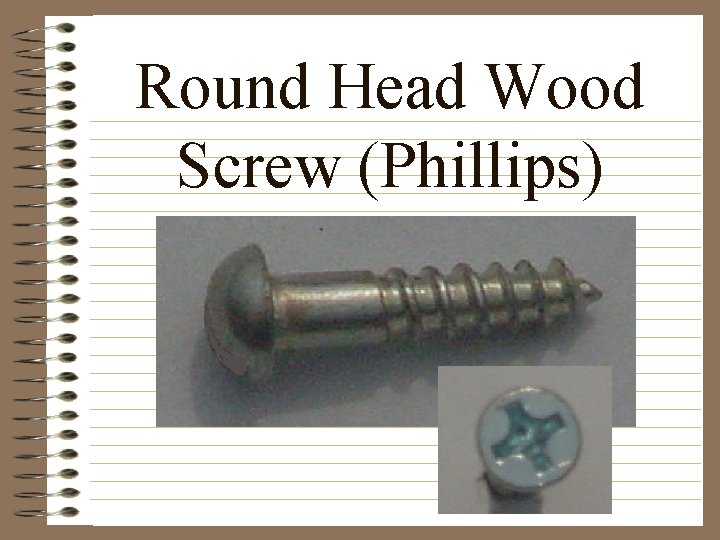

Round Head Wood Screw (Phillips)

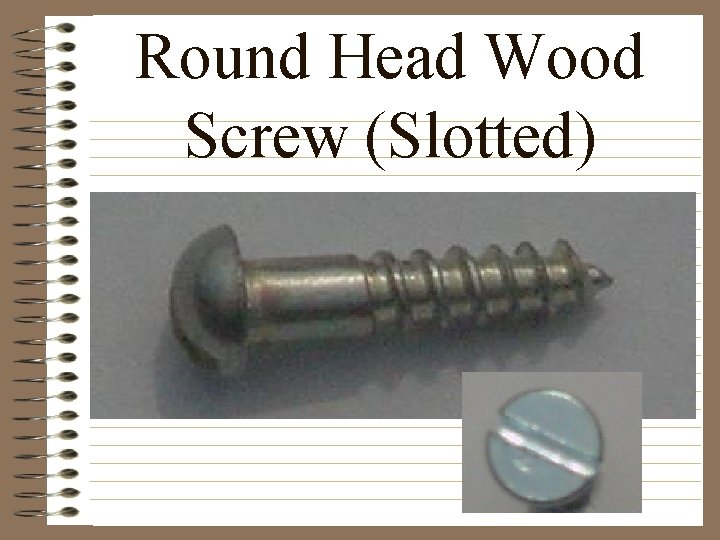

Round Head Wood Screw (Slotted)

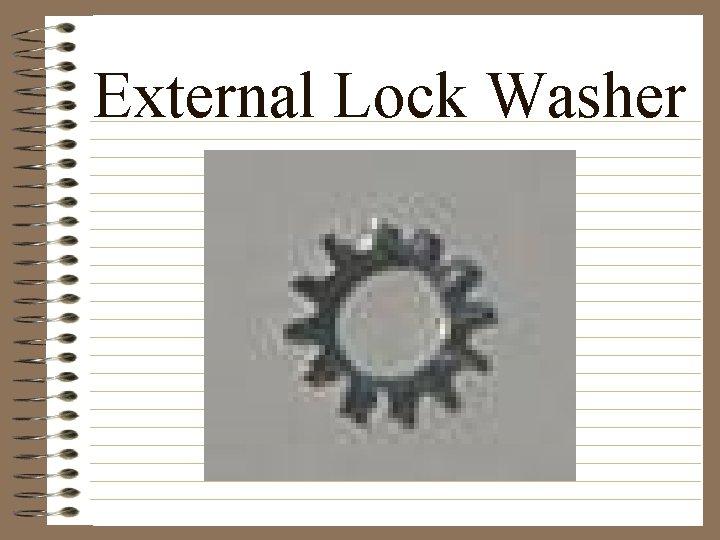

External Lock Washer

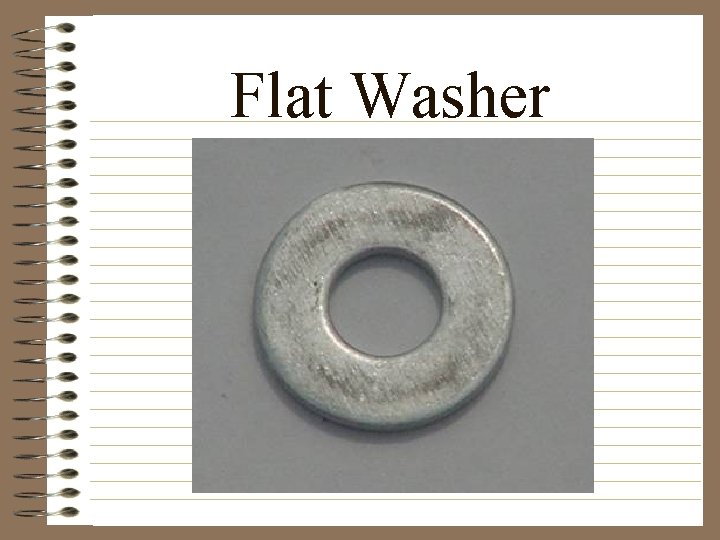

Flat Washer

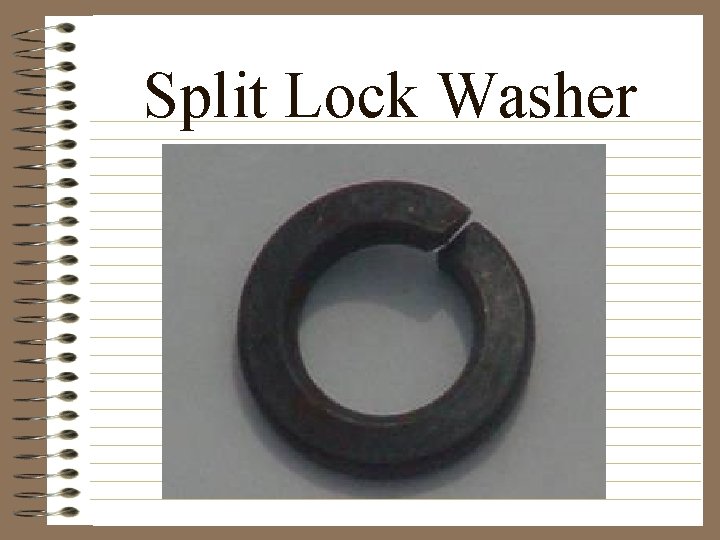

Split Lock Washer

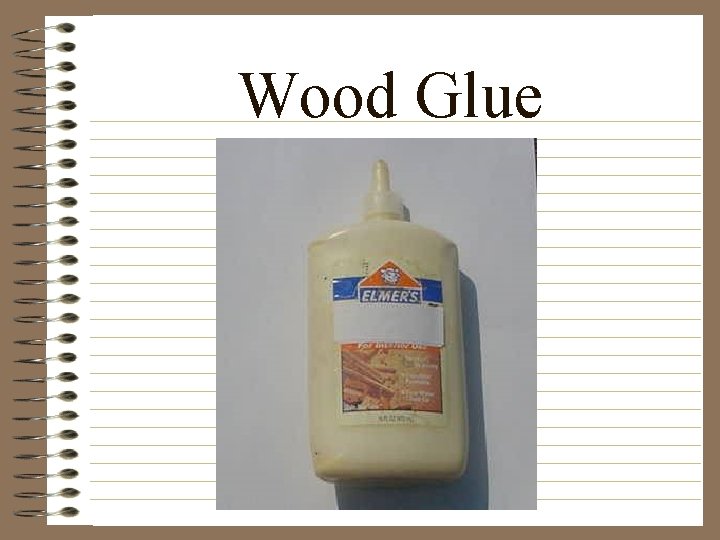

Wood Glue

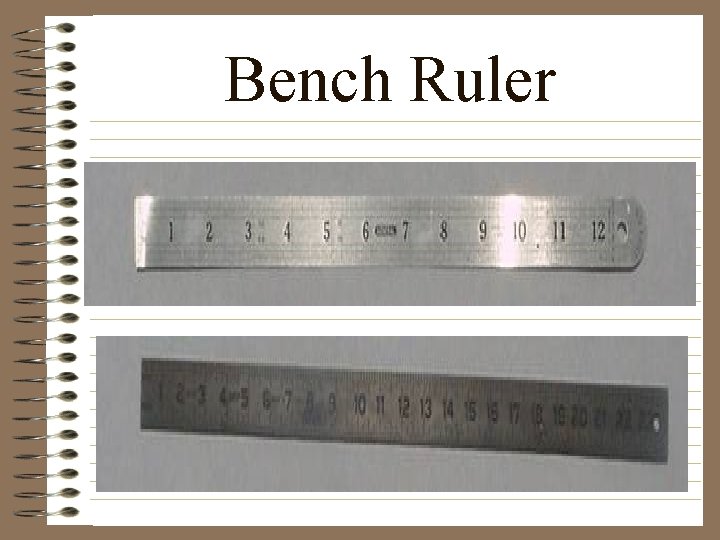

Bench Ruler

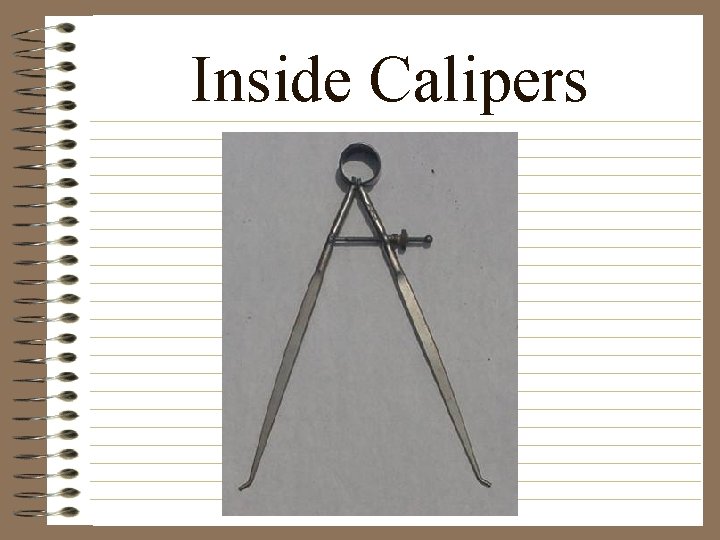

Inside Calipers

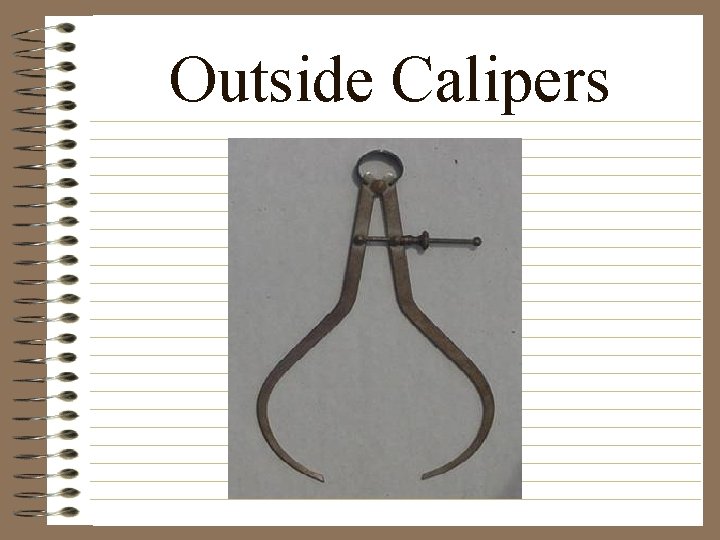

Outside Calipers

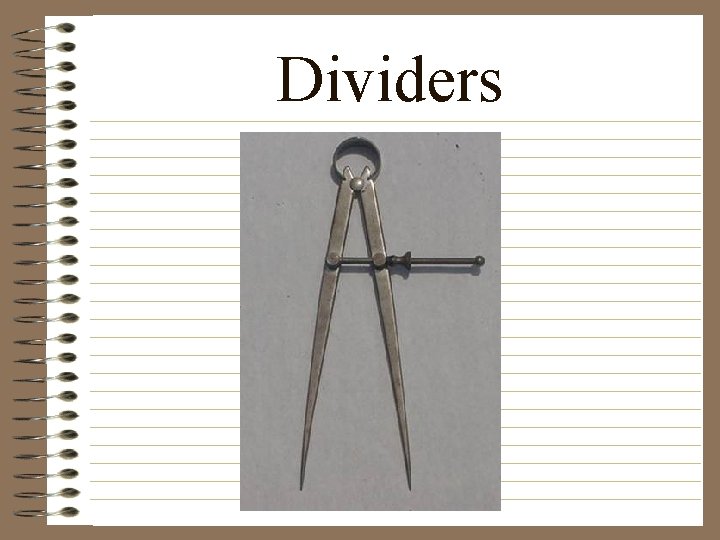

Dividers

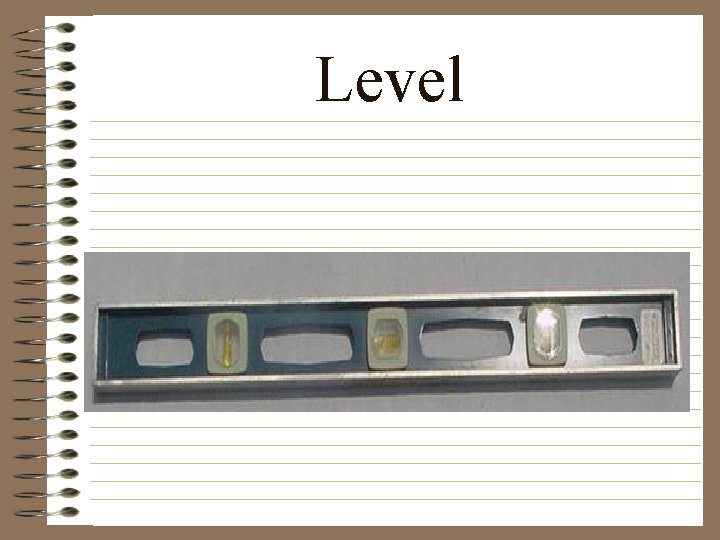

Level

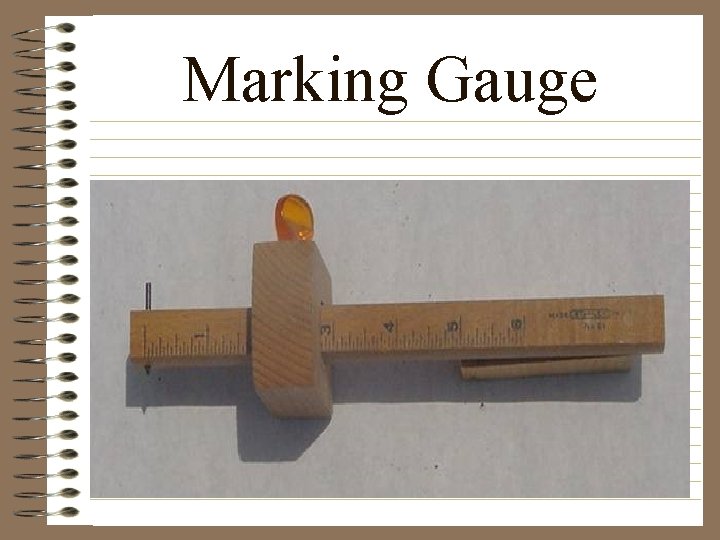

Marking Gauge

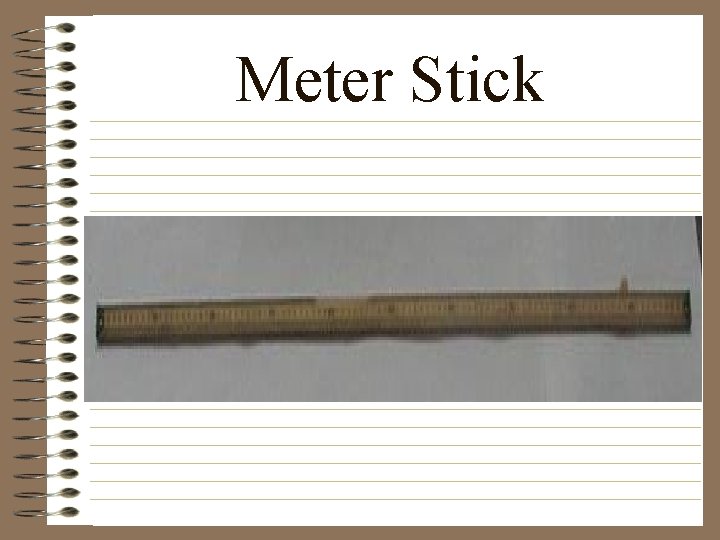

Meter Stick

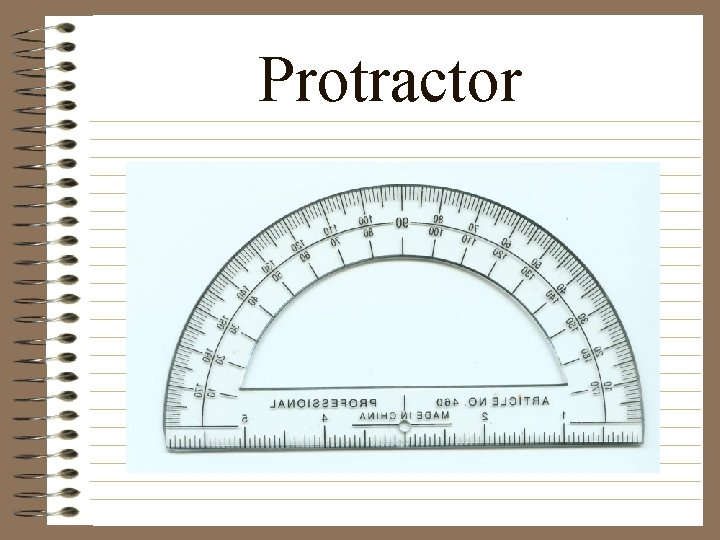

Protractor

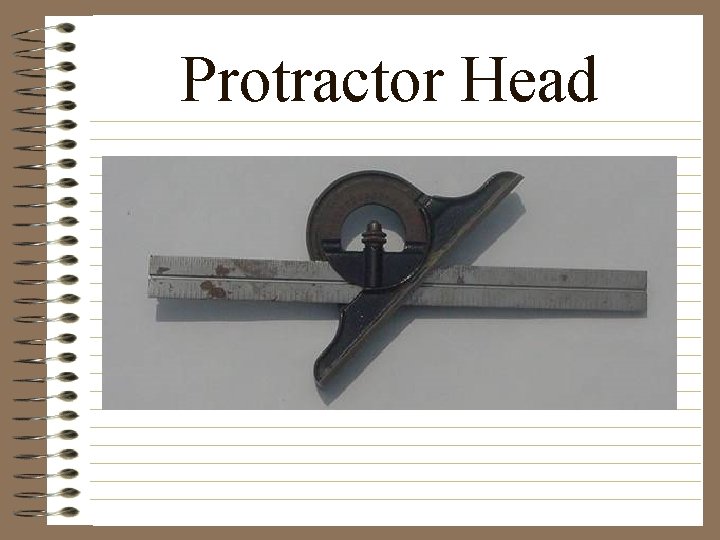

Protractor Head

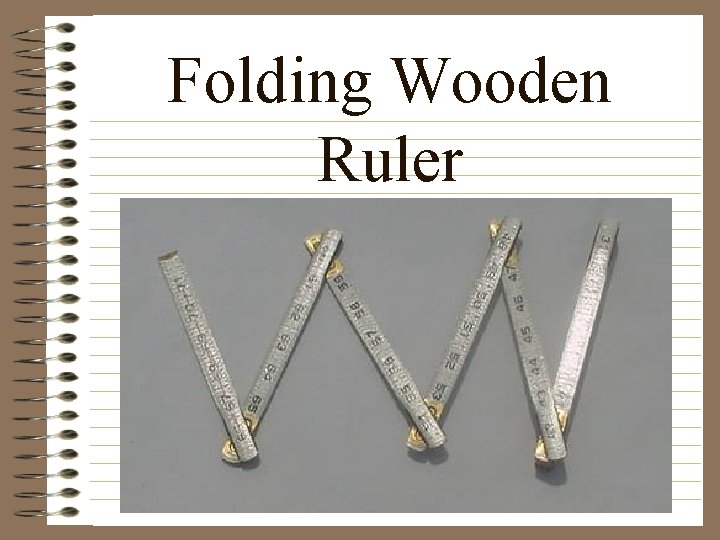

Folding Wooden Ruler

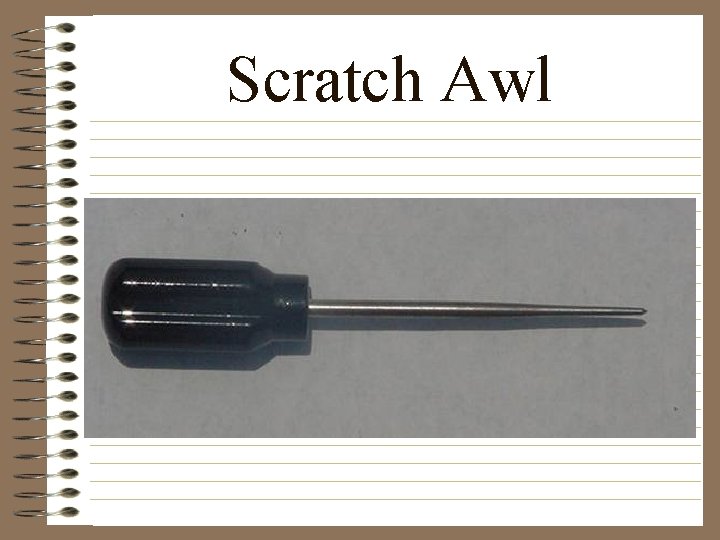

Scratch Awl

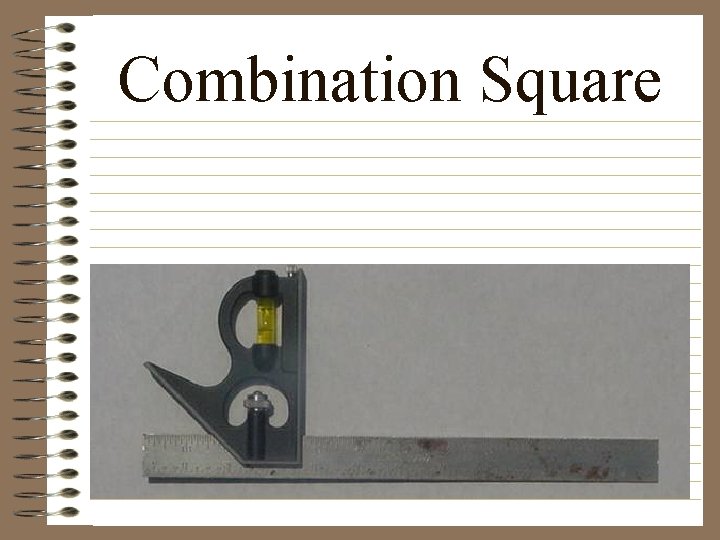

Combination Square

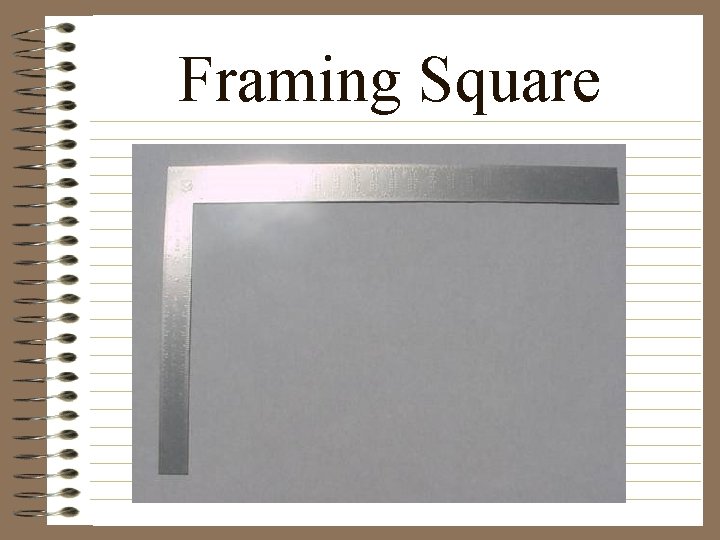

Framing Square

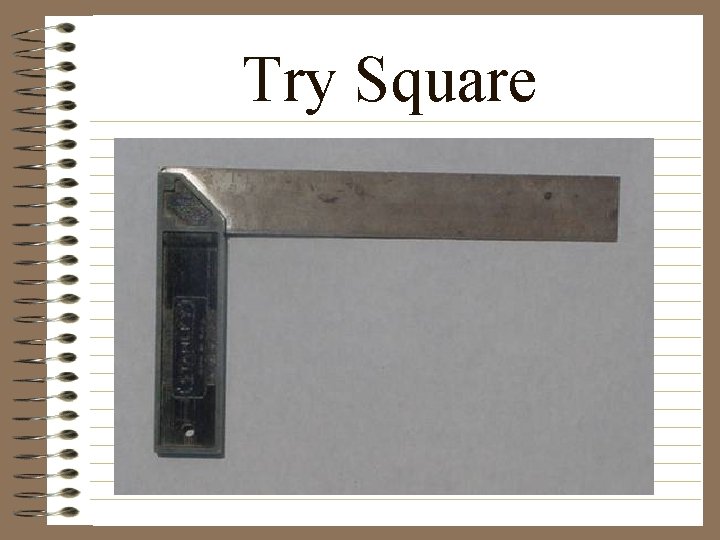

Try Square

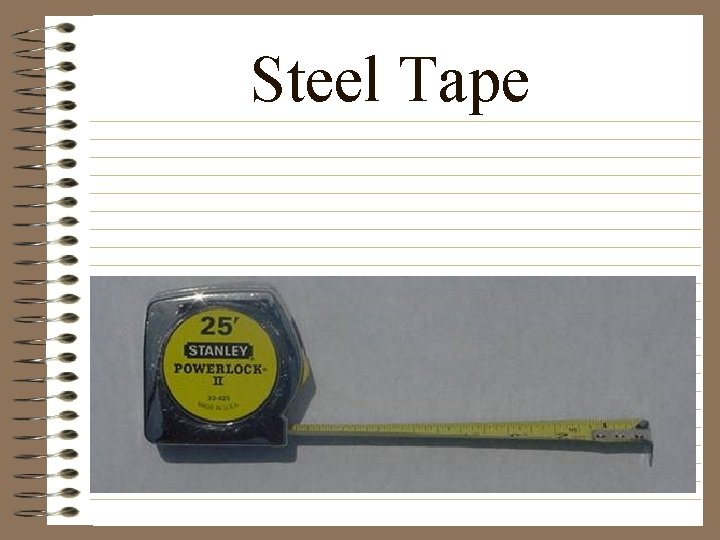

Steel Tape

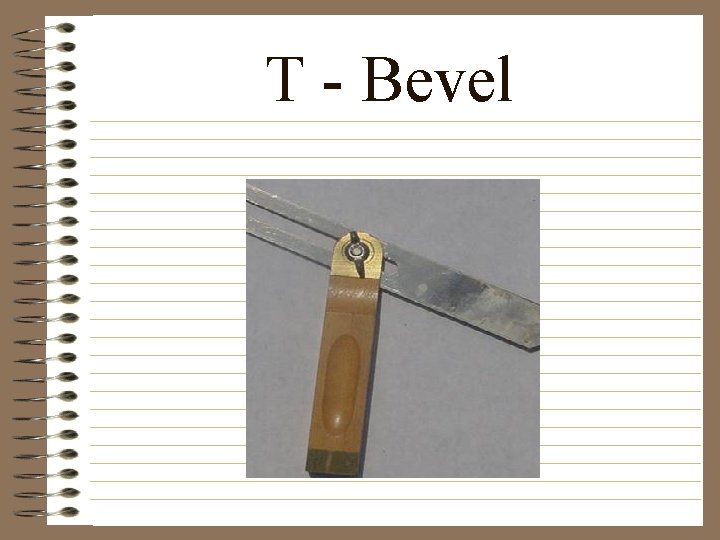

T - Bevel

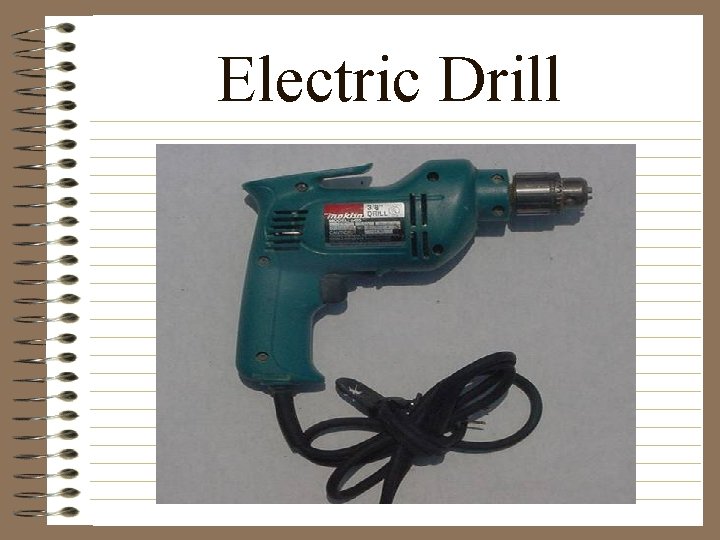

Electric Drill

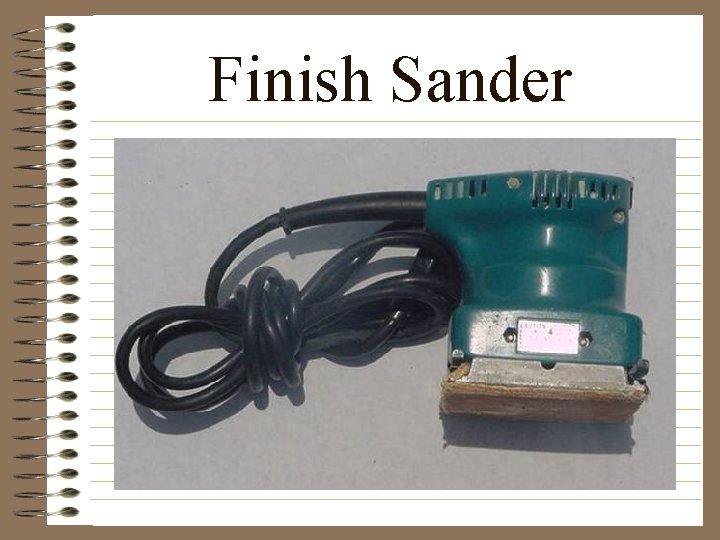

Finish Sander

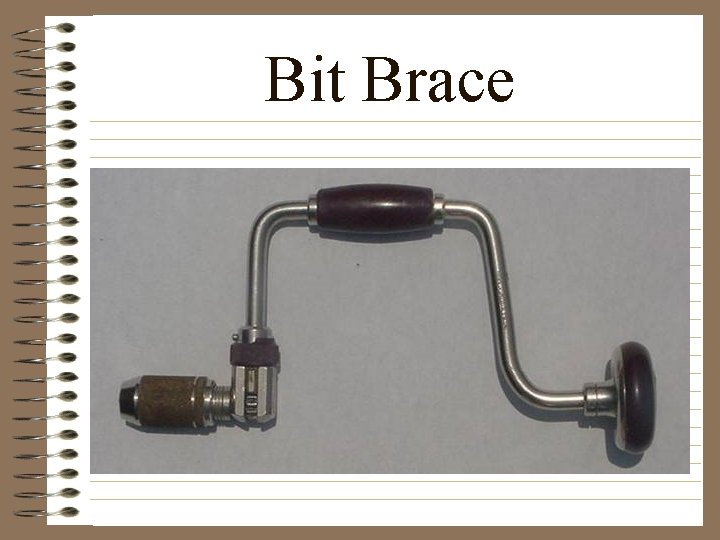

Bit Brace

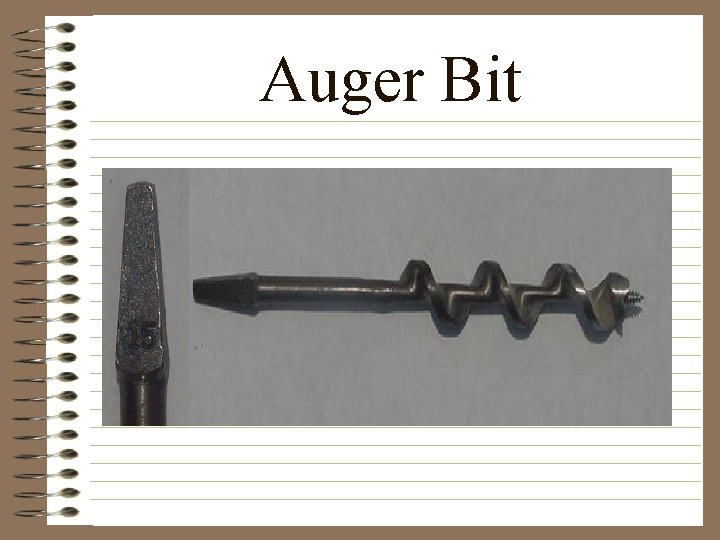

Auger Bit

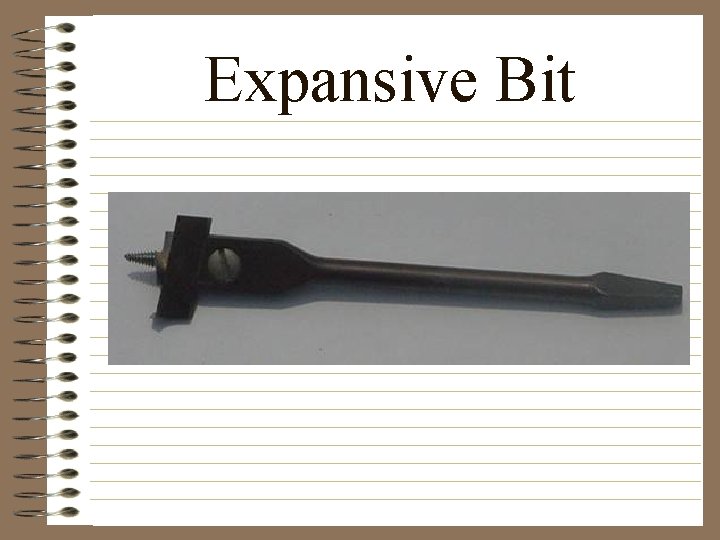

Expansive Bit

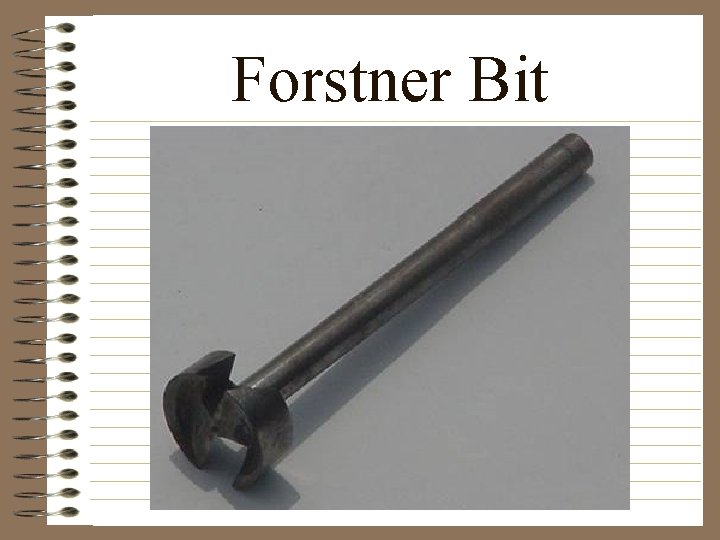

Forstner Bit

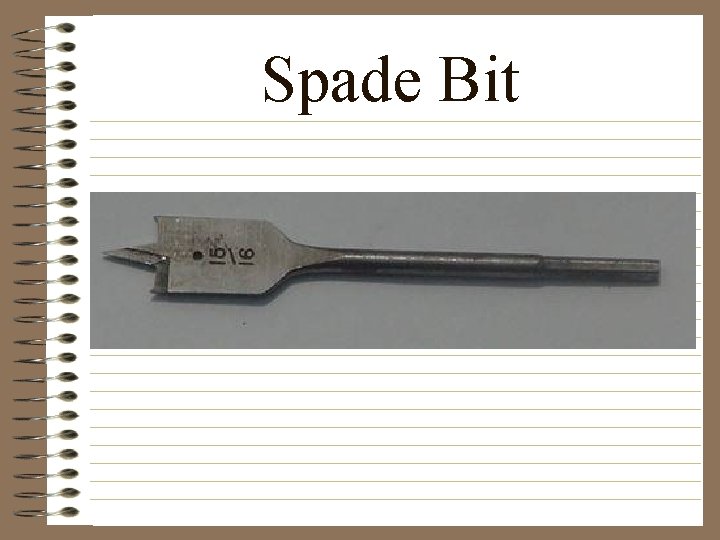

Spade Bit

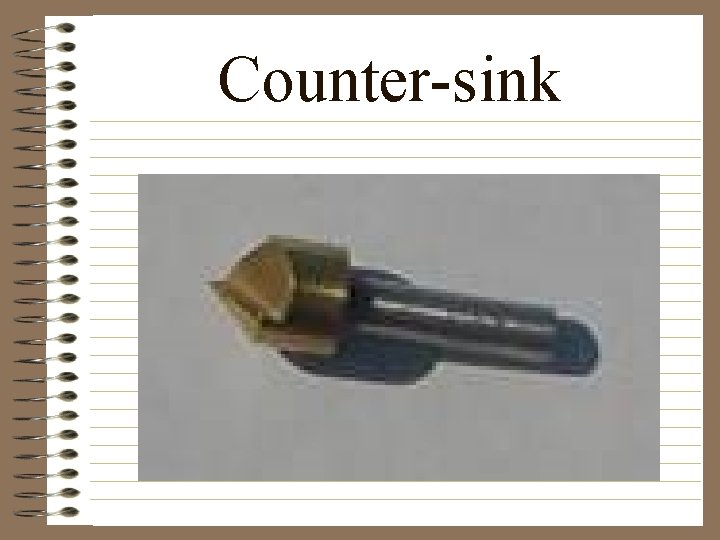

Counter-sink

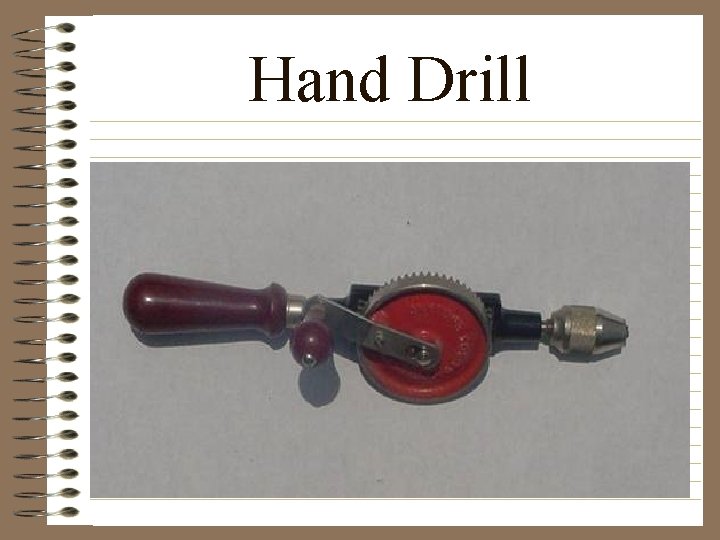

Hand Drill

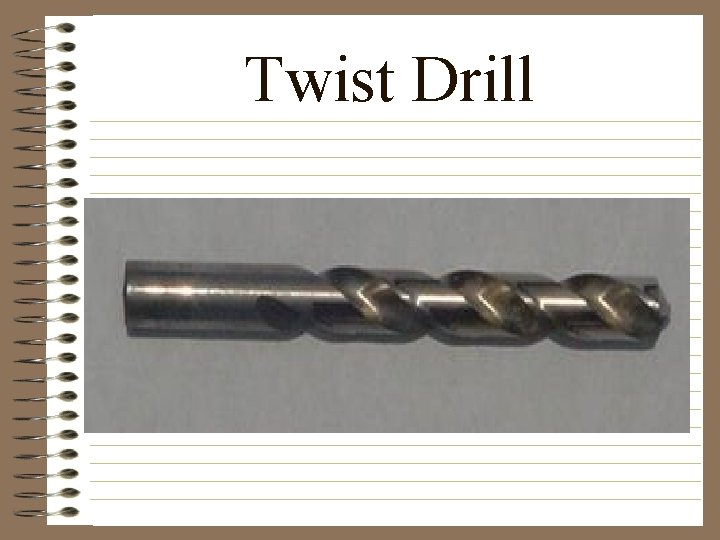

Twist Drill

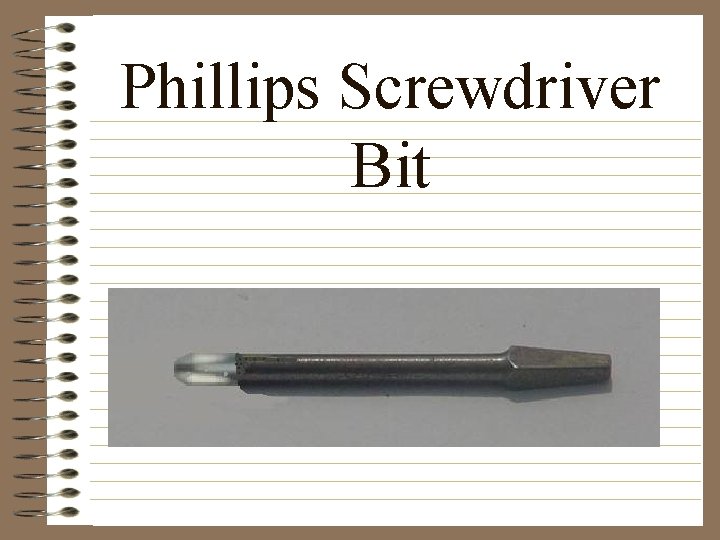

Phillips Screwdriver Bit

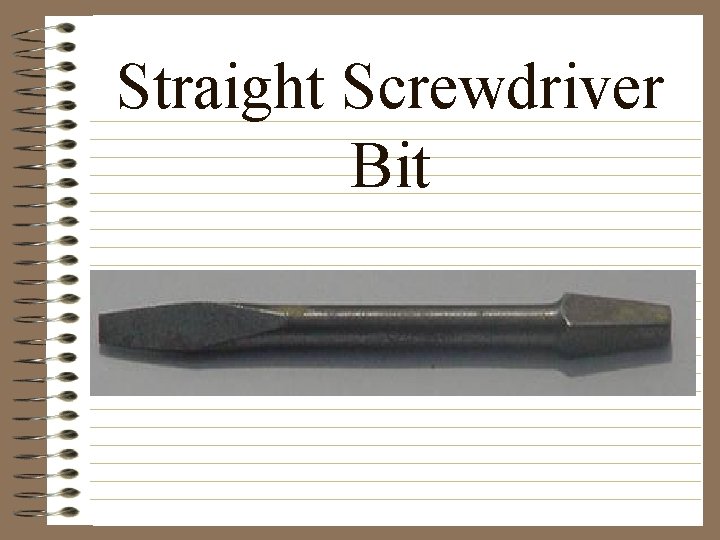

Straight Screwdriver Bit

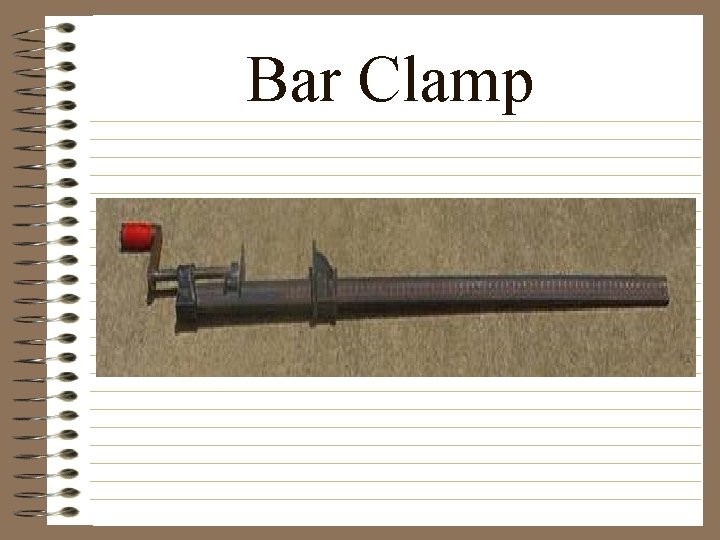

Bar Clamp

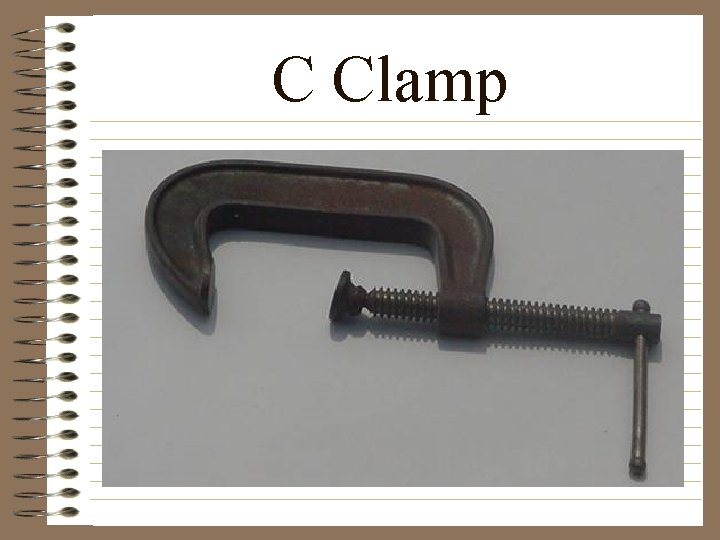

C Clamp

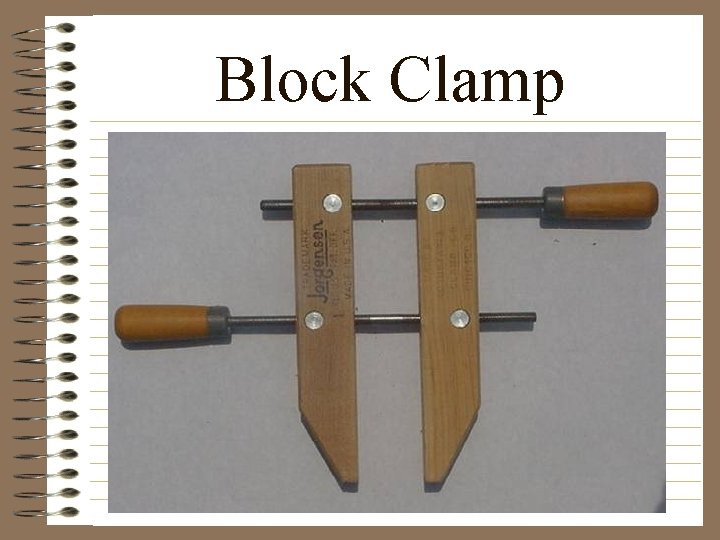

Block Clamp

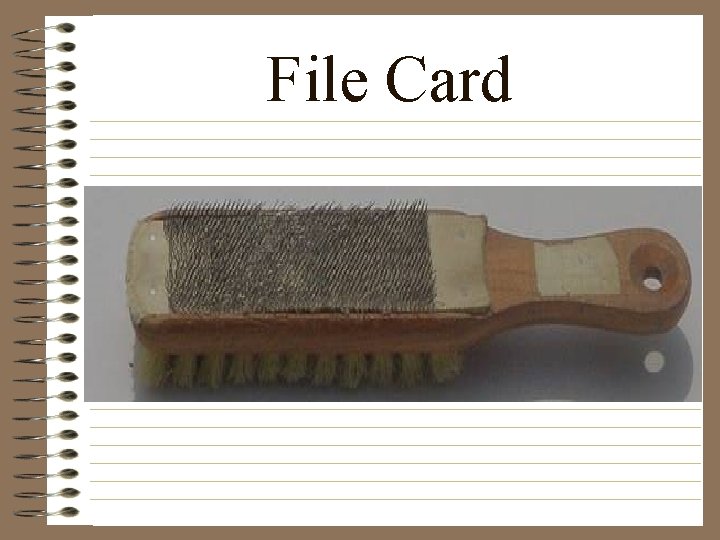

File Card

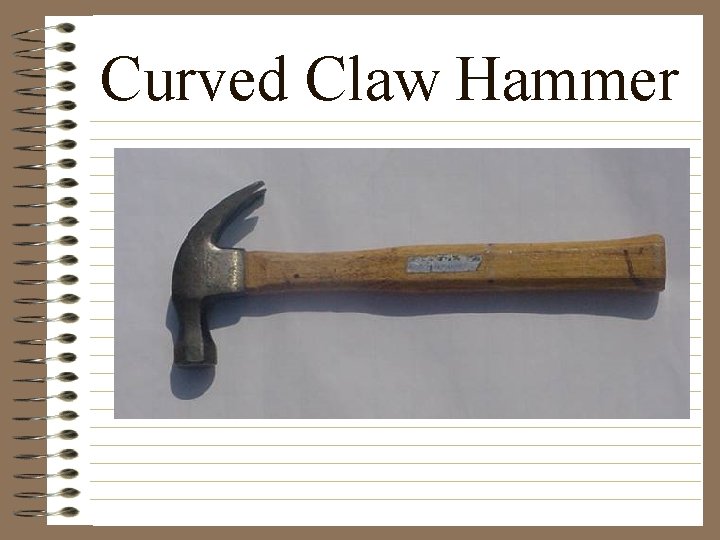

Curved Claw Hammer

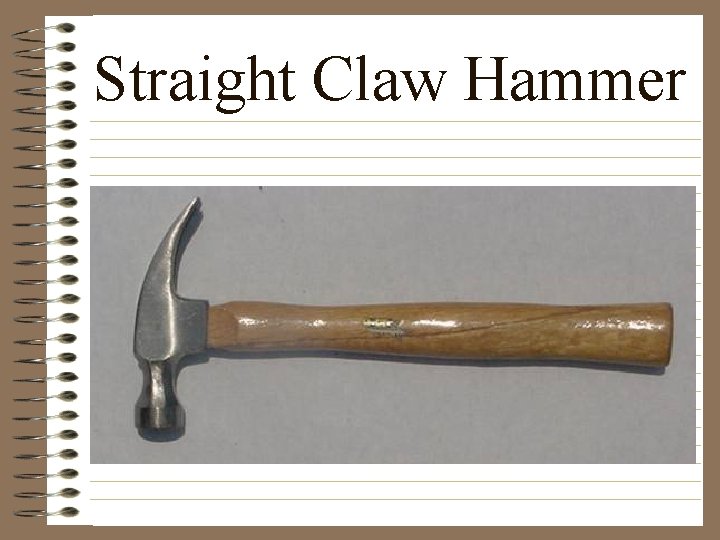

Straight Claw Hammer

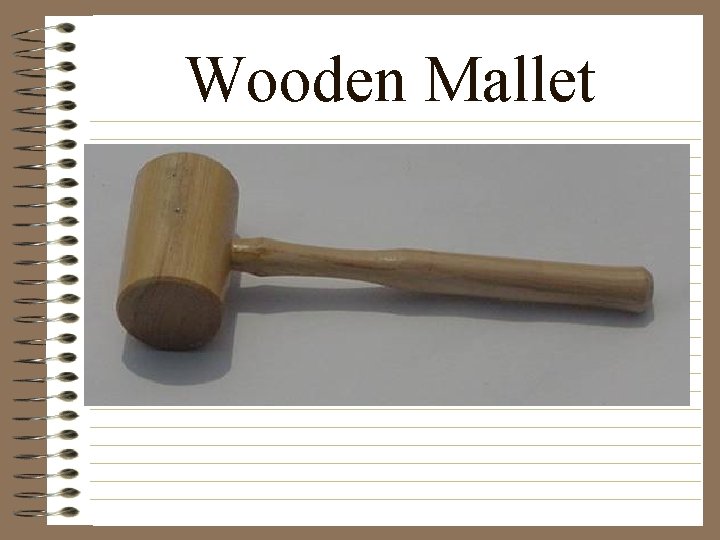

Wooden Mallet

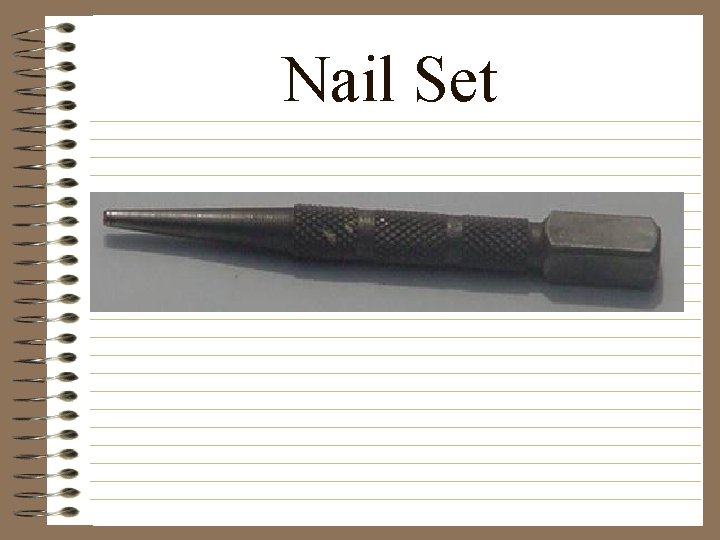

Nail Set

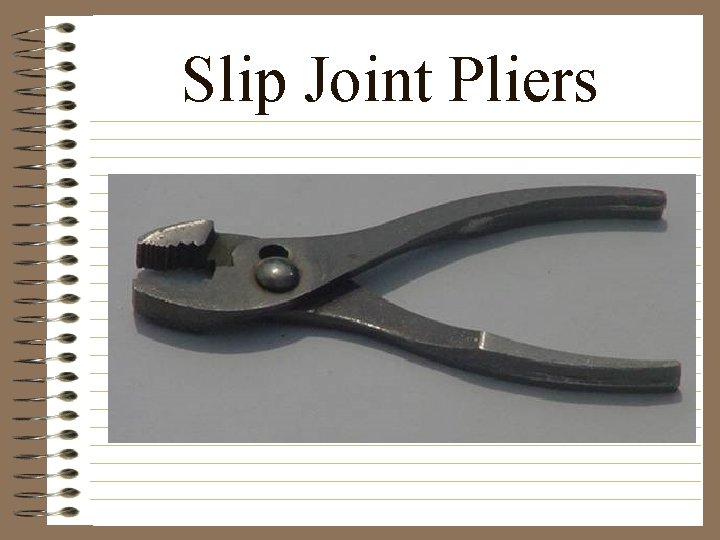

Slip Joint Pliers

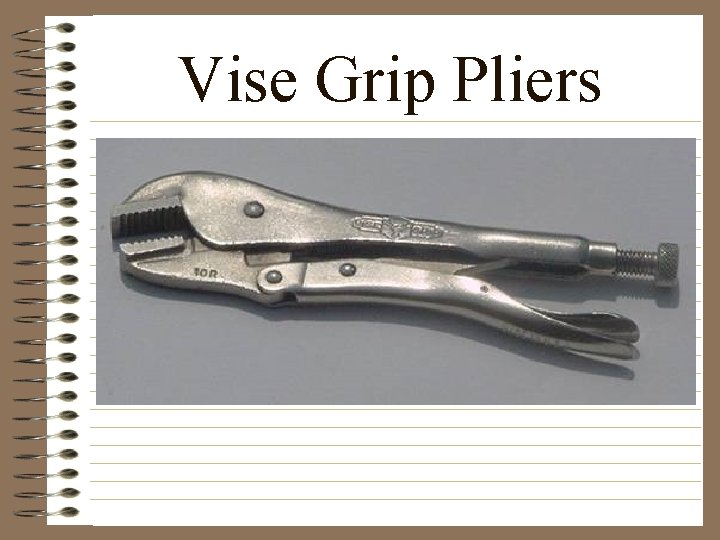

Vise Grip Pliers

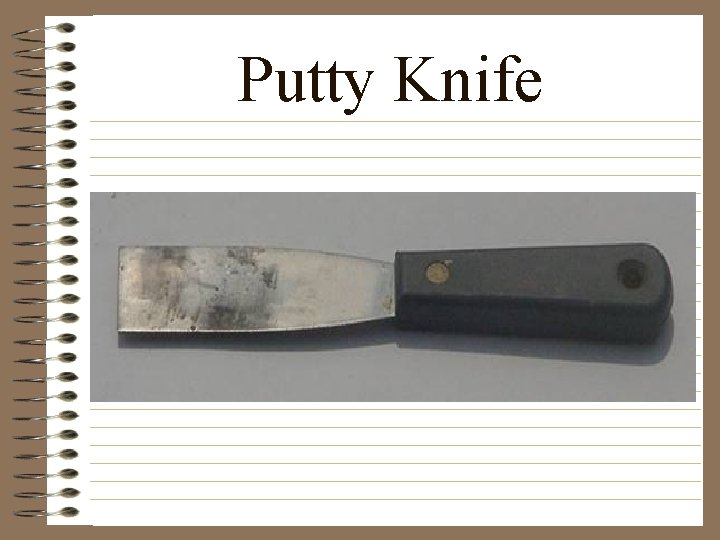

Putty Knife

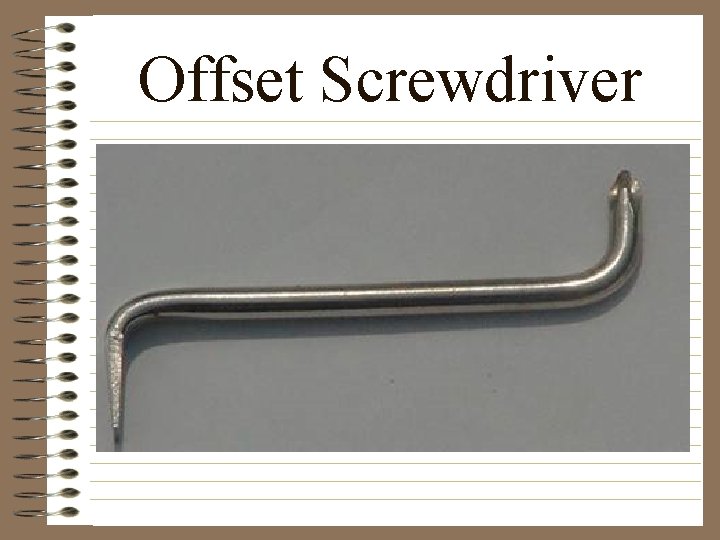

Offset Screwdriver

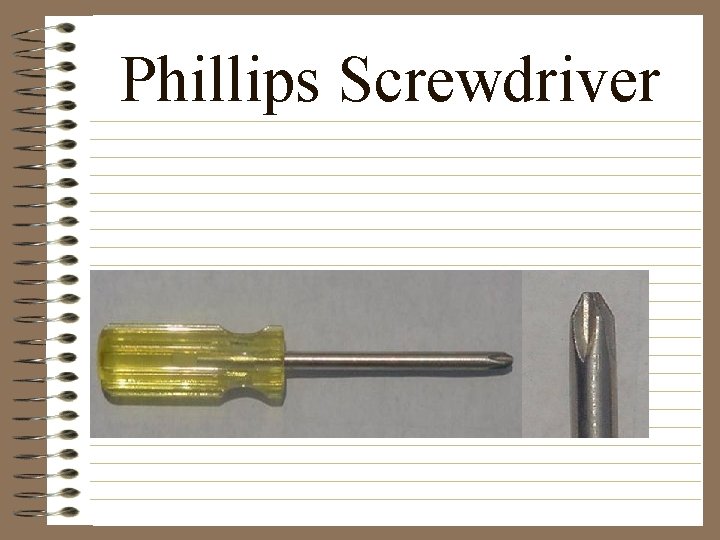

Phillips Screwdriver

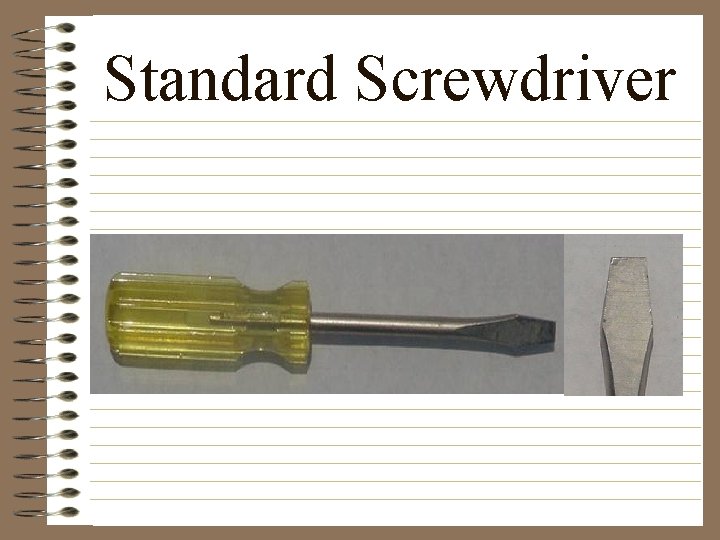

Standard Screwdriver

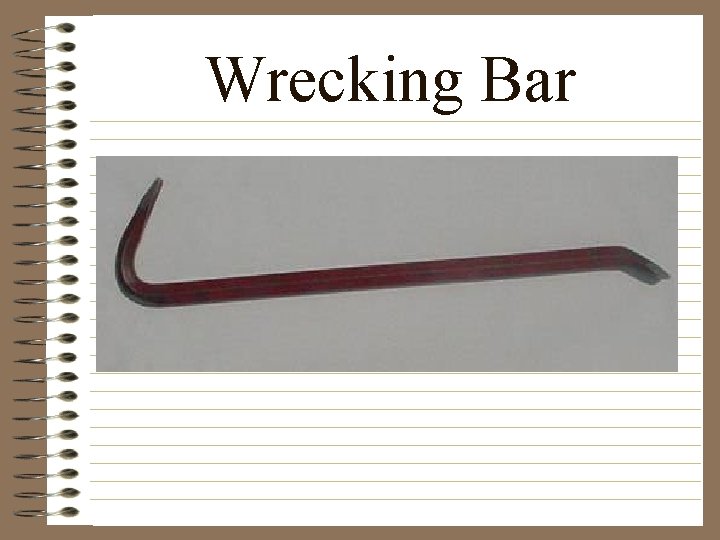

Wrecking Bar

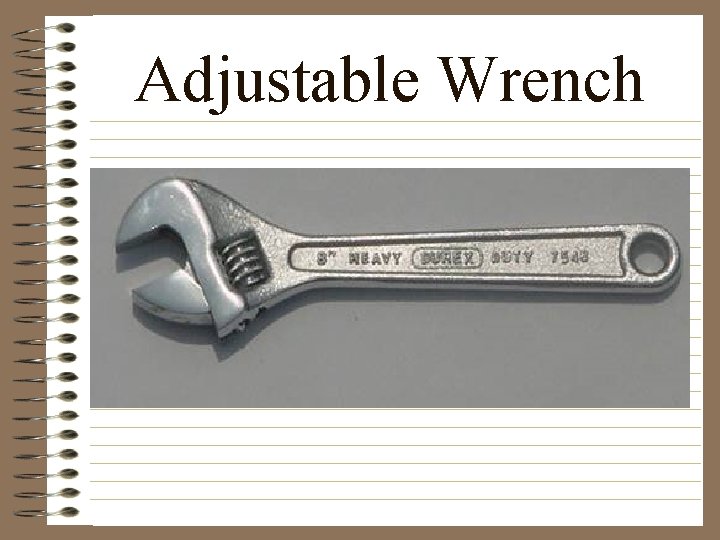

Adjustable Wrench

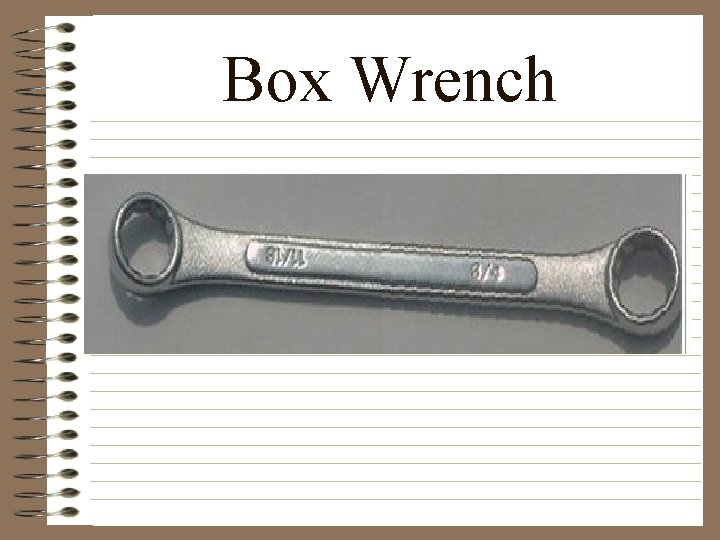

Box Wrench

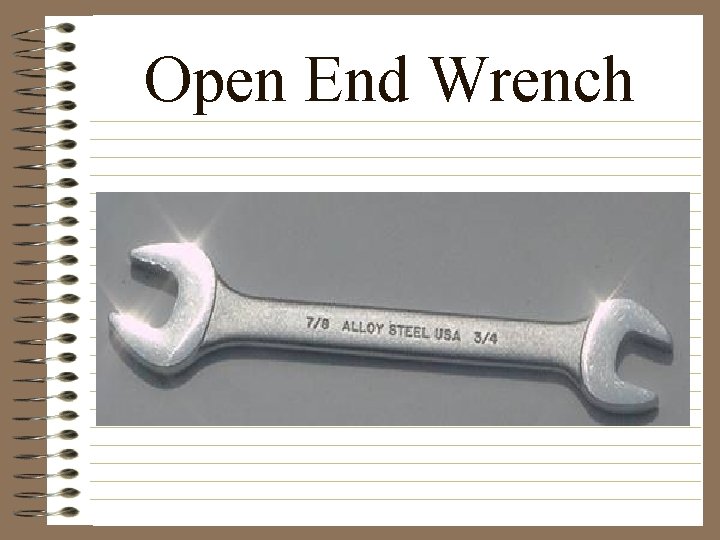

Open End Wrench

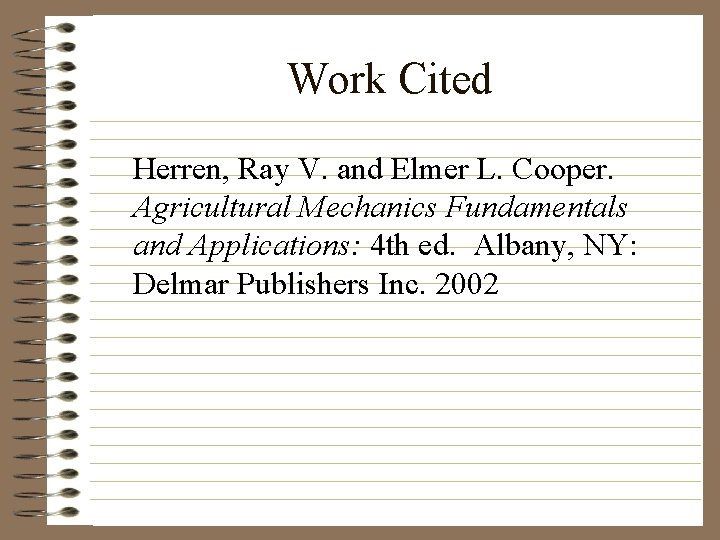

Work Cited Herren, Ray V. and Elmer L. Cooper. Agricultural Mechanics Fundamentals and Applications: 4 th ed. Albany, NY: Delmar Publishers Inc. 2002
