Todays Topics Ensembles Decision Forests actually Random Forests

Today’s Topics • Ensembles • Decision Forests (actually, Random Forests) • Bagging and Boosting • Decision Stumps • Feature Selection • ID 3 as Searching a Space of Possible Soln’s • ID 3 Wrapup 9/29/16 CS 540 - Fall 2016 (© Jude Shavlik), Lecture 7, Week 4 1

Ensembles (Bagging, Boosting, and all that) Old View – Learn one good model New View Naïve Bayes, k-NN, neural net, d-tree, SVM, etc – Learn a good set of models Probably best example of interplay between ‘theory & practice’ in machine learning 9/29/16 CS 540 - Fall 2016 (© Jude Shavlik), Lecture 7, Week 4 2

Ensembles of Neural Networks (or any supervised learner) OUTPUT Combiner Network INPUT • Ensembles often produce accuracy gains of 5 -10 percentage points! • Can combine “classifiers” of various types – Eg, decision trees, rule sets, neural networks, etc. 9/29/16 CS 540 - Fall 2016 (© Jude Shavlik), Lecture 7, Week 4 3

Combining Multiple Models Three ideas for combining predictions 1. Simple (unweighted) votes • Standard choice 2. Weighted votes • eg, weight by tuning-set accuracy 3. Learn a combining function • • 9/29/16 Prone to overfitting? ‘Stacked generalization’ (Wolpert) CS 540 - Fall 2016 (© Jude Shavlik), Lecture 7, Week 4 4

Random Forests (Breiman, Machine Learning 2001; related to Ho, 1995) A variant of something called BAGGING (‘multi-sets’) Let N = # of examples Algorithm F = # of features i = some number << F Repeat k times (1) Draw with replacement N examples, put in train set (2) Build d-tree, but in each recursive call – Choose (w/o replacement) i features – Choose best of these i as the root of this (sub)tree (3) Do NOT prune In HW 2, we give you 101 ‘bootstrapped’ samples of the WINE Dataset 9/29/16 CS 540 - Fall 2016 (© Jude Shavlik), Lecture 7, Week 4 5

Drawing with Replacement vs Drawing w/o Replacement <show on board> 9/29/16 CS 540 - Fall 2016 (© Jude Shavlik), Lecture 7, Week 4 6

Using Random Forests After training we have K decision trees How to use on TEST examples? Some variant of If at least L of these K trees say ‘true’ then output ‘true’ How to choose L ? Use a tune set to decide! 9/29/16 CS 540 - Fall 2016 (© Jude Shavlik), Lecture 7, Week 4 7

More on Random Forests • Increasing i – Increases correlation among individual trees (BAD) – Also increases accuracy of individual trees (GOOD) • Can also use tuning set to choose good value for i • Overall, random forests – Are very fast (eg, 50 K examples, 10 features, 10 trees/min on 1 GHz CPU back in 2004) – Deal well with large # of features – Reduce overfitting substantially; NO NEED TO PRUNE! – Work very well in practice 9/29/16 CS 540 - Fall 2016 (© Jude Shavlik), Lecture 7, Week 4 8

HW 2 – Programming Portion • You will simply run your ID 3 on 101 ‘drawn -with-replacement’ copies of the WINE train set (feel free to implement the full random-forest idea) • Use WINE tune set to choose best L in If at least L of these 101 trees say ‘true’ then output ‘true’ • Evaluate on WINE test set 9/29/16 CS 540 - Fall 2016 (© Jude Shavlik), Lecture 7, Week 4 9

Three Explanations of Why Ensembles Help 1. Statistical Key true concept learned models search path (sample effects) 2. Computational (limited cycles for search) 3. Representational Concept Space Considered (wrong hypothesis space) From: Dietterich, T. G. (2002). Ensemble Learning. In The Handbook of Brain Theory and Neural Networks, Second edition, (M. A. Arbib, Ed. ), Cambridge, MA: The MIT Press, 2002. 405 -408 9/29/16 CS 540 - Fall 2016 (© Jude Shavlik), Lecture 7, Week 4 10

A Relevant Early Paper on ENSEMBLES Hansen & Salamen, PAMI: 20, 1990 – If (a) the combined predictors have errors that are independent from one another – And (b) prob any given model correct predicts any given testset example is > 50%, then 9/29/16 CS 540 - Fall 2016 (© Jude Shavlik), Lecture 7, Week 4 11

Some More Relevant Early Papers • Schapire, Machine Learning: 5, 1990 (‘Boosting’) – If you have an algorithm that gets > 50% on any distribution of examples, you can create an algorithm that gets > (100% - ), for any > 0 – Need an infinite (or very large, at least) source of examples - Later extensions (eg, Ada. Boost) address this weakness • Also see Wolpert, ‘Stacked Generalization, ’ Neural Networks, 1992 9/29/16 CS 540 - Fall 2016 (© Jude Shavlik), Lecture 7, Week 4 12

Some Methods for Producing ‘Uncorrelated’ Members of an Ensemble • K times randomly choose (with replacement) N examples from a training set of size N • Give each training set to a std ML algo – ‘Bagging’ by Brieman (Machine Learning, 1996) – Want unstable algorithms (so learned models vary) • Reweight examples each cycle (if wrong, increase weight; else decrease weight) – ‘Ada. Boosting’ by Freund & Schapire (1995, 1996) 9/29/16 CS 540 - Fall 2016 (© Jude Shavlik), Lecture 7, Week 4 13

Stable Algorithms A algorithm is stable if small changes to the training data mean small changes to the learned model 9/29/16 Are d-trees stable? NO What about k-NN? (Recall Voronoi diagrams) YES CS 540 - Fall 2016 (© Jude Shavlik), Lecture 7, Week 4 14

Stable Algorithms (2) • An idea from the stats community • D-trees unstable since one different example can change the root • k-NN stable since impact of examples local • Ensembles work best with unstable algos since we want the N learned models to differ 9/29/15 CS 540 - Fall 2015 (Shavlik©), Lecture 7, Week 4 15

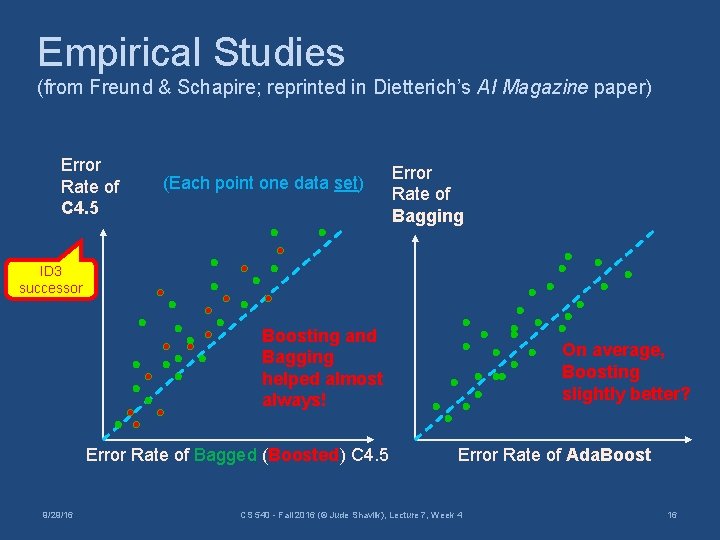

Empirical Studies (from Freund & Schapire; reprinted in Dietterich’s AI Magazine paper) Error Rate of C 4. 5 (Each point one data set) Error Rate of Bagging ID 3 successor Boosting and Bagging helped almost always! Error Rate of Bagged (Boosted) C 4. 5 9/29/16 On average, Boosting slightly better? Error Rate of Ada. Boost CS 540 - Fall 2016 (© Jude Shavlik), Lecture 7, Week 4 16

Some More Methods for Producing “Uncorrelated” Members of an Ensemble • Directly optimize accuracy + diversity – Opitz & Shavlik (1995; used genetic algo’s) – Melville & Mooney (2004 -5) • Different number of hidden units in a neural network, different k in k -NN, tie-breaking scheme, example ordering, diff ML algos, etc – Various people – See 2005 -2008 papers of Rich Caruana’s group for large-scale empirical studies of ensembles 9/29/16 CS 540 - Fall 2016 (© Jude Shavlik), Lecture 7, Week 4 17

Boosting/Bagging/etc Wrapup • An easy to use and usually highly effective technique - always consider it (Bagging, at least) when applying ML to practical problems • Does reduce ‘comprehensibility’ of models - see work by Craven & Shavlik though (‘rule extraction’) • Increases runtime, but cycles usually much cheaper than examples (and easily parallelized) 9/29/16 CS 540 - Fall 2016 (© Jude Shavlik), Lecture 7, Week 4 18

Decision “Stumps” (formerly part of HW; try on your own!) • Holte (ML journal) compared: – Decision trees with only one decision (decision stumps) vs – Trees produced by C 4. 5 (with pruning algorithm used) • Decision ‘stumps’ do remarkably well on UC Irvine data sets – Archive too easy? Some datasets seem to be • Decision stumps are a ‘quick and dirty control for comparing to new algorithms – But ID 3/C 4. 5 easy to use and probably a better control 9/29/16 CS 540 - Fall 2016 (© Jude Shavlik), Lecture 7, Week 4 19

C 4. 5 Compared to 1 R (‘Decision Stumps’) See Holte paper in Machine Learning for key (eg, HD=heart disease) 9/29/16 Testset Accuracy Dataset C 4. 5 1 R BC 72. 0% 68. 7% CH 99. 2% 68. 7% GL 63. 2% 67. 6% G 2 74. 3% 53. 8% HD 73. 6% 72. 9% HE 81. 2% 76. 3% HO 83. 6% 81. 0% HY 99. 1% 97. 2% IR 93. 8% 93. 5% LA 77. 2% 71. 5% LY 77. 5% 70. 7% MU 100. 0% 98. 4% SE 97. 7% 95. 0% SO 97. 5% 81. 0% VO 95. 6% 95. 2% V 1 89. 4% 86. 8% CS 540 - Fall 2016 (© Jude Shavlik), Lecture 7, Week 4 20

Feature Selection • Sometimes we want to preprocess our dataset before running an ML algo to select a good set of features • Simple idea: – Collect the i features with the most info. Gain (over all the training examples) – Weakness: redundancy (consider duplicating best scoring feature; it will also score well!) 9/29/16 CS 540 - Fall 2016 (© Jude Shavlik), Lecture 7, Week 4 21

D-Trees as Feature Selectors • In feature selection, we want features that distinguish ex’s of various cats • But we don’t want redundant features • And we want features that cover all the training examples • D-trees do just that! – Pick informative features CONDITIONED on features chosen so far, until all examples covered 9/26/16 Am. Fam - Fall 2016 (© Jude Shavlik), Lecture 5 22

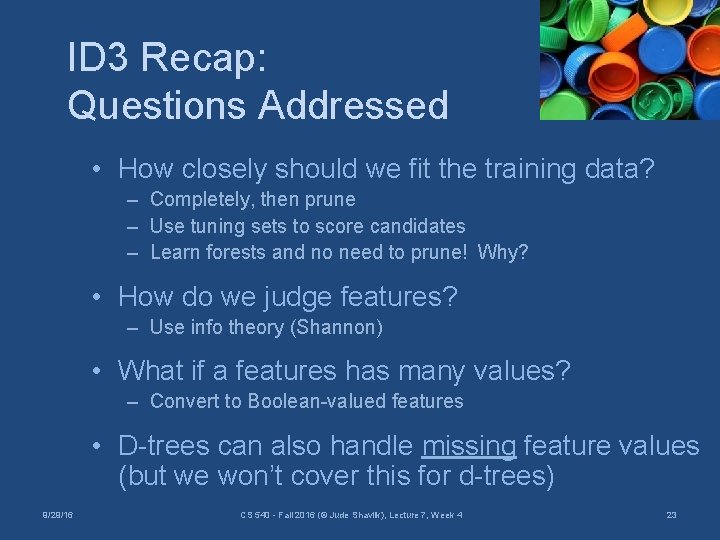

ID 3 Recap: Questions Addressed • How closely should we fit the training data? – Completely, then prune – Use tuning sets to score candidates – Learn forests and no need to prune! Why? • How do we judge features? – Use info theory (Shannon) • What if a features has many values? – Convert to Boolean-valued features • D-trees can also handle missing feature values (but we won’t cover this for d-trees) 9/29/16 CS 540 - Fall 2016 (© Jude Shavlik), Lecture 7, Week 4 23

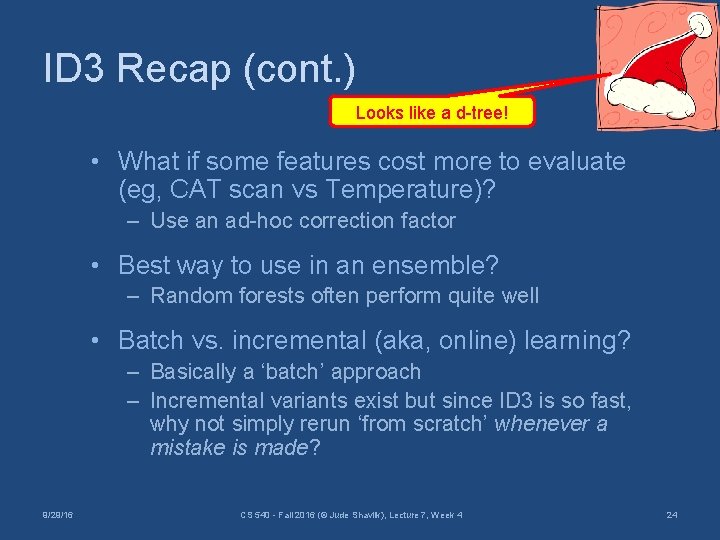

ID 3 Recap (cont. ) Looks like a d-tree! • What if some features cost more to evaluate (eg, CAT scan vs Temperature)? – Use an ad-hoc correction factor • Best way to use in an ensemble? – Random forests often perform quite well • Batch vs. incremental (aka, online) learning? – Basically a ‘batch’ approach – Incremental variants exist but since ID 3 is so fast, why not simply rerun ‘from scratch’ whenever a mistake is made? 9/29/16 CS 540 - Fall 2016 (© Jude Shavlik), Lecture 7, Week 4 24

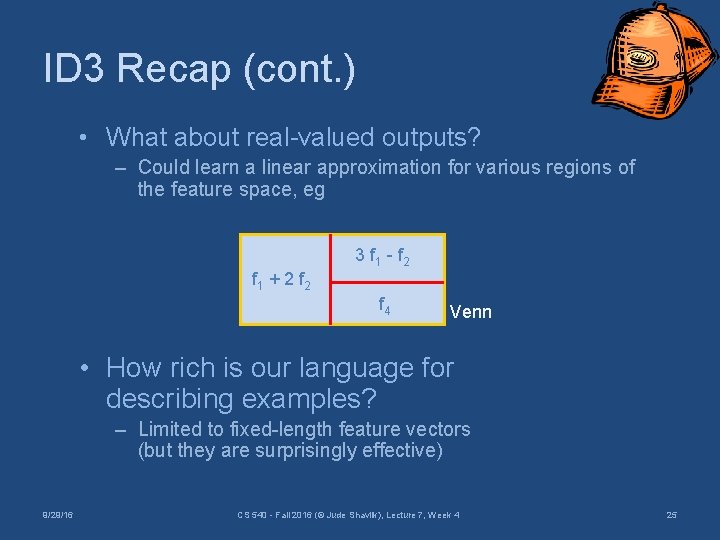

ID 3 Recap (cont. ) • What about real-valued outputs? – Could learn a linear approximation for various regions of the feature space, eg 3 f 1 - f 2 f 1 + 2 f 4 Venn • How rich is our language for describing examples? – Limited to fixed-length feature vectors (but they are surprisingly effective) 9/29/16 CS 540 - Fall 2016 (© Jude Shavlik), Lecture 7, Week 4 25

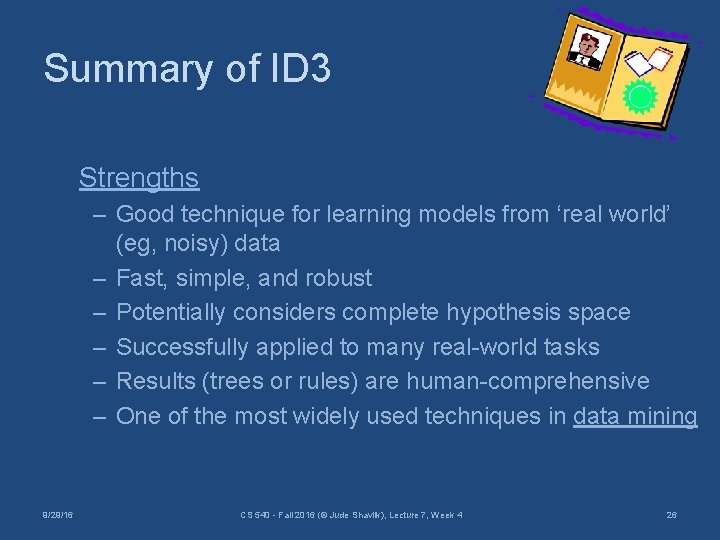

Summary of ID 3 Strengths – Good technique for learning models from ‘real world’ (eg, noisy) data – Fast, simple, and robust – Potentially considers complete hypothesis space – Successfully applied to many real-world tasks – Results (trees or rules) are human-comprehensive – One of the most widely used techniques in data mining 9/29/16 CS 540 - Fall 2016 (© Jude Shavlik), Lecture 7, Week 4 26

Summary of ID 3 (cont. ) Weaknesses – – – 9/29/16 Requires fixed-length feature vectors Only makes axis-parallel (univariate) splits Not designed to make probabilistic predictions Non-incremental Hill-climbing algorithm (poor early decisions However, can be disastrous) extensions exist CS 540 - Fall 2016 (© Jude Shavlik), Lecture 7, Week 4 27

A Sample Search Tree - so we can use another search method besides hill climbing (‘greedy’ algo) • Nodes are PARTIALLY COMPLETE D-TREES • Expand ‘left most’ (in yellow) question mark (? ) of current node • All possible trees can be generated (given thresholds ‘implied’ by real values in train set) Create leaf node Add F 1 - ? Add F 2 . . . ? 9/29/16 ? Assume F 2 scores best F 2 + FN ? Add F 1 F 2 + Add FN ? CS 540 - Fall 2016 (© Jude Shavlik), Lecture 7, Week 4 28

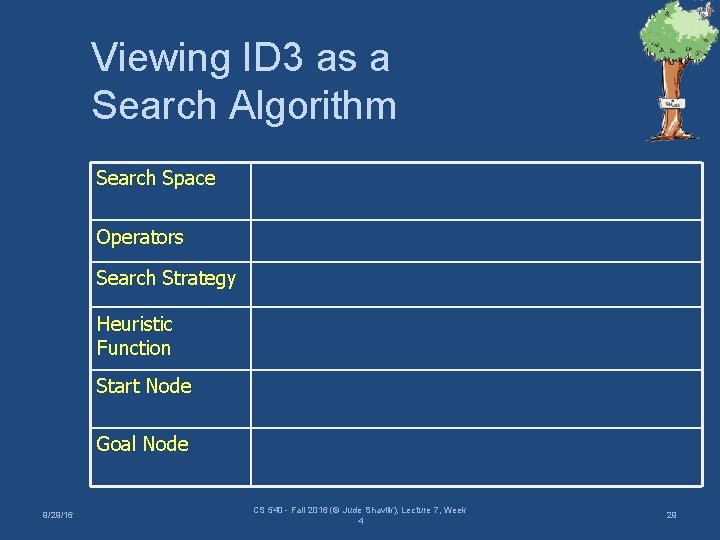

Viewing ID 3 as a Search Algorithm Search Space Operators Search Strategy Heuristic Function Start Node Goal Node 9/29/16 CS 540 - Fall 2016 (© Jude Shavlik), Lecture 7, Week 4 29

Viewing ID 3 as a Search Algorithm 9/29/16 Search Space of all decision trees constructible using current feature set Operators Add a node (ie, grow tree) Search Strategy Hill Climbing Heuristic Function Information Gain Start Node An isolated leaf node marked ‘? ’ Goal Node Tree that separates all the training data (‘post pruning’ may be done later to reduce overfitting) (Other d-tree algo’s use similar ‘purity measures’) CS 540 - Fall 2016 (© Jude Shavlik), Lecture 7, Week 4 30

Issues Methodology Algo’s What We’ve Covered So Far 9/29/16 • Supervised ML Algorithms – Instance-based (k. NN) – Logic-based (ID 3, Decision Stumps) – Ensembles (Random Forests, Bagging, Boosting) • Train/Tune/Test Sets, N-Fold Cross Validation • • Feature Space, (Greedily) Searching Hypothesis Spaces Parameter Tuning (‘Model Selection’), Feature Selection (info gain) Dealing w/ Real-Valued and Hierarchical Features Overfitting Reduction, Occam’s Razor Fixed-Length Feature Vectors, Graph/Logic-Based Reps of Examples Understandability of Learned Models, “Generalizing not Memorizing” Briefly: Missing Feature Values, Stability (to small changes in training sets) CS 540 - Fall 2016 (© Jude Shavlik), Lecture 7, Week 4 31
