Todays Presentation Source Piping Storage Treatment and Distribution

Today’s Presentation Source Piping Storage, Treatment, and Distribution

Water Sources and Collection

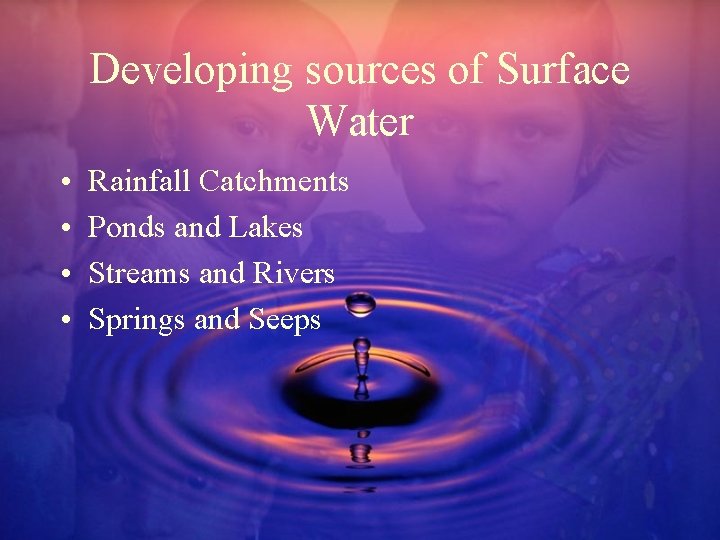

Developing sources of Surface Water • • Rainfall Catchments Ponds and Lakes Streams and Rivers Springs and Seeps

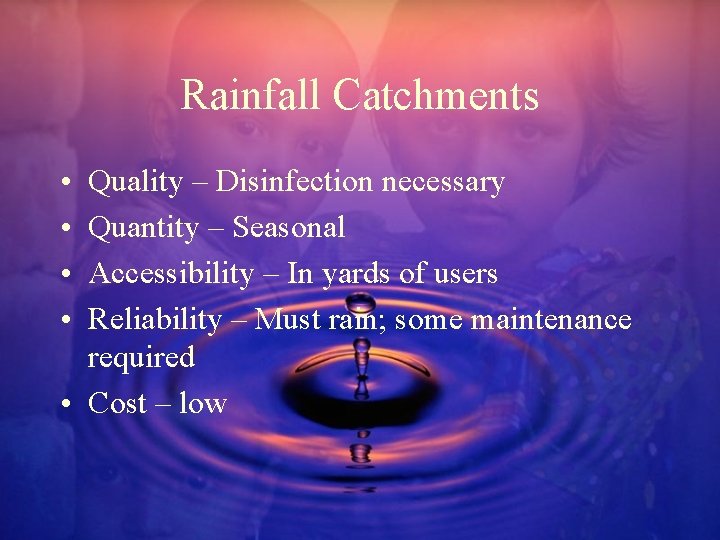

Rainfall Catchments • • Quality – Disinfection necessary Quantity – Seasonal Accessibility – In yards of users Reliability – Must rain; some maintenance required • Cost – low

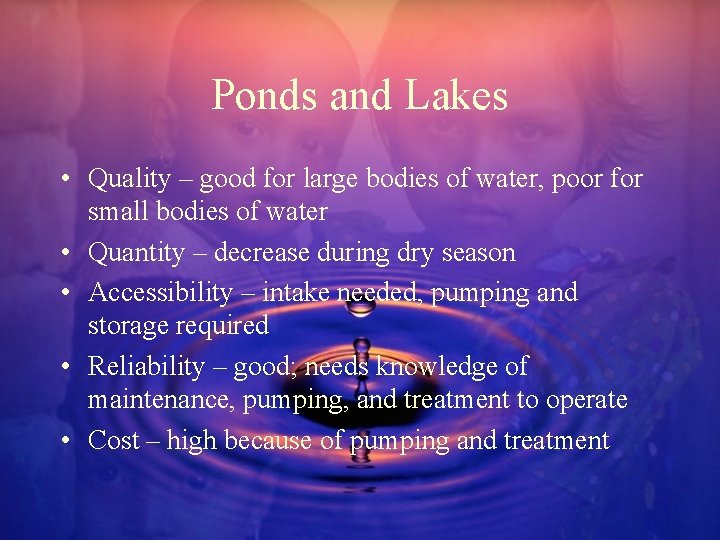

Ponds and Lakes • Quality – good for large bodies of water, poor for small bodies of water • Quantity – decrease during dry season • Accessibility – intake needed, pumping and storage required • Reliability – good; needs knowledge of maintenance, pumping, and treatment to operate • Cost – high because of pumping and treatment

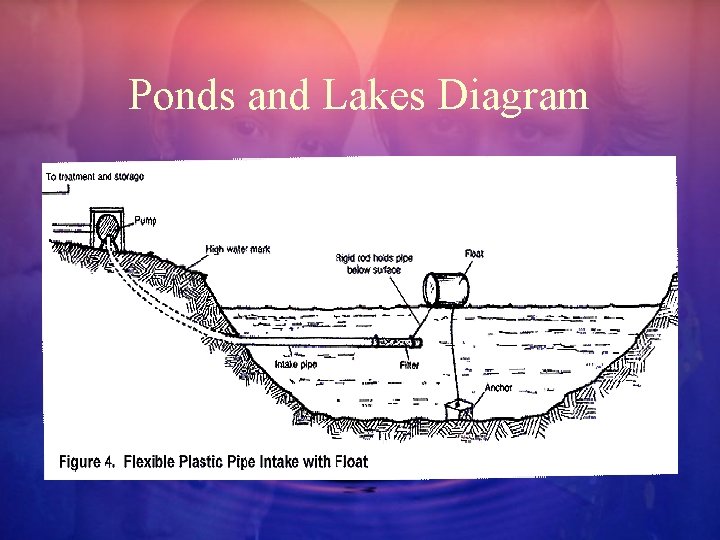

Ponds and Lakes Diagram

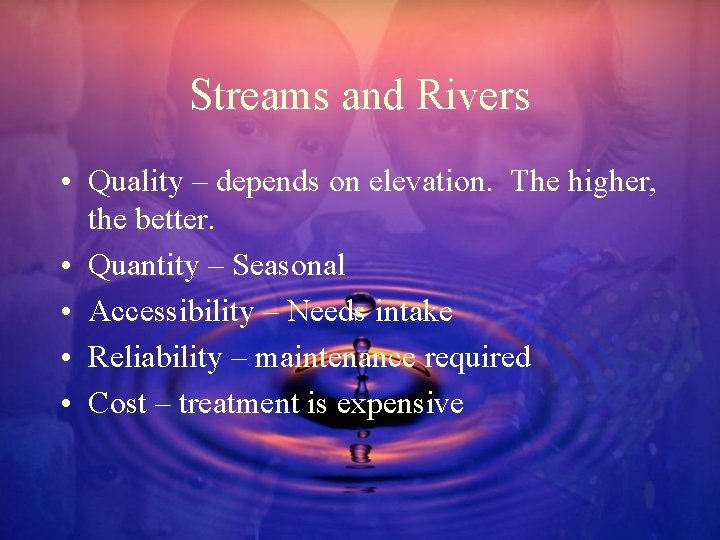

Streams and Rivers • Quality – depends on elevation. The higher, the better. • Quantity – Seasonal • Accessibility – Needs intake • Reliability – maintenance required • Cost – treatment is expensive

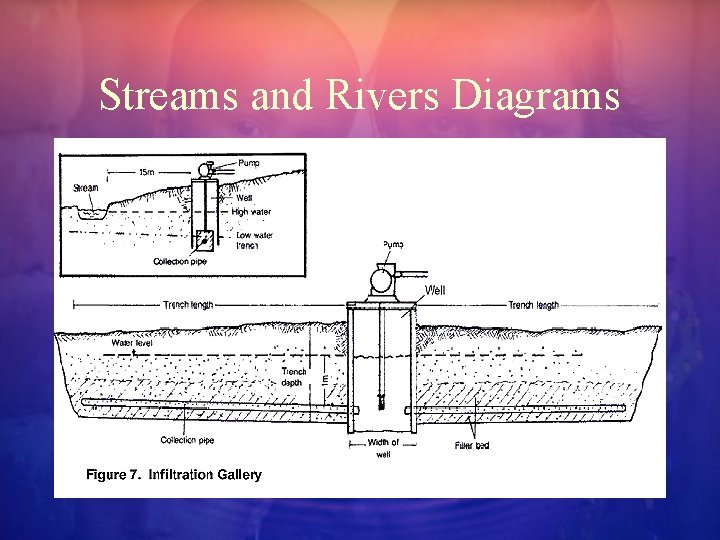

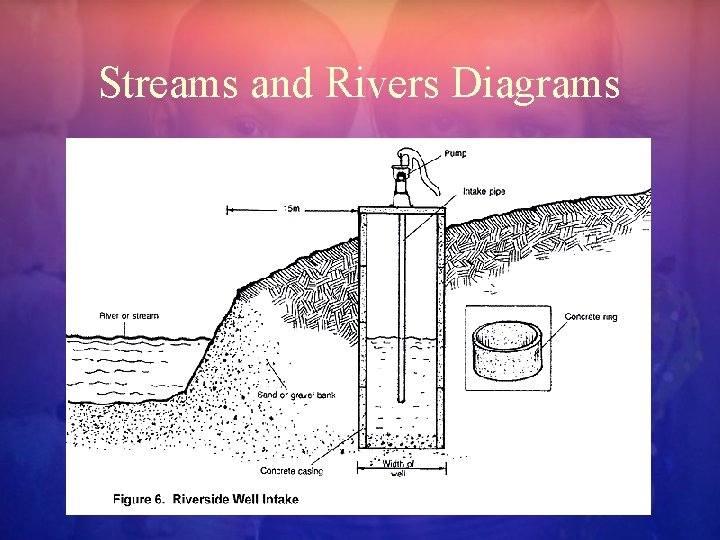

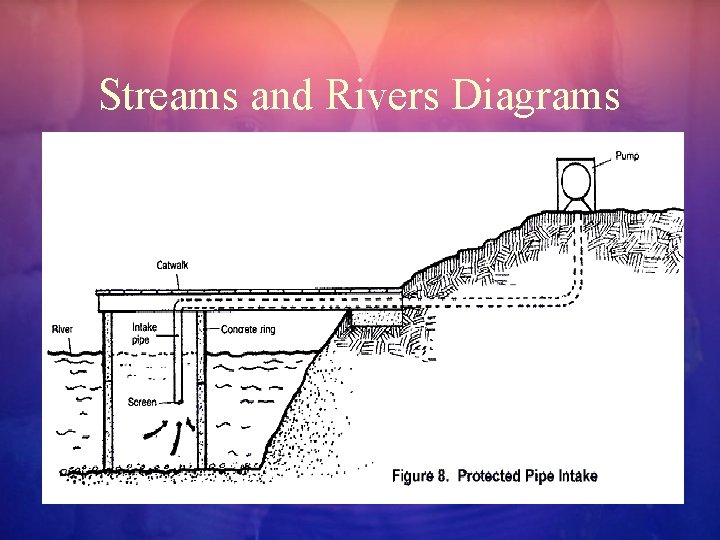

Streams and Rivers Diagrams

Streams and Rivers Diagrams

Streams and Rivers Diagrams

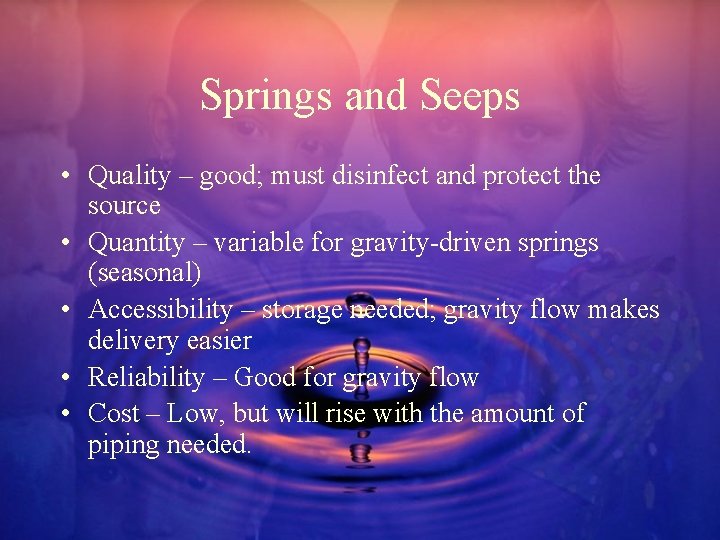

Springs and Seeps • Quality – good; must disinfect and protect the source • Quantity – variable for gravity-driven springs (seasonal) • Accessibility – storage needed; gravity flow makes delivery easier • Reliability – Good for gravity flow • Cost – Low, but will rise with the amount of piping needed.

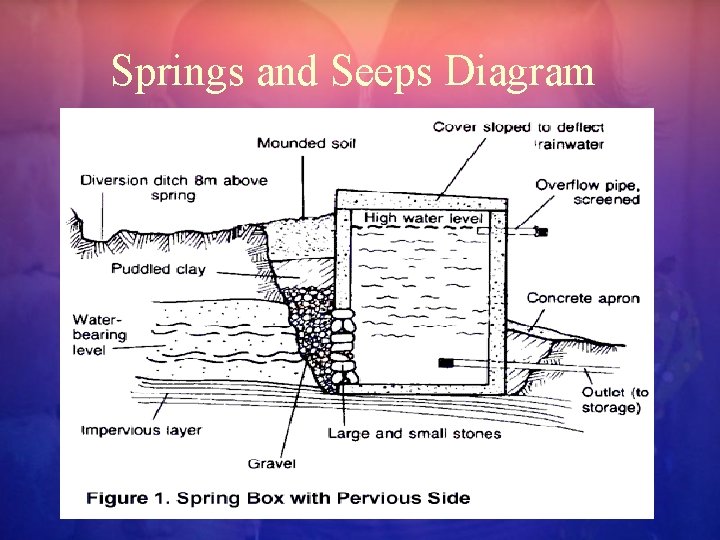

Springs and Seeps Diagram

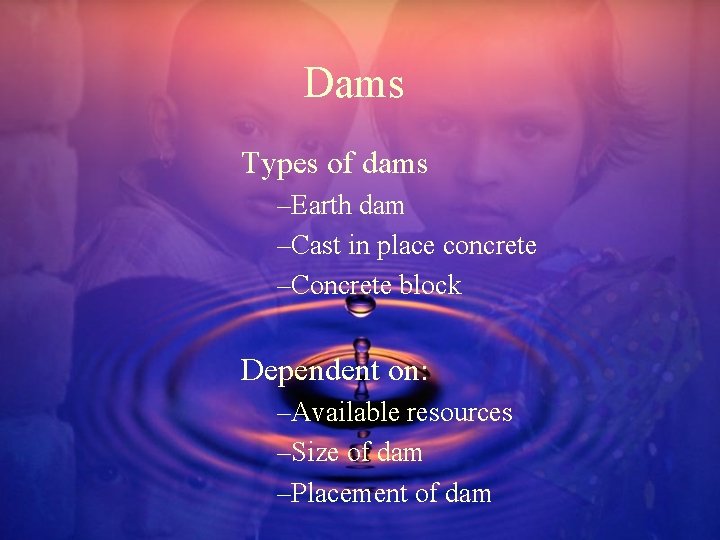

Dams Types of dams –Earth dam –Cast in place concrete –Concrete block Dependent on: –Available resources –Size of dam –Placement of dam

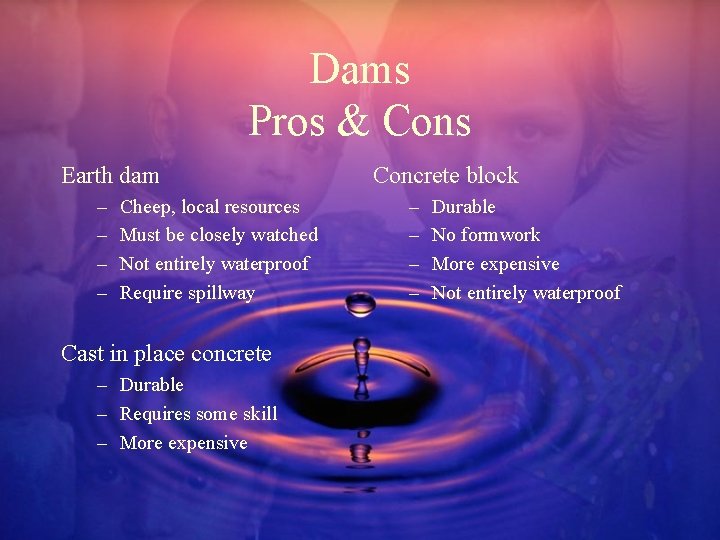

Dams Pros & Cons Earth dam – – Cheep, local resources Must be closely watched Not entirely waterproof Require spillway Cast in place concrete – Durable – Requires some skill – More expensive Concrete block – – Durable No formwork More expensive Not entirely waterproof

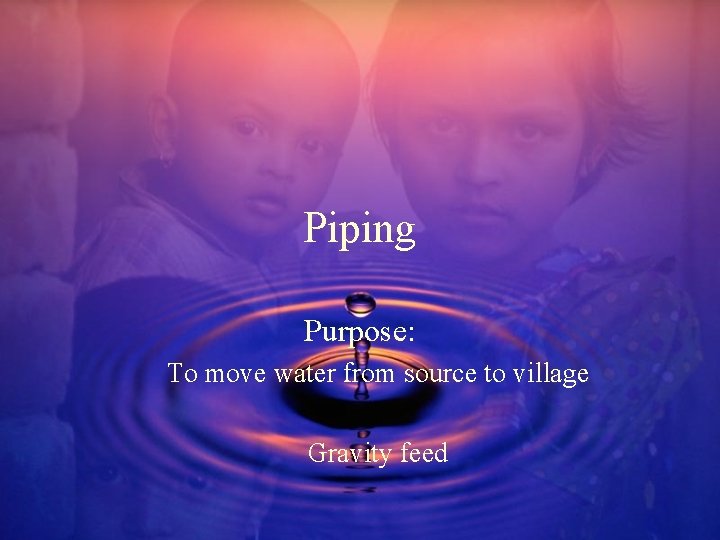

Piping Purpose: To move water from source to village Gravity feed

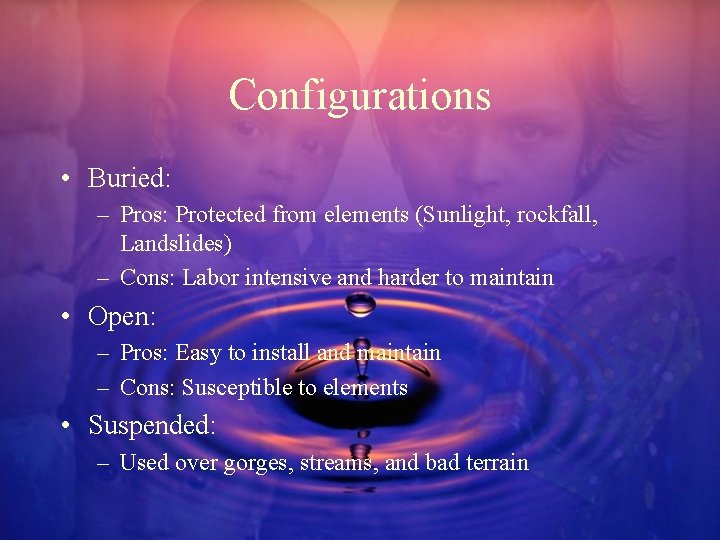

Configurations • Buried: – Pros: Protected from elements (Sunlight, rockfall, Landslides) – Cons: Labor intensive and harder to maintain • Open: – Pros: Easy to install and maintain – Cons: Susceptible to elements • Suspended: – Used over gorges, streams, and bad terrain

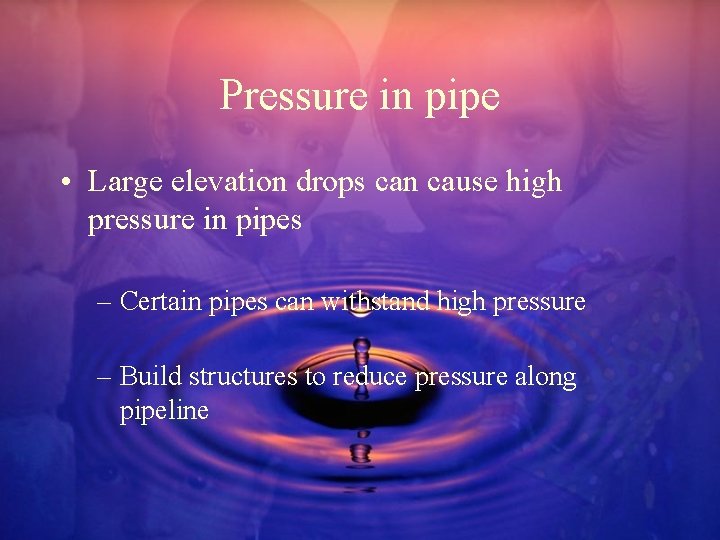

Pressure in pipe • Large elevation drops can cause high pressure in pipes – Certain pipes can withstand high pressure – Build structures to reduce pressure along pipeline

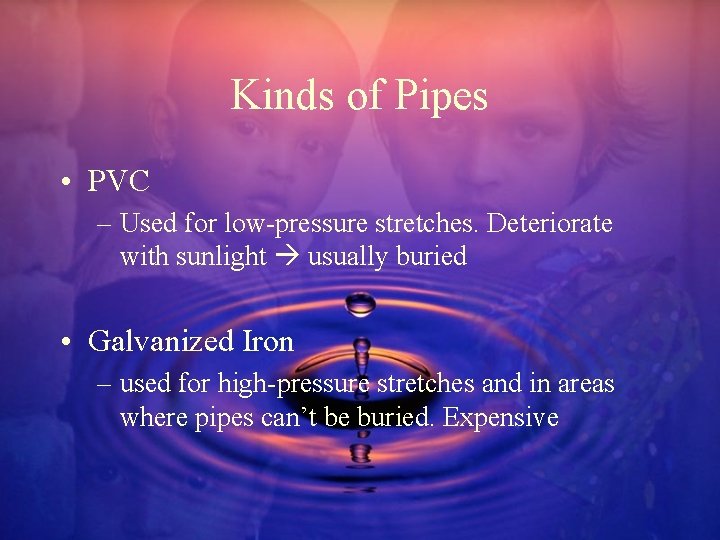

Kinds of Pipes • PVC – Used for low-pressure stretches. Deteriorate with sunlight usually buried • Galvanized Iron – used for high-pressure stretches and in areas where pipes can’t be buried. Expensive

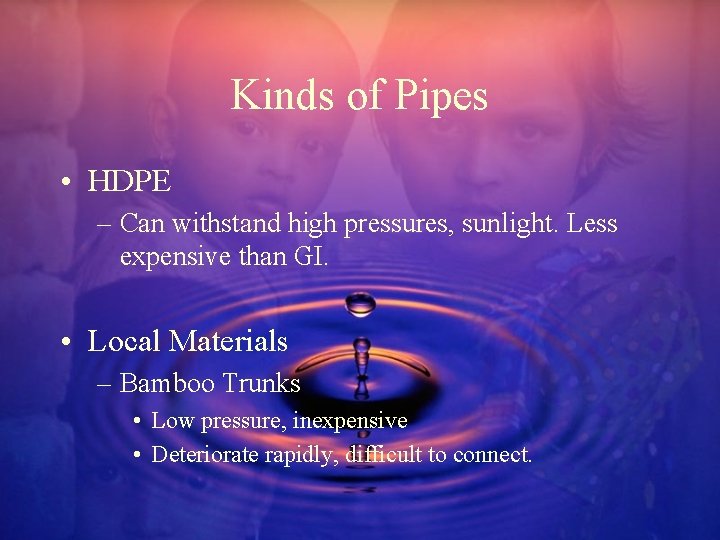

Kinds of Pipes • HDPE – Can withstand high pressures, sunlight. Less expensive than GI. • Local Materials – Bamboo Trunks • Low pressure, inexpensive • Deteriorate rapidly, difficult to connect.

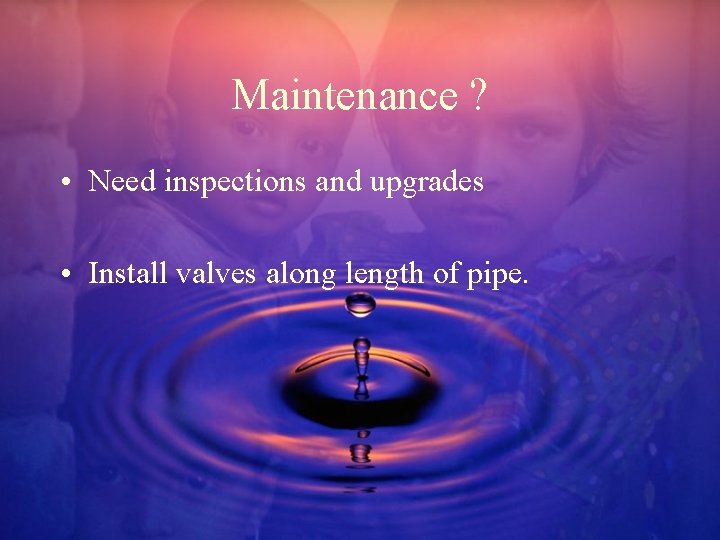

Maintenance ? • Need inspections and upgrades • Install valves along length of pipe.

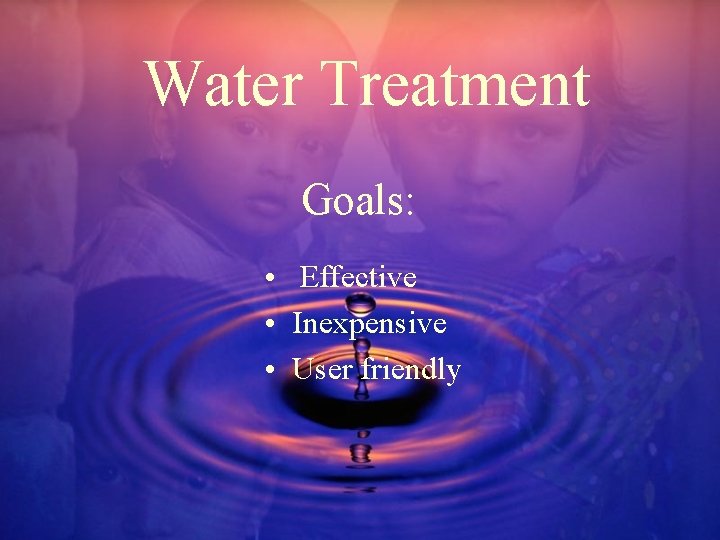

Water Treatment Goals: • Effective • Inexpensive • User friendly

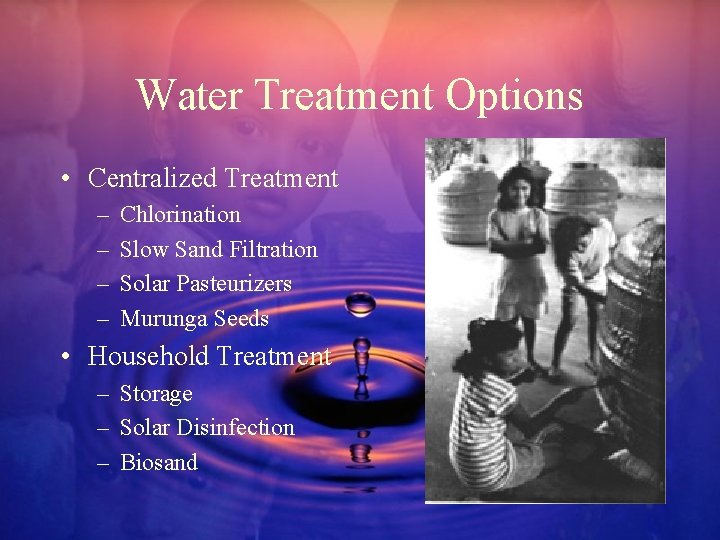

Water Treatment Options • Centralized Treatment – – Chlorination Slow Sand Filtration Solar Pasteurizers Murunga Seeds • Household Treatment – Storage – Solar Disinfection – Biosand

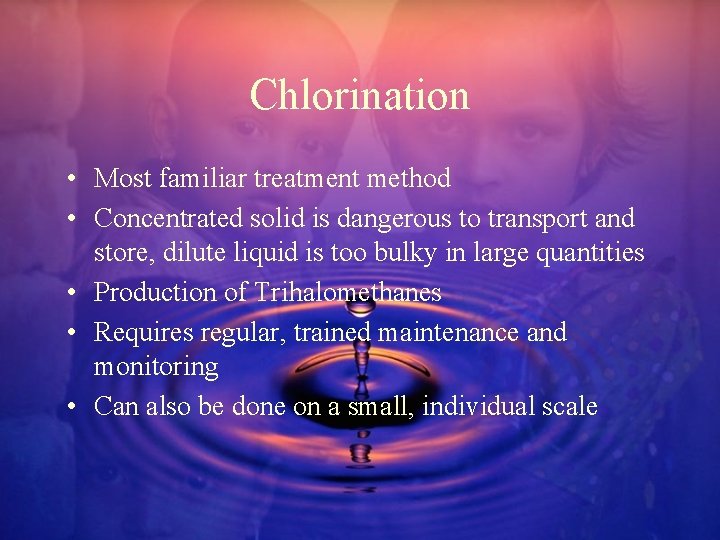

Chlorination • Most familiar treatment method • Concentrated solid is dangerous to transport and store, dilute liquid is too bulky in large quantities • Production of Trihalomethanes • Requires regular, trained maintenance and monitoring • Can also be done on a small, individual scale

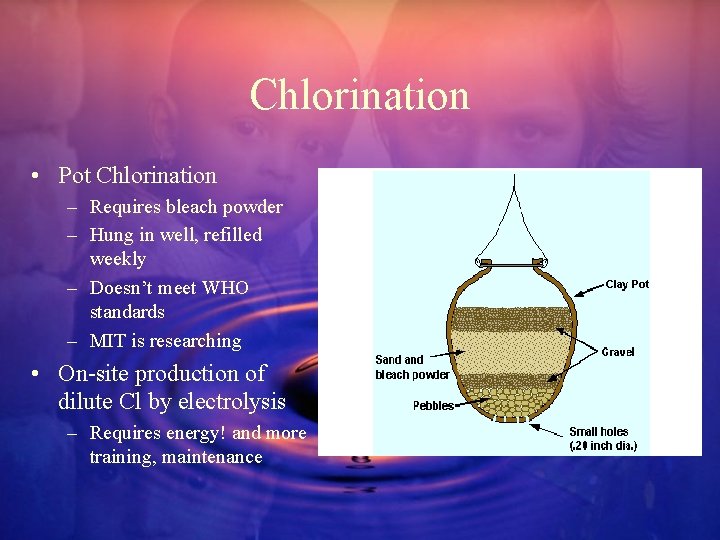

Chlorination • Pot Chlorination – Requires bleach powder – Hung in well, refilled weekly – Doesn’t meet WHO standards – MIT is researching • On-site production of dilute Cl by electrolysis – Requires energy! and more training, maintenance

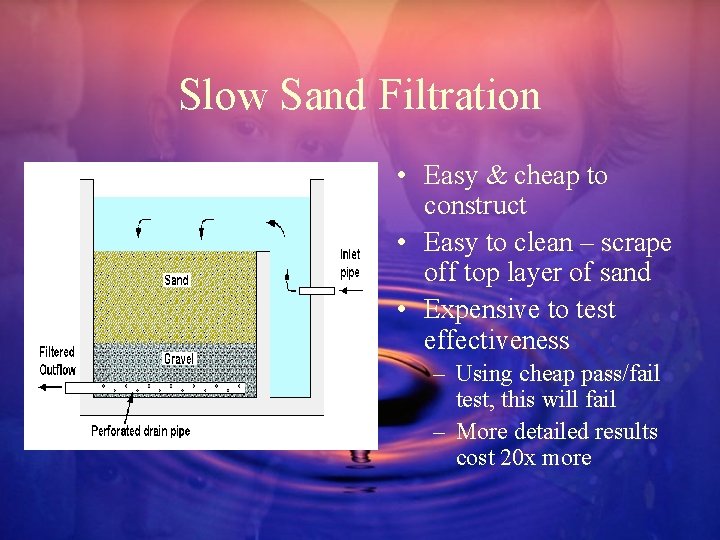

Slow Sand Filtration • Easy & cheap to construct • Easy to clean – scrape off top layer of sand • Expensive to test effectiveness – Using cheap pass/fail test, this will fail – More detailed results cost 20 x more

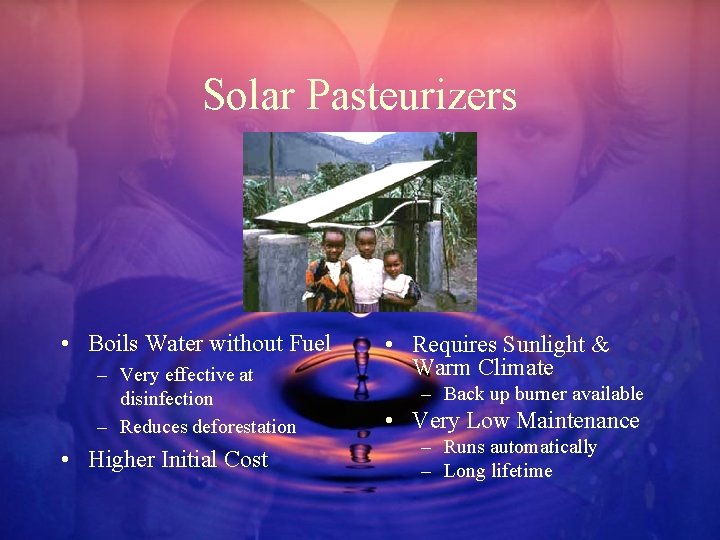

Solar Pasteurizers • Boils Water without Fuel – Very effective at disinfection – Reduces deforestation • Higher Initial Cost • Requires Sunlight & Warm Climate – Back up burner available • Very Low Maintenance – Runs automatically – Long lifetime

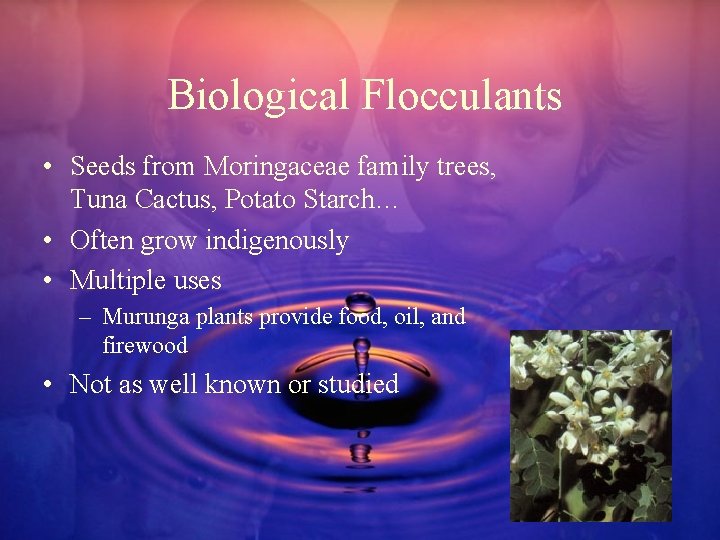

Biological Flocculants • Seeds from Moringaceae family trees, Tuna Cactus, Potato Starch… • Often grow indigenously • Multiple uses – Murunga plants provide food, oil, and firewood • Not as well known or studied

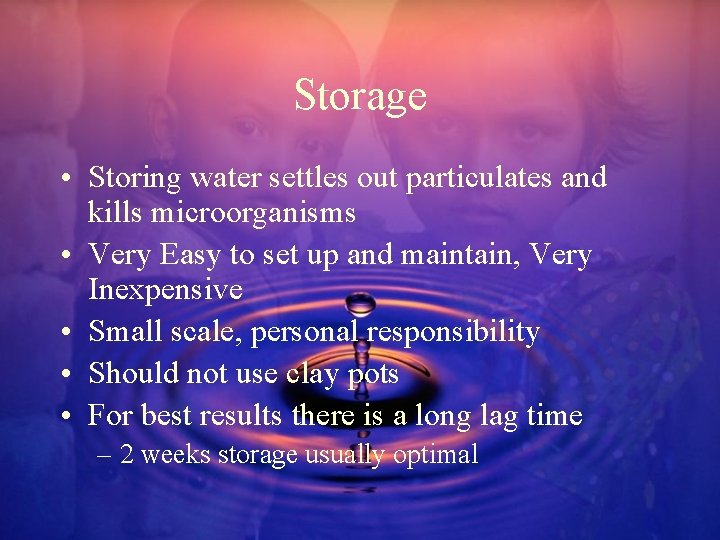

Storage • Storing water settles out particulates and kills microorganisms • Very Easy to set up and maintain, Very Inexpensive • Small scale, personal responsibility • Should not use clay pots • For best results there is a long lag time – 2 weeks storage usually optimal

Solar Disinfection • • • Small scale version of solar pasteurization Very small quantities Very easy, individual control Reliant on climate Time consuming

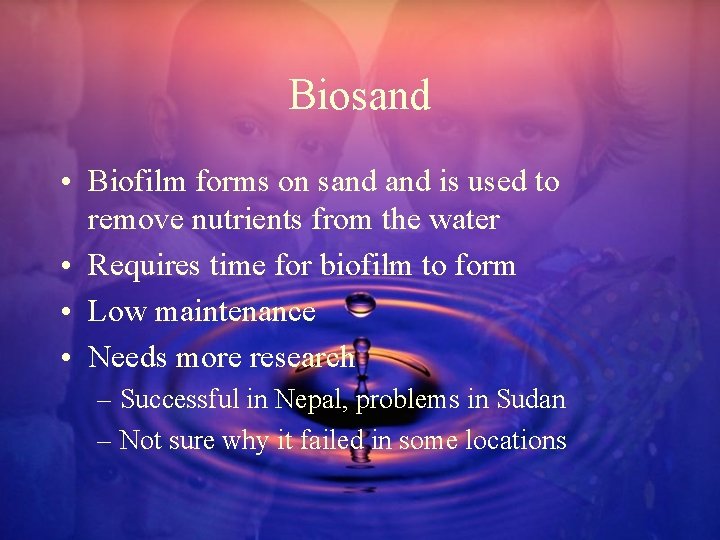

Biosand • Biofilm forms on sand is used to remove nutrients from the water • Requires time for biofilm to form • Low maintenance • Needs more research – Successful in Nepal, problems in Sudan – Not sure why it failed in some locations

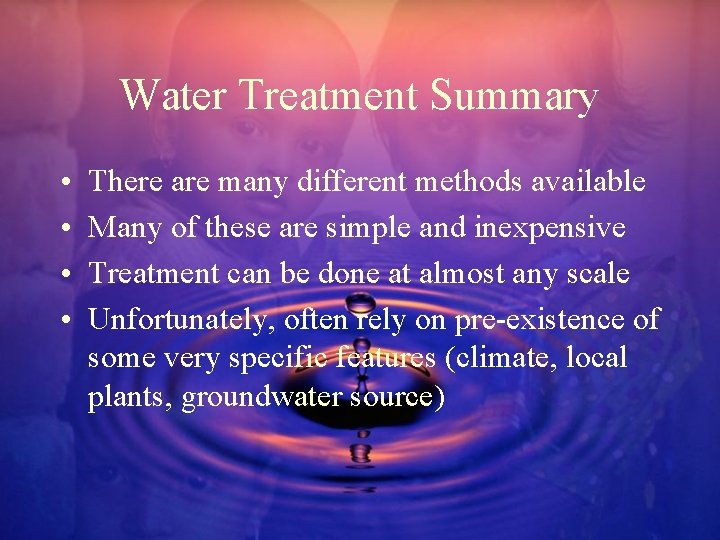

Water Treatment Summary • • There are many different methods available Many of these are simple and inexpensive Treatment can be done at almost any scale Unfortunately, often rely on pre-existence of some very specific features (climate, local plants, groundwater source)

Distribution in the Village

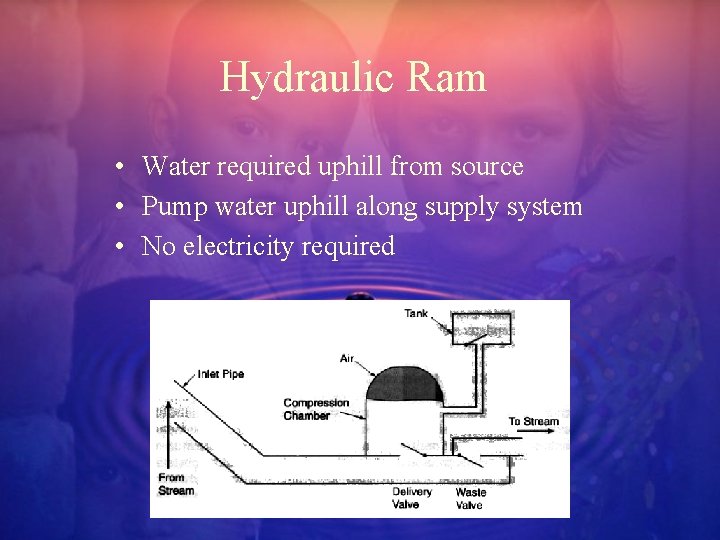

Hydraulic Ram • Water required uphill from source • Pump water uphill along supply system • No electricity required

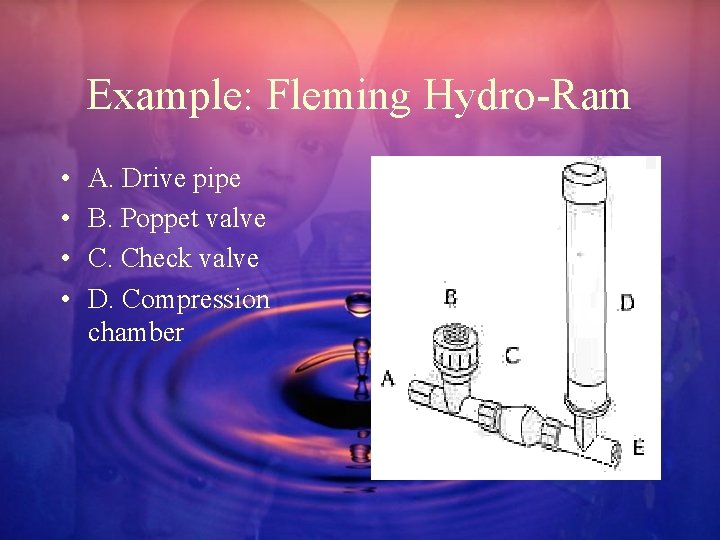

Example: Fleming Hydro-Ram • • A. Drive pipe B. Poppet valve C. Check valve D. Compression chamber

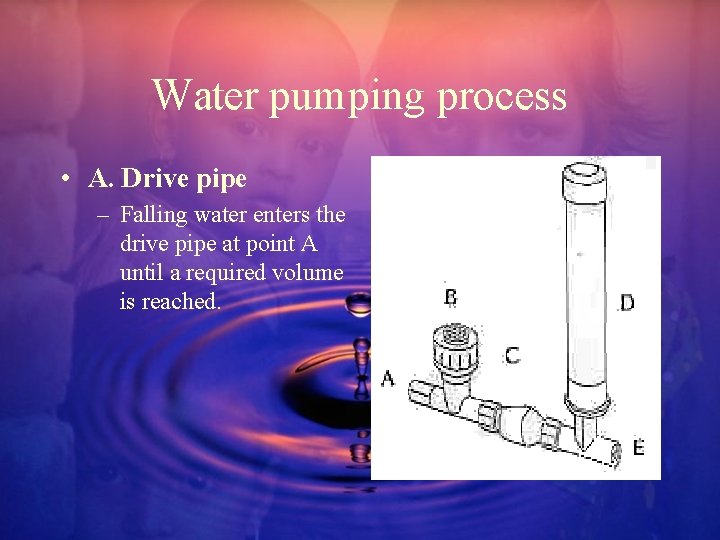

Water pumping process • A. Drive pipe – Falling water enters the drive pipe at point A until a required volume is reached.

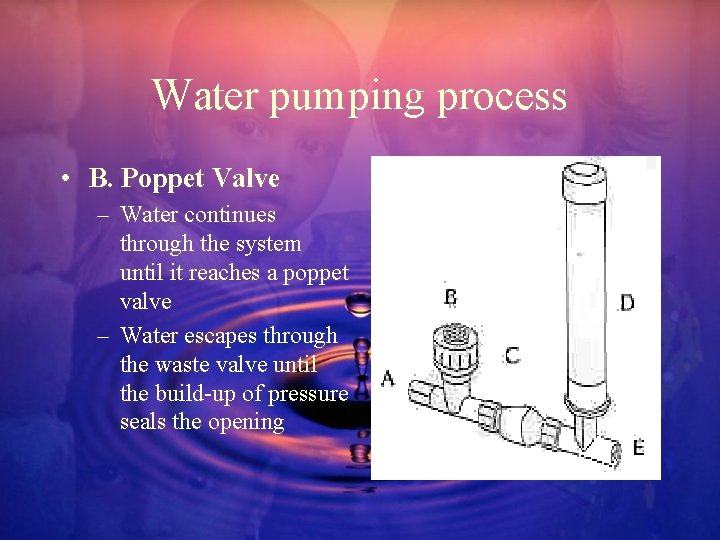

Water pumping process • B. Poppet Valve – Water continues through the system until it reaches a poppet valve – Water escapes through the waste valve until the build-up of pressure seals the opening

Water pumping process • C. Check Valve – Water forces open the one-way check valve because the other exit is sealed – Water passes the check valve and begins to compress the trapped air in the vertical compression chamber

Water pumping process • D. Compression Chamber – Water pushes against the trapped air in the vertical compression chamber – The trapped air acts like a piston, forcing the water back down the compression chamber

Water pumping process • E. Delivery Pipe – With the one-way check valve closed, the water enters the delivery pipe attached at (E) after it is forced out of the ram.

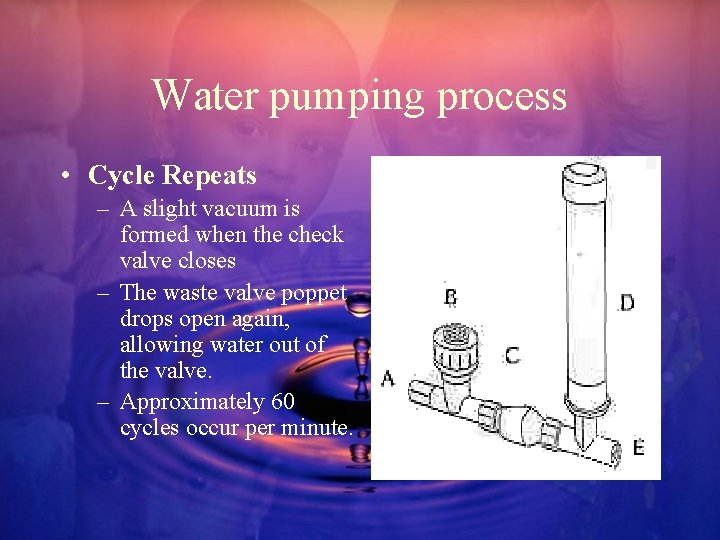

Water pumping process • Cycle Repeats – A slight vacuum is formed when the check valve closes – The waste valve poppet drops open again, allowing water out of the valve. – Approximately 60 cycles occur per minute.

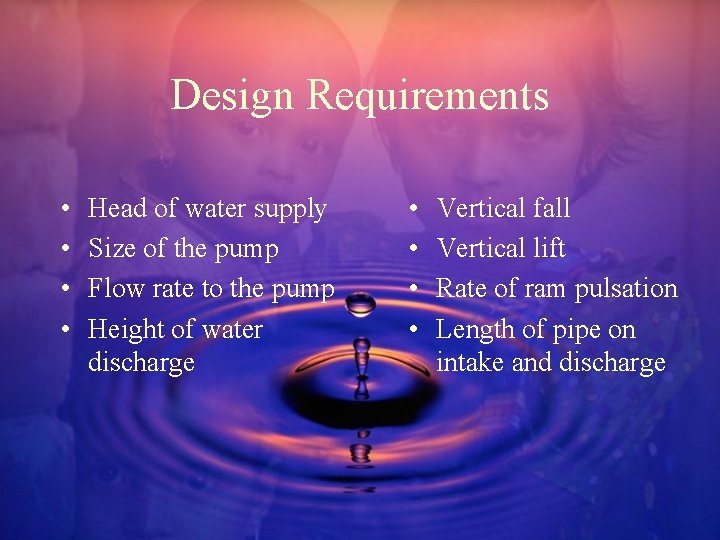

Design Requirements • • Head of water supply Size of the pump Flow rate to the pump Height of water discharge • • Vertical fall Vertical lift Rate of ram pulsation Length of pipe on intake and discharge

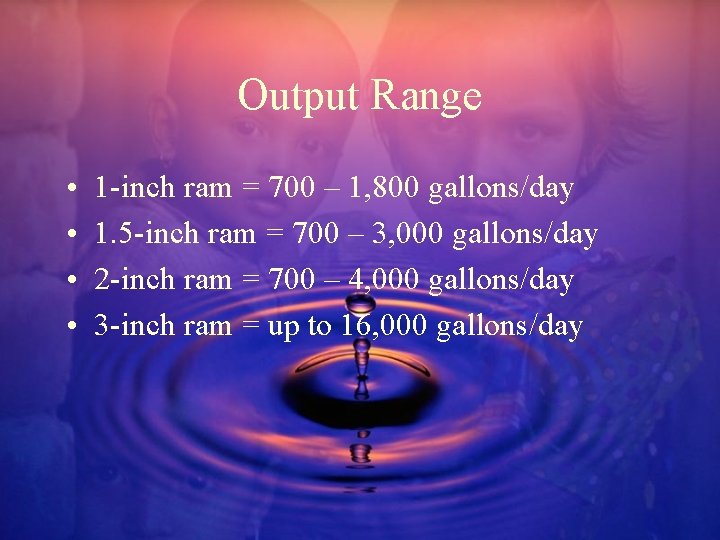

Output Range • • 1 -inch ram = 700 – 1, 800 gallons/day 1. 5 -inch ram = 700 – 3, 000 gallons/day 2 -inch ram = 700 – 4, 000 gallons/day 3 -inch ram = up to 16, 000 gallons/day

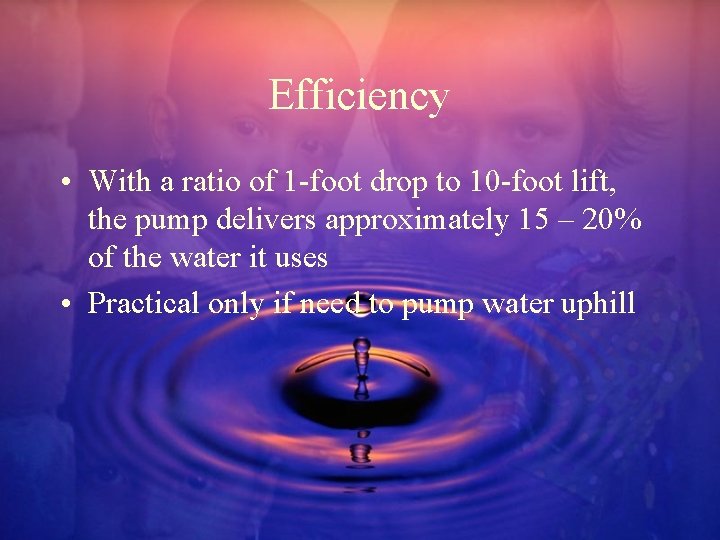

Efficiency • With a ratio of 1 -foot drop to 10 -foot lift, the pump delivers approximately 15 – 20% of the water it uses • Practical only if need to pump water uphill

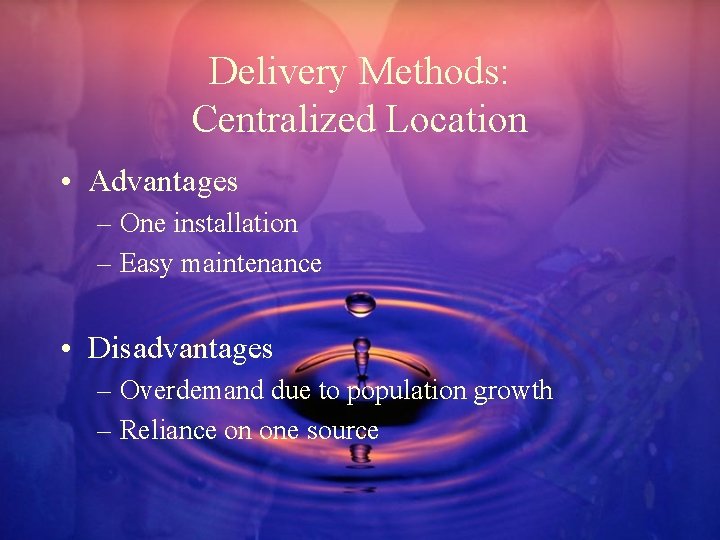

Delivery Methods: Centralized Location • Advantages – One installation – Easy maintenance • Disadvantages – Overdemand due to population growth – Reliance on one source

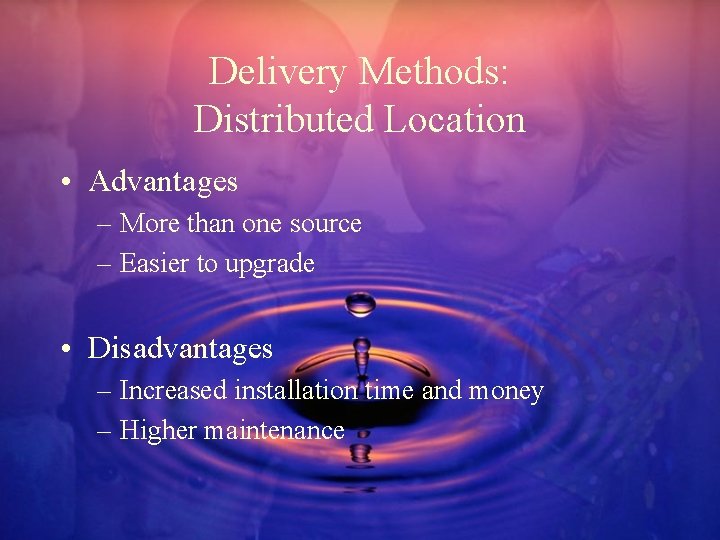

Delivery Methods: Distributed Location • Advantages – More than one source – Easier to upgrade • Disadvantages – Increased installation time and money – Higher maintenance
