Today’s Objective: What Makes Sedimentary Rocks Special? Sedimentary Rocks are one of the three

Today’s Objective: What Makes Sedimentary Rocks Special? Sedimentary Rocks are one of the three main rock types

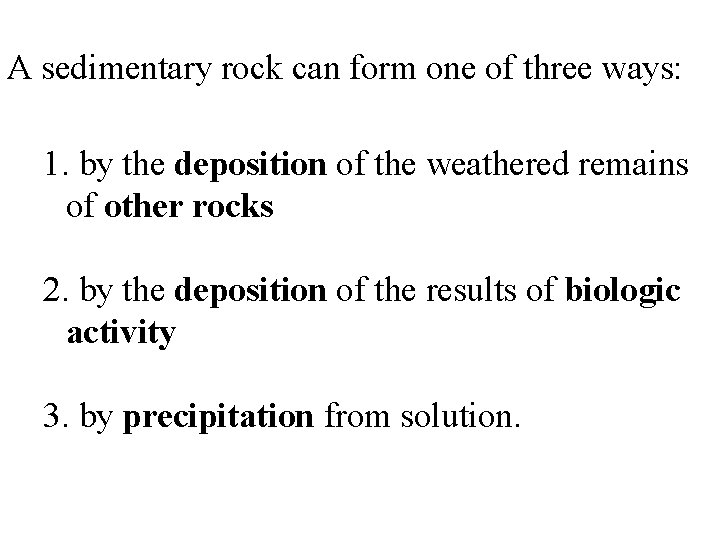

A sedimentary rock can form one of three ways: 1. by the deposition of

A sedimentary rock can form one of three ways: 1. by the deposition of the weathered remains of other rocks 2. by the deposition of the results of biologic activity 3. by precipitation from solution.

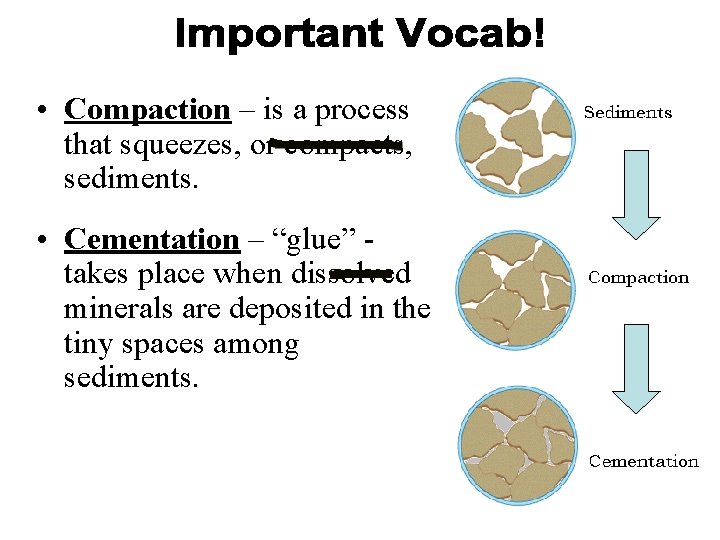

 • Compaction – is a process that squeezes, or compacts, sediments. • Cementation

• Compaction – is a process that squeezes, or compacts, sediments. • Cementation – “glue” takes place when dissolved minerals are deposited in the tiny spaces among sediments.

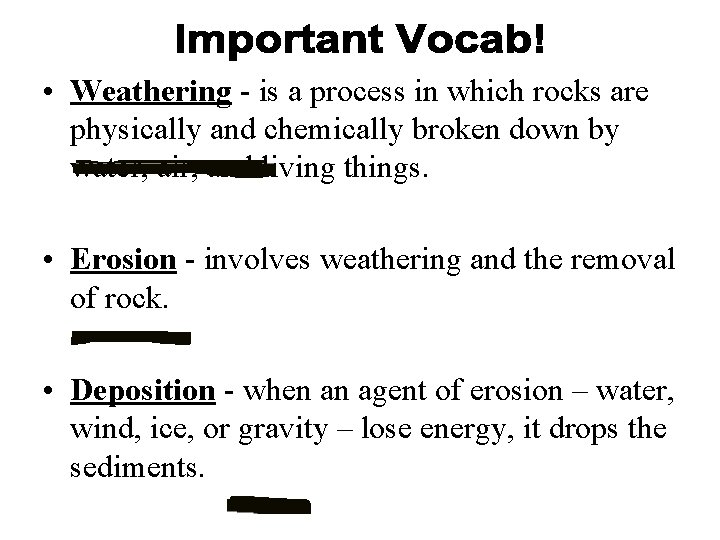

 • Weathering - is a process in which rocks are physically and chemically

• Weathering - is a process in which rocks are physically and chemically broken down by water, air, and living things. • Erosion - involves weathering and the removal of rock. • Deposition - when an agent of erosion – water, wind, ice, or gravity – lose energy, it drops the sediments.

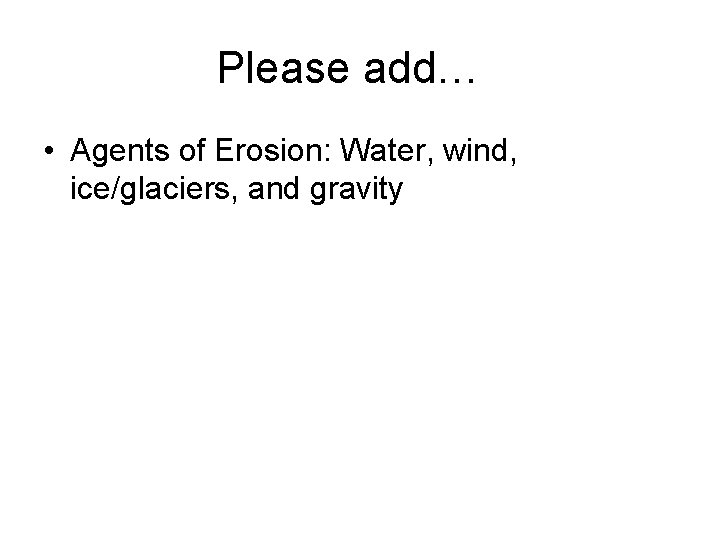

Please add… • Agents of Erosion: Water, wind, ice/glaciers, and gravity

Please add… • Agents of Erosion: Water, wind, ice/glaciers, and gravity

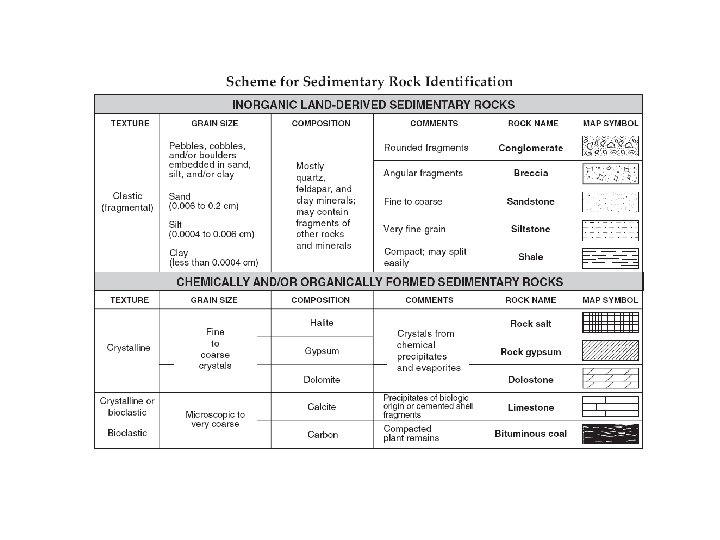

Classification of Sedimentary Rocks • Can be classified into two main groups according to

Classification of Sedimentary Rocks • Can be classified into two main groups according to the way they form.

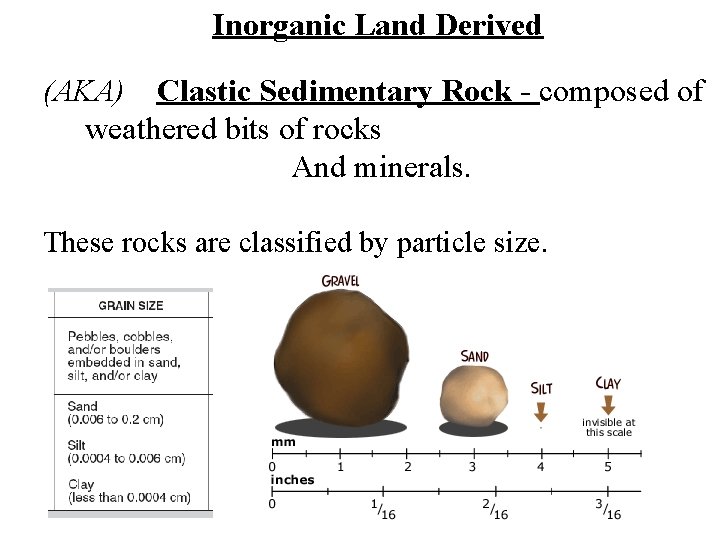

Inorganic Land Derived (AKA) Clastic Sedimentary Rock - composed of weathered bits of rocks

Inorganic Land Derived (AKA) Clastic Sedimentary Rock - composed of weathered bits of rocks And minerals. These rocks are classified by particle size.

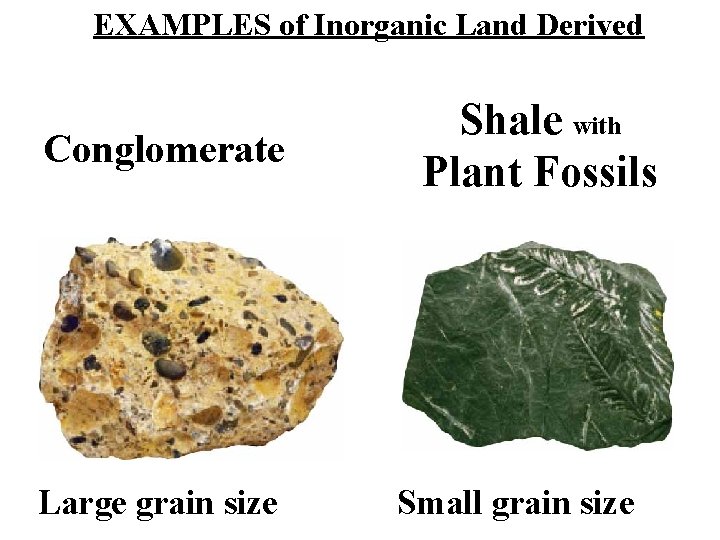

EXAMPLES of Inorganic Land Derived Conglomerate Large grain size Shale with Plant Fossils Small

EXAMPLES of Inorganic Land Derived Conglomerate Large grain size Shale with Plant Fossils Small grain size

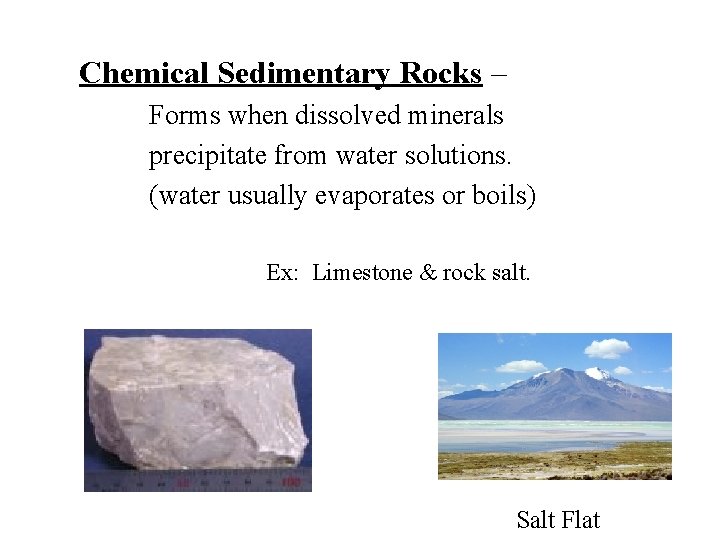

Chemical Sedimentary Rocks – Forms when dissolved minerals precipitate from water solutions. (water usually

Chemical Sedimentary Rocks – Forms when dissolved minerals precipitate from water solutions. (water usually evaporates or boils) Ex: Limestone & rock salt. Salt Flat

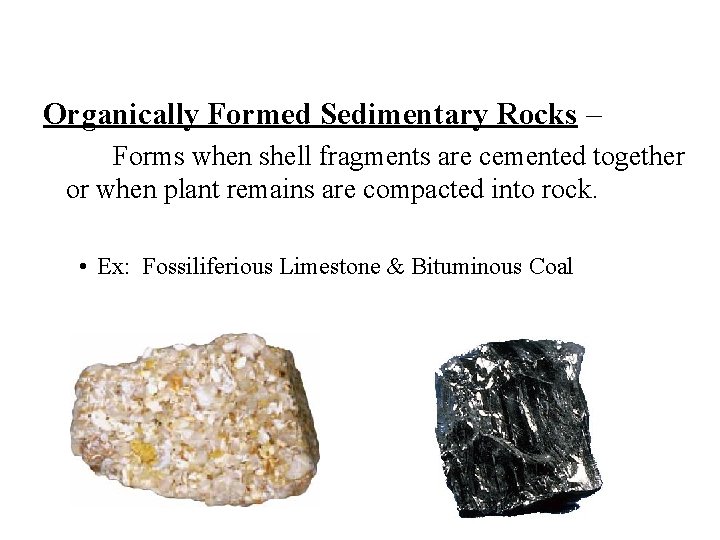

Organically Formed Sedimentary Rocks – Forms when shell fragments are cemented together or when

Organically Formed Sedimentary Rocks – Forms when shell fragments are cemented together or when plant remains are compacted into rock. • Ex: Fossiliferious Limestone & Bituminous Coal

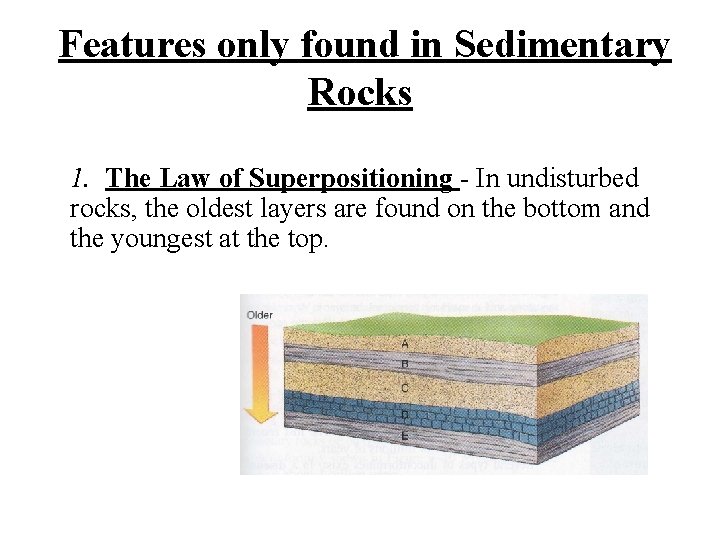

Features only found in Sedimentary Rocks 1. The Law of Superpositioning - In undisturbed

Features only found in Sedimentary Rocks 1. The Law of Superpositioning - In undisturbed rocks, the oldest layers are found on the bottom and the youngest at the top.

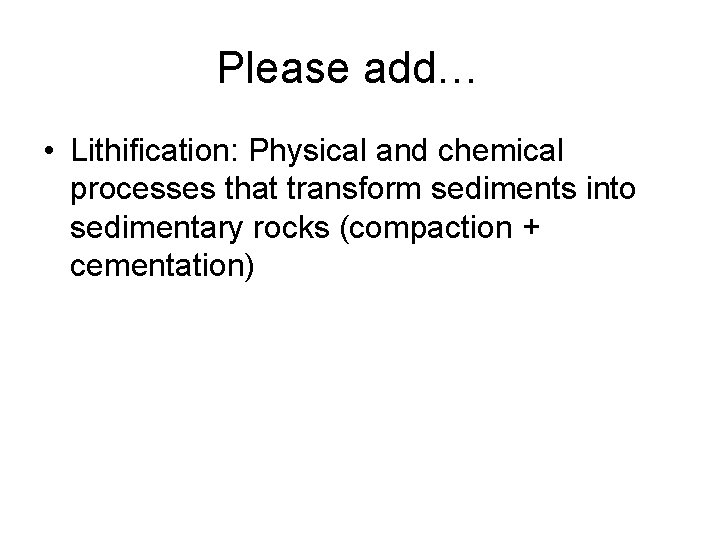

Please add… • Lithification: Physical and chemical processes that transform sediments into sedimentary rocks

Please add… • Lithification: Physical and chemical processes that transform sediments into sedimentary rocks (compaction + cementation)

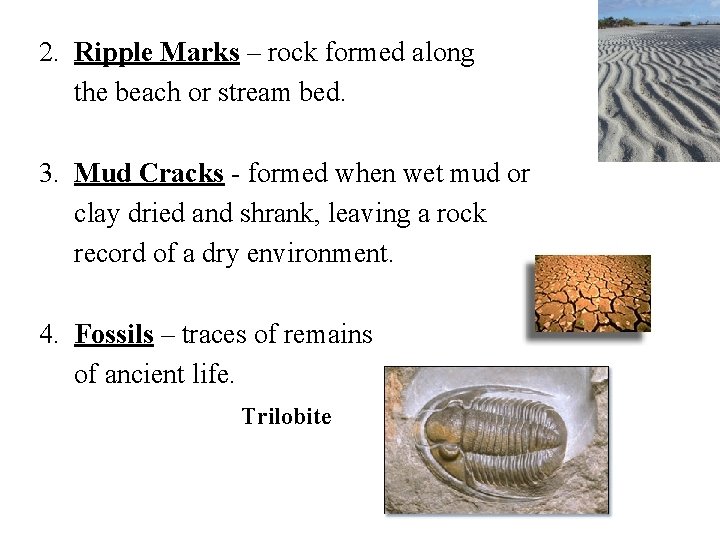

2. Ripple Marks – rock formed along the beach or stream bed. 3. Mud

2. Ripple Marks – rock formed along the beach or stream bed. 3. Mud Cracks - formed when wet mud or clay dried and shrank, leaving a rock record of a dry environment. 4. Fossils – traces of remains of ancient life. Trilobite

Where is the oldest layer located on this picture?

Where is the oldest layer located on this picture?
