To start today lets revisit Frontogenesis both the

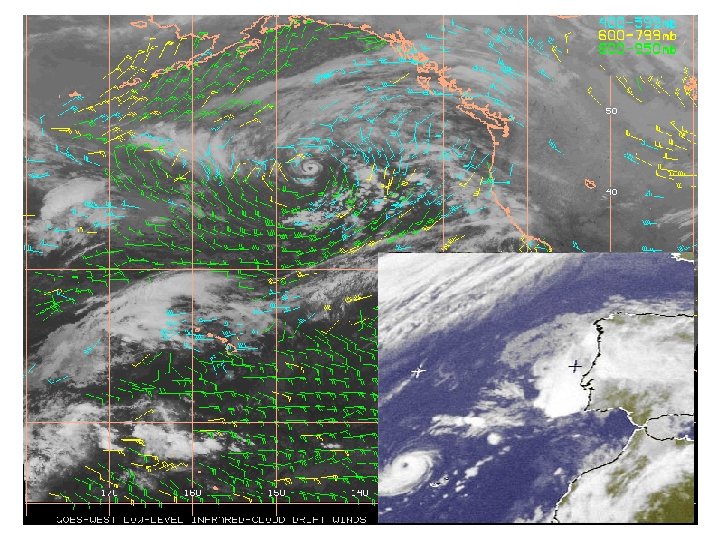

To start today: let’s revisit Frontogenesis, both the equation and the physical interpretations Simplified Form of the Frontogenesis Equation A B Term A: Shear term Term B: Confluence term Term C: Tilting term Term D: Diabatic Heating/Cooling term C D
Scratch paper u u is the horizontal, east-west wind. For this example, u is the left-to-right wind. u is defined as positive when its vector points to the east. Let’s define our coordinate system with the standard (x, y, z) method, where x increases to the east, y increases to the north, and z increases in the vertical. y y x
Scratch paper v v is the horizontal, north-south wind. For this example, v is the top-to-bottom wind. v is defined as positive when its vector points to the north. Let’s define our coordinate system with the standard (x, y, z) method, where x increases to the east, y increases to the north, and z increases in the vertical. y y x
Scratch paper θ θ is the potential temperature. It is defined as the temperature that an air parcel would acquire if it were displaced from downward from a certain level (possibly 850 mb, or 500 mb) to a reference level (usually the surface). θ is related to temperature, T, by Poisson’s equation, where p 0 is the reference pressure level, R is the universal gas constant (287 j kg-1 K-1) and cp is the specific heat at constant pressure (1004 j kg-1 K-1).

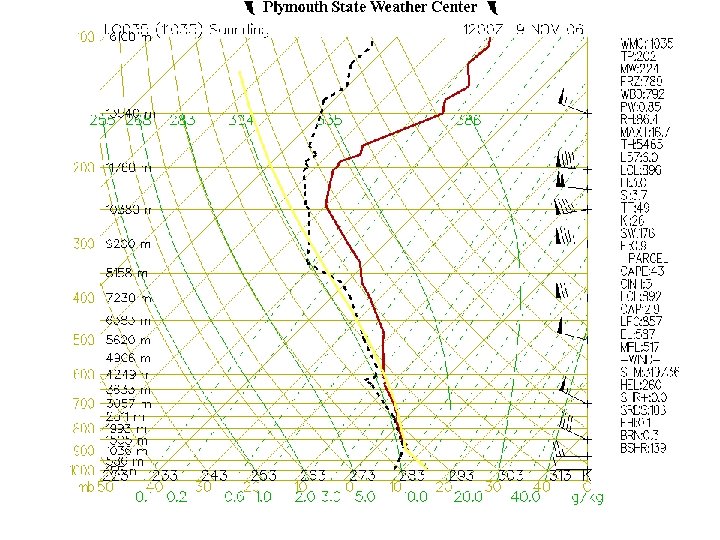

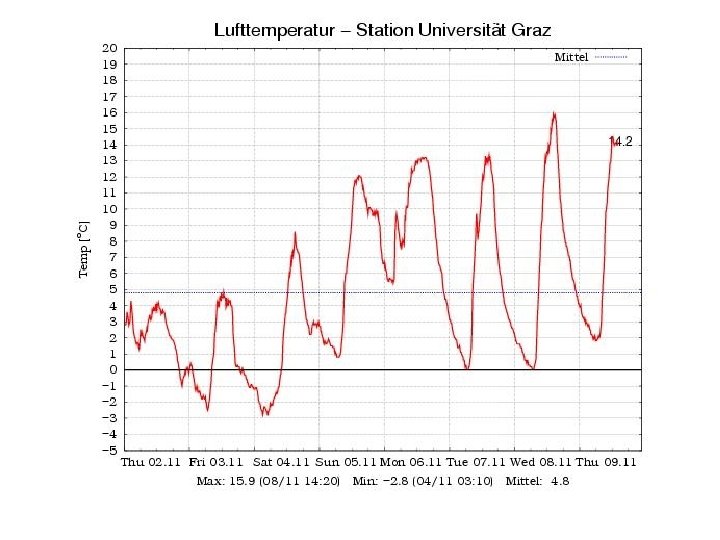

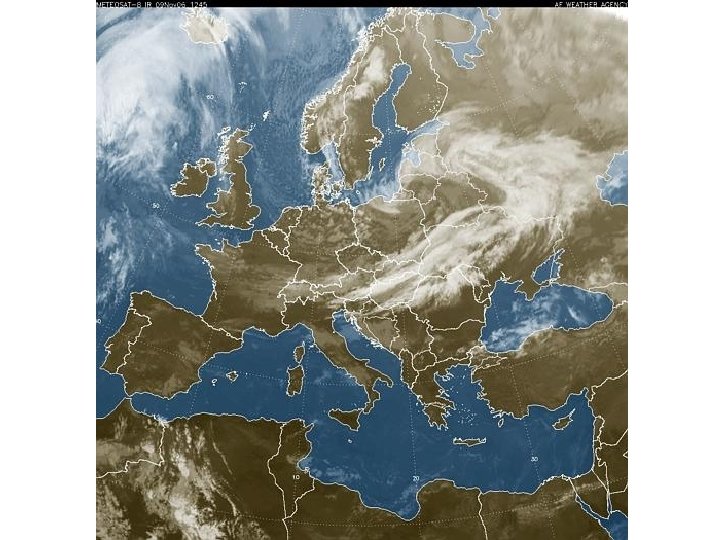

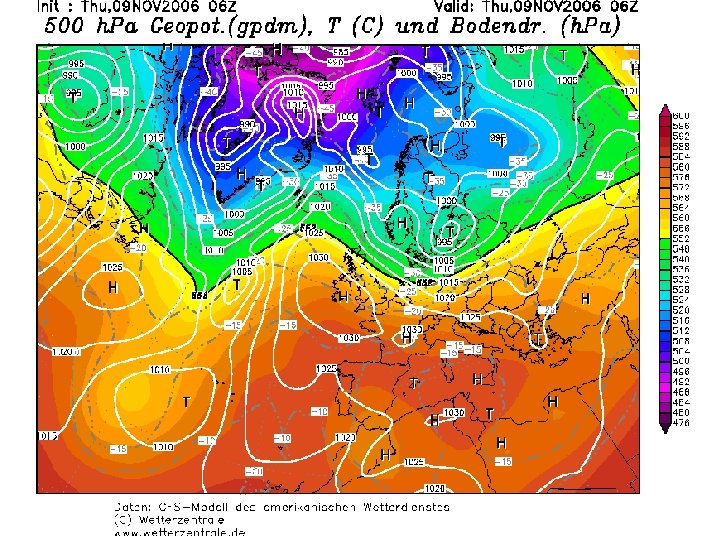

θ example from today The 700 mb temperature over Vienna at 0000 UTC on 09 Nov 2006 was -2. 5 C. Assume we transport this air down to the surface (Vienna’s surface pressure was 998 mb at 0000 UTC). What temperature will the air parcel have?
Frontogenesis: Shear Term (A) Individual contribution to F - Because both terms have negative contributions, F is positive and the front is created / strengthened -
Frontogenesis: Confluence Term (B) Cold advection to the north Individual contribution to F - - Warm advection to the south Because both terms have negative contributions, F is positive and the front is created / strengthened Carlson, 1991 Mid-Latitude Weather Systems
Why are cold fronts typically stronger than warm fronts? Look at the shear and confluence terms near cold and warm fronts Shear (A) and confluence (B) terms oppose one another near warm fronts Shear (A) and confluence (B) terms tend to work together near cold fronts Carlson (Mid-latitude Weather Systems, 1991)
Frontogenesis: Tilting Term (C) Individual contribution to F + + Because both terms have positive contributions, F is positive and the front is created / strengthened Adiabatic cooling to north and warming to south increases horizontal thermal gradient Carlson, 1991 Mid-Latitude Weather Systems
Frontogenesis: Diabatic Heating/Cooling Term (D) frontogenesis small dθ/dt large dθ/dt - - F is positive (two negatives become positive) frontolysis large dθ/dt small dθ/dt Carlson, 1991 Mid-Latitude Weather Systems - + F is negative
Thunderstorms: Airmass and Squall Line
Facts about thunderstorms • Common world-wide, especially in tropical and middle latitudes • Redistribute heat and moisture – Transport from the surface to upper-levels • Most (95%) are non-severe – “Severe” criteria: ¾” or larger hail, 50+ kt (58+ mph) wind, OR tornado
Types of thunderstorms • Four primary types of organization: 1. 2. 3. 4. • Airmass Squall line Multi-cell Supercell Focus today: Airmass and squall line
Elements required formation • Source of moisture • Conditionally unstable atmosphere • Mechanism to “trigger” an updraft – Lifting from an advancing frontal boundary or air flow over a mountain – Convective heating at the surface (from solar radiation) – Convergence of air at the surface
Airmass Thunderstorms • Occurs away from any frontal boundary – In fact, typically found in the middle of an airmass • “Trigger” mechanism: – Strong solar heating at the surface • Formation: typically late afternoon and evening – After sun heats the m. T airmass for 10+ hours
Airmass Thunderstorms • Last about 1 hour • Rain covers maybe a 10 to 15 km area • Are self-destructive – Rain/precipitation falls back into the updraft • Usually form in region of weak upper-level winds – i. e. , little/no vertical wind shear – Remember the “tropical disturbance”? Simply a large collection of airmass thunderstorms • Are not known for most types of severe weather (hail, straight-line winds, or tornadoes) – We will see later that air mass thunderstorms are responsible for microbursts
Parts of airmass thunderstorm Anvil part of the cloud Tropopause Main “cell” updraft LCL (point where condensation occurs)
Airmass Thunderstorm: stages of development
Airmass Thunderstorm: stages of development 1. Cumulus stage: – Cloud consists of warm, buoyant plume of rising air – Cloud consists of mostly small cloud droplets; there are only a few raindrops or ice crystals
Airmass Thunderstorm: stages of development 2. Mature stage: – – As storm updraft rises to regions well below freezing, ice crystals form Graupel forms • – – • Graupel: small (a few millimeters) ice particles with consistency of a snowball Downdrafts begin to form as raindrops fall back to earth Light rain is noticed at the ground Key point in “mature” stage: Because there is no vertical wind shear, precipitation must fall back down through the main updraft.
Airmass Thunderstorm: stages of development 3. Dissipation stage – Downdrafts formed by rain falling back down into the updraft – Downdrafts overwhelm the main updraft – Heavy rain falls out of the base of the thunderstorm – Dissipation occurs
Squall Line • Long line of thunderstorms – individual “cells” are so close together the heavy precipitation forms a long continuous line • Typically form along an advancing cold front • Can be hundreds of miles long! • Most commonly associated with strong straightline winds – Can produce hail and/or tornadoes, too • Called “squall” because of the abrupt wind changes
Squall line thunderstorms
Squall line thunderstorms L
A squall line approaching Memphis, TN. Note the heaviest precip is along the leading (eastern) edge of the line, with moderate – but still continuous – rainfall occurring 100+ km behind (to the west) of the “line”
Structure of a squall line • Already noted the “trigger” is typically an advancing (cold) frontal boundary • The squall line will sustain itself by producing its own lift due to outflow boundaries • Again, tropopause acts as a “lid” to the thunderstorm updraft – Thus, anvil clouds also form in squall lines • Heavy rain / strong winds occur beneath the convective region – Strongest updrafts occur in the convective region • As long as instability and moisture remain present out ahead of the squall line, the squall line will continue to propagate
Structure of a squall line Looking THROUGH the line … i. e. , the “line” is coming out of / going into the page
Squall line “gust front”
Also called a “bow echo”
Squall line • Self-propagating (not self-destructive like airmass thunderstorm) • Evaporatively-cooled air pushes out slightly ahead of the squall line – Acts as the “trigger” mechanism • i. e. , lifts the warm air up and into the squall line – Easily noticed as a “shelf cloud”
Squall line photos
More photos of a squall line
More photos of a squall line
Dangers from air mass thunderstorms: microbursts Not easily detected because 1. the ambient thunderstorm (or even cumuliform cloud) is usually considered benign 2. The scale is typically very small (perhaps 1 or 2 km across)
Two primary types of microbursts: 1. Dry microburst. Occurs when surface layer is very dry (low relative humidity). Rain evaporates and accelerates downward through the warm, dry surface layer 2. Wet microburst. Occurs when the surface layer is very moist and upper-levels are very dry. Dry downdraft entrained (mixed) from above the cloud penetrates through the cloud, evaporatively-cooling as it mixes with rainwater 3. ** Both types of microbursts are associated with evaporating rainwater
Danger comes from two sources: 1. Rush of cool, stable air out from the microburst center once it reaches the surface 2. Turbulence associated with the “rotor cloud” – the leading edge of the microburst
Photos of microbursts
More photos of microbursts
Microbursts can be deadly • Eastern Airlines flight 66 – June 24, 1975, John F. Kennedy, New York – 112 fatalities (12 survivors) • Pan-Am flight 759 – July 9, 1982, New Orleans, Louisiana – 153 fatalities (0 survivors) • Delta Airlines flight 191 – August 2, 1985, Dallas-Fort Worth, Texas – 135 fatalities (29 survivors) • US Airways flight 1016 – July 2, 1994, Charlotte, North Carolina – 37 fatalities (25 survivors)
The threat from a squall line: derecho Definition of a derecho: “A widespread convectively induced straightline windstorm. ” (AMS Glossary of Meteorology) Conditions for a calling an event a “derecho”: 1. There must be a concentrated area of reports consisting of convectively-induced wind damage or convective gusts of more than 26 ms-1 (50 kt). 2. The reports within this area must also exhibit a nonrandom pattern of occurrence. That is, the reports must show a pattern of chronological progression, either as a singular swath (progressive) or as a series of swaths (serial). 3. Within the area there must be at least three reports, separated by 64 km or more, of either F 1 damage or convective gusts of 33 ms-1 (65 kt) or greater. 4. No more than 3 h can elapse between successive wind damage (gust) events.
Trajectories and annual frequency of derechos in the US
A typical derecho event: 19 July 1983. Map shows location and time of derecho line; max wind gusts are given in miles per hour
Photo of the incoming derecho, 19 July 1983
Another photo of the incoming derecho, 19 July 1983

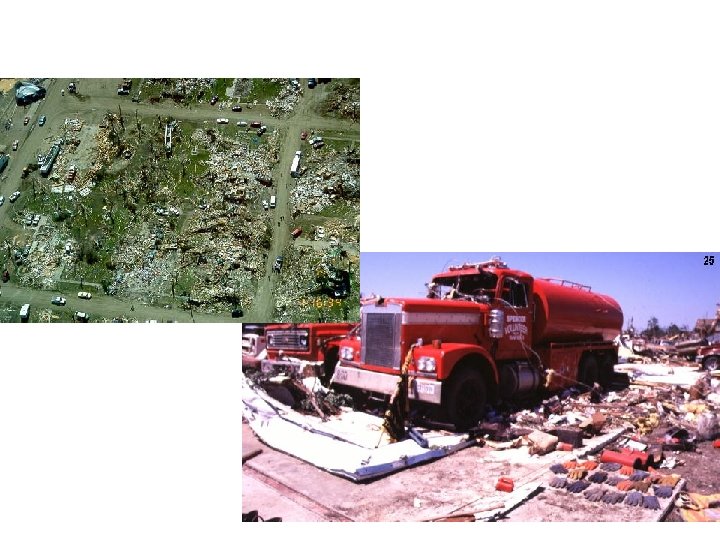

A particularly damaging derecho event: 30 -31 May 1998
Storm reports from derecho event
The event did not start out as a derecho. . .
Radar sequence images of 30 -31 May 1998 derecho event Clip: animated radar display
Final example of a strong derecho 27 May 2001
Visible satellite image of the thunderstorm complex that produced the derecho
Photos from 27 May 2001
1 Death 4 Injuries 160, 000 without power Over $300 million damage
27 May 2001 derecho event Photo taken here at 7: 23 pm CDT *
Finally, derechos are not only found in the US
