TNI Computational Neuroscience Instructors Peter Latham Maneesh Sahani

TNI: Computational Neuroscience Instructors: Peter Latham Maneesh Sahani Peter Dayan TA: Website: Mandana Ahmadi, mandana@gatsby. ucl. ac. uk http: //www. gatsby. ucl. ac. uk/~mandana/TNI. htm (slides will be on website) Lectures: Review: Tuesday/Friday, 11: 00 -1: 00. Friday, 1: 00 -3: 00. Homework: Assigned Friday, due Friday (1 week later). first homework: assigned Oct. 3, due Oct. 10.

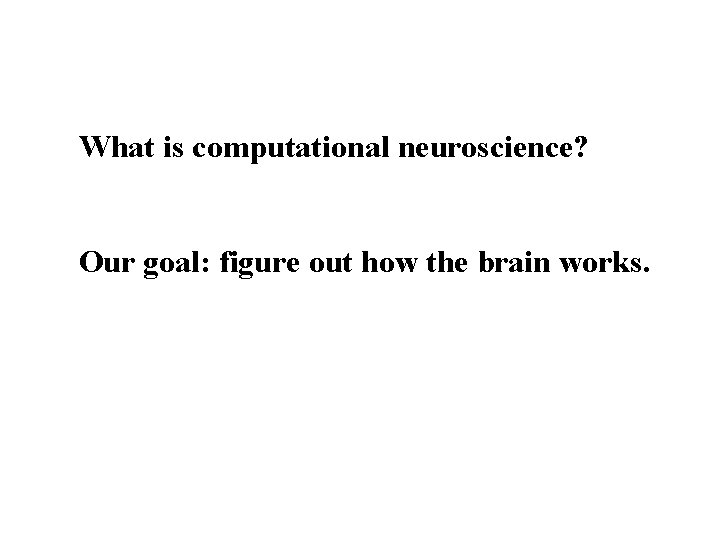

What is computational neuroscience? Our goal: figure out how the brain works.

There about 10 billion cubes of this size in your brain! 10 microns

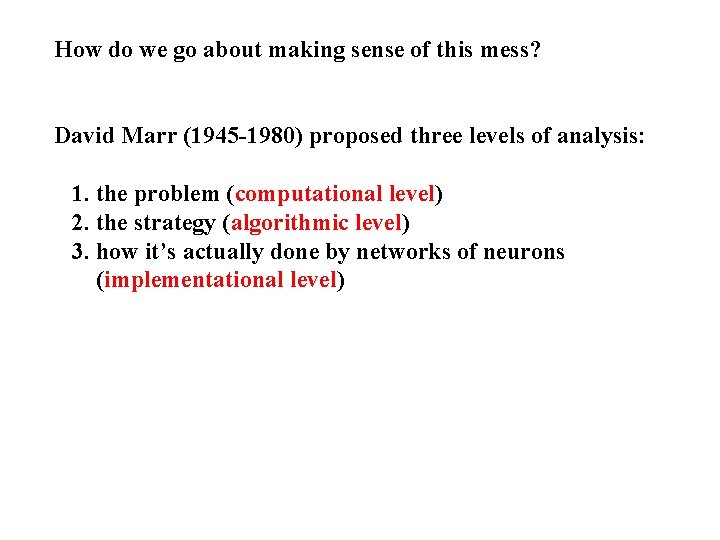

How do we go about making sense of this mess? David Marr (1945 -1980) proposed three levels of analysis: 1. the problem (computational level) 2. the strategy (algorithmic level) 3. how it’s actually done by networks of neurons (implementational level)

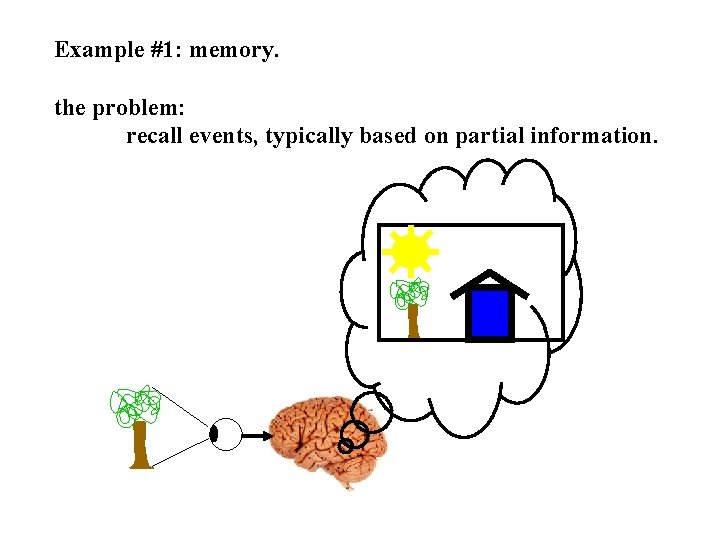

Example #1: memory. the problem: recall events, typically based on partial information.

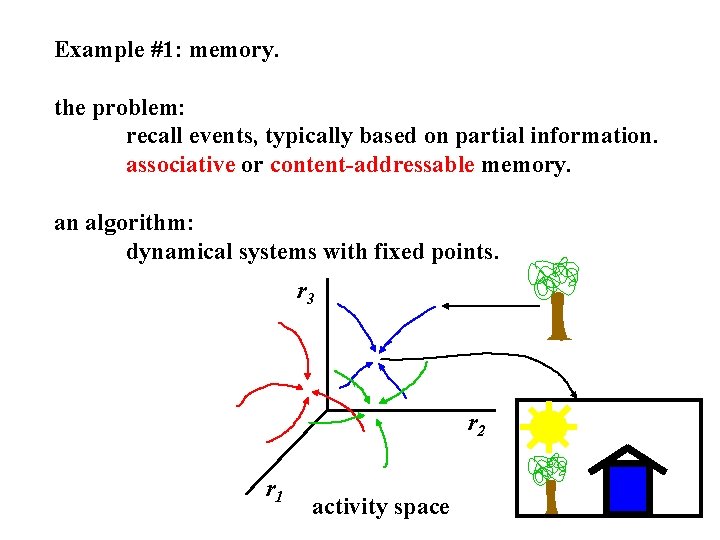

Example #1: memory. the problem: recall events, typically based on partial information. associative or content-addressable memory. an algorithm: dynamical systems with fixed points. r 3 r 2 r 1 activity space

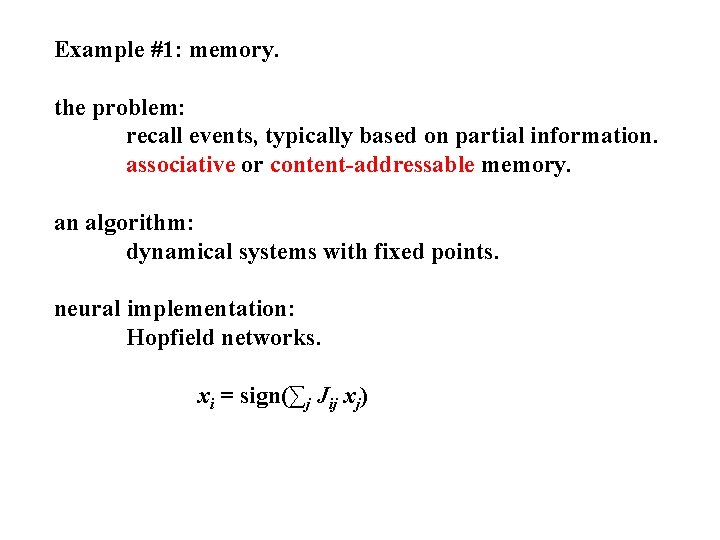

Example #1: memory. the problem: recall events, typically based on partial information. associative or content-addressable memory. an algorithm: dynamical systems with fixed points. neural implementation: Hopfield networks. xi = sign(∑j Jij xj)

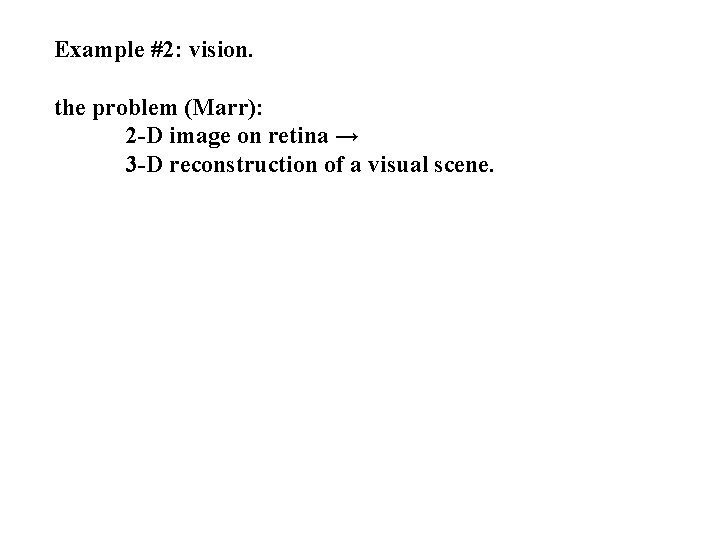

Example #2: vision. the problem (Marr): 2 -D image on retina → 3 -D reconstruction of a visual scene.

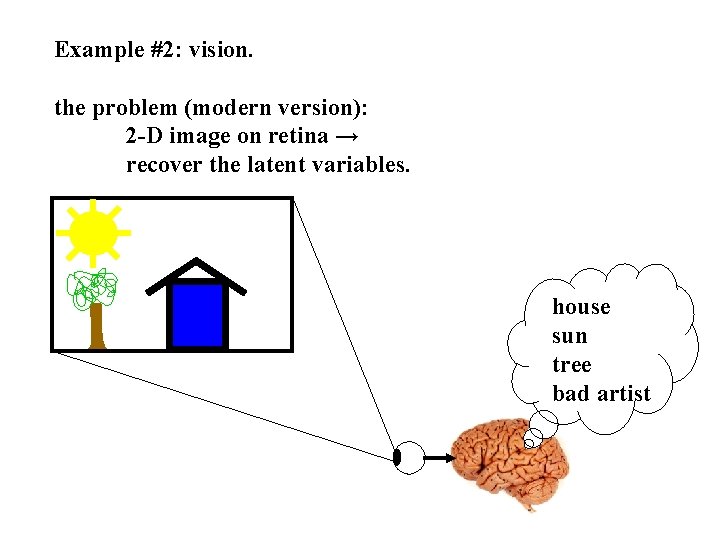

Example #2: vision. the problem (modern version): 2 -D image on retina → recover the latent variables. house sun tree bad artist

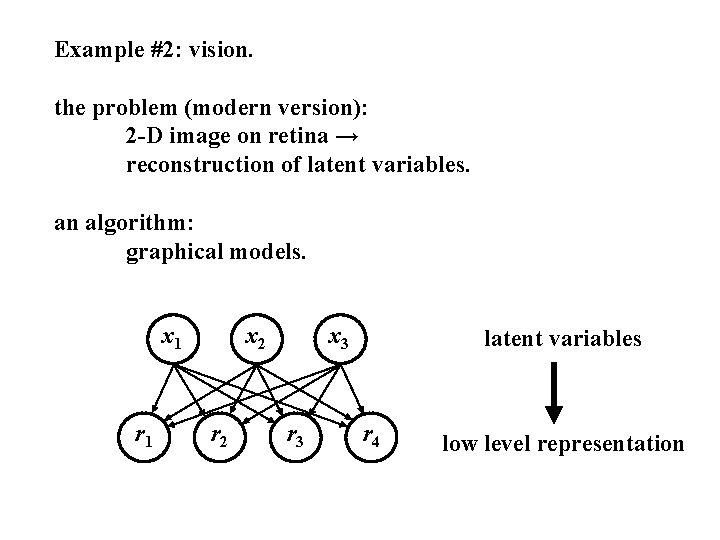

Example #2: vision. the problem (modern version): 2 -D image on retina → reconstruction of latent variables. an algorithm: graphical models. x 1 r 1 x 2 r 2 x 3 r 3 latent variables r 4 low level representation

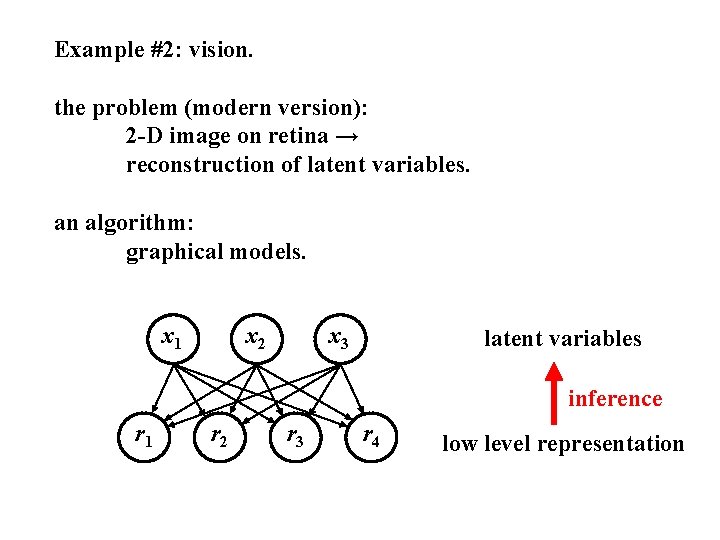

Example #2: vision. the problem (modern version): 2 -D image on retina → reconstruction of latent variables. an algorithm: graphical models. x 1 x 2 x 3 latent variables inference r 1 r 2 r 3 r 4 low level representation

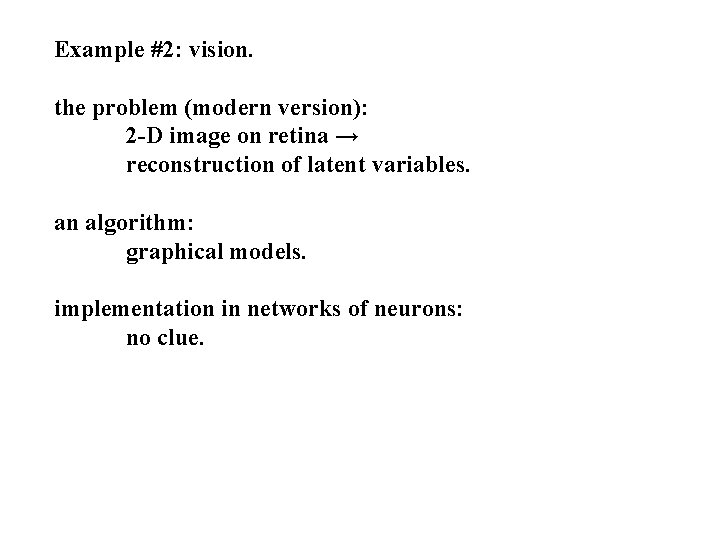

Example #2: vision. the problem (modern version): 2 -D image on retina → reconstruction of latent variables. an algorithm: graphical models. implementation in networks of neurons: no clue.

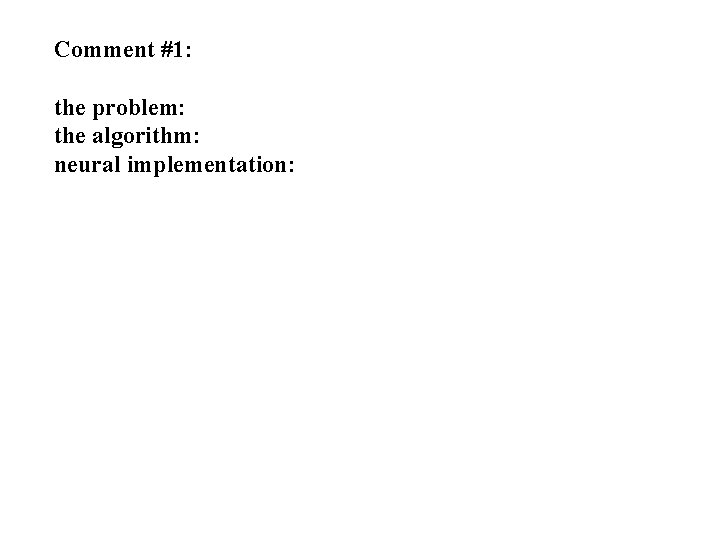

Comment #1: the problem: the algorithm: neural implementation:

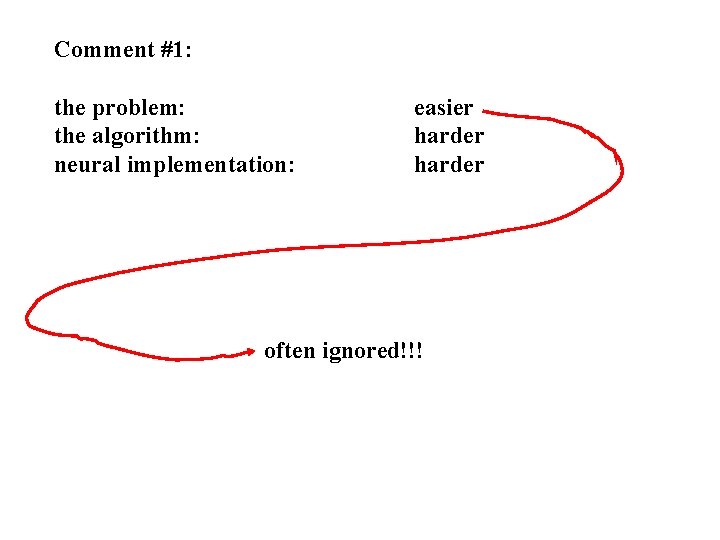

Comment #1: the problem: the algorithm: neural implementation: easier harder often ignored!!!

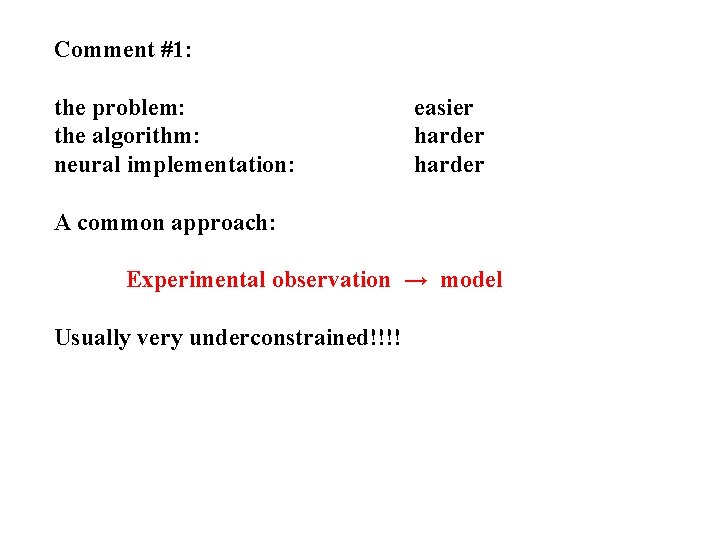

Comment #1: the problem: the algorithm: neural implementation: easier harder A common approach: Experimental observation → model Usually very underconstrained!!!!

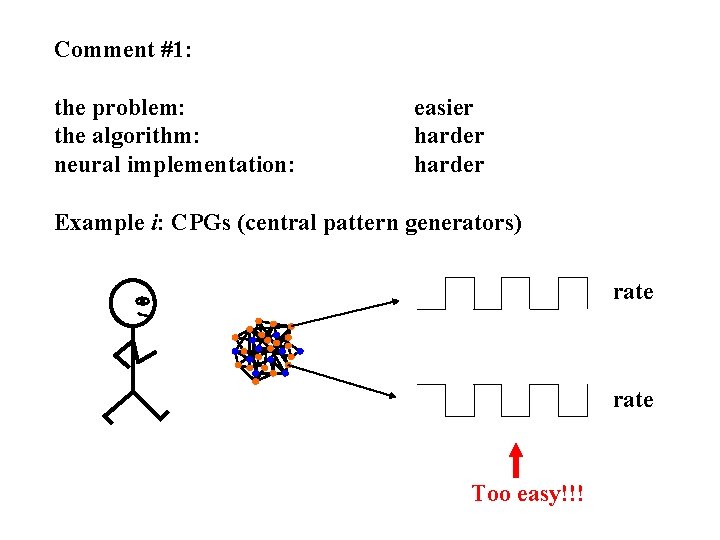

Comment #1: the problem: the algorithm: neural implementation: easier harder Example i: CPGs (central pattern generators) rate Too easy!!!

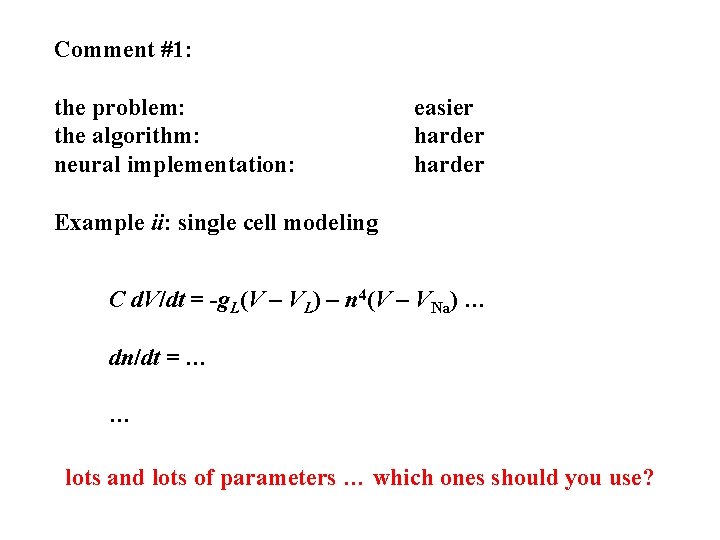

Comment #1: the problem: the algorithm: neural implementation: easier harder Example ii: single cell modeling C d. V/dt = -g. L(V – VL) – n 4(V – VNa) … dn/dt = … … lots and lots of parameters … which ones should you use?

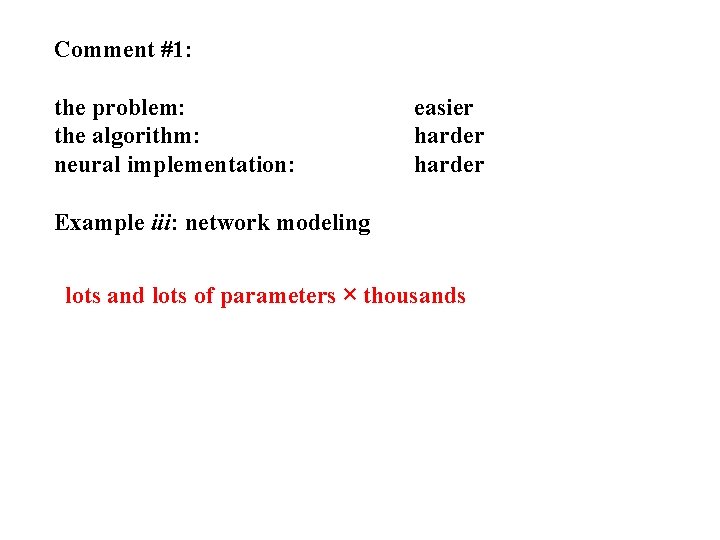

Comment #1: the problem: the algorithm: neural implementation: easier harder Example iii: network modeling lots and lots of parameters × thousands

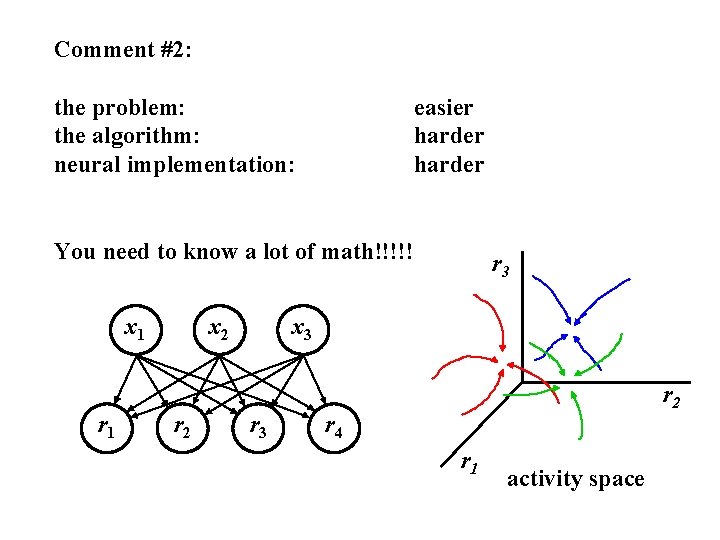

Comment #2: the problem: the algorithm: neural implementation: easier harder You need to know a lot of math!!!!! x 1 r 1 x 2 r 3 x 3 r 2 r 4 r 1 activity space

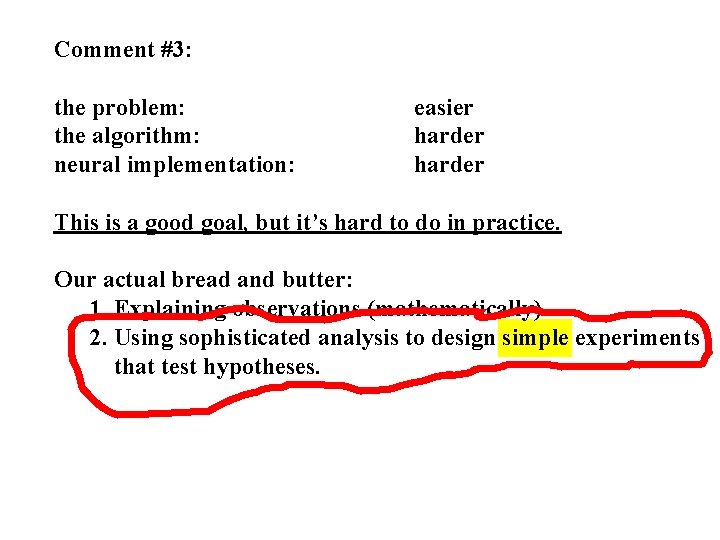

Comment #3: the problem: the algorithm: neural implementation: easier harder This is a good goal, but it’s hard to do in practice. Our actual bread and butter: 1. Explaining observations (mathematically) 2. Using sophisticated analysis to design simple experiments that test hypotheses.

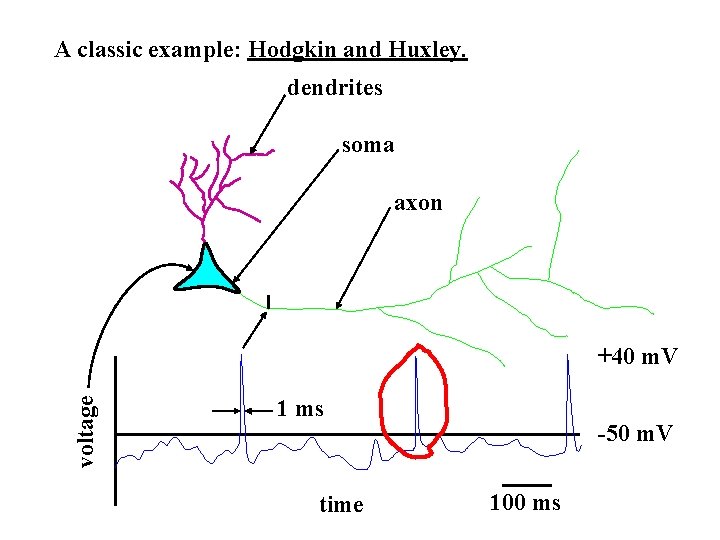

A classic example: Hodgkin and Huxley. dendrites soma axon voltage +40 m. V 1 ms time -50 m. V 100 ms

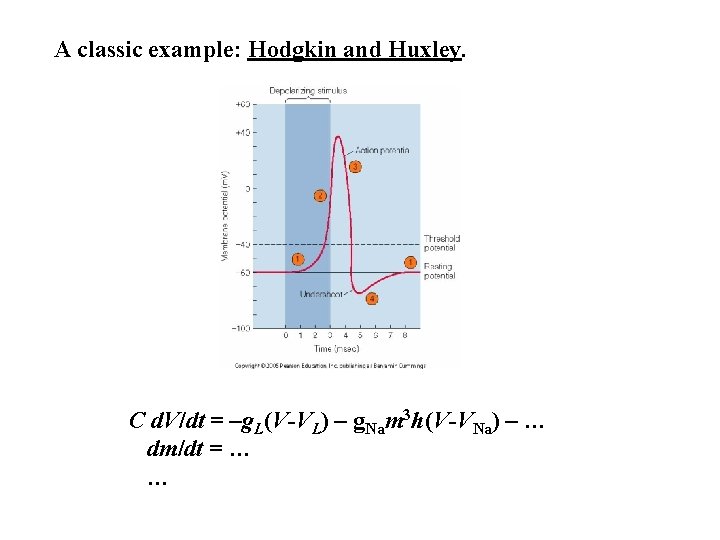

A classic example: Hodgkin and Huxley. C d. V/dt = –g. L(V-VL) – g. Nam 3 h(V-VNa) – … dm/dt = … …

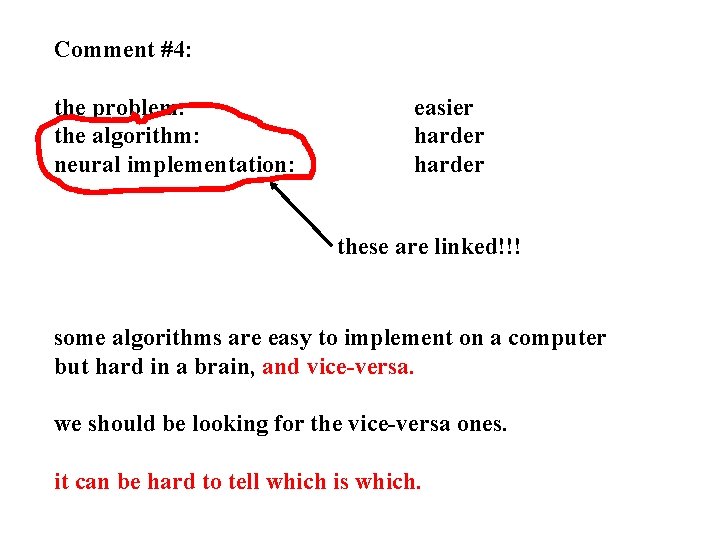

Comment #4: the problem: the algorithm: neural implementation: easier harder these are linked!!! some algorithms are easy to implement on a computer but hard in a brain, and vice-versa. we should be looking for the vice-versa ones. it can be hard to tell which is which.

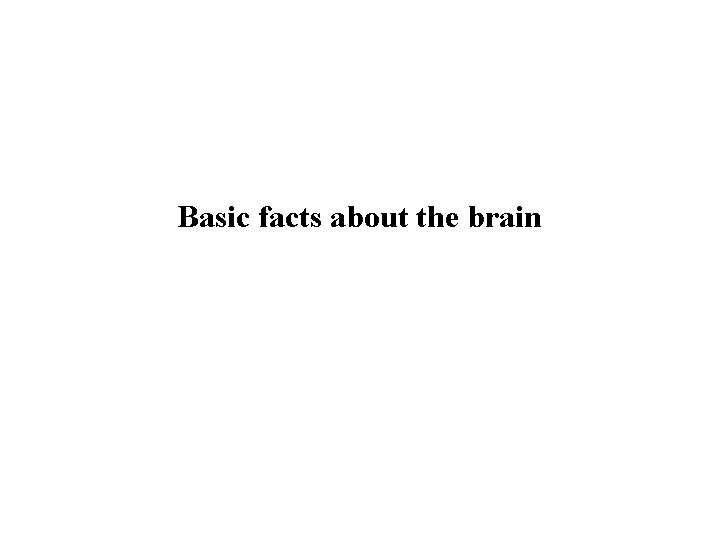

Basic facts about the brain

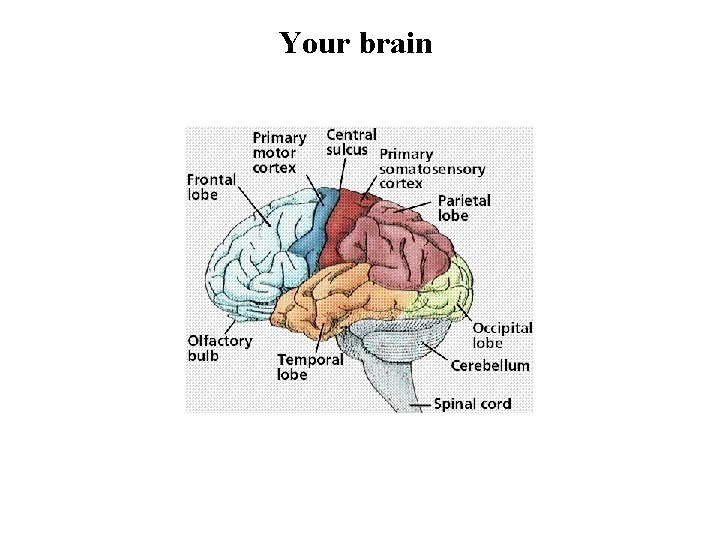

Your brain

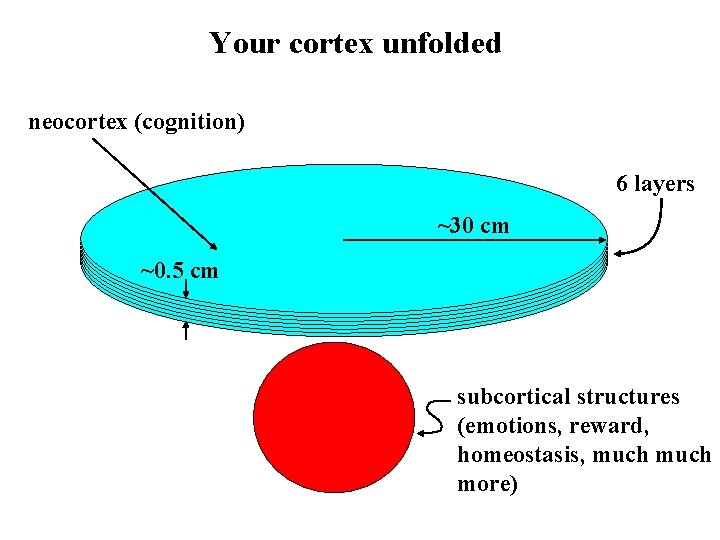

Your cortex unfolded neocortex (cognition) 6 layers ~30 cm ~0. 5 cm subcortical structures (emotions, reward, homeostasis, much more)

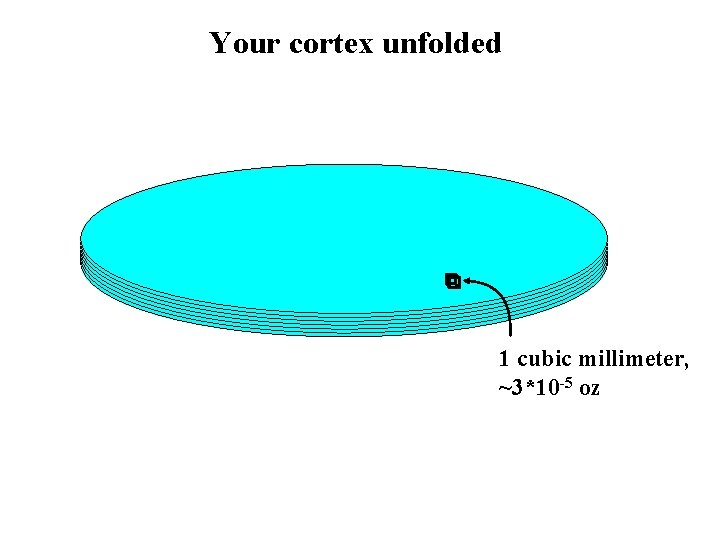

Your cortex unfolded 1 cubic millimeter, ~3*10 -5 oz

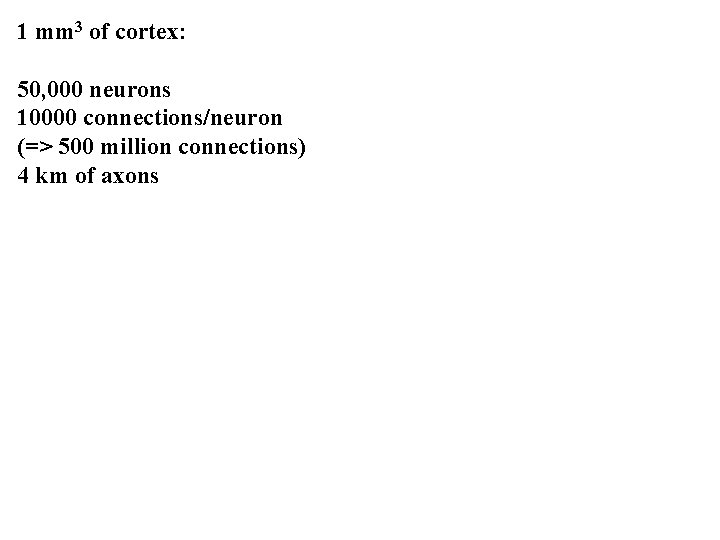

1 mm 3 of cortex: 50, 000 neurons 10000 connections/neuron (=> 500 million connections) 4 km of axons

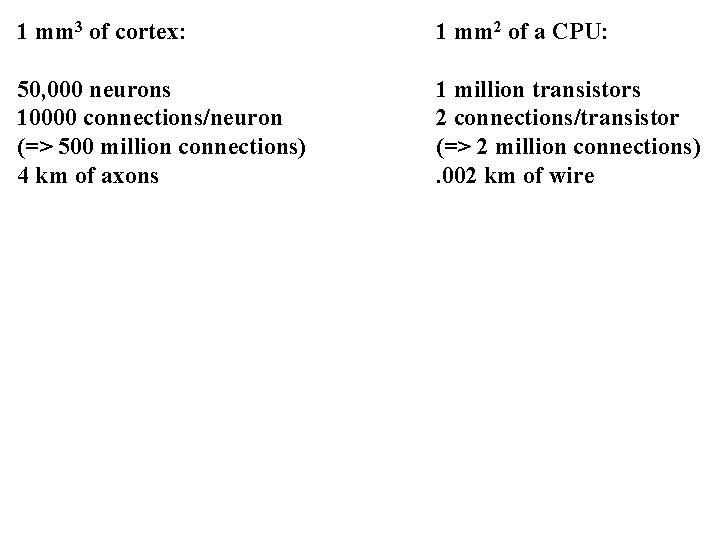

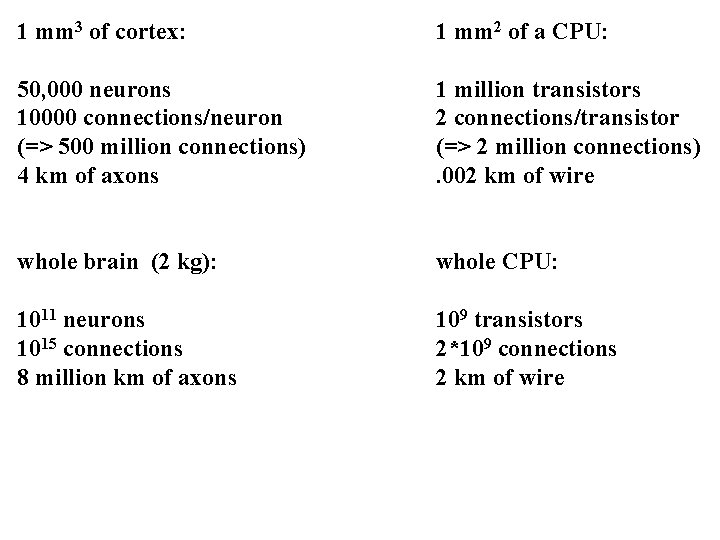

1 mm 3 of cortex: 1 mm 2 of a CPU: 50, 000 neurons 10000 connections/neuron (=> 500 million connections) 4 km of axons 1 million transistors 2 connections/transistor (=> 2 million connections). 002 km of wire

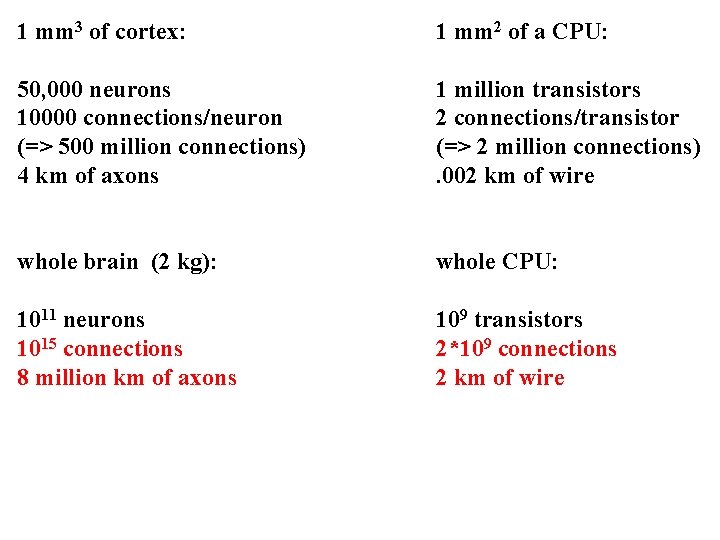

1 mm 3 of cortex: 1 mm 2 of a CPU: 50, 000 neurons 10000 connections/neuron (=> 500 million connections) 4 km of axons 1 million transistors 2 connections/transistor (=> 2 million connections). 002 km of wire whole brain (2 kg): whole CPU: 1011 neurons 1015 connections 8 million km of axons 109 transistors 2*109 connections 2 km of wire

1 mm 3 of cortex: 1 mm 2 of a CPU: 50, 000 neurons 10000 connections/neuron (=> 500 million connections) 4 km of axons 1 million transistors 2 connections/transistor (=> 2 million connections). 002 km of wire whole brain (2 kg): whole CPU: 1011 neurons 1015 connections 8 million km of axons 109 transistors 2*109 connections 2 km of wire

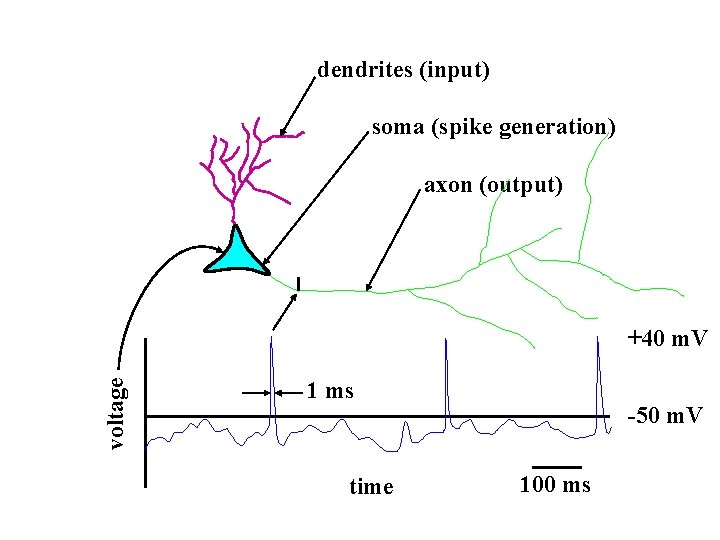

dendrites (input) soma (spike generation) axon (output) voltage +40 m. V 1 ms time -50 m. V 100 ms

synapse current flow

synapse current flow

voltage +40 m. V -50 m. V time 100 ms

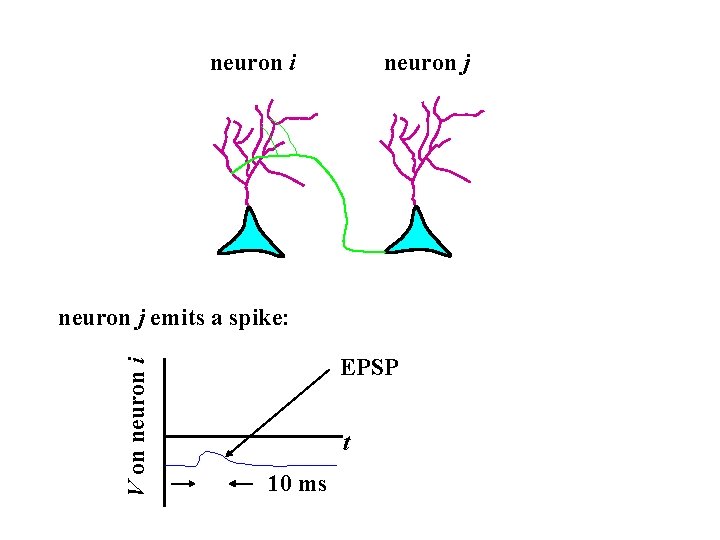

neuron i neuron j V on neuron i neuron j emits a spike: EPSP t 10 ms

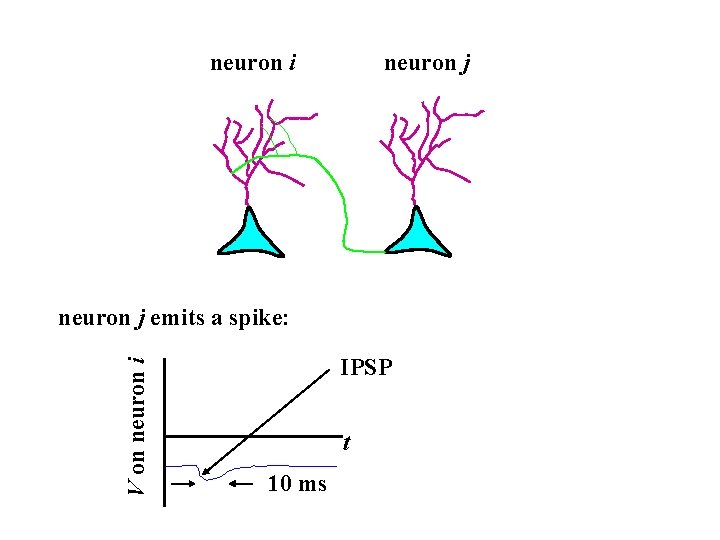

neuron i neuron j V on neuron i neuron j emits a spike: IPSP t 10 ms

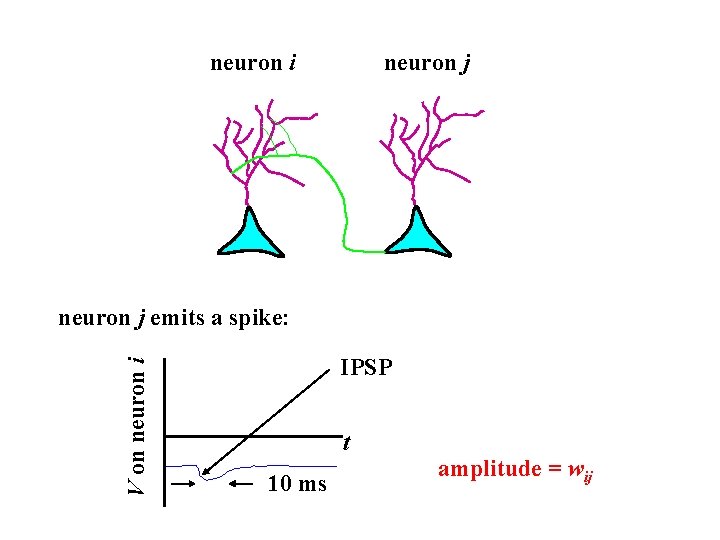

neuron i neuron j V on neuron i neuron j emits a spike: IPSP t 10 ms amplitude = wij

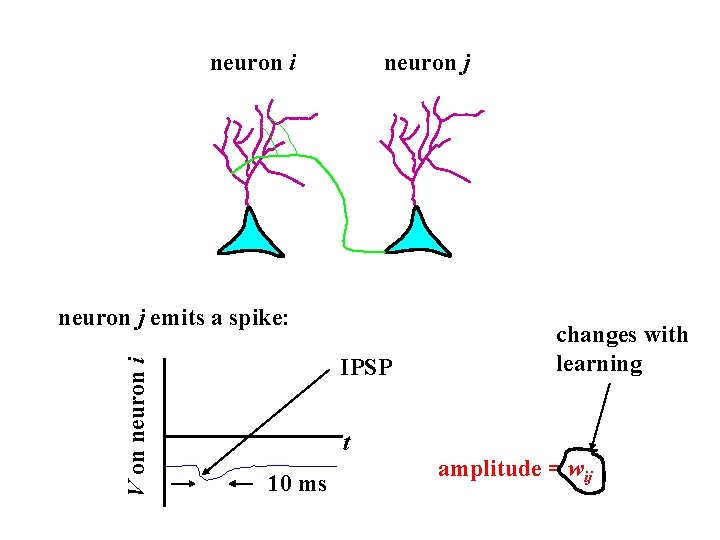

neuron i neuron j V on neuron i neuron j emits a spike: IPSP t 10 ms changes with learning amplitude = wij

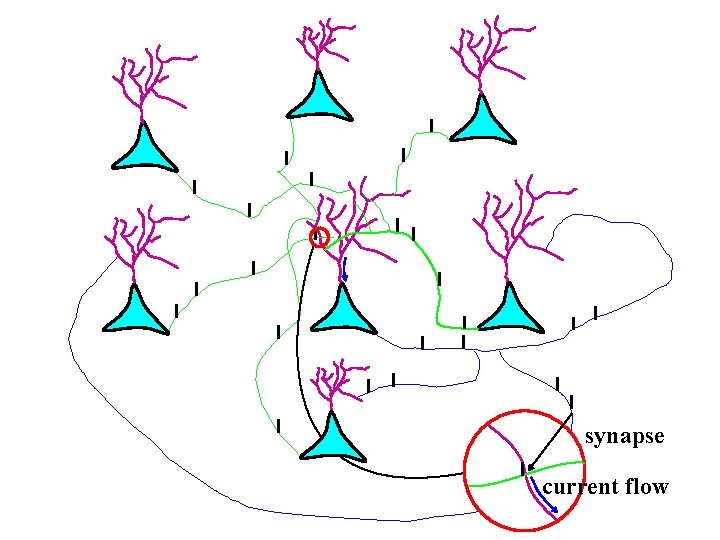

synapse current flow

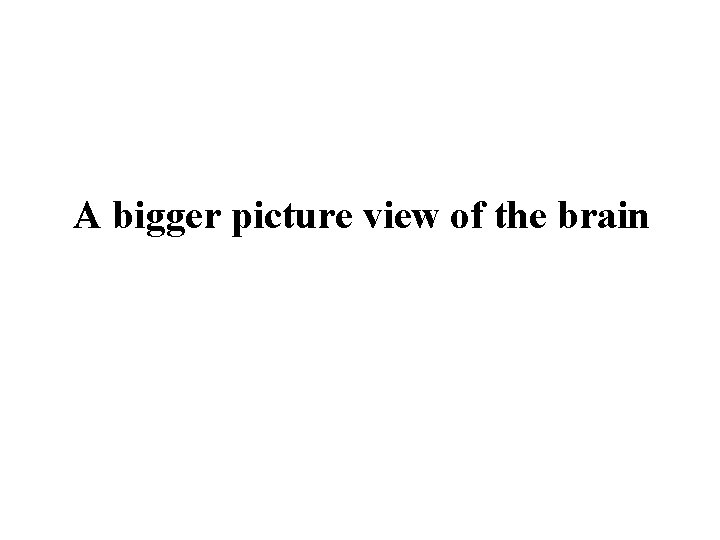

A bigger picture view of the brain

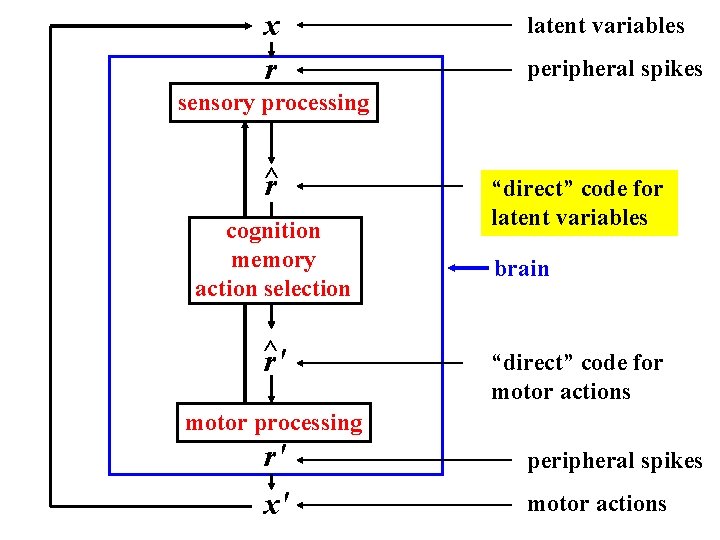

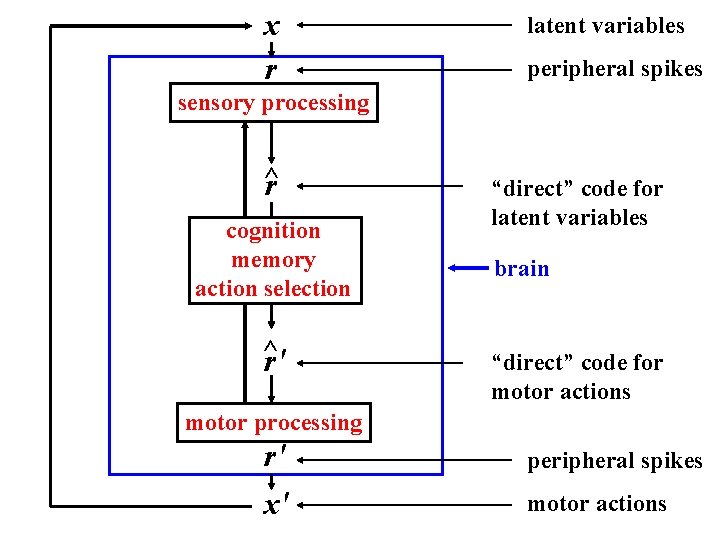

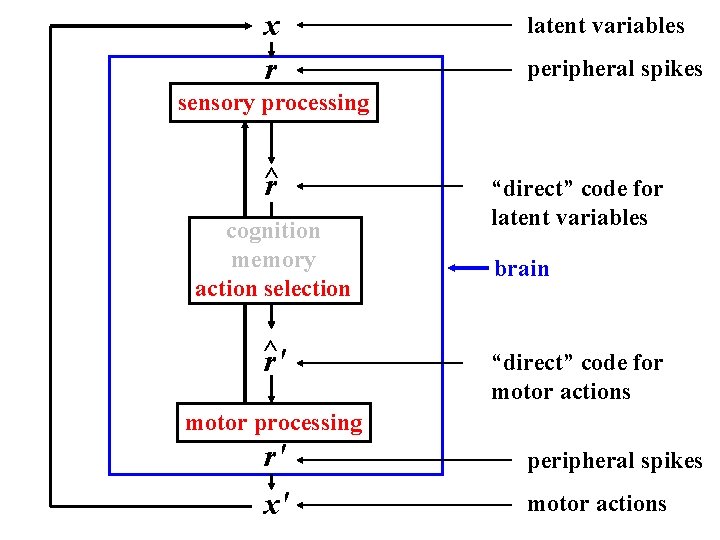

x r latent variables peripheral spikes sensory processing ^ r cognition memory action selection ^ r' “direct” code for latent variables brain “direct” code for motor actions motor processing r' peripheral spikes x' motor actions

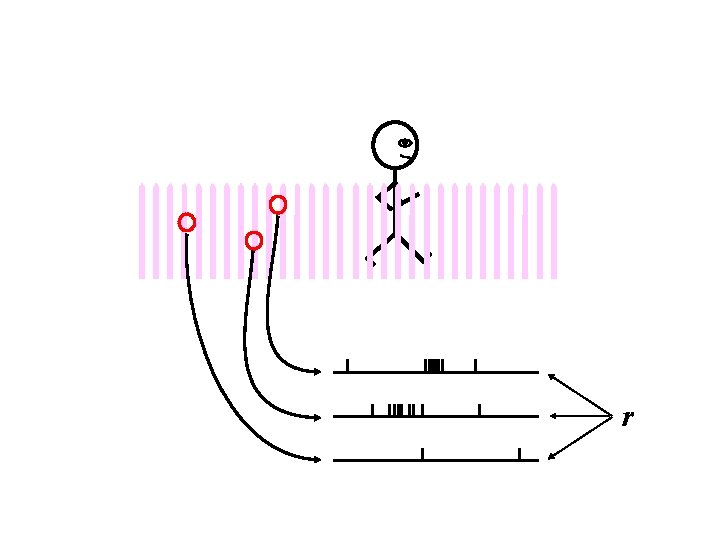

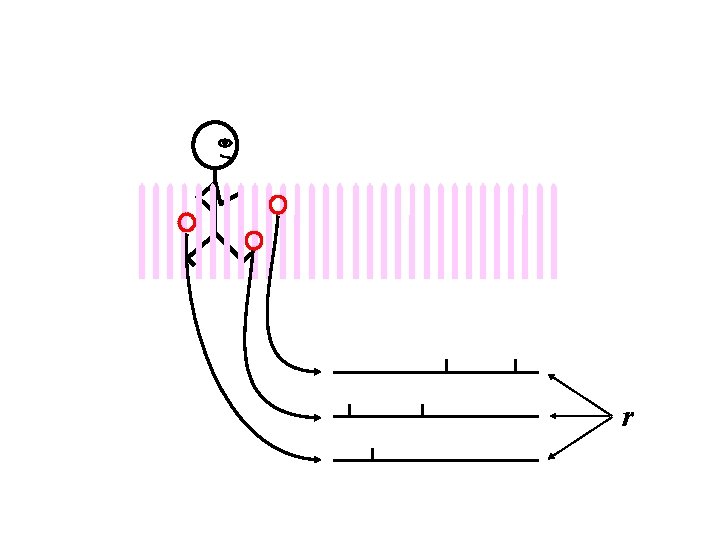

r

r

r

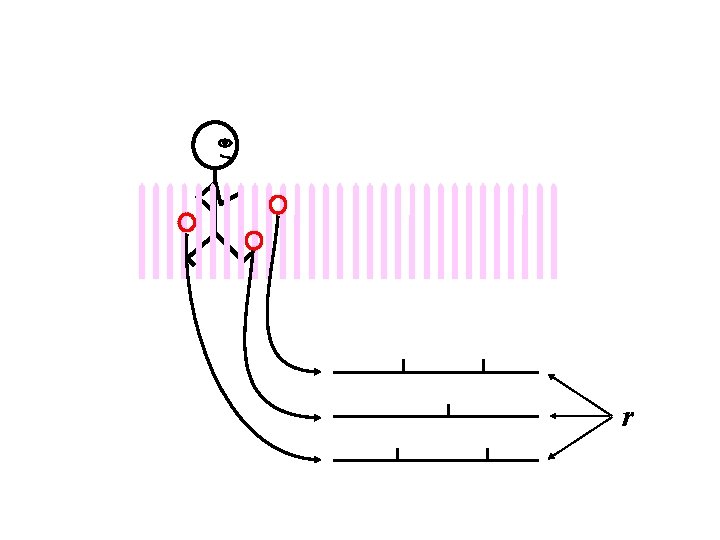

r

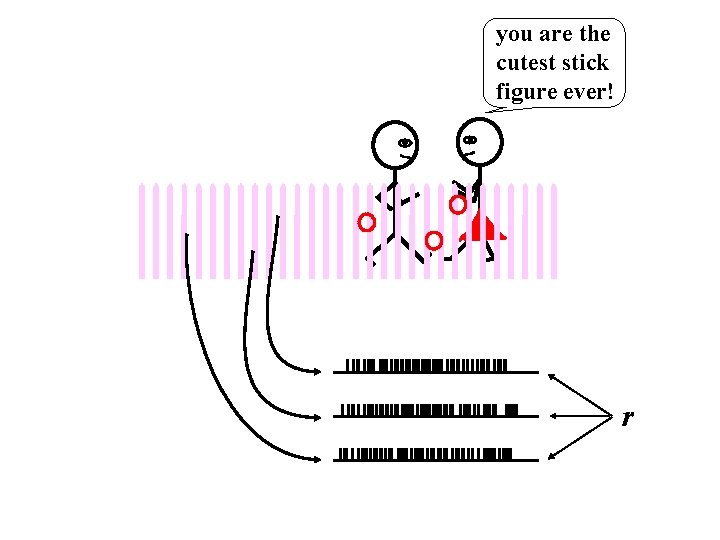

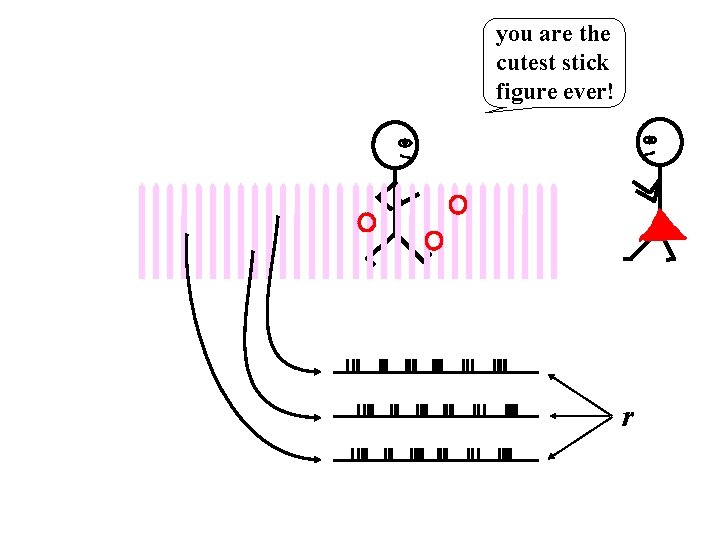

you are the cutest stick figure ever! r

you are the cutest stick figure ever! r

x r latent variables peripheral spikes sensory processing ^ r cognition memory action selection ^ r' “direct” code for latent variables brain “direct” code for motor actions motor processing r' peripheral spikes x' motor actions

x r latent variables peripheral spikes sensory processing ^ r cognition memory action selection ^ r' “direct” code for latent variables brain “direct” code for motor actions motor processing r' peripheral spikes x' motor actions

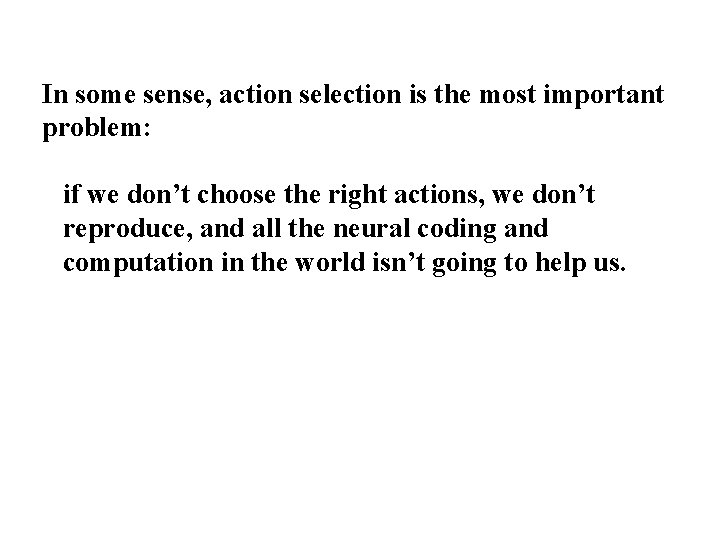

In some sense, action selection is the most important problem: if we don’t choose the right actions, we don’t reproduce, and all the neural coding and computation in the world isn’t going to help us.

Do I call him and risk rejection and humiliation, or do I play it safe, and stay home on Saturday night and eat oreos?

Do I call her and risk rejection and humiliation, or do I play it safe, and stay home on Saturday night and eat oreos?

x r latent variables peripheral spikes sensory processing ^ r cognition memory action selection ^ r' “direct” code for latent variables brain “direct” code for motor actions motor processing r' peripheral spikes x' motor actions

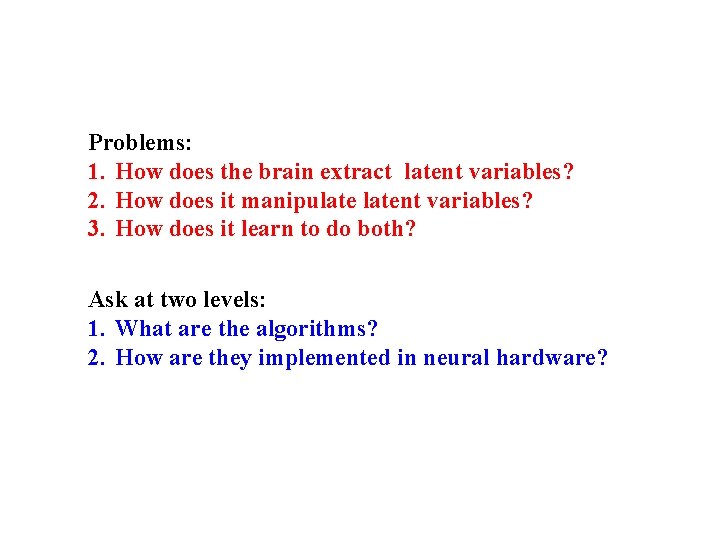

Problems: 1. How does the brain extract latent variables? 2. How does it manipulatent variables? 3. How does it learn to do both? Ask at two levels: 1. What are the algorithms? 2. How are they implemented in neural hardware?

d e s a i What do we know babout the brain? y l h ig H

a. Anatomy. We know a lot about what is where. But be careful about labels: neurons in motor cortex sometimes respond to color. Connectivity. We know (more or less) which area is connected to which. We don’t know the wiring diagram at the microscopic level. wij

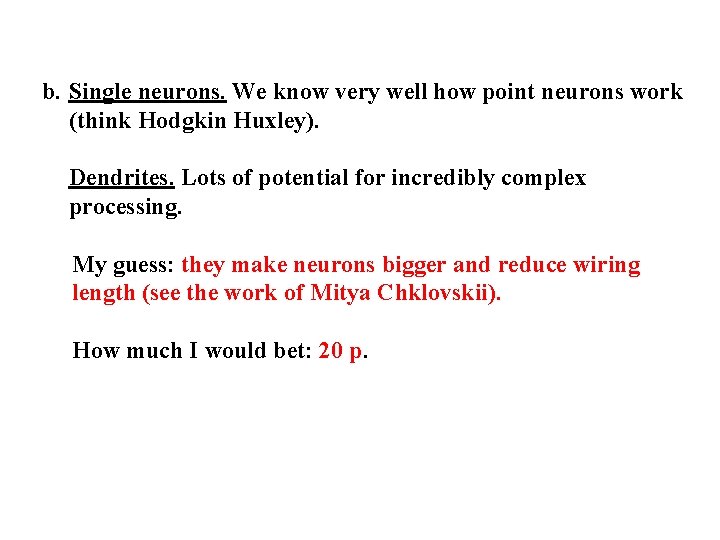

b. Single neurons. We know very well how point neurons work (think Hodgkin Huxley). Dendrites. Lots of potential for incredibly complex processing. My guess: they make neurons bigger and reduce wiring length (see the work of Mitya Chklovskii). How much I would bet: 20 p.

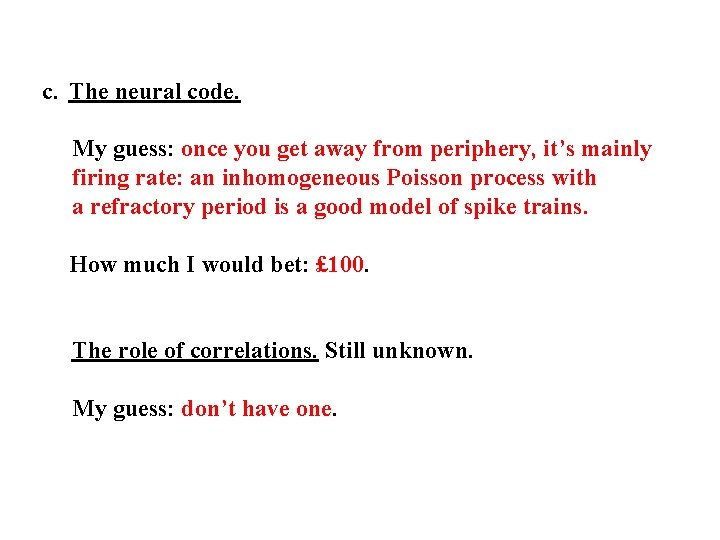

c. The neural code. My guess: once you get away from periphery, it’s mainly firing rate: an inhomogeneous Poisson process with a refractory period is a good model of spike trains. How much I would bet: £ 100. The role of correlations. Still unknown. My guess: don’t have one.

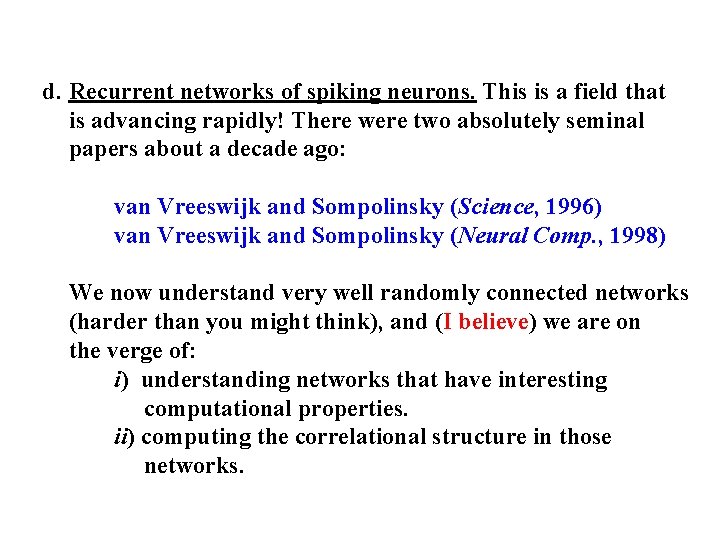

d. Recurrent networks of spiking neurons. This is a field that is advancing rapidly! There were two absolutely seminal papers about a decade ago: van Vreeswijk and Sompolinsky (Science, 1996) van Vreeswijk and Sompolinsky (Neural Comp. , 1998) We now understand very well randomly connected networks (harder than you might think), and (I believe) we are on the verge of: i) understanding networks that have interesting computational properties. ii) computing the correlational structure in those networks.

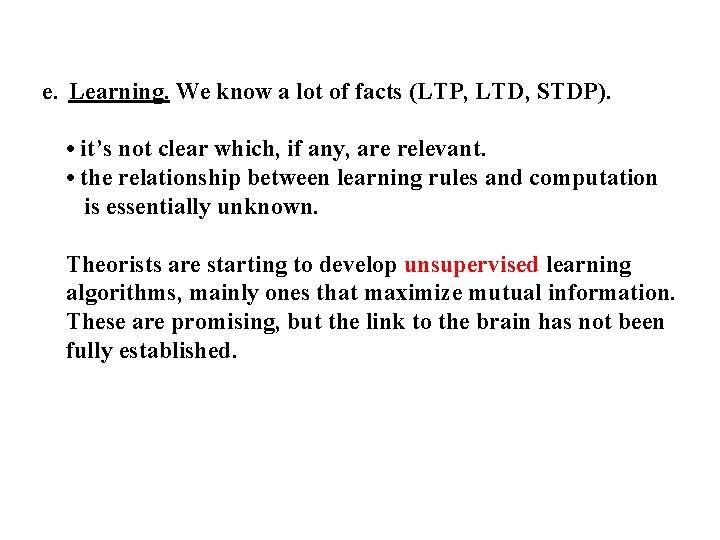

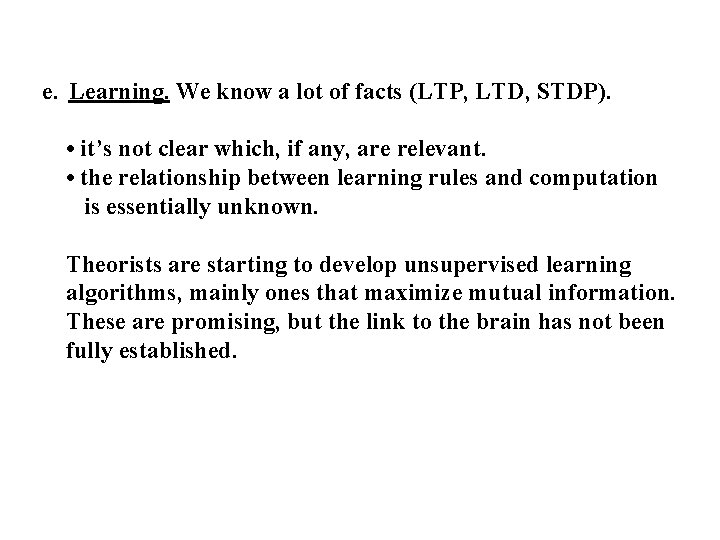

e. Learning. We know a lot of facts (LTP, LTD, STDP). • it’s not clear which, if any, are relevant. • the relationship between learning rules and computation is essentially unknown. Theorists are starting to develop unsupervised learning algorithms, mainly ones that maximize mutual information. These are promising, but the link to the brain has not been fully established.

e. Learning. We know a lot of facts (LTP, LTD, STDP). • it’s not clear which, if any, are relevant. • the relationship between learning rules and computation is essentially unknown. Theorists are starting to develop unsupervised learning algorithms, mainly ones that maximize mutual information. These are promising, but the link to the brain has not been fully established.

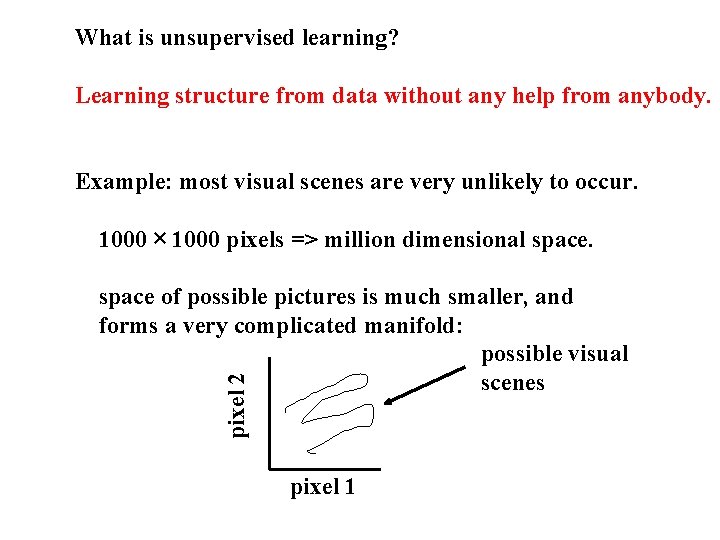

What is unsupervised learning? Learning structure from data without any help from anybody. Example: most visual scenes are very unlikely to occur. 1000 × 1000 pixels => million dimensional space. pixel 2 space of possible pictures is much smaller, and forms a very complicated manifold: possible visual scenes pixel 1

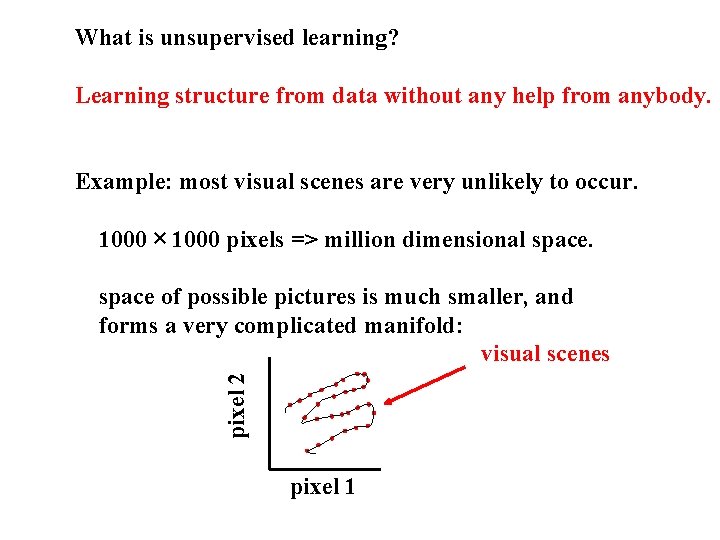

What is unsupervised learning? Learning structure from data without any help from anybody. Example: most visual scenes are very unlikely to occur. 1000 × 1000 pixels => million dimensional space. pixel 2 space of possible pictures is much smaller, and forms a very complicated manifold: visual scenes pixel 1

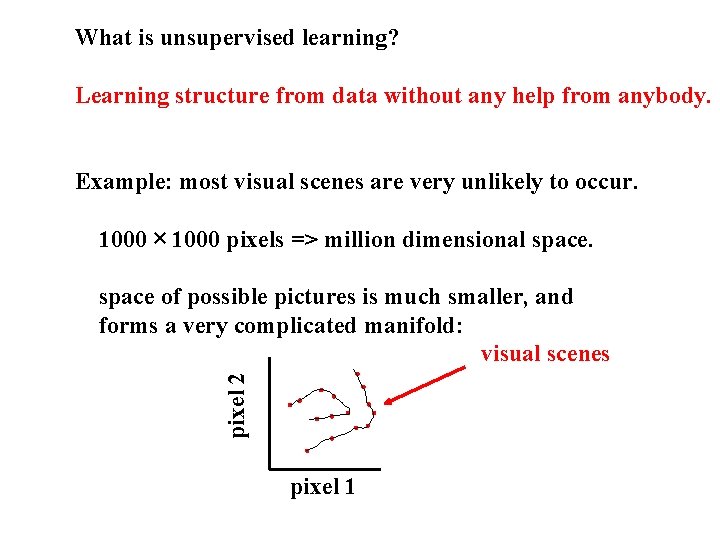

What is unsupervised learning? Learning structure from data without any help from anybody. Example: most visual scenes are very unlikely to occur. 1000 × 1000 pixels => million dimensional space. pixel 2 space of possible pictures is much smaller, and forms a very complicated manifold: visual scenes pixel 1

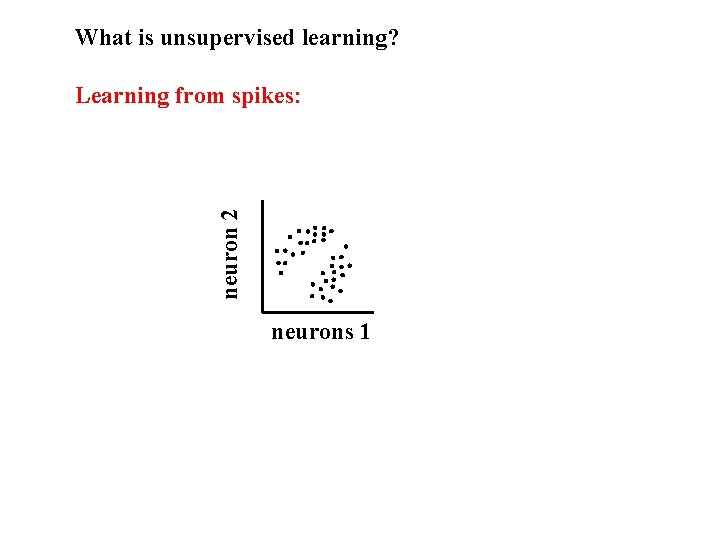

What is unsupervised learning? neuron 2 Learning from spikes: neurons 1

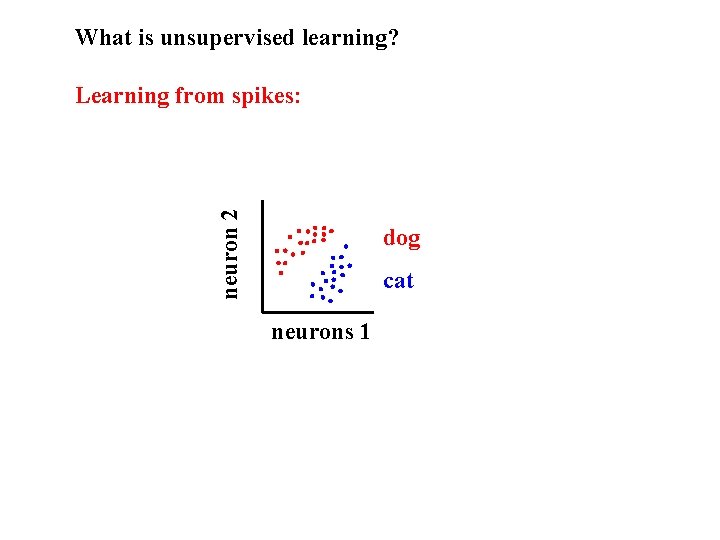

What is unsupervised learning? neuron 2 Learning from spikes: dog cat neurons 1

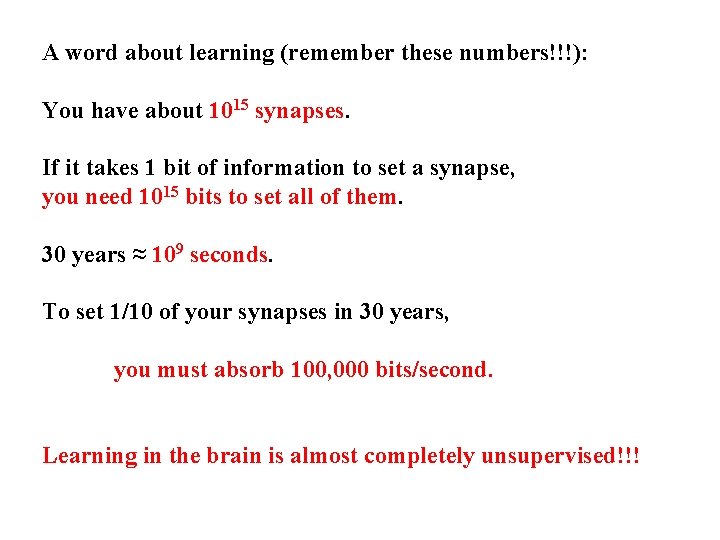

A word about learning (remember these numbers!!!): You have about 1015 synapses. If it takes 1 bit of information to set a synapse, you need 1015 bits to set all of them. 30 years ≈ 109 seconds. To set 1/10 of your synapses in 30 years, you must absorb 100, 000 bits/second. Learning in the brain is almost completely unsupervised!!!

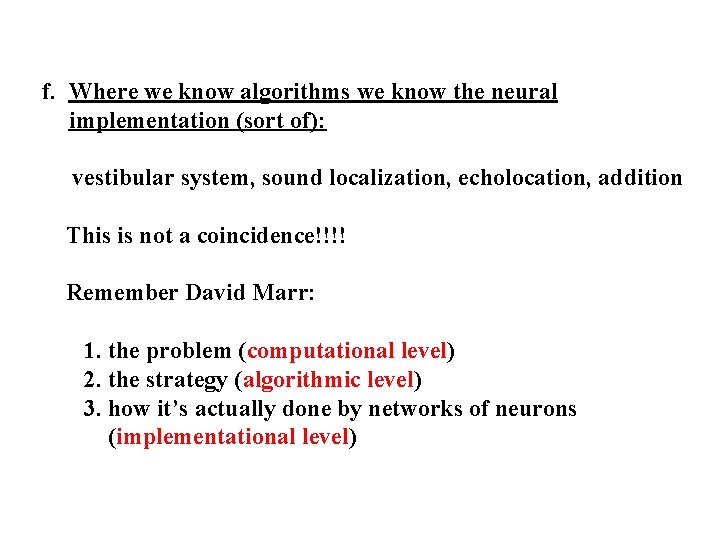

f. Where we know algorithms we know the neural implementation (sort of): vestibular system, sound localization, echolocation, addition This is not a coincidence!!!! Remember David Marr: 1. the problem (computational level) 2. the strategy (algorithmic level) 3. how it’s actually done by networks of neurons (implementational level)

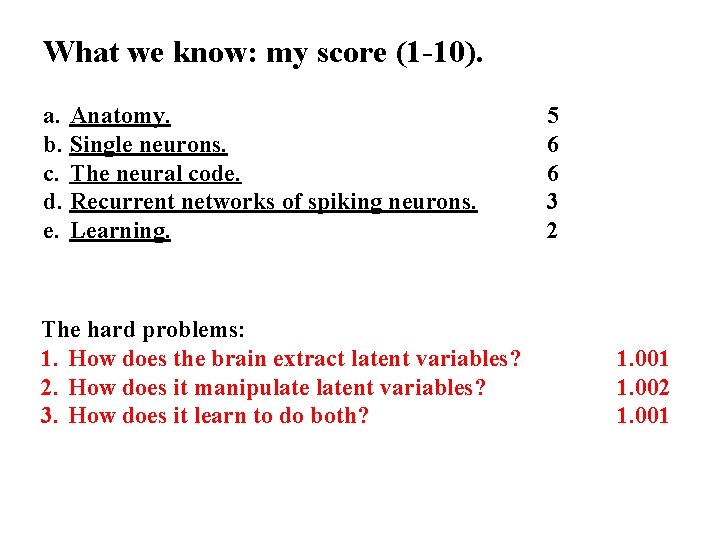

What we know: my score (1 -10). a. Anatomy. b. Single neurons. c. The neural code. d. Recurrent networks of spiking neurons. e. Learning. The hard problems: 1. How does the brain extract latent variables? 2. How does it manipulatent variables? 3. How does it learn to do both? 5 6 6 3 2 1. 001 1. 002 1. 001

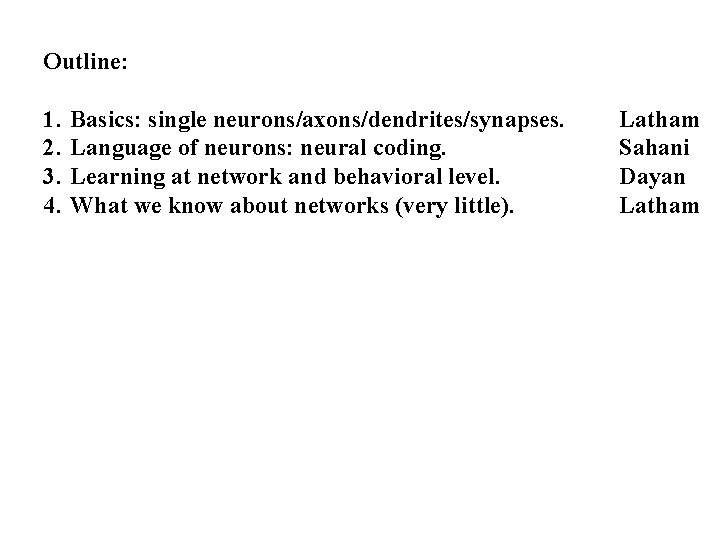

Outline: 1. 2. 3. 4. Basics: single neurons/axons/dendrites/synapses. Language of neurons: neural coding. Learning at network and behavioral level. What we know about networks (very little). Latham Sahani Dayan Latham

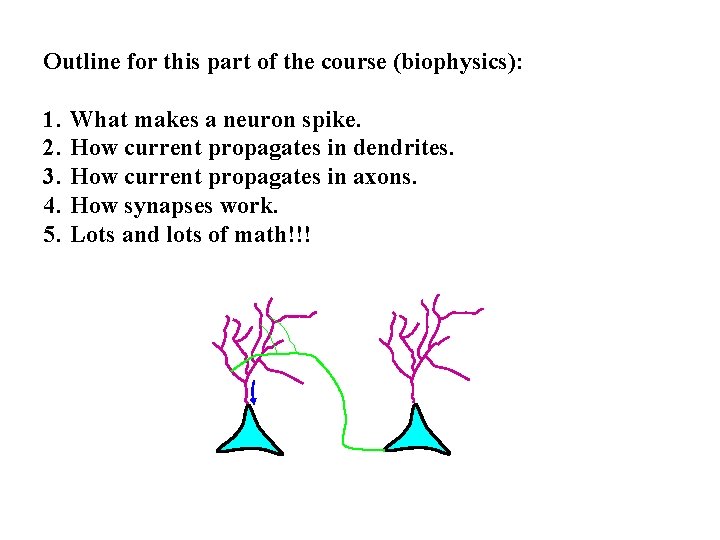

Outline for this part of the course (biophysics): 1. 2. 3. 4. 5. What makes a neuron spike. How current propagates in dendrites. How current propagates in axons. How synapses work. Lots and lots of math!!!
