TLV and BEI Committees The Decision Making Process

TLV and BEI Committees: The Decision Making Process ® ® Presented at AIHce May 13, 2003, Dallas, TX Bill Wells Ph. D, CIH, CSP, Moderator Dennis Casserly, Ph. D, CIH & Marilyn Hallock, CIH Monitors

Forum Overview • • • Pat Breysse: Introduction Lisa Brosseau: TLV®-CS Committee Larry Lowry: BEI® Committee Tom Bernard: TLV®-PA Committee Ken Martinez: Bioaerosols Committee

ACGIH, the TLVs® and BEIs® ® Patrick N. Breysse, Ph. D, CIH Johns Hopkins University Bloomberg School of Public Health Chair, ACGIH®

What Is ACGIH®? • Membership Society (founded in 1938) • Not-for-profit, Non-governmental Association (501(c)(6) organization) • Multi-Disciplinary Membership • Traditionally Neutral on Public Positions

Membership April 2003 Private Industry & Others Government & Academia

Membership by Profession, 2003 Industrial Hygienist 39% Administrator/Manager 12% OH&S Professional 6% Environmental Professional 4% Safety Professional 3% Other (Engineer, Scientist, Toxicologist, Professor, etc. ) ~36%

Technical Committees provide the creativity, initiative, and technical expertise that has made ACGIH® what it is today and what it will be tomorrow. .

Core Mission

ACGIH® Statement of Position ® ACGIH is not a standards setting body. TLVs® and BEIs® – • Are an expression of scientific opinion. • Are not consensus standards. • Are based solely on health factors; it may not be economically or technically feasible ® ® to meet established TLVs or BEIs.

® ACGIH® Statement of Position ® TLVs and BEIs – • Should NOT be adopted as standards without an analysis of other factors necessary to make appropriate risk management decisions. • Can provide valuable input into the risk characterization process. The full written ® Documentation for the numerical TLV or ® BEI should be reviewed.

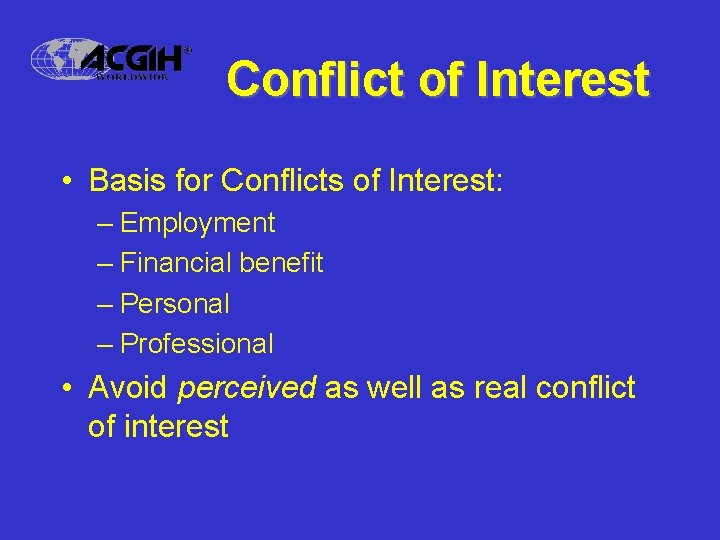

Conflict of Interest • Basis for Conflicts of Interest: – Employment – Financial benefit – Personal – Professional • Avoid perceived as well as real conflict of interest

Conflict of Interest • Committee members serve as individuals – they do not represent organizations and/or interest groups • Members are selected based on expertise, soundness of judgement, and ability to contribute

COI Process at ACGIH®

Today’s Roundtable • • Chemical Substances - TLV Biological Exposure Indices (BEI) Physical Agents – TLV Bioaerosols Committee

® ® ACGIH TLVs for Chemical Substances Committee Update Chair: Lisa M. Brosseau, Sc. D, CIH Associate Professor University of Minnesota School of Public Health

Overview • TLV®-CS Committee has 20 members and 3 member-candidates, who volunteer time towards developing scientific guidelines and publications – Primary goal is to serve the scientific needs of industrial hygienists – Committee expenses (travel) are supported by ACGIH® – Time is donated by the members

Committee Structure • Chair and Vice Chair • Three Subcommittees, Chair and Co-Chair – Dusts & Inorganics (D&I) – Hydrogen, Oxygen & Carbon Compounds (HOC) – Miscellaneous Compounds (MISCO) • Administrative Subcommittees – – Communications and Outreach Membership Notations Chemical Substance Selection • Staff Support – Liaison, Clerical, Literature Searching

Chemical Substance Subcommittees • Approximately 10 members on each • Membership from academia, government, unions, industry • Membership represents four key disciplines: – – Industrial hygiene Toxicology Occupational Medicine Occupational Epidemiology

Core TLV Principles ® • Focus on airborne exposures in occupational settings • Utilize the “threshold” concept • Primary users are industrial hygienists • Goal is towards protection of “nearly all” workers Technical, economic, and analytic feasibility are NOT considered

Committee Actions in 2003 • Adopted TLVs® for 22 substances • Proposed 6 new TLVs® – (listed on the Notice of Intended Changes (NIC)) • Revised 7 adopted TLVs® (listed on the NIC) • Proposed withdrawing TLVs® for methane, propane, butane and liquified petroleum gas. (Will also withdraw iso-butane. ) – All to be replaced with a proposal for Aliphatic Hydrocarbon Gases, Alkane (C 1 -C 4) • Revised 3 proposals for TLVs® and retained on the NIC

Committee Actions in 2003 (Cont’d) • Adopted a new Appendix E for Particulates (Insoluble or Poorly Soluble) Not Otherwise Specified (PNOS) • Developed new Documentation for 2 substances (no change in values) • Changed the name of one TLV® and kept on the NIC with revised recommendations • Retained 4 proposed TLVs® on the NIC • Withdrew 2 proposed TLVs® from the NIC

Committee Actions in 2003 (Cont’d) • Proposed withdrawal of Appendix B: Substances of Variable Composition • Proposed revision of Appendix C: Threshold Limit Values for Mixtures • Proposed a new Appendix F: Commercially Important Tree Species Identified as Inducing Sensitization

Substances and Issues Under Study in 2003 • 115 chemical substances currently under study • Issues under study include: – – Ceiling limits, excursions, and STELs Notations for reproductive effects Skin notation Reciprocal Calculation Procedure, Group Guidance Values for refined C 5 - C 15 aliphatic and aromatic hydrocarbon solvents and constituent chemicals

Particulates (Insoluble or Poorly Soluble) Not Otherwise Specified • The recommendations are guidelines (not TLVs®) for limiting exposure to insoluble particles: – 3 mg/m 3 (respirable) – 10 mg/m 3 (inhalable) • Apply to particles that: – – Do not have a TLV® Are insoluble or poorly soluble in water or lung fluid Have low toxicity (not genotoxic, cytotoxic, etc. ) Only toxic effects are inflammation or “lung overload” mechanisms

Proposed New Appendix C: TLVs® for Mixtures • In the absence of other information, assume additivity of substances having similar effects – Same outcomes, same target organs or systems the TLV® for the mixture has been exceeded.

Proposed New Appendix C: TLVs® for Mixtures • Recommends using the TLV® Documentation, as well as the TLV® Basis information in the book • Where possible, only combine TLVs® having a similar time basis – Table showing appropriate combinations of different types of TLVs®

Proposed New Appendix C: TLVs® for Mixtures • Limitations and Special Cases – Do not use when suspect inhibition or synergism – Take care when considering mixtures of A 1, A 2, or A 3 carcinogens – Not appropriate for complex mixtures with many different components (e. g. , gasoline, diesel exhaust)

• Notations Committee Activities – Complete re-write of Introduction to the TLV®-CS section of the book – Improved definition and categorization of TLV® Basis • Communications – Symposia on substances under study • Membership – Recruitment, especially of physicians and epidemiologists – Bill Wagner Award & member recognition • Chemical Substance Selection – Refining the selection process

Committee Activities • Sponsored symposium on TDI (Spring 2002) • Attended ACGIH® symposium on oil mists and metalworking fluids (Fall 2002) • Plenary talk on TLVs® at AIOH in Australia (Winter 2002) • Co-sponsored a colloquium on Workplace Chemical Exposure Standards with IRSST in Montreal (Spring 2003)

Committee Plans • Co-sponsor symposium on enzymes (Spring 2004) • Roundtables on TLVs® at other professional meetings (SOT, ACOEM) • Joint meetings with ACGIH® BEI® and AIHA WEEL Committees

Questions?

Scheduled Break Take a minute to stretch!

Biological Exposure Indices ® (BEIs ) Process and Use Larry K. Lowry, Ph. D. Chair, ACGIH® BEI® Committee The University of Texas Health Center at Tyler

Where are we going today? • • Current definitions of the BEI®, 2002 The development of BEIs® The key – Documentation Examples Biomonitoring without limits Current and future issues Resources

Biological monitoring. Why? • Assess exposure and uptake by all routes – TLV® not protective – skin – Includes workload – More closely related to systemic effects • Assess effectiveness of PPE • Legal or ethical drivers – Regulations – Control workers’ compensation costs

“Guidelines” for biological monitoring – ® The BEIs

® The BEIs – 2003 BEIs® are intended for use in the practice of industrial hygiene as guidelines or recommendations to assist in the control of potential workplace health hazards and for no other use.

® The BEI – Definition • Biological monitoring … entails measurement of the concentration of a chemical determinant in the biological media of the exposed and is an indicator of the uptake of the substance. • The BEI® determinant can be the chemical itself; one or more metabolites; or a characteristic reversible biochemical change induced by the chemical.

® BEIs • Represent levels of determinants that are most likely to be observed in specimens collected from a healthy worker who has been exposed to chemicals to the same extent as a worker with inhalation exposure to the TLV®-TWA. • Generally indicate a concentration below which nearly all workers should not experience adverse health effects.

® Current basis for BEIs ® • Bio-equivalent to TLV (traditional) – “BEIs® represent levels of determinants that are most likely to be observed in specimens collected from a healthy worker who has been exposed to chemicals to the same extent as a worker with inhalation exposure to the TLV®-TWA. ” • Most of the BEIs® are based on TLVs®

Current basis • Indicators of early, reversible health effect – Approach developed in late 80’s as relationships did not always exist between airborne exposure and biomonitoring determinant. • Examples: – CO, Acetyl cholinesterase inhibiting pesticides, Cd, Pb, Hg, Hexane-Mn. BK

® The BEI Committee Larry Lowry, Ph. D. , U TX Health Center at Tyler – Chair • • • Phil Edelman, MD, CDC – Vice Chair Mike Morgan, Sc. D, CIH, U. of WA – Past Chair Joe Saady, Ph. D. , VA Division of Forensic Science Leena Nylander-French, Ph. D, CIH, UNC, Chapel Hill John Cocker, Ph. D. , HSE, UK K. H. Schaller, Dipl. Ing. , Univ Erlangen, Germany M. Ikeda, Ph. D. , Kyoto Ind Health Assoc, Japan Gary Spies, CIH, Pharmacia Glenn Talaska, Ph. D. , CIH, Univ of Cincinnati Jan Yager, Ph. D. , EPRI

® BEI development • Volunteer assigned document • Prepares draft Documentation • Sources of data – Human laboratory & workplace data • Limited use of animal data – Simulation modeling with verification – Published peer-reviewed data • Draft Documentation discussed in committee meetings, e-mail

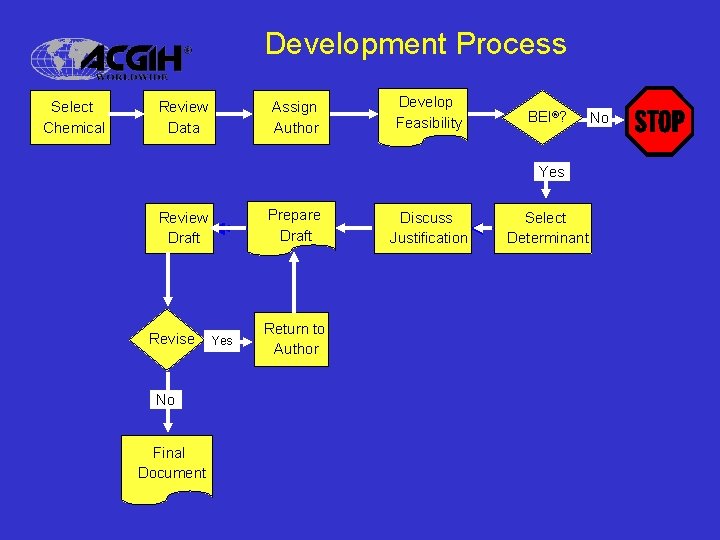

Development Process Select Chemical Review Data Assign Author Develop Feasibility BEI®? Yes Prepare Draft Review Draft Revise No Final Document Yes Return to Author Discuss Justification Select Determinant No

How are chemicals selected? • • • Chemicals with human data Potential for dermal absorption Availability of adequate lab methods Recommendations by others Interest/experience of committee member

The Documentation • Who is the audience? – The practicing occupational hygienist or other practicing occupational health professional • What the Documentation is – Justification supporting the BEI® – Practical information on sampling, background, etc. • What the Documentation is not – An extensive review of toxicological data – A novel research approach to setting guidelines

The Documentation – contents Basis of the BEI® Uses and properties Absorption Elimination Metabolic pathways & biochemical interactions • Possible non-occupational exposure • Summary of toxicology • • •

For each index ® or BEI • • Analytical methods, sampling, and storage Levels without occupational exposure Kinetics Factors affecting interpretation – Analytical procedures and sampling – Exposure – Population • Justification – the key • Current quality of database • Recommendations and references

The notations • B - Background levels expected • Nq- Nonquantitative – Biol. monitoring recommended, no BEI® • Ns- Non-Specific – Needs confirmation • Sq Semiquantitative (but specific) – Screening test – Confirmatory tests

Practical applications • Bioavailability of metals – Chromium VI (water soluble) fume • Specificity and Sensitivity – Benzene biomonitoring – t, t-Muconic acid in urine (t, t-MA) – S-Phenylmercapturic acid in urine (SPMA)

Bioavailability of metals – Chromium • Physical properties and solubility – Cr (III), very insoluble particulates – Cr (VI) insoluble particulate – the lung carcinogen – Cr (VI) water soluble • Fume as generated in MMA arc welding • Mist as generated in electroplating • Health effects of Cr (VI) water soluble – Fume – lung irritant – Mist – chrome ulcers on skin, mucus membranes

Biological monitoring of Cr exposure • Cr (III) inappropriate – not bioavailable • Cr (VI) insoluble – not bioavailable • Cr (VI) water soluble – If fume, use BEI® based on welding studies – If mist, bioavailability less • See chrome ulcers at “acceptable” BEI® values

Biomonitoring of benzene

Biomonitoring at ® the current TLV • t, t-Muconic acid in urine (t, t-MA) – Good sensitivity (to 0. 1 ppm benzene) – HPLC methodology – Considerable variability in populations • S-Phenylmercapturic acid in urine (SPMA) – Ultimate sensitivity (to 0. 01 ppm benzene) – GC/MS methodology – Good data base, but expensive

Biological monitoring without limits • What about substances absorbed through the skin and with chronic systemic health effects that occur after a long lag time such as cancer?

The traditional approach • Cannot relate to airborne limits, TLVs® – Irrelevant • Cannot relate to skin absorption – Difficult to quantitate dermal dose • Cannot relate to health effect – Often wrong timeline • What to do?

® The BEI approach • Rationale – Biological monitoring is essential to assess dermal exposure – How do you correlate dermal dose with a biomarker of exposure? • Nq Approach – “Biological monitoring should be considered for this compound based on the review; however, a specific BEI® could not be determined due to insufficient data. ”

Criteria for an Nq • Dermal route of exposure significant • Good measurement methods • Good qualitative data on human exposure and biomarker concentration • Poor quantitative data relating exposure & biomarker • Long lag time, exposure to health outcome • Low or no background in general population

If criteria are met, then • • Develop full Documentation Describe sampling and analysis Define background levels Describe justification for biomonitoring Note the lack of quantitative data Cite guidance values from literature Publish BEI® as Nq (no value)

Examples – MBOCA • Principal route of exposure – dermal • Alleged health effect in humans – cancer • Good methods and human data on exposure-response • Industry practice guidance from the HSE

Health and Safety Executive, UK • Scientific basis to justify guidance values • Use "yardstick or benchmark" approach • Issues – Results – no "safe" or "unsafe" exposure levels – Results – estimates of exposure areas and allow intervention to reduce exposures – No legal status • Examples – MBOCA and MDA

The “yardstick or benchmark” approach • Good analytical methods • All specimens analyzed by one laboratory or with a single method • Establish "best industry practice" using an upper 90% confidence limit of the "best" industries • Benchmarks – guidance value to provide users with assessment of their results

Current issues • Carcinogens? – Is there a safe level of exposure? – The German EKA approach • Mixtures and interactions – Metabolism/toxicokinetics on pure chemical – Workers exposed to mixtures – How does this effect BEI®? • Biomarkers of effect – irreversible effects? • Data gaps – lack of human data • Animal data – should this be used?

Skin absorption Justification for ® BEI – Existing BEIs® for substances with substantial skin absorption • MBOCA – Nq • EGME/EGMEA – Nq • EGEE/EGEEA – 100 mg/g creatinine – (based on TLV® of 5 ppm) – Is this a valid approach? • Are Nq notations appropriate? • Should a chemical without a “skin” notation have a BEI®?

The future • As TLVs® drop, BEIs® based on TLVs® drop – Cannot distinguish exposure at TLV® from background • What do we do for substances that have no human data? • What is the future of modeling techniques? – Can these modeling techniques be validated? • Should animal data be used? • What about mixtures?

Other guidelines

Germany The BATs from the DFG

The HSE – UK Biological monitoring guidelines

Guidance from WHO – How to do biological monitoring

Other Guidelines New edition, 2001

Thank you for your attention Your questions please

Scheduled Break Take a minute to stretch!

® ® ACGIH TLVs for Physical Agents Committee Update Vice-Chair: Thomas Bernard University of South Florida College of Public Health

TLV® Physical Agents Committee Process for Hazardous Agent Selection and Decision Making

Mission To foster, solicit, collect and evaluate data on potential health hazards of exposures to physical agents. When appropriate, recommend ACGIH® Threshold Limit ® Values for physical agents.

2002 PAC Harry Mahar Maurice Bitran Thomas Bernard Gerald Coles Anthony Cullen Daniel Johnson John Leonowich William Murray Bhawani Pathak Robert Patterson Thomas Tenforde Carla Treadwell Consultants: Thomas Adams Thomas Armstrong Gregory Lotz Martin Mainster Gary Myers

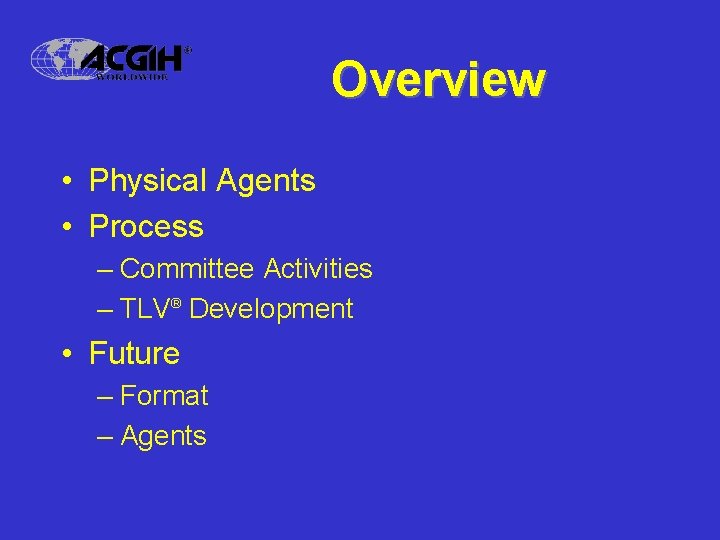

Overview • Physical Agents • Process – Committee Activities – TLV® Development • Future – Format – Agents

Disclaimer The opinions expressed here are those of the author and not of his employer, the Physical Agents Committee or the ACGIH® Worldwide.

Physical Agents It’s the Movement of Energy

Risk of Health Effects • What is the nature of the energy? • How much energy? • What is the interaction with tissue?

Nature of Energy • Electric and Magnetic Fields • Photons • Kinetic Energy – Pressure – Vibration – Mechanical • Heat

Amount of Energy • Total Amount of Energy Absorbed – What does it take to raise water temperature? • Rate of Absorption (Power or Intensity) – How fast does the temperature rise? • Normalized to Surface Area (e. g. , m. J/cm 2, m. W/cm 2)

Interactions • Electric and Magnetic Fields – Induce Currents – Align Molecules – Vibrate Molecular Bonds • Photons – Vibrate Molecular Bonds – Disrupt Molecular Bonds

More Interactions • Mechanical Disruption of Tissue – Pressure – Vibration – Force Applications • Loss of Tissue Function – Thermal: Gain or Loss of Heat

Bernard Watt-O-Meter {Not Accepted, or Considered Acceptable, by Any Authority} Power Limits for Various Exposures [m. W/cm 2] Electric and Magnetic Fields Radiofrequency/Microwave Infrared Light 10 Blue Light 0. 0001 Ultraviolet Light Ionizing Radiation Noise 0. 00003 Heat Stress 30 0. 0012 0. 00000003 170, 000 1. 0

Exposure • Energy Distribution in the Immediate Environment • The distribution is usually described as Power or Intensity (directly or through a surrogate) versus Frequency or Wavelength in Bands

Exposure Threshold • Total Energy – Ability to Absorb Energy • Rate of Energy (Power or Intensity) – Ability to Dissipate Absorbed Energy In a Band Integrated Over All Bands

Process Committee Activities Development of TLVs®

Representation • Usually one or two members with an expertise for a particular agent (e. g. , a small portion of the electromagnetic spectrum) • Small committee to maintain a working and collegial group. We meet as a whole. • Leverage with outside experts

® Updating TLVs • PAC meets with outside experts • Members bring recommendations to the PAC for discussion • Consideration of actions taken by national and international committees or agencies

® New TLVs • Quintessential Example: Hand Activity • Formed a cadre of consultants • Convened a conference • Developed recommendation and Documentation • Presented to PAC and discussed • PAC voted after internal deliberations

Future Format Agents

Format • TLV® Book – Use of Flow Charts – Evolving (see Heat Stress and RF/MW) • Training • Documentation – Expanded and Focused (see HAL and Lifting) – Health Effects and Exposure Indices – Guidance (see Heat Stress)

Form • Physical agents have their own history and character with respect to measurement and exposure assessment • There is an underlying similarity among the physical agents that may be introduced

Example Set • • Radiofrequency / Microwave Radiation Optical Radiation (IR, Visible and UV) Vibration (Hand-Arm and Whole Body) Noise

Energy Distribution 1000 Energy 100 10 1 0. 01 0. 1 1 Bands 10 1000

Energy Limits Within Bands 1000000 Energy Limit 100000 1000 Emin 100 10 1 0. 001 0. 1 1 Bands 10 1000

Limits by Band Is the limit exceeded within one or more bands? 1000000 100000 Energy 10000 100 10 1 0. 01 0. 001 PD 0. 01 Exp Lmt 0. 1 1 Bands 10 1000

Sensitivity Curve Sensitivity = Energy Limit / Emin 1000 Sensitivity 100 10 1 0. 001 0. 1 1 Bands 10 1000

Hazard Function = 1. 0 / Sensitivity Filter Multiplier 1 0. 01 0. 001 0. 1 1 Bands 10 1000

Effective Exposure = Energy Distribution x Hazard Function 1000 100 Energy 10 1 0. 01 ED 0. 001 E-eff 0. 0001 0. 1 1 Bands 10 1000

Total Energy Multiplying – Energy Limits by Band – Hazard Function by Band Integrating (Summing) Yields a Constant Value: A Total Energy Limit

Limit by Total Energy – In One Band – Under the Effective Energy Curve Compared to Total Energy Limit

In Summary • TLVs® – Limit Power (Ability to Dissipate) – Limit Total Energy (Ability to Absorb) • Limit by – Band – Total

Agents Under Review • Lasers • Vibration • Cold Stress • • • Altitude • Impulse Noise • ELF H-Fields HAL Lifting WMSDs Wide-Band RF

Scheduled Break Take a minute to stretch!

Biologically Derived Airborne Contaminants: ® Bioaerosols and TLVs Kenneth F. Martinez, MSEE, CIH Chair, ACGIH® Bioaerosols Committee NIOSH

Where ?

Microorganisms • Obligate parasites (must have a living host) – viruses – bacteria – rickettsia • Facultative saprophytes (will utilize dead organic material) – fungi – bacteria

Size Ranges of Microorganisms

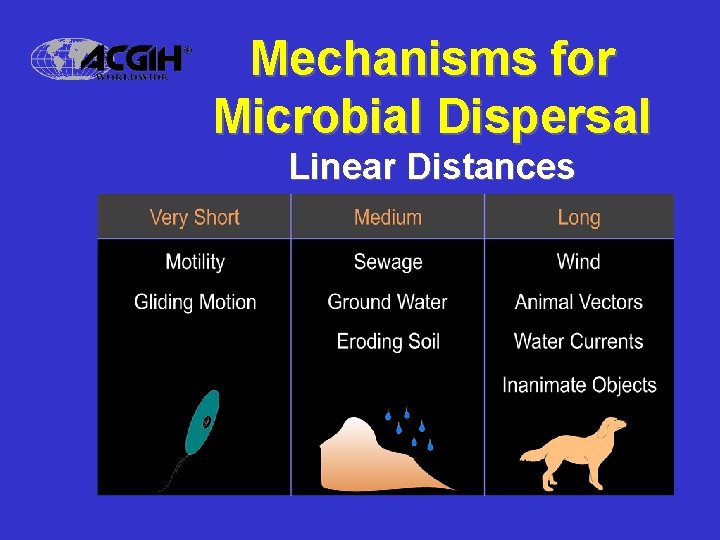

Mechanisms for Microbial Dispersal Linear Distances

Microbiological Concerns • Infections • Immunologic Reactions • Toxic Effects

Infectious Disease • Pathogenicity • Virulence • Relationship between virulence (V), numbers of pathogens or dosage (D), and resistant state of the host (RS) V*D Infectious Disease = RS • Colonization • Invasiveness

Infectious Disease Terminology • Portal of entry • Exposure vs. infection • Clinical vs. subclinical or asymptomatic infection • Carrier state • Opportunistic infection • Human pathogen vs. virulence • Immunosuppression

Infectious Disease Pathways • • • Respiratory Oral (via ingestion) Contact Penetration Vectors (via insect bite)

Allergic Disease • Allergic rhinitis • Allergic asthma • Allergic bronchopulmonary aspergillosis • Extrinsic allergic alveolitis (hypersensitivity pneumonitis)

U. S. Disease Prevalence • 1 of 5 Americans suffer from allergic disease • Indoor allergens responsible for significant share • Environmental control reduces disease severity Source: NHLBI, 1991

Allergen Exposure Dust Mites Molds Animal Dander Pollen Allergenic Chemicals Genetic Predisposition Allergic Disease Immunologic Sensitization or Susceptibility Mild Moderate Severe (Death) Other Exposures Viruses Air Pollution Tobacco Smoke Source: Pope AM, et al. , eds. , 1993

Important Mycotoxins

Where Are We?

Classification of Occupant Complaints • Sick Building Syndrome • Building-Related Disease • Occupant Discomfort

Sick Building Syndrome Non-specific Symptoms • • Headache Eye, nose, throat irritation Sneezing Fatigue and lethargy Skin irritation Dizziness and nausea Cough Chest tightness

Building-Related Disease • Known etiologies • Related to identifiable exposure Legionnaires Disease Pontiac Fever Humidifier Fever Hypersensitivity Pneumonitis Anthrax

Why Not Scientifically Supportable? Total Culturable or Countable Bioaerosols • • Not a single entity Human responses cover wide range No single sampling method exists No exposure/response relationships exist

Why Not Scientifically Supportable? Specific Culturable or Countable Bioaerosols - other than infectious • Data are derived from indicators rather than actual effector agents • Concentrations vary widely • Low statistical power in cause-effect relationship studies

Why Not Scientifically Supportable? Infectious Culturable or Countable Bioaerosols • Dose-response data limited to a few agents • Air sampling limited to research • Administrative and engineering controls remain the primary defenses

Why Not Scientifically Supportable? Assayable biological contaminants • Some dose-response relationship data available – Experimental studies – Epidemiologic surveys • Assay methods improving • May be appropriate in the future

Questions? • • • Pat Breysse Lisa Brosseau Larry Lowry Tom Bernard Ken Martinez
