TLC 58581 application user guide PSILLED 1 TLC
- Slides: 11
TLC 58581 application user guide PSIL-LED 1
TLC 59581(2) Application User Guide • Hardware connection • Test tool of LED Screen • Advanced login • Screen config • Performance setting • TLC 59581 extended attributes 2
Hardware connection Sending Card MCTRL 300 Receiving Card MRV 300 3
Hardware connection 5 V DC Ethernet Cable USB Cable to PC DVI Cable to PC 4
Hardware connection TLC 59581 LED Panel Receiving Card D 1 Data 1 D 2 Data 2 GCLK OE 1 SCLK DCLK 1 A/B/C/D/E A 1/B 1/C 1/Data 32 LAT 1 Pin Comments Receiving Card TLC 59581 LED Pannel 5
Test tool of LED Screen • Plug-in Tool Test Tool of LED Screen 6
Advanced login • User Advanced Login input the password 666 Advanced user login interface 7
Screen Config • Advanced user login interface Screen Config Screen/Load Config File Screen Config 8

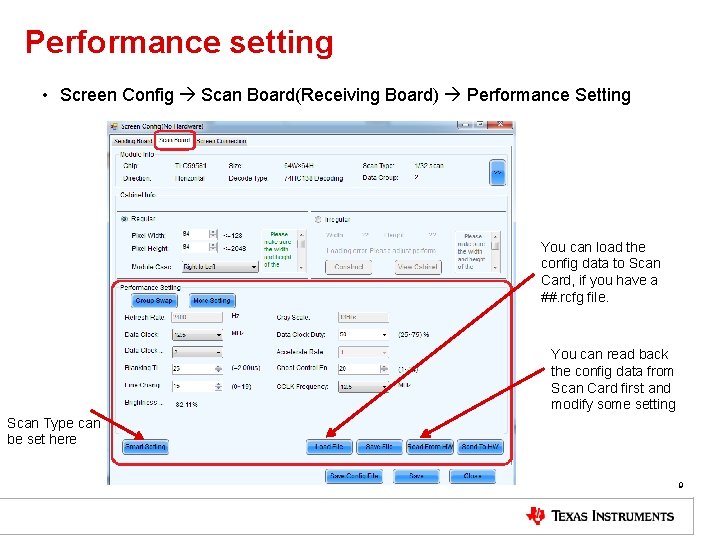

Performance setting • Screen Config Scan Board(Receiving Board) Performance Setting You can load the config data to Scan Card, if you have a ##. rcfg file. You can read back the config data from Scan Card first and modify some setting Scan Type can be set here 9
TLC 59581 extended attributes • Screen Config Scan Card(Receiving Card) Performance Setting More Setting TLC 59581 Extended Attributes • After finished the config Apply Come back to Scan Card Send to HW Save • After send to HW, the config data will be fixed in the flash of the Scan Card (The config data can be reloaded automatically in next time power on) 10
Thank you 11
