TIS Bus Connection Topology Addresses Course 20 Minutes

TIS Bus Connection Topology & Addresses Course 20 Minutes Test 10 Minutes TIS Training Program 2012 , Rev 1. 1 www. tissmarthome. com

What is TIS Bus? What is Bus?

What is TIS Bus?

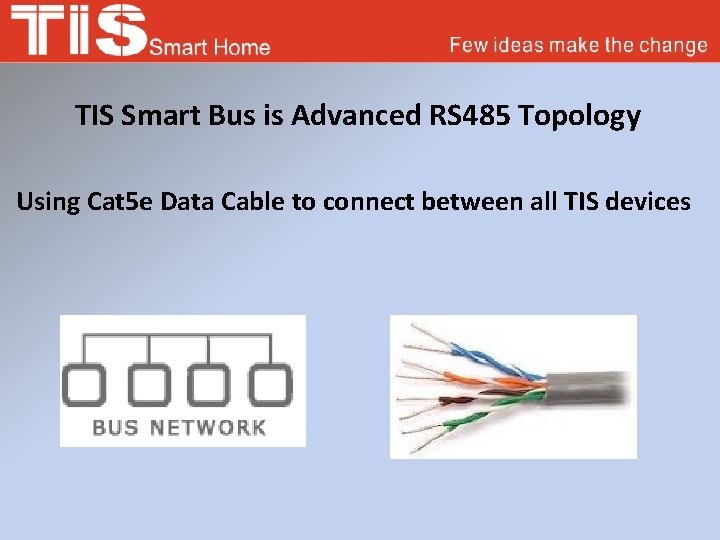

TIS Smart Bus is Advanced RS 485 Topology Using Cat 5 e Data Cable to connect between all TIS devices

TIS Smart Bus Network D L B LD 3 2 1 B S t e e r t o N 1 The Data is moving in Bus (Cat 5 e cable) between Buildings (Devices)

We can use any Topology to connect…

Each device has unique address Each address consist of Subnet ID & Device ID

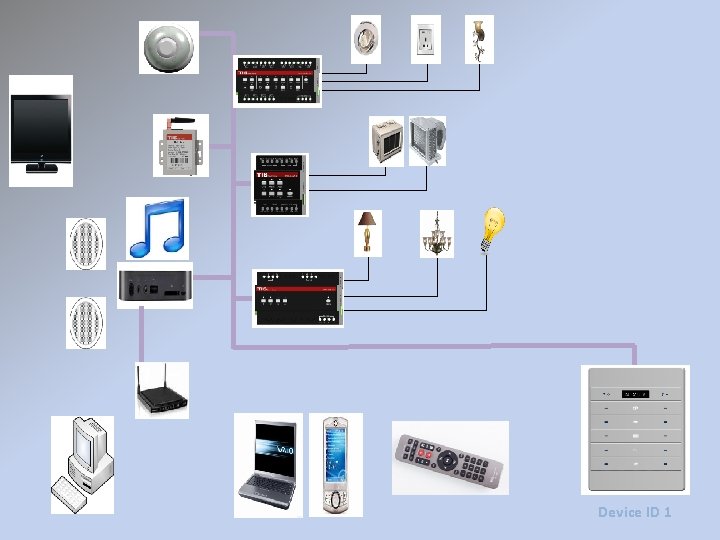

Subnet ID 1 Device ID 124 1100101 Device ID 1

Device ID 101 On Subnet ID 1 Device ID 101 1100101

No Power Off Apajor Dim 40 % On On Loster Dim 60 % Lamp Dim 80 % Subnet IDSubnet 1 ID 1 1100100010 01 1 Device IDID Device 52 ID 91 ID 51 124

On 110010001

All TIS devices work with 24 V so how many power supply we need? TIS Power Supply output is 24 V DC /1. 5 A Average consumption for each device is 50 m. A So we need 1 power supply for every 30 devices in the same network

How many devices can be connected to the same TIS-BUS Line? We can connect maximum 60 Devices

How we can connect more than 60 devices in same network? You can use TIS-IP-Port gateway to connect different networks This is the recommended way to connect different apartments, offices or hotel rooms
