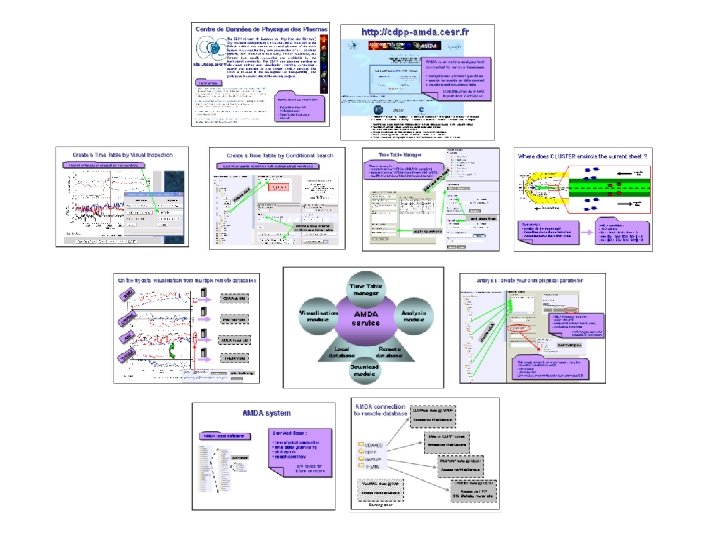

Time Table manager Visualisation module AMDA service Local
Time Table manager Visualisation module AMDA service Local database Analysis module Remote database Download module
AMDA system AMDA local database User Work. Space : • new physical parameters • time tables (event lists) • plot layouts • search conditions are saved for future sessions parameters
AMDA connection to remote database CDAWeb data @ SPDF Access via Web. Service Data in CDPP format Access via Web. Service MAPSKP data @ CESR Access via Web. Service Vex/MAG data @ IWF Access via Web. Service Coming soon THEMIS data @ CDPP NFS mounting CDPP is the European mirror site for the SSL Berkeley database
Where does CLUSTER encircle the current sheet ? magnetic field X coordinate Your query : • position : in the magnetotail • 2 satellites above the current sheet • 2 satellites below the current sheet magnetic field AMDA condition : • X 1< -10 Re • BX 1 * BX 2 * BX 3 * BX 4 > 0 • min([BX 1 BX 2 BX 3 BX 4]) < 0 • max([BX 1 BX 2 BX 3 BX 4]) > 0
Centre de Données de Physique des Plasmas Données http: //cdpp. cesr. fr The CDPP (Centre de Données de Physique des Plasmas) was created in 1998 jointly by CNES and CNRS. The CDPP is the French national data centre for natural plasmas of the solar system. It assures the long term preservation of data obtained primarily from instruments built using French resources, and renders them readily accessible and exploitable by the international community. The CDPP also provides services to allow user defined data visualisation, merging, computation, search and extraction on data content (AMDA service). The CDPP is involved in the development of interoperability, and participates in several Virtual Observatory projects. References International collaborations • Europlanet network • Helio proposal • Time-Table Exchange • SPASE
Create a Time Table by Conditional Search Edit your search condition with mathematical functions ou k ic l c e s T /T// > 1 m Define a time interval or choose a Time Table
Create a Time Table by Visual Inspection Record intervals of interest by mouse clicks
Time Table Manager Time table may be - exported : text or VOTable (XML IVOA compliant) - imported : text or VOTable from the user disk or URL - modified : extended, shifted, intersected, merged e l ab t e m i r t u o t y i Ed … and share them apply operations
On the fly data visualisation from multiple remote databases D IN W CDAWeb DB I IN S AS C E C A T M E H MAPSKP DB AMDA local DB IS THEMIS DB solar wind time lag
AMDA functions include : • solar wind shift • temporal functions : mean, stdev, … • coordinate transforms and apply to local and remote DB parameters mo us e c l ick Analysis : create your own physical parameter User Work. Space This newly created « user parameter » may be : - used for conditional search - visualised - downloaded Like each parameter from the local or remote DB
http: //cdpp-amda. cesr. fr AMDA is an online analysis tool connected to various databases • compute new physical quantities • search for events on data content • visualize and download data Everything you do is kept in your User Work. Space ! E. Budnik 2, V. Génot 1, C. Jacquey 1, , R. Hitier 3, M. Bouchemit 1, M. Gangloff 1, A. Fedorov 1, B. Cecconi 4, N. André 1, B. Lavraud 1, C. Harvey 1, F. Dériot 5, D. Heulet 5, E. Pallier 1, E. Penou 1 and J. L. Pinçon 1 : CDPP/CESR, CNRS/Université Paul Sabatier, 9, avenue du colonel Roche, 31028 Toulouse, France. 2 : Noveltis, 2, Avenue Europe, 31520 Ramonville Saint Agne, France 3 : Co-Libri, Cremefer 11290 Montréal, France 4 : LESIA, Observatoire de Paris-Meudon, 5, place Janssen, 92195 Meudon 5 : CNES, Centre spatial de Toulouse, 18 avenue E. Belin, 31401 Toulouse 6 : LPCE, Laboratoire de Physique et Chimie de l'Environnement, 45071 Orléans, France
