Time of Flight Diffraction (To. FD)
Topics Ø What is To. FD Ø History Ø How does it work Ø Applications Ø Advantages Ø Challenges Ø Performance & Cost Ø Conclusion
What is To. FD ? Ø To. FD = Time of Flight Diffraction Ø To. FD = Highly accurate Ultrasonic inspection technology, principally intended for weld inspection Ø Technology Design has also developed a rastered To. FD application for effective area scanning
History Ø To. FD discovered in the 1950’s by Maurice Silk & others of AEA (UK) Ø Developed in the early 1970’s by AEA (UK). Ø Gained wider acceptance in the 1980/90’s by the efforts of Sonomatic & others Ø Equipment more portable and efficient in the 90’s – Technology Design leads the way Ø Development of QC codes in late 90’s/2 K’s
How does To. FD work?
How it works PLANK BRICK Reflection Back
How it works cont’d PLANK BRICK Diffraction
How it works cont’d Rx Tx DEFECT Diffraction
How it works cont’d Practically Rx Tx
How it works cont’d Rx Tx Lateral Wave + Pos Amplitude d. B Time m seconds - Neg

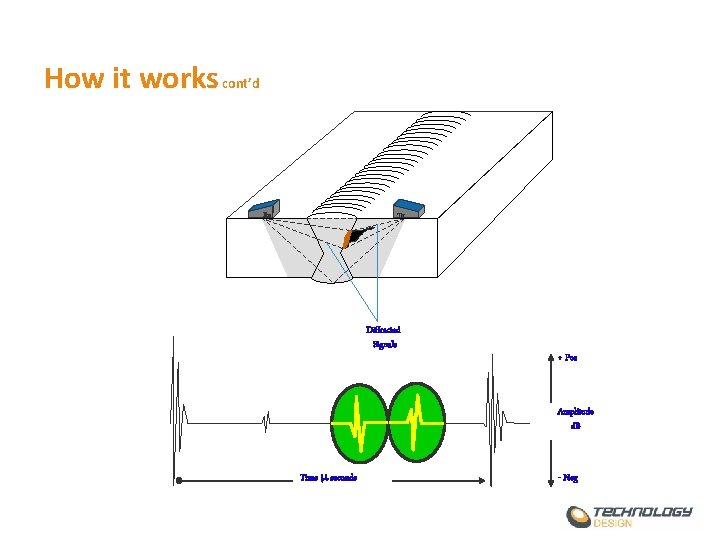

How it works cont’d Rx Tx Diffracted Signals + Pos Amplitude d. B Time m seconds - Neg

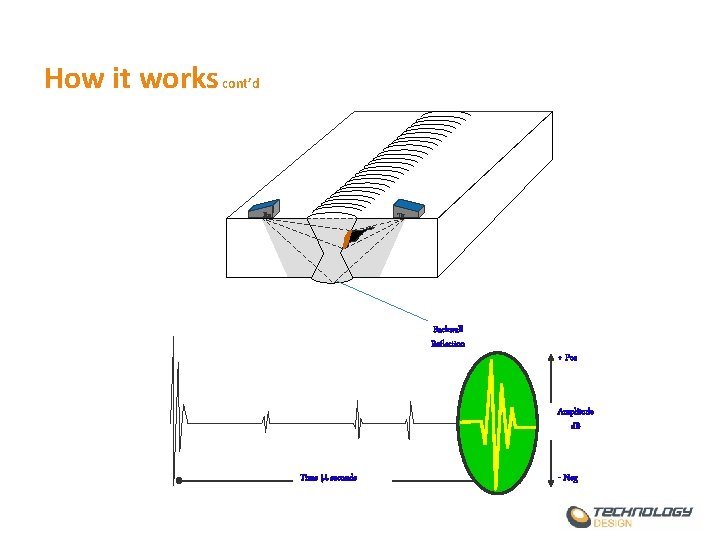

How it works cont’d Rx Tx Backwall Reflection + Pos Amplitude d. B Time m seconds - Neg
How it works cont’d Data Collection 6 5 4 3 2 1 Rx Tx
How it works cont’d Phase Reversal + Pos Amplitude d. B Time = µ seconds or Millimetres - Neg
How it works (cont’d) Greyscale Image Presentation ace Surf Depth fect f de o Top wall Back Bo fect f de o ttom Length

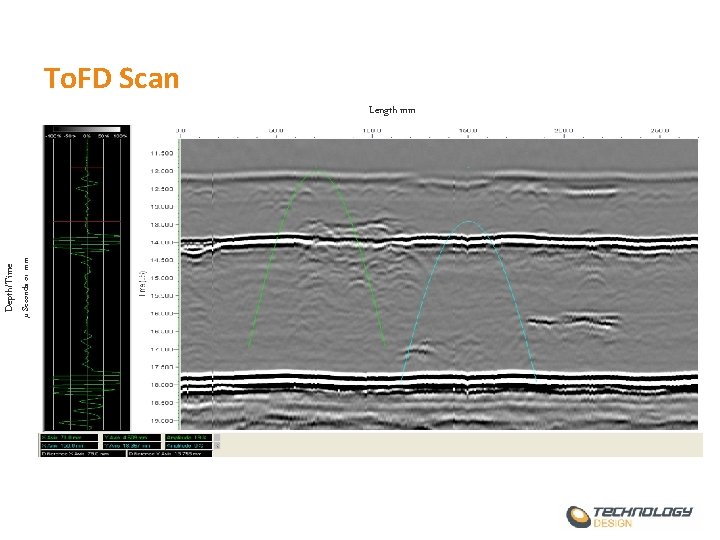

Depth/Time µ Seconds or mm To. FD Scan Length mm
APPLICATIONS Ø Critical plant items in construction and in-service Ø Pressure Systems – Vessels, pipelines, pipe-work Ø Storage facilities – Tanks, spheres Ø Tubed Vessels - Boilers, Heat Exchangers, Condensers Ø Service induced defects & structural damage Ø Stress/chemically assisted micro-cracking - SCC, LTHA, HHA, SOHIC Ø Corrosion/erosion profiling - especially weld root erosion Ø Thick wall components > 300 mm Ø Clad/lining interface bond/cracking Ø Fabrication QC - includes ‘in-situ’ construction
Advantages of To. FD Ø Highly Accurate and Sensitive Ø Increased Evidence Ø Fast Ø Comprehensive Coverage Ø Meaningful Presentation Ø Fast Reporting / Decision Making Ø Permanent Record of All Parameters Ø Offline Interpretation and Measurement Ø Objective Assessment. Ø Excellent Repeatability.
Challenges Ø Reduced near surface resolution (approx. 3– 5 mm) Ø Additional B-scans necessary for transverse positioning Ø Sees everything (down to grain structure) so interpretation can be complicated if material/weld quality is poor Ø Should not be used with conventional ultrasonic acceptance criteria
Performance & Cost Ø Most validated of all NDT techniques - DDT trials in UK, PISC (International), NIL (Netherlands), EPRI (US) Ø TOFD outperformed other methods in trials Ø Faster, safer and more cost effective Ø Increased defect detection ability (POD) = safer, added value to plant Ø Reduced ‘false calls’(FCR) = less repairs and production downtime
In Conclusion Ø To. FD as an Inspection Tool Is: • Fast • Proven • Cost Effective Ø To. FD PROVIDES: • High POD and Low FCR • Accuracy • Real-time Sentencing • Transparent Recording of Results • Permanent Record • Repeatability
Thank you for your attention
