TileBased Texture Mapping on Graphics Hardware LiYi Wei

Tile-Based Texture Mapping on Graphics Hardware Li-Yi Wei NVIDIA

Texture Mapping with Large Repetitive Pattern Large terrain textures are very common Games, simulation Issues Bandwidth for texture access Memory/Cache for texture storage Need texture compression

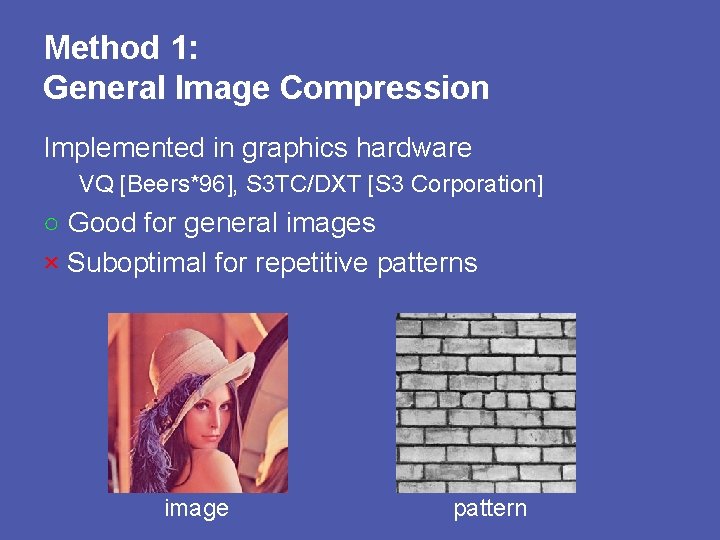

Method 1: General Image Compression Implemented in graphics hardware VQ [Beers*96], S 3 TC/DXT [S 3 Corporation] ○ Good for general images × Suboptimal for repetitive patterns image pattern

Method 2: Texture Tiling Only works for repetitive patterns ○ Good compression ratio × Requires changing texture coordinates × No native texture filtering support

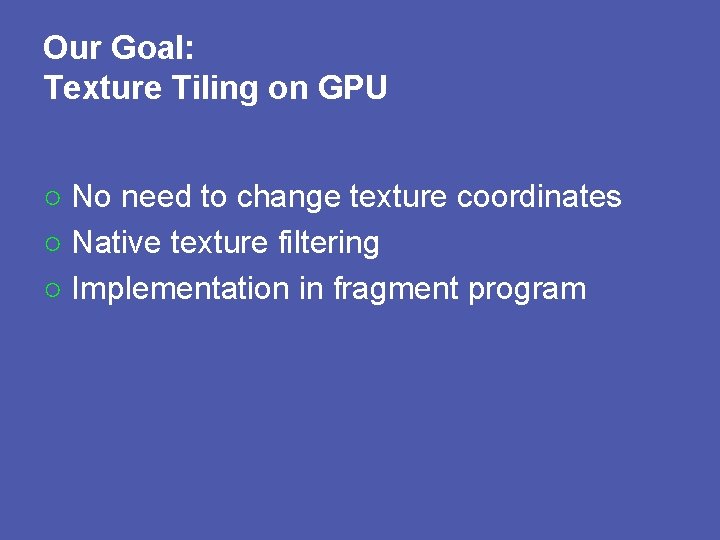

Our Goal: Texture Tiling on GPU ○ No need to change texture coordinates ○ Native texture filtering ○ Implementation in fragment program

Texture Tiling: Simple Case Input tile tiling ○ Infinite compression ○ Good for GPU ○ Fast decoding × Repetition Arbitrarily large output texture

Texture Tiling: Wang Tiles tiling Input tiles ○ replace repetition by non-periodic tiling Arbitrarily large output texture

How Wang Tile Works 3 4 1 2 tiling Input tiles continuous pattern across identical edge color adjacent tiles share identical edge color

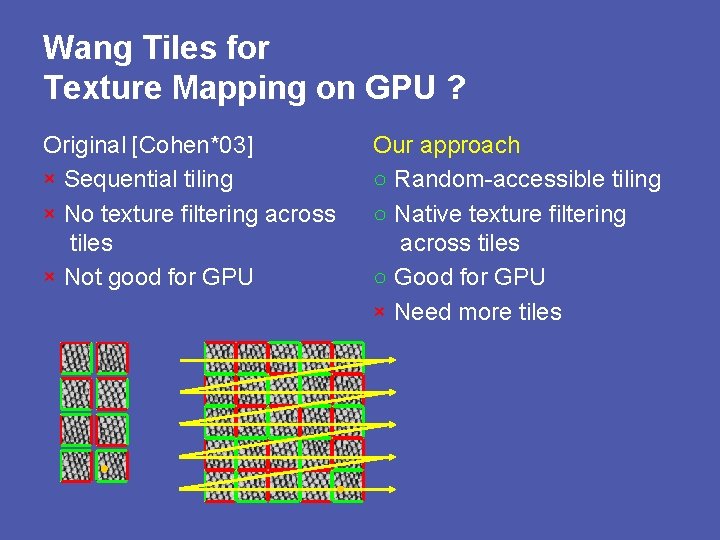

Wang Tiles for Texture Mapping on GPU ? Original [Cohen*03] × Sequential tiling × No texture filtering across tiles × Not good for GPU Our approach ○ Random-accessible tiling ○ Native texture filtering across tiles ○ Good for GPU × Need more tiles

Overview of Our System Tile hashing Packed input tiles (correct filtering across tiles) Output virtual texture

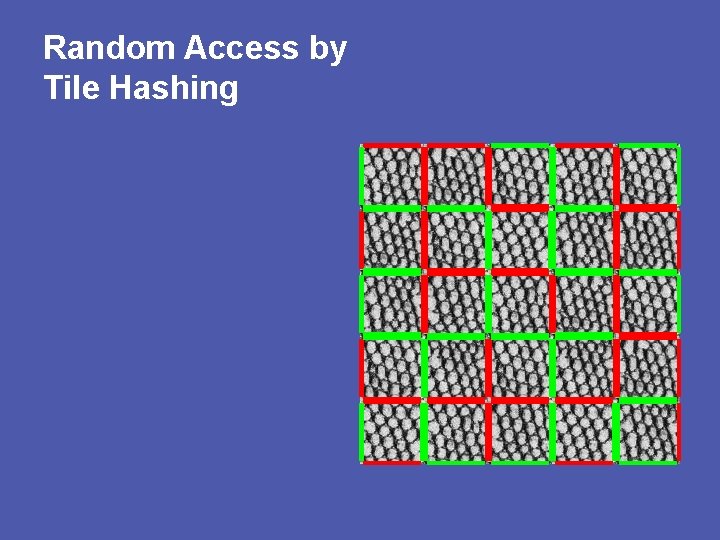

Random Access by Tile Hashing

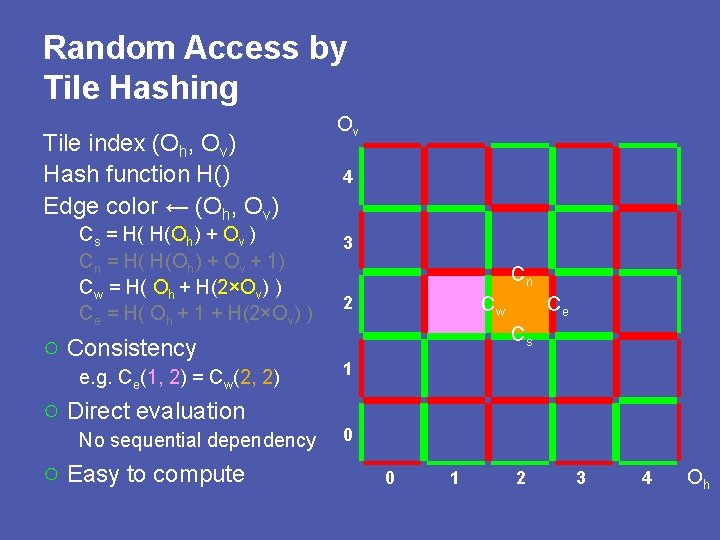

Random Access by Tile Hashing Tile index (Oh, Ov) Hash function H() Edge color ← (Oh, Ov) Cs = H( H(Oh) + Ov ) Cn = H( H(Oh) + Ov + 1) Cw = H( Oh + H(2×Ov) ) Ce = H( Oh + 1 + H(2×Ov) ) ○ Consistency e. g. Ce(1, 2) = Cw(2, 2) ○ Direct evaluation No sequential dependency ○ Easy to compute Ov 4 3 Cn 2 Cw Ce Cs 1 0 0 1 2 3 4 Oh

Tile Hashing Quality • H() simply a permutation table • Hashing quality depends on table size Image size 32 x 32 8 entries 16 entries 32 entries

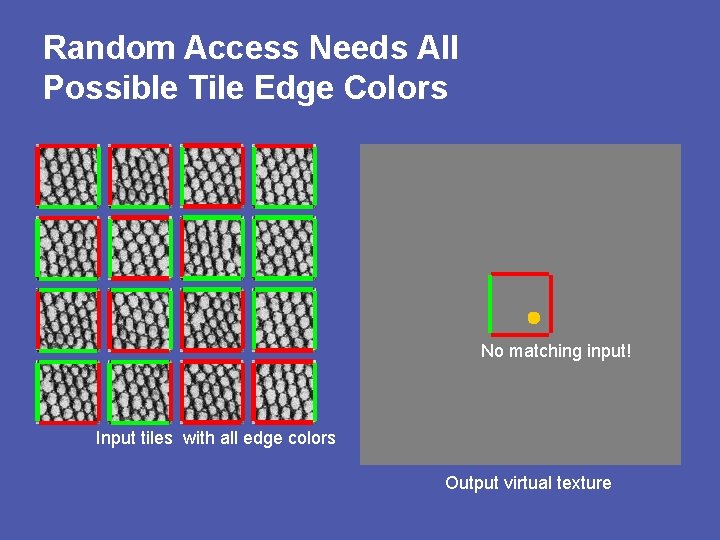

Random Access Needs All Possible Tile Edge Colors No matching input! Input tiles with all edge colors Output virtual texture

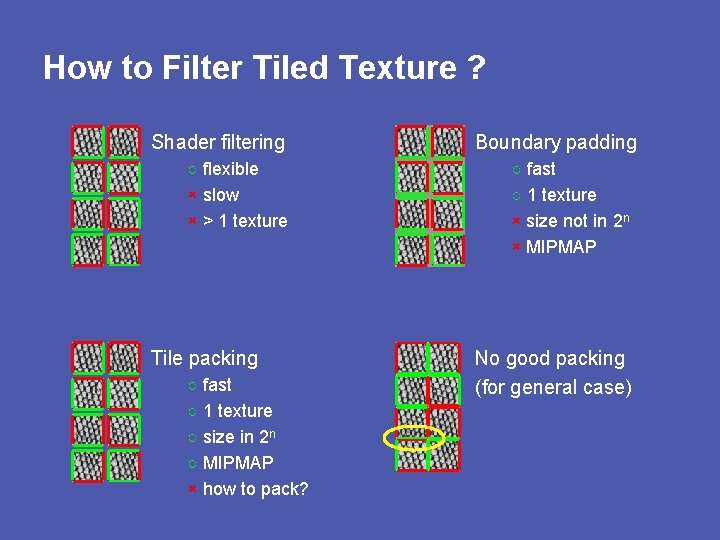

How to Filter Tiled Texture ? Shader filtering ○ flexible × slow × > 1 texture Tile packing ○ fast ○ 1 texture ○ size in 2 n ○ MIPMAP × how to pack? Boundary padding ○ fast ○ 1 texture × size not in 2 n × MIPMAP No good packing (for general case)

Tile Packing for Texture Filtering × tiles with all colors (for random access) ○ each tile used once (no wasted memory) ○ continuous boundary (native filtering) ○ easy to compute Packed input tiles

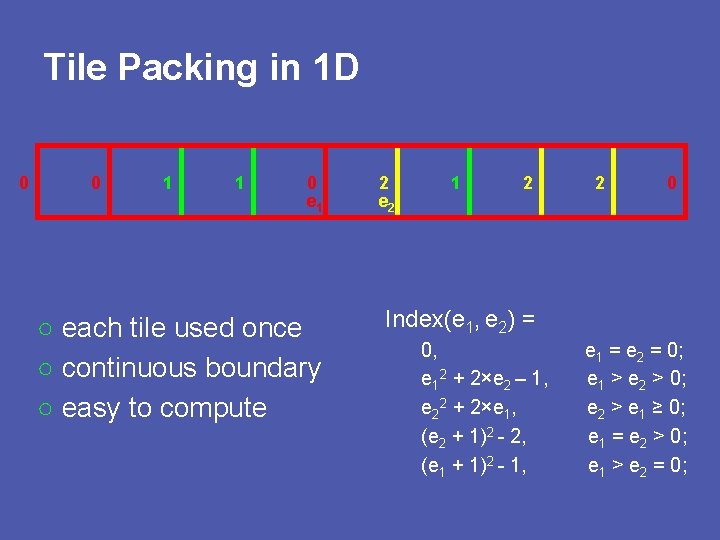

Tile Packing in 1 D 0 0 1 1 0 e 1 ○ each tile used once ○ continuous boundary ○ easy to compute 2 1 2 2 0 Index(e 1, e 2) = 0, e 12 + 2×e 2 – 1, e 22 + 2×e 1, (e 2 + 1)2 - 2, (e 1 + 1)2 - 1, e 1 = e 2 = 0; e 1 > e 2 > 0; e 2 > e 1 ≥ 0; e 1 = e 2 > 0; e 1 > e 2 = 0;

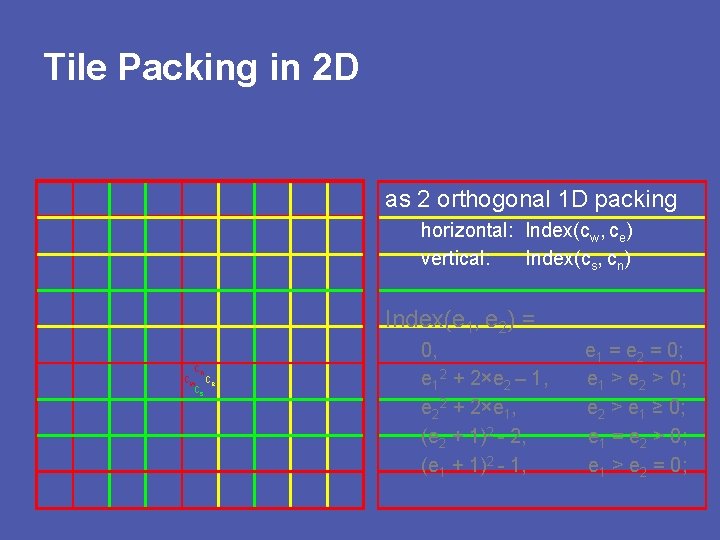

Tile Packing in 2 D as 2 orthogonal 1 D packing horizontal: Index(cw, ce) vertical: Index(cs, cn) Index(e 1, e 2) = cn cw ce cs 0, e 12 + 2×e 2 – 1, e 22 + 2×e 1, (e 2 + 1)2 - 2, (e 1 + 1)2 - 1, e 1 = e 2 = 0; e 1 > e 2 > 0; e 2 > e 1 ≥ 0; e 1 = e 2 > 0; e 1 > e 2 = 0;

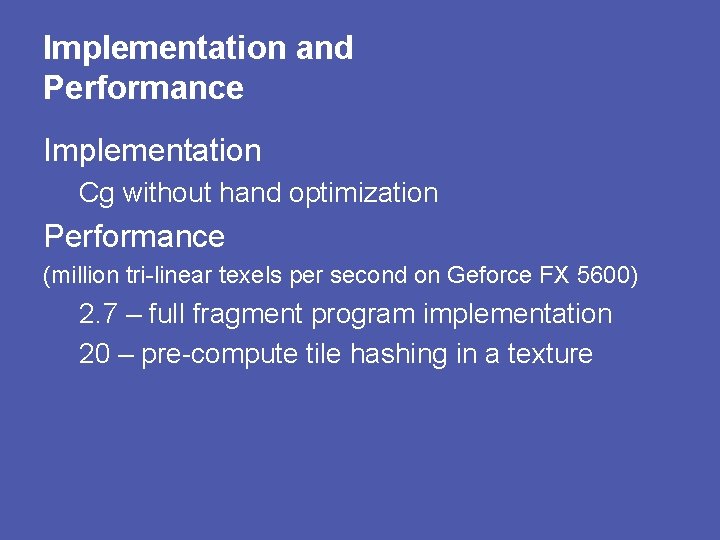

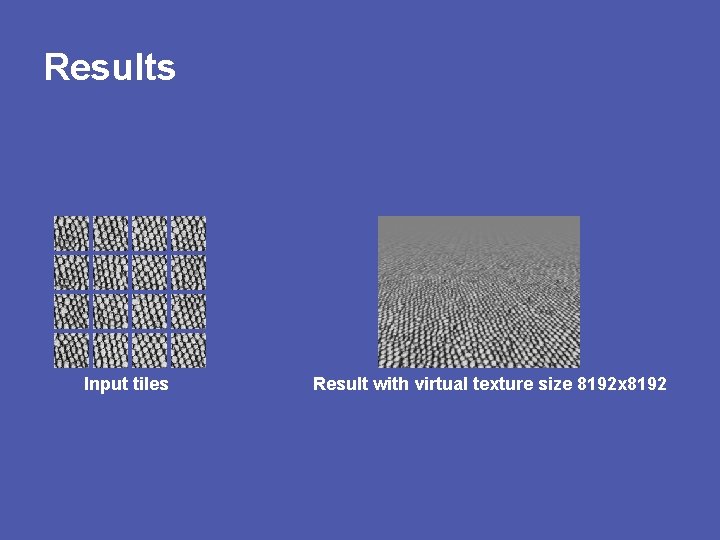

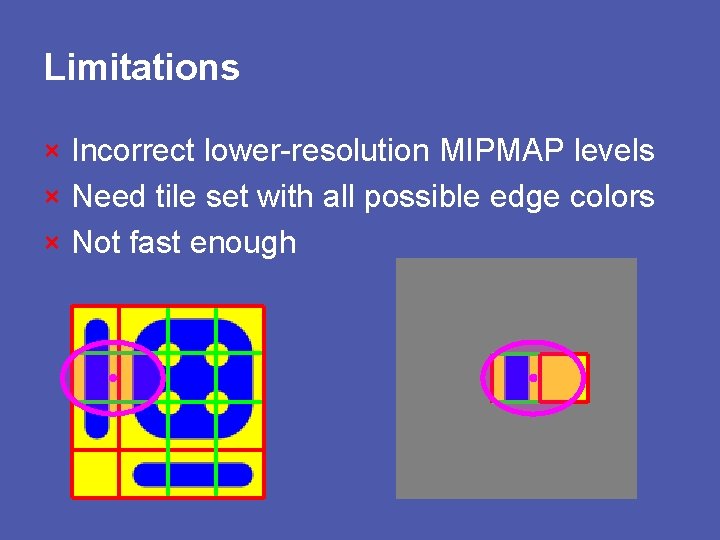

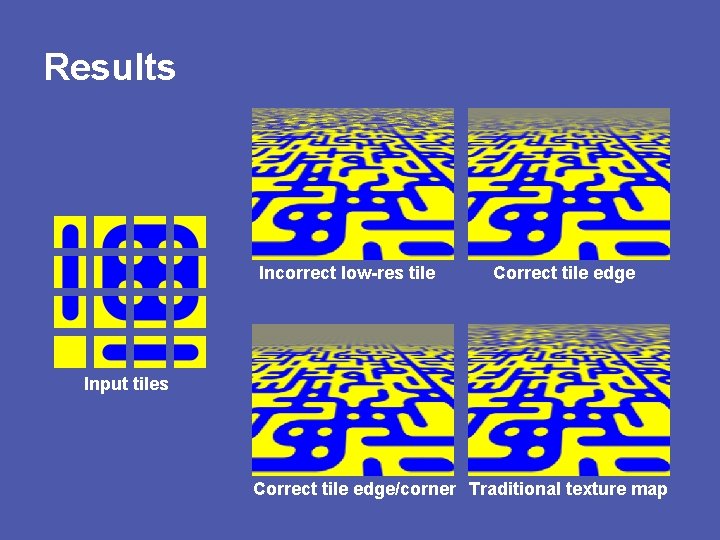

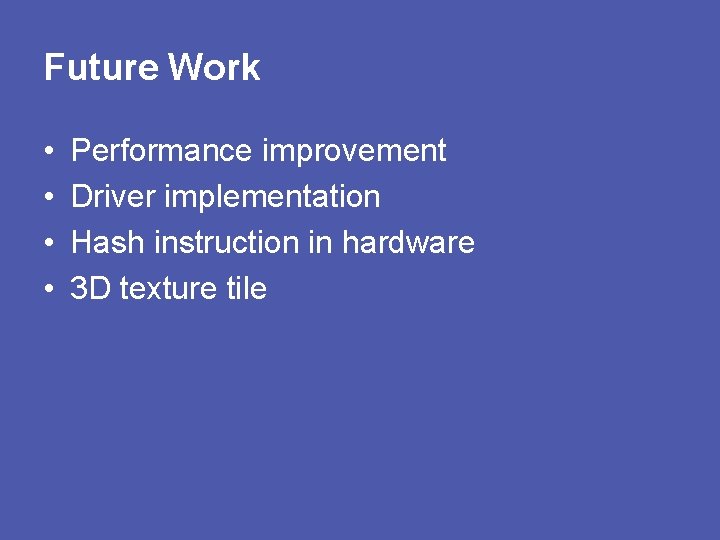

Implementation and Performance Implementation Cg without hand optimization Performance (million tri-linear texels per second on Geforce FX 5600) 2. 7 – full fragment program implementation 20 – pre-compute tile hashing in a texture
