THYROID AND PARATHYROID DISORDERS Sheila R Gupta M

THYROID AND PARATHYROID DISORDERS Sheila R. Gupta, M. D. May 1, 2011

Overview Functional Disorders of the Thyroid Hyperthyroidism Hypothyroidism Structural Disorders of the Thyroid Nodule Goiter Primary Hyperparathyroidism

Thyroid Physiology

Hypothalamic Pituitary Axis

Thyroid Physiology The thyroid gland primary produces T 4 and only a small amount of T 3 Most T 3 comes from peripheral conversion by 5’deiodinase enzymes Free forms of T 4 and T 3 are biologically active

The Role of Iodine Iodide is an essential component of thyroid hormone Iodine deficiency is a worldwide health problem Data from the NHANES study indicate generally adequate iodine intake in the United States Pregnant and lactating women require 50100% more daily iodine than the general population

Evaluation of Thyroid Function TSH – most sensitive indicator of thyroid function Free T 4 - measurement by equilibrium dialysis remains the gold standard T 3 - measurement appropriate in hyperthyroidism to detect T 3 toxicosis Antibodies: Anti-TPO antibodies: underlying autoimmune disorder with increased risk of hypothyroidism TSI and TBII: pathognomonic for Graves disease Thyroglobulin – tumor marker in patients with papillary or follicular thyroid cancer Calcitonin – tumor marker for medullary thyroid cancer

Thyrotoxicosis Thyroid Hormone Excess 1. Thyroiditis 2. TSH-secreting pituitary tumor 3. Thyroid hormone resistance 4. Exogenous T 4/T 3 5. Iodine load Hyperthyroidism 1. Graves Disease 2. Toxic Multinodular goiter 3. Toxic Adenoma

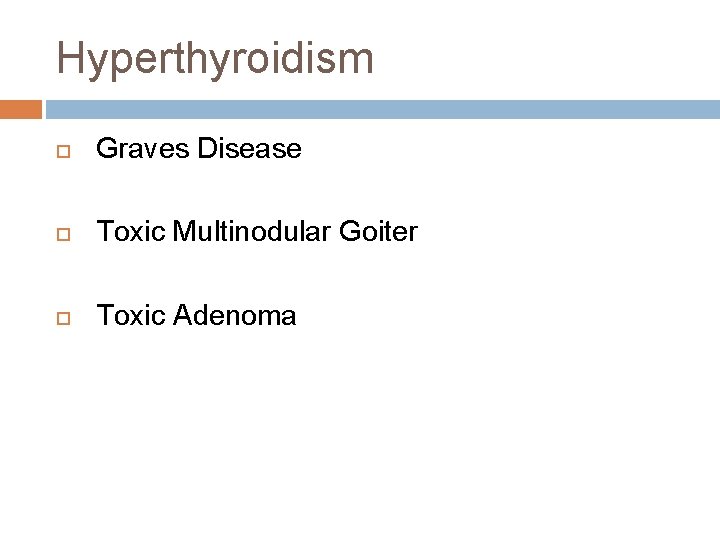

Hyperthyroidism Graves Disease Toxic Multinodular Goiter Toxic Adenoma

Patient has a low TSH. Next step? Get a free T 4 and T 3 If hyperthyroidism is confirmed by a low TSH, and elevated T 4 and/or T 3, get an I-123 thyroid uptake and scan Thyroid uptake and scan – distinguishes between hyperthyroidism and thyroiditis

Graves Disease Autoimmune process characterized by the production of antibodies against the TSH receptor. When the antibodies bind to the TSH receptor they stimulate autonomous thyroid function Risk factors: positive family history, other autoimmune conditions, recent severe stressors, tobacco use, viral exposures

Graves Disease: Physical Exam Tachycardia Elevated systolic blood pressure with a widened pulse pressure Typically smooth enlarged thyroid gland with bruit Stare due to lid retraction Proptosis Infiltrative dermopathy

Graves: Treatment Antithyroidal drugs 30 -50% chance of remission after 1 year of therapy Radioactive iodine ablation Most common treatment in the United States May take 6 months for full effects; consider re-dosing if still hyperthyroid after 6 months Surgery Typically reserved for patients with suspicious nodules, extremely large goiters, or moderate to severe ophthalmopathy

Antithyroid Drugs Methimazole First-line treatment Once daily dosing May cause elevated liver enzymes or agranulocytosis Contraindicated in first trimester of pregnancy Propylthiouracil (PTU) Higher rate of serious adverse effects on the liver May cause elevated aminotransferase levels or rarely severe hepatic necrosis BID to TID dosing May cause agranulocytosis Preferred antithyroidal medication in first trimester of pregnancy

Graves Ophthalmopathy

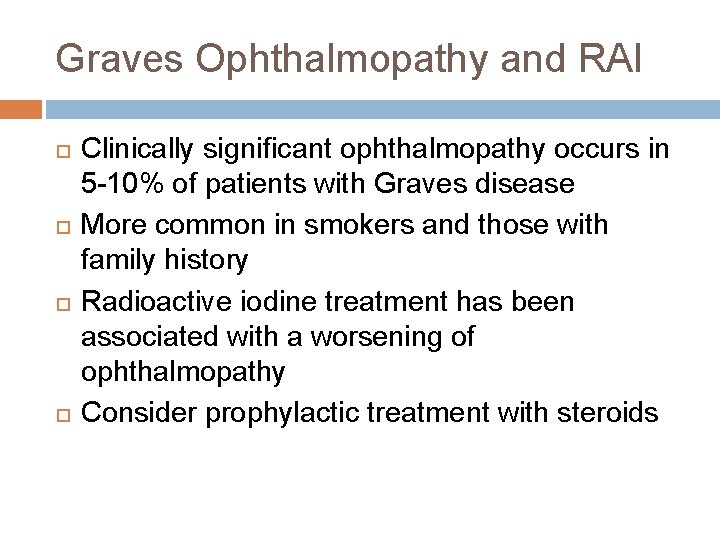

Graves Ophthalmopathy and RAI Clinically significant ophthalmopathy occurs in 5 -10% of patients with Graves disease More common in smokers and those with family history Radioactive iodine treatment has been associated with a worsening of ophthalmopathy Consider prophylactic treatment with steroids

Toxic Multinodular Goiter and Toxic Nodule Occurs due to a somatic mutation in the Gsalpha subunit and the TSH receptor causing constitutive activation in one or more nodules, leading to autonomy of function and secondary thyrotoxicosis

Uptake and Scan in MNG and Toxic Nodule Toxic Nodule: solitary “hot” nodule with suppression of the rest of the gland Toxic MNG: patchy uptake with areas of both increased and decreased uptake In toxic MNG, both an uptake and scan and thyroid ultrasound are useful in determining if there any cold nodules that need FNA biopsy

Toxic Adenoma and MNG: Treatment Antithyroidal drugs Unlikely to achieve drug-free remission but will control thyroid hormone production Radioactive Iodine Definitive treatment Hyperactive nodules take up iodine, and suppressed normal tissue receives minimal radiation exposure Patients often return to euthyroidism without a need for thyroid hormone replacement Surgery Hemithyroidectomy versus total thyroidectomy

Destructive Thyroiditis Subacute de Quervain’s Tender thyroid Silent Autoimmune Generally painless Postpartum Occurs in 5% of pregnant women Typically occurs within a few months of delivery

Triphasic Changes with Thyroiditis

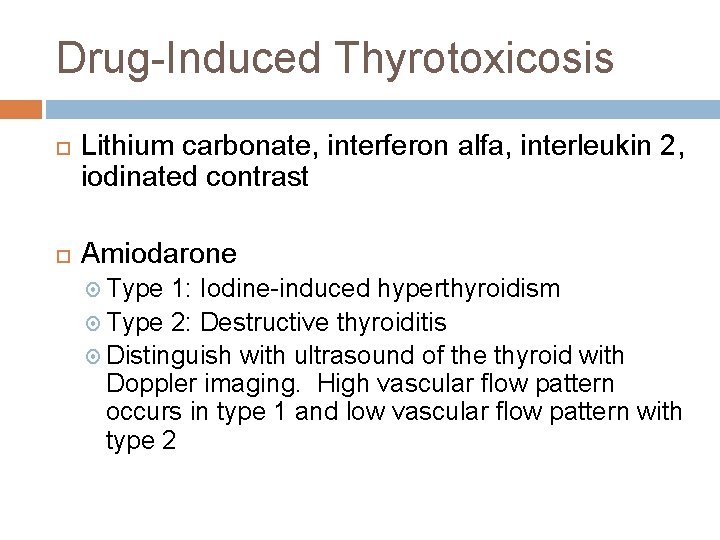

Drug-Induced Thyrotoxicosis Lithium carbonate, interferon alfa, interleukin 2, iodinated contrast Amiodarone Type 1: Iodine-induced hyperthyroidism Type 2: Destructive thyroiditis Distinguish with ultrasound of the thyroid with Doppler imaging. High vascular flow pattern occurs in type 1 and low vascular flow pattern with type 2

Subclinical Hyperthyroidism Suppressed TSH with concomitant T 4 and T 3 levels within normal limits Symptoms are mild or patients may be asymptomatic Potential negative effects of persistent mild thyrotoxicosis on the heart, bones, and CNS Treat if the TSH is below 0. 1 or if patients are symptomatic

Hypothyroidism Clinical manifestations include: Fatigue, reduced endurance, weight gain, cold intolerance, constipation, impaired concentration and short-term memory, dry skin, edema, mood changes, depression, psychomotor retardation, muscle cramps, myalgia, and menstrual changes

Hypothyroidism: Physical Exam Reduced basal temperature Diastolic hypertension Bradycardia Pallor Dry and cold skin Brittle hair Hoarseness Delayed recovery phase of deep tendon reflexes

Hypothyroidism: Diagnosis TSH, Free T 4 Anti-TPO Antibodies

Brand name versus Generic Position statement by the American Thyroid Association, American Association of Clinical Endocrinologists, and The Endocrine Society recommends that brand name is preferred to generic when it comes to thyroid hormone replacement

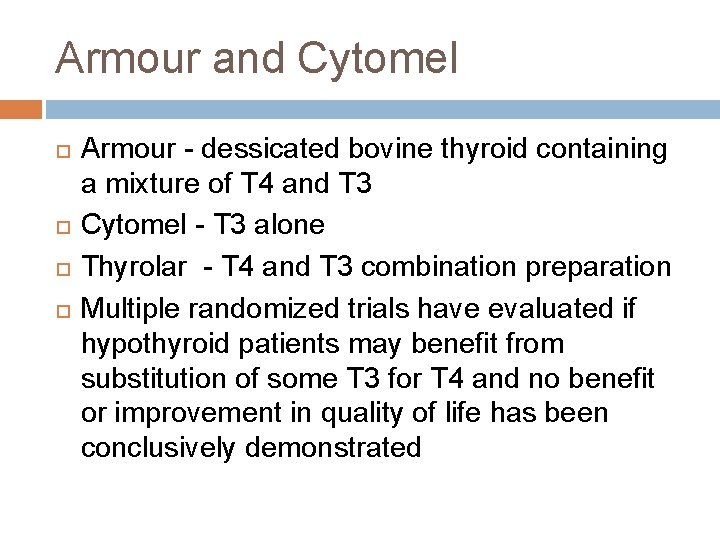

Armour and Cytomel Armour - dessicated bovine thyroid containing a mixture of T 4 and T 3 Cytomel - T 3 alone Thyrolar - T 4 and T 3 combination preparation Multiple randomized trials have evaluated if hypothyroid patients may benefit from substitution of some T 3 for T 4 and no benefit or improvement in quality of life has been conclusively demonstrated

Optimal TSH Level TSH normal range is very wide on most laboratory assays (0. 5 – 5. 0 u. U/m. L) In patients with established hypothyroidism, the TSH target range is 1. 0 -2. 5 u. U/m. L

Subclinical Hypothyroidism Presence of an elevated TSH level with concomitant T 4 and T 3 levels within normal limits Patients may also have mild elevations in total cholesterol, LDL cholesterol, and CRP, and increased risk for atherosclerosis and cardiac events If patient is symptomatic, may treat to achieve a TSH of 1. 0 -2. 5 u. U/m. L Treatment is indicated if the TSH rises above 10 u. U/m. L

Thyroid Nodules are common with aging and occur more frequently in women Many thyroid nodules are found incidentally on imaging performed for other reasons The majority of thyroid nodules are benign 6 -10% of nodules are malignant

Risk Factors for Thyroid Cancer Personal history of any type of cancer Family history of thyroid cancer History of radiation to the face or neck Patients with increased cancer risk include those at extremes of age, male sex, rapid nodule growth, and hoarseness.

Thyroid Ultrasound Any thyroid nodule greater than 1. 0 cm in two different dimensions warrants fine needle aspiration biopsy Some ultrasound characteristics are more concerning for malignancy: Size greater than 3 cm Speckled calcification within the nodule High intravascular flow within the nodule’s center

When to get a CT or MRI Substernal goiter Cervical lymphadenopathy Tracheal deviation

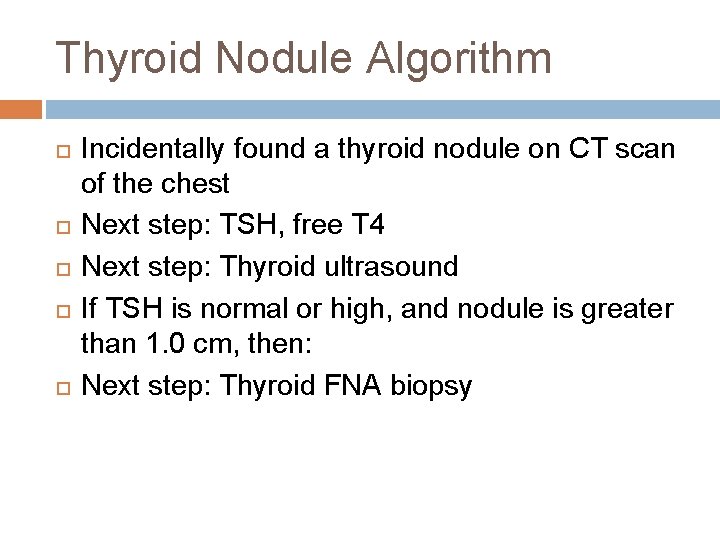

Thyroid Nodule Algorithm Incidentally found a thyroid nodule on CT scan of the chest Next step: TSH, free T 4 Next step: Thyroid ultrasound If TSH is normal or high, and nodule is greater than 1. 0 cm, then: Next step: Thyroid FNA biopsy

Four Pathology Possibilities 1. Benign 2. Malignant 3. Follicular neoplasm/suspicious for malignancy 4. Insufficient

Benign Nodules American Thyroid Association guidelines recommend a six month follow-up ultrasound after benign biopsy to assess for growth of the nodule If nodule has grown by 50% by volume or has developed concerning ultrasound characteristics, consider repeat FNA If no change, next imaging is in 3 -5 years

Malignant Nodules Malignant nodules are treated with near total thyroidectomy High dose radioactive iodine ablation is often given after 3 -4 weeks of withdrawal from thyroid hormone or with thyrogen stimulation Six month follow-up ultrasound, whole body scan, and thyrogen-stimulated thyroglobulin levels are used for monitoring

Follicular Neoplasm Nodules Total or near total thyroidectomy or lobectomy followed by completion thyroidectomy is indicated for suspicious nodules 20% of nodules diagnosed as follicular neoplasm are malignant

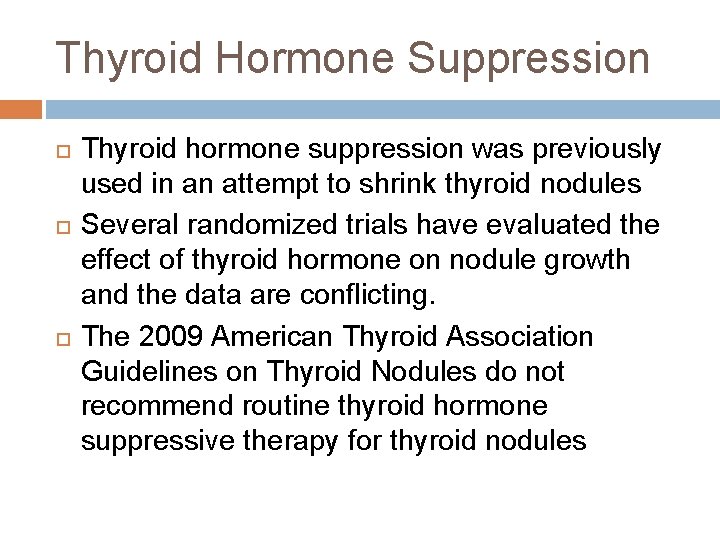

Thyroid Hormone Suppression Thyroid hormone suppression was previously used in an attempt to shrink thyroid nodules Several randomized trials have evaluated the effect of thyroid hormone on nodule growth and the data are conflicting. The 2009 American Thyroid Association Guidelines on Thyroid Nodules do not recommend routine thyroid hormone suppressive therapy for thyroid nodules

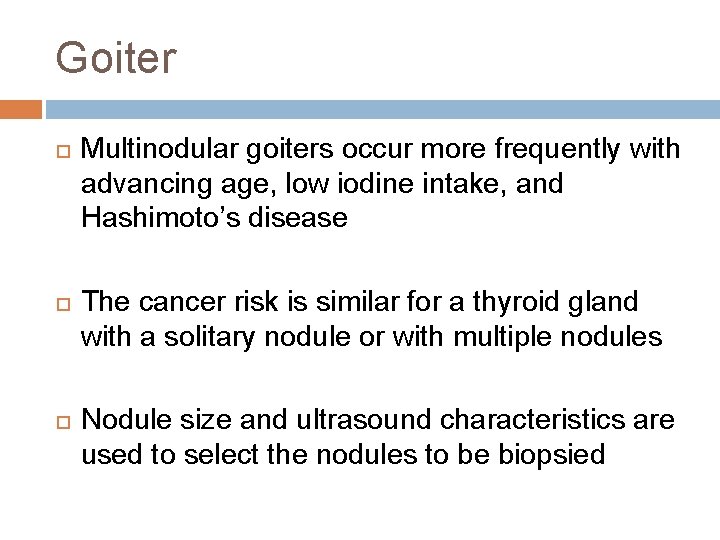

Goiter Multinodular goiters occur more frequently with advancing age, low iodine intake, and Hashimoto’s disease The cancer risk is similar for a thyroid gland with a solitary nodule or with multiple nodules Nodule size and ultrasound characteristics are used to select the nodules to be biopsied

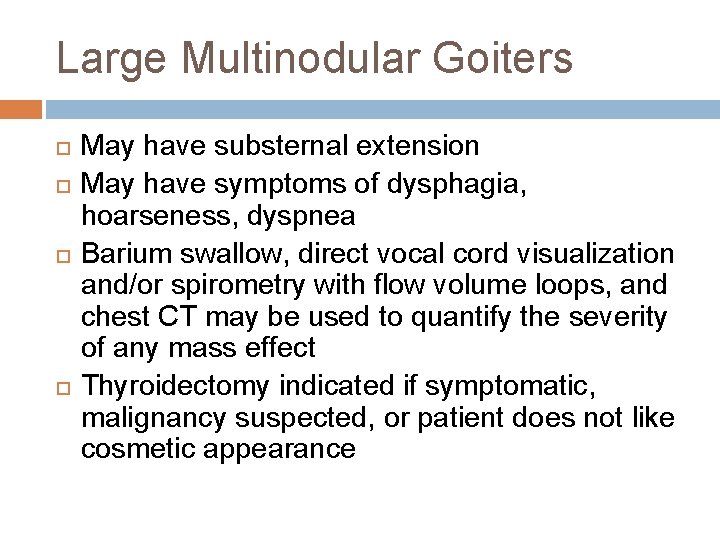

Large Multinodular Goiters May have substernal extension May have symptoms of dysphagia, hoarseness, dyspnea Barium swallow, direct vocal cord visualization and/or spirometry with flow volume loops, and chest CT may be used to quantify the severity of any mass effect Thyroidectomy indicated if symptomatic, malignancy suspected, or patient does not like cosmetic appearance

Nonthyroidal Illness Euthyroid Sick Syndrome T 3 levels decline and reverse T 3 rises T 4 levels remain relatively unchanged TSH may be low, normal, or elevated Thyroid hormone therapy not indicated Thyroid hormone levels normalize 4 -8 weeks after recovery from the illness

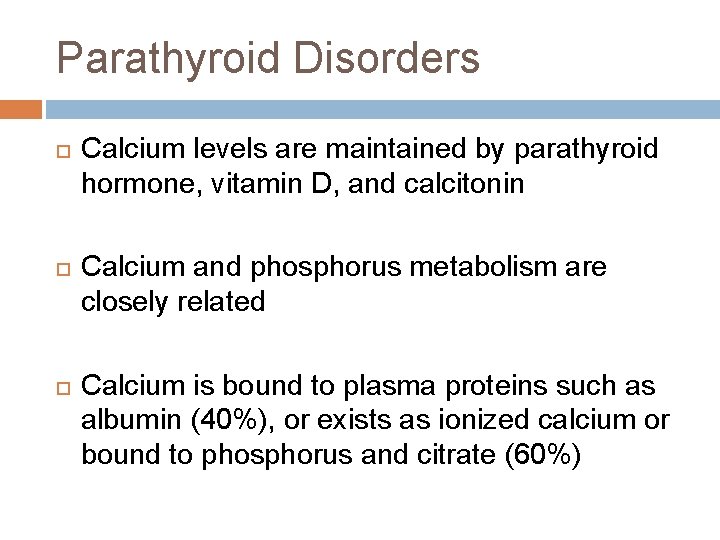

Parathyroid Disorders Calcium levels are maintained by parathyroid hormone, vitamin D, and calcitonin Calcium and phosphorus metabolism are closely related Calcium is bound to plasma proteins such as albumin (40%), or exists as ionized calcium or bound to phosphorus and citrate (60%)

Actions of Parathyroid Hormone Parathyroid cells sense decreases in the level of serum ionized calcium via the calcium-sensing receptor PTH increases the serum calcium level within minutes by increasing renal and intestinal absorption of calcium and by rapidly mobilizing calcium and phosphate in bone PTH also decreases renal phosphate reabsorption and increase urinary phosphate losses

Vitamin D Vitamin D 3 is derived from dietary sources and by skin exposure to ultraviolet light UV light converts cholesterol precurosrs to vitamin D 3 Vitamin D 3 is converted in the liver to 25 hydroxy vitamin D 25 -OH D undergoes 1 alpha hydroxylation in the proximal renal tubular cells to become 1, 25 -dihydroxy vitamin D

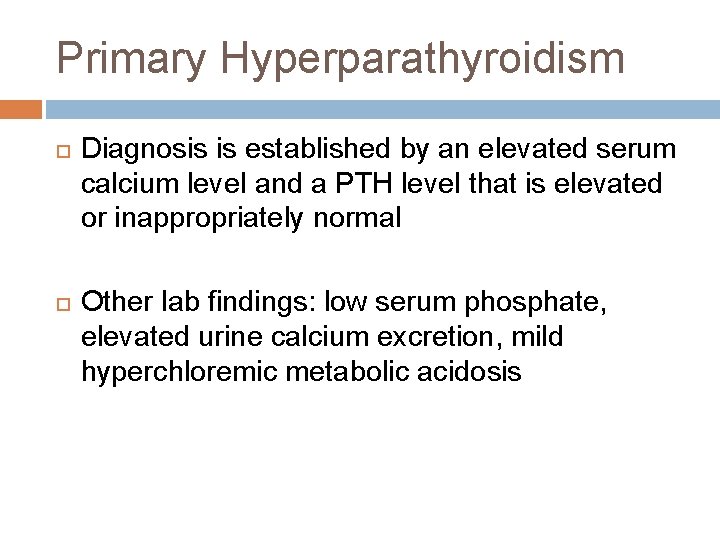

Primary Hyperparathyroidism Diagnosis is established by an elevated serum calcium level and a PTH level that is elevated or inappropriately normal Other lab findings: low serum phosphate, elevated urine calcium excretion, mild hyperchloremic metabolic acidosis

Causes of Primary Hyperparathyroidism Solitary parathyroid adenoma: 80 -85% Double adenoma: 5% Multigland parathyroid hyperplasia: 5 -15% Parathyroid carcinoma: 1%

Parathyroid Localization Ultrasound Technetium Tc 99 m sestamibi scintigraphy MRI

Surgical Criteria for Asymptomatic Primary Hyperparathyroidism Established by the Third International Workshop in 2008 (NIH Workshop 2002): 1. Serum calcium greater than 1 mg/d. L above the upper limit of normal 2. A creatinine clearance of less than 60 m. L/min 3. Reduction in bone mineral density of the femoral neck, lumbar spine, or distal radius greater than 2. 5 4. Age younger than 50 years 5. Patients for whom medical surveillance is not desirable or possible

Patient has an normal calcium and elevated PTH. Next step? Check a 25 -OH D. If levels are below 32, replace to normal, then reassess calcium, PTH, and 25 -OH D levels Vitamin D deficiency is a common cause of elevated PTH levels The PTH level may take several months to normalize after vitamin D replacement Do not check a PTH unless the calcium is abnormal

Parathyroidectomy Minimally invasive parathyroidectomy PTH levels must be monitored intraoperatively

Management of Nonsurgical Hyperparathyroidism Good hydration Avoid thiazide diuretics Encourage normal calcium intake (1000 mg/d) Bisphonates improve bone mineral density but little effect on calcium Cinacalcet can normalize calcium levels but no effect on BMD

THANK YOU!
