Thursday: 03/20/2014 Each individual must answer the following questions in complete sentences: 1. Sketch and label, or describe the flow of air & sound when a small cetacean uses echolocation to find prey. 2. Describe four major physiological adaptations that deep-diving cetaceans have to dealing with high pressure. 3. What are the four modern whaling countries and what justification is used by each for this illegal practice (not all answers will be found in the notes)? 4. What are two major differences between mysticeti and odontoceti? Give an example of each animal. 5. Explain the conservation laws that were passed in 1911, 1972, and 1985.

Acoustics and Biology Acoustics • loudness (amplitude or pressure level) • pitch (frequency) Use of sound by marine animals • Predation/defense • Communication and social interaction

Same frequency, Different amplitude Same amplitude, Different frequency Amplitude determines sound level pressure or loudness Frequency determines “pitch”

Loudness (Amplitude, sound level) Chart shows loudness in d. B of some things we are familiar with Sound levels in air and water have different reference levels, so 0 d. B (air) ≈ 26 d. B (water)

Marine animal sounds can be made up of multiple frequencies The sound spectrum gives the pressure level at each frequency Intensity pressure 2 d. B = 10 Log 10(intensity)

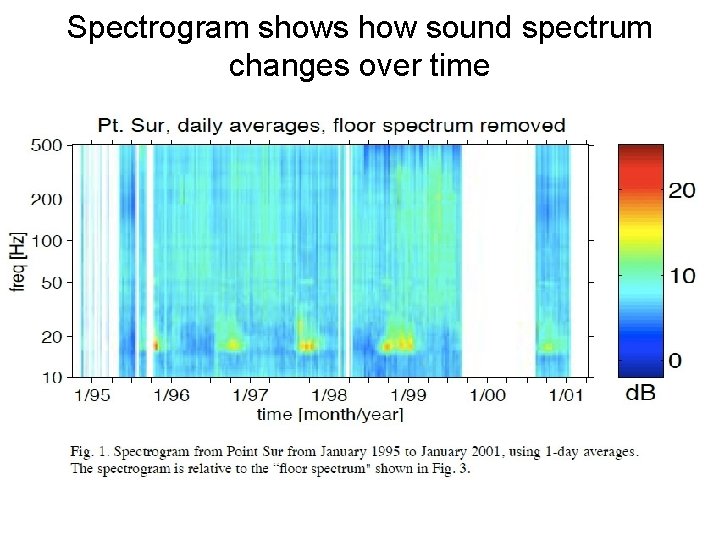

Spectrogram shows how sound spectrum changes over time

An invertebrate example: snapping shrimp claw Snapping shrimp make noise to stun their prey. They create a cavitation bubble that “snaps” as it collapses. http: //www. dosits. org/resources/ all/featuresounds/snappingshrim p/ http: //stilton. tnw. utwente. nl/shrimp/ crab

Some fish use sound for courting and as a fright response A fish example: Atlantic Croaker

Toothed whales Baleen whales • • • Smaller (1. 5 to 17 m long) Social Most are not migratory Chase and capture individual fish, squid, crabs Use sound to echolocate, communicate • Larger (15 to 30 m long) Often solitary Long annual migrations Feed on aggregations of krill, copepods, small fish Use sound only to communicate

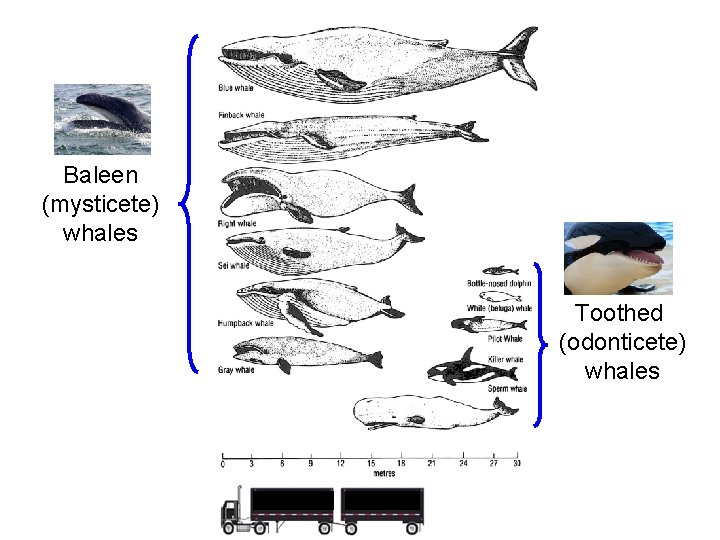

Baleen (mysticete) whales Toothed (odonticete) whales

http: //ww w. dosits. o rg/audio/i nteractive/ #/46

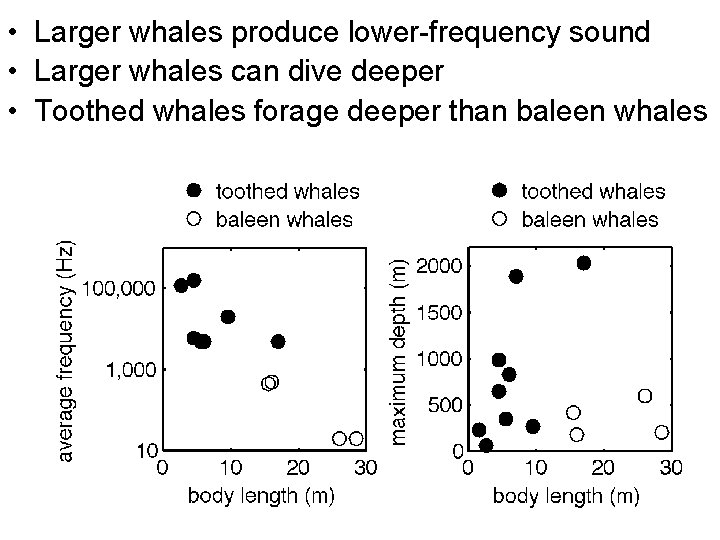

• Larger whales produce lower-frequency sound • Larger whales can dive deeper • Toothed whales forage deeper than baleen whales

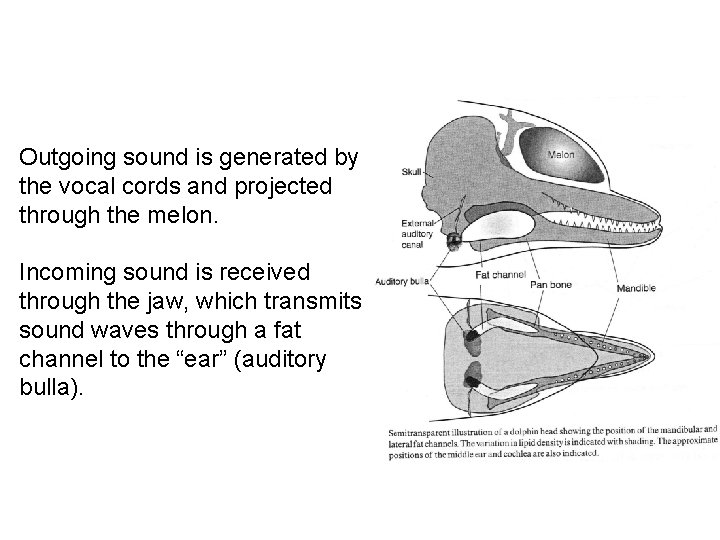

Outgoing sound is generated by the vocal cords and projected through the melon. Incoming sound is received through the jaw, which transmits sound waves through a fat channel to the “ear” (auditory bulla).

Dolphins live in social groups that stay together 5 -10 years. They have “signature whistles” that can be used to recognize individuals at distances of >500 m. Frequency (Hz) Social calls Time (s)

Toothed Baleen Communication frequencies Thick bars: most common vocalizations Thin lines: extremes of frequency

Echolocation using echoes from sound pulses or clicks Whale can determine distance, angle, size, shape, etc. from sound echoes

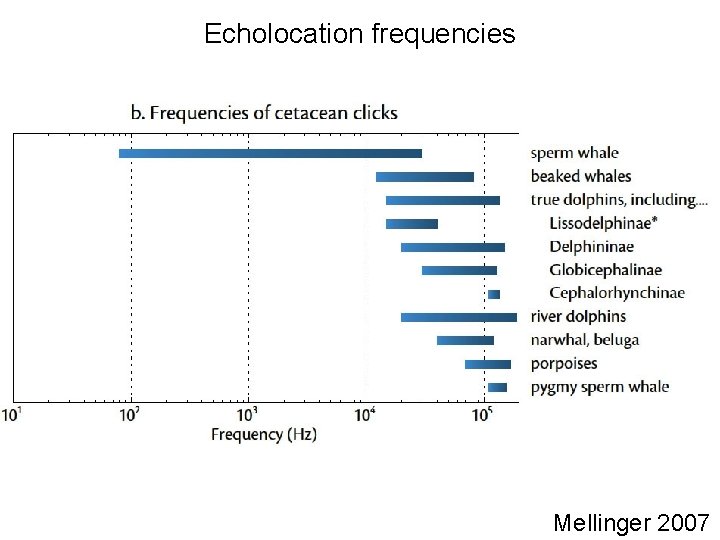

Echolocation frequencies Mellinger 2007

Toothed whale prey Squid and large fish are: • More likely to be solitary • Good acoustic targets (squid pens and fish swim bladders have density different from water) Baleen whale prey Plankton are: • More likely to aggregate • Poorer acoustic targets (density similar to water)

A good invention for listening to whales: acoustic whale tag (D-Tag) -Acoustic sensors (hydrophones) and 3 D accelerometers in a waterproof, pressureresistant case, mounted on suction cups -Carefully sneak up on whale, attach D-Tag -Record audio, pitch, roll, heading and depth Mark Johnson with D-Tag pops off, floats to surface 18 hours later

Long-Term Geotags:

Toothed whale foraging: Beaked whales dive deep to find prey Natacha Aguilar de Soto (Yellow indicates echolocation) Peter Tyack et al.

Baleen whale foraging: Right whales dive to bottom of the mixed layer where plankton are most concentrated Fig. 4. Eubalaena glacialis and Calanus finmarchicus. (a-d) Examples of diving and tracking observations during feeding behavior. Contoured C. finmarchicus C 5 abundance estimated from the OPC casts is shown. Color scale shown in (d) applies to all plots. ( ) Times of visual contacts. ( ) Times and locations at which a resurfacing occurred and a conductivity-temperature depth/optical plankton counter (CTD/OPC) cast was conducted. Solid and dashed lines indicate the sea floor and the top of the bottom mixed layer, respectively, measured at the location of each CTD/OPC cast. Baumgartner and Mate 2003

Marine mammal sound levels are generally between 100 and 200 d. B Baleen whales Toothed whales Seals, sea lions, and walruses Manatees and dugongs Echolocation (toothed whales)

Worcester & Spindel 2005

Blue whales migrate and communicate over long distances

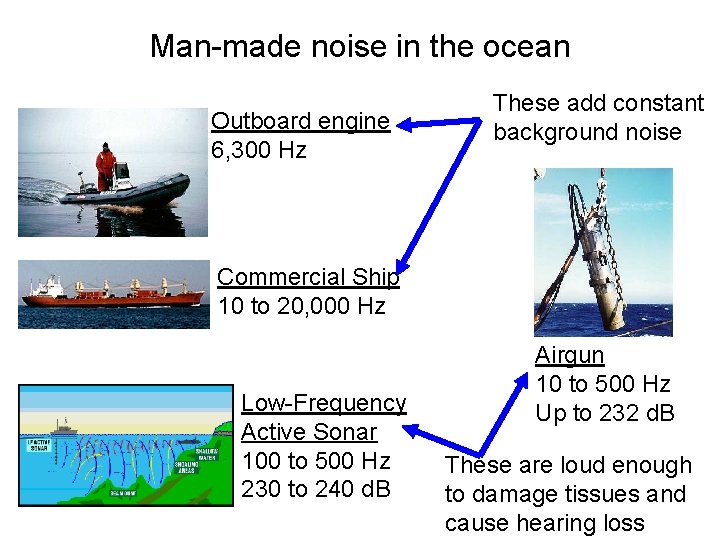

Man-made noise in the ocean Outboard engine 6, 300 Hz These add constant background noise Commercial Ship 10 to 20, 000 Hz Low-Frequency Active Sonar 100 to 500 Hz 230 to 240 d. B Airgun 10 to 500 Hz Up to 232 d. B These are loud enough to damage tissues and cause hearing loss

Humans add noise to the ocean Potential effects of man-made sounds on marine mammals: • Temporary or permanent hearing loss or impairment • Disruption of feeding, breeding, nursing, acoustic communication and sensing • Death from lung hemorrhage or other tissue trauma • Psychological and physiological stress

Since the invention of propeller-driven motors (~150 years ago), • Background noise level in the ocean has increased by ~45 d. B • Lowest background noise f has dropped from ~100 Hz to ~7 Hz After motors ~7 Hz Before motors ~100 Hz After motors ~75 d. B Before motors ~30 d. B

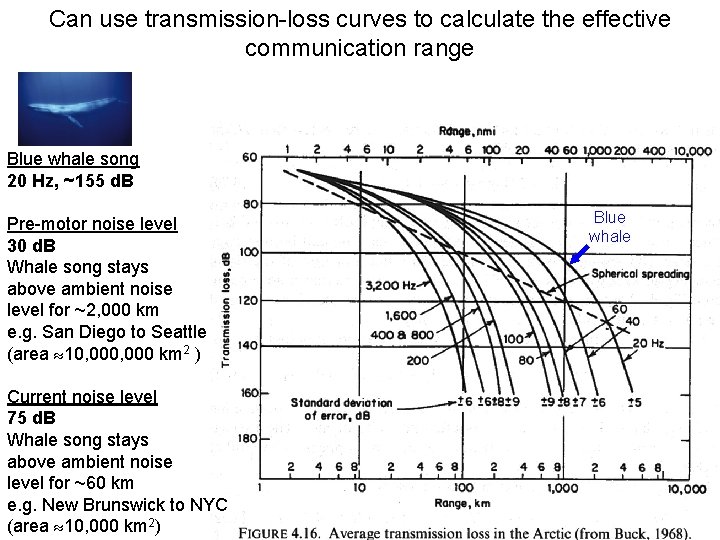

Can use transmission-loss curves to calculate the effective communication range Blue whale song 20 Hz, ~155 d. B Pre-motor noise level 30 d. B Whale song stays above ambient noise level for ~2, 000 km e. g. San Diego to Seattle (area 10, 000 km 2 ) Current noise level 75 d. B Whale song stays above ambient noise level for ~60 km e. g. New Brunswick to NYC (area 10, 000 km 2) Blue whale

Range of effective communication for blue whale singing at 20 Hz and 155 d. B Range before mid-1800 s Current range

Noise-induced mass strandings Mass strandings associated with Navy sonar activity The Bahamas (2000): 14 beaked whales, 1 spotted dolphin, 2 minke whales Cranial Bleeding Naval Training Exercise: SONAR The Canary Islands (2002): 14 beaked whales Gas bubbles and bleeding in multiple organs, likely from surfacing too quickly

Noise-induced mass strandings Mass strandings associated with air guns Tasmania and New Zealand (2004): 208 whales and dolphins Mass Stranding: Exxon. Mobile Seismic Testing Senegal and Madagascar (2008): 200 pilot whales and melon-head whales Mass Stranging: Dolphins & Seismic Testing Northern Peru (February 2012) 900+ dolphins stranded or washed ashore dead • Middle Ear Bleeding • Cracked bones in ear • Hemorrhage in mandibular fat • Air bubbles in liver, kidneys, bladder, and blood vessels • Pulmonary emphysema * The last two are associated with acute decompression syndrome
