Through Wall Communication Revolutionises Pig Tracking By Gordon

Through Wall Communication Revolutionises Pig Tracking By Gordon Blair, UK Sales Manager, TDW Offshore Services PPSA, Aberdeen 19/11/2008 1

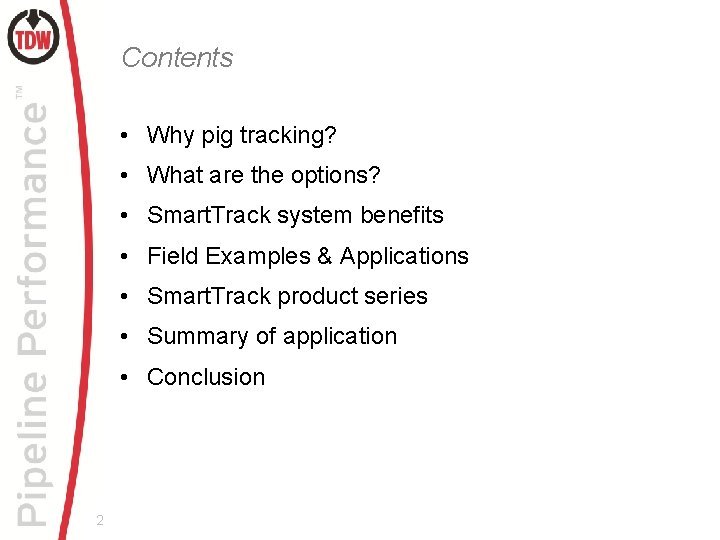

Contents • Why pig tracking? • What are the options? • Smart. Track system benefits • Field Examples & Applications • Smart. Track product series • Summary of application • Conclusion 2

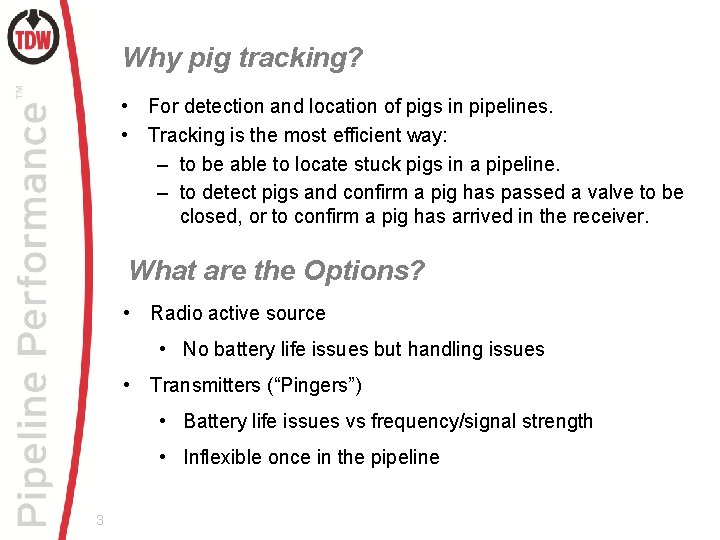

Why pig tracking? • For detection and location of pigs in pipelines. • Tracking is the most efficient way: – to be able to locate stuck pigs in a pipeline. – to detect pigs and confirm a pig has passed a valve to be closed, or to confirm a pig has arrived in the receiver. What are the Options? • Radio active source • No battery life issues but handling issues • Transmitters (“Pingers”) • Battery life issues vs frequency/signal strength • Inflexible once in the pipeline 3

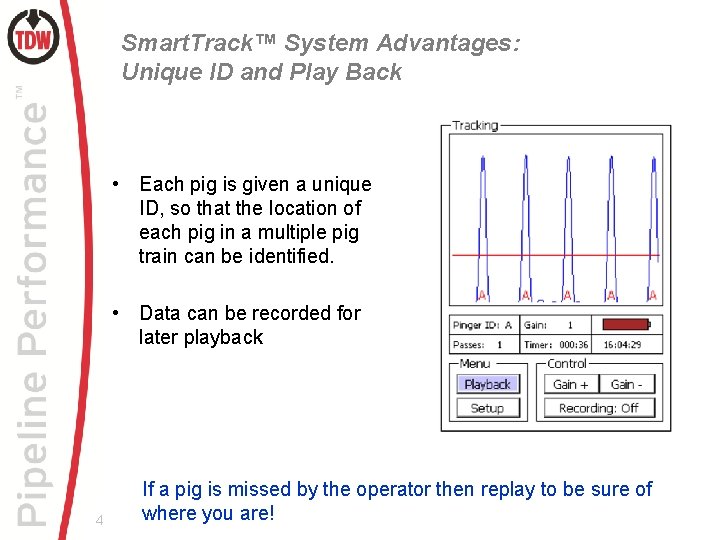

Smart. Track™ System Advantages: Unique ID and Play Back • Each pig is given a unique ID, so that the location of each pig in a multiple pig train can be identified. • Data can be recorded for later playback 4 If a pig is missed by the operator then replay to be sure of where you are!

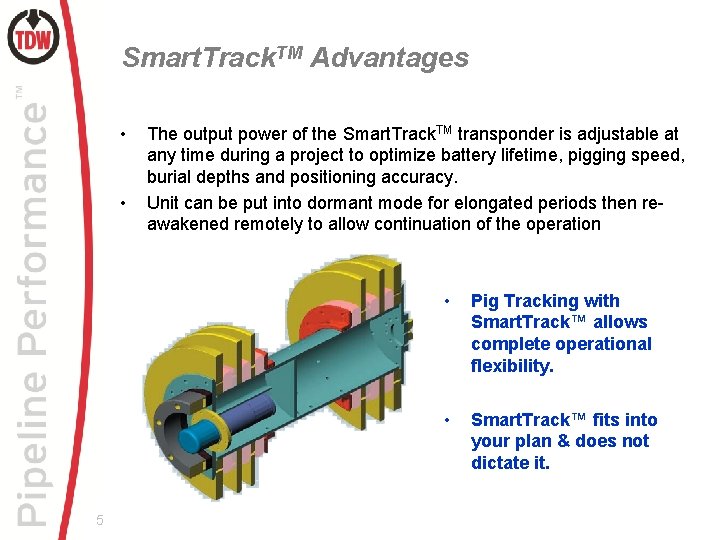

Smart. Track. TM Advantages • • 5 The output power of the Smart. Track. TM transponder is adjustable at any time during a project to optimize battery lifetime, pigging speed, burial depths and positioning accuracy. Unit can be put into dormant mode for elongated periods then reawakened remotely to allow continuation of the operation • Pig Tracking with Smart. Track™ allows complete operational flexibility. • Smart. Track™ fits into your plan & does not dictate it.

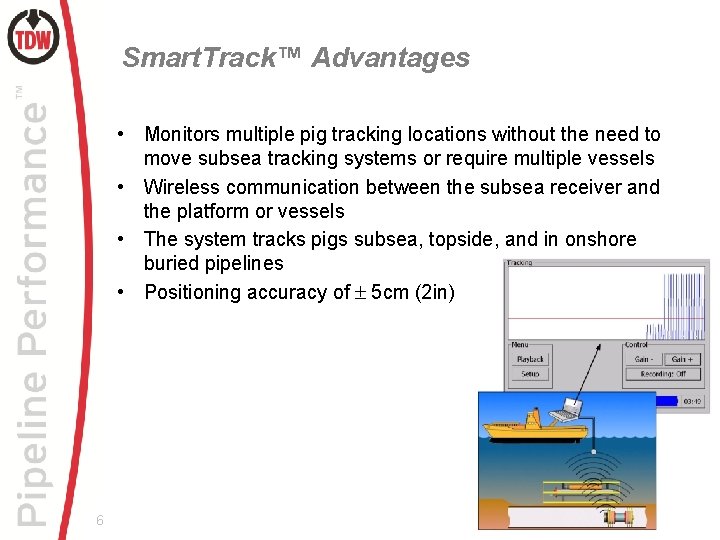

Smart. Track™ Advantages • Monitors multiple pig tracking locations without the need to move subsea tracking systems or require multiple vessels • Wireless communication between the subsea receiver and the platform or vessels • The system tracks pigs subsea, topside, and in onshore buried pipelines • Positioning accuracy of 5 cm (2 in) 6

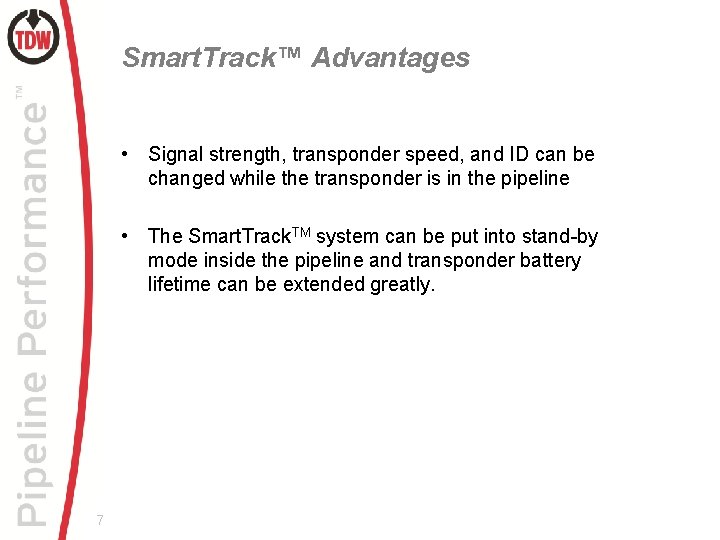

Smart. Track™ Advantages • Signal strength, transponder speed, and ID can be changed while the transponder is in the pipeline • The Smart. Track. TM system can be put into stand-by mode inside the pipeline and transponder battery lifetime can be extended greatly. 7

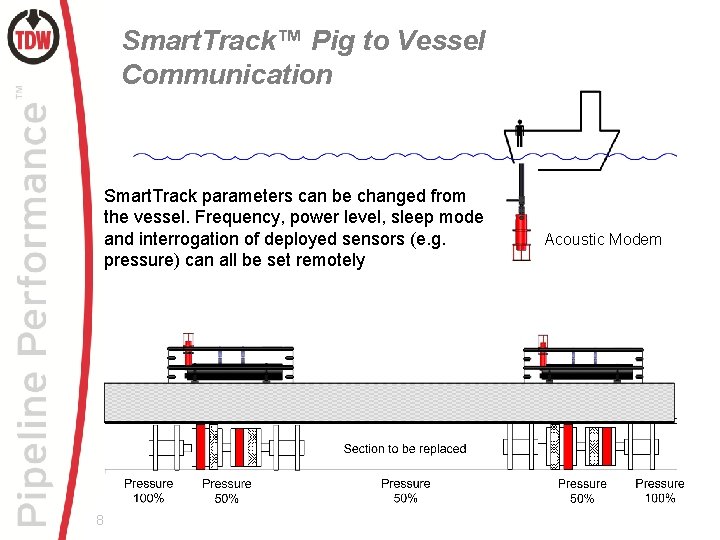

Smart. Track™ Pig to Vessel Communication Smart. Track parameters can be changed from the vessel. Frequency, power level, sleep mode and interrogation of deployed sensors (e. g. pressure) can all be set remotely 8 Acoustic Modem

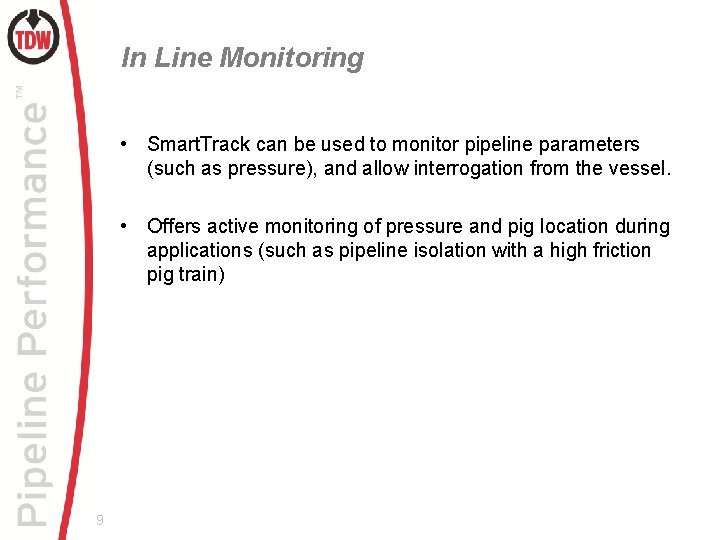

In Line Monitoring • Smart. Track can be used to monitor pipeline parameters (such as pressure), and allow interrogation from the vessel. • Offers active monitoring of pressure and pig location during applications (such as pipeline isolation with a high friction pig train) 9

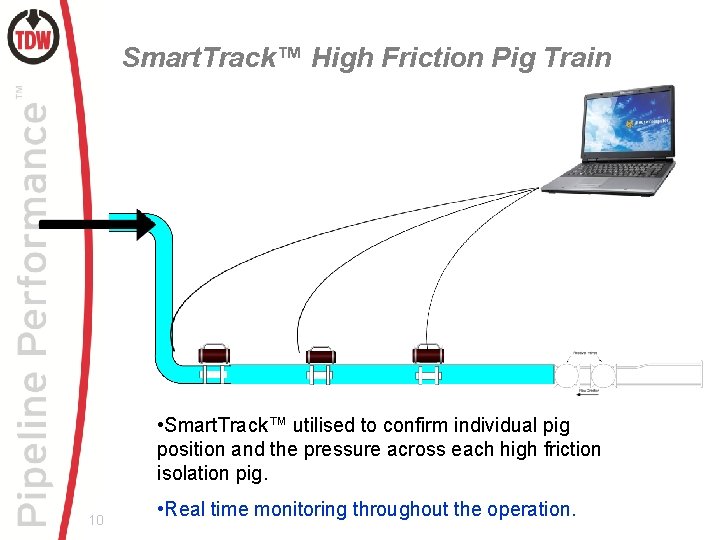

Smart. Track™ High Friction Pig Train • Smart. Track™ utilised to confirm individual pig position and the pressure across each high friction isolation pig. 10 • Real time monitoring throughout the operation.

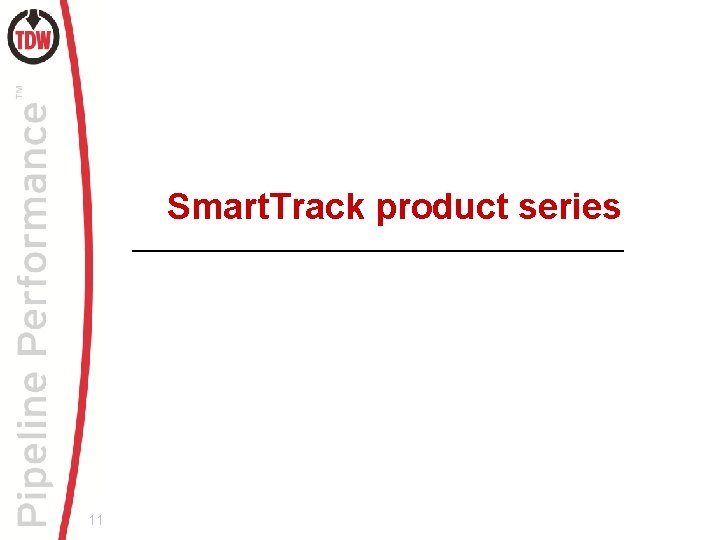

Smart. Track product series 11

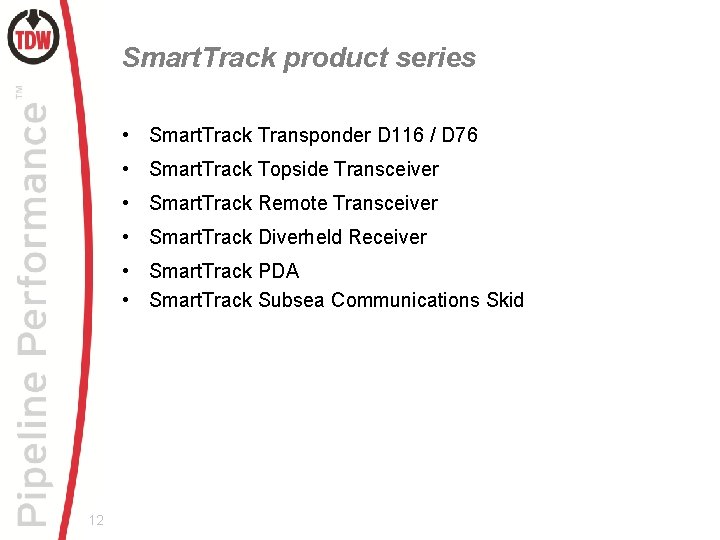

Smart. Track product series • Smart. Track Transponder D 116 / D 76 • Smart. Track Topside Transceiver • Smart. Track Remote Transceiver • Smart. Track Diverheld Receiver • Smart. Track PDA • Smart. Track Subsea Communications Skid 12

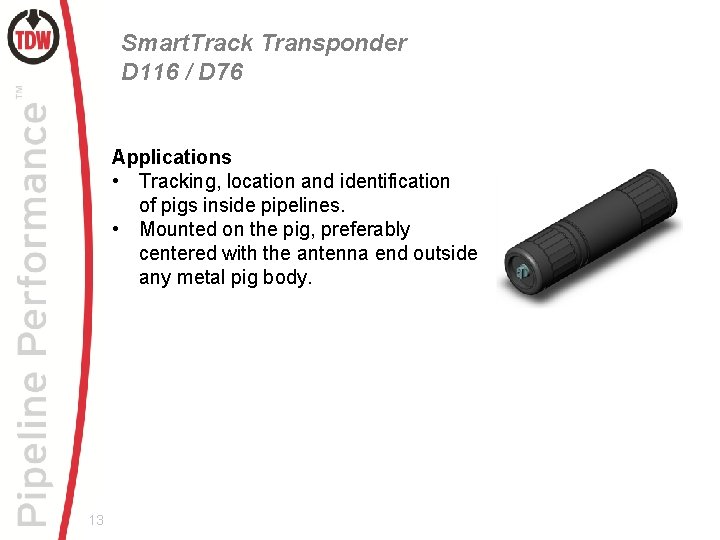

Smart. Track Transponder D 116 / D 76 Applications • Tracking, location and identification of pigs inside pipelines. • Mounted on the pig, preferably centered with the antenna end outside any metal pig body. 13

Smart. Track Topside Transceiver Applications • Locate, track, and identify pigs with Smart. Track transponders • Communicates with a handheld computer using Bluetooth wireless • Can be used topside or on land • Positioned parallel to the pipeline for general use or perpendicular for pinpointing 14

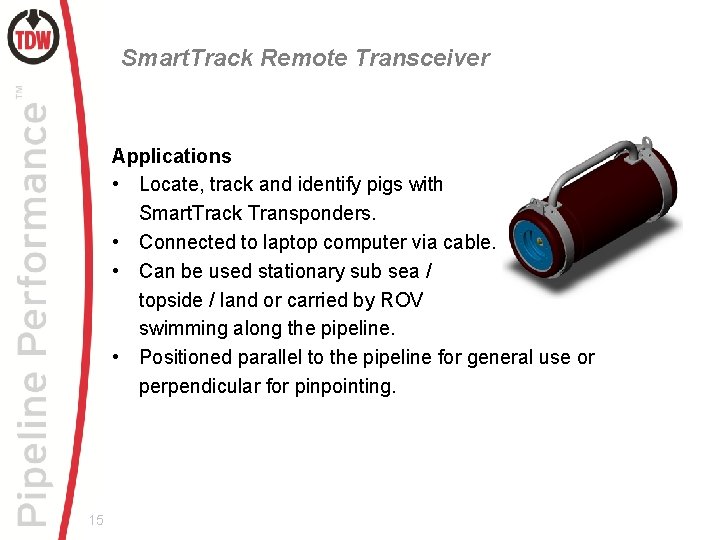

Smart. Track Remote Transceiver Applications • Locate, track and identify pigs with Smart. Track Transponders. • Connected to laptop computer via cable. • Can be used stationary sub sea / topside / land or carried by ROV swimming along the pipeline. • Positioned parallel to the pipeline for general use or perpendicular for pinpointing. 15

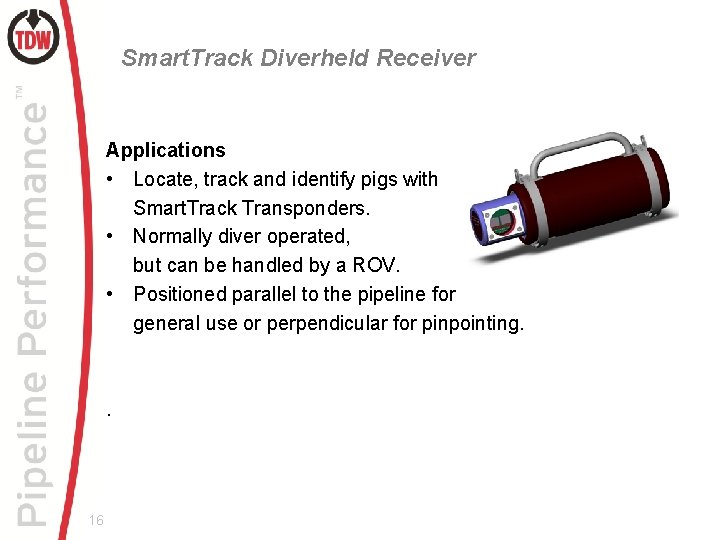

Smart. Track Diverheld Receiver Applications • Locate, track and identify pigs with Smart. Track Transponders. • Normally diver operated, but can be handled by a ROV. • Positioned parallel to the pipeline for general use or perpendicular for pinpointing. . 16

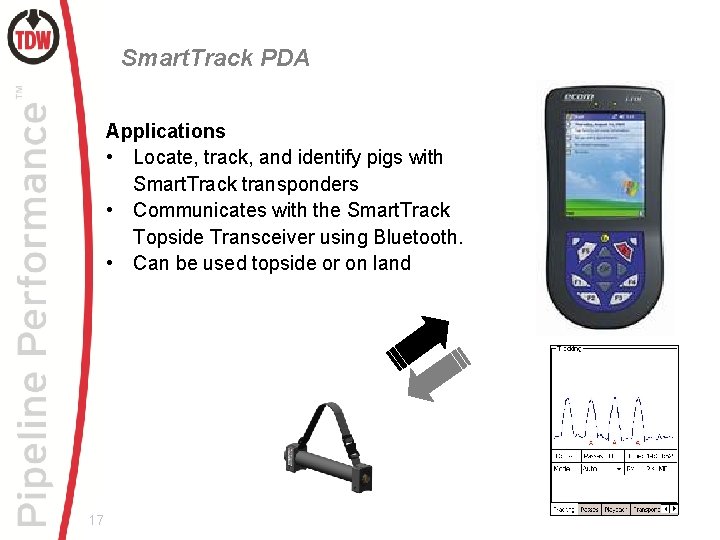

Smart. Track PDA Applications • Locate, track, and identify pigs with Smart. Track transponders • Communicates with the Smart. Track Topside Transceiver using Bluetooth. • Can be used topside or on land 17

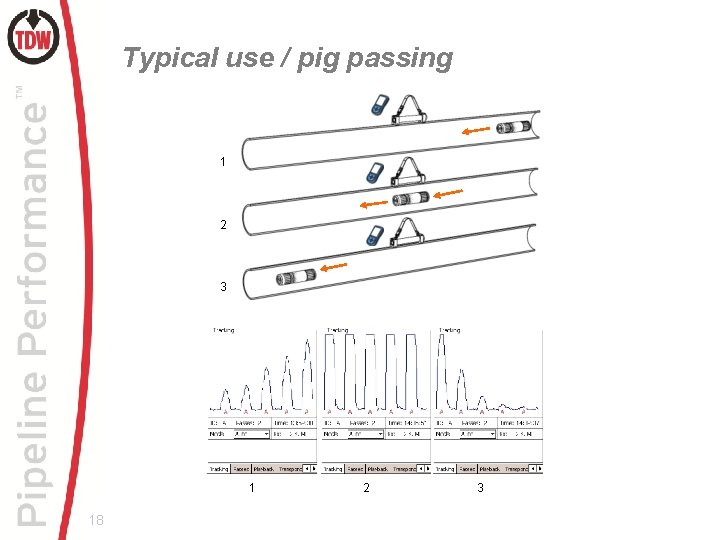

Typical use / pig passing 1 2 3 1 18 2 3

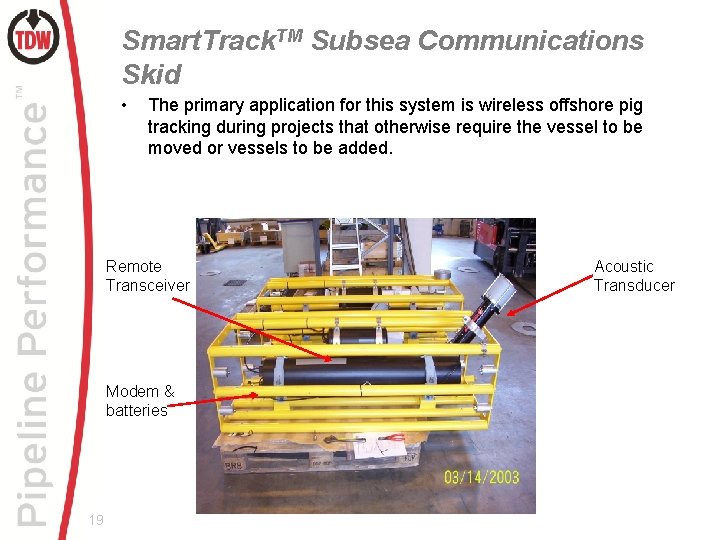

Smart. Track. TM Subsea Communications Skid • The primary application for this system is wireless offshore pig tracking during projects that otherwise require the vessel to be moved or vessels to be added. Remote Transceiver Modem & batteries 19 Acoustic Transducer

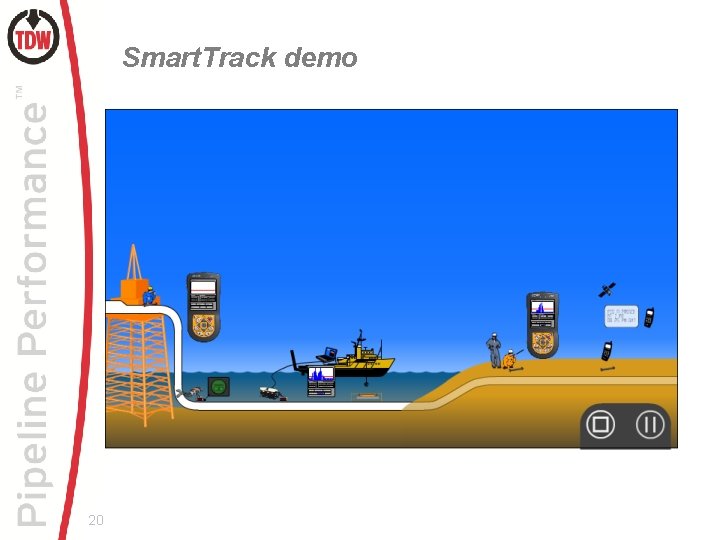

Smart. Track demo 20

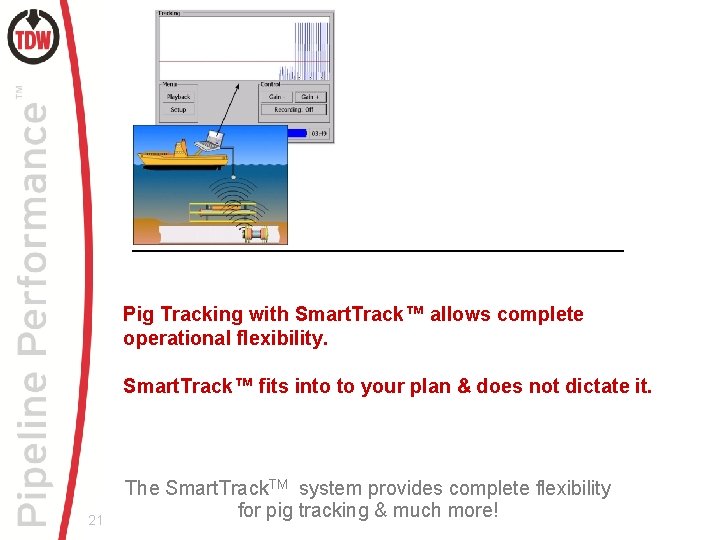

Pig Tracking with Smart. Track™ allows complete operational flexibility. Smart. Track™ fits into to your plan & does not dictate it. 21 The Smart. Track. TM system provides complete flexibility for pig tracking & much more!
