Three dimensional subsidence, thermal, maturation and migration history model in the Jászság Basin Attila Schlakker Eötvös Loránd University Dept. of Physical and Applied Geology Supervisor: György Pogácsás Dr.

Outline • Study Area • Basin modelling • Subsidence history • Maturation history • Results and conclusion

Study Area boundary • Jászság Basin • 2650 km 2 Seismic line Derecske Trough • • 16 wells 2 D seismic lines Békés Basin Makó Trough Base Pannonian (s. l. ) Modified after Csíky et al. , 1987

Basin modelling After Horváth et al. , 1986

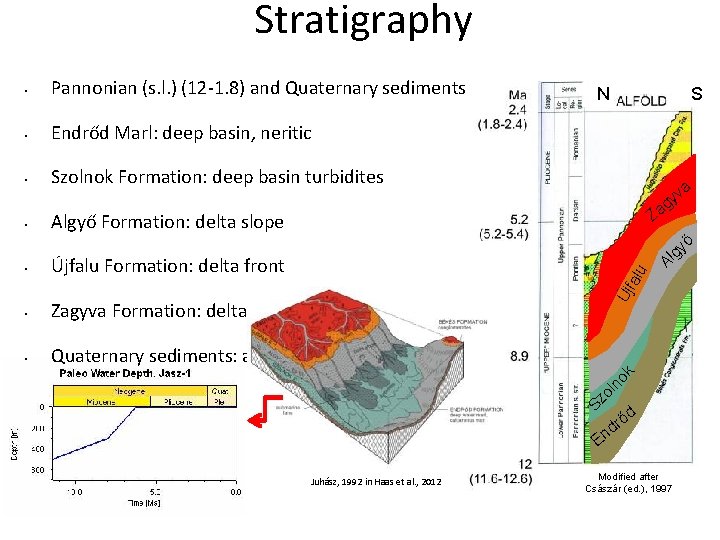

Stratigraphy • Pannonian (s. l. ) (12 -1. 8) and Quaternary sediments • Endrőd Marl: deep basin, neritic • Szolnok Formation: deep basin turbidites • Algyő Formation: delta slope N S a v gy Za ő y lg Újfalu Formation: delta front • Zagyva Formation: delta plain • Quaternary sediments: alluvial plain A Sz ol no k Új fal u • d ő dr En Juhász, 1992 in Haas et al. , 2012 Modified after Császár (ed. ), 1997

Lithologies/Petroleum System Elements Lithostratigraphic unit Depositional environment Lihology Petroleum System Element Quaternary rocks alluvial plain SAND&SHALE reservoir/seal Zagyva Formation delta plain SAND&SILT reservoir/seal Újfalu Formation delta front SANDSTONE reservoir Algyő Formation delta slope SHALE seal Szolnok Formation deep basin turbidites SHALEsand reservoir/seal Endrőd Marl deep basin, neritic MARL source rock

Organic geochemistry • Source rock: Endrőd Marl • Mixed type III (~80%) & Type II (~20%) kerogen • Average TOC: 1. 3 % • Estimated HI: 320 mg HC/g TOC É Base Pannonian (s. l. ) depth map (m) Modified after Csíky et al. , 1987 Endrőd Marl

Geothermics Two Mc. Kenzie Heat Flow models: Moderate HF model: stretching factors – crust: 2, mantle: 4 High HF model: stretching factors – crust 2, mantle: 10 Heat Flow values at the study area (m. W/m 2) É Modified after Horváth et al. , 2004

Heat Flow Calibration Heat Flow values at the study area (m. W/m 2) Modified after Horváth et al. , 2004

Subsidence history 9. 2 Ma 5. 3 Ma 8 Ma 6. 8 Ma Present days zagyvai + kvarter újfalui szolnoki algyői endrődi

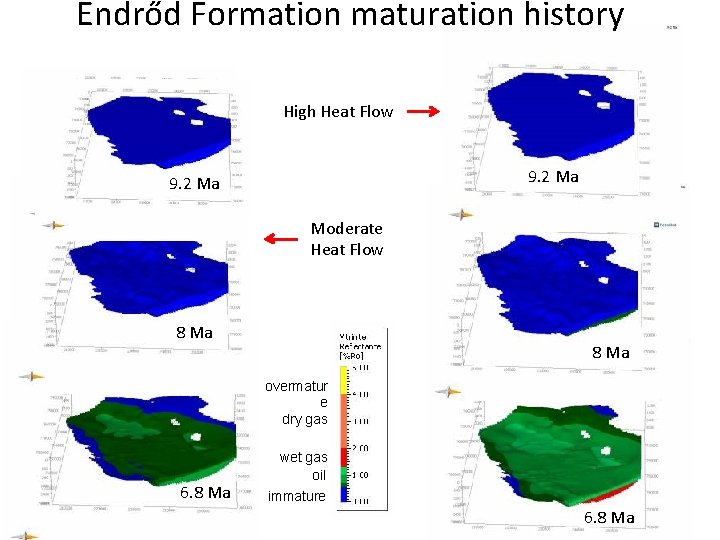

Endrőd Formation maturation history High Heat Flow 9. 2 Ma Moderate Heat Flow 8 Ma overmatur e dry gas 6. 8 Ma wet gas oil immature 6. 8 Ma

Endrőd Formation maturation history High Heat Flow 5. 3 Ma Moderate Heat Flow 5. 3 Ma overmatur e dry gas Present days wet gas oil immature Present days

Generated volume of Hydrocarbons (in Million m 3) • Moderate Heat Flow Model: Gas: 1. 5 E 10^6 (=1, 500 Billion m 3) Oil: 141. 52 • High Heat Flow Model: Gas: 7. 19 E 10^6 (=7, 190 Billion m 3) Oil: -2938. 52 (Oil cracked by secondary cracking)

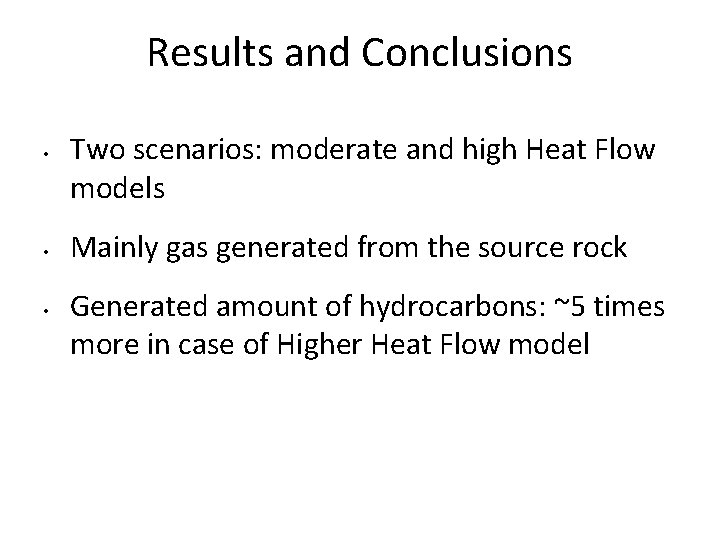

Results and Conclusions • • • Two scenarios: moderate and high Heat Flow models Mainly gas generated from the source rock Generated amount of hydrocarbons: ~5 times more in case of Higher Heat Flow model

Acknowledgement • Hungarian Horizon Energy Ltd. • Schlumberger Ltd. • Dr. György Pogácsás • • János Csizmeg, Levente Szabó, Gábor Varga (HHE Ltd. ) Katalin Milota (MOL Plc. )

Thank you!

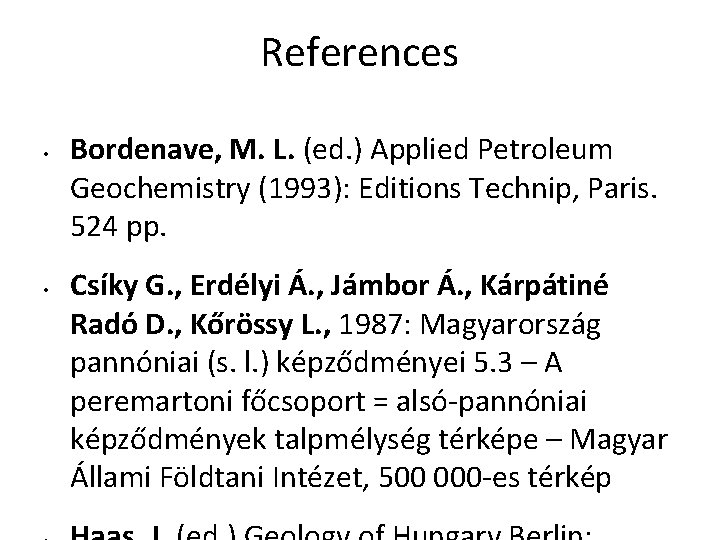

References • • Bordenave, M. L. (ed. ) Applied Petroleum Geochemistry (1993): Editions Technip, Paris. 524 pp. Csíky G. , Erdélyi Á. , Jámbor Á. , Kárpátiné Radó D. , Kőrössy L. , 1987: Magyarország pannóniai (s. l. ) képződményei 5. 3 – A peremartoni főcsoport = alsó-pannóniai képződmények talpmélység térképe – Magyar Állami Földtani Intézet, 500 000 -es térkép

Hydrogen Index Estimation M. L. Bordenave, 1993

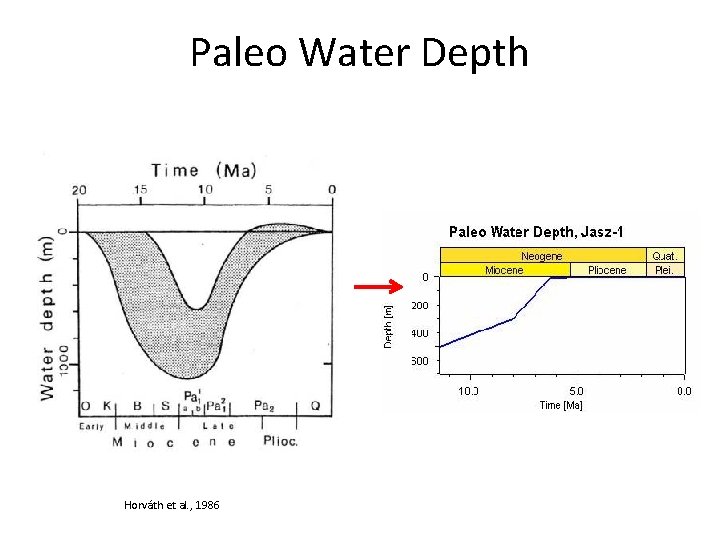

Paleo Water Depth Horváth et al. , 1986
