Threads Topics Thread Introduction Multithreading models Thread libraries

Threads

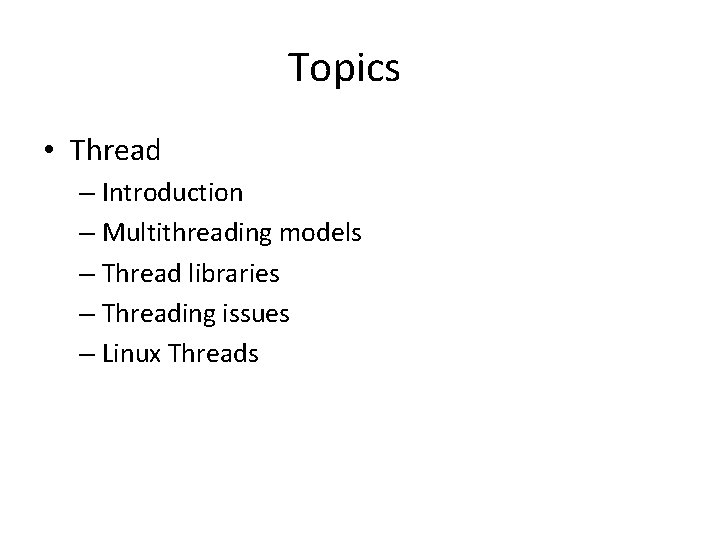

Topics • Thread – Introduction – Multithreading models – Thread libraries – Threading issues – Linux Threads

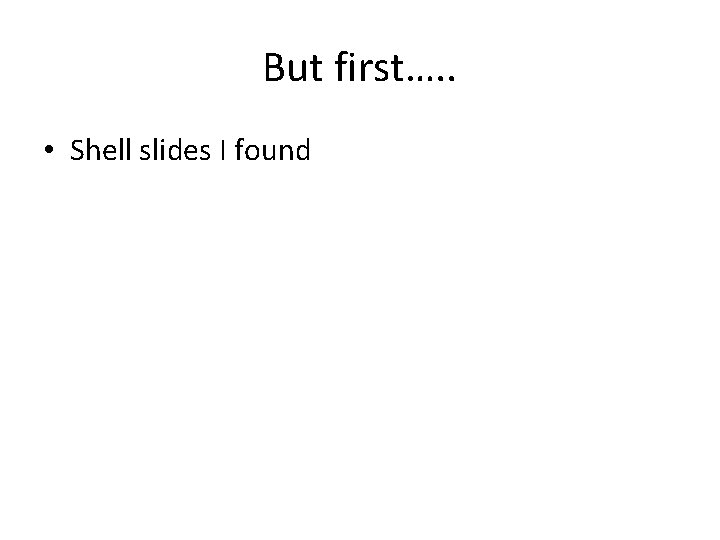

But first…. . • Shell slides I found

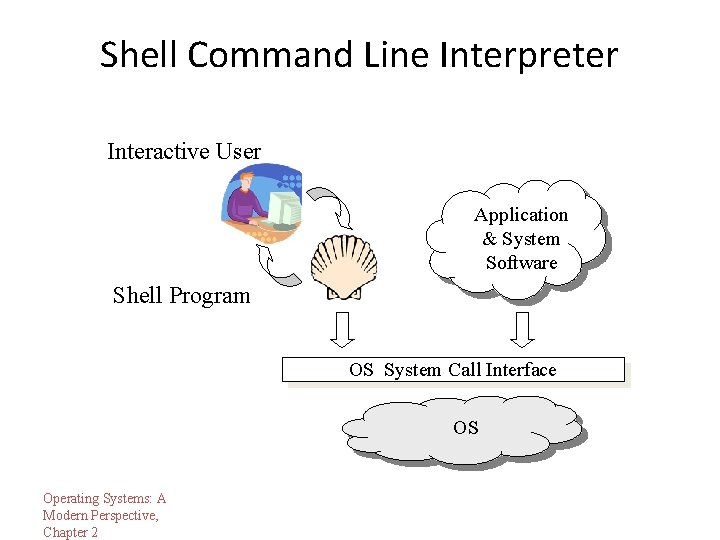

Shell Command Line Interpreter Interactive User Application & System Software Shell Program OS System Call Interface OS Operating Systems: A Modern Perspective, Chapter 2

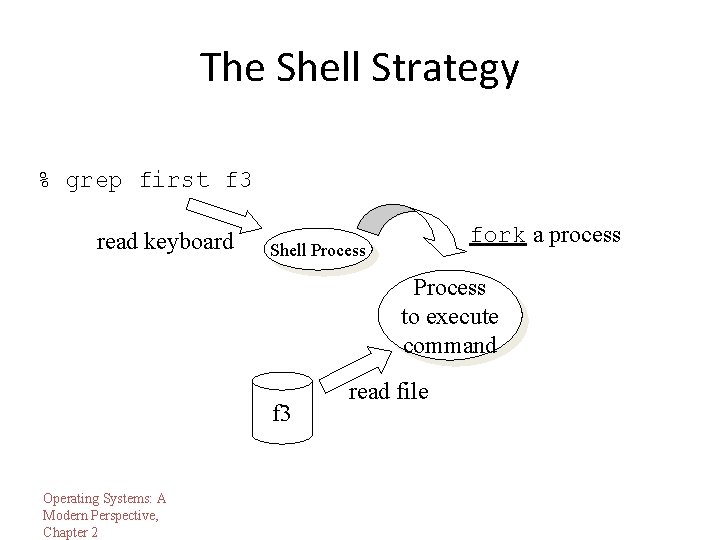

The Shell Strategy % grep first f 3 read keyboard fork a process Shell Process to execute command f 3 Operating Systems: A Modern Perspective, Chapter 2 read file

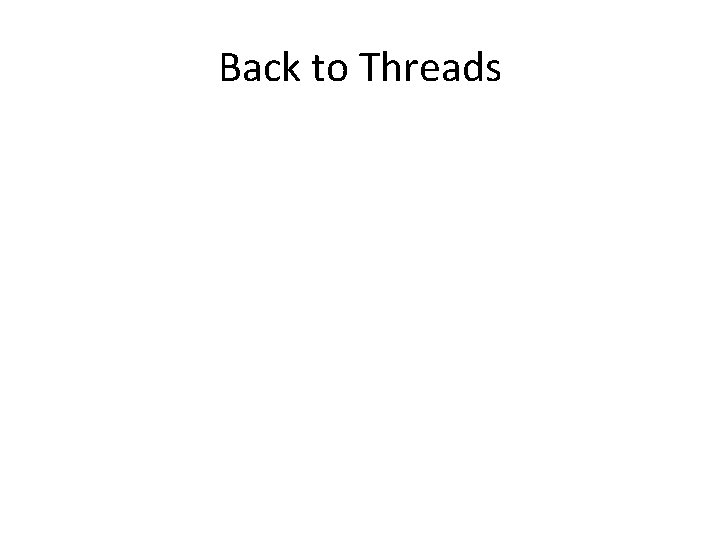

Back to Threads

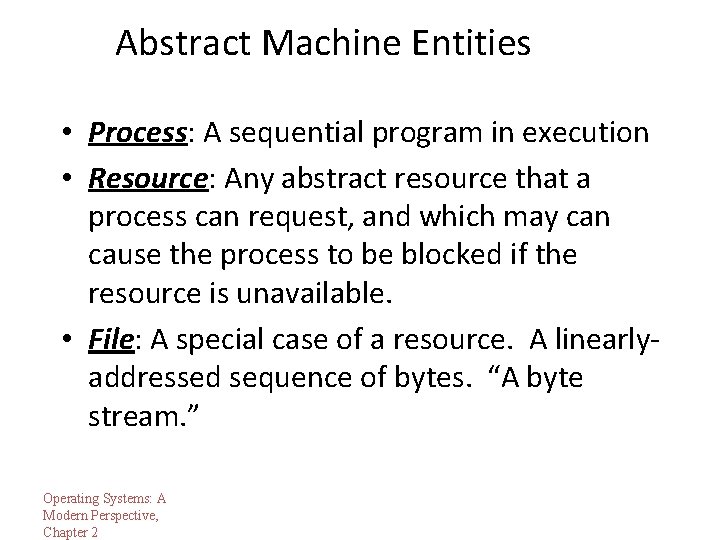

Abstract Machine Entities • Process: A sequential program in execution • Resource: Any abstract resource that a process can request, and which may can cause the process to be blocked if the resource is unavailable. • File: A special case of a resource. A linearlyaddressed sequence of bytes. “A byte stream. ” Operating Systems: A Modern Perspective, Chapter 2

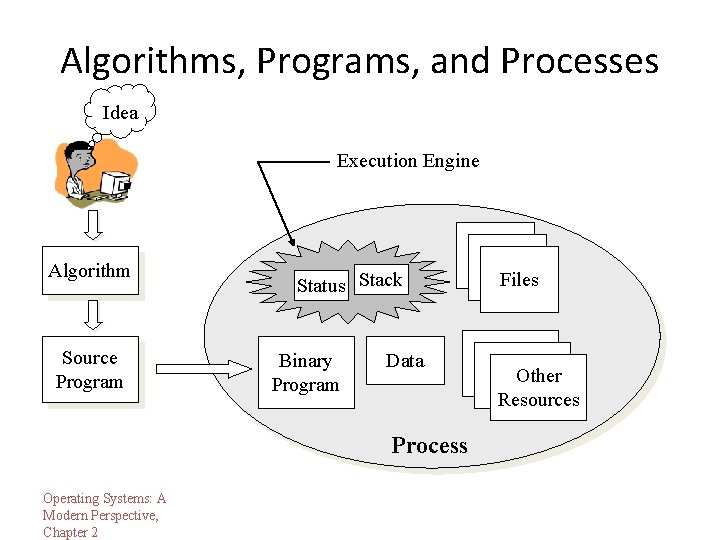

Algorithms, Programs, and Processes Idea Execution Engine Algorithm Source Program Status Stack Binary Program Data Process Operating Systems: A Modern Perspective, Chapter 2 Files Other Resources

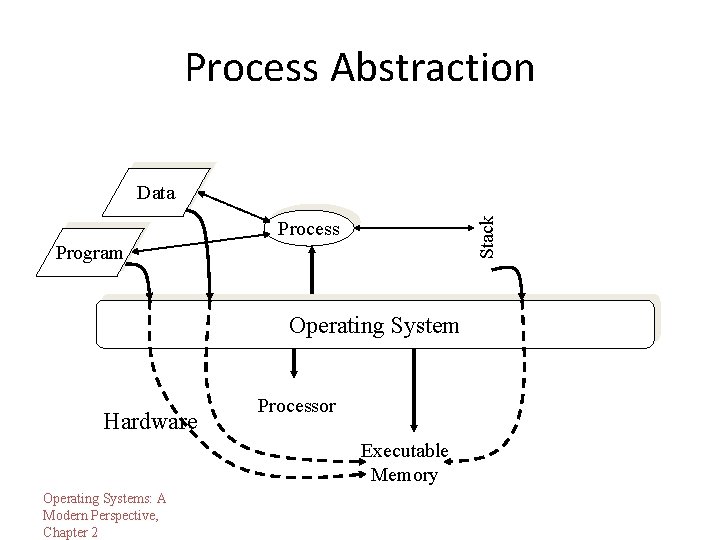

Process Abstraction Stack Data Process Program Operating System Hardware Processor Executable Memory Operating Systems: A Modern Perspective, Chapter 2

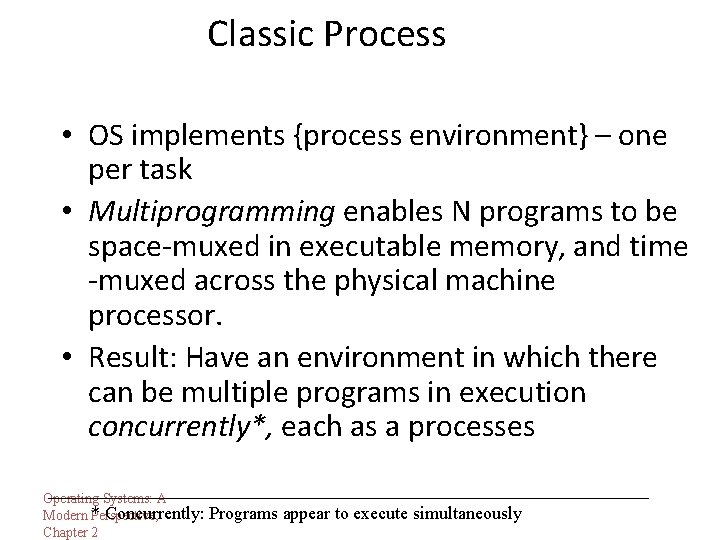

Classic Process • OS implements {process environment} – one per task • Multiprogramming enables N programs to be space-muxed in executable memory, and time -muxed across the physical machine processor. • Result: Have an environment in which there can be multiple programs in execution concurrently*, each as a processes Operating Systems: A * Concurrently: Modern Perspective, Chapter 2 Programs appear to execute simultaneously

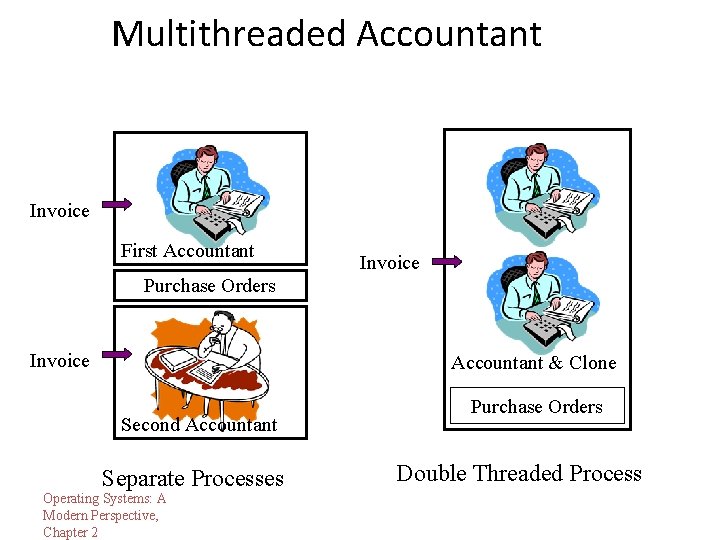

Multithreaded Accountant Invoice First Accountant Invoice Purchase Orders Invoice Accountant & Clone Second Accountant Separate Processes Operating Systems: A Modern Perspective, Chapter 2 Purchase Orders Double Threaded Process

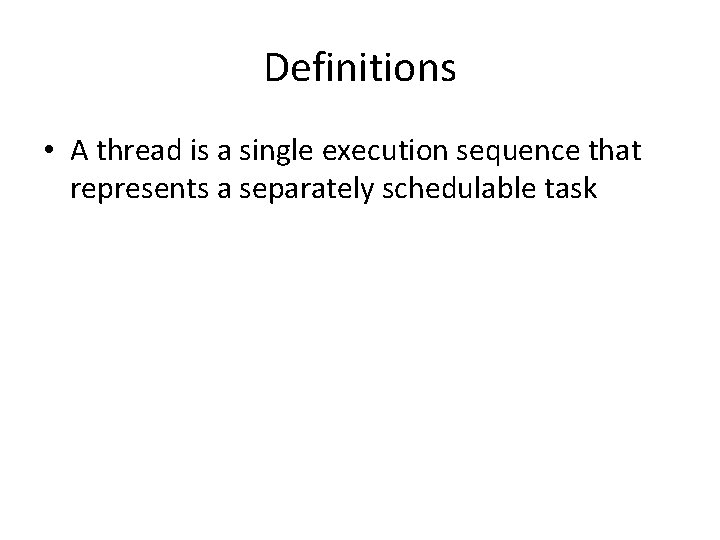

Definitions • A thread is a single execution sequence that represents a separately schedulable task

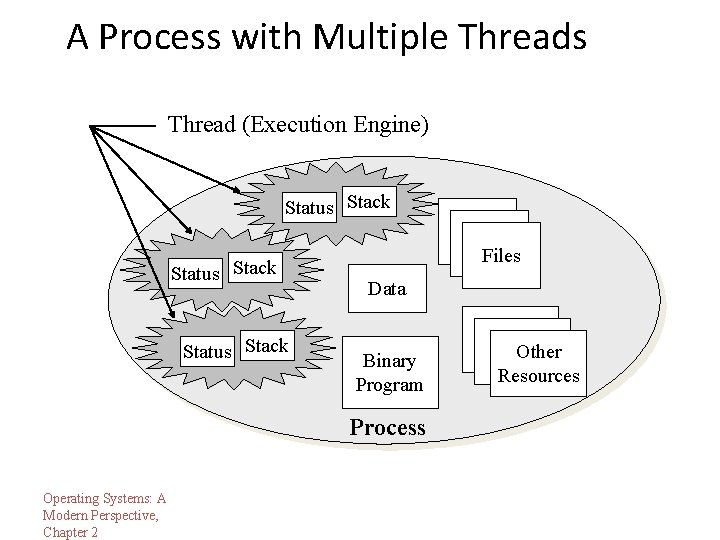

A Process with Multiple Threads Thread (Execution Engine) Status Stack Files Data Binary Program Process Operating Systems: A Modern Perspective, Chapter 2 Other Resources

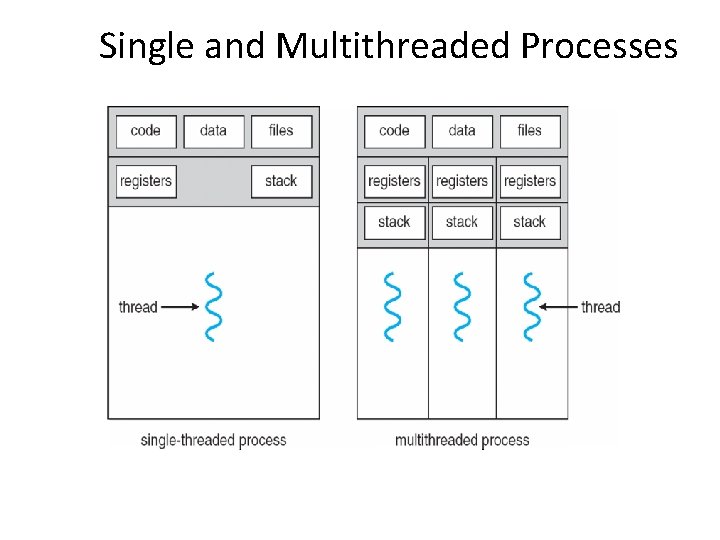

Single and Multithreaded Processes

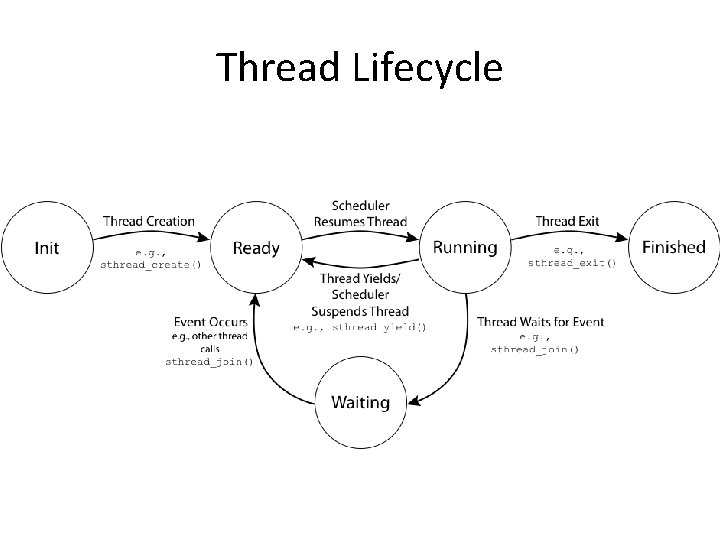

Thread Lifecycle

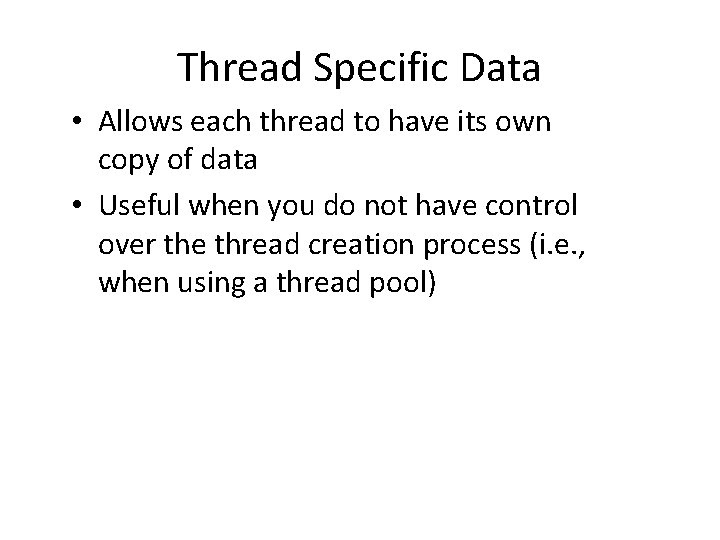

Thread Specific Data • Allows each thread to have its own copy of data • Useful when you do not have control over the thread creation process (i. e. , when using a thread pool)

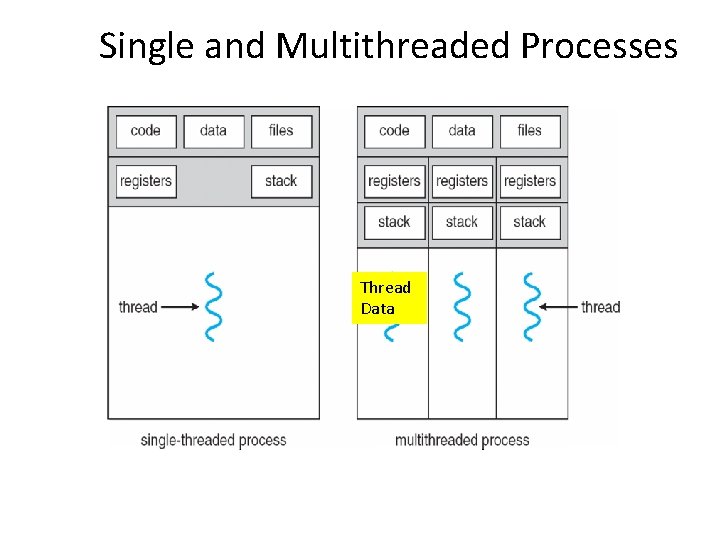

Single and Multithreaded Processes Thread Data

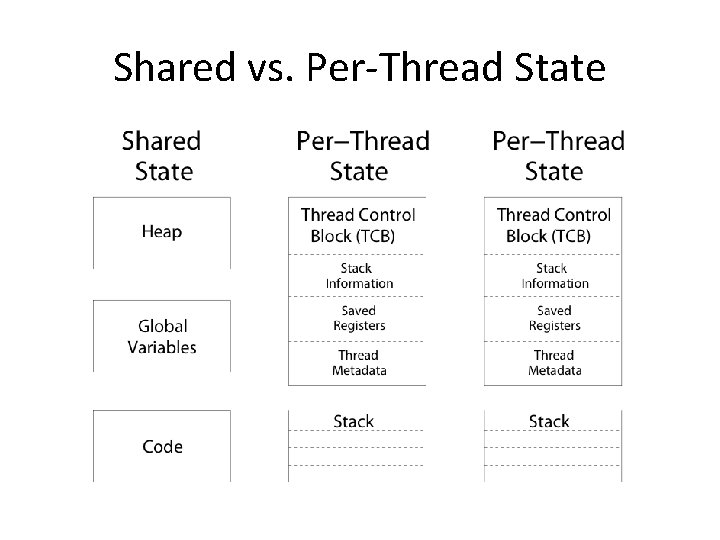

Shared vs. Per-Thread State

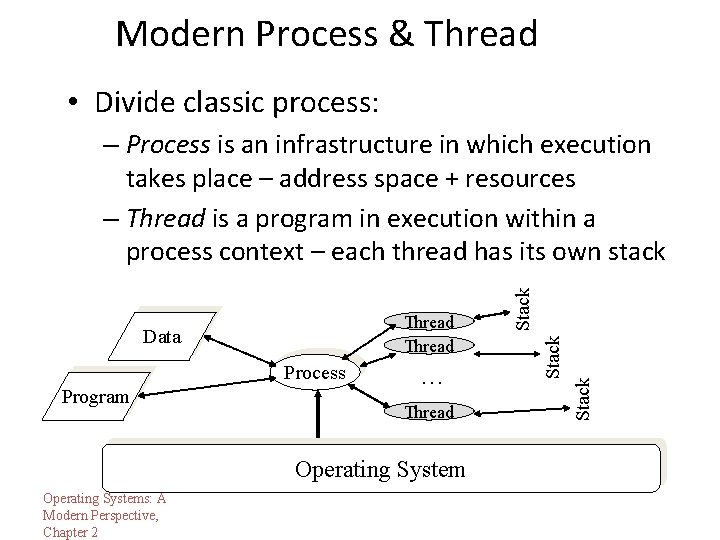

Modern Process & Thread • Divide classic process: Data Process Program … Thread Operating Systems: A Modern Perspective, Chapter 2 Stack Thread Stack – Process is an infrastructure in which execution takes place – address space + resources – Thread is a program in execution within a process context – each thread has its own stack

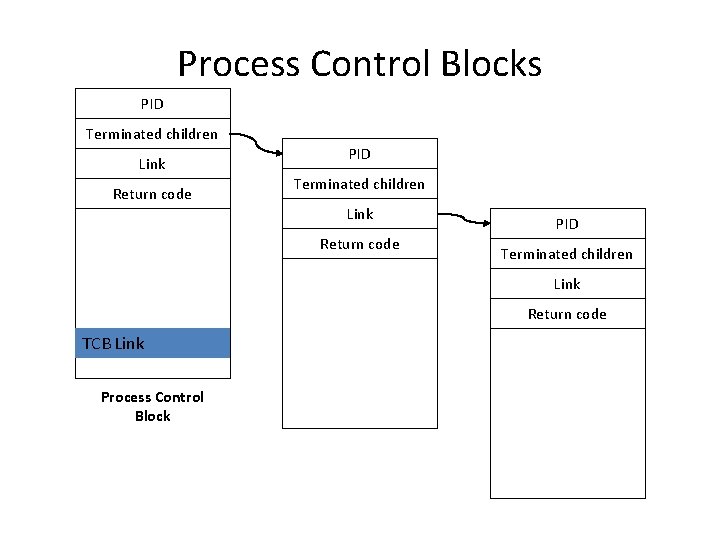

Process Control Blocks PID Terminated children Link Return code TCB Link Process Control Block

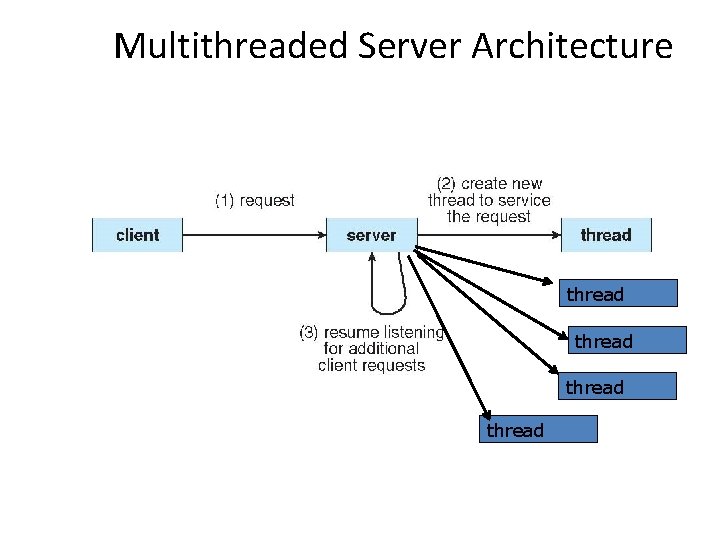

Multithreaded Server Architecture thread

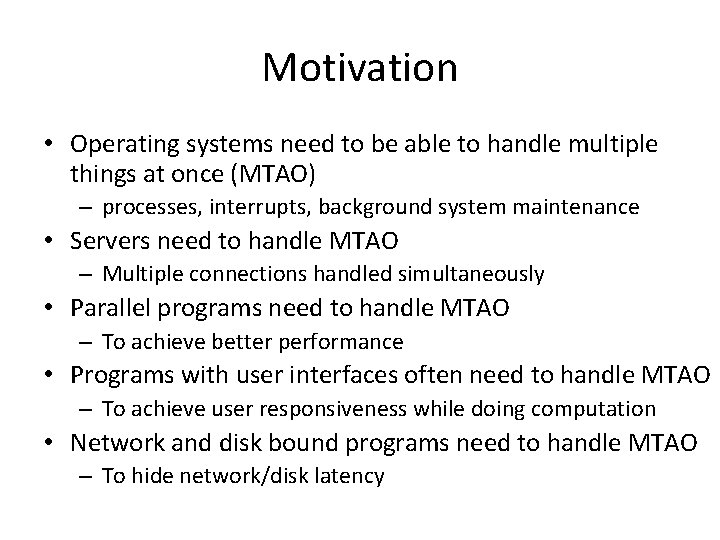

Motivation • Operating systems need to be able to handle multiple things at once (MTAO) – processes, interrupts, background system maintenance • Servers need to handle MTAO – Multiple connections handled simultaneously • Parallel programs need to handle MTAO – To achieve better performance • Programs with user interfaces often need to handle MTAO – To achieve user responsiveness while doing computation • Network and disk bound programs need to handle MTAO – To hide network/disk latency

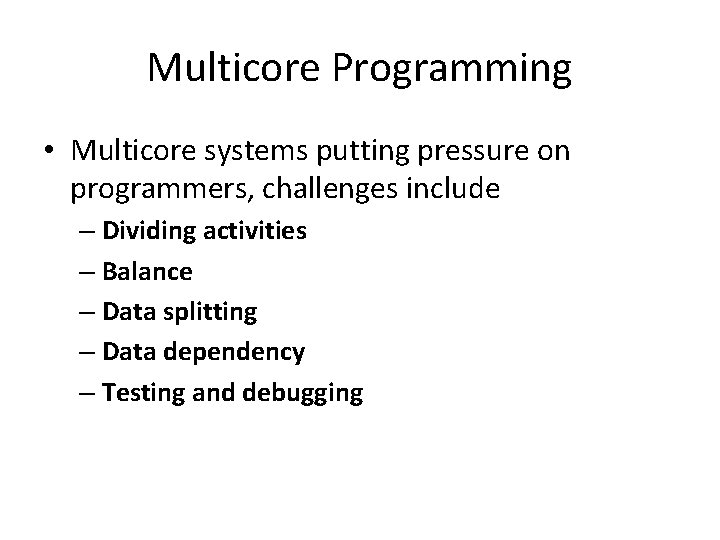

Multicore Programming • Multicore systems putting pressure on programmers, challenges include – Dividing activities – Balance – Data splitting – Data dependency – Testing and debugging

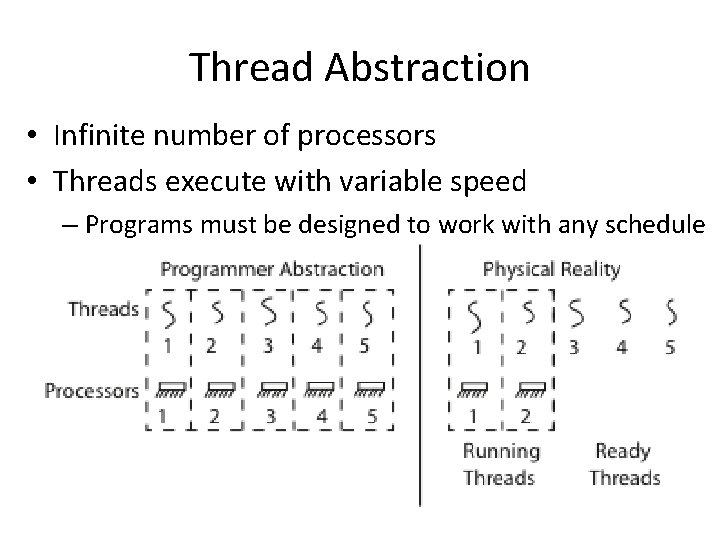

Thread Abstraction • Infinite number of processors • Threads execute with variable speed – Programs must be designed to work with any schedule

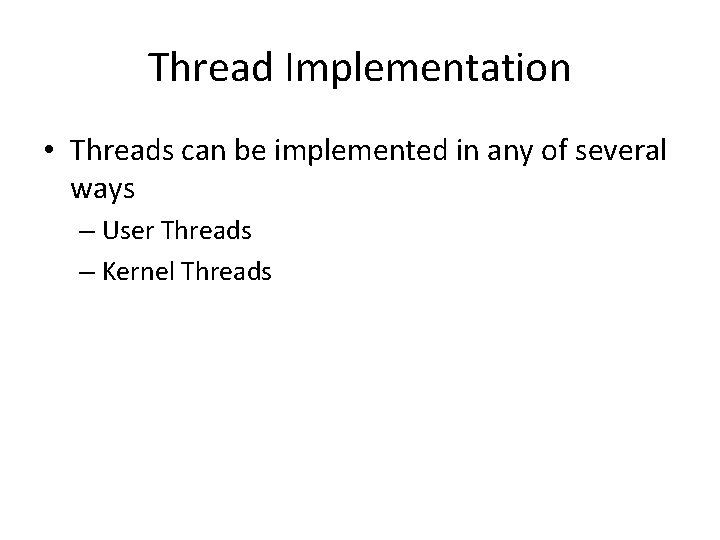

Thread Implementation • Threads can be implemented in any of several ways – User Threads – Kernel Threads

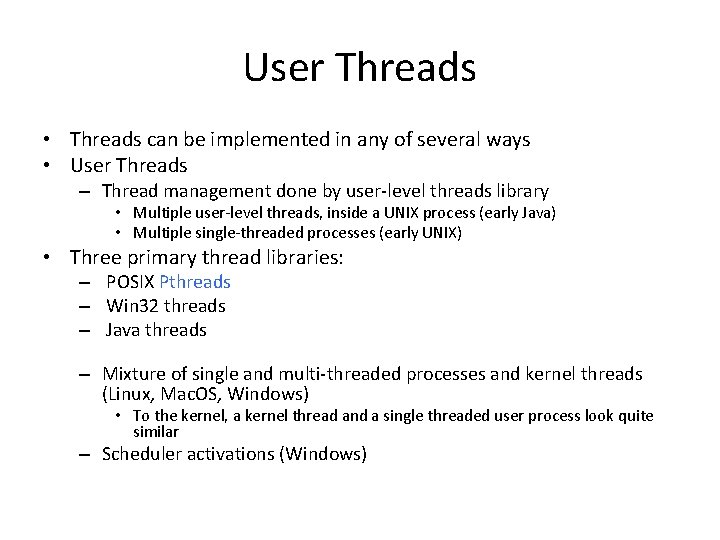

User Threads • Threads can be implemented in any of several ways • User Threads – Thread management done by user-level threads library • Multiple user-level threads, inside a UNIX process (early Java) • Multiple single-threaded processes (early UNIX) • Three primary thread libraries: – POSIX Pthreads – Win 32 threads – Java threads – Mixture of single and multi-threaded processes and kernel threads (Linux, Mac. OS, Windows) • To the kernel, a kernel thread and a single threaded user process look quite similar – Scheduler activations (Windows)

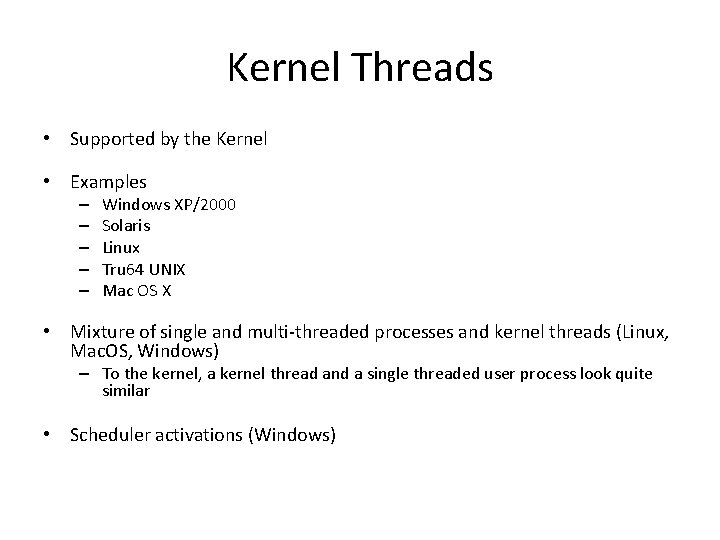

Kernel Threads • Supported by the Kernel • Examples – – – Windows XP/2000 Solaris Linux Tru 64 UNIX Mac OS X • Mixture of single and multi-threaded processes and kernel threads (Linux, Mac. OS, Windows) – To the kernel, a kernel thread and a single threaded user process look quite similar • Scheduler activations (Windows)

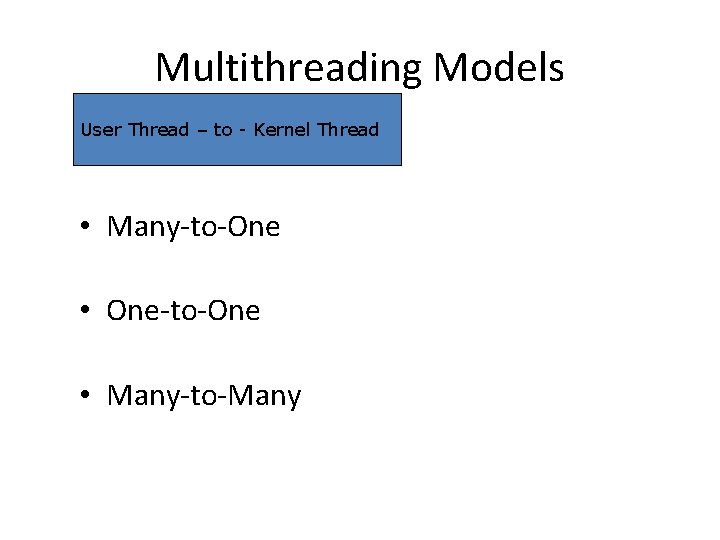

Multithreading Models User Thread – to - Kernel Thread • Many-to-One • One-to-One • Many-to-Many

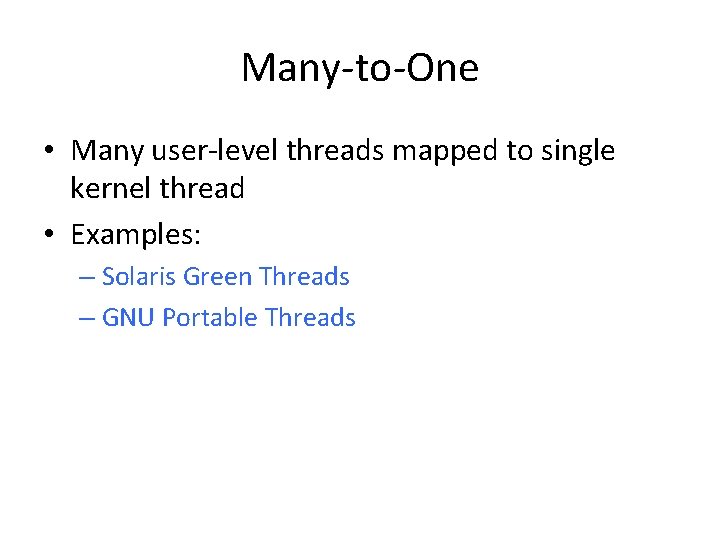

Many-to-One • Many user-level threads mapped to single kernel thread • Examples: – Solaris Green Threads – GNU Portable Threads

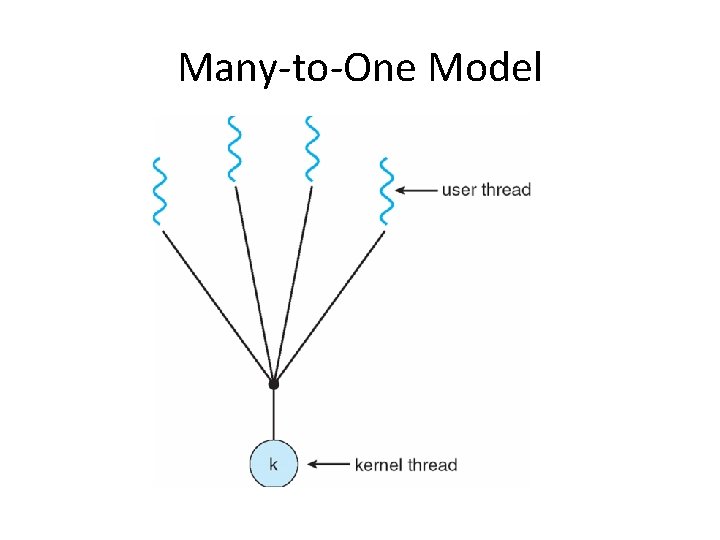

Many-to-One Model

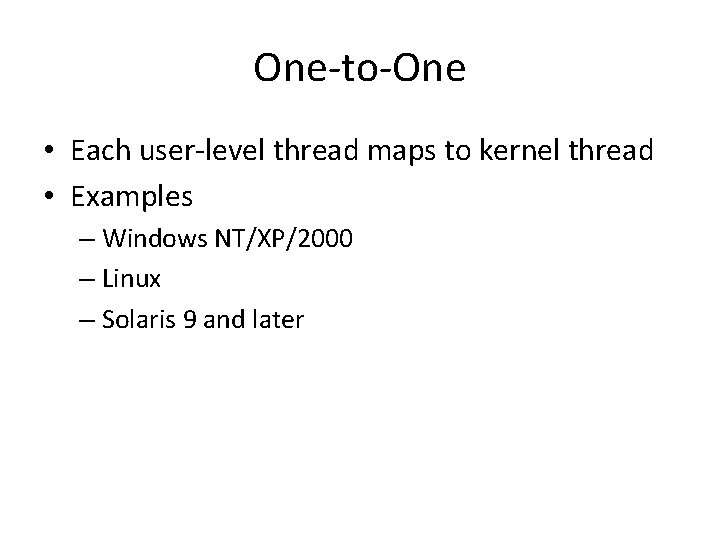

One-to-One • Each user-level thread maps to kernel thread • Examples – Windows NT/XP/2000 – Linux – Solaris 9 and later

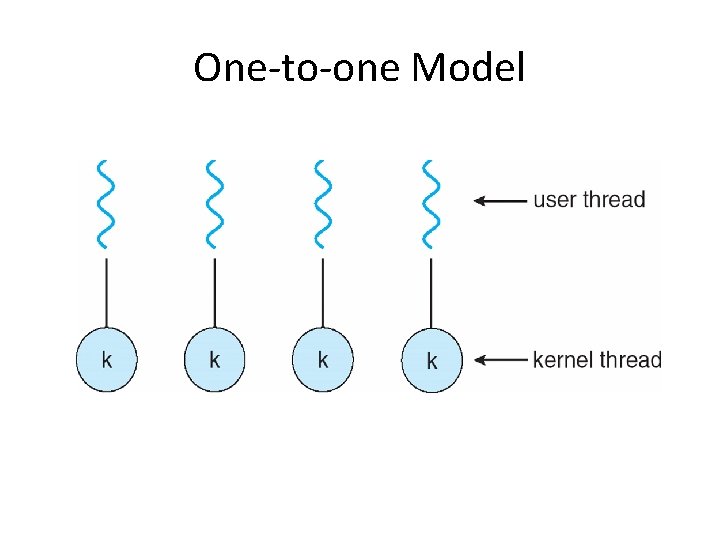

One-to-one Model

Many-to-Many Model • Allows many user level threads to be mapped to many kernel threads • Allows the operating system to create a sufficient number of kernel threads • Solaris prior to version 9 • Windows NT/2000 with the Thread. Fiber package

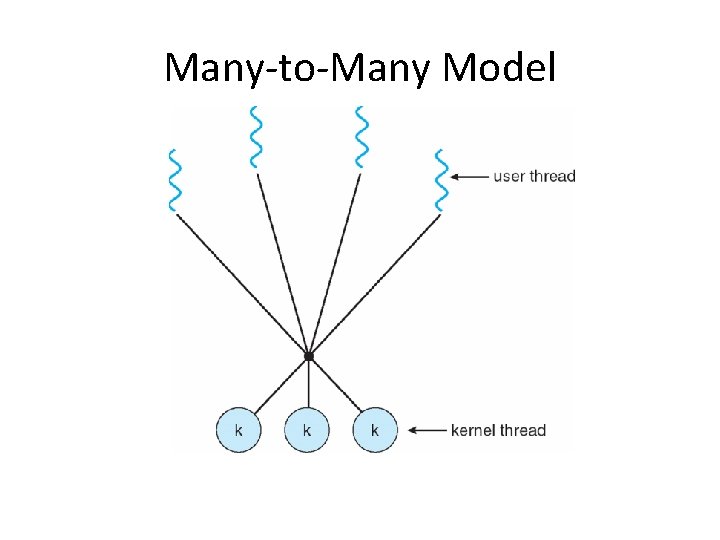

Many-to-Many Model

Thread Libraries • Thread library provides programmer with API for creating and managing threads • Two primary ways of implementing – Library entirely in user space – Kernel-level library supported by the OS

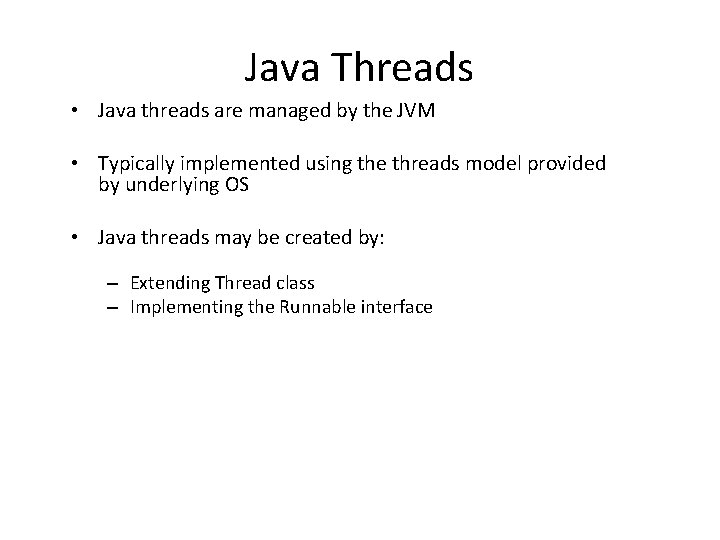

Java Threads • Java threads are managed by the JVM • Typically implemented using the threads model provided by underlying OS • Java threads may be created by: – Extending Thread class – Implementing the Runnable interface

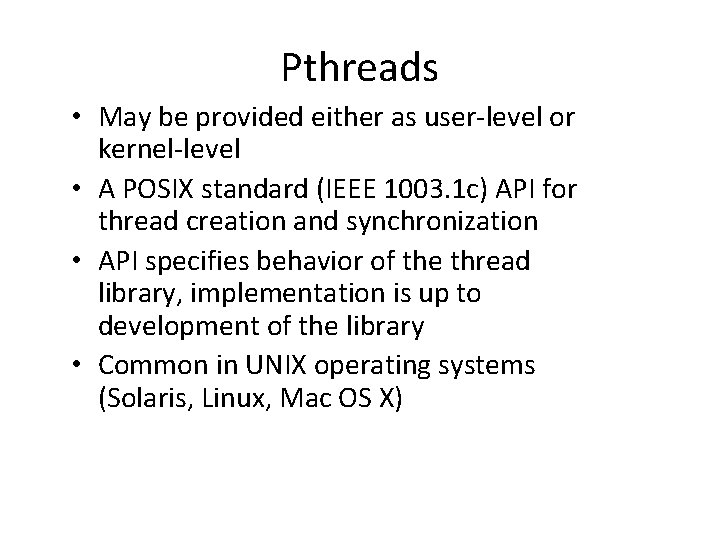

Pthreads • May be provided either as user-level or kernel-level • A POSIX standard (IEEE 1003. 1 c) API for thread creation and synchronization • API specifies behavior of the thread library, implementation is up to development of the library • Common in UNIX operating systems (Solaris, Linux, Mac OS X)

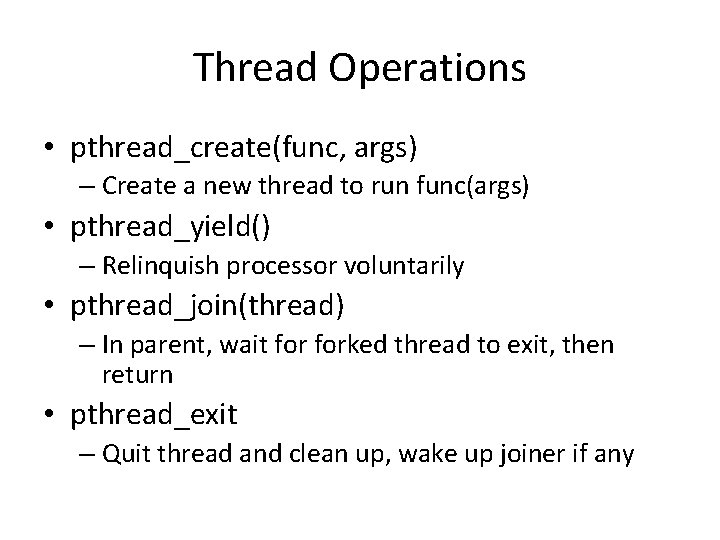

Thread Operations • pthread_create(func, args) – Create a new thread to run func(args) • pthread_yield() – Relinquish processor voluntarily • pthread_join(thread) – In parent, wait forked thread to exit, then return • pthread_exit – Quit thread and clean up, wake up joiner if any

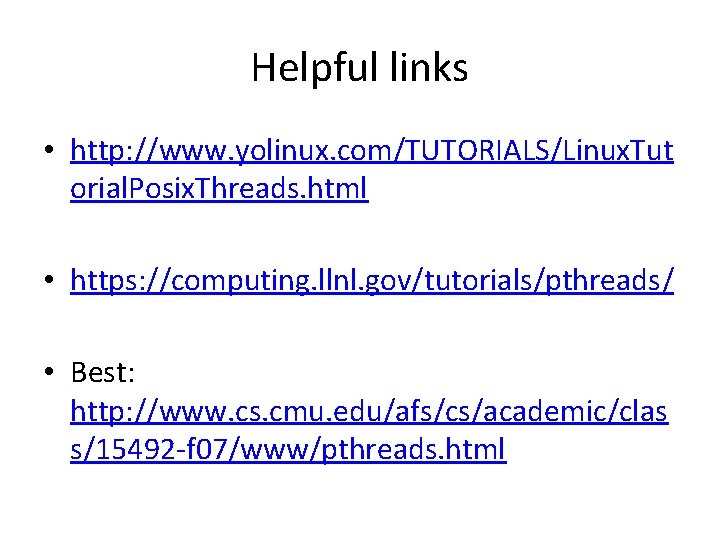

Helpful links • http: //www. yolinux. com/TUTORIALS/Linux. Tut orial. Posix. Threads. html • https: //computing. llnl. gov/tutorials/pthreads/ • Best: http: //www. cs. cmu. edu/afs/cs/academic/clas s/15492 -f 07/www/pthreads. html

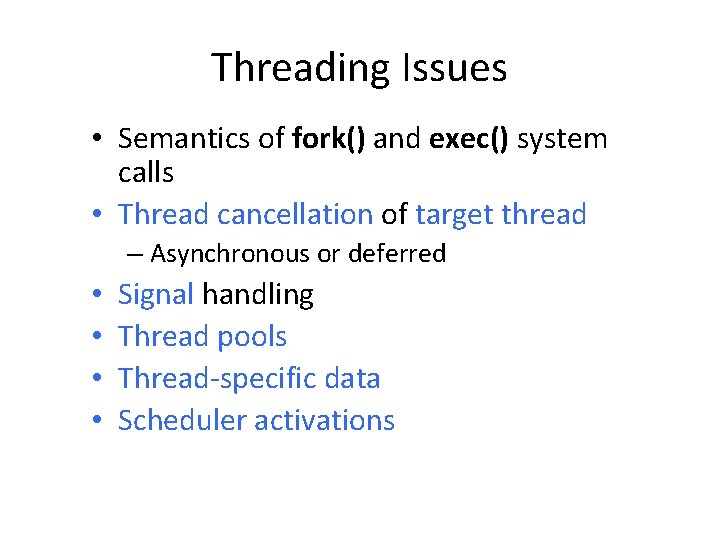

Threading Issues • Semantics of fork() and exec() system calls • Thread cancellation of target thread – Asynchronous or deferred • • Signal handling Thread pools Thread-specific data Scheduler activations

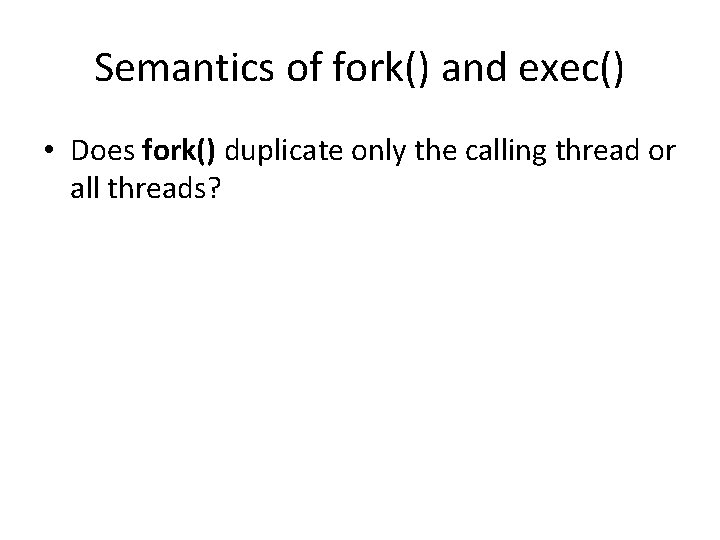

Semantics of fork() and exec() • Does fork() duplicate only the calling thread or all threads?

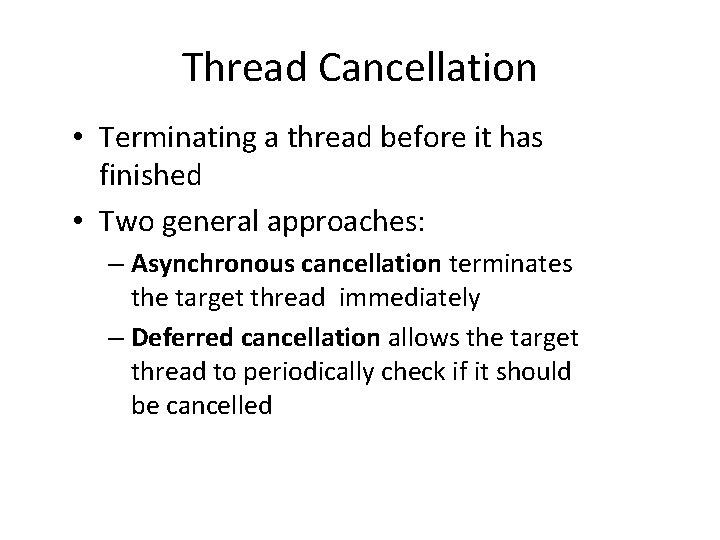

Thread Cancellation • Terminating a thread before it has finished • Two general approaches: – Asynchronous cancellation terminates the target thread immediately – Deferred cancellation allows the target thread to periodically check if it should be cancelled

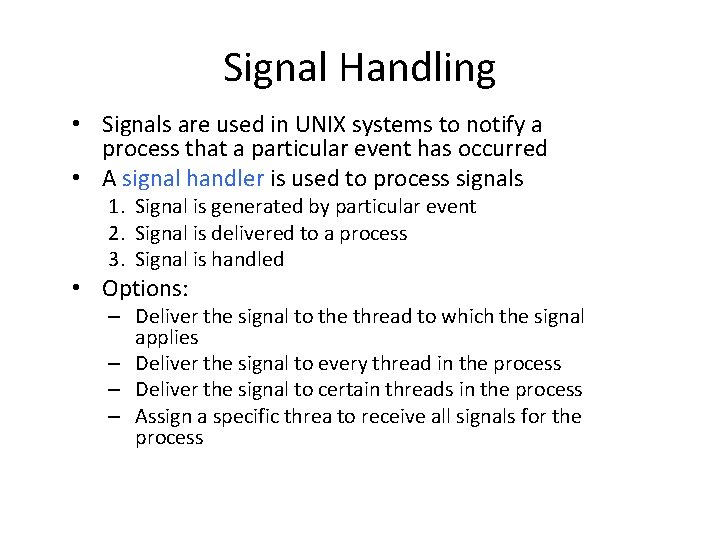

Signal Handling • Signals are used in UNIX systems to notify a process that a particular event has occurred • A signal handler is used to process signals 1. Signal is generated by particular event 2. Signal is delivered to a process 3. Signal is handled • Options: – Deliver the signal to the thread to which the signal applies – Deliver the signal to every thread in the process – Deliver the signal to certain threads in the process – Assign a specific threa to receive all signals for the process

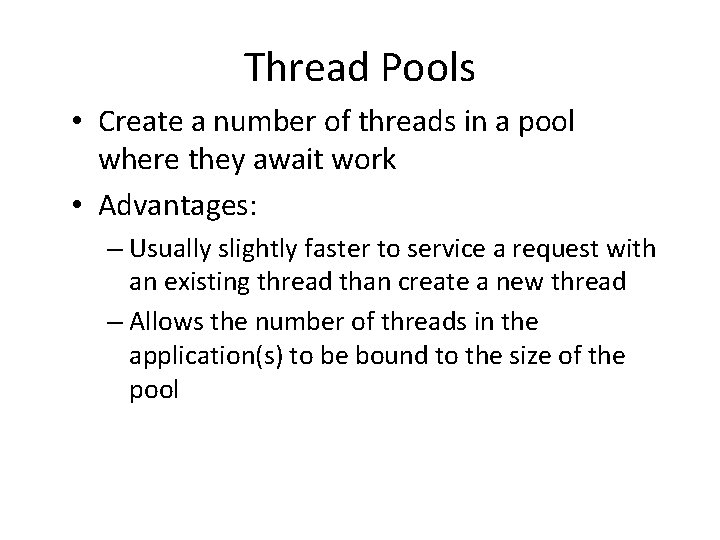

Thread Pools • Create a number of threads in a pool where they await work • Advantages: – Usually slightly faster to service a request with an existing thread than create a new thread – Allows the number of threads in the application(s) to be bound to the size of the pool

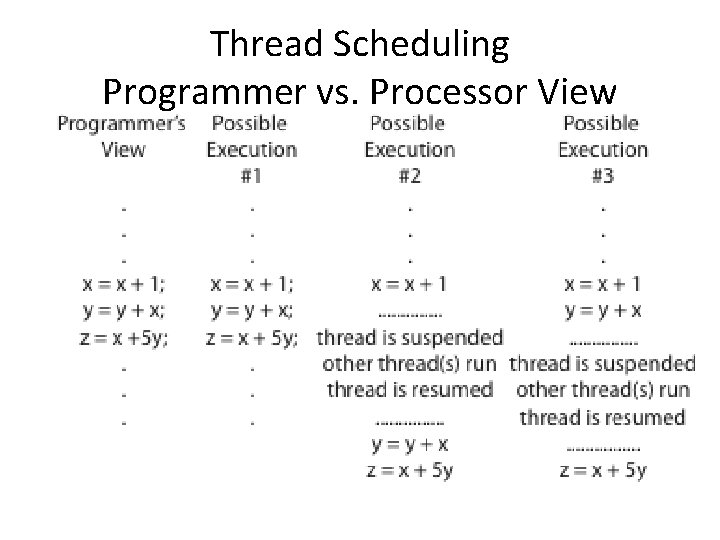

Thread Scheduling Programmer vs. Processor View

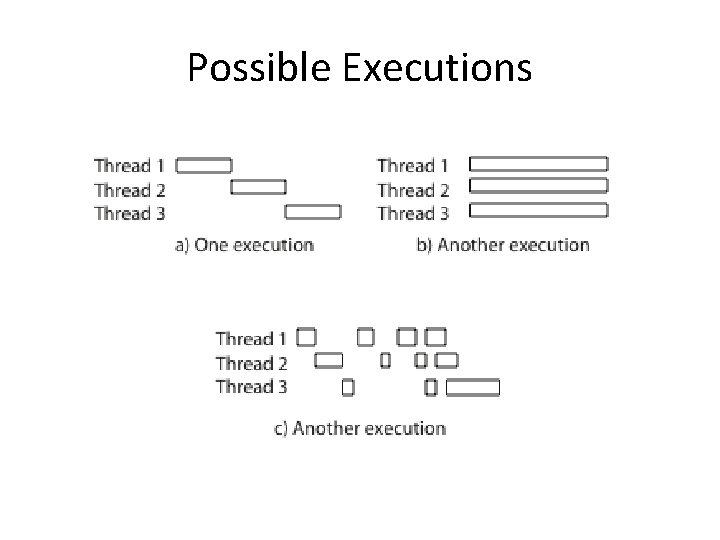

Possible Executions

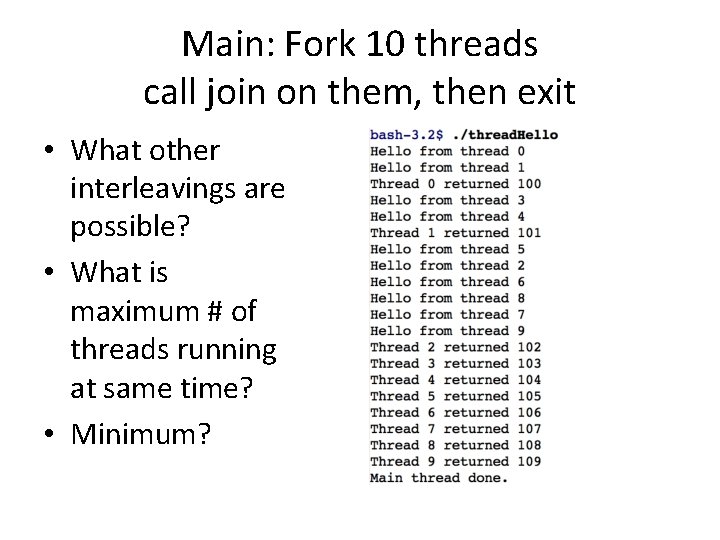

Main: Fork 10 threads call join on them, then exit • What other interleavings are possible? • What is maximum # of threads running at same time? • Minimum?

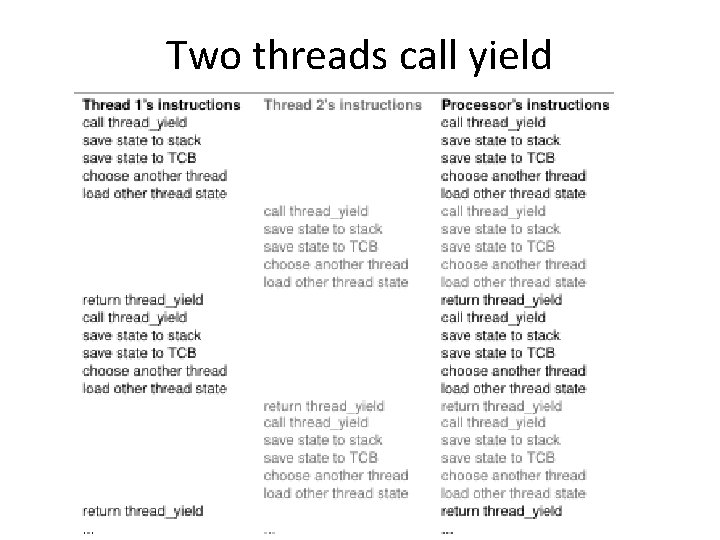

Two threads call yield

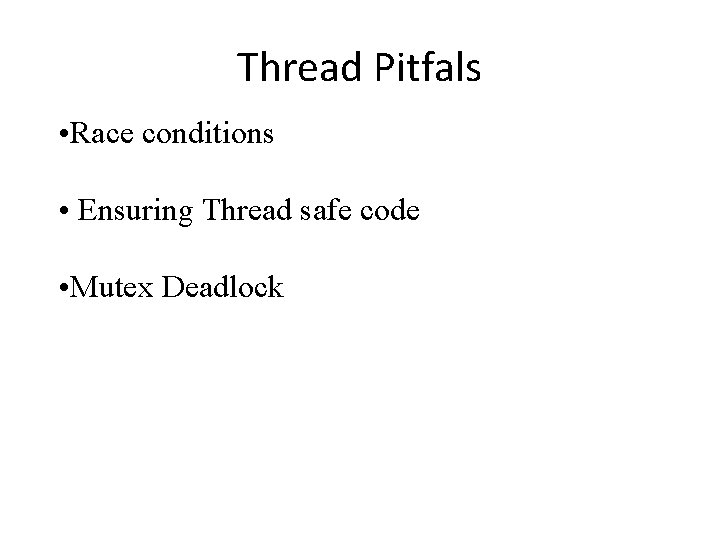

Thread Pitfals • Race conditions • Ensuring Thread safe code • Mutex Deadlock

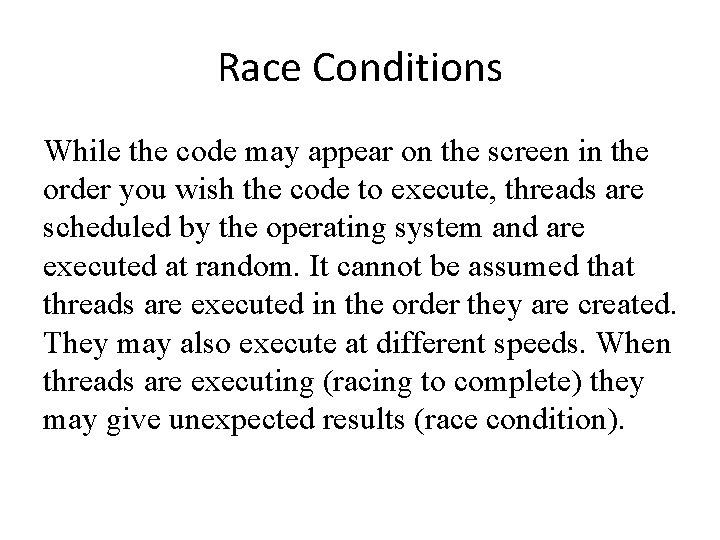

Race Conditions While the code may appear on the screen in the order you wish the code to execute, threads are scheduled by the operating system and are executed at random. It cannot be assumed that threads are executed in the order they are created. They may also execute at different speeds. When threads are executing (racing to complete) they may give unexpected results (race condition).

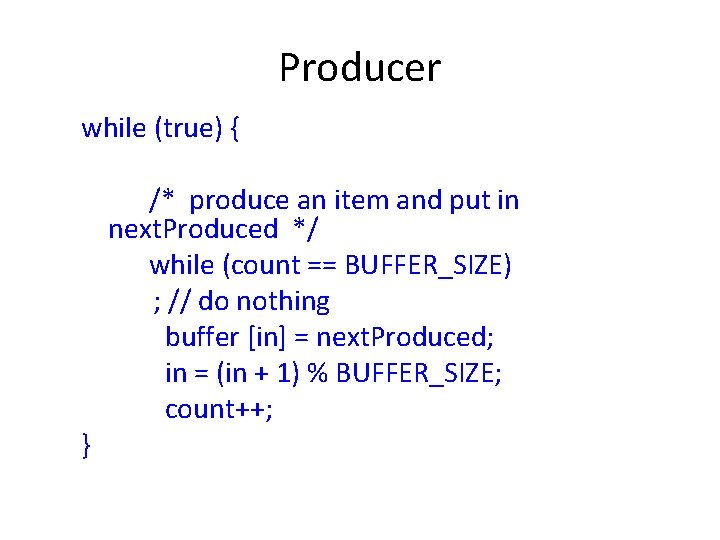

Producer while (true) { } /* produce an item and put in next. Produced */ while (count == BUFFER_SIZE) ; // do nothing buffer [in] = next. Produced; in = (in + 1) % BUFFER_SIZE; count++;

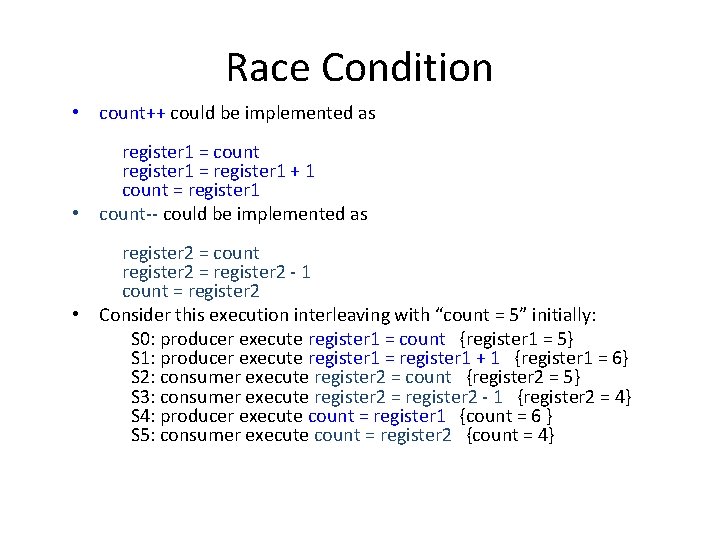

Race Condition • count++ could be implemented as register 1 = count register 1 = register 1 + 1 count = register 1 • count-- could be implemented as register 2 = count register 2 = register 2 - 1 count = register 2 • Consider this execution interleaving with “count = 5” initially: S 0: producer execute register 1 = count {register 1 = 5} S 1: producer execute register 1 = register 1 + 1 {register 1 = 6} S 2: consumer execute register 2 = count {register 2 = 5} S 3: consumer execute register 2 = register 2 - 1 {register 2 = 4} S 4: producer execute count = register 1 {count = 6 } S 5: consumer execute count = register 2 {count = 4}

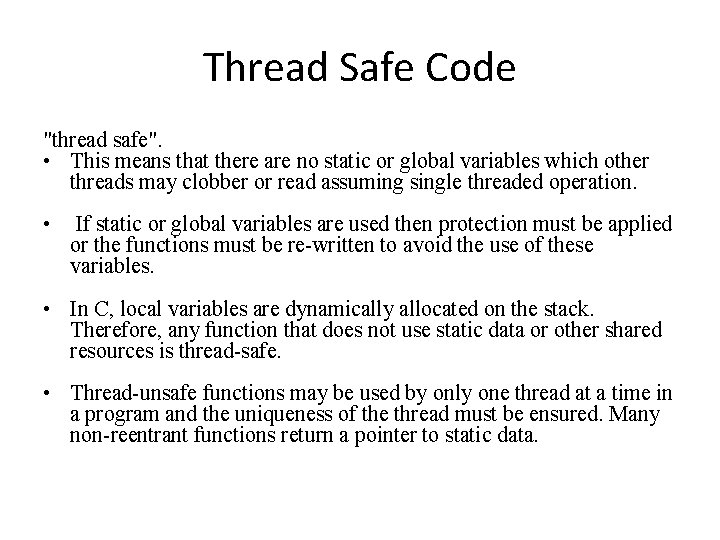

Thread Safe Code "thread safe". • This means that there are no static or global variables which other threads may clobber or read assuming single threaded operation. • If static or global variables are used then protection must be applied or the functions must be re-written to avoid the use of these variables. • In C, local variables are dynamically allocated on the stack. Therefore, any function that does not use static data or other shared resources is thread-safe. • Thread-unsafe functions may be used by only one thread at a time in a program and the uniqueness of the thread must be ensured. Many non-reentrant functions return a pointer to static data.

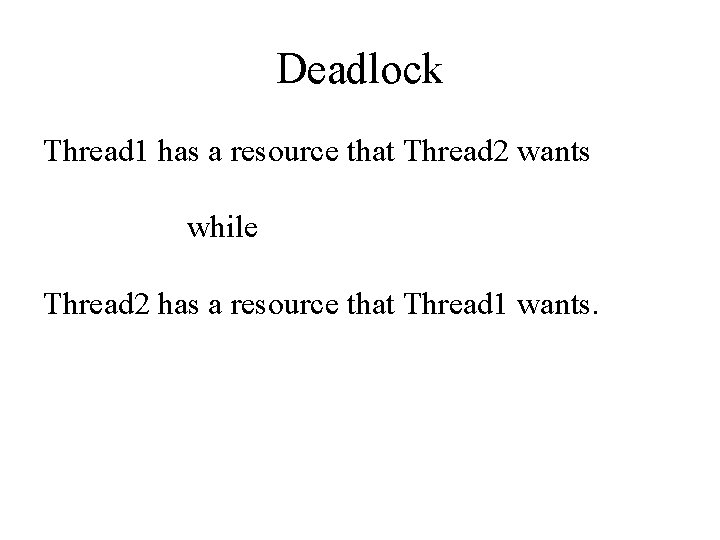

Deadlock Thread 1 has a resource that Thread 2 wants while Thread 2 has a resource that Thread 1 wants.

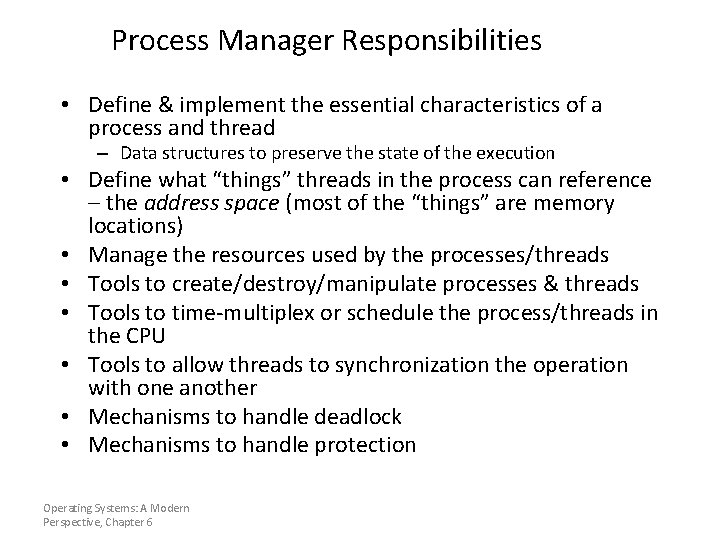

Process Manager Responsibilities • Define & implement the essential characteristics of a process and thread – Data structures to preserve the state of the execution • Define what “things” threads in the process can reference – the address space (most of the “things” are memory locations) • Manage the resources used by the processes/threads • Tools to create/destroy/manipulate processes & threads • Tools to time-multiplex or schedule the process/threads in the CPU • Tools to allow threads to synchronization the operation with one another • Mechanisms to handle deadlock • Mechanisms to handle protection Operating Systems: A Modern Perspective, Chapter 6
