Thomas Vinz DCS 550 Sales Presentation ABB DC
Thomas Vinz DCS 550 Sales Presentation © ABB DC drives Slide 1
DC drive DCS 550 The new family member Current ratings § Size F 1 20 ADC - 100 ADC § Size F 2 135 ADC - 300 ADC § Size F 3 315 ADC - 520 ADC § Size F 4 610 ADC - 1000 ADC Mains voltage § 230 VAC - 525 VAC Power © ABB DC drives Slide 2 § 12 k. W - 522 k. W § 16 HP - 700 HP

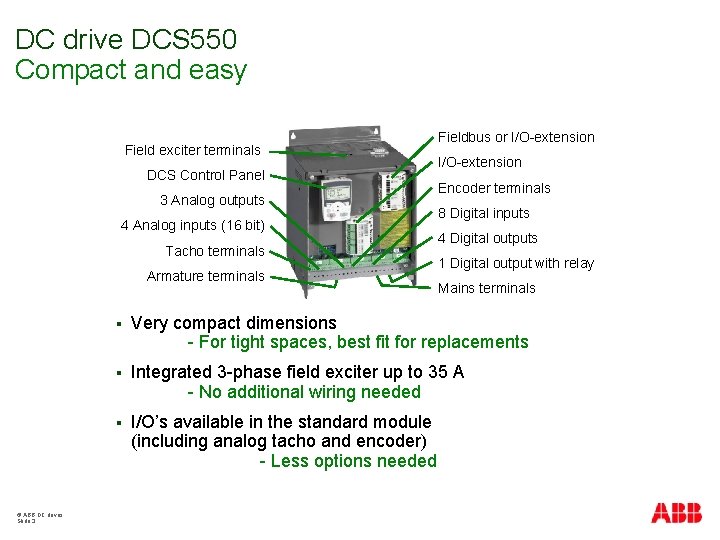

DC drive DCS 550 Compact and easy Field exciter terminals DCS Control Panel 3 Analog outputs 4 Analog inputs (16 bit) Tacho terminals Armature terminals © ABB DC drives Slide 3 Fieldbus or I/O-extension Encoder terminals 8 Digital inputs 4 Digital outputs 1 Digital output with relay Mains terminals § Very compact dimensions - For tight spaces, best fit for replacements § Integrated 3 -phase field exciter up to 35 A - No additional wiring needed § I/O’s available in the standard module (including analog tacho and encoder) - Less options needed

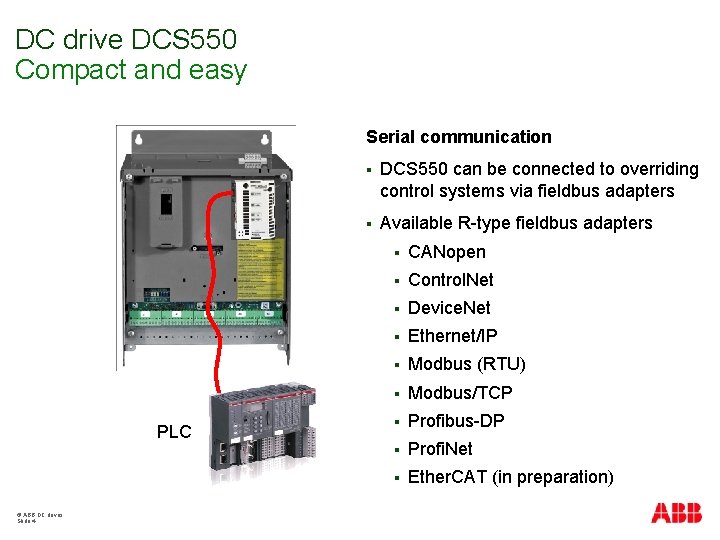

DC drive DCS 550 Compact and easy Serial communication PLC © ABB DC drives Slide 4 § DCS 550 can be connected to overriding control systems via fieldbus adapters § Available R-type fieldbus adapters § CANopen § Control. Net § Device. Net § Ethernet/IP § Modbus (RTU) § Modbus/TCP § Profibus-DP § Profi. Net § Ether. CAT (in preparation)
DC drive DCS 550 Compact and easy Startup assistant § § § © ABB DC drives Slide 5 Using Drive. Window Light § Seven steps for commissioning § Autotuning for all controllers § Additional assistants for fieldbusses and winder Using the DCS Control Panel § Seven steps for commissioning § Autotuning for all controllers Quick and easy commissioning, study of the manual can be dropped

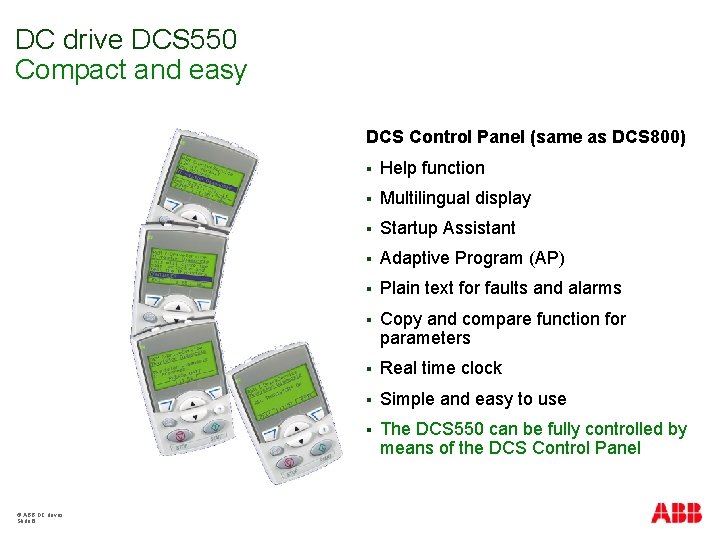

DC drive DCS 550 Compact and easy DCS Control Panel (same as DCS 800) © ABB DC drives Slide 6 § Help function § Multilingual display § Startup Assistant § Adaptive Program (AP) § Plain text for faults and alarms § Copy and compare function for parameters § Real time clock § Simple and easy to use § The DCS 550 can be fully controlled by means of the DCS Control Panel
DC drive DCS 550 Flexible Programmability © ABB DC drives Slide 7 § Adaptive Program (AP) § 16 function blocks § Extensive library (AND, OR, ADD, filter, …) § Visualization tool for graphical display § Easy documentation § Programming is also possible via DCS Control Panel § Additional PID controller, e. g. for tension control, pressure control or other process variables § Adjustment of the drive to the application without the use of PLC’s
DC drive DCS 550 Flexible Winder macros © ABB DC drives Slide 8 § Velocity control § Indirect tension control § Dancer control § Winder assistants for fast, easy and clear autotuning and commissioning § Autotuning of the inertia- and friction compensation § Quick and safe commissioning without additional options
