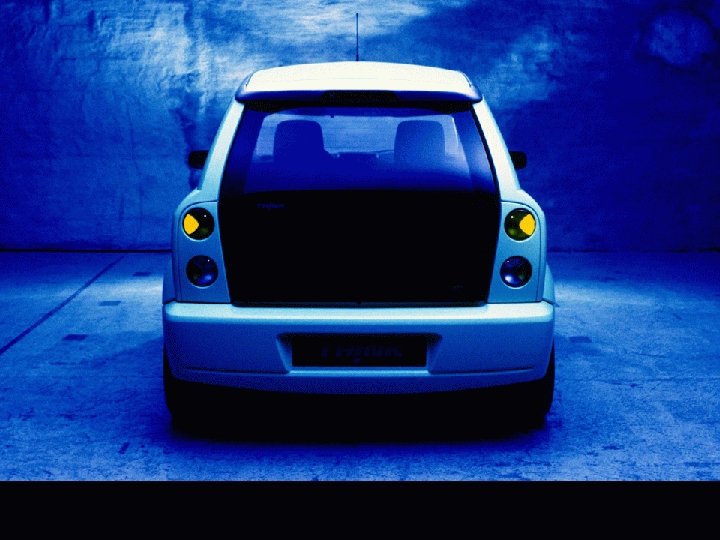

TH!NK hydrogen

TH!NK hydrogen project description TH!NK hydrogen is a partnership between Raufoss Fuel Systems and Think Nordic AS. The project is funded in part by a € 1. 350. 000 grant from the Research Council of Norway. The TH!NK hydrogen is a revolution in clean transportation, giving you the freedom to charge from a plug in the wall or quickly fill the tank with hydrogen. Either way the vehicle will get you where you are going with zero tailpipe emissions.

TH!NK hydrogen specifications Performance Top speed Driving range Battery System Nominal voltage Energy storage Charger (on board) Charging time (80%) Fuel Cell Type Rated Power Efficiency 100 km/h 125 km (battery) + 125 km (H 2) 232 V MES-DEA, Zebra (Na-Ni. Cl) 17, 5 k. Wh 3, 2 k. W (16 A/10 A) 8 hrs Hydrogenics Proton Exchange Membrane 10 k. W (nominal) 56% Hydrogen Storage System developer Maximum pressure Hydrogen Capacity Material Raufoss Fuel Systems 700 bar 1, 25 kg Composite carbon fibre Drive System Motor type Power transmission Siemens, water cooled AC induction Front wheel drive

TH!NK hydrogen comfort & convenience Power steering Power windows and mirrors Radio/CD player 4 k. W electric heater Timer for pre-heat/pre-cool Heated rear window Tinted glass 12 V electrical outlet Regenerative braking Aluminium wheels

TH!NK hydrogen safety ABS brakes (optional) Adjustable steering column Lower frame 90% high strength steel Upper frame extruded and welded aluminium Hydrogen leak surveillance with active system shut-down procedure Hydrogen tank safely placed inside steel structure in centre of vehicle

TH!NK hydrogen environment & design Prize winning Norwegian design 16% recycled materials 95% recyclable Zero emissions hybrid-electric drivetrain
