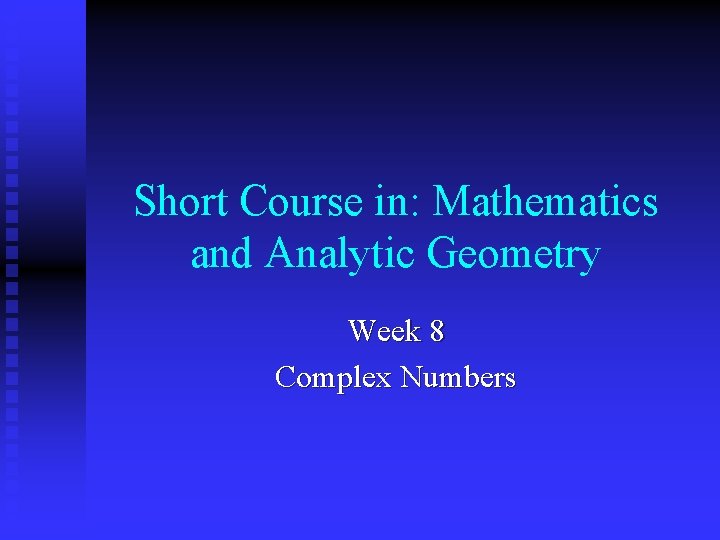

Short Course in: Mathematics and Analytic Geometry Week 8 Complex Numbers

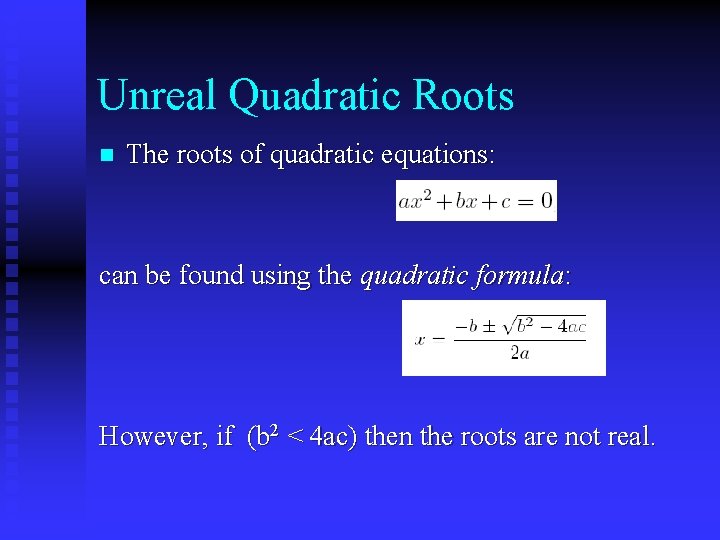

Unreal Quadratic Roots n The roots of quadratic equations: can be found using the quadratic formula: However, if (b 2 < 4 ac) then the roots are not real.

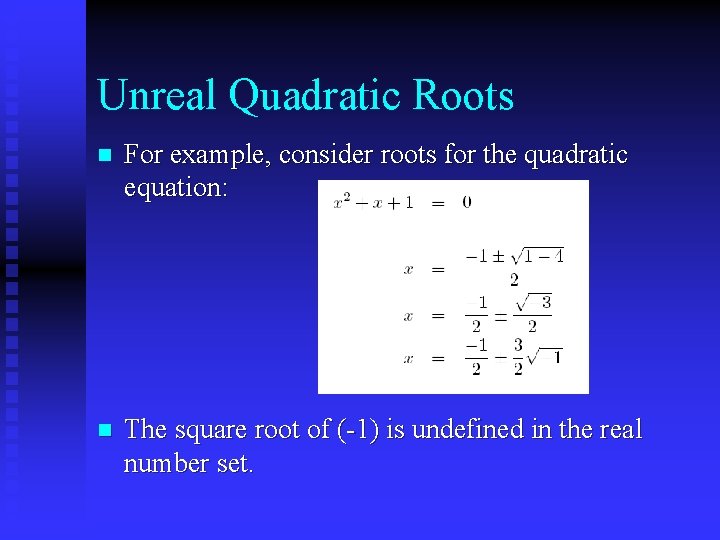

Unreal Quadratic Roots n For example, consider roots for the quadratic equation: n The square root of (-1) is undefined in the real number set.

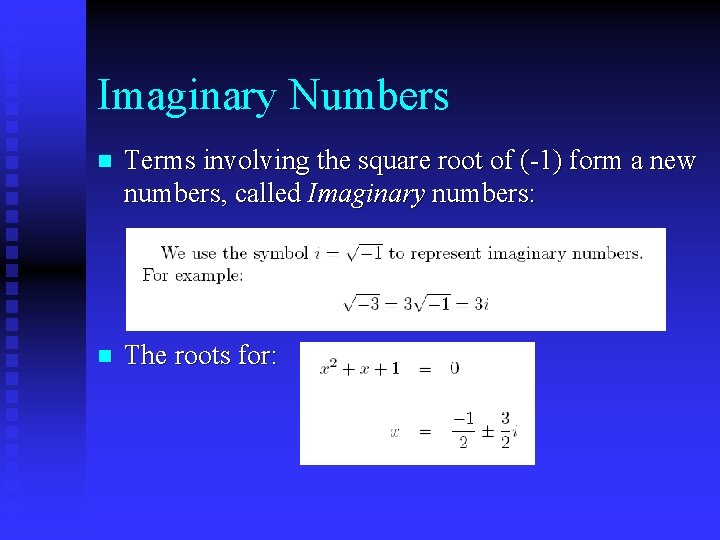

Imaginary Numbers n Terms involving the square root of (-1) form a new numbers, called Imaginary numbers: n The roots for:

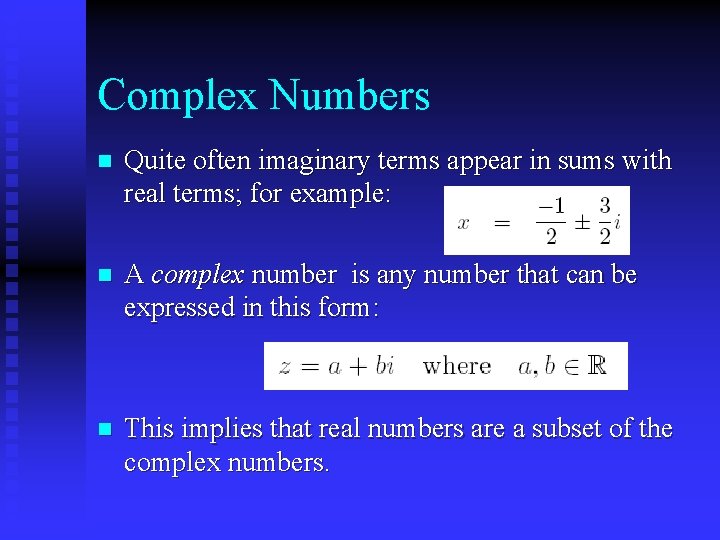

Complex Numbers n Quite often imaginary terms appear in sums with real terms; for example: n A complex number is any number that can be expressed in this form: n This implies that real numbers are a subset of the complex numbers.

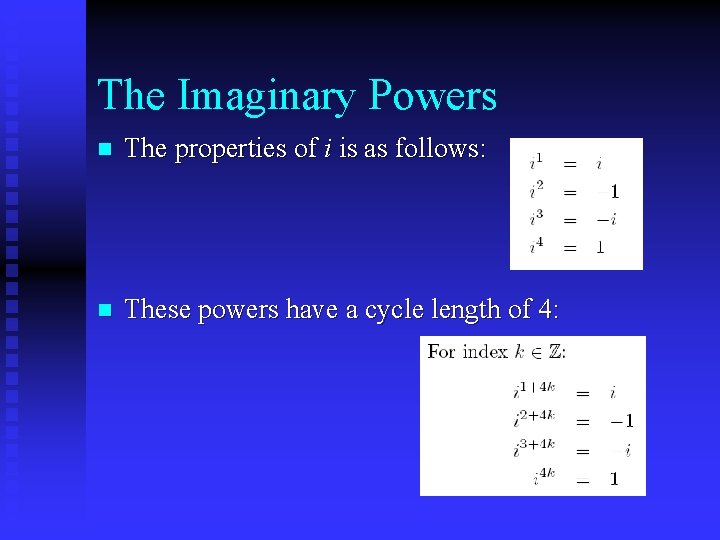

The Imaginary Powers n The properties of i is as follows: n These powers have a cycle length of 4:

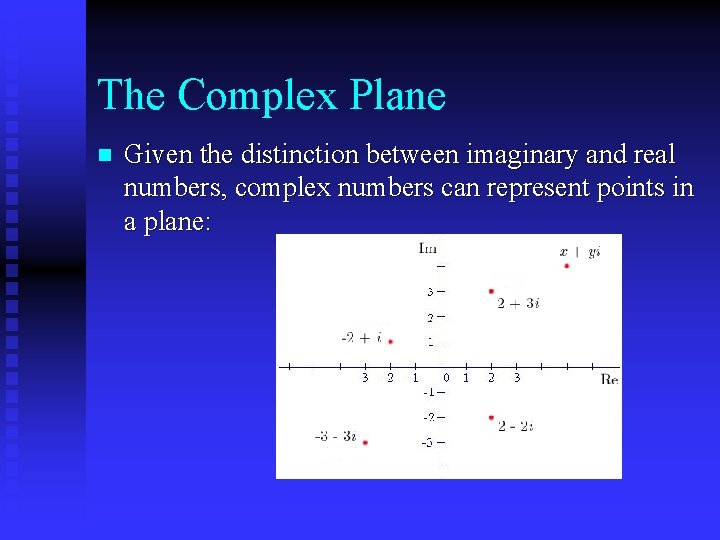

The Complex Plane n Given the distinction between imaginary and real numbers, complex numbers can represent points in a plane:

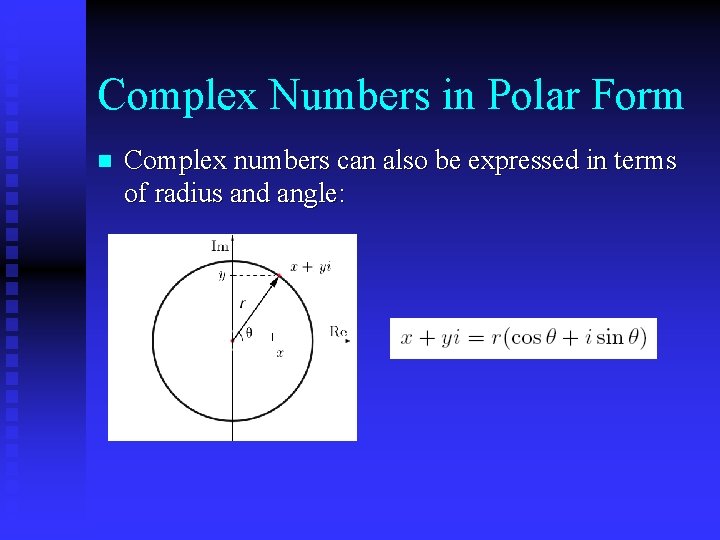

Complex Numbers in Polar Form n Complex numbers can also be expressed in terms of radius and angle:

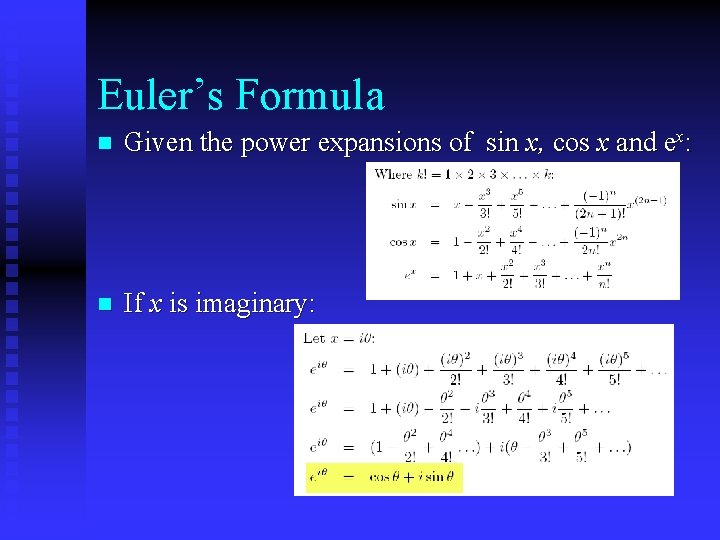

Euler’s Formula n Given the power expansions of sin x, cos x and ex: n If x is imaginary:

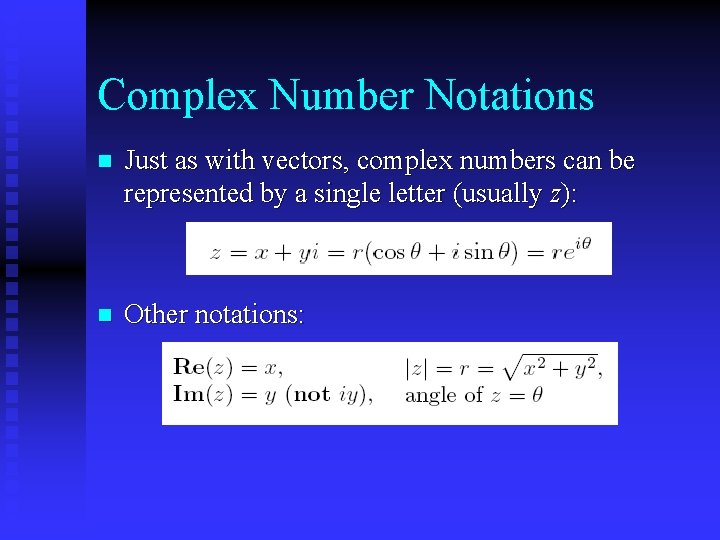

Complex Number Notations n Just as with vectors, complex numbers can be represented by a single letter (usually z): n Other notations:

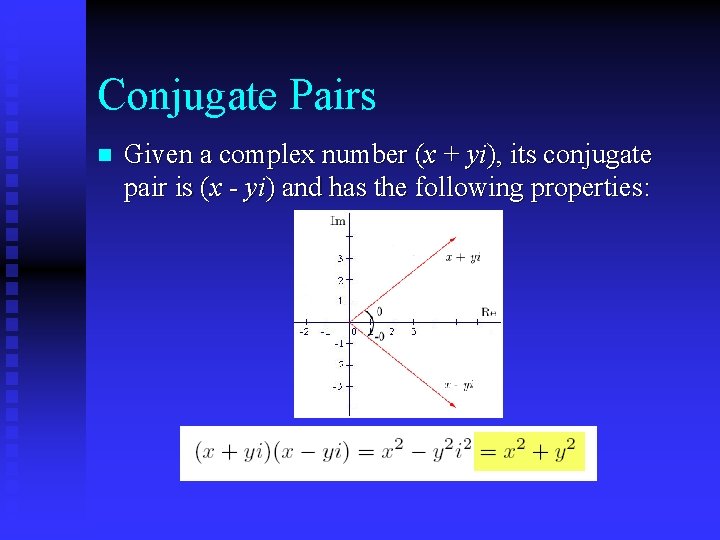

Conjugate Pairs n Given a complex number (x + yi), its conjugate pair is (x - yi) and has the following properties:

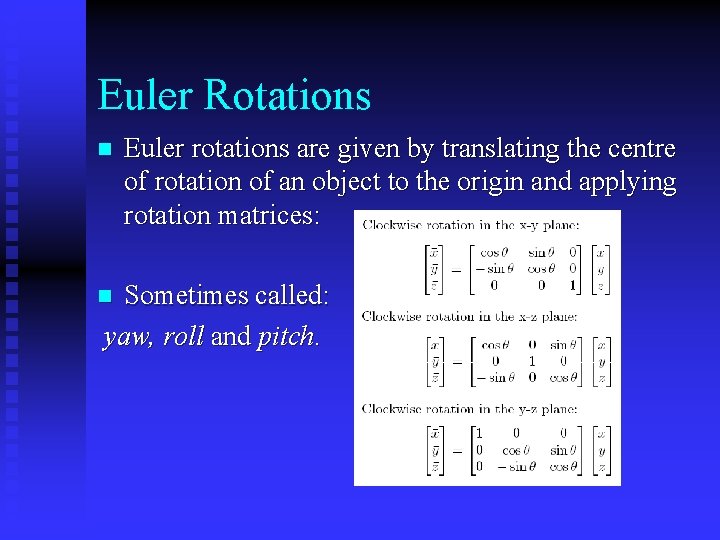

Euler Rotations n Euler rotations are given by translating the centre of rotation of an object to the origin and applying rotation matrices: Sometimes called: yaw, roll and pitch. n

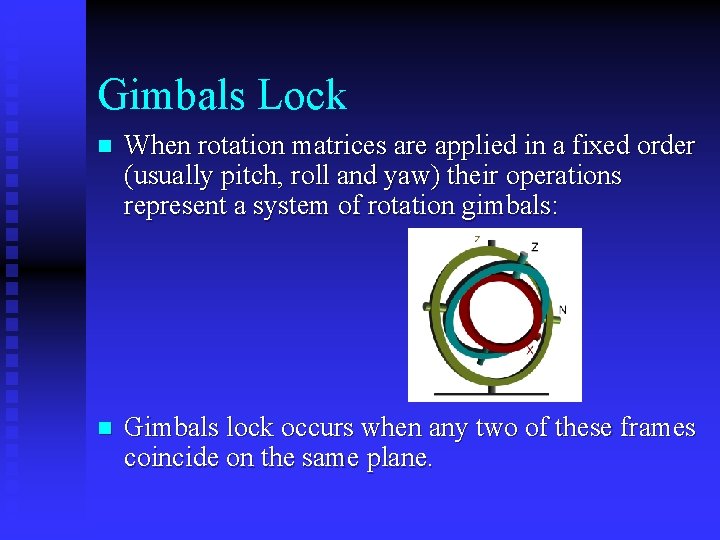

Gimbals Lock n When rotation matrices are applied in a fixed order (usually pitch, roll and yaw) their operations represent a system of rotation gimbals: n Gimbals lock occurs when any two of these frames coincide on the same plane.

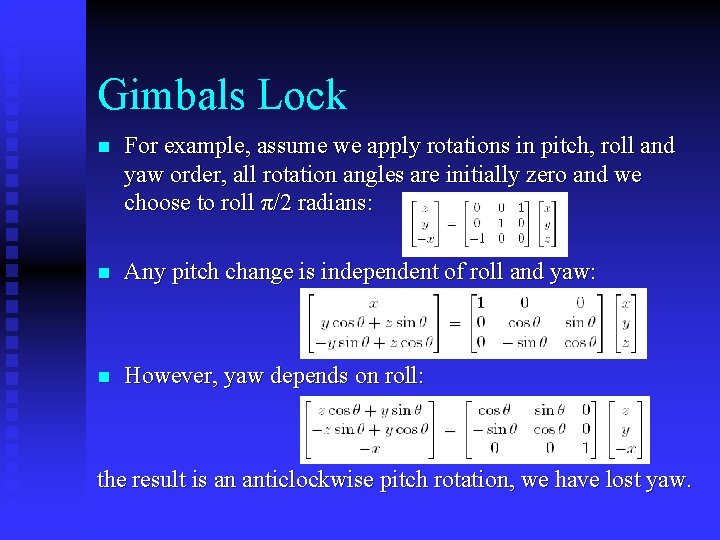

Gimbals Lock n For example, assume we apply rotations in pitch, roll and yaw order, all rotation angles are initially zero and we choose to roll π/2 radians: n Any pitch change is independent of roll and yaw: n However, yaw depends on roll: the result is an anticlockwise pitch rotation, we have lost yaw.

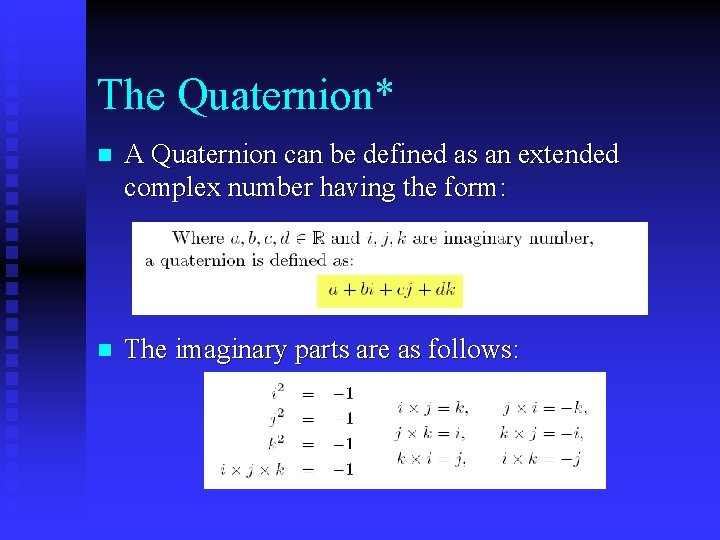

The Quaternion* n A Quaternion can be defined as an extended complex number having the form: n The imaginary parts are as follows:

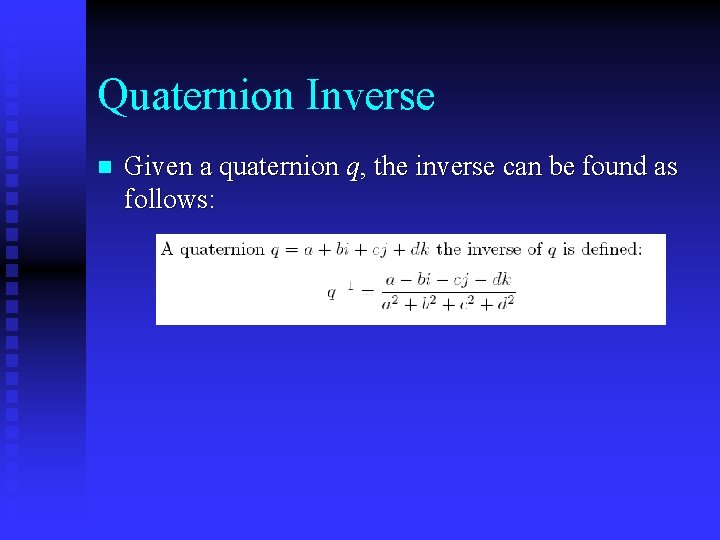

Quaternion Inverse n Given a quaternion q, the inverse can be found as follows:

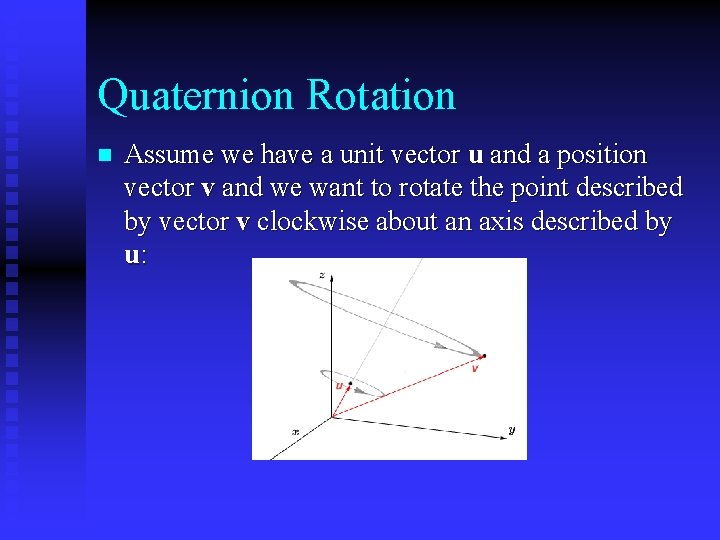

Quaternion Rotation n Assume we have a unit vector u and a position vector v and we want to rotate the point described by vector v clockwise about an axis described by u:

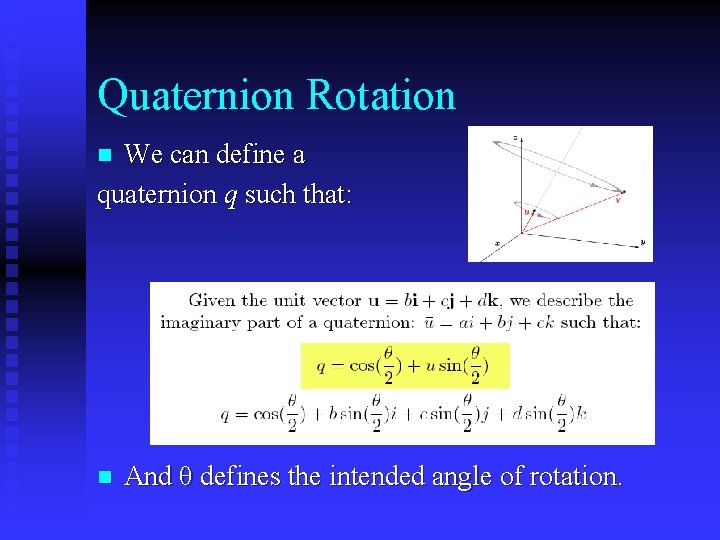

Quaternion Rotation We can define a quaternion q such that: n n And θ defines the intended angle of rotation.

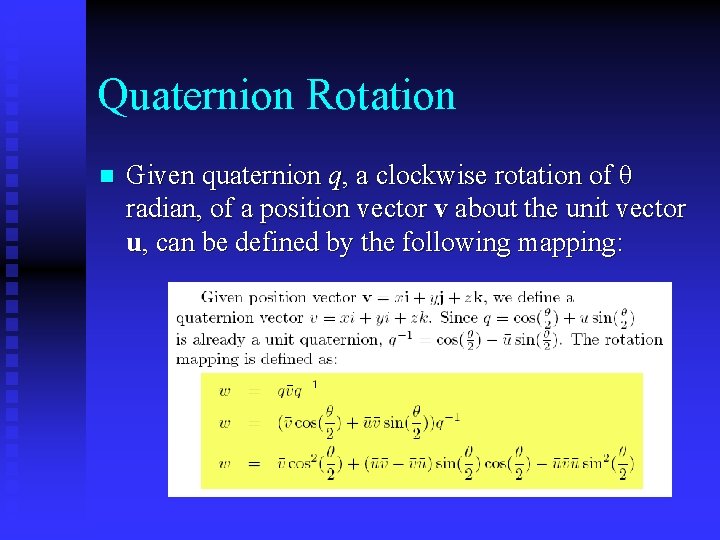

Quaternion Rotation n Given quaternion q, a clockwise rotation of θ radian, of a position vector v about the unit vector u, can be defined by the following mapping:

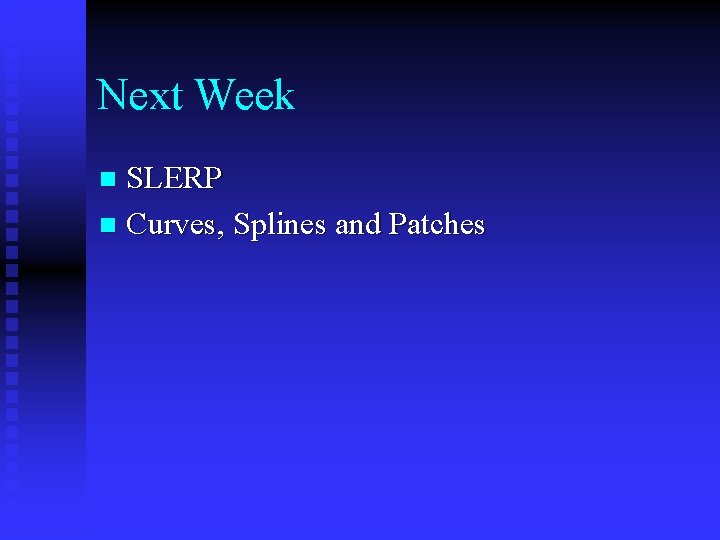

Next Week SLERP n Curves, Splines and Patches n
