This is a photographic template – your photograph should fit precisely within this rectangle. 9 SX 700 - 3000 VA Business continuity for critical applications David Windsor © 2018 Eaton Corporation. All rights reserved.
9 SX UPS typical applications Protect mission-critical applications Industrial IT: Servers, switches, storage Industrial: OEM, automation, PLCs © 2018 Eaton Corporation. All rights reserved. 2 2
Continuing the legacy 9 SX is the successor of the famous 9130 Online Double conversion topology • Constantly monitors power conditions (voltage and frequency) • Automatic by-pass handles overload and UPS failure Hot-Swappable • Hot-Swappable batteries • Optional Maintenance Bypass for easy UPS replacement © 2018 Eaton Corporation. All rights reserved. 3 3
9 SX Value proposition Differentiation Points Why It Matters? Reliable Because reliability is a key topic for critical applications that needs to work 24 hours a day, 7 days a week. • Robust topology Successor of the 9130 Innovative battery management Advanced Virtualization capabilities • VM-centric management • Disaster Recovery • Validated integration capabilities All information at your fingertips IT managers are now looking for advanced virtualization capabilities to improve their infrastructure performance Old generation LCD are not sufficient to display and configure advanced UPS parameters • Advanced LCD display to go • beyond simple, legacy displays © 2018 Eaton Corporation. All rights reserved. 4 4
Availability Advanced battery management • NEW • Eaton ABM®, three-stage charging technique only recharges battery when necessary, prolonging life by up to 50% Provides recommended replacement date Up to 4 external hot-swappable battery modules NEW • Capable of running systems for hours if necessary • Automatic recognition of additional modules (EBM) © 2018 Eaton Corporation. All rights reserved. 5 5
Manageability Advanced LCD display • Full UPS status, analytics and enhanced configuration capabilities in 8 languages Built-in energy meter NEW • Advanced capacity management with power consumption information and k. Wh Load segment control (2 groups) • Manages sequential start-ups • Prioritized shutdown of non-essential equipment to maximize battery runtime • Remotely reboots locked-up equipment © 2018 Eaton Corporation. All rights reserved. 6 6
Manageability Virtualization ready • Easy integration within Virtual environment (VMware, Hyper. V, Red. Hat, Citrix) • Automate Disaster recovery policies on power events • Load shedding capabilities • Cloud orchestrator integration (v. Realize, MS SCOM) © 2018 Eaton Corporation. All rights reserved. 7 7
9 SX Range overview Wide range of models: • (6) 120 V models • (5) 208 V/230 V models 700 1000 1500 2000 3000 • Tower EBM 8 © 2018 Eaton Corporation. All rights reserved. * 9 SX 5 Ki. RT, 9 SX 6 Ki. RT & 9 SXEBM 180 RT already part of the product portfolio 8
9 SX UPS 9 SX 120 V Models Catalog Number 9 SX 700 2 Description 9 SX 700 120 V TOWER Rating (VA/Watts) 700/630 Input Connection 1 5 -15 P Output Receptacles (6) 5 -15 R Dimensions (H x W x D, inches) 9. 9 x 6. 3 x 13. 9 Weight (lb) 26. 5 9 SX 1000 9 SX 1500 9 SX 2000 9 SX 3000 HW 9 SX 1000 120 V TOWER 9 SX 1500 120 V TOWER 9 SX 2000 120 V TOWER 9 SX 3000 120 V TOWER 1000/900 1500/1350 1960/1770 3000/2700 5 -15 P 5 -20 P L 5 -30 P Hardwired (6) 5 -15 R (1) L 5 -20, (6) 5 -20 R (1) L 5 -30 R, (4) 5 -20 R, Hardwired 9. 9 x 6. 3 x 15. 1 9. 9 x 6. 3 x 17. 0 13. 6 x 8. 4 x 16. 2 30. 9 41. 9 77. 2 1. Input cord length is 8 ft 2. 9 SX 700 does not have a compatible EBM 9 SX 208 V Models 5 Catalog Number 9 SX 1000 G 9 SX 1500 G 9 SX 2000 G Description 9 SX 1000 208 V TOWER 9 SX 1500 208 V TOWER 9 SX 2000 208 V TOWER Rating (VA/Watts) 1000/900 1500/1350 2000/1800 Input Connection C 14² L 6 -20 P 3 Output Receptacles (6) C 13 (8) C 13 Dimensions (H x W x D, inches) 9. 1 x 6. 3 x 15. 1 9. 1 x 6. 3 x 17. 0 13. 6 x 8. 4 x 16. 2 Weight (lb) 30. 9 41. 9 77. 2 9 SX 3000 G 9 SX 3000 208 V TOWER 3000/2700 L 6 -20 P 4 (8) C 13, (1) C 19 13. 6 x 8. 4 x 16. 2 77. 2 3000/2700 L 6 -20 P 4 (1) L 6 -30 R, (1) L 6 -20 R, (2) 6 -20 R 13. 6 x 8. 4 x 16. 2 77. 2 9 SX 3000 GL 9 SX 3000 208 V GL TOWER 1. Input cord length is 8 ft 2. Customer input cord required C 14, UPS comes with (2) C 13/C 14 jumpers 3. Detachable C 13 to L 6 -20 P 8 ft cord 4. Detachable C 19 to L 6 -20 P 8 ft cord 5. 9 SX "G" global models operate at 200, 208 (default), 220, 230, and 240 V *Service and warranty options vary by country. Contact local Eaton sales for details. © 2018 Eaton Corporation. All rights reserved. 9 9

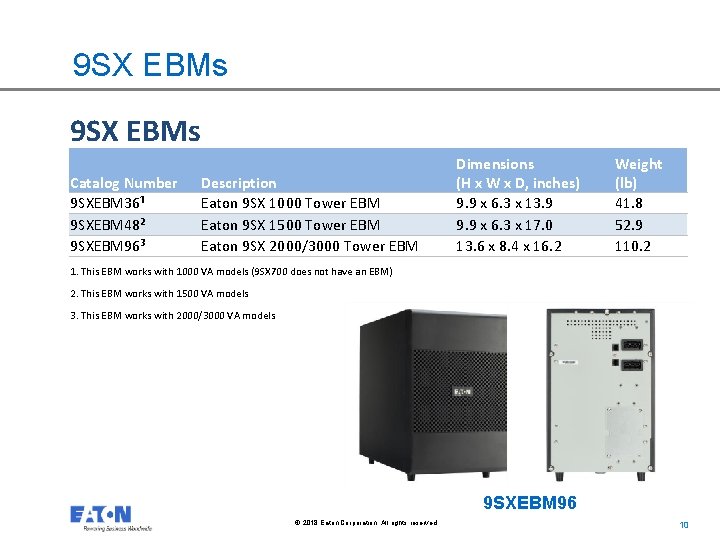

9 SX EBMs Catalog Number 9 SXEBM 36¹ 9 SXEBM 48² 9 SXEBM 96³ Description Eaton 9 SX 1000 Tower EBM Eaton 9 SX 1500 Tower EBM Eaton 9 SX 2000/3000 Tower EBM Dimensions (H x W x D, inches) 9. 9 x 6. 3 x 13. 9 9. 9 x 6. 3 x 17. 0 13. 6 x 8. 4 x 16. 2 Weight (lb) 41. 8 52. 9 110. 2 1. This EBM works with 1000 VA models (9 SX 700 does not have an EBM) 2. This EBM works with 1500 VA models 3. This EBM works with 2000/3000 VA models 9 SXEBM 96 © 2018 Eaton Corporation. All rights reserved. 10 10
Easy transition from 9130 A replacement for every model (Public transition documents to follow): Legacy 9130 Part Number New 9 SX Part Number 120 V PW 9130 L 700 T PW 9130 L 1000 T-XL PW 9130 L 1500 T-XL PW 9130 L 2000 T-XL PW 9130 L 3000 T-XL 208 V PW 9130 I 700 T PW 9130 I 1000 T-XL PW 9130 I 1500 T-XL PW 9130 I 2000 T-XL PW 9130 G 2000 T-XLEU PW 9130 G 2000 T-XL PW 9130 I 3000 T-XL PW 9130 G 3000 T-XLEU PW 9130 G 3000 T-XL EBM PW 9130 N 1000 T-EBM PW 9130 N 1500 T-EBM PW 9130 N 3000 T-EBM 9 SX 700 9 SX 1000 9 SX 1500 9 SX 2000 9 SX 3000 HW 9 SX 1000 G 9 SX 1500 G 9 SX 2000 G 9 SX 3000 GL 9 SX 3000 GL 9 SXEBM 36 9 SXEBM 48 9 SXEBM 96 9130 tower © 2018 Eaton Corporation. All rights reserved. 9 SX tower 11 11
9 SX Options & Accessories • Communication NETWORK-M 2: Gigabit Network Card NETWORK-MS: Network Management Card MODBUS-MS: Modbus + SNMP/Web RELAY-MS: Relay & AS 400 INDRELAY-MS: Relay & AS 400 EMPDT 1 H 1 C 2: Environmental Monitoring Probe (for Network-M 2) EBMCBL 36 T: 2 m extension cable for 9 SX EBM 36 Tower EBMCBL 48 T: 2 m extension cable for 9 SX EBM 48 Tower EBMCBL 96 T: 2 m extension cable for 9 SX EBM 96 Tower • Battery cables • Bypass CBLADAPT 36 T: Connects 9130 1 K T 9 SXEBM 36 T OR; Connects 9 SX 1 K to 9130 36 V T EBM CBLADAPT 48 T: Connects 9130 1. 5 K T 9 SXEBM 48 T OR; Connects 9 SX 1. 5 K to 9130 48 V T EBM CBLADAPT 96 T: Connects 9130 2 K/3 K T 9 SXEBM 96 T OR; Connects 9 SX 2/3 K to 9130 96 V T EBM Hot. Swap MBP: 3 models available (for 120 V models only) Standard warranty*: 2 -year factory warranty standard • Services* Extended warranty options*: 3 and 5 -year warranty options available Startup and on-site coverage*: Onsite startup, labor coverage, and preventative maintenance options available. *Service and warranty options vary by country. Contact local Eaton sales for details. © 2018 Eaton Corporation. All rights reserved. 12 12
9 SX 1500 backpanel N. O. / N. C. output relay Mini-Slot (Network. M 2 shown) EBM connector EBM detection port Serial USB RPO / signal input Input line cord Output Receptacles with two load segments (9 SX 1500 shown) © 2018 Eaton Corporation. All rights reserved. 13 13
© 2018 Eaton Corporation. All rights reserved. 14 14
