PRL-MPM Integrated Solution PRL MPM Panelboards and Switchboards • Factory-wired system • Centralized display • Integrated Solution 2 2 © 2013 Eaton Corporation. All rights reserved Company Confidential

PRL-MPM Integrated Solution • The PRL-MPM panelboard or switchboard is a versatile electronic submeter with: • 16 current inputs configurable for up to: • Qty: 20 - 3 -ph (208 Y/120 Vac), (480 y/277 Vac) • Qty: 30 - single ph 3 -wire (120 V/240 Vac) • Qty: 30 – single ph 2 -wire (120/277) • Qty: 60 individual single-ph (120 V) or ph-to-ph (240 V or 208 V) meters. • UL Listed, ANSI C 12. 20 accuracy • Current Sensor ranges of 125, 250, 400 amps are available. • Amperages over 400 amps will require a Revenue Grade Current 3 Transformer with the secondary wired to the CS 005 current sensor. 3 3 © 2013 Eaton Corporation. All rights reserved Company Confidential

PRL-MPM Integrated Solution • 50 X Chassis with 11 X bucket for the Power Xpert Multipoint metering system • Available in PRL 4, PRLC and IFS • Current Sensors are mounted on the load side of the tenant breakers. 4 4 4 © 2013 Eaton Corporation. All rights reserved Company Confidential

PRL-MPM PRL 4 Layout Chart 5 5 © 2013 Eaton Corporation. All rights reserved Company Confidential

PRL-MPM Switchboard Layout Chart 6 6 © 2013 Eaton Corporation. All rights reserved Company Confidential

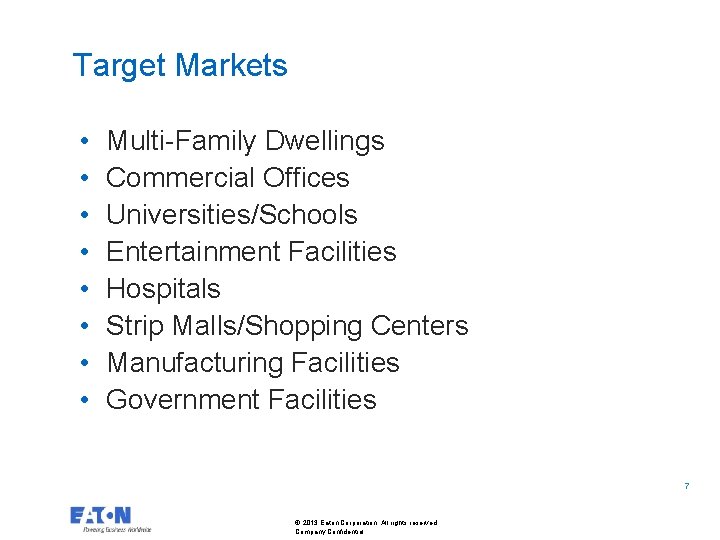

Target Markets • • Multi-Family Dwellings Commercial Offices Universities/Schools Entertainment Facilities Hospitals Strip Malls/Shopping Centers Manufacturing Facilities Government Facilities 7 7 © 2013 Eaton Corporation. All rights reserved Company Confidential

PX Multi-Point (PXMP) Feature Summary • Modular • Meter Base, Meter Module, I/O, Communication • Mix and Match Meter Modlues • 10 m. A, 100 m. A, and 333 m. V Outputs • Configure to Six 1 pole, Three 2 pole, or Two 3 pole • Up to 10 on one meter base • I/O • 3 Digital Inputs, 1 Digital Output, Opt 8 Pulse Inputs, Opt 8 Digital Outputs • Communication • Standard-Modbus RTU 8 • Optional-Modbus TCP/ BACnet/IP /SNMP /SFTP/ HTTP • Software • E-Allocation, Web Interface, Configuration, 3 rd Party © 2013 Eaton Corporation. All rights reserved Company Confidential 8

PX Multi-Point Meter • Up to 60 current inputs • Built-in Modbus RTU • Can be configured as up to 60 single phase or 20 three phase WH meters or anything in between • 120/208, 277/480, 346/600 VAC 9 9 © 2013 Eaton Corporation. All rights reserved Company Confidential

PX Multi-Point Meter • On Board Features • 1 Output • 3 Digital Inputs • 2 RS-485 ports • USB connection • 24 VDC Power input • Addressable 1 -99 • Sealable settings • 10 slots • LED indication 10 10 © 2013 Eaton Corporation. All rights reserved Company Confidential

Power Xpert Multi-Point Pulse Inputs Energy Digital Portal Outputs Module Meter Modules Meter Seal USB Port Digital Out Addressing Digital Inputs RS 485 Power Supply Current Sensor Connections 11 Voltage Input 11 © 2013 Eaton Corporation. All rights reserved Company Confidential

PX Multi-Point Meter – Current Sensors – 100 m. A • Current Sensing-Solid Core-0. 5% accurate w/meter • Uses current sensors not standard CTs • Current sensor ratings: • 125 A • 250 A • 400 A • 4’, 6’, 8’, 12' sensor cables • 8', 16' Extensions • 5 A secondary current sensor for primary CTs up to 5000 A 12 Sensor cable LEDs for connection verification 12 © 2013 Eaton Corporation. All rights reserved Company Confidential

PX Multi-Point Meter – Current Sensors – 10 m. A –Retrofit Existing IQMESIIs • Current Sensing-Solid Core-0. 5% accurate w/meter • Uses current sensors not standard CTs • Current sensor ratings: • • 50 A 125 A 200 A 400 A • 4' leads • 4', 8', 16' Extensions • 5 A secondary current sensor for primary CTs up to 5000 A 13 13 © 2013 Eaton Corporation. All rights reserved Company Confidential

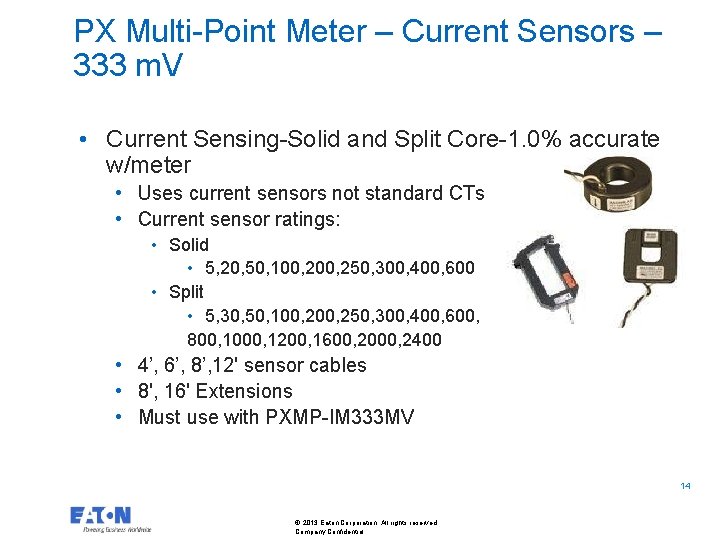

PX Multi-Point Meter – Current Sensors – 333 m. V • Current Sensing-Solid and Split Core-1. 0% accurate w/meter • Uses current sensors not standard CTs • Current sensor ratings: • Solid • 5, 20, 50, 100, 250, 300, 400, 600 • Split • 5, 30, 50, 100, 250, 300, 400, 600, 800, 1000, 1200, 1600, 2000, 2400 • 4’, 6’, 8’, 12' sensor cables • 8', 16' Extensions 14 • Must use with PXMP-IM 333 MV 14 © 2013 Eaton Corporation. All rights reserved Company Confidential

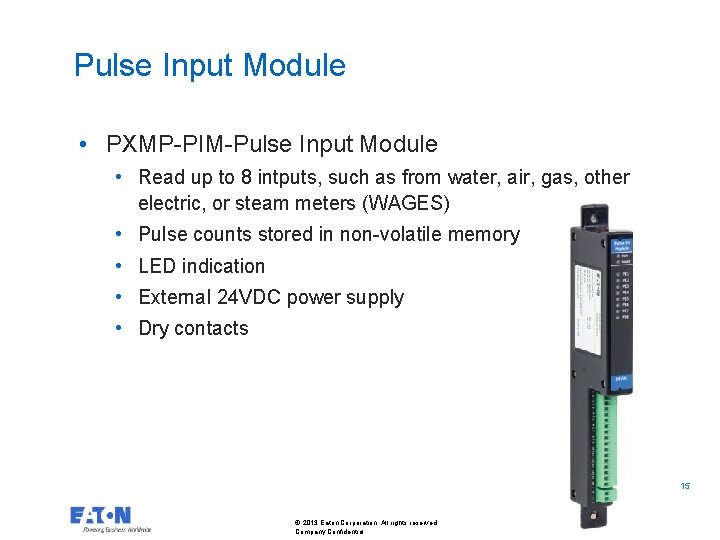

Pulse Input Module • PXMP-PIM-Pulse Input Module • Read up to 8 intputs, such as from water, air, gas, other electric, or steam meters (WAGES) • Pulse counts stored in non-volatile memory • LED indication • External 24 VDC power supply • Dry contacts 15 15 © 2013 Eaton Corporation. All rights reserved Company Confidential

Digital Output Module • PXMP-DOM-Digital Output Module • Up to 8 digital outputs • Used for control or to indicate alarm conditions • Configurable or by Modbus commands • External 24 VDC power supply • LED indication 16 16 © 2013 Eaton Corporation. All rights reserved Company Confidential

PXMP Energy Portal Module • PXMP-EPM • With and without modem • Front port for configuration • Bottom ports for LAN and modem • Enables E-Allocation • Modbus TCP / BACnet/IP / SNMP / HTTP SMTP / NTP / SFTP 17 17 © 2013 Eaton Corporation. All rights reserved Company Confidential

Display • Local Display • Acquire and display data from up to 31 multipoint meters • Touch Screen display • Configuration stored in non-volatile memory • 24 VDC 18 18 © 2013 Eaton Corporation. All rights reserved Company Confidential

Software • Power Xpert Multipoint Configuration Software • • JAVA based program residing on PC Used to configure Multipoint meter Current Sensor configuration Off Line Configuration • E-Allocation • • JAVA based program residing on PC Used in conjunction with Energy Portal Module Assign meters to tenants Add other utilities • PXMP Energy Portal • Built in web screens • Load Profile Data 19 19 © 2013 Eaton Corporation. All rights reserved Company Confidential

PXMP Configuration 20 20 © 2013 Eaton Corporation. All rights reserved Company Confidential

E-Allocation 21 21 © 2013 Eaton Corporation. All rights reserved Company Confidential

PXMP Energy Portal Web Interface 22 22 © 2013 Eaton Corporation. All rights reserved Company Confidential

Power Xpert Multi-Point Meter Power Panelboards/ Switchboards or Enclosures with Power Xpert Multi. Point Meters Modbus Optional Local Display Ethernet / Modem 23 Remote Billing OR Local PC © 2013 Eaton Corporation. All rights reserved Company Confidential 23

IQMESII vs. PX Multi-Point Multipoint Meter Feature Communication Measurements Optional Display Accuracy Max # of Points per meter Digital Inputs Digital Outputs # of Modbus ports Power Supply Number of models for different voltages Optional Pulse Inputs Optional Digital Outputs Scalable Circuits Current Sensors-10 m. A Current Sensors-100 m. A IQMESII INCOM New Multipoint Modbus RTU/TCP v, kwh LCD ANSI C 12. 16 (1%) 16 0 0 0 120/277/347 VAC v, a, kw, kvar, kwh, kvarh, pf, hz Touchscreen ANSI C 12. 20 (0. 5%) 60 3 1 2 24 VDC 3 0 0 16 Solid-5, 50, 70, 125, 200, 400 None 1 8 8 6 Solid-5, 50, 125, 200, 400 Solid-125, 250, 400 24 Current Sensors-333 m. V None Solid-5, 20, 50, 100, 250, 300, 400, 600 Split-5, 30, 50, 100, 250, 300, 400, 600, 800, 1000, 1200, 1600, 2000, 2400 24 © 2013 Eaton Corporation. All rights reserved Company Confidential

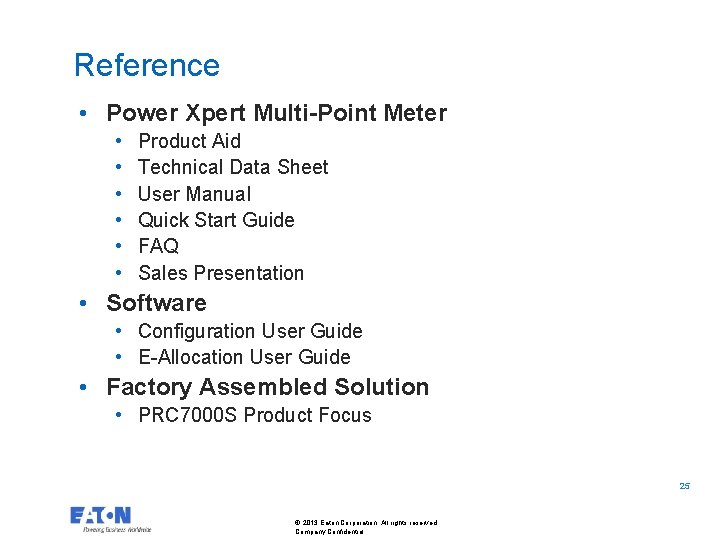

Reference • Power Xpert Multi-Point Meter • • • Product Aid Technical Data Sheet User Manual Quick Start Guide FAQ Sales Presentation • Software • Configuration User Guide • E-Allocation User Guide • Factory Assembled Solution 25 • PRC 7000 S Product Focus 25 © 2013 Eaton Corporation. All rights reserved Company Confidential
