THIN HOTMIX ASPHALT OVERLAY Thin HotMix Asphalt Overlay
- Slides: 49
THIN HOTMIX ASPHALT OVERLAY
Thin Hot-Mix Asphalt Overlay ØDense-graded ØOpen-graded friction course ØGap-graded

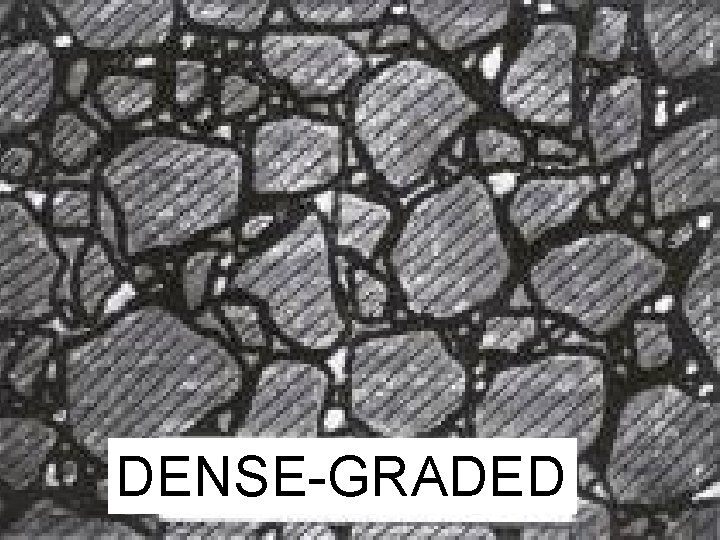

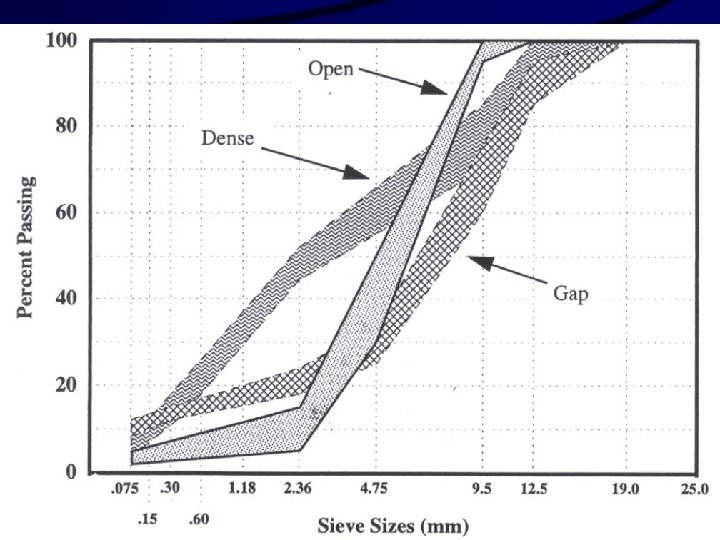

DENSE-GRADED
OPEN-GRADED
GAP-GRADED
Binder Selection ØDense: § Conventional ØGap- and open-graded: § Modify binders to increase viscosity § Drain down test
Asphalt Concrete (Hot-Mix Asphalt) Ø Asphalt binder + aggregates (dense gradation) Ø Asphalt binder is about 4 - 6% by weight of mix, but it needs to be carefully designed Ø AC is produced in batch or drum plants 8
THIN HOTMIX ASPHALT OVERLAY
Thin Hot-Mix Asphalt Overlay ØDense-graded ØOpen-graded friction course ØGap-graded
DENSE-GRADED
OPEN-GRADED
GAP-GRADED

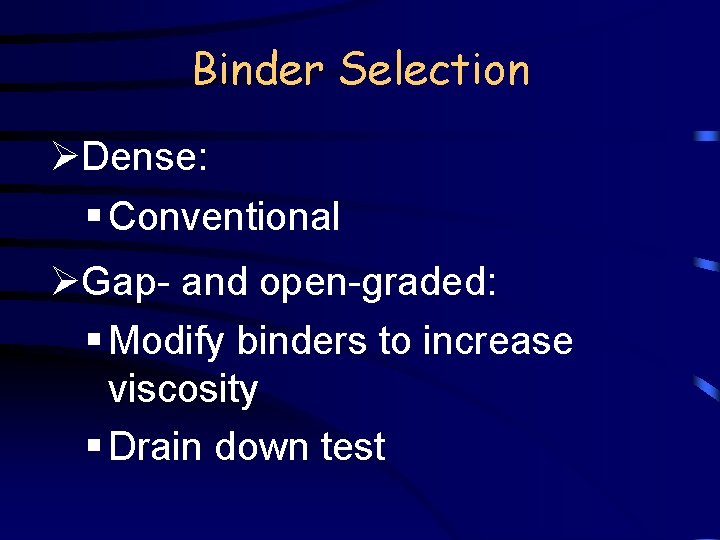

Binder Selection ØDense: § Conventional ØGap- and open-graded: § Modify binders to increase viscosity § Drain down test

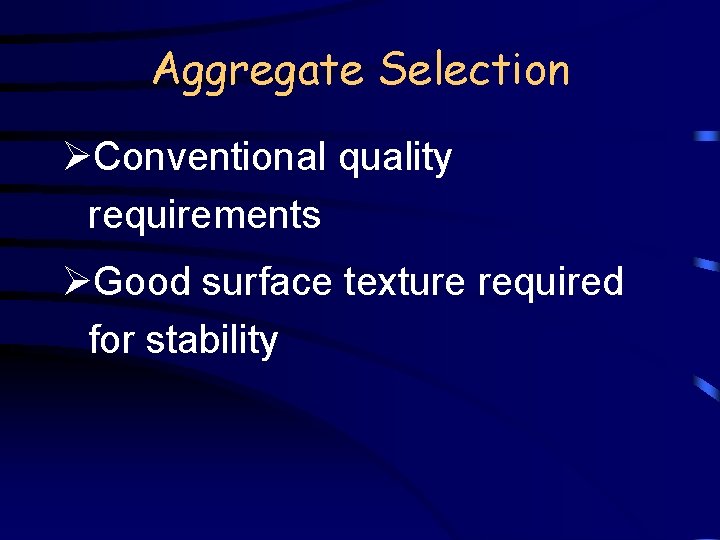

Aggregate Selection ØConventional quality requirements ØGood surface texture required for stability
Asphalt Concrete (Hot-Mix Asphalt) Ø Asphalt binder + aggregates (dense gradation) Ø Asphalt binder is about 4 - 6% by weight of mix, but it needs to be carefully designed Ø AC is produced in batch or drum plants 17
Mix Design ØDense & Gap-graded § Superpave or Marshall ØOpen-graded § Based on surface capacity of aggregate
Batch Plant Secondary Collector Batch Tower Primary Collector Storage Silos Asphalt Storage Tanks rye r D RAP Bin Cold Feed Bins 19
Drum-Mix Plant Secondary Collectors Slat Conveyor Storage Silos Asphalt Storage Tanks r/M e ry r e x i D RAP Bin Cold Feed Bins 20
Thin Overlay Uses ØExtends pavement life ØImproves ride quality ØCorrects surface defects ØRestores skid resistance

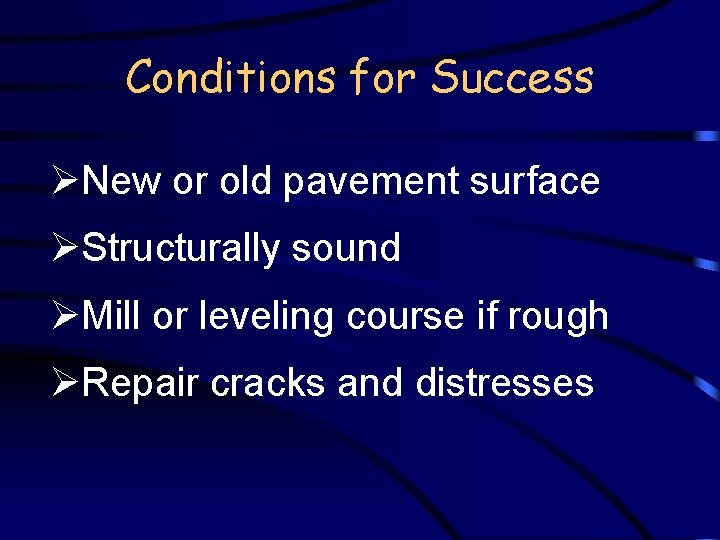

Conditions for Success ØNew or old pavement surface ØStructurally sound ØMill or leveling course if rough ØRepair cracks and distresses

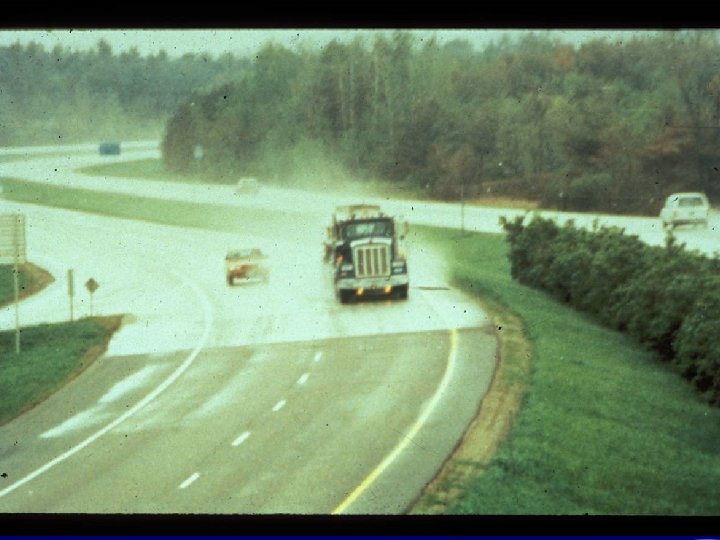

Open-Graded Advantages ØImproves skid resistance ØReduces/eliminates spray ØReduces noise ØImproves visibility
Gap-Graded Advantages ØResists rutting ØGood low-temperature performance ØSlow aging ØResistant to abrasion from studded tires

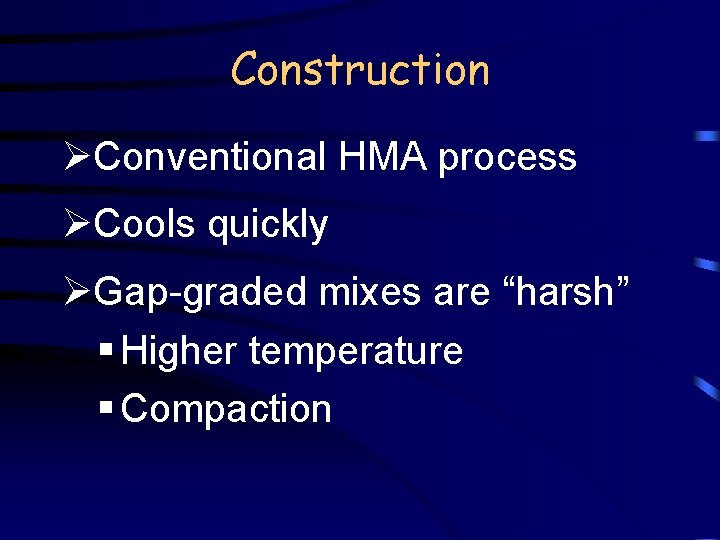

Construction ØConventional HMA process ØCools quickly ØGap-graded mixes are “harsh” § Higher temperature § Compaction
Weather Conditions Since the mixture cools fast, better compaction can be achieved in warm weather ( 50 o. F)
Cooling Time
Fast Compaction
Construction Precautions ØWarm weather ØMill or repair if needed ØApply tack coat ØAppropriate top aggregate size (12 – 19 mm) ØGood quality control
Tack Coat
Loading in the Paver
Placement & Compaction
Traffic Control Open road to traffic when mix is cool
Variations on Gap-Graded Thin HMA Overlay ØStone matrix asphalt (SMA) ØHot rolled mix (sand asphalt) ØUltrathin bonded wearing course (NOVACHIP) ØAsphalt rubber

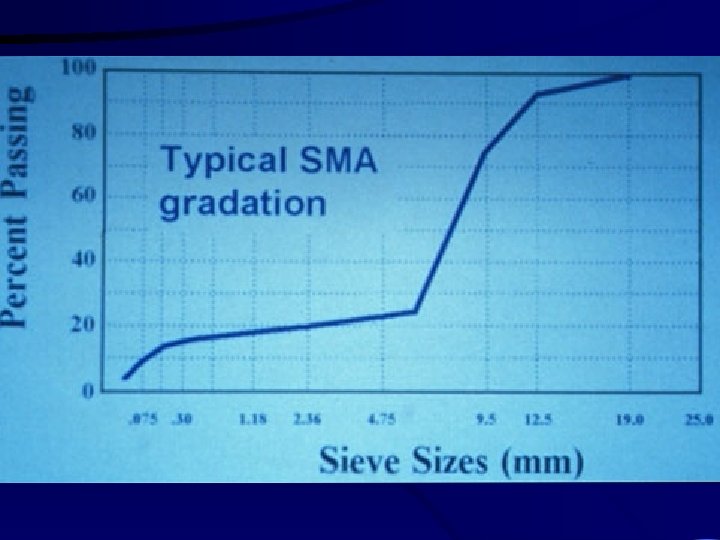

Definition of SMA ØRelatively thin (10 – 40 mm) gapgraded hot mixture ØHigh proportions of coarse aggregate, binder, and mineral filler ØLow amount of middle-size aggregates ØStabilizing additives
SMA Materials ØCoarse aggregate ØCrushed / natural sand ØAsphalt cement ØAdditives
Introducing Fibers

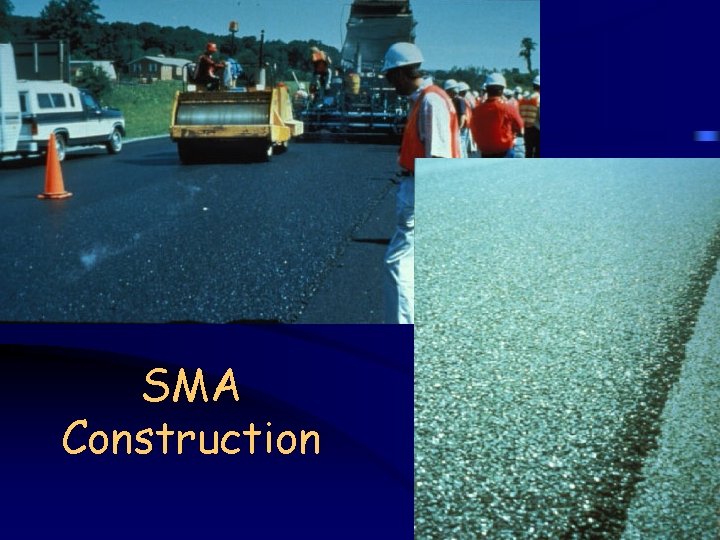

SMA Construction
Ultrathin Bonded Wearing Course (NOVACHIP) Ø 3/8 – 3/4 in. thick Ø Gap-graded mix Ø 5. 1 -5. 5% conventional AC Ø Polymer modified tack coat
Spraying Tack Coat
Ultrathin Bonded Wearing Course Texture
Asphalt Rubber ØAbout 1” overly on existing pavement is common in Arizona (AR-ACFC) ØBinder Ø 80 % Asphalt Ø 20 % Ground tire rubber ØGap or open graded aggregate, although dense graded has also been used ØReacted and Activated Rubber (RAR)

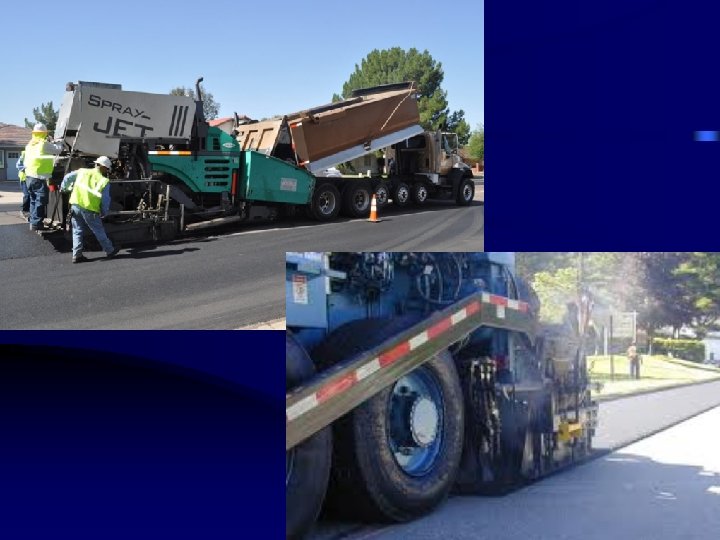

Asphalt Rubber
Improve Highway Safety • Increase driver visibility, reduce standing water, and improve skid resistance

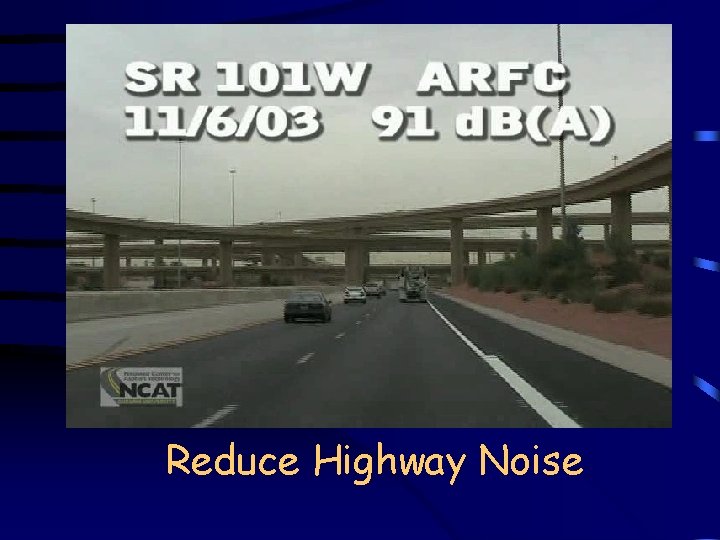

Reduce Highway Noise
