Thermoregulation Temperature Gradient for Kingsnake Temperature Gradient for

Thermoregulation

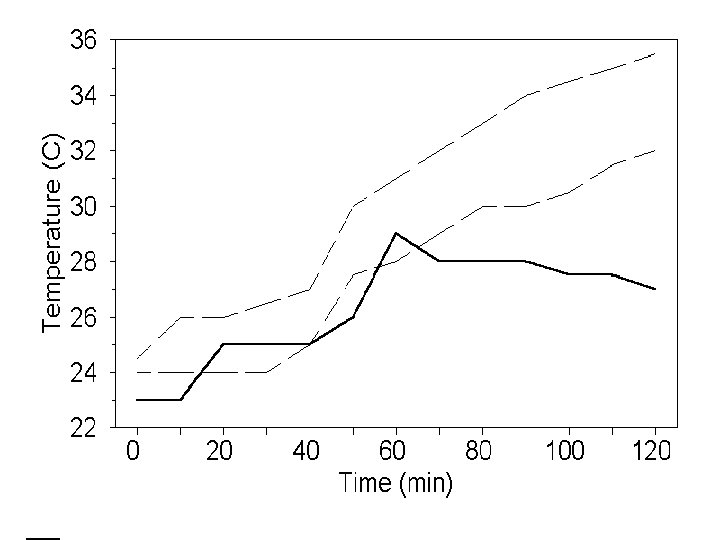

Temperature Gradient for Kingsnake

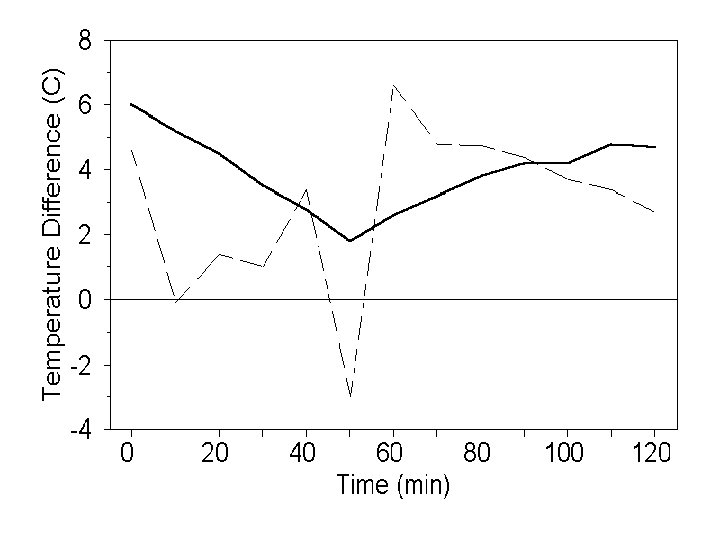

Temperature Gradient for Varanid

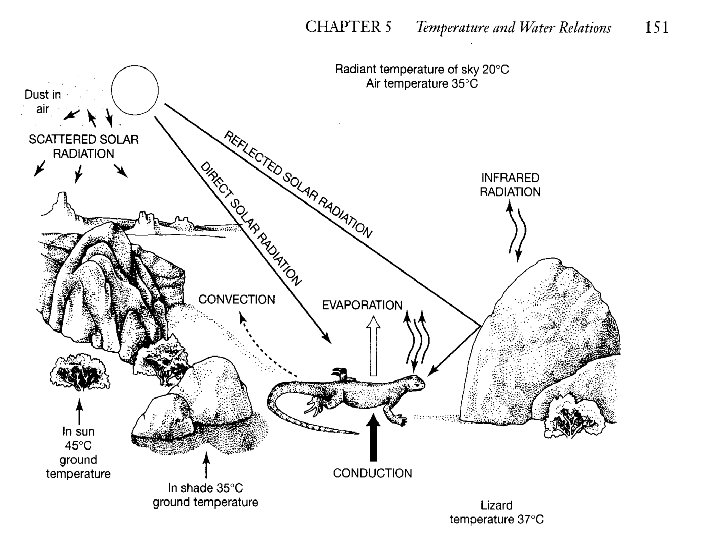

Basic Thermodynamics n n n Overall, heat gained must = heat lost. E = Qabs+ M ± R ± C ± LE ± G Where – Qabs = absorbed surface radiation – M = heat of metabolism – R = infrared radiation – C = convective heat exchange

Basic Thermodynamics n E = Qabs+ M ± R ± C ± LE ± G – LE = condensation/evaporation – G = conduction w/ substrate n Note: this is a physical system and follows both the first and second laws of thermodynamics.

Basic Thermodynamics n Absorbtion of solar radiation: Qabs – primary absorbtion is of visible and infrared light (400 - 1500 nm). – There is to little UV light to be of any consequence for Herp Thermoregulation.

Basic Thermodynamics n Rate of solar energy absorption: – Qabs = S·A·vfs·a • S = intensity of solar radiation • A = surface area of the animal • vfs = view factor : portion of animal presented to radiation source. • Absorptivity = a.

Basic Thermodynamics n The animal actually has considerable control over many facets of this equation. – The animal can control surface area to some extent – The animal can control view factor. – The animal can control absorptivity. – S can be modified through position.

Basic Thermodynamics n Metabolic Heat Production – Recall, for the most part, reptiles are extotherms. • However, some larger forms (that is, those with low SA/V ratios) are capable ofgenerating metaboic heat in sufficient quantities to make a difference. • Being able to retain metabolic heat is a big deal.

Basic Thermodynamics n Metabolic Heat Production cont. – Leatherback sea turtles weigh as much as 850 kg. • They occupy water as cold as 8ºC. • Yet, their body temperatere is about 18ºC warmer. This heat is a consequence of metabolic production during swimming. – Female Indian Pythons generate metabolic heat to 32 ºC while incubating eggs.

Basic Thermodynamics n Female Indian Python – Muscular thermogenesis is different than shivering thermogenesis in mammals. – Occurs only in brooding females. – Behavior is temperature dependent. As temperature drops, thermogenic behavior increases.

Basic Thermodynamics n Infrared Radiative Exchange: R – Continuous exchange w/ environment (7001500 nm), as long as environment is above 0ºK. – heat transfer occurs from object w/ more energy to that with less energy.

Basic Thermodynamics n Magnitude of Infrared Radiative Exchange: R – Depends on temperature difference between animal and object (Ts 4 - Te 4) – Depends on area of animal exposed to radiation: A·vfs – Depends on emissivity of skin (how readily surface radiates/absorbs IR radiation.

Basic Thermodynamics n Emissivity of skin: – Not dependent on color of skin obviously. – Matte surfaces have higher emissivity than smooth, shiny surfaces. – Example: Uma sp. (Fringe toed lizards) • Uma burries is a psamnophilous lizard. • It buries itself just below the surface of the sand, with only the pineal eye exposed (BTW, the pineal has a retina).

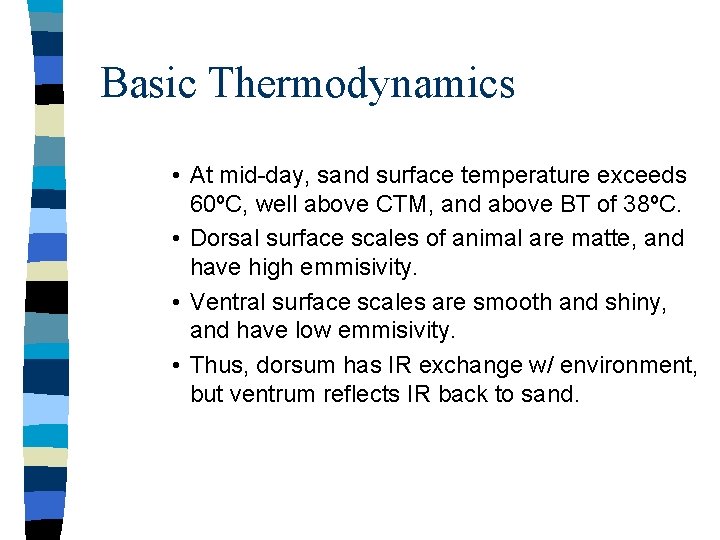

Basic Thermodynamics • At mid-day, sand surface temperature exceeds 60ºC, well above CTM, and above BT of 38ºC. • Dorsal surface scales of animal are matte, and have high emmisivity. • Ventral surface scales are smooth and shiny, and have low emmisivity. • Thus, dorsum has IR exchange w/ environment, but ventrum reflects IR back to sand.

Basic Thermodynamics • Thus, during the cool AM, Uma can gain energy while basking in the sun, and at mid-day, Uma can get into the shade and use the dorsum to re-radiate energy back to the sky (cloudless sky behaves like an object w/ a surface temp of 23ºC, so net movement of energy is from animal @ 38 to sky @ 23).

Basic Thermodynamics n Convective Heat Exchange – Convection occurs between object and a fluid (air is a fluid). – Depends on • Temp. dif. Btwn animal and air. • Surface area exposed to air (modifiable by animal). • Convective coefficient, itself dependent on air velocity and diameter of animal parallel to airflow.

Basic Thermodynamics n Convective Heat Exchange • Animal can change position w/ repsect to airflow (higher cooler air moves faster than hotter, slow air) - this can be dramatic within 1 m of surface. • Reduced thickness of boundary layer increases convective heat exchange - smaller animals have smaller boundary layers.

Basic Thermodynamics n n n Small animals influenced most strongly by convective heat exchange. Large animals influences most strongly by radiative heat exchange. Thus, we expect fundamental differences in structure and function of large and small herps.

Basic Thermodynamics n Compare 2 g Uta stansburiana w/ 500 g Sauromalus obesus. – In the cool AM, Uta is subject to convection, and inserts itself in the boundary layer of a large rock, while Sauromalus moves about freely. – At mid-day, Uta climbs a shrub and uses convection to cool, while Sauromalus avoids radiative heat exchange and finds its rock pile retreat.

Basic Thermodynamics n Evaporative Cooling – This is a problem for desert herps. In the desert, the objective is to minimize water loss. – Lack of sebaceous glands reduces presence of water on epidermis. Thus, it is difficult to use external skin to help cool.

Basic Thermodynamics n However, – during periods of thermal stress, there a few options (used by birds as well). • Panting enables the animal to evaporate water from surface of lungs. • Gular fluttering • Urohydrosis.

Basic Thermodynamics n Conduction – Movement of heat energy via direct contact. • Many herps use warm roads at night. They use rocks and boulders as well. • Area of surface contact is primary factor. • During thermal stress, minimizing area of thermal contact (Callisaurus) is the key.

Behavioral Thermoregulation n How do we regulate body temperature? – Hypothalamus is temperature sensitive element of brain. – Supplied by carotid arteries, and can therefore evaluate core body temp. – In Lipidosaurs, the Pineal eye is assoicated with the hypothalamus. – When you are cold, you 1) get goosebumps, 2) initiate shivering thermogenesis, 3) find someplace warm, or 4) put on a coat etc.

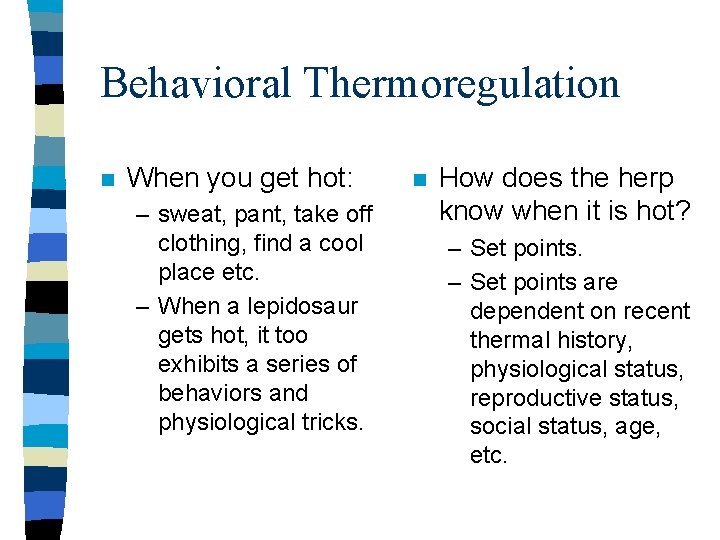

Behavioral Thermoregulation n When you get hot: – sweat, pant, take off clothing, find a cool place etc. – When a lepidosaur gets hot, it too exhibits a series of behaviors and physiological tricks. n How does the herp know when it is hot? – Set points are dependent on recent thermal history, physiological status, reproductive status, social status, age, etc.

Behavioral Thermoregulation n Set points can be very wide or very narrow. In fact, set points in some desert herps are narrower than those in some mammals (Duck-billed platypus, tree sloths).
