Thermoplastic elastomer Products technologies OEM SACRED GROUP Blow

Thermoplastic elastomer Products & technologies

OEM SACRED GROUP : Blow molding 16%

Steering PRODUCTS Steering bellows Rack and pinion bellows

Shock absorber PRODUCTS Damper bellows - front Damper bellows - rear

Inside PRODUCTS air conditioning bellows Gear box bellows Grommet Seat electric motor bellows

TPV MATERIAL Thermoplastic elastomers (TPE) are two-component materials consisting of an elastomeric portion and a rigid thermoplastic portion. The elastomeric component provides the rubber effects such as flexibility, elasticity, flexibility and low temperature properties. The thermoplastic part provides hardness, processability, recyclability and high temperature properties. Thus, TPEs are rubber-like materials that can be recycled as thermoplastics. We use TPE-V, (vulcanized) homogeneous recycled We use TPE-V, (vulcanized) mixtures of EPDM and PP with oil and filler. The rubber part is vulcanized during the melt phase.

TPV PERFORMANCE Standard 96 @ 120°C ! Compliant again after more than 500 hours at 150 °C… extracted from the material data sheet

TPEE MATERIAL Thermoplastic polyester elastomers provide rubber flexibility, plastic strength and Thermoplastic polyester elastomers thermoplastic workability. In special qualities, they can be thermo-stabilized, fireproof and molded-blown. The concentrates contain black pigments, anti-UV additives, hydrolysis-resistant additives, heat-stabilizing and flame retardants. TPEE is ideal for parts that require excellent bending fatigue strength and wide temperature ranges of use. It resists tearing, growth of cuts due to bending, creep and abrasion. It guarantees strength and rigidity combined with exceptional resilience while resisting hydrocarbons and many other fluids.

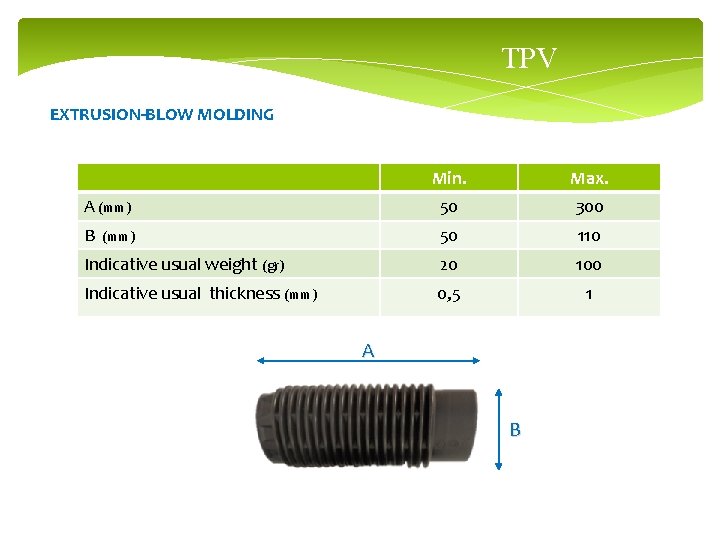

TPV EXTRUSION-BLOW MOLDING

TPV EXTRUSION-BLOW MOLDING Min. Max. A (mm) 50 300 B (mm) 50 110 Indicative usual weight (gr) 20 100 Indicative usual thickness (mm) 0, 5 1 A B

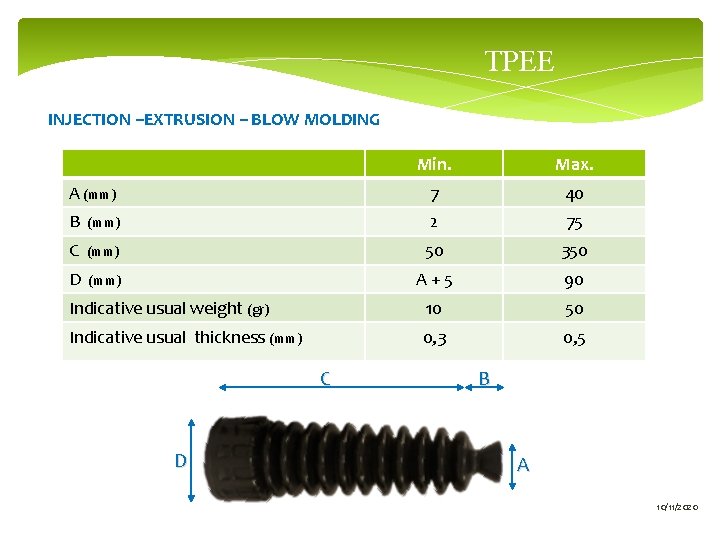

TPEE INJECTION –EXTRUSION – BLOW MOLDING

TPEE INJECTION –EXTRUSION – BLOW MOLDING Min. Max. A (mm) 7 40 B (mm) 2 75 C (mm) 50 350 D (mm) A + 5 90 Indicative usual weight (gr) 10 50 Indicative usual thickness (mm) 0, 3 0, 5 C D B A 10/11/2020

Thank you for your attention www. sacred. fr
