Thermohaline circulation The meridional overturning Deep water formation

  • Slides: 67
Download presentation
Thermohaline circulation ●The meridional overturning ●Deep water formation and property Antarctic Bottom Water North

Thermohaline circulation ●The meridional overturning ●Deep water formation and property Antarctic Bottom Water North Atlantic Deep Water Antarctic Intermediate Water ●Dynamical constraint: Stommel-Arons model

The Concept of Thermohaline Circulation The wind-driven circulation (the Ekman and Sverdrup movements) does

The Concept of Thermohaline Circulation The wind-driven circulation (the Ekman and Sverdrup movements) does not reach below the upper kilometre of the ocean. Water renewal below that depth is achieved by currents which are driven by density differences produced by temperature (thermal) and salinity (haline) effects. The associated circulation is therefore referred to as thermohaline circulation. Since these movements are probably weak, it is often impractical to use current meters to measure them directly; they are usually deduced from the distribution of water properties and the application of geostrophy.

Heating at low latitudes Surface heat at the equator and cooling at higher latitudes

Heating at low latitudes Surface heat at the equator and cooling at higher latitudes generate meridional density difference that drives a overturning cell The overturning circulation is weak because the heat is in the shallow mixed layer The salinity effect (e. g. , evaporation at subtropics and precipitation near the equator) enhances the tropical-subtropical thermal cell but counters the cooling in the higher latitudes with freshening The upper thermohaline cell is of minor importance

Cooling at high latitudes • Net heat loss from the oceans at high latitudes

Cooling at high latitudes • Net heat loss from the oceans at high latitudes • Cooling of the surface water and increase in density • Sink and replace deeper water • Density can also be increased when ice freezes out, ejecting salt and thus increasing the weight of the remaining water • Thermohaline circulation of the ocean originates from sinking to mid-depth or even to the ocean bottom, followed by horizontal flow.

Interesting facts The vertical distribution of T & S in the central Atlantic is

Interesting facts The vertical distribution of T & S in the central Atlantic is similar to the northsouth distribution of T & S at the surface. Almost all isopycnals come in contact with the atmosphere somewhere on the globe

Questions Does this imply that air-sea interaction at the surface affect the range of

Questions Does this imply that air-sea interaction at the surface affect the range of ocean water or even determine the ocean stratification? Are there “flows” along the isopycnals that transport these properties? The “flow” here could be intermittent and irregular The T & S patterns do not allow us to see the flow rates or mechanisms The process whereby ocean surface characteristics are transmitted to deeper layers is known as ventilation.

Water Mass Formation The driving force for thermohaline circulation is water mass formation. Water

Water Mass Formation The driving force for thermohaline circulation is water mass formation. Water masses with well-defined temperature and salinity characteristics are created by surface processes in specific locations; they then sink and mix slowly with other water masses as they move along. The two main processes of water mass formation are deep convection and subduction. Both are linked to the dynamics of the mixed layer at the surface of the ocean; so it is necessary to discuss thermohaline aspects of the upper ocean first.

How to track the water masses? temperature-salinity diagram Below the surface layer in permanent

How to track the water masses? temperature-salinity diagram Below the surface layer in permanent contact with the atmosphere, temperature and salinity are conservative properties, i. e. , they can only be changed by mixing and advection. All other properties of sea water such as oxygen, nutrients etc. are affected by biological and chemical processes and therefore non- conservative. Water masses can therefore be identified by their temperature-salinity (T-S) combinations.

Examples of temperature-salinity (TS)-diagrams. The diagrams on the left show the distribution of temperature

Examples of temperature-salinity (TS)-diagrams. The diagrams on the left show the distribution of temperature (red) and salinity (cyan) with depth; the diagrams on the right show the corresponding TS-diagrams. Top: layering of a warm and saline water mass found at 0 - 300 m depth above a cold and fresh water mass found at 300 - 600 m. The full lines show the situation before mixing, the broken lines after mixing. The TS-diagram shows the two water masses as TS points. Before mixing only the two points are seen in the TSdiagram. Mixing connects the two TS-points by a straight line. Bottom: layering of three water masses (intrusion of a low salinity water mass at 300 - 600 m depth). Again, the full lines show the situation before mixing, the broken lines after mixing. The TS - diagram shows two mixing lines; the erosion of the intermediate salinity minimum by mixing is seen by the departure of the broken curve from the original water mass point.

Mixing in the Ocean: Cabelling

Mixing in the Ocean: Cabelling

Double diffusion: Salt Figure Warm, salty water overlying a cooler, fresher layer Individual salt

Double diffusion: Salt Figure Warm, salty water overlying a cooler, fresher layer Individual salt fingers are a few millimeters across and up to 25 cm long Lateral diffusion occurs between the fingers and produces a uniform layer As a result, layers develop with sharply defined interfaces

Double Diffusion: Layering Cold, fresh layer, over warm salty layer

Double Diffusion: Layering Cold, fresh layer, over warm salty layer

An Example of T-S Diagram

An Example of T-S Diagram

Identify water masses from T-S Diagram

Identify water masses from T-S Diagram

Waters filled in different deep ocean basins have distinct characters

Waters filled in different deep ocean basins have distinct characters

Water mass formation by deep convection Deep convection occurs in regions of weak density

Water mass formation by deep convection Deep convection occurs in regions of weak density stratification (mostly in polar and subpolar regions). When the water in the mixed layer gets denser than the water below, it sinks to great depth, in some regions reaching to the ocean floor. The density increase can be achieved by cooling or an increase in salinity (either through evaporation or through brine concentration during freezing) or both.

Sea Ice Covers 6 -8% of ocean High reflectivity (Albedo 30 -40%) (A barrier

Sea Ice Covers 6 -8% of ocean High reflectivity (Albedo 30 -40%) (A barrier to solar radiation) Always colder than underline water (heat flux from ocean to the ice)

Halocline • A layer of rapidly changing salinity at about 50 -200 meters in

Halocline • A layer of rapidly changing salinity at about 50 -200 meters in high latitudes of ice covered regions • The cooling temperature mostly freezes fresh water into ice crystals, leaving salt trapped in brine pocket • The unfrozen water sink and mix with sea water below

Track of Antarctic Bottom Water and North Atlantic Deep Water

Track of Antarctic Bottom Water and North Atlantic Deep Water

Near Boundery Sinking 1). Dense water forms over the continental shelf, due to surface

Near Boundery Sinking 1). Dense water forms over the continental shelf, due to surface cooling and salt rejection during ice formation. The resulting convection yields cold, salty water at the depth on the shelf 2). Horizontal density gradient parallel to the coast produces local circulations for the resevior to empty 3). Mixing with an offshore water mass increases the density (cabbeling) 4). Dense, salty water on the shelf desends the slope under a balance of Coriolis, gravity, and frictional forces. The thermobaric effect may also contribute to the sinking

Sources of Antarctic Bottom Water Sinking around Antarctica The bottom water originates in several

Sources of Antarctic Bottom Water Sinking around Antarctica The bottom water originates in several areas of the Antarctic continental shelf, where water is made sufficiently cold and saline that, in flowing down the continental slope and mixing with the surrounding deep water, it is dense enough to reach the floor of the ocean. In order of decreasing amount and extent of influence on the deep water property distributions—and presumably, therefore, of rate of bottom water production—these regions are the Weddell Sea, the Ross Sea, and the Adélie Coast; perhaps there is some production off Enderby Land, too.

Weddell Sea The deep water is formed at the continental shelf, which then flow

Weddell Sea The deep water is formed at the continental shelf, which then flow into the Weddell Sea (-2 o. C, S=34. 4~34. 8, σt=27. 96) The shelf water mixes rapidly into the water above to form the Weddell Sea Bottom Water (θ= – 0. 7 o ~ – 0. 8 o. C, σt=27. 9). It is estimated that the net flow out of the Weddell Sea is about 16 x 106 m 3/s. The Weddell Sea Bottom Water is very cold but fresher than the overlaying water (S~34. 52).

Observations made in 1968 on a station line running eastward from Antarctic Peninsula into

Observations made in 1968 on a station line running eastward from Antarctic Peninsula into Weddell Sea.

 ity lin Sa The evidence points to a flow of shelf water down

ity lin Sa The evidence points to a flow of shelf water down the slope, entraining and being diluted by the surrounding water on its way. (The continental shelf is unreachable throughout a year because of ice cover). Potential temperature Observations made in 1968 on a station line running eastward from Antarctic Peninsula show a 200 -m thick layer of relatively cold, fresh, low-silica bottom water on the slope, extending onto the floor of the Weddell Sea. Dissolved silica concentration Similar sections near 40 o. W, 29 o. W, 10 o. W-20 o. W show that the down slope flow gradually diminishes to the eastward.

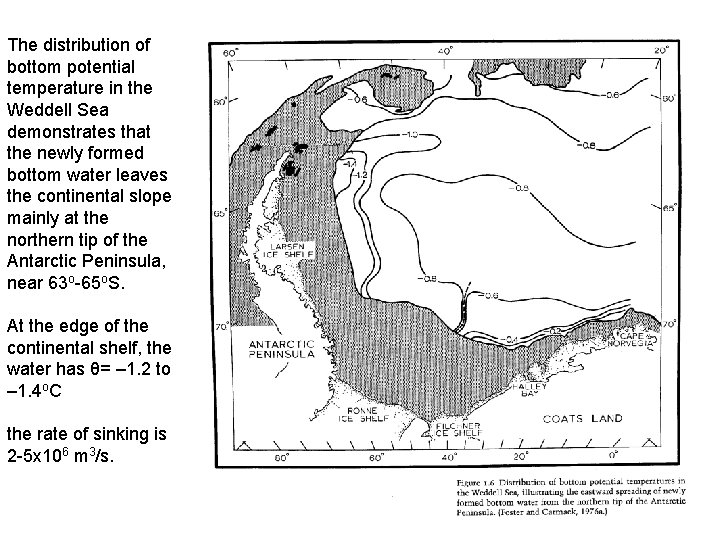

The distribution of bottom potential temperature in the Weddell Sea demonstrates that the newly

The distribution of bottom potential temperature in the Weddell Sea demonstrates that the newly formed bottom water leaves the continental slope mainly at the northern tip of the Antarctic Peninsula, near 63 o-65 o. S. At the edge of the continental shelf, the water has θ= – 1. 2 to – 1. 4 o. C the rate of sinking is 2 -5 x 106 m 3/s.

Other Sources of the Bottom Water Ross Sea More saline and denser water (S>34.

Other Sources of the Bottom Water Ross Sea More saline and denser water (S>34. 72, σt=28. 1 ) are found near the bottom of ocean in the southwestern Pacific, north of the Ross Sea near the mid-ocean ridge (about 65 o. S), and close to Antarctica south of Australia. This high salinity bottom water can be traced back to the deep depressions on the shelf of Ross Sea. The cold saline shelf water has been observed to descend the western continental slope in a manner similar to that of the down slope flow in the Weddell Sea. The off shelf flux is roughly 0. 6 x 106 m 3/s Adélie Coast Deep depressions of much smaller area on the continental shelf of the Adélie Coast of Antarctica. They are filled below their sill depths with water temperature close to the freezing point, and of salinity 34. 4— 34. 7, probably as a result of deep convection associated with winter sea-ice formation. Such water spilling over the sills forms a layer a few tens of meters thick on the near-by continental slope, underlying the high salinity bottom water from the Ross Sea. The flow down the continental slope appears intermittent. This low-salinity bottom water mixes into the Ross Sea water rapidly enough that it has not been detected far from the continental rise near its point of origin. Enderby Land Small amount of bottom water production.

Antarctic Bottom Water • Bottom water from these several sources mixes with the warmer,

Antarctic Bottom Water • Bottom water from these several sources mixes with the warmer, more saline water above (the Antarctic Circumpolar Water) to form the “Antarctic Bottom Water” of the world ocean. Wedell and Ross Seas. (σt =27. 96, T=0. 3 o. C, S=34. 7 -34. 8 at sub-Antarctic zone 40 -50 o. S). • The Antarctic Bottom Water is the coldest, and the densest, deep water in the open ocean, detectable into northern latitudes by low temperatures close to the bottom. • The Antarctic Bottom Water flows into the South Atlantic and eastward through the Indian and Pacific sectors of the Southern Ocean. Below 4000 m depth, all Atlantic Ocean basins are mainly occupied by the Antarctic Bottom Water.

Passages of AABW The path of Antarctic Bottom Water is strongly affected by the

Passages of AABW The path of Antarctic Bottom Water is strongly affected by the topography. The water mass spreads northward from both east and west of the Mid-Atlantic Ridge. On the western side, it is detectable well into the northern hemisphere past 50 o. N. On the eastern side, the water flows along the Walvis Ridge (20 o. S-30 o. S). Since the basin is closed in the north below the 3000 m level at the Walvis Ridge, its northward progress comes to a halt there. The flow follows the depth contours in cyclonic motion, and the bottom water leaves the basin on the eastern side toward s the Indian Ocean. Antarctic Bottom Water enters the eastern basins north of the Walvis Ridge near the equator by passing the Romanche Fracture Zone. As a result, potential temperature increases slowly both northward and southward from the equator in the eastern basins.

The effect of bottom topography on AABW

The effect of bottom topography on AABW

Open Ocean Sinking 1) A background cyclone gyre circulation in response to winds raise

Open Ocean Sinking 1) A background cyclone gyre circulation in response to winds raise a dome of isotherm (scale~100 km) 2) Density increase in the upper ocean due to surface cooling to form the preconditioning pool 3) Mixed layer penetration into the intermediate water dome 4) Narrow plumes with width on the order of 1 km develop, with downward speed as high as 10 cm/s 5) Vertical homogeneous fluid forms 6) Horizontal spreading of the deep water

The Sources of the North Atlantic Deep Water The next densest water is the

The Sources of the North Atlantic Deep Water The next densest water is the North Atlantic Deep Water (NADW, Temperature 2. 5 o. C, salinity 35. 03). NADW fills the depth range between 1000 m and 4000 m. In vertical sections, it is seen as a layer of relatively high salinity (>34. 9) and oxygen (above 5. 5 ml/L) extending southward from the Labrador Sea to the Antarctic Divergence. More detailed inspection reveals two oxygen maxima within the NADW in the subtropics, at 2000 -3000 m and 3500 -4000 m depth, indicating the existence of two distinct Deep Water varieties. In fact, there is also a third branch. The three branches are called as the lower, middle, and higher NADW, which show slight density differences and remain vertically layered along their southward paths.

 Antarctic Bottom Water Note the minimum in σθ, which seems to imply a

Antarctic Bottom Water Note the minimum in σθ, which seems to imply a vertical instability. However, it is because σθ (with θ relative to surface) is not adequate. In fact, using σ4 (with potential temperature with relative to 4000 meters) gets stable stratification. Antarctic Intermediate Water North Atlantic Deep Water A Cross Section along the Western Atlantic Ocean

Major Parts of the North Atlantic Deep Water are formed in the Greenland Norwegian

Major Parts of the North Atlantic Deep Water are formed in the Greenland Norwegian Seas as well as the Labrador Sea.

Greenland Sea and Norwegian Sea: The lower NADW The NADW is mainly formed in

Greenland Sea and Norwegian Sea: The lower NADW The NADW is mainly formed in the Greenland Sea and the Norwegian Sea (80%). A submarine ridge extending from Greenland to Scotland limits the water exchange between the North Atlantic Ocean and the Norwegian Sea. In the Greenland Sea, relatively light incoming water from the North Atlantic becomes denser by strong local winter cooling and sinks (the open ocean process, different from the shelf water in the Antarctic). The sinking is associated with the passage of storm systems, each event lasting less than a week. The Greenland Sea Deep Water is combined with the waters from the Arctic shelf region to form the Arctic Bottom Water. The Norwegian Sea is the mixing basin where Arctic Bottom Water obtain its final characteristics (potential temperature is close to -0. 95 o. C and Salinity 34. 9). The dense Arctic Bottom Water flows into the North Atlantic over the ridge connecting Greenland British isles.

The Faroe Bank Channel is about 800 m, outflow roughly 1 x 106 m

The Faroe Bank Channel is about 800 m, outflow roughly 1 x 106 m 3/s (1 Sv). The second channel passes over the ridge between the Faroe Islands and Iceland (sill depth 300 -400 m, transport 1 Sv). The combined Iceland. Scotland overflow, after leaving the ridge is about 5 Sv (3 Sv is entrained Atlantic water). This overflow continues southward against the eastern side of the Mid-Atlantic Ridge, and passes through the Gibbs Fracture Zone near 53 o. N into the Labrador Basin. Its westward transport is still 5 x 106 m 3/s (little direct flow into low latitudes). This current then flows northward in the eastern Labrador basin, and, south of Greenland, joins the third flow from the Denmark Strait (about 600 m).

The total transport is 10 x 106 m 3/s for the full flow south

The total transport is 10 x 106 m 3/s for the full flow south of Greenland, thereby indicating a contribution of 5 x 106 m 3/s from the Denmark Strait overflow. Part of it is Atlantic water entrained by the Denmark Strait overflow as it descends the Greenland continental slope. Even though the overflows on either side of Iceland originate from the same Norwegian Sea water, the Denmark Strait overflow is distinctly colder and fresher (θ=0. 0 -0. 2 o. C, S=34. 88 -34. 93) than Iceland-Scotland overflow (θ=1. 8 -3 o. C, S=34. 98 -35. 03), mainly because the upper kilometer Atlantic water entrained in the east is warmer and more saline. The overflow is highly variable. Measurements show that overflow is coming in bursts 1 -2 day long, with speeds up to 140 cm/s, separated by 1 to several days. It probably reflects the fact the overflow is generated by cyclonic winds from intense storm systems that lift up the bottom water by a hundred meters or so behind the sill. The lower NADW has its origin in the Greenland-Iceland-Scotland overflow region, which indicates that some Deep Water is formed before the Arctic Bottom Water reaches the Labrador Sea through mixing of the overflow water with the surrounding waters. East of the Mid-Atlantic Ridge, this is the only mechanism for the formation of Deep Water and the lower NADW is particularly prominent in the eastern basins. Therefore, it is also called as the eastern NADW.

Labrador Sea: Middle NADW For a long time, the origin of the NADW was

Labrador Sea: Middle NADW For a long time, the origin of the NADW was thought to be in the Labrador and Irminger Seas off the southern tip of the Greenland where winter cooling of relatively saline water was considered to cause it to sink to considerable depths and then spread southward. Now it is generally recognized that the NADW is mainly produced in the Greenland Norwegian Seas. However, sinking in the Labrador Sea is still a major source of the formation of NADW. In the region south of the southern tip of Greenland, the water properties in late winter are almost uniform from the surface to near bottom. The explanation for this situation was that the deep water was actually forming at the time. This Labrador Sea Water is the product of deep convection during the winter months. However, the deep convection is not an annual event. Estimates are that they occur in 6 out of 10 years. Moreover, no “event” of large-scale convective overturn was observed yet. The processes causing the convection in this region are not clear, probably through small space and time scales. The middle (or western) NADW can be traced back to the surface near 55 o. N, which reflects the fact that it is formed by mixing the Arctic Bottom Water with the deep water produced in the Labrador Sea. The transport is estimated to be 3. 5 x 106 m 3/s.

From this column of the Labrador Sea, a tongue of 3 o to 3.

From this column of the Labrador Sea, a tongue of 3 o to 3. 25 o. C water extended south at depths of 2000 to 2500 m. This water had a high oxygen content; even at 2000 m depth it was still 90% of that at the surface.

Mediterranean Sea: Upper NADW The rate of outflow through the Straits of Gilbratar is

Mediterranean Sea: Upper NADW The rate of outflow through the Straits of Gilbratar is estimated from the overall salt budget for the Mediterranean Sea and current measurements; both agree on a mean of about 1 x 106 m 3/s. The Mediterranean Water Mass (MW) leaves the Strait of Gilbratar with T=13. 5 o. C and S=37. 8. Within 250 km its T & S are reduced by mixing to 11 o-12 o. C and 36 -26. 2. By the time the outflow current completes its descent and departs from the continental slope, its volume transport has increased, by entrainment of Atlantic water, to roughly 10 x 106 m 3/s.

The Smax marking the core of the Mediterranean outflow (named as the Upper NADW

The Smax marking the core of the Mediterranean outflow (named as the Upper NADW by Wüst) is found at about 1200 m in the southeastern North Atlantic. (Relatively high salinities can be detected at least as deep as 3000 m. ) The MW spreads isopycnally across the ocean, mixing gradually with the Deep Water below. Relative to the other NADW it has higher T & S maximized at 1000 m depth near the upper limit of the NADW. MW first flows northward under the influence of the Coriolis force and mixes into the subtropical gyre circulation, eventually spreading southward and westward. The T-S core sinks as the water spreads.

Eddies in the Mediterranean Water The spreading of the Mediterranean Water is not smooth.

Eddies in the Mediterranean Water The spreading of the Mediterranean Water is not smooth. Instead, it is injected into the NADW in the form of subsurface eddies containing a high proportion of Mediterranean Water in its core, referred to as “meddies”. Meddies limit local mixing and keep the core together over large distance, as far as in the Sargasso Sea. The salinity and temperature anomalies found in the long-term average distribution have to be seen as the result of a process in which many such meddies travel through the upper NADW range at any particular moment in time, slowly releasing their load of extra salt and heat into the surrounding Deep Water.

The Track of the North Atlantic Deep Water Both are more saline at their

The Track of the North Atlantic Deep Water Both are more saline at their sources than the ABW, and their salinities are increased somewhat in mid-latitudes of the North Atlantic through mixing with the outflow from the Mediterranean Sea. Although the lower and middle NADW are made dense by cooling, their temperatures are not reduced to freezing point before sinking, but remain high enough that, despite more saline, they are less dense than the Antarctic Bottom Water, and therefore override it. This high-salinity water spreads throughout the South Atlantic, is carried eastward around Antarctica in the Circumpolar Current, and its elevated salinities can be followed into low latitudes of the South Indian and South Pacific Oceans.

Other Major Water Masses Antarctic Circumpolar Water (CPW) Below the surface and extending to

Other Major Water Masses Antarctic Circumpolar Water (CPW) Below the surface and extending to the bottom at depths to 4000 m. Maximum temperature is 1. 5 -2. 5 o. C at 300 -600 m and then decreases to between 0 o-0. 5 o. C near the bottom. Salinity 34. 7 psu. Carried around by Antarctic Circumpolar Current (ACC) and found all around the continent at about the same depth (CPW is probably a mixture of Antarctic Bottom Water and the North Atlantic Deep Water). Antarctic Intermediate Water (AIW) Formed by the sinking of the Antarctic surface water, mostly from convection east of southern Chile and west of southern Argentina. AIW is quite homogeneous (T=2 o-3 o. C, S=34. 2) and has density σt=27. 4 higher than the water further north. It spreads into all oceans with the Circumpolar Current and continues northward below the surface. It has a thickness of 500 m and forms a tongue of relatively low salinity water with core at 800 to 1000 m at 40 o. S. AIW mixes with more saline water from above and below during northward movement. (Intermediate Water in the northern hemisphere may be formed by convection or subduction. )

Sub-Antarctic Circulation Pattern

Sub-Antarctic Circulation Pattern

A series of TS-diagrams from the Atlantic Ocean, from 40°S to 40°N, showing the

A series of TS-diagrams from the Atlantic Ocean, from 40°S to 40°N, showing the erosion of the salinity minimum associated with Antarctic Intermediate Water along the path of the water mass. The red line traces the salinity minimum produced by the relatively fresh Antarctic Intermediate Water. Color indicates oxygen content. Note how the oxygen content associated with the salinity minimum decreases from south to north, indicating the aging of the Antarctic Intermediate Water. (based on Ocean. Atlas of J. Osborne, J. Swift and E. P. Flinchem) From M. Tomczak: Introduction to Physical Oceanography http: //gaea. es. flinders. edu. au/~mattom/Intro. Oc/lecture 07. html

Antarctic Surface Water (ASW), Circumpolar Deep Water (CDW), Eurasian Basin Deep Water (EBDW), Labrador

Antarctic Surface Water (ASW), Circumpolar Deep Water (CDW), Eurasian Basin Deep Water (EBDW), Labrador Sea Water (LSW), Nordic Seas Overflow Water (NSOW)

Major Deep Waters

Major Deep Waters

Sketch of the water mass distribution in the world ocean AABW: Antarctic Bottom Water,

Sketch of the water mass distribution in the world ocean AABW: Antarctic Bottom Water, CPW: Circumpolar Water, NADW: North Atlantic Deep Water, PDW: Pacific Deep Water, AAIW: Antarctic Intermediate Water, AIW: Arctic Intermediate Water, Med. W: Mediterranean Water, Red. SW: Red Sea Water, gold: Central Water, brown: surface water. From M. Tomczak: Introduction to Physical Oceanography http: //gaea. es. flinders. edu. au/~mattom/Intro. Oc/lecture 07. html

Pacific Deep Water Uniform property in 2000 -3000 m Old water type (about 1000

Pacific Deep Water Uniform property in 2000 -3000 m Old water type (about 1000 years) A mixture of AABS and AAIW No deep water formation in the North Pacific

TS-diagrams of the Indian, Pacific and Atlantic Oceans TS properties of the major water

TS-diagrams of the Indian, Pacific and Atlantic Oceans TS properties of the major water masses. Colour indicates salinity; the information is the same as given on the horizontal axis but helps to compare three oceans (see the interpretation in the next slide). From M. Tomczak: Introduction to Physical Oceanography http: //gaea. es. flinders. edu. au/~mattom/Intro. Oc/lecture 07. html

The interpretation to the TS-diagrams • All TS-diagrams "fan out" from a point below

The interpretation to the TS-diagrams • All TS-diagrams "fan out" from a point below 0°C and a salinity of about 35. 6 (white). This is Antarctic Bottom Water, found in all oceans. • At higher temperatures the shape of the TSdiagrams (ie the TS-properties of the ocean) depend on the ocean region. In the Subantarctic zone (SAA) (south of 45°S) temperatures remain low and salinities decrease. • The same is seen in the Subartic zone (north of 45°N). • The influence of high salinity inflow from the Mediterranean Sea is seen by higher salinities near 8 - 10°C in the North Atlantic Ocean. • The influence of high salinity outflow from the Red Sea raises the salinities in the North Indian Ocean.

Abyssal Circulation Deep ocean is below the permanent thermocline (at 1~km) with θ~2 o-4

Abyssal Circulation Deep ocean is below the permanent thermocline (at 1~km) with θ~2 o-4 o. C below 2 km (0 o-2 o. C at 4 km typically). Waters of such low temperatures can only be formed by cooling in Polar Regions. In both Polar Regions the zones of sinking are quite narrow, and the convective sinking itself is difficult to observe directly. The sinking instead is largely inferred from the distribution of ocean properties such as temperature, salinity, and especially oxygen. The deep water from the major sources is between 10 -20 Sv, with a considerable fraction estimated to be water entrained during the sinking as well as entrained laterally as the source water into the deep ocean. The presence at other latitudes of such cold water implies a large scale deep circulation, the abyssal circulation, which carries the cold water formed in Polar Regions to fill the rest of the deep ocean basins. The water must eventually rise to the surface and, heated to the observed surface temperatures, must then flow poleward to replace the water which has sunk to the bottom, forming an endless global cell of motion.

Great Ocean Conveyer Belt (Broecker 1991) This paradigm emphasizes the role of North Atlantic

Great Ocean Conveyer Belt (Broecker 1991) This paradigm emphasizes the role of North Atlantic Deep Water cell as well as the Indonesian through flow in the global scale of the overturning, but completely misses the Antarctic Bottom Water cell.

Deep Western Boundary Current

Deep Western Boundary Current

Dynamical Constraint of the Deep Circulation A conceptual framework of the abyssal circulation was

Dynamical Constraint of the Deep Circulation A conceptual framework of the abyssal circulation was developed by Stommel (1958) and Stommel and Arons (1960 a, b), which explains dynamically the horizontal structure of the vertically averaged abyssal circulation, especially its western boundary currents. The theory is actually a straightforward application of the Sverdrup theory. Assumptions: (1) In compensation for the known sinking of the near surface water in small regions, there is a general slow upward movement of deep water over most of the rest of the ocean. (2) The mean horizontal deep flow in the open ocean is strictly geostrophic, in the sense that the streamlines parallel isobars, and their speeds inversely proportional to their spacing and to the sine of the latitude.

From assumption (1) The slow global upward advection of cold water from abyss balances

From assumption (1) The slow global upward advection of cold water from abyss balances the downward diffusion of heat from the upper layer at the bottom of the main thermocline: or where is the upwelling velocity of the abyssal water at the base of thermocline is the downward heat flux. This leads to an estimate of vertical velocity at the base of thermocline as: where d is the vertical scale of variations of the heat flux. On the other hand, since the overall area of the world oceans is toughly to obtain a flux of 20 Sv from the abyss to thermocline to replace the waters sinking into the abyss in the Polar Regions, an independent estimate of the upwelling is For a vertical scale d of the order of 1 km, this would suggest κ ~0. 66 cm 2/s. This is larger than direct measurement of 0. 11 cm 2/s (Ledwell et al. , 1993). (The estimate of transport (20 Sv) may be too high) ,

From assumption (2) The geostrophic vorticity balance within the deep ocean then is Integrating

From assumption (2) The geostrophic vorticity balance within the deep ocean then is Integrating the vorticity equation vertically from the ocean bottom to the “top” of the deep water, we have where is the total meridional transport of the abyssal circulation. w. B is the vertical velocity at the bottom. If we take the floor of the ocean to be level in the large scale mean, w. B is zero. Then we have the “Sverdrup” relation in the seep ocean Since w∞ is everywhere positive except for the very limited areas in the polar regions, V>0 in the northern hemisphere and V<0 in the southern hemisphere. The interior transport is toward the sources. A western boundary is required to close the mass balance.

Stommel, Arons and Faller Experiment

Stommel, Arons and Faller Experiment

Stommel-Arons Theory: Abyssal Flow on a Sphere in spherical coordinates, consider a latitudinal bounded

Stommel-Arons Theory: Abyssal Flow on a Sphere in spherical coordinates, consider a latitudinal bounded two-layer ocean. Local sinking S 0 is specified at pole from the upper to lower layer. The return flow has a vertical velocity wo, specified over the area of the ocean basin at the top of the abyssal layer. For the layer representing the abyss, the motion is geostrophic. , where R is radius of the earth and λ and φ are longitude and latitude. The continuity equator is .

Combining the geostrophic and continuity equations, we derive the Sverdrup vorticity equation with and

Combining the geostrophic and continuity equations, we derive the Sverdrup vorticity equation with and Integrating vertically over the depth H yields: or (1) v is always poleward as long as wo is positive. (2) v must vanish at the equator. (3) Cross equatorial flow must be in regions where the Sverdrup balance is broken (i. e. , the western boundary). From , we have and Assume wo is independent of horizontal position (constant), we have

Consider an ocean basin from the equator to the pole. For an arbitrary latitude

Consider an ocean basin from the equator to the pole. For an arbitrary latitude φ, the sum of the interior flux (TI) and the western boundary current’s transport (Tw) through an arbitrary latitude is balanced by the source’s contribution So and flux out of the abyss through the interface to the north of φ (Tout). i. e. , Since . If the mass is balanced over the northern hemisphere In this case,

Discussion of the results: • The western boundary layer transport is southward for all

Discussion of the results: • The western boundary layer transport is southward for all φ≥ 0. • The boundary transport is exactly twice the source strength at the pole since the boundary current must carry southward the fluid issuing from the source as well as all of the impinging interior flow. • The interior flow comprises a basinwide recirculation and has a northward mass flux at the apex equal to the source strength. • Half the mass flux of the boundary layer comes from the source and half from the recirculating interior flow. • The interior is fed from the western boundary current as the current flows southward, which falls to zero as it approaches the equator. During the southward movement, the western boundary current loses a total mass flux equal to 2 So. • One half of this flow is recirculated in the interior and ends up at the apex to return through the western boundary current. • The other half is lost through the interface to thermocline and is directly replaced in the western boundary layer at the apex by the source.

 Schematic Abyssal Circulation

Schematic Abyssal Circulation
