Thermodynamics of Error and Error Correction in Brownian

Thermodynamics of Error and Error Correction in Brownian Tape Copying C. H. Bennett and M. Donkor IBM Research Yorktown 17 April 2008

For any given hardware environment, e. g. CMOS, DNA polymerase, there will be some tradeoff among dissipation, error, and computation rate. More complicated hardware might reduce the error, and/or increase the amount of computation done per unit energy dissipated. This tradeoff is largely unexplored, except by chemical engineers.

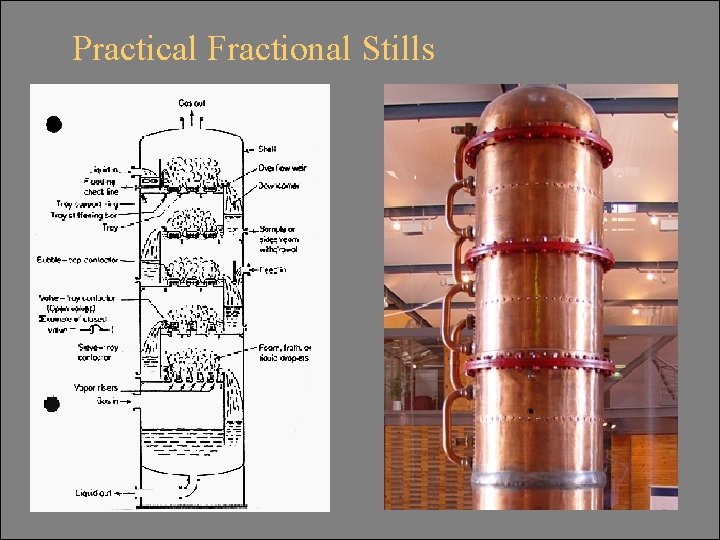

Practical Fractional Stills

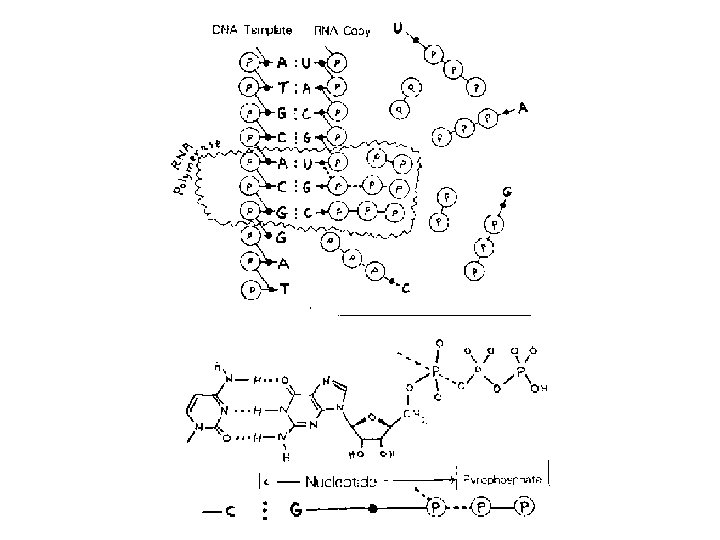

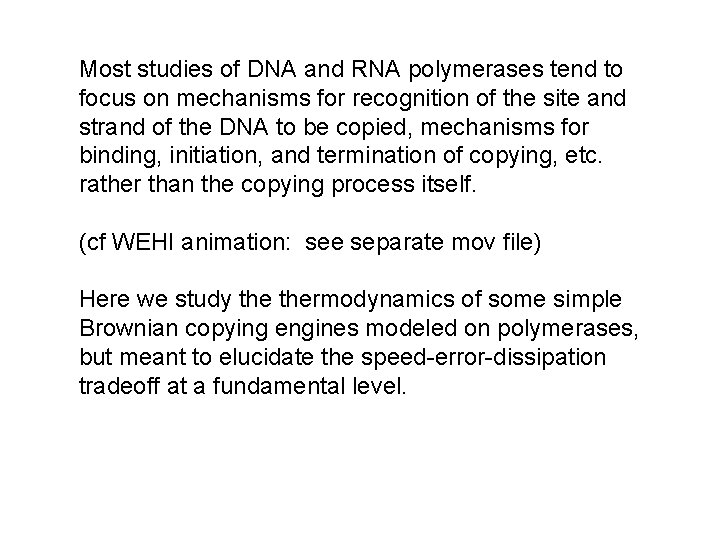

Most studies of DNA and RNA polymerases tend to focus on mechanisms for recognition of the site and strand of the DNA to be copied, mechanisms for binding, initiation, and termination of copying, etc. rather than the copying process itself. (cf WEHI animation: see separate mov file) Here we study thermodynamics of some simple Brownian copying engines modeled on polymerases, but meant to elucidate the speed-error-dissipation tradeoff at a fundamental level.

The chaotic world of Brownian motion, illustrated by a molecular dynamics movie of a synthetic lipid bilayer (middle) in water (left and right) dilauryl phosphatidyl ethanolamine in water http: //www. pc. chemie. tu-darmstadt. de/research/molcad/movie. shtml

RNA polymerase reaction viewed as a one-dimensional driven random walk activation free energy driving force or as thermal diffusion on a washboard potential

Tilting the washboard the other way (e. g. by increasing the PP concentration) makes the driving force negative, resulting in reversible erasure or un-copying of an already synthesized strand of RNA.

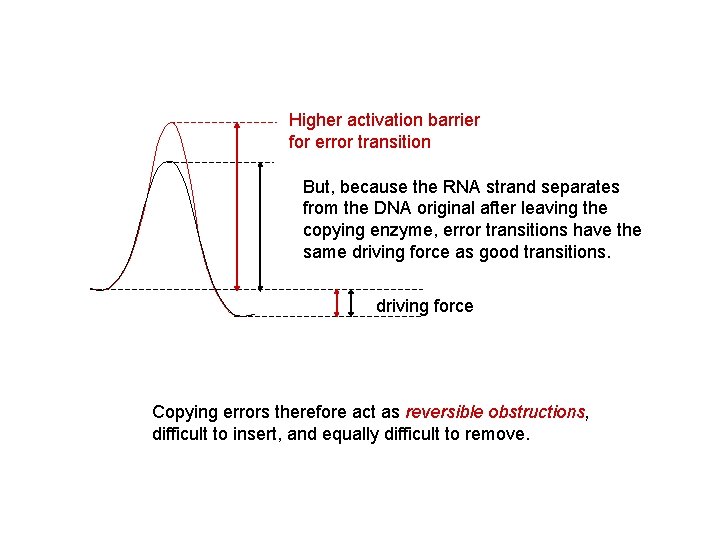

Higher activation barrier for error transition But, because the RNA strand separates from the DNA original after leaving the copying enzyme, error transitions have the same driving force as good transitions. driving force Copying errors therefore act as reversible obstructions, difficult to insert, and equally difficult to remove.

Copying with errors may be viewed as a random walk on a binary tree… CCC CC C CE CEC CEE ECC E EC EE Random walk parameterized by: p = forward step probability, and s = selection factor against errors ECE EEC Activation barrier difference d =k. T ln (1 -s)/s EEE Here C denotes a correct base (in a 2 -letter alphabet for simplicity) and E an error base. Error transitions (those that add or remove errors) are less frequent. Forward driving force e = k. T ln p/(1 -p)

Steady State Solution: errors are uniformly and randomly distributed in the copy tape with some frequency h. Error rate h and the drift velocity v are calculated as a function of random walk parameters p and s. Solve self-consistently for drift velocity v and rates of error incorporation and removal, so the net rate of incorporation equals the drift velocity times the steady state error frequency h. make unmake error v h = ps – (1–p)s h equation step ----- step back----v =forward p – (1–p) ((1–s)(1–h) + sh ) For any s>0, Steady state has v = 0 and h= 1/2 when p = 1/3 1/2 net error incorporation rate drift velocity equation v and h as functions of p with s=0. 1 drift velocity v error rate h +0. 1 forward step probability p

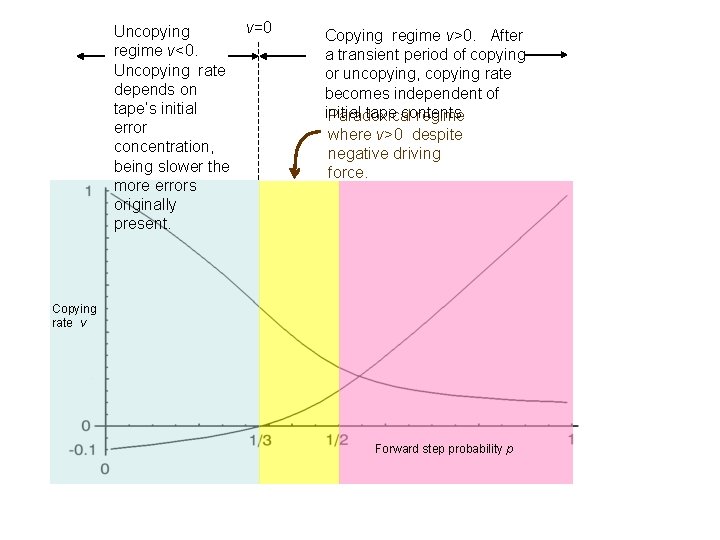

v=0 Uncopying regime v<0. Uncopying rate depends on tape’s initial error concentration, being slower the more errors originally present. Copying regime v>0. After a transient period of copying or uncopying, copying rate becomes independent of initial tape contents Paradoxical regime where v>0 despite negative driving force. Copying rate v Forward step probability p

Typical random walk trajectories showing how errors impede uncopying Without any possibility of errors: s=0 Forward step probability p=1/3 Trajectory drifts leftward Time With errors: s=0. 1 Step-right probability p=1/3 Leftward drift gets stalled by errors (red)

When intrinsic error rate s is low but nonzero, the random walk trajectory distribution is skewed, with a long tail on the left. Time For p between 1/3 and 1/2, the drift is initially negative (uncopying), but changes to positive after enough errors accumulate. 1000 walks of 4000 steps each s = 0. 01 p = 0. 40 First 720 steps All 4000 steps, shrunk vertically

Skewness and initial leftward drift disappear if walks are initialized with an appropriate concentration of errors. Left comet is for walks with no initial errors. Right comet has initial error concentration 0. 34, from steady state model s=0. 01, p=0. 4 N=1000, L=4000 as before

Dissipation (entropy production per step) is a sum of 2 terms: • External entropy due to work done by the external driving force Dext = v ln (p/(1 -p)) / |v| Dext can be negative if v and ln(p/(1 -p)) have opposite sign. • Internal Shannon entropy of incorporated errors (has same sign as v)) Dint = v/|v| (-h ln(h) -(1 -h)ln(1 -h)) Dissipation per step = Dext + Dint is nonnegative.

dissipation per step s 1 copying speed v dissipation per step s 10 -2 incorporated error rate h 10 -4 uncopying speed -v 10 -6 -2 copying speed v -1 -ln 2 h 0 = 10 -4 1 0 driving force e = ln(p/(1 -p)) 2

Proofreading in DNA Replication Polymerase activity (1) tries to insert correct base, but occasionally (2) makes an error. Exonuclease activity (3) tries to remove errors, but occasionally (4) removes correct bases. When both reactions are driven hard forward the error rate is the product of their individual error rates.

Discrimination s f (slower and/or more dissipative) Dissipation mainly in external driving reactions h Dissipation mainly in incorporated errors. At high error rate, this pushes process forward even against uphill external driving force

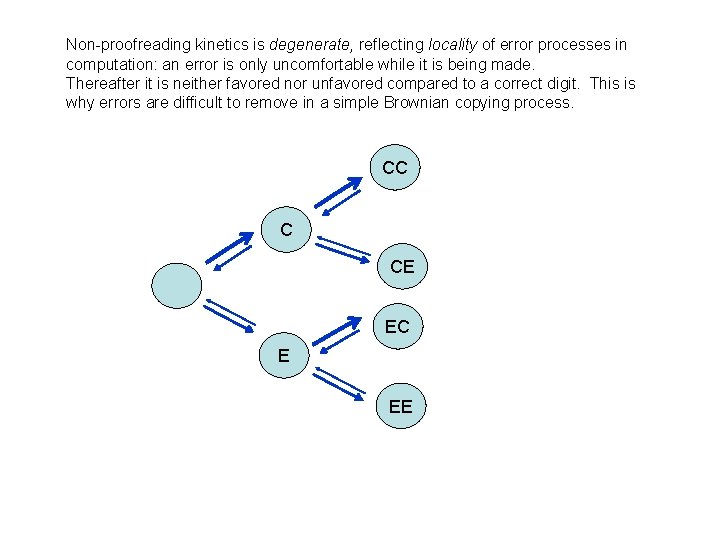

Non-proofreading kinetics is degenerate, reflecting locality of error processes in computation: an error is only uncomfortable while it is being made. Thereafter it is neither favored nor unfavored compared to a correct digit. This is why errors are difficult to remove in a simple Brownian copying process. CC C CE EC E EE

CC Exonuclease Polymerase C CE EC E EE But energetically there is a difference. An energetically nondegenerate scheme could maintain an error probability < ½ without dissipation at zero drift, but the proofreading scheme requires continuing dissipation, because of the cycling action of polymerase and exonuclease undoing each others’ work. Proofreading scheme by contrast behaves kinetically like an energetically nondegenerate case of simple Brownian copying, in which errors are permanently uncomfortable, being hard to make but easy to unmake, as if they had an intrinsic energy cost even after incorporation. (This would be the case if the original and copy strands stuck together after copying. )

One stage proofreading scheme can reduce the error to as low as s 2, in the limit of high dissipation. A 2 -stage generalization might intersperse a provisional state (yellow) between each stage of copying. A multi-stage generalization would intersperse a chain of N-1 provisional states, like a fractional still or isotope enrichment cascade. We are studying the Speed/Error/Dissipation tradeoff for Brownian copying by efficient schemes of this sort. CC CC’ C CE’ C’ CE EC E’ EC’ E Another open problem is how to generalize this analysis to more general kinds of computation than simple tape copying. EE’ EE
